Disorders of structural proteins

Disorders of structural proteins

Fransiska Malfait

Anne De Paepe


Defects of dystrophin

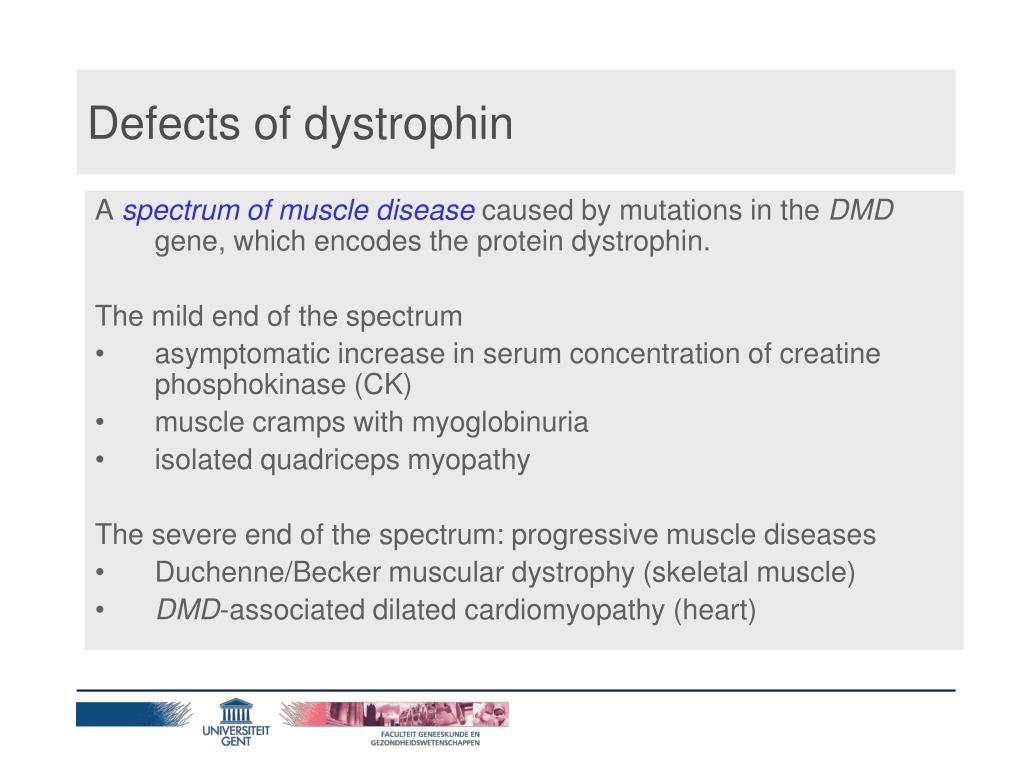

Defects of dystrophin

  • A spectrum of muscle disease caused by mutations in the DMD gene, which encodes the protein dystrophin.

  • The mild end of the spectrum

  • asymptomatic increase in serum concentration of creatine phosphokinase (CK)

  • muscle cramps with myoglobinuria

  • isolated quadriceps myopathy

  • The severe end of the spectrum: progressive muscle diseases

  • Duchenne/Becker muscular dystrophy (skeletal muscle)

  • DMD-associated dilated cardiomyopathy (heart)


Duchenne muscular dystrophy dmd

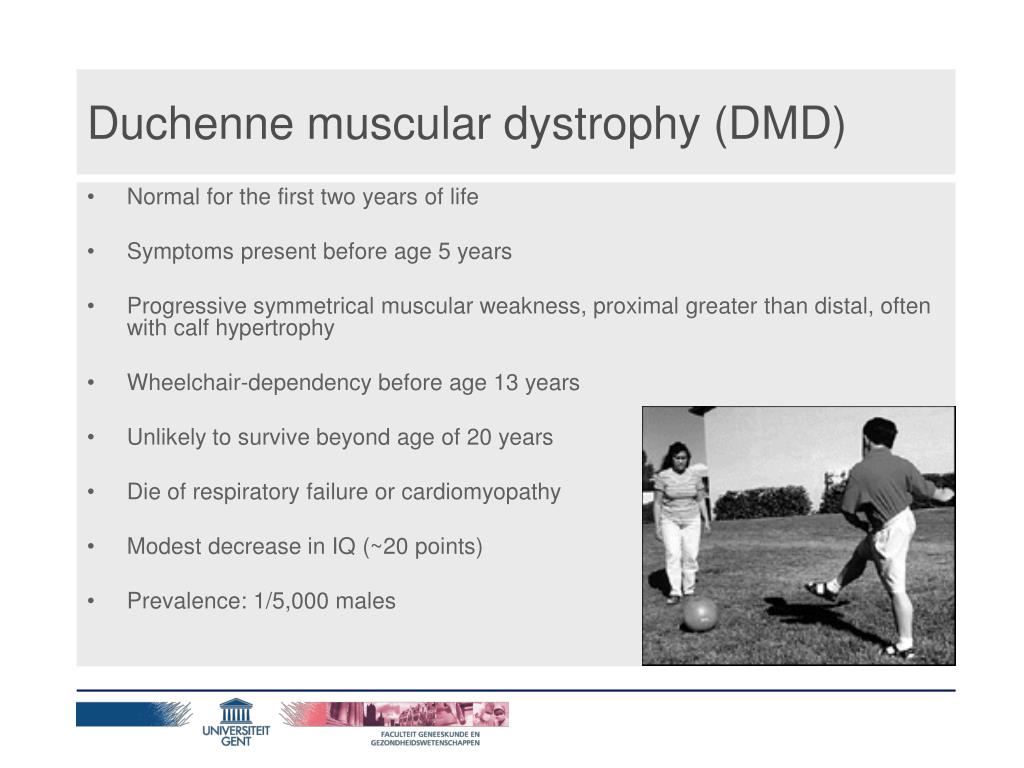

Duchenne muscular dystrophy (DMD)

  • Normal for the first two years of life

  • Symptoms present before age 5 years

  • Progressive symmetrical muscular weakness, proximal greater than distal, often with calf hypertrophy

  • Wheelchair-dependency before age 13 years

  • Unlikely to survive beyond age of 20 years

  • Die of respiratory failure or cardiomyopathy

  • Modest decrease in IQ (~20 points)

  • Prevalence: 1/5,000 males


Becker muscular dystrophy bmd

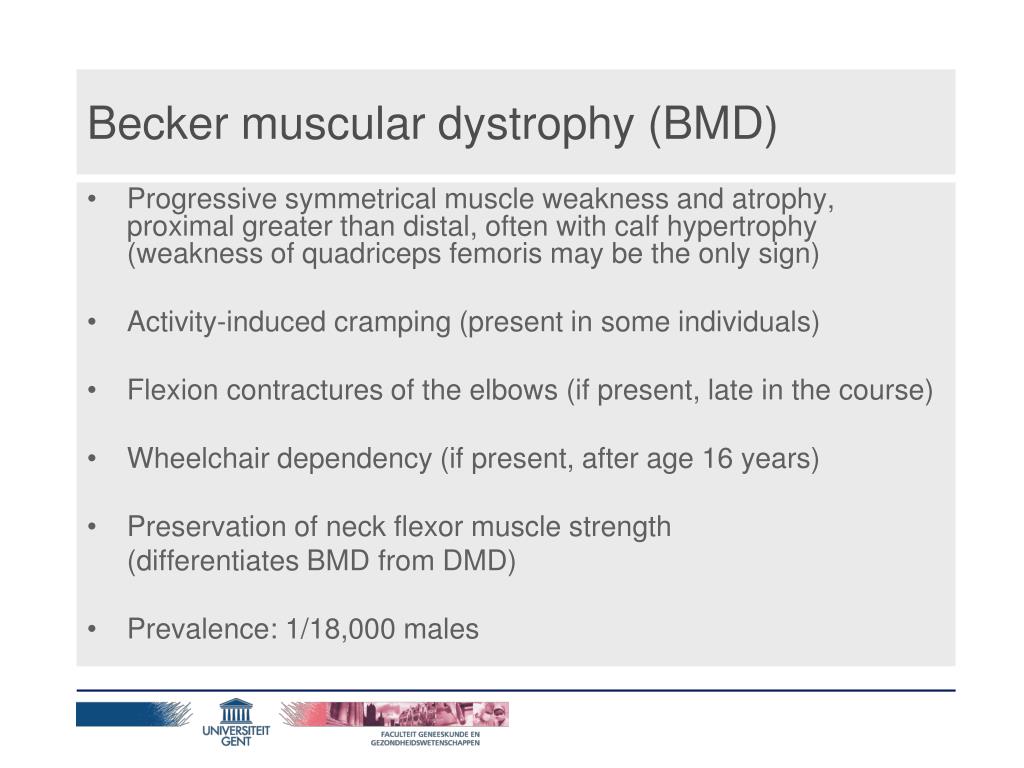

Becker muscular dystrophy (BMD)

  • Progressive symmetrical muscle weakness and atrophy, proximal greater than distal, often with calf hypertrophy (weakness of quadriceps femoris may be the only sign)

  • Activity-induced cramping (present in some individuals)

  • Flexion contractures of the elbows (if present, late in the course)

  • Wheelchair dependency (if present, after age 16 years)

  • Preservation of neck flexor muscle strength

  • (differentiates BMD from DMD)

  • Prevalence: 1/18,000 males


Dmd associated dilated cardiomyopathy

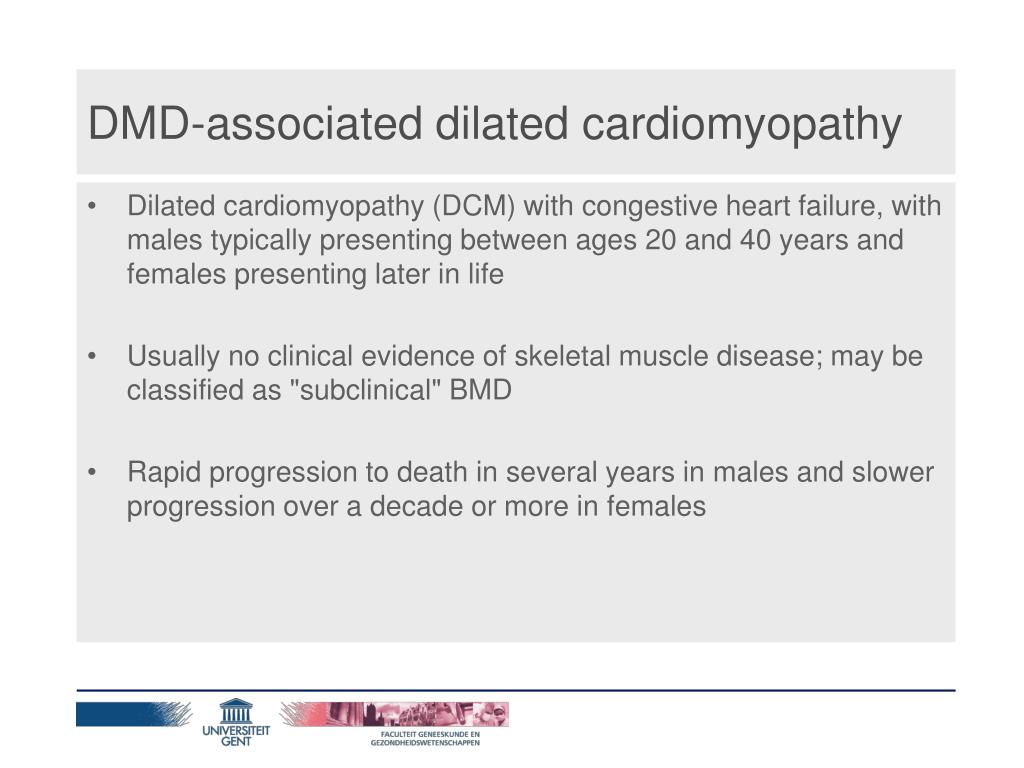

DMD-associated dilated cardiomyopathy

  • Dilated cardiomyopathy (DCM) with congestive heart failure, with males typically presenting between ages 20 and 40 years and females presenting later in life

  • Usually no clinical evidence of skeletal muscle disease; may be classified as "subclinical" BMD

  • Rapid progression to death in several years in males and slower progression over a decade or more in females


Molecular genetics inheritance

Molecular Genetics: inheritance

  • Incidence DMD:

    • 1:3300 live male births

    • Calculated mutation rate 10-4

    • Given a sperm production rate of 8x107 sperm/day: sperm with new mutation is produced every 10 seconds by normale male!


Molecular genetics inheritance1

Molecular Genetics: inheritance

  • X-linked recessive disorder (Xp21.2)

  • 1/3 of cases: new mutations

  • 2/3 have carrier mother


Molecular genetics inheritance2

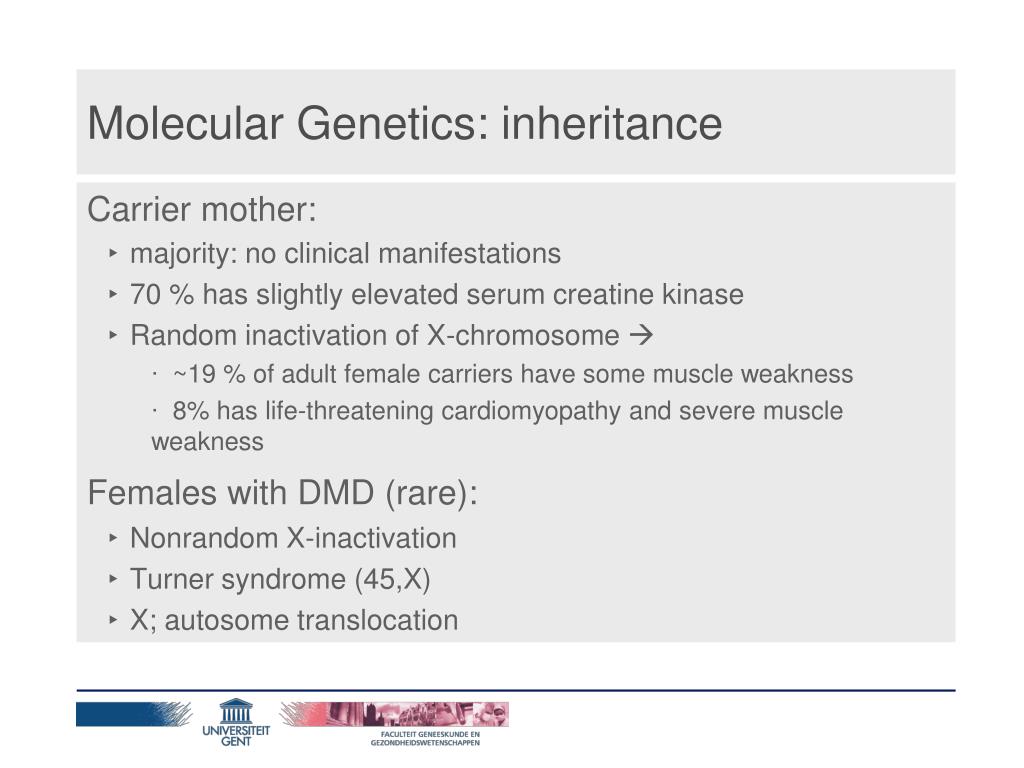

Molecular Genetics: inheritance

  • Carrier mother:

    • majority: no clinical manifestations

    • 70 % has slightly elevated serum creatine kinase

    • Random inactivation of X-chromosome 

      • ~19 % of adult female carriers have some muscle weakness

      • 8% has life-threatening cardiomyopathy and severe muscle weakness

  • Females with DMD (rare):

    • Nonrandom X-inactivation

    • Turner syndrome (45,X)

    • X; autosome translocation


Molecular genetics inheritance3

Molecular Genetics: inheritance

  • DMD

  • Lethal

  • gene is not transmitted

  • 1/3 of cases: new mutations

  • 2/3 have carrier mother

BMD

Non-lethal

gene is transmitted

high proportion of BMD cases is inherited, only 10% new mutations


Molecular genetics

Molecular Genetics

  • Gene: DMD

    • the largest known human gene (1,5% of X-chromosome)

    • 2.4 Mb of DNA

    • comprises 79 exons

    • at least four promoters

    • differential splicing  tissue-specific, developmentally regulated isoforms

  • Protein: dystrophin

    • part of a protein complex that links the cytoskeleton with membrane proteins that in turn bind with proteins in the extracellular matrix

    • expressed in skeletal and cardiac muscle, brain


Dystrophin complex major functions

Dystrophin complex:major functions

  • maintenance of muscle membrane integrity

  • correct positioning of proteins in the complex, so that they function correctly

  • ion channels and signaling molecules  participation in cell-cell and/or cell-substrate recognition


Genotype phenotype correlations

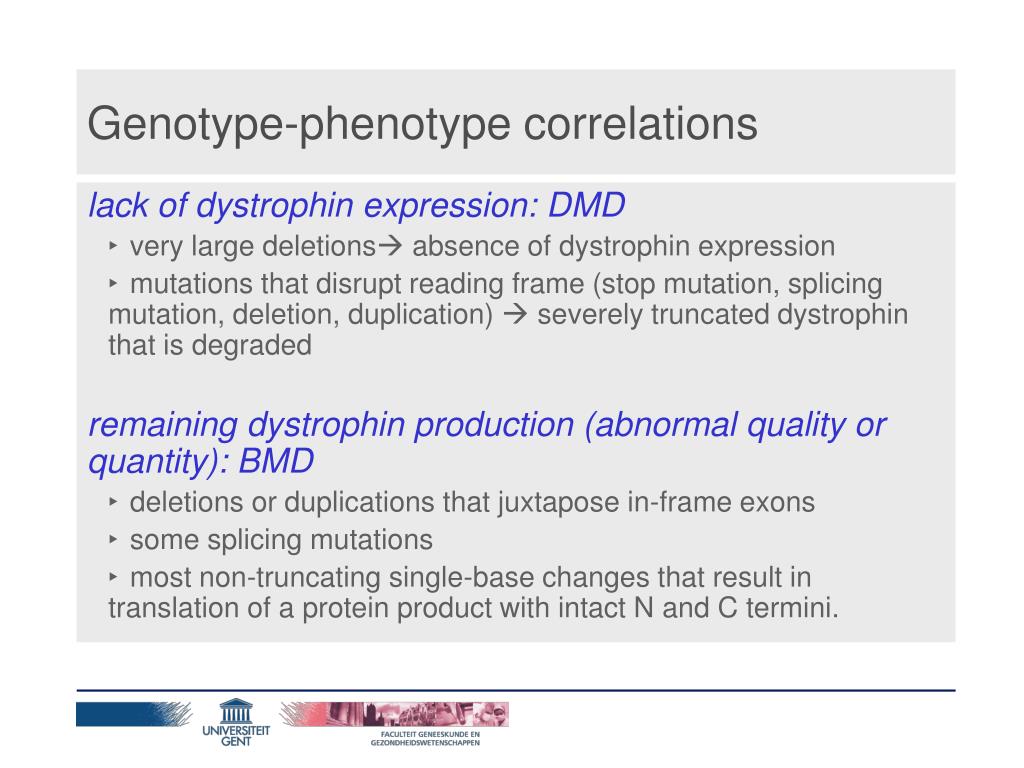

Genotype-phenotype correlations

  • lack of dystrophin expression: DMD

    • very large deletions absence of dystrophin expression

    • mutations that disrupt reading frame (stop mutation, splicing mutation, deletion, duplication)  severely truncated dystrophin that is degraded

  • remaining dystrophin production (abnormal quality or quantity): BMD

    • deletions or duplications that juxtapose in-frame exons

    • some splicing mutations

    • most non-truncating single-base changes that result in translation of a protein product with intact N and C termini.


Molecular genetics1

Molecular Genetics


Molecular genetics2

Molecular Genetics

  • Distribution of deletions: clustered in 2 regions

    • 5’ half (exon 2-20) (30%)

    • exons 44-53 (70%)


Reading frame hypothesis

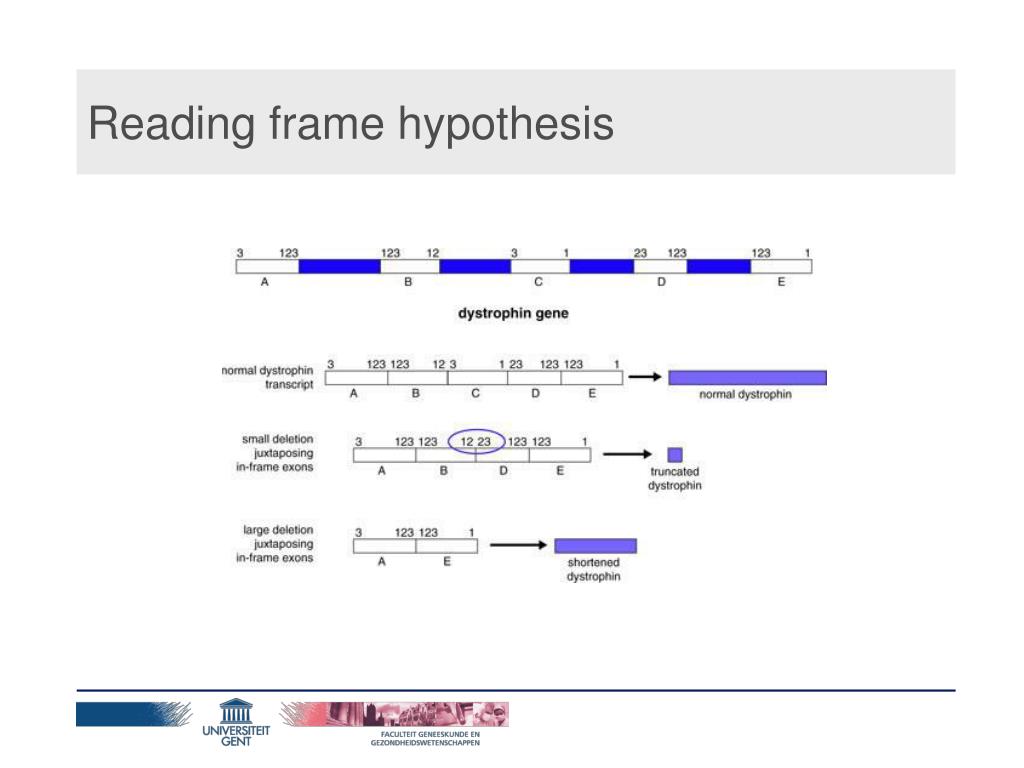

Reading frame hypothesis


Testing

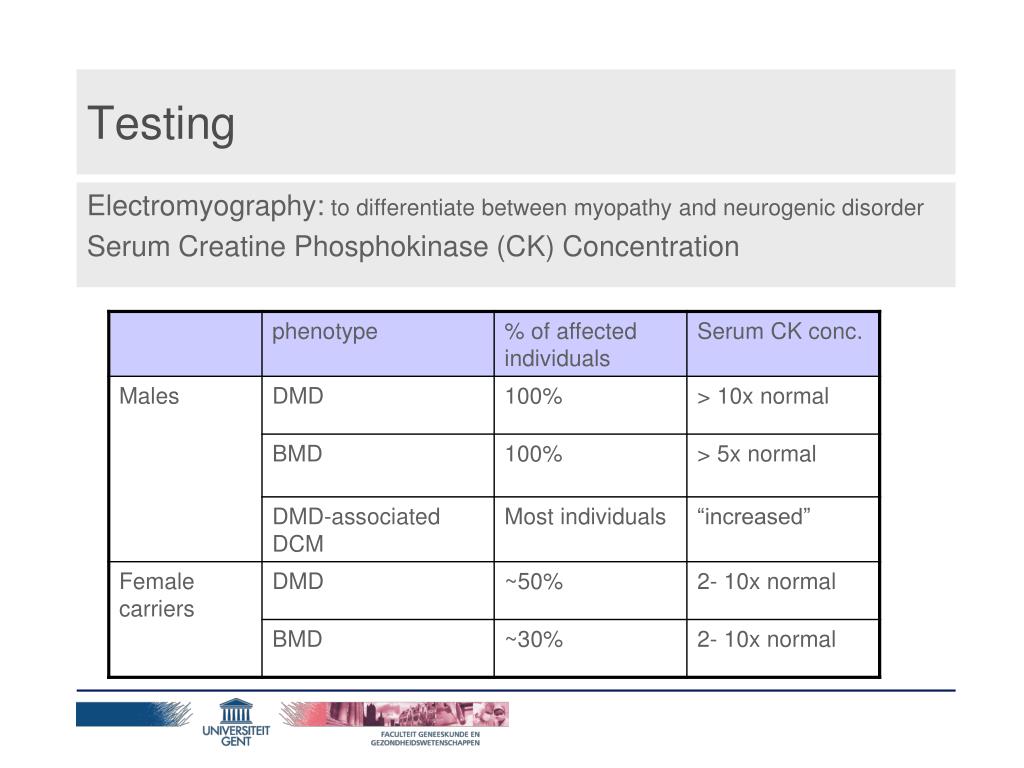

Testing

  • Electromyography:to differentiate between myopathy and neurogenic disorder

  • Serum Creatine Phosphokinase (CK) Concentration


Testing1

Western Blot and immuno-histochemistry

Testing


Immuno histochemistry

immuno-histochemistry

Localisation of dystrophin to myocyte membrane

DMD: Absence of dystrophin in myocyte membrane


Testing2

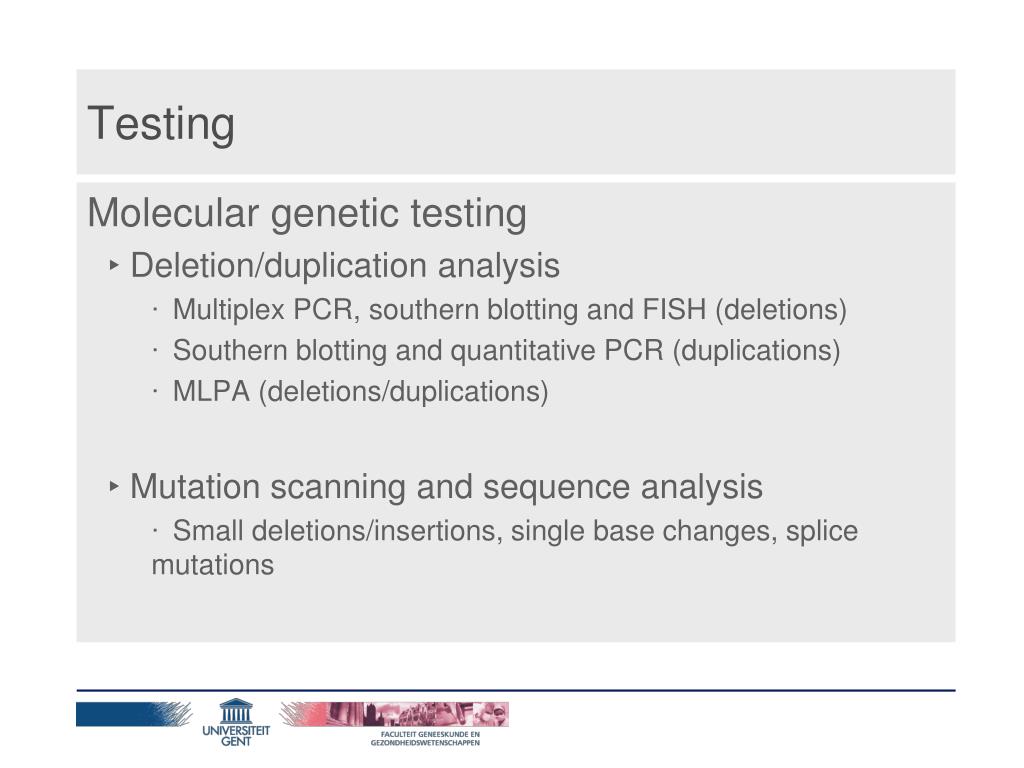

Testing

  • Molecular genetic testing

    • Deletion/duplication analysis

      • Multiplex PCR, southern blotting and FISH (deletions)

      • Southern blotting and quantitative PCR (duplications)

      • MLPA (deletions/duplications)

    • Mutation scanning and sequence analysis

      • Small deletions/insertions, single base changes, splice mutations


Multiplex pcr

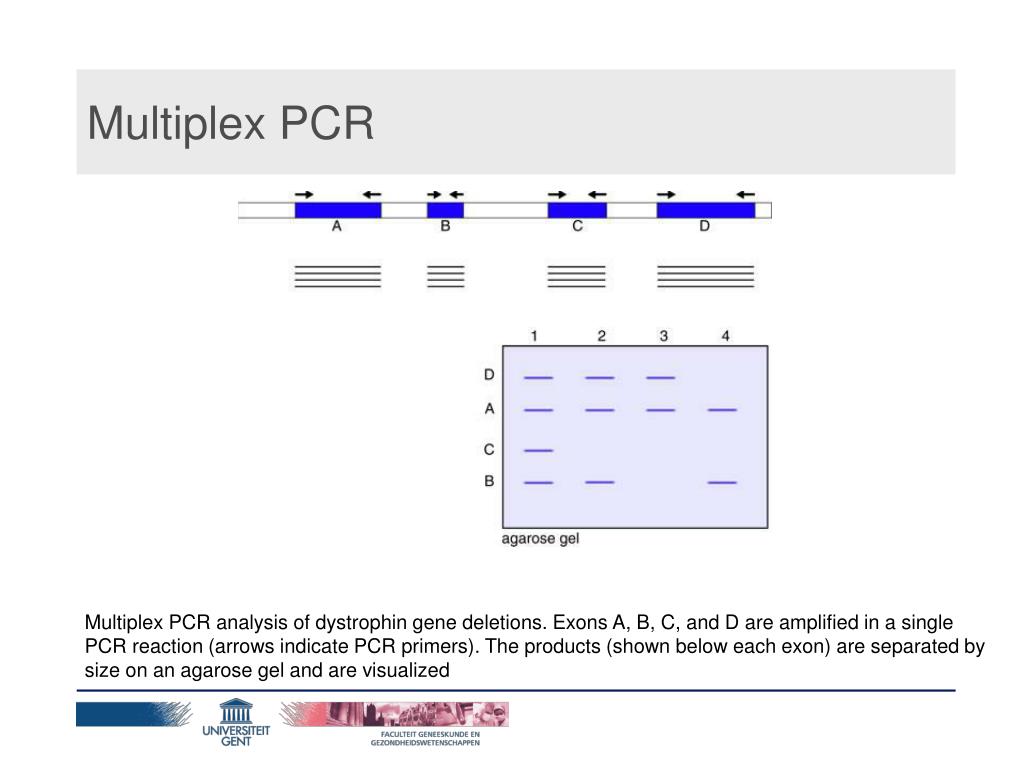

Multiplex PCR

Multiplex PCR analysis of dystrophin gene deletions. Exons A, B, C, and D are amplified in a single PCR reaction (arrows indicate PCR primers). The products (shown below each exon) are separated by size on an agarose gel and are visualized


Multiplex pcr1

Multiplex PCR

Multiplex PCR analysis of exons 51, 12, 44, and 4 of the dystrophin gene. Bands corresponding with each exon are indicated at the right. Patient sample is in lane 2, showing an exon 51 deletion. Lane 1 is a control, showing all four bands. Other lanes contain samples for other males.


Genetic counseling

Genetic counseling

  • The father of an affected male will not have the disease nor will he be a carrier of the mutation.

  • A woman with an affected son and one other affected relative in the maternal line is an obligate heterozygote.

  • A woman with more than one affected son and no other family history of a dystrophinopathy has either:

    • A germline mutation (i.e., a DMD disease-causing mutation present in each of her cells); or

    • Germline mosaicism (i.e., mosaicism for a DMD disease-causing mutation that includes her germline)


Genetic counseling1

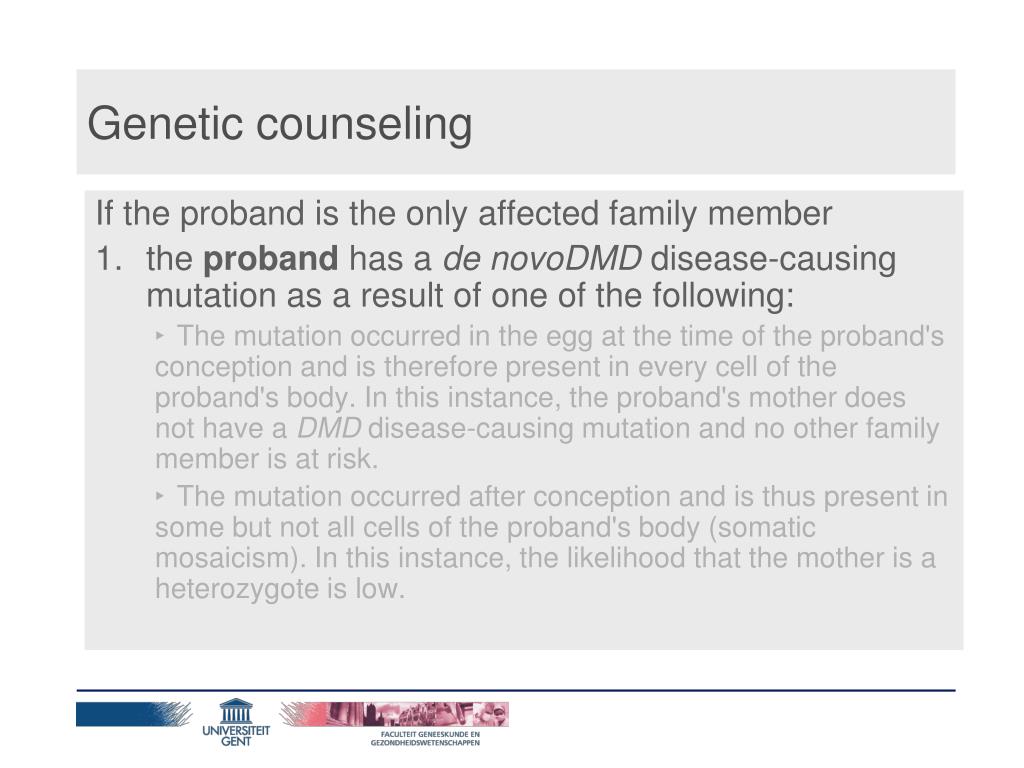

Genetic counseling

  • If the proband is the only affected family member

  • the proband has a de novoDMD disease-causing mutation as a result of one of the following:

    • The mutation occurred in the egg at the time of the proband's conception and is therefore present in every cell of the proband's body. In this instance, the proband's mother does not have a DMD disease-causing mutation and no other family member is at risk.

    • The mutation occurred after conception and is thus present in some but not all cells of the proband's body (somatic mosaicism). In this instance, the likelihood that the mother is a heterozygote is low.


Genetic counseling2

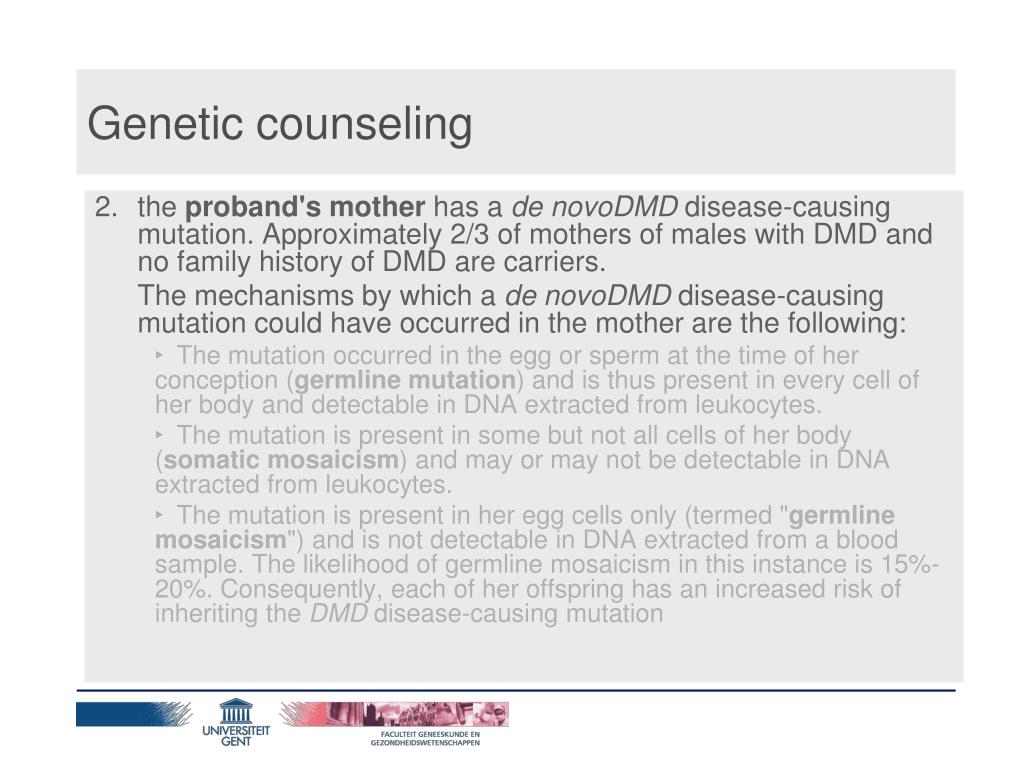

Genetic counseling

  • the proband's mother has a de novoDMD disease-causing mutation. Approximately 2/3 of mothers of males with DMD and no family history of DMD are carriers.

  • The mechanisms by which a de novoDMD disease-causing mutation could have occurred in the mother are the following:

    • The mutation occurred in the egg or sperm at the time of her conception (germline mutation) and is thus present in every cell of her body and detectable in DNA extracted from leukocytes.

    • The mutation is present in some but not all cells of her body (somatic mosaicism) and may or may not be detectable in DNA extracted from leukocytes.

    • The mutation is present in her egg cells only (termed "germline mosaicism") and is not detectable in DNA extracted from a blood sample. The likelihood of germline mosaicism in this instance is 15%-20%. Consequently, each of her offspring has an increased risk of inheriting the DMD disease-causing mutation


Genetic counseling3

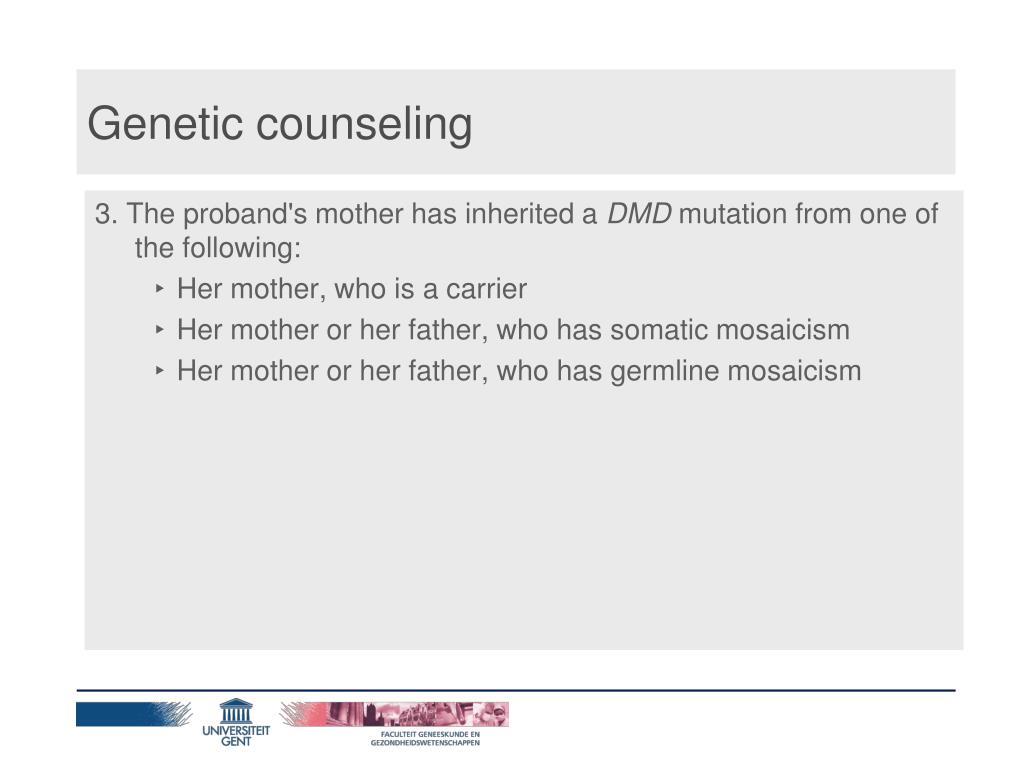

Genetic counseling

  • 3. The proband's mother has inherited a DMD mutation from one of the following:

    • Her mother, who is a carrier

    • Her mother or her father, who has somatic mosaicism

    • Her mother or her father, who has germline mosaicism


Two types of pedigrees encountered in families with duchenne or becker dystrophy

Two types of pedigrees encountered in families with Duchenne or Becker dystrophy.

mother has a 66% risk of being a carrier, and his sister, therefore, a 33% risk

two obligate carrier females and a woman at 50% risk based on family history.


Mutations in collagen structural genes osteogenesis imperfecta

Mutations in collagen structural genes: Osteogenesis imperfecta

  • Variable degree of bone fragility

  • 4 subtypes (Sillence et al. 1979, 1984)

  • Type IMild

  • Type IILethal

  • Type IIISevere

  • Type IVModerate

  • Defects of type I collagen

  • Due to mutations in COL1A1/COL1A2


Disorders of structural proteins

Mild OI

Severe OI

Lethal OI


Type i collagen

N-terminus

Helical domain

C-terminus

COL1A1

6

10

15

20

25

30

35

40

45

50

COL1A2

= 36 bp

= 90 bp

= 108 bp

= 45 bp

= 162 bp

= 99 bp

= 54 bp

Complex gene structure

Type I collagen

  • Most abundant fibrillar collagen in body

  • Widely expressed in bone, tendon, skin, other tissues

  • Heterotrimer:2 1 chains  COL1A1 (chr 17) 12 chain  COL1A2 (chr 7)

Great potential for mutations


Collagen fibrillogenesis

Gly

Gly

Gly

Gly

N-terminus

MOLECULAR

PACKING

Cleavage by C-proteinase

Cleavage by N-proteinase

COLLAGEN FIBRIL

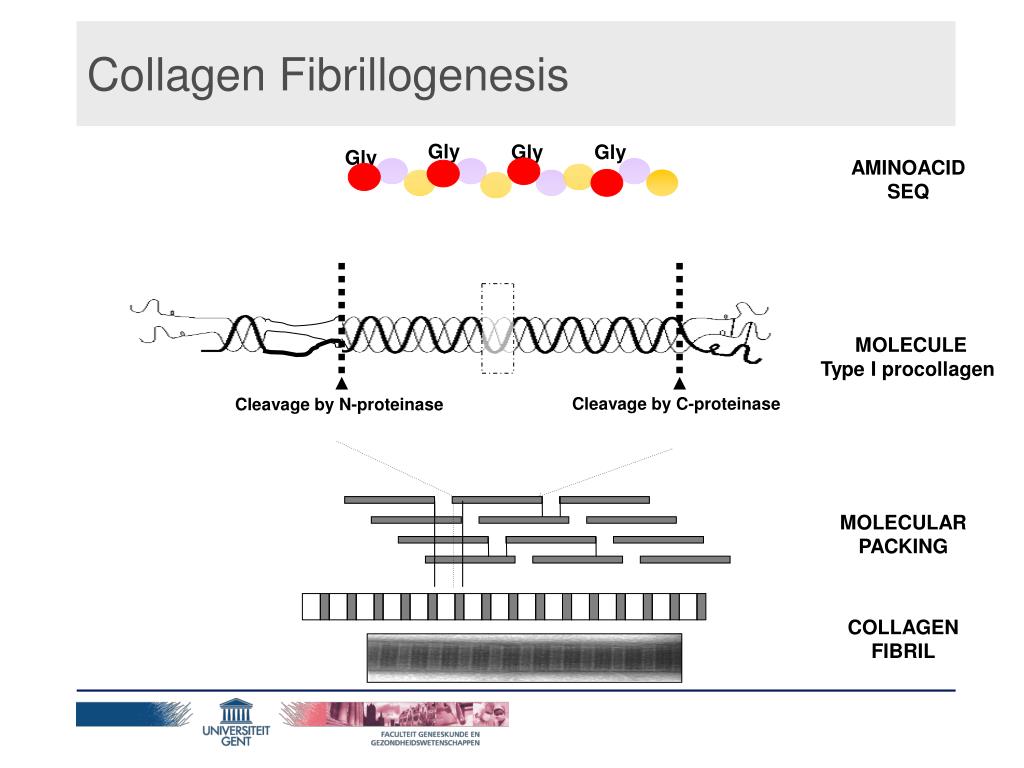

Collagen Fibrillogenesis

AMINOACID SEQ

MOLECULE

Type I procollagen


Collagen structure

Collagen structure


Disorders of structural proteins

Collagen biosynthesis


Collagen fibrillogenesis1

Collagen fibrillogenesis

P

C

P

C


Molecular abnormalities of collagen in oi

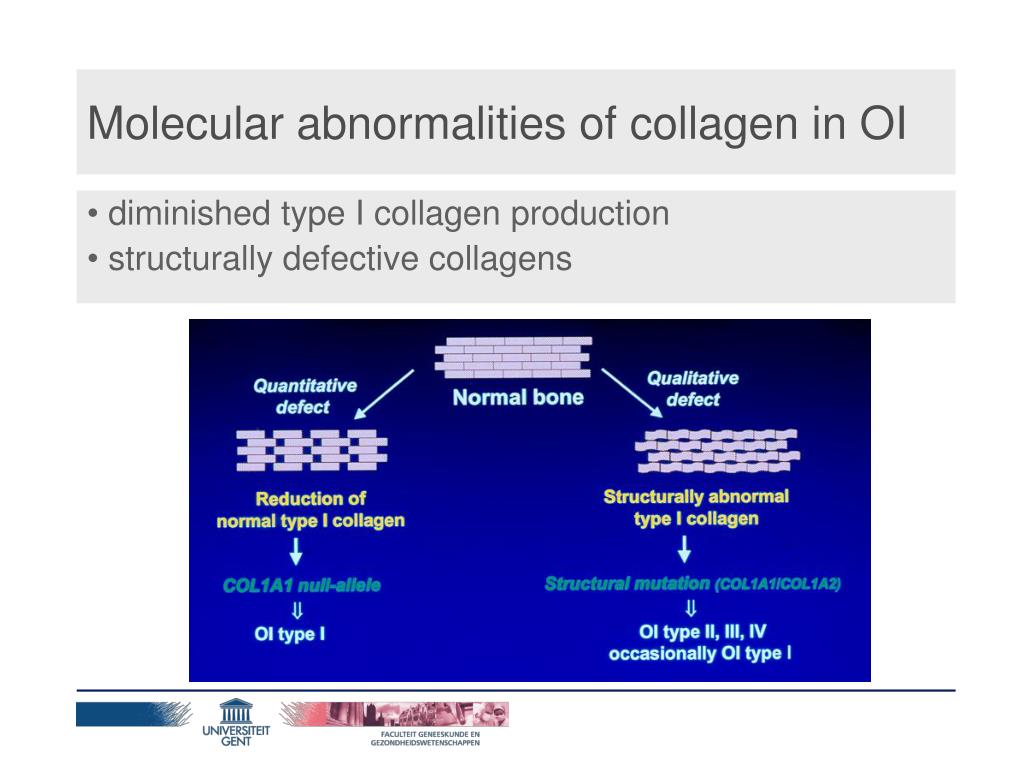

Molecular abnormalities of collagen in OI

  • diminished type I collagen production

  • structurally defective collagens


Osteogenesis imperfecta type i mild

T

G

G

A

G

A

G

C

G

A

G

G

T

G

T

T

C

C

C

G

Gly

Glu

Arg

Gly

Val

Pro

T

G

G

A

G

A

G

T

G

A

G

G

T

G

T

T

C

C

C

G

Gly

Glu

Gly

Val

Pro

STOP

Osteogenesis imperfecta type I (mild)

C

C

P

C

Normal

1(III)3

Mutant

1(I)

2(I)

1(I) - Arg 240 Stop

(CGA  TGA)


Disorders of structural proteins

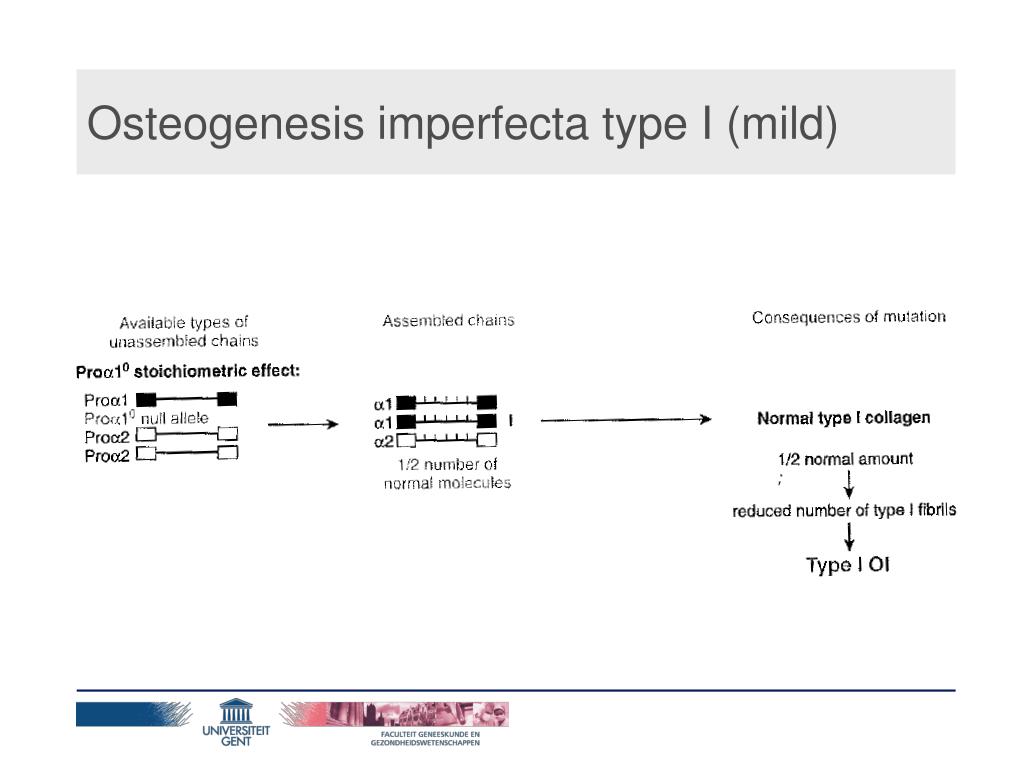

Osteogenesis imperfecta type I (mild)


Osteogenesis imperfecta type ii iv

Osteogenesis imperfecta type II-IV

P

C

P

C

Gly

Pro

Ala

Gly

Glu

Glu

Gly

1(I)M

1(I)

Gly

Pro

Ala

Glu286

Glu

Glu

Gly

2(I)M

2(I)

GGA > GAA

1(I) - Gly286Glu

medium collagens


Osteogenesis imperfecta type ii iv1

Osteogenesis imperfecta type II-IV

  • Majority: glycine substitutions in triple helical domain of either the pro-α1 or pro- α2 chain of type I collagen

  • Phenotypic determinants include:

    • Which chain is involved (α1(I) vs α2(I)-collagen chain)

    • Location of substitution

    • Nature of substituting residue

  • splice site mutations

    • Exon skips (in-frame)

    • Intronic inclusion

    • Activation of cryptic splice sites


Genotype phenotype correlations1

Genotype-phenotype correlations

  • α1(I)- chain:

    • Glycine-substitutions in N-terminal 200 residues are associated with non-lethal phenotype

    • C-terminal glycine substitutions are associated with severe to lethal phenotype

    • Two exclusive “lethal regions”

  • α2(I)-chain

    • 80 % of glycine substitutions is non-lethal

    • 8 “lethal regions”


Distribution of mutations along 1 i collagen chain

Valine: branched non-polar side-chain

Arg, Asp, Glu

Charged AA

Overrepresentation of lethal phenotypes

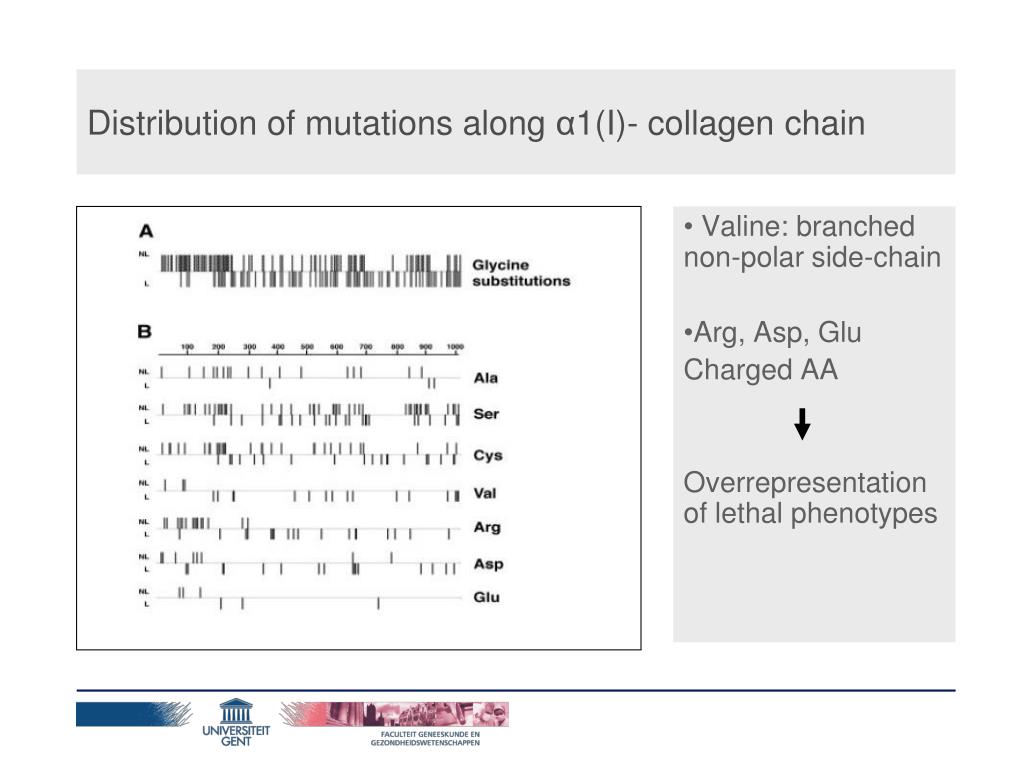

Distribution of mutations along α1(I)- collagen chain


Distribution of mutations along 2 i collagen chain

Distribution of mutations along α2(I)- collagen chain

Arg, Asp, Glu

Charged AA

Overrepresentation of lethal phenotypes


Dominant negative effect

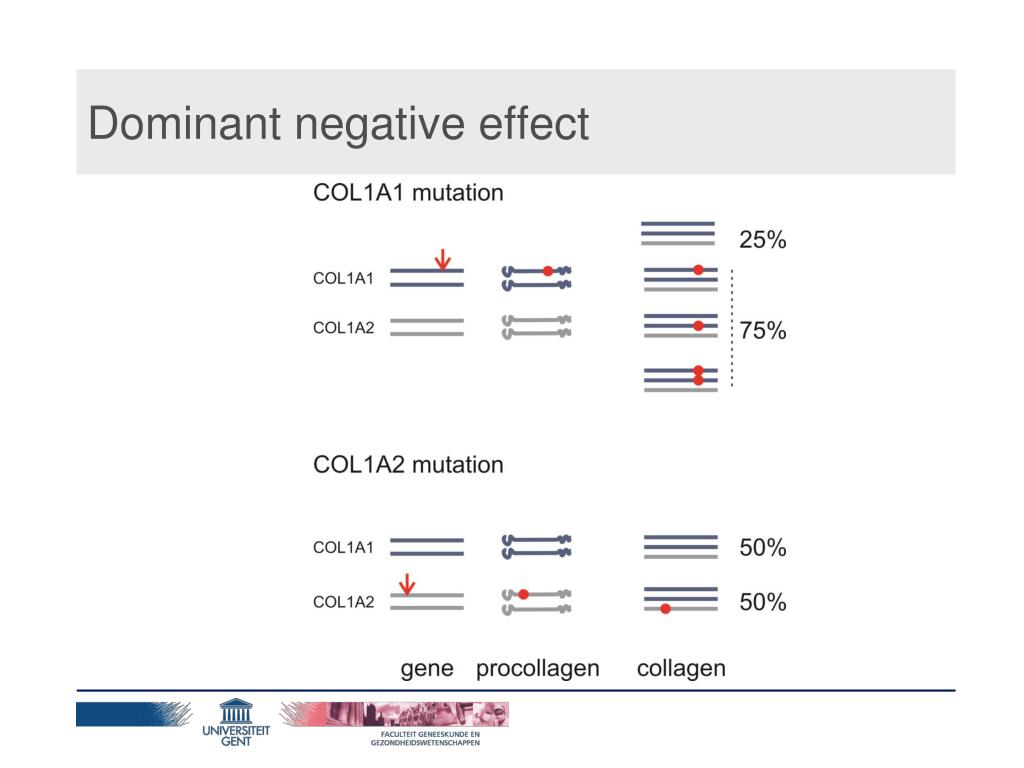

Dominant negative effect


Genetic counseling4

Genetic counseling

  • Mild OI: ~60% of individuals with mild OI have de novo mutations

  • Severe (type III) and lethal (type II) OI: virtually 100% of individuals with have de novo mutations.


Genetic counseling5

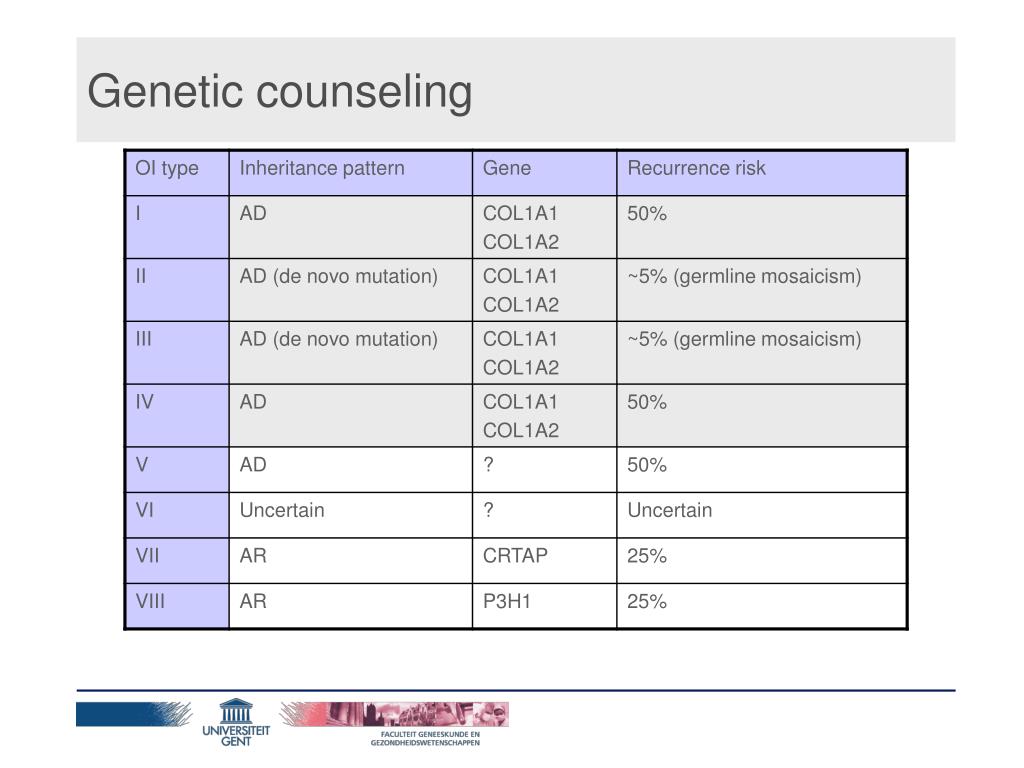

Genetic counseling


Disorders of structural proteins

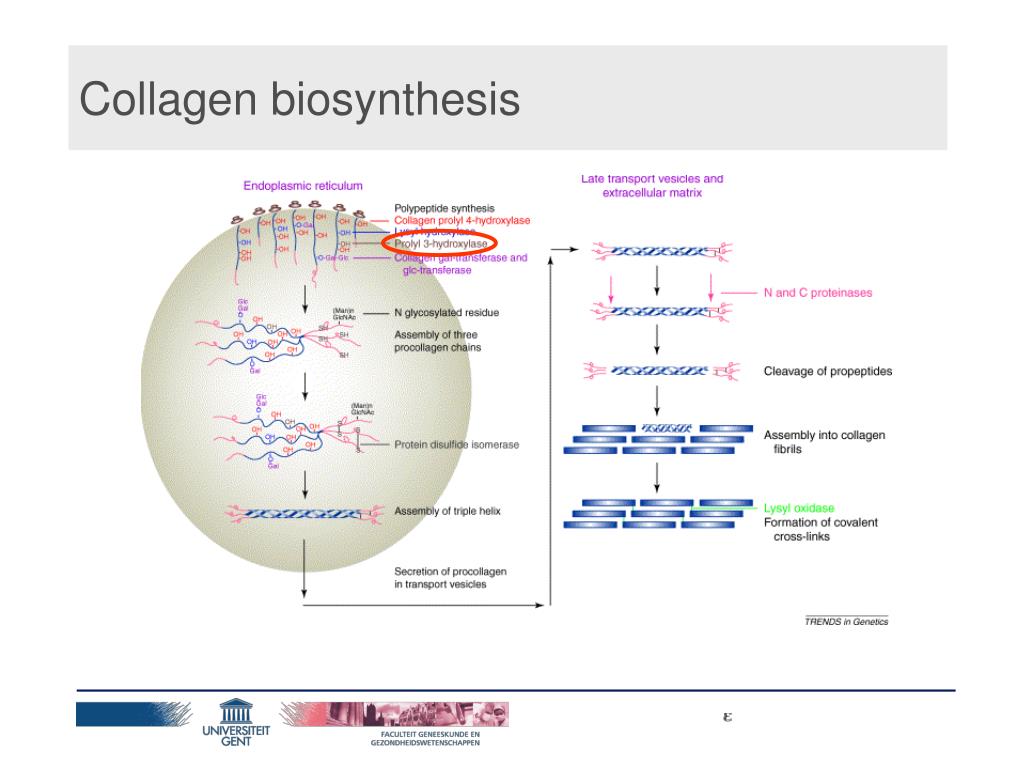

Collagen biosynthesis


Recessive oi crtap lepre ppib complex

F P M

α1(III)3

α1(I)

α2(I)

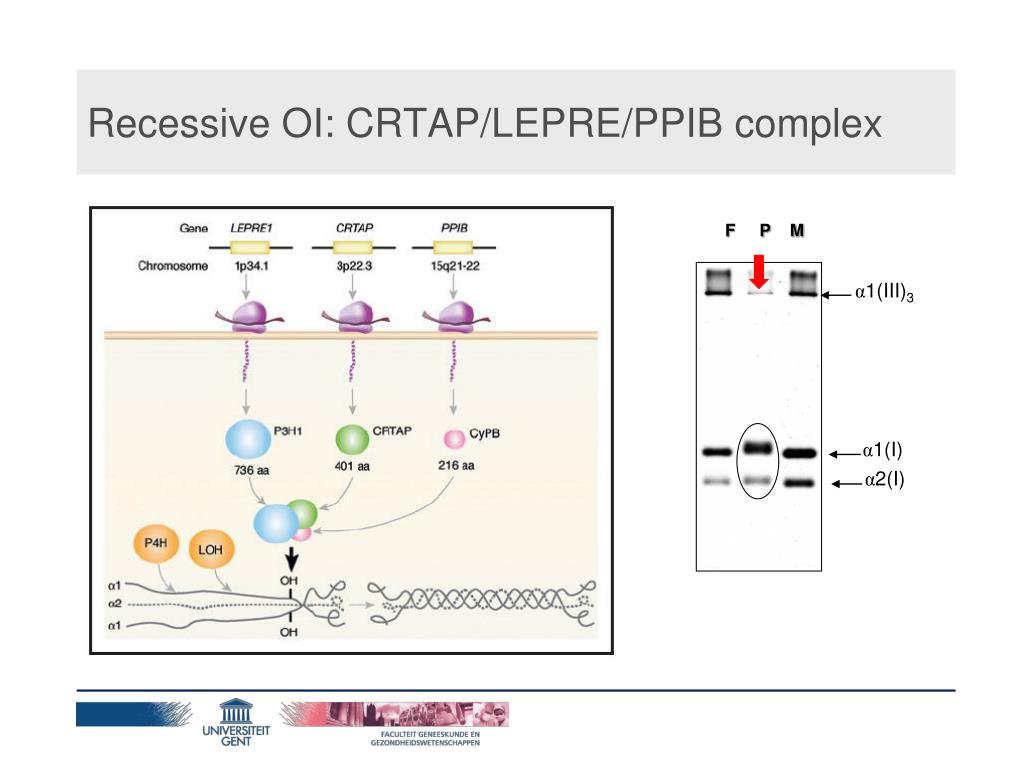

Recessive OI: CRTAP/LEPRE/PPIB complex


Recessive oi due to lepre1 mutations

Recessive OI due to LEPRE1 mutations

Proband 3

Proband 1

Proband 2

Proband 4

Hom. c.1365-1366delAGinsC (p.Glu455fs)

Hom. c.2055+18G>A, Intron 14

Hom. c.628C>T (p.Arg210X)

  • Het. c.1102C>T (p.Arg368X)

  • Het. c.2055+18G>A, Intron 14

  • Lack of calvarial ossification

  • Beaded ribs with multiple fractures

  • Platyspondyly

  • Shortened, wide, bowed and fractured large tubular bones

  • Recessive OI or Severe/Lethal Autosomal Dominant OI ??


Disorders of structural proteins

III

P3 at age 17 years

  • Complete disappearance of the popcorn-like structures

  • Extreme osteoporosis

  • Widening of the rhizomelic diaphyses

  • Progressive narrowing and bowing of the mesomelic diaphyses

  • Reduced knee joint spaces

  • Long hands with hyperlax finger joints


  • Login
