  1. 5.7 Some Applications of Newton’s Law, cont

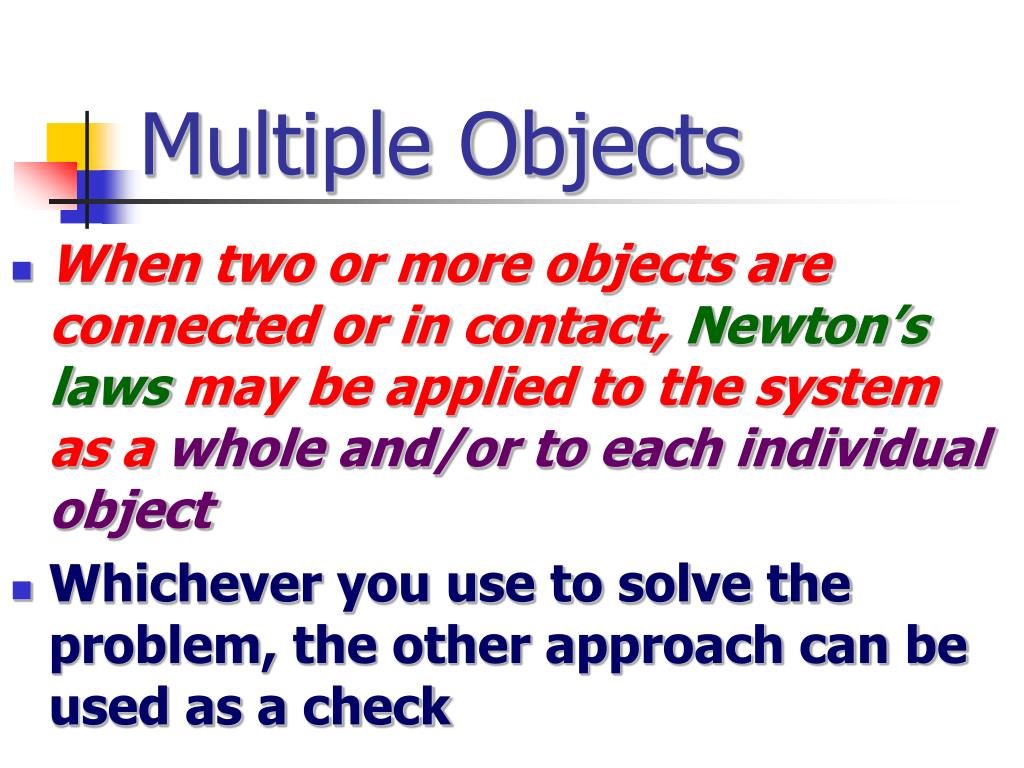

  2. Multiple Objects • When two or more objects are connected or in contact, Newton’s laws may be applied to the system as a whole and/or to each individual object • Whichever you use to solve the problem, the other approach can be used as a check

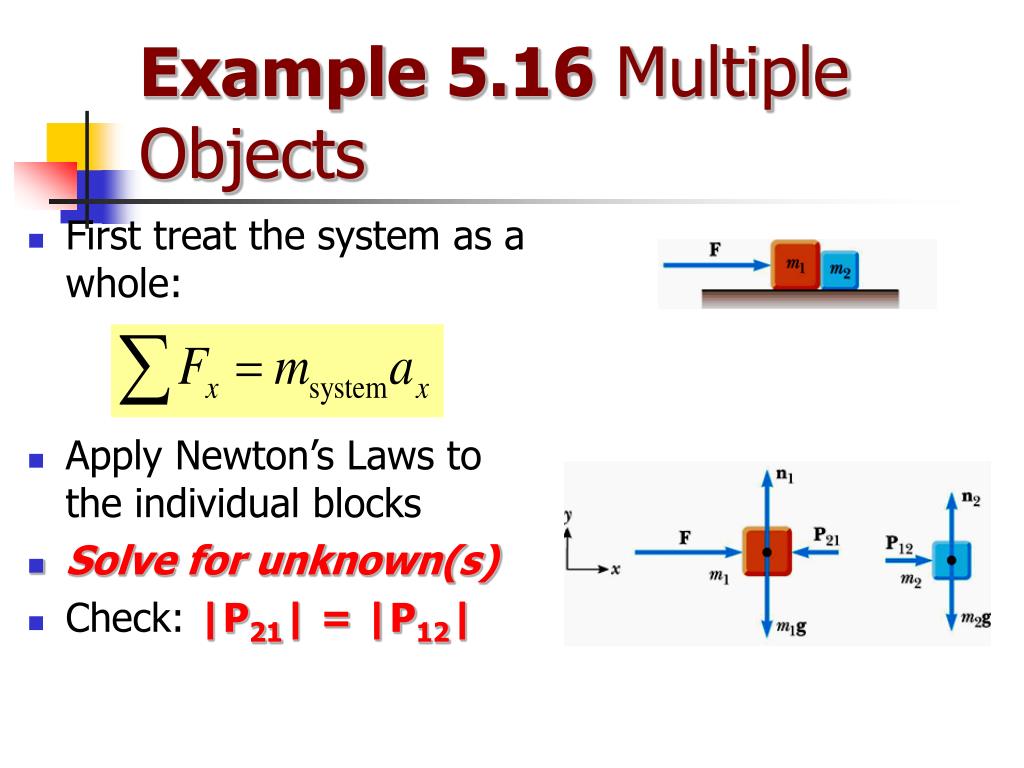

  3. Example 5.16Multiple Objects • First treat the system as a whole: • Apply Newton’s Laws to the individual blocks • Solve for unknown(s) • Check: |P21| = |P12|

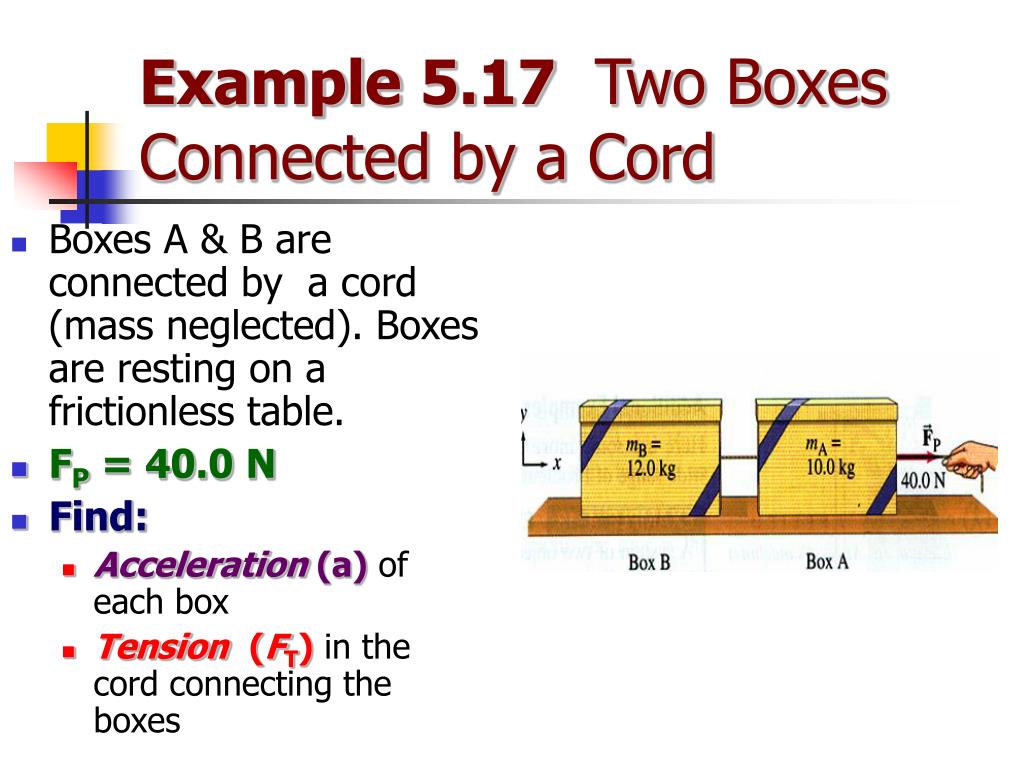

  4. Example 5.17 Two Boxes Connected by a Cord • Boxes A & B are connected by a cord (mass neglected). Boxes are resting on a frictionless table. • FP = 40.0 N • Find: • Acceleration (a) of each box • Tension(FT) in the cord connecting the boxes

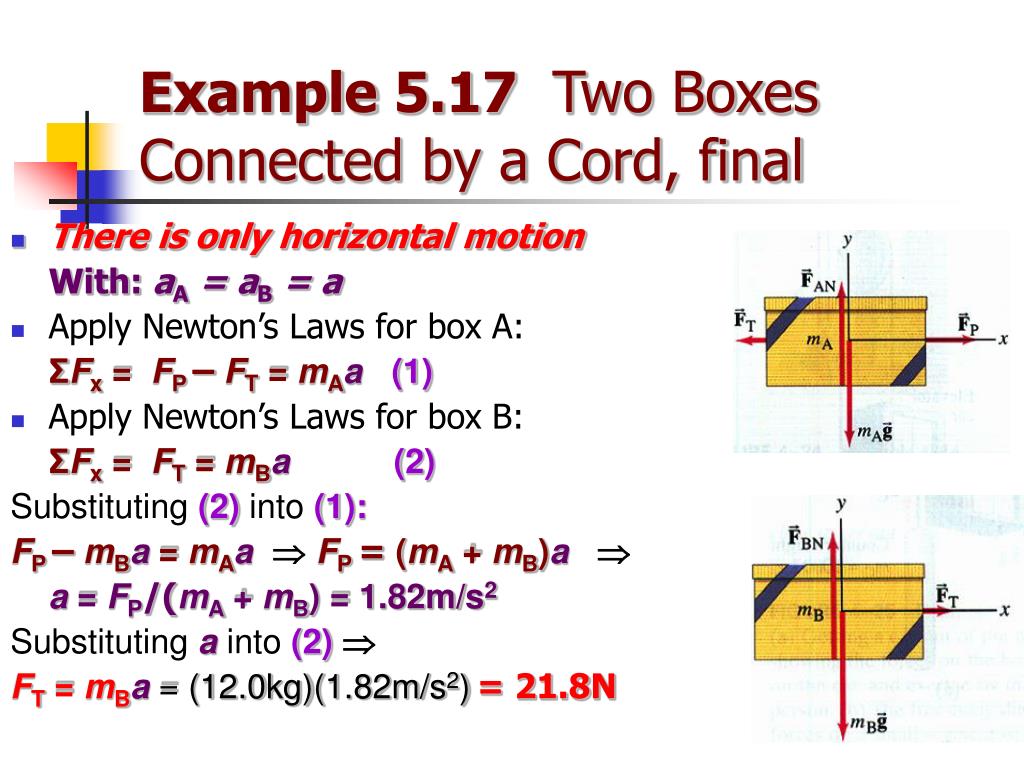

  5. Example 5.17 Two Boxes Connected by a Cord, final • There is only horizontal motion With: aA = aB = a • Apply Newton’s Laws for box A: ΣFx = FP –FT = mAa(1) • Apply Newton’s Laws for box B: ΣFx = FT = mBa(2) Substituting (2) into (1): FP –mBa = mAa FP = (mA + mB)a a = FP/(mA + mB) = 1.82m/s2 Substituting a into (2)  FT = mBa = (12.0kg)(1.82m/s2)= 21.8N

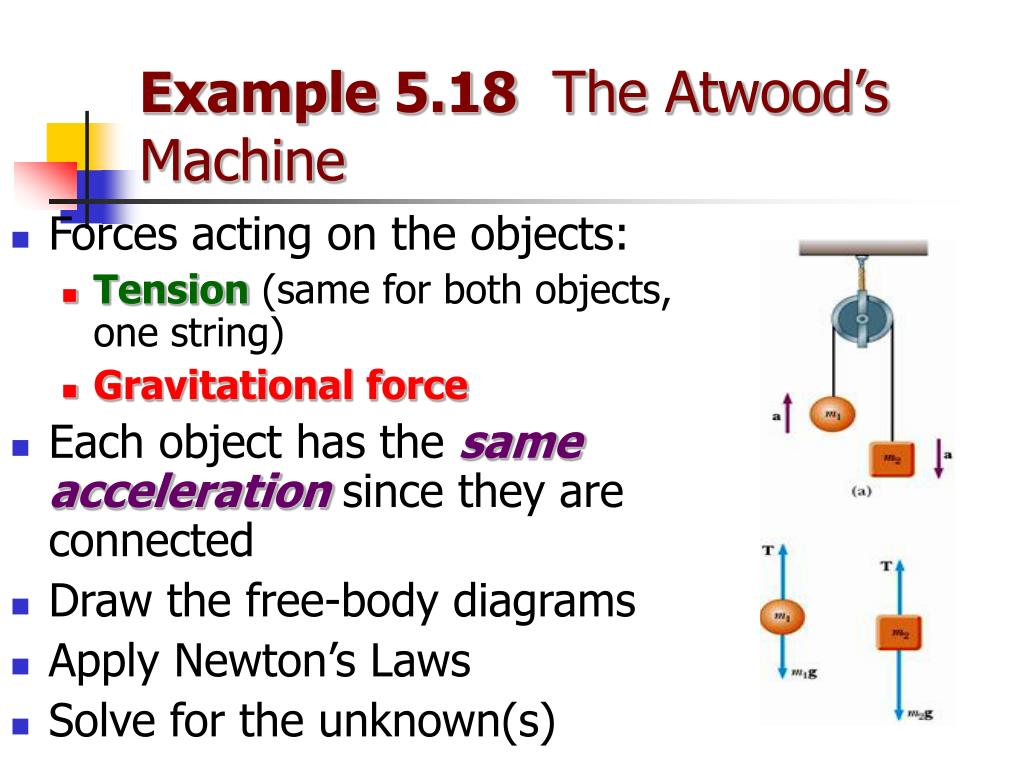

  6. Example 5.18 The Atwood’s Machine • Forces acting on the objects: • Tension (same for both objects, one string) • Gravitational force • Each object has the same acceleration since they are connected • Draw the free-body diagrams • Apply Newton’s Laws • Solve for the unknown(s)

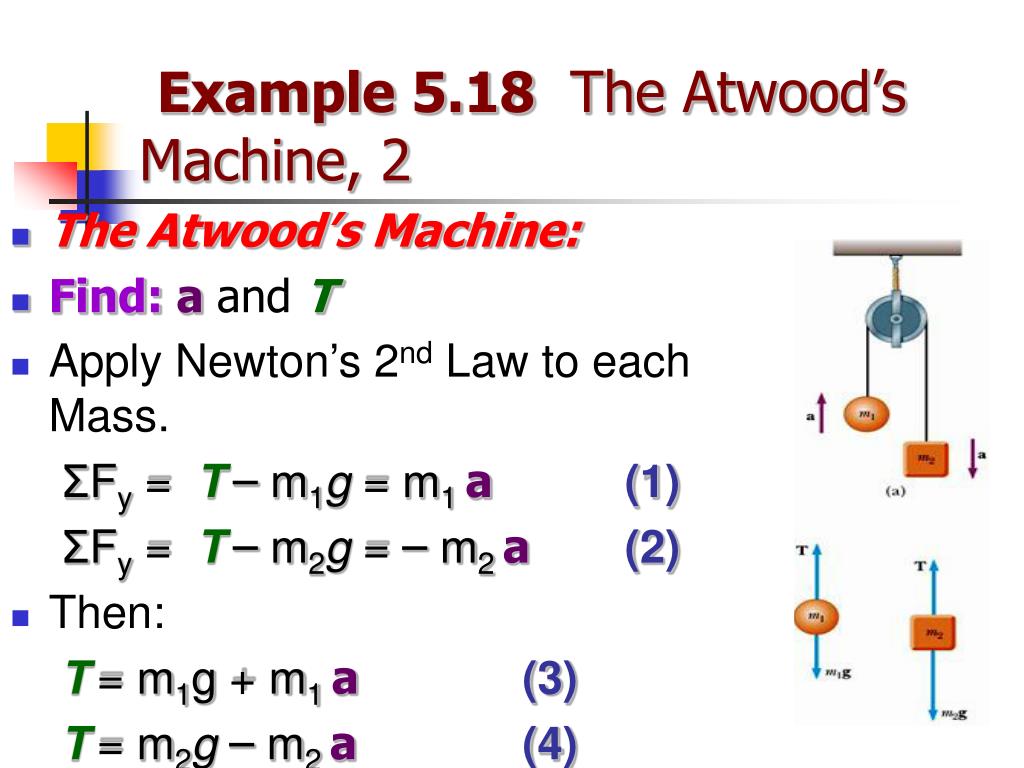

  7. Example 5.18 The Atwood’s Machine, 2 • The Atwood’s Machine: • Find:aandT • Apply Newton’s 2nd Law to each Mass. ΣFy =T– m1g = m1a(1) ΣFy =T– m2g = – m2a(2) • Then: T= m1g + m1a(3) T= m2g– m2a(4)

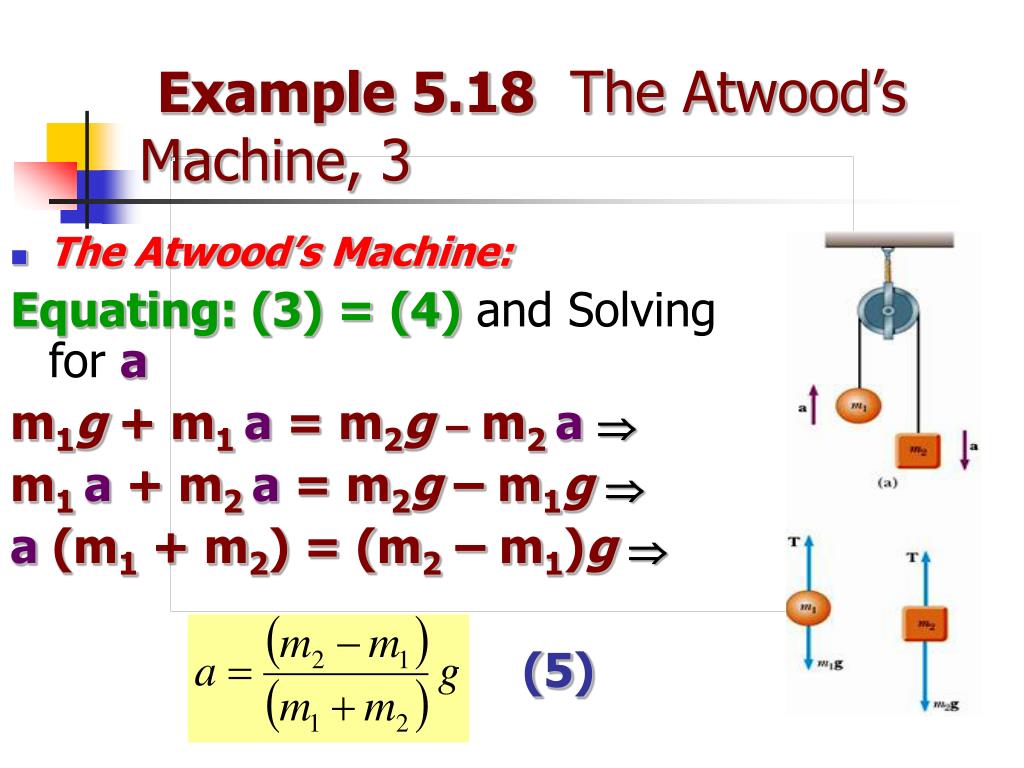

  8. Example 5.18 The Atwood’s Machine, 3 • The Atwood’s Machine: Equating: (3) = (4) and Solving for a m1g + m1 a = m2g– m2 a  m1 a + m2 a = m2g – m1g a (m1 + m2) = (m2 – m1)g  (5)

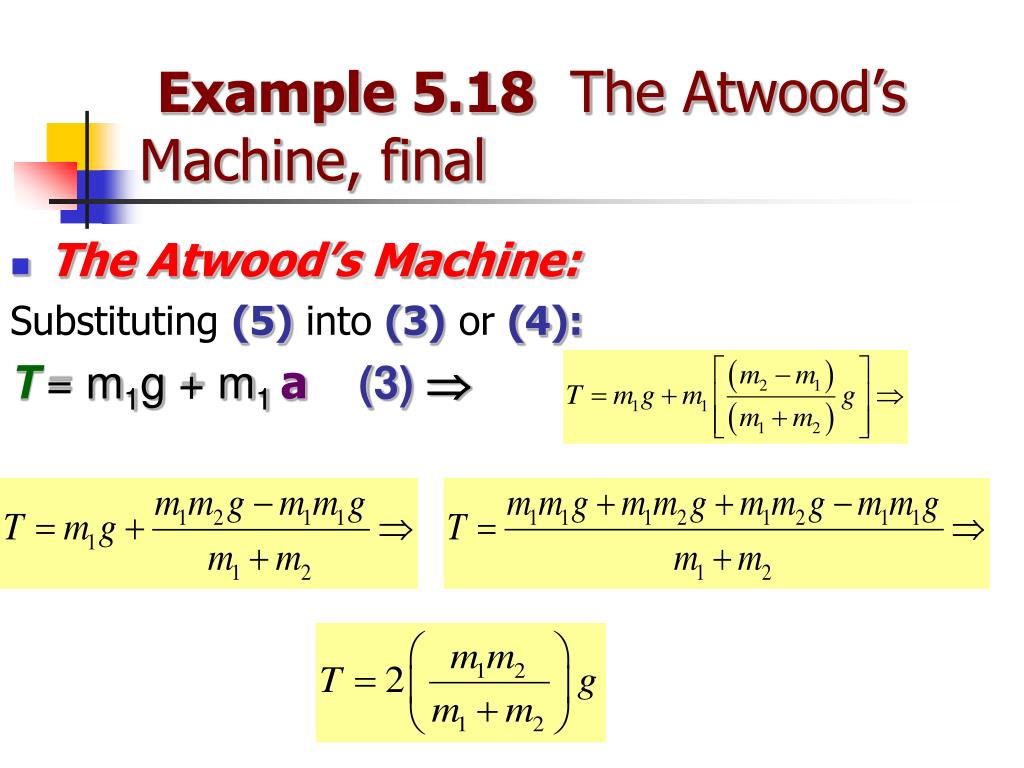

  9. Example 5.18 The Atwood’s Machine, final • The Atwood’s Machine: Substituting (5) into (3) or (4): T= m1g + m1a(3)

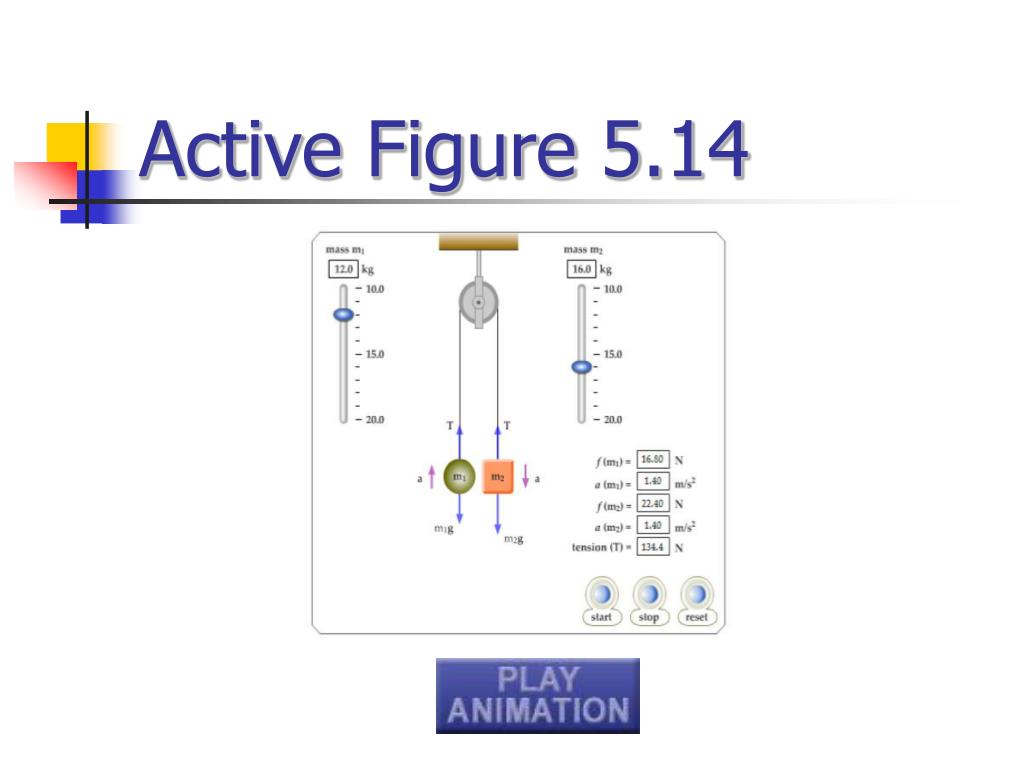

  10. Active Figure 5.14

  11. Example 5.19 Two Objects and Incline Plane • Find: a and T • One cord: so tension is the same for both objects • Connected: so acceleration is the same for both objects • Apply Newton’s Laws • Solve for the unknown(s)

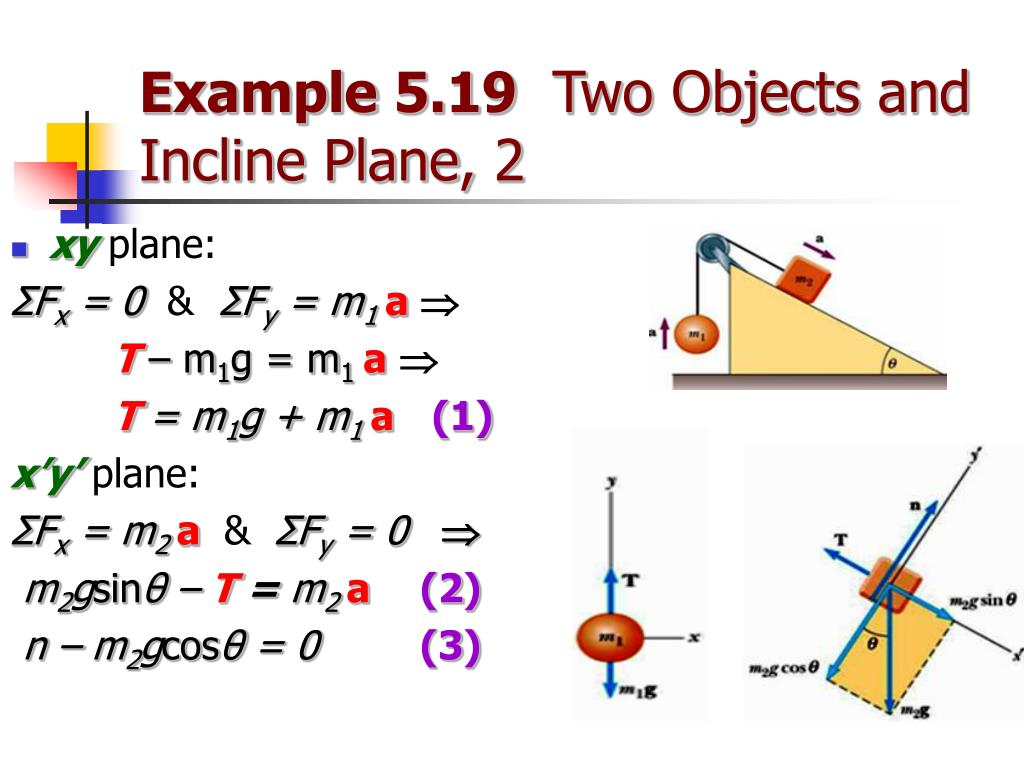

  12. Example 5.19 Two Objects and Incline Plane, 2 • xy plane: ΣFx = 0&ΣFy = m1 a T– m1g = m1 a T= m1g + m1 a(1) x’y’ plane: ΣFx = m2 a&ΣFy = 0 m2gsinθ –T = m2 a(2) n – m2gcosθ = 0(3)

  13. Example 5.19 Two Objects and Incline Plane, Final • Substituting (1)in (2) gives: m2gsinθ– (m1g + m1 a) = m2a m2gsinθ– m1g – m1 a = m2a  a (m1 + m2) = m2gsinθ – m1g • Substituting ain (1) we’ll get: T= m1g + m1 a(1)

  14. Problem-Solving Hints Newton’s Laws • Conceptualize the problem – draw a diagram • Categorize the problem • Equilibrium (SF = 0) or • Newton’s Second Law (SF = m a) • Analyze • Draw free-body diagrams for each object • Include only forces acting on the object

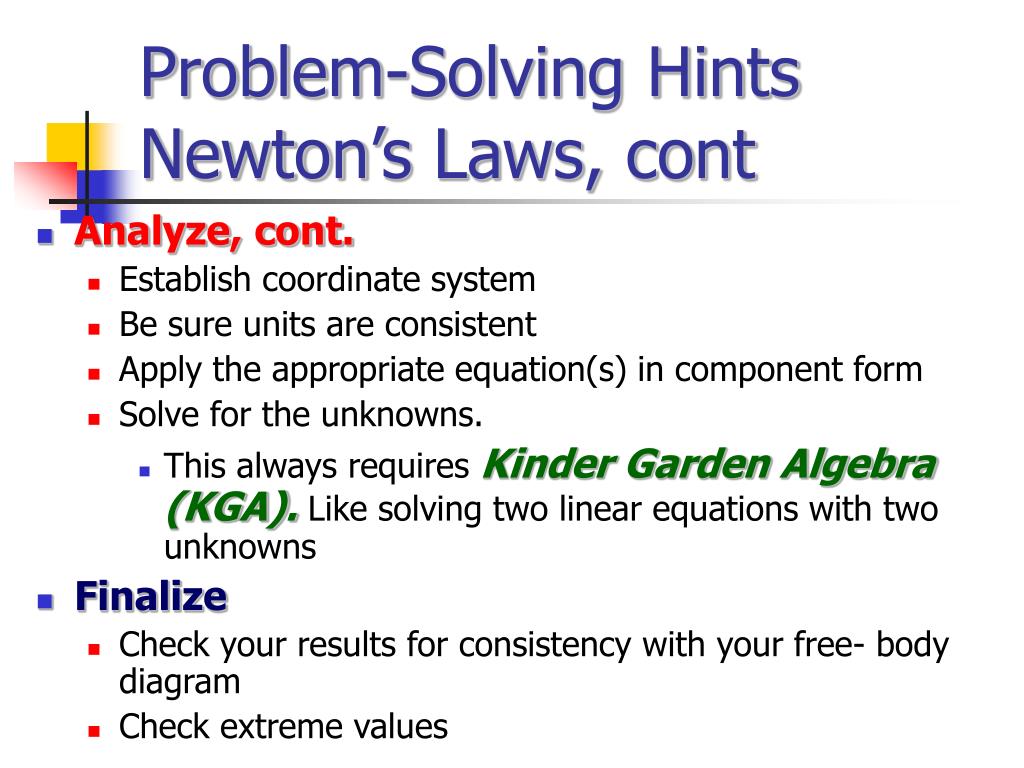

  15. Problem-Solving Hints Newton’s Laws, cont • Analyze, cont. • Establish coordinate system • Be sure units are consistent • Apply the appropriate equation(s) in component form • Solve for the unknowns. • This always requires Kinder Garden Algebra (KGA). Like solving two linear equations with two unknowns • Finalize • Check your results for consistency with your free- body diagram • Check extreme values

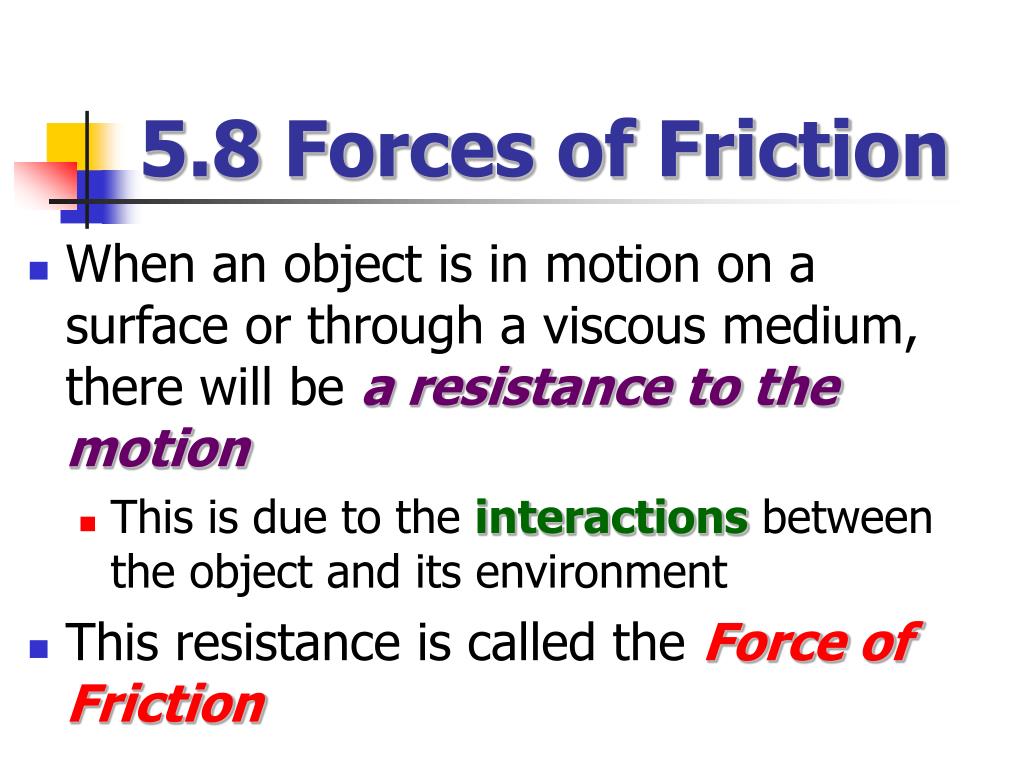

  16. 5.8 Forces of Friction • When an object is in motion on a surface or through a viscous medium, there will be a resistance to the motion • This is due to the interactions between the object and its environment • This resistance is called the Force of Friction

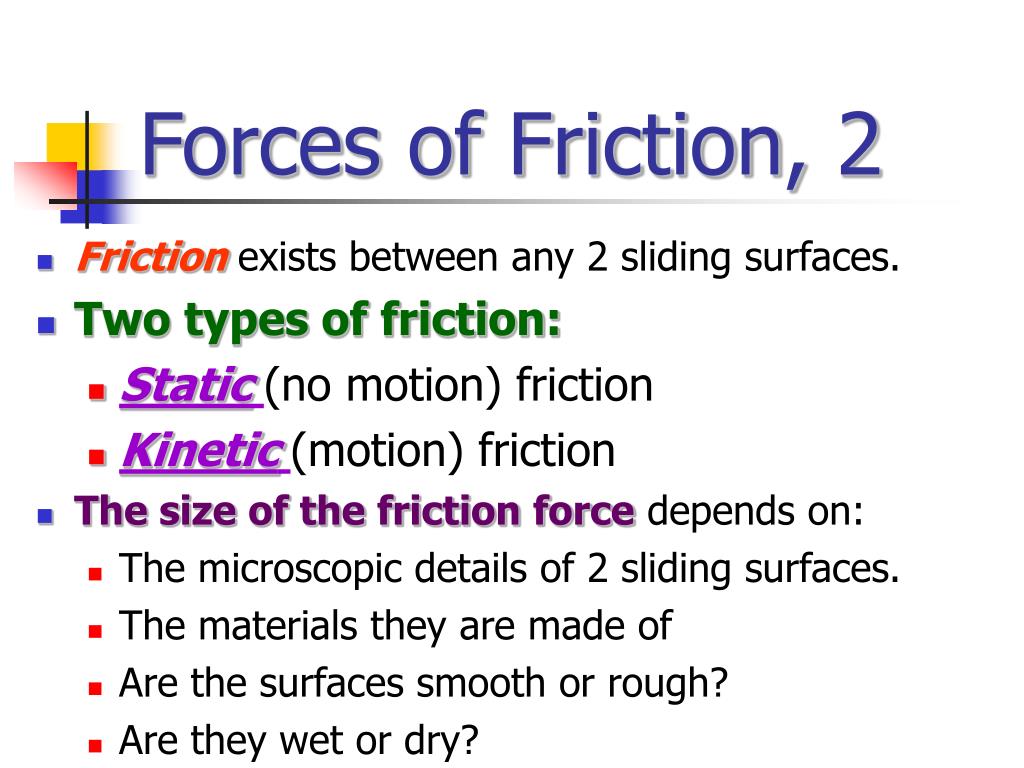

  17. Forces of Friction, 2 • Frictionexists between any 2 sliding surfaces. • Two types of friction: • Static(no motion) friction • Kinetic(motion) friction • The size of the friction force depends on: • The microscopic details of 2 sliding surfaces. • The materials they are made of • Are the surfaces smooth or rough? • Are they wet or dry?

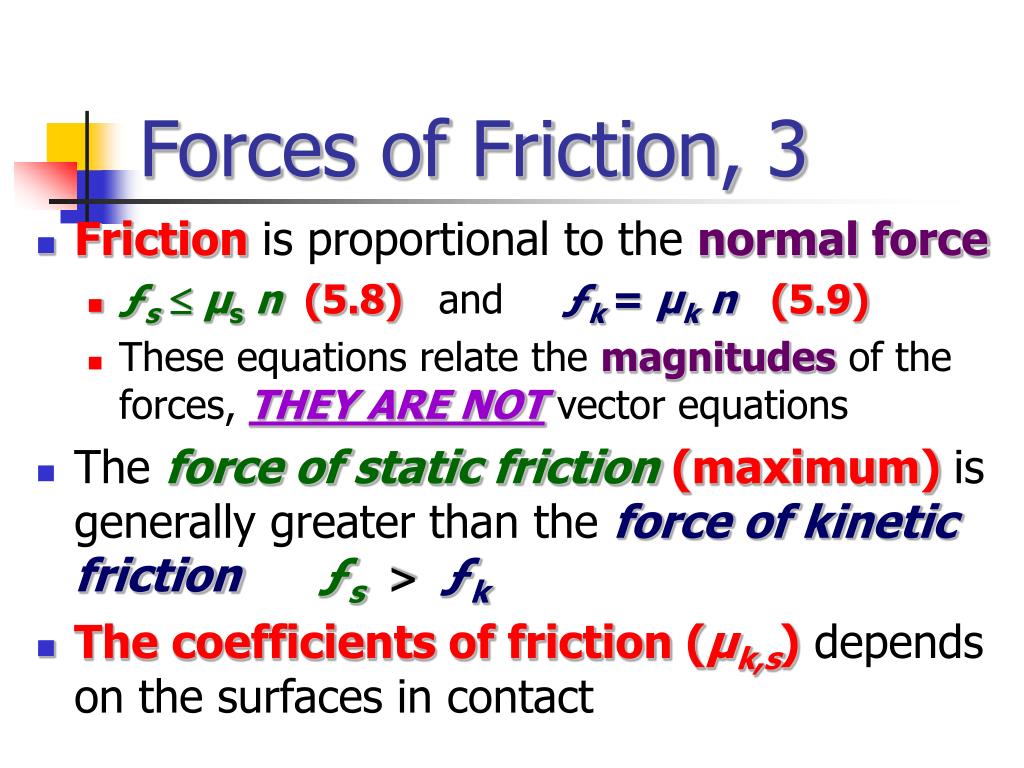

  18. Forces of Friction, 3 • Friction is proportional to the normal force • ƒs£µsn(5.8)andƒk = µk n(5.9) • These equations relate the magnitudes of the forces, THEY ARE NOT vector equations • The force of static friction(maximum) is generally greater than the force of kinetic frictionƒs>ƒk • The coefficients of friction (µk,s) depends on the surfaces in contact

  19. Forces of Friction, final • The direction of the frictional force is opposite the direction of motion and parallel to the surfaces in contact • The coefficients of friction (µk,s)are nearly independent of the area of contact

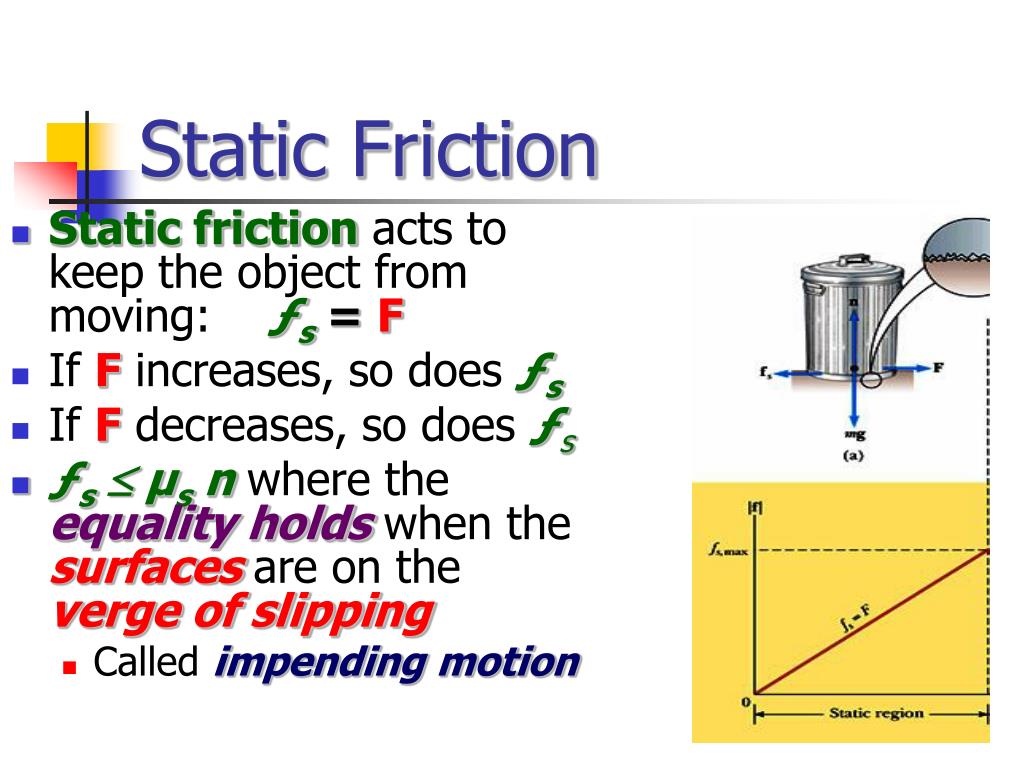

  20. Static Friction • Static friction acts to keep the object from moving: ƒs = F • If F increases, so doesƒs • If F decreases, so does ƒs • ƒs µs n where the equality holds when the surfaces are on the verge of slipping • Called impending motion

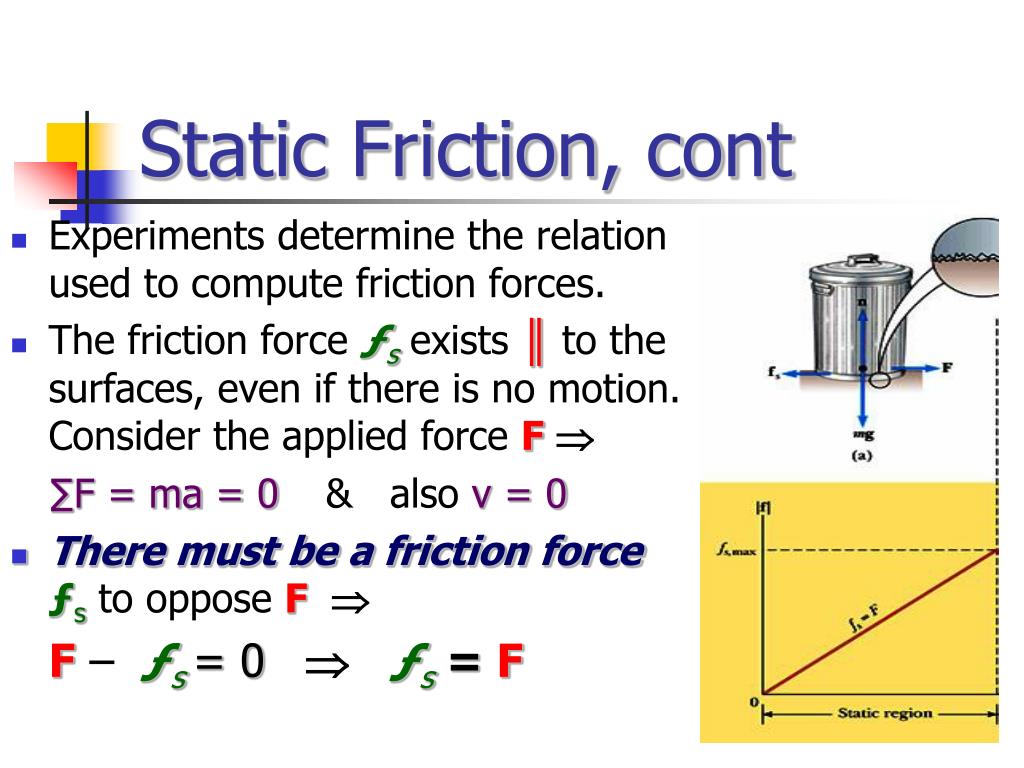

  21. Static Friction, cont • Experiments determine the relation used to compute friction forces. • The friction force ƒsexists ║ to the surfaces, even if there is no motion. Consider the applied force F  ∑F = ma = 0& also v = 0 • There must be a friction forceƒs to oppose F  F –ƒs= 0ƒs=F

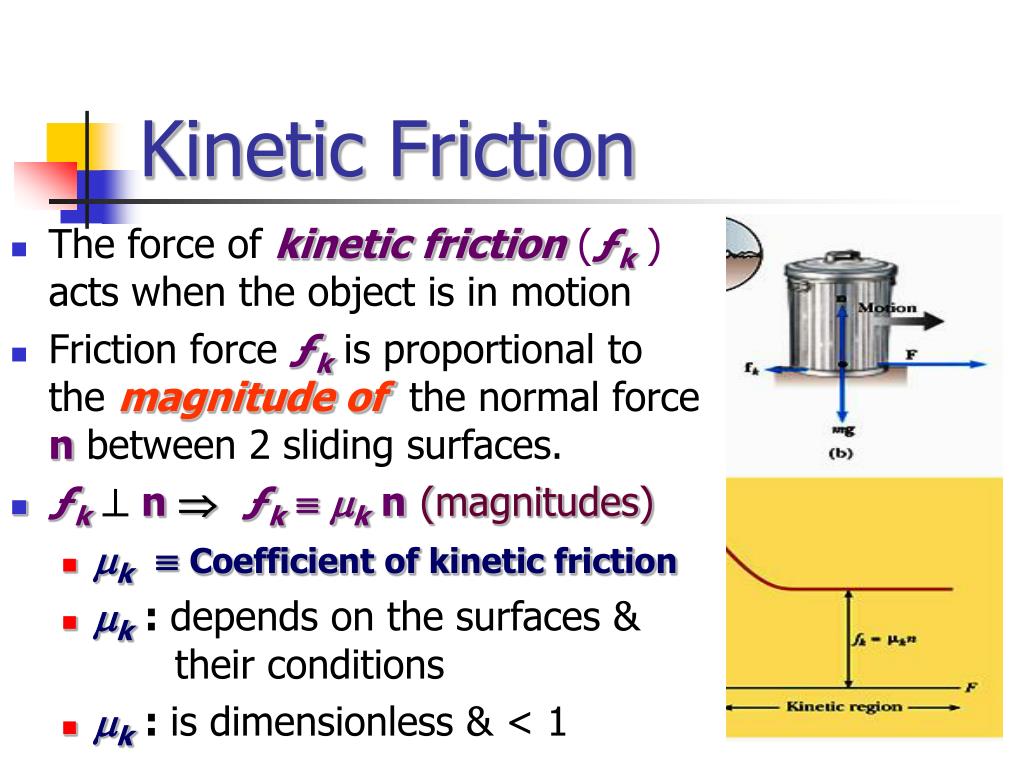

  22. Kinetic Friction • The force of kinetic friction (ƒk ) acts when the object is in motion • Friction force ƒk is proportional to the magnitude of the normal forcen between 2 sliding surfaces. • ƒknƒk kn(magnitudes) • k Coefficient of kinetic friction • k : depends on the surfaces & their conditions • k : is dimensionless & < 1

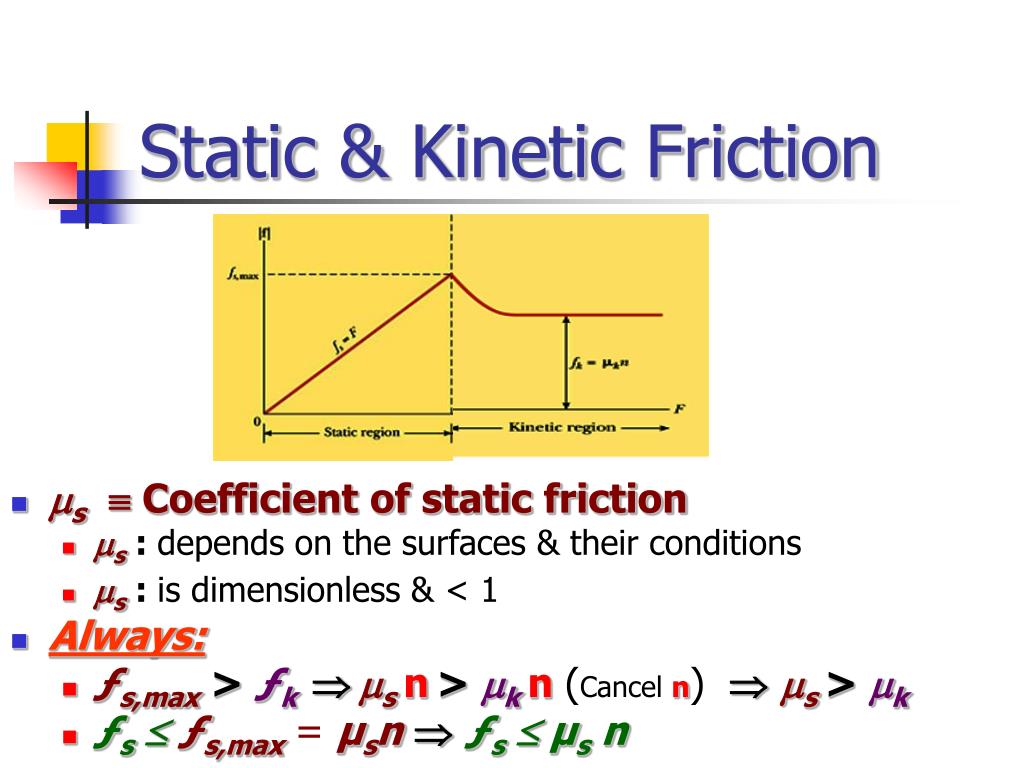

  23. Static & Kinetic Friction • Experiments find that the Maximum Static Friction Forceƒs,maxis proportional to the magnitude (size) of the normal forcenbetween the 2 surfaces. • DIRECTIONS:ƒs,max n • Then: ƒs,max= sn (magnitudes)

  24. Static & Kinetic Friction • s Coefficient of static friction • s : depends on the surfaces & their conditions • s : is dimensionless & < 1 • Always: • ƒs,max>ƒk s n>kn (Cancel n)  s>k • ƒs ƒs,max=µsnƒs µs n

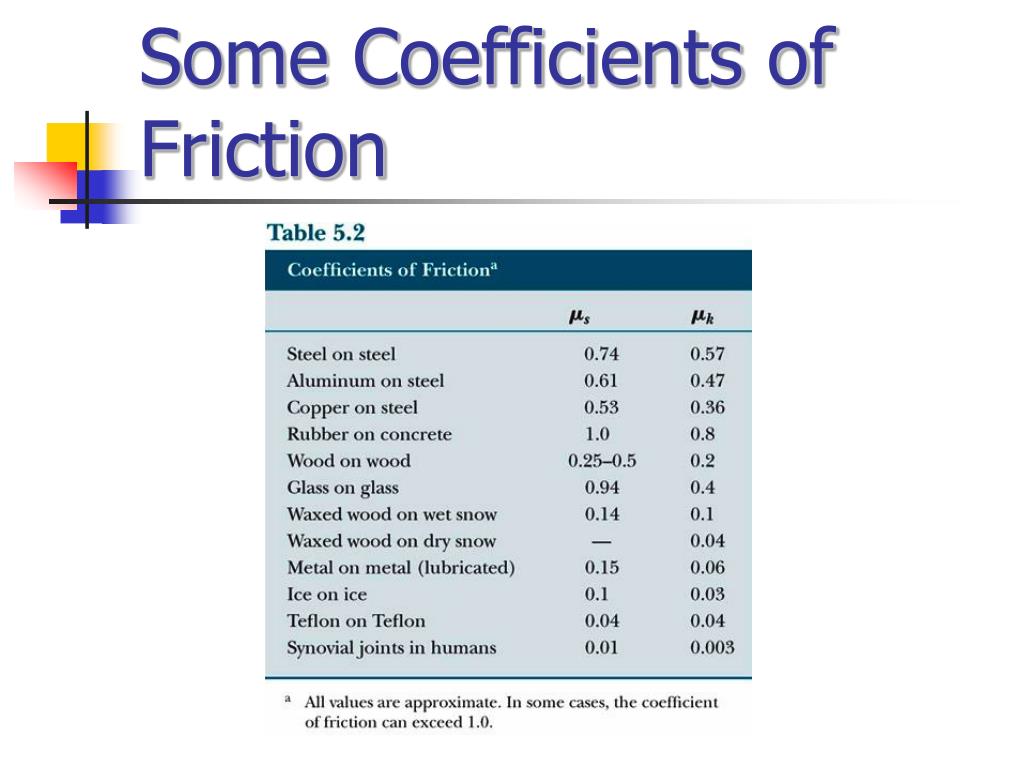

  25. Some Coefficients of Friction

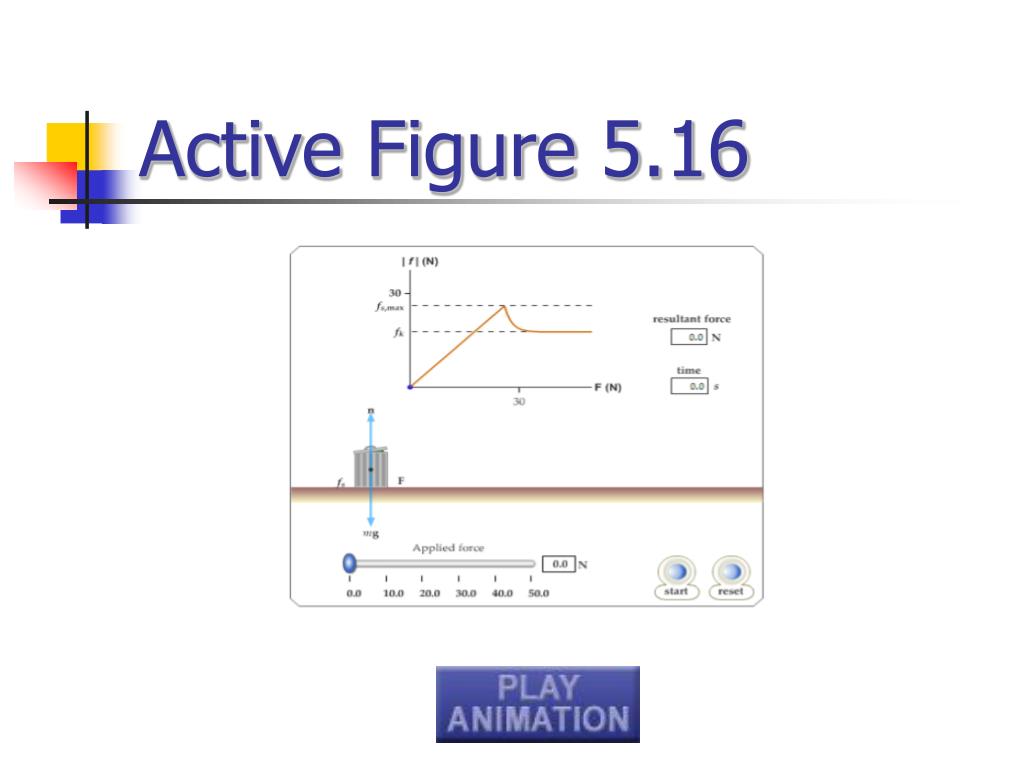

  26. Active Figure 5.16

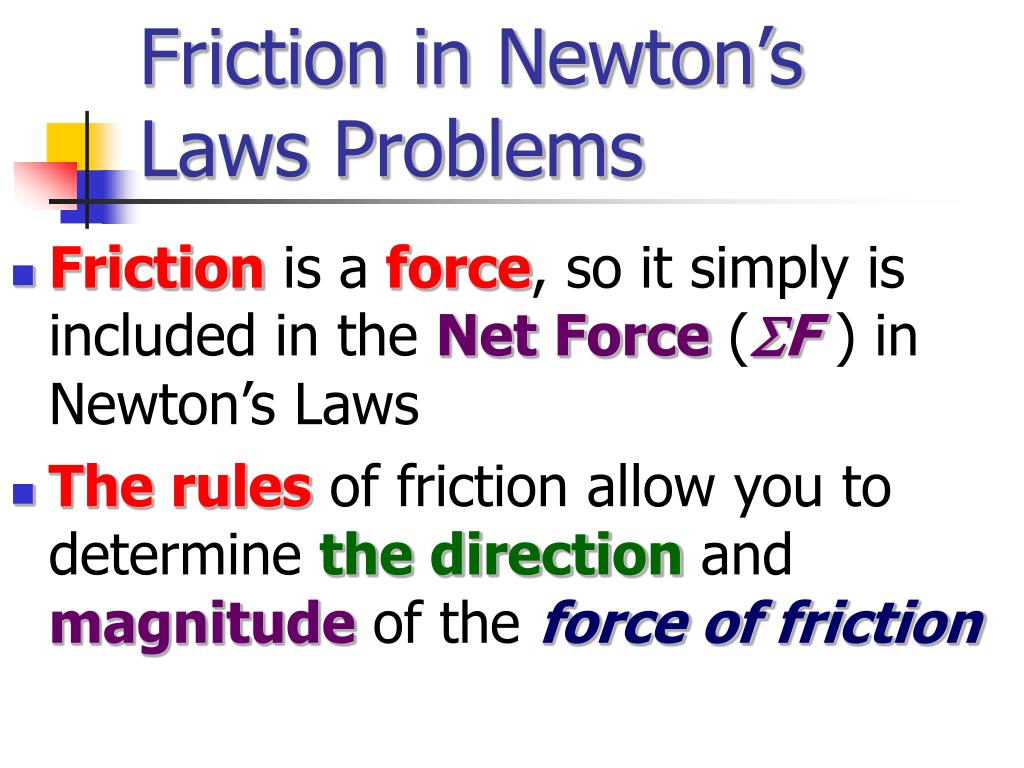

  27. Friction in Newton’s Laws Problems • Friction is a force, so it simply is included in the Net Force (SF ) in Newton’s Laws • The rules of friction allow you to determine the direction and magnitudeof the force offriction

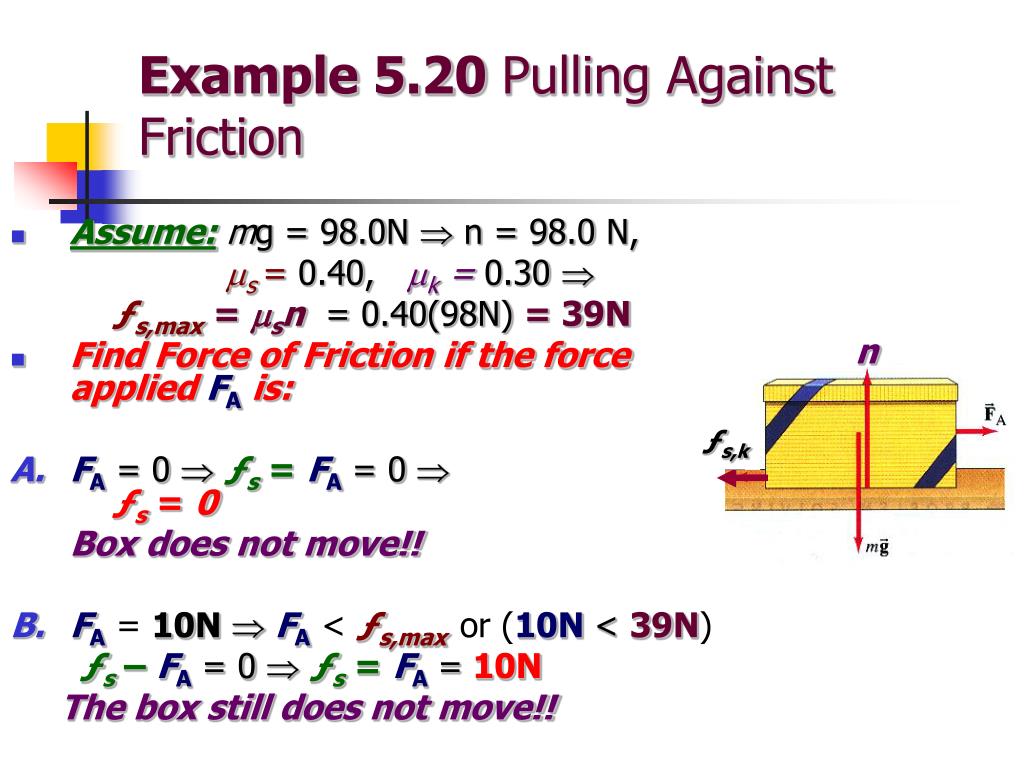

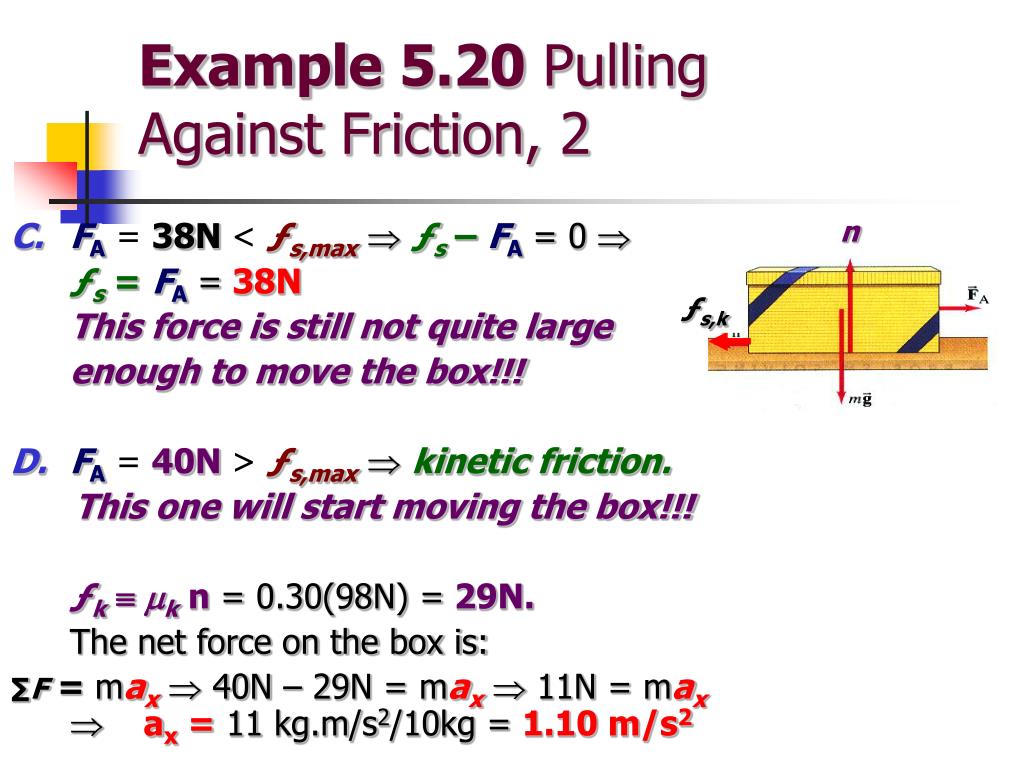

  28. Assume:mg = 98.0N  n = 98.0 N, s= 0.40, k = 0.30  ƒs,max= sn= 0.40(98N)= 39N Find Force of Friction if the force applied FAis: FA= 0ƒs=FA= 0ƒs=0 Box does not move!! FA = 10N FA < ƒs,max or (10N< 39N) ƒs–FA= 0ƒs=FA=10N The box still does not move!! Example 5.20 Pulling Against Friction n ƒs,k

  29. FA = 38N < ƒs,maxƒs–FA= 0 ƒs=FA=38N This force is still not quite large enough to move the box!!! FA = 40N> ƒs,maxkinetic friction. This one will start moving the box!!! ƒk kn= 0.30(98N) =29N. The net force on the box is: ∑F = max40N – 29N = max11N = maxax =11 kg.m/s2/10kg =1.10 m/s2 Example 5.20 Pulling Against Friction, 2 n ƒs,k

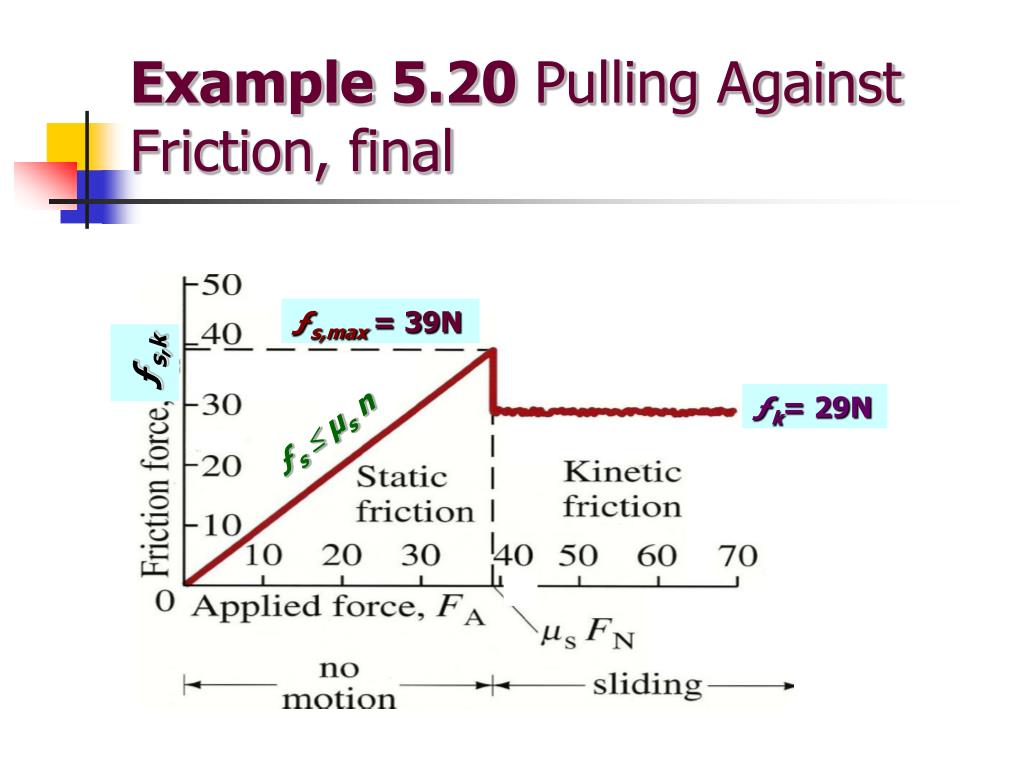

  30. Example 5.20 Pulling Against Friction, final ƒs,max= 39N ƒs,k ƒk=29N ƒs µs n

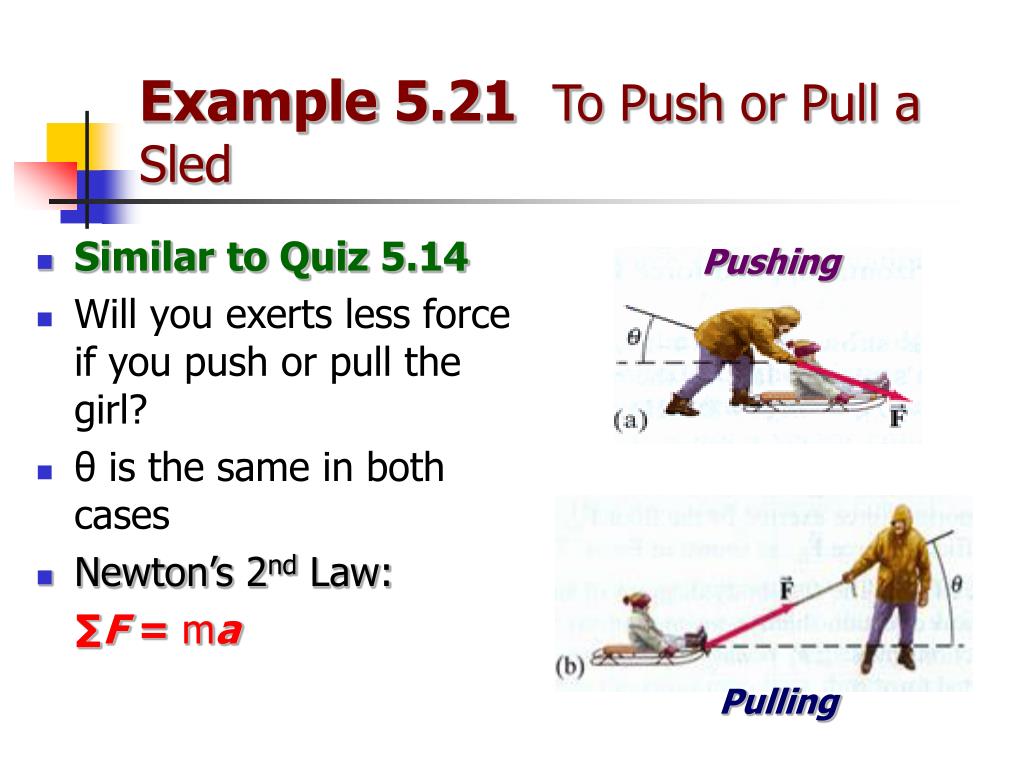

  31. Example 5.21To Push or Pull a Sled • Similar to Quiz 5.14 • Will you exerts less force if you push or pull the girl? • θ is the same in both cases • Newton’s 2nd Law: ∑F = ma Pushing Pulling

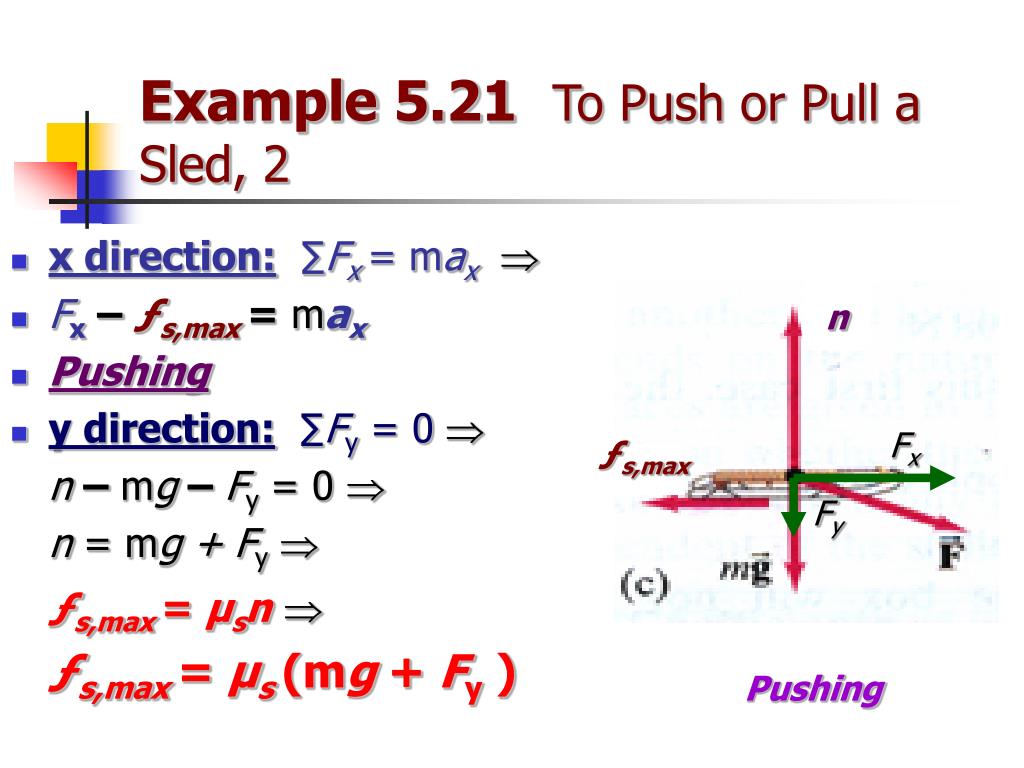

  32. Example 5.21To Push or Pull a Sled, 2 • x direction:∑Fx= max • Fx– ƒs,max = max • Pushing • y direction:∑Fy = 0 n – mg – Fy= 0  n = mg + Fy ƒs,max =μsn ƒs,max =μs (mg + Fy ) n Fx ƒs,max Fy Pushing

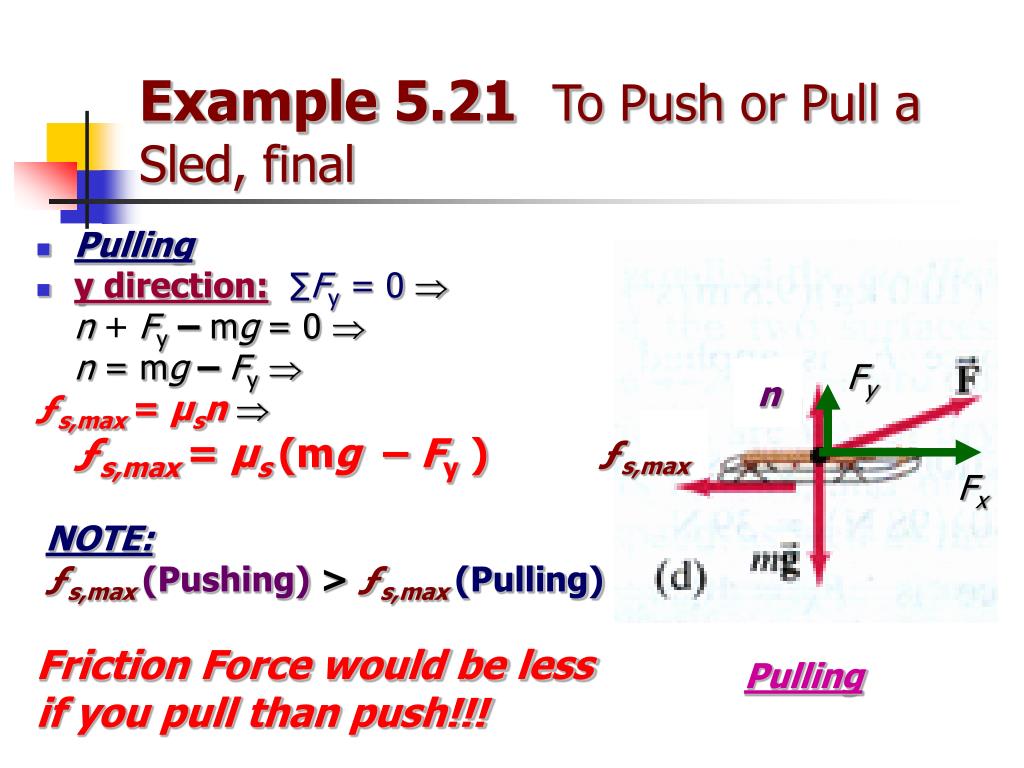

  33. Example 5.21To Push or Pull a Sled, final • Pulling • y direction:∑Fy = 0 n +Fy – mg= 0  n = mg – Fy ƒs,max =μsn  ƒs,max =μs (mg–Fy ) NOTE: ƒs,max (Pushing) > ƒs,max (Pulling) Friction Force would be less if you pull than push!!! Fy n ƒs,max Fx Pulling

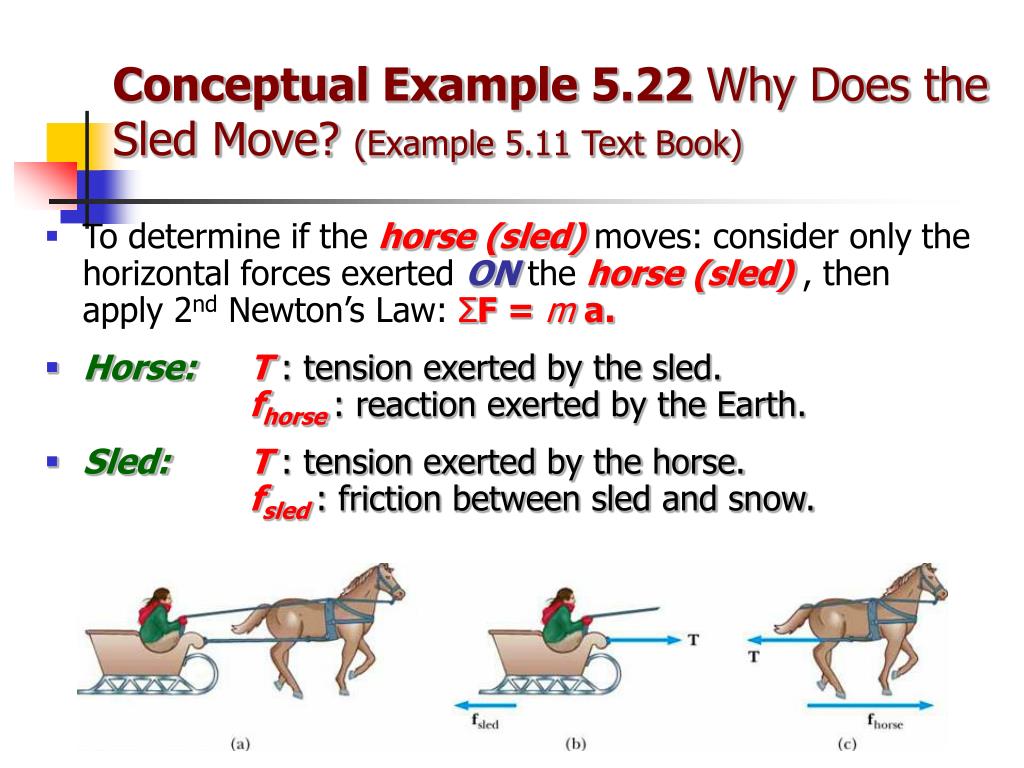

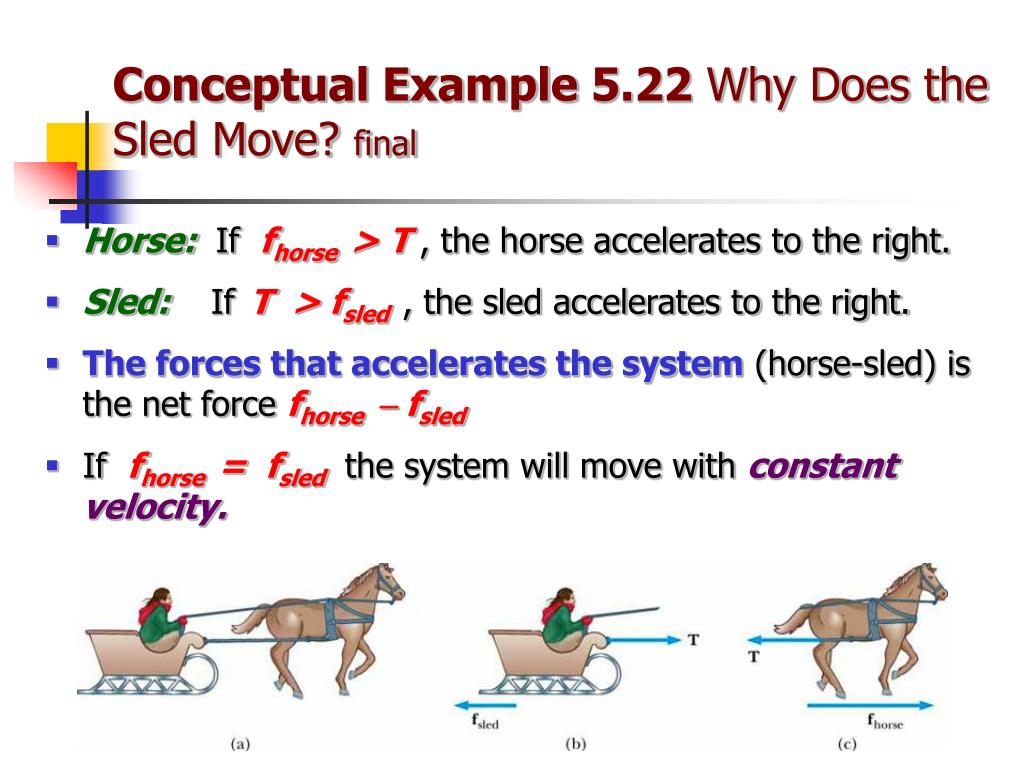

  34. Conceptual Example 5.22 Why Does the Sled Move? (Example 5.11 Text Book) • To determine ifthehorse (sled)moves:consider onlythe horizontal forces exerted ONthehorse (sled), then apply 2nd Newton’s Law:ΣF = m a. • Horse:T : tension exerted by the sled. fhorse : reaction exerted by the Earth. • Sled:T : tension exerted by the horse. fsled : friction between sled and snow.

  35. Conceptual Example 5.22 Why Does the Sled Move? final • Horse: If fhorse > T , the horse accelerates to the right. • Sled: If T> fsled , the sled accelerates to the right. • The forces that accelerates the system (horse-sled) is the net force fhorse  fsled • If fhorse = fsled the system will move with constant velocity.

  36. Example 5.23 Sliding Hockey Puck • Example 5.13 (Text Book) • Draw the free-body diagram, including the force of kinetic friction • Opposes the motion • Is parallel to the surfaces in contact • Continue with the solution as with any Newton’s Law problem

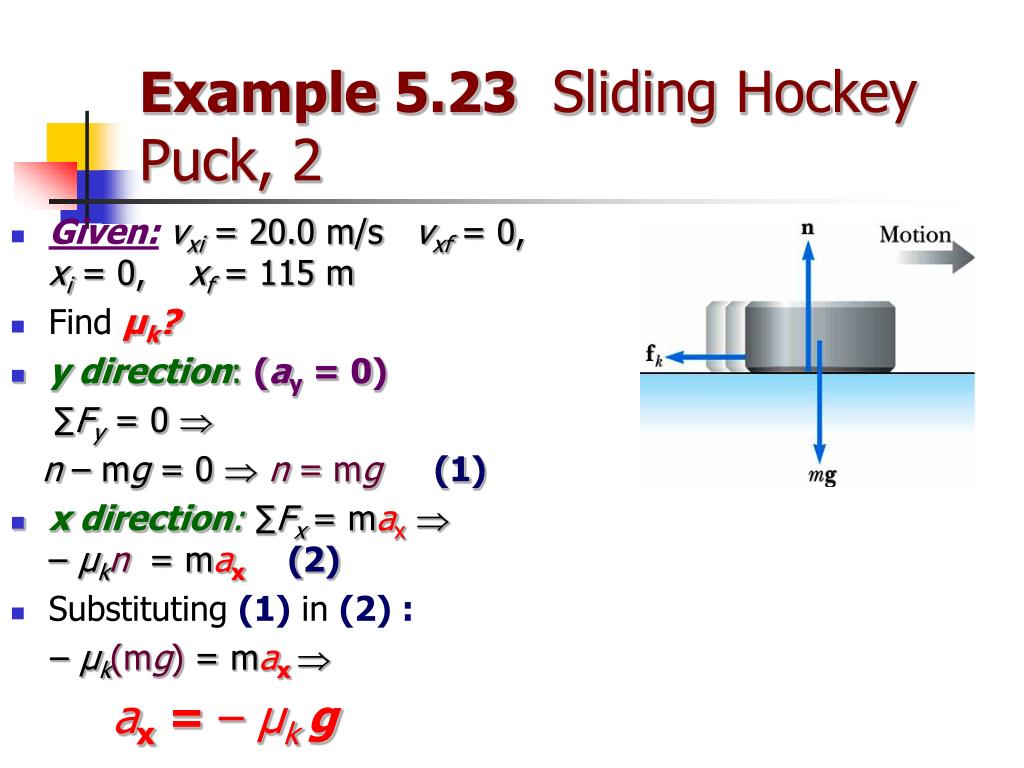

  37. Example 5.23 Sliding Hockey Puck, 2 • Given:vxi = 20.0 m/s vxf= 0, xi= 0, xf = 115 m • Find μk? • y direction:(ay = 0) ∑Fy = 0  n – mg = 0 n =mg(1) • x direction:∑Fx = max– μkn = max(2) • Substituting(1)in(2) : – μk(mg) = max ax = –μk g

  38. Example 5.23 Sliding Hockey Puck, final • ax = –μk g • To the left (slowing down) & independent of the mass!! • Replacing ax in the Equation: vf2 = vi2 + 2ax(xf – xi)  0 = (20.0m/s)2 + 2(–μk g)(115m) μk 2(9.80m/s2)(115m) = 400(m2/s2)  μk =400(m2/s2) / (2254m2/s2)  • μk = 0.177

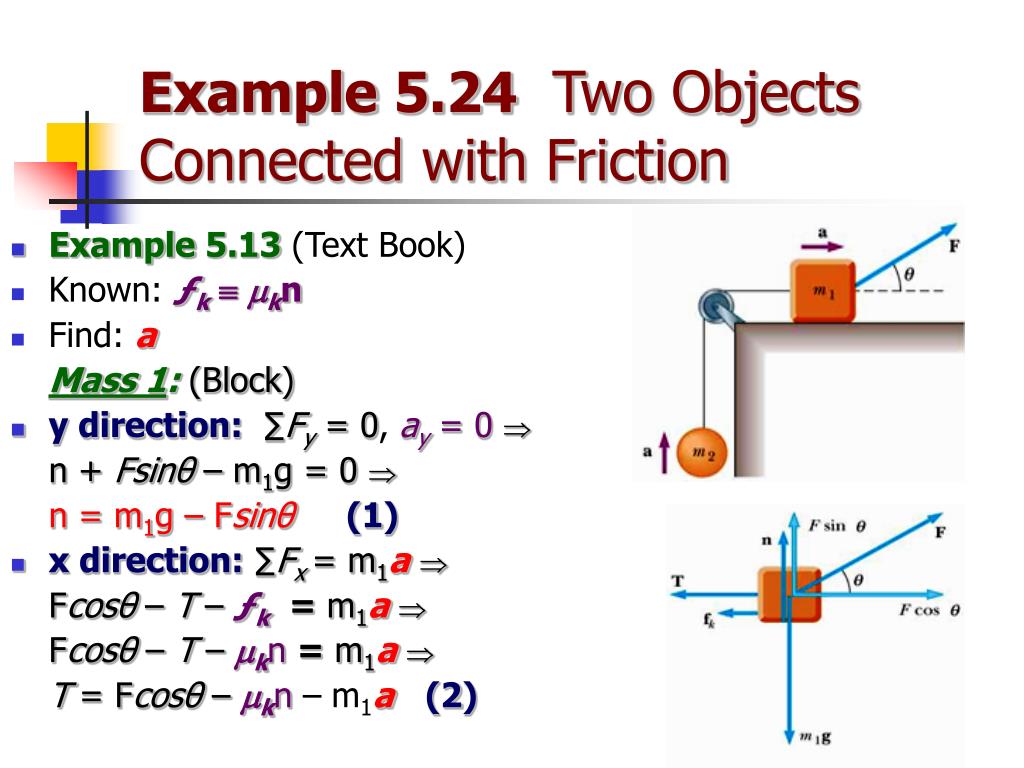

  39. Example 5.24 Two Objects Connected with Friction • Example 5.13 (Text Book) • Known: ƒk kn • Find: a Mass 1:(Block) • y direction:∑Fy = 0,ay= 0 n + Fsinθ– m1g = 0 n = m1g – Fsinθ(1) • x direction:∑Fx = m1a Fcosθ– T–ƒk= m1a Fcosθ– T–kn= m1a T = Fcosθ–kn–m1a(2)

  40. Example 5.24 Two Objects Connected with Friction, 2 Mass 2:(Ball) • y direction:∑Fy = m2a T– m2g = m2a T= m2g + m2a(3) • x direction:∑Fx = 0,ax= 0 n = m1g – Fsinθ(1) T = Fcosθ–kn–m1a(2) • Substitute (1) into (2): T = Fcosθ– k(m1g – Fsinθ) – m1a(4) • Equate:(3) = (4)and solve for a:

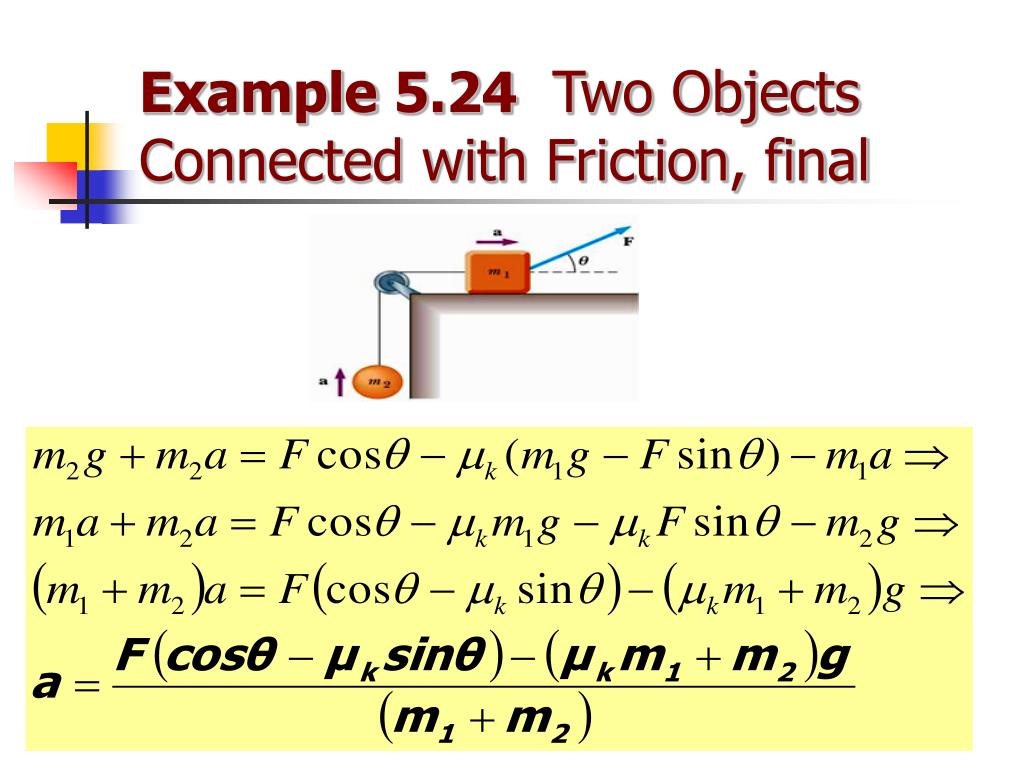

  41. Example 5.24 Two Objects Connected with Friction, final

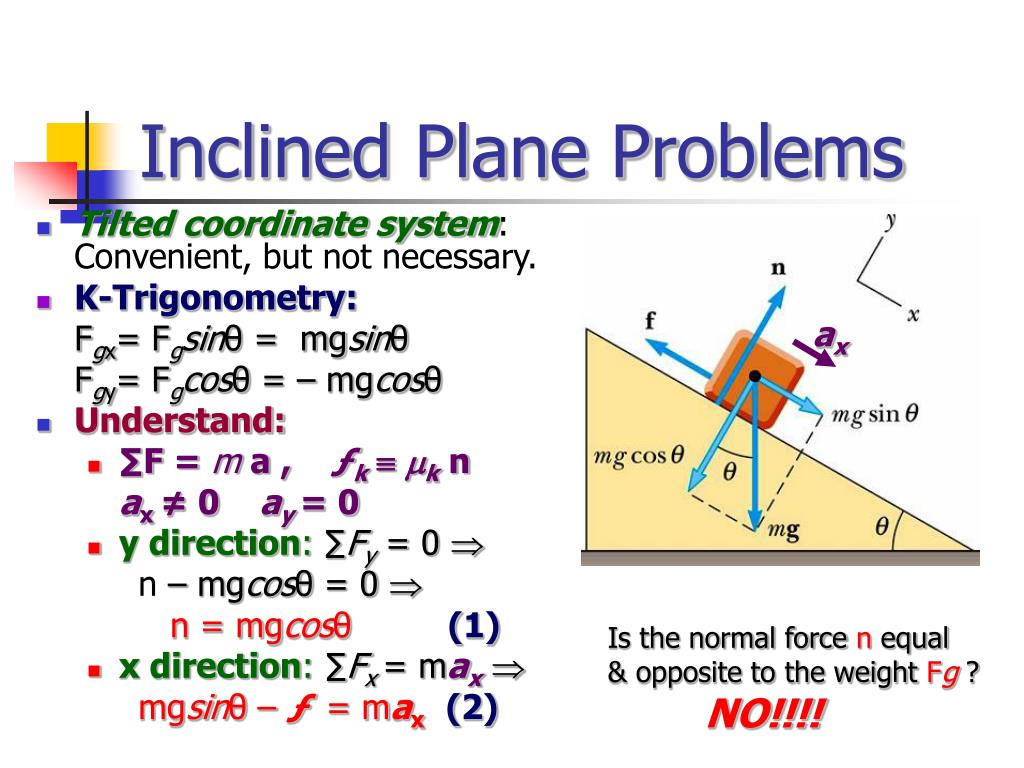

  42. Inclined Plane Problems • Tilted coordinate system: Convenient, but not necessary. • K-Trigonometry: Fgx= Fgsinθ = mgsinθ Fgy= Fgcosθ = – mgcosθ • Understand: • ∑F = m a , ƒk kn ax ≠ 0ay = 0 • y direction:∑Fy = 0 n – mgcosθ= 0 n = mgcosθ(1) • x direction:∑Fx = max mgsinθ –ƒ= max(2) ax Is the normal force n equal & opposite to the weight Fg ? NO!!!!

  43. Experimental Determination of µs and µk • The block is sliding down the plane, so friction acts up the plane • This setup can be used to experimentally determine the coefficient of friction µs,k • µs,k = tan qs,k • For µs use the angle where the block just slips • For µk use the angle where the block slides down at a constant speed

  44. Active Figure 5.19

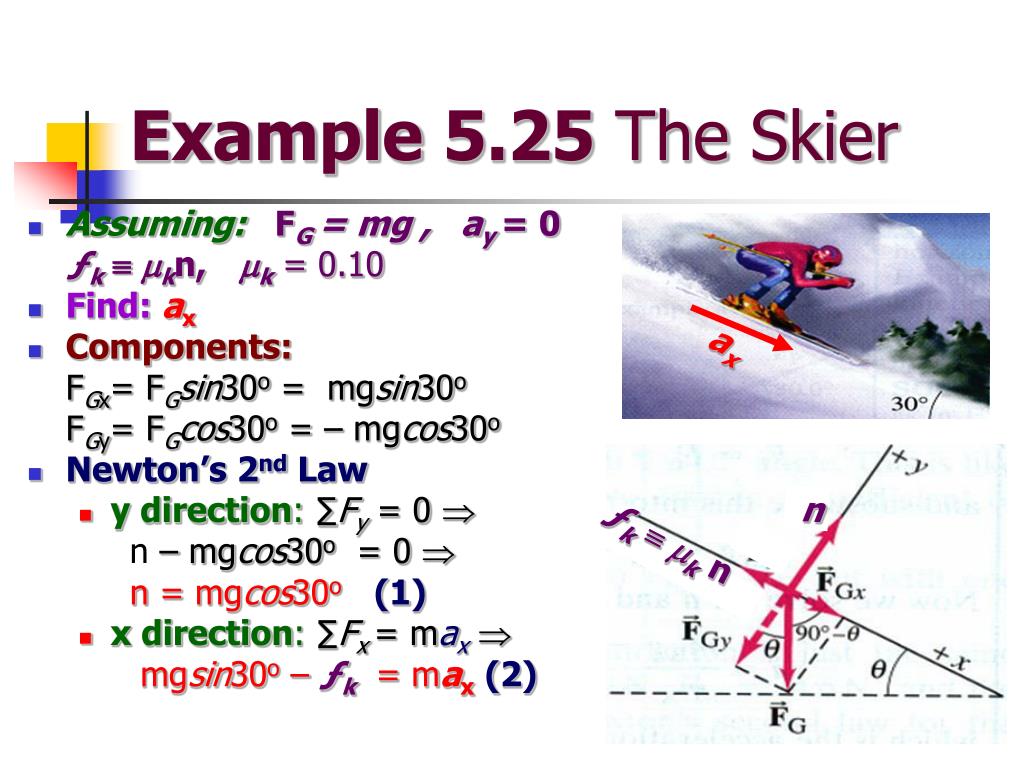

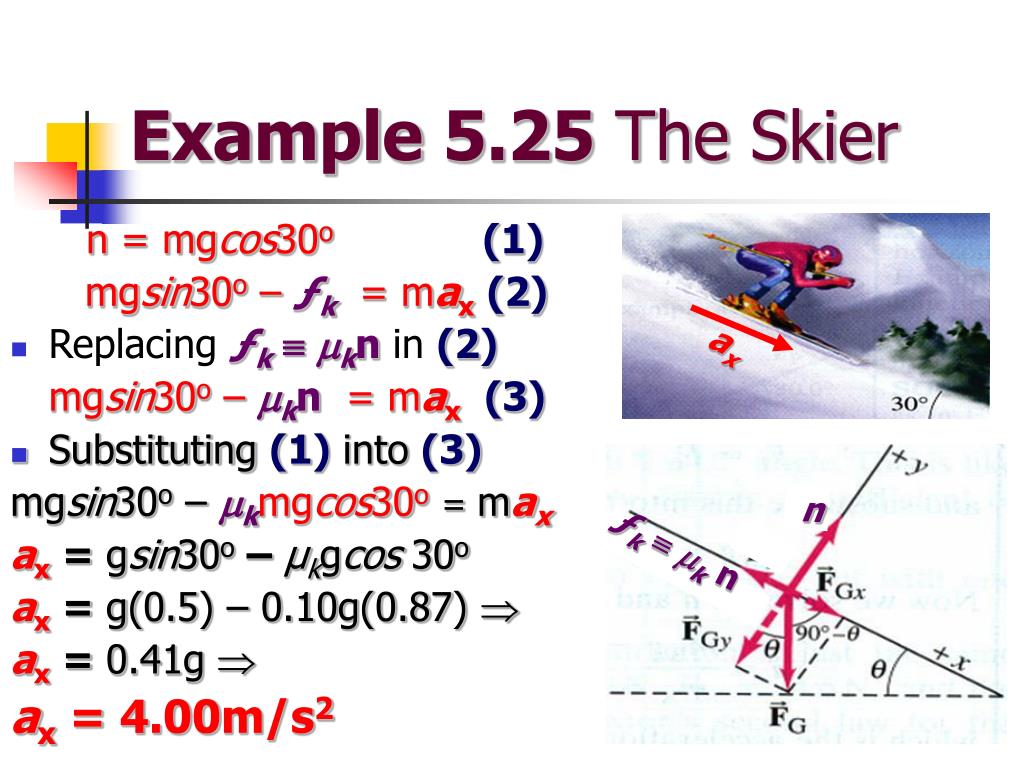

  45. Example 5.25 The Skier • Assuming: FG= mg , ay = 0 ƒk kn,k= 0.10 • Find: ax • Components: FGx= FGsin30o = mgsin30o FGy= FGcos30o = – mgcos30o • Newton’s 2nd Law • y direction:∑Fy = 0 n – mgcos30o= 0 n = mgcos30o(1) • x direction:∑Fx = max mgsin30o –ƒk= max(2) ax ax n ƒk kn

  46. Example 5.25 The Skier n = mgcos30o(1) mgsin30o –ƒk= max(2) • Replacingƒk kn in (2) mgsin30o –kn = max (3) • Substituting (1) into (3) mgsin30o– kmgcos30o= max ax=gsin30o–μkgcos30o ax=g(0.5)–0.10g(0.87) ax=0.41g ax =4.00m/s2 ax ax n ƒk kn

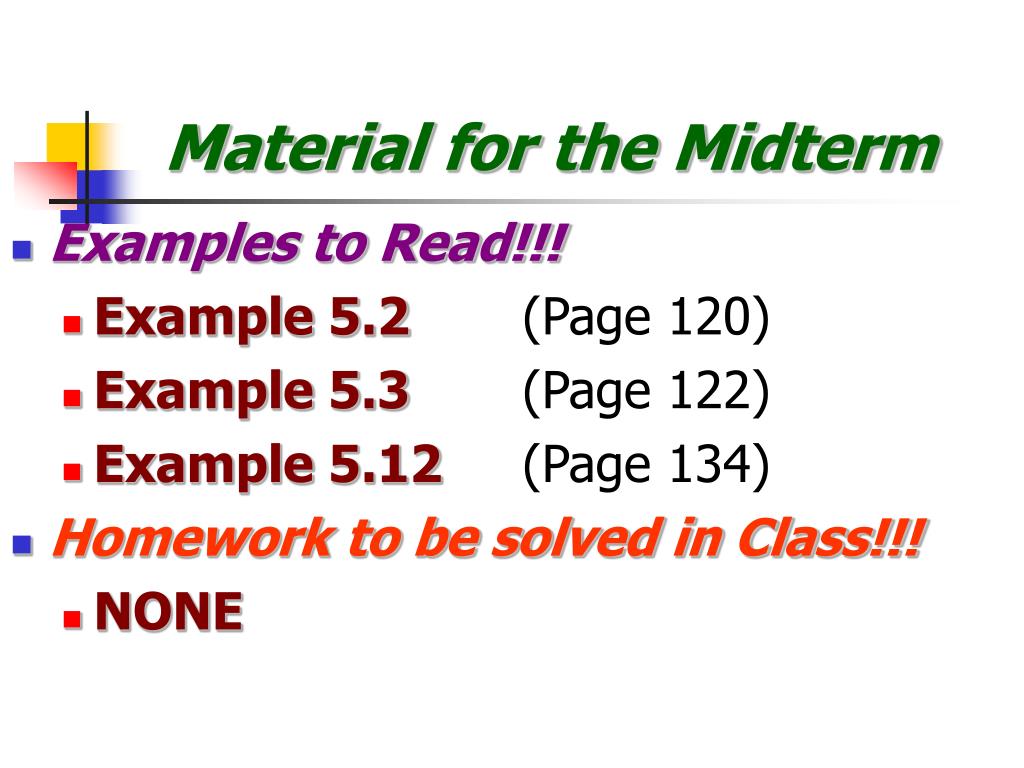

  47. Material for the Midterm • Examples to Read!!! • Example 5.2(Page 120) • Example 5.3(Page 122) • Example 5.12(Page 134) • Homework to be solved in Class!!! • NONE
