Presentation Transcript


Adabas recovery using fast backup software l.jpg

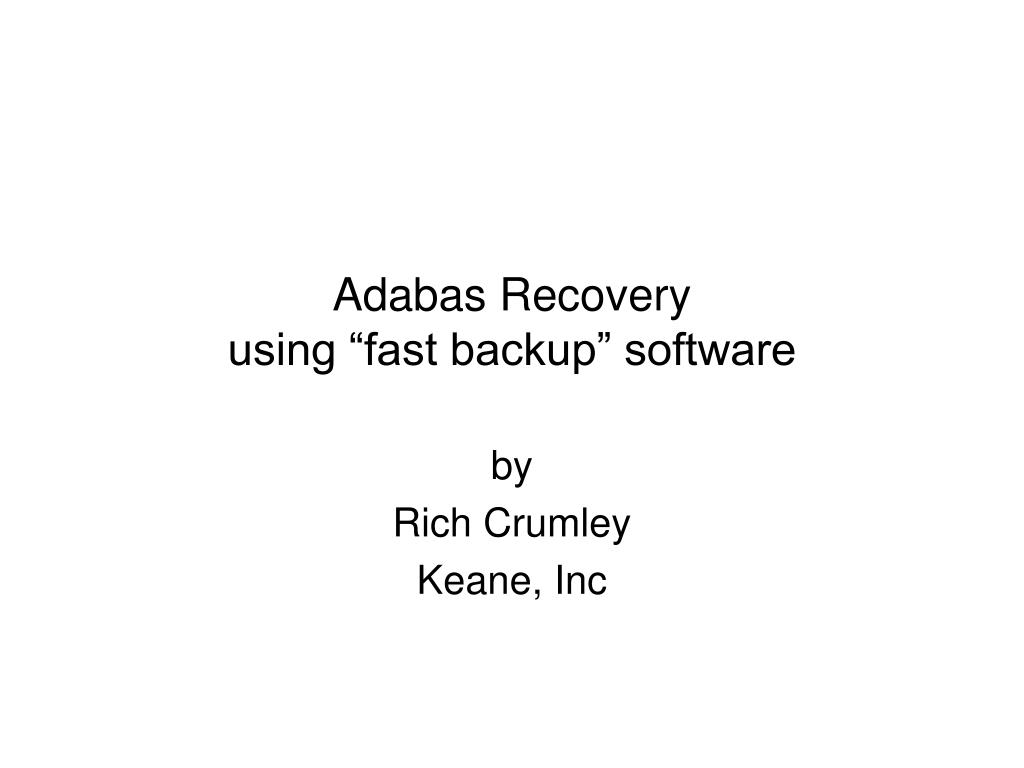

Adabas Recoveryusing “fast backup” software

by

Rich Crumley

Keane, Inc


Sag disclaimer l.jpg

SAG disclaimer

“Software AG does not recommend using such a database fastcopy as a substitute for a regular Software AG database (or delta) save. Not only does Software AG have no control over the datasets that are included in the database fastcopy, but it also cannot vouch for the success of the fastcopy. Moreover, delta saves cannot sensibly be run on a copy of the database, as the DSF status change effected by the delta save would occur on the database copy instead of the original.”


Agenda l.jpg

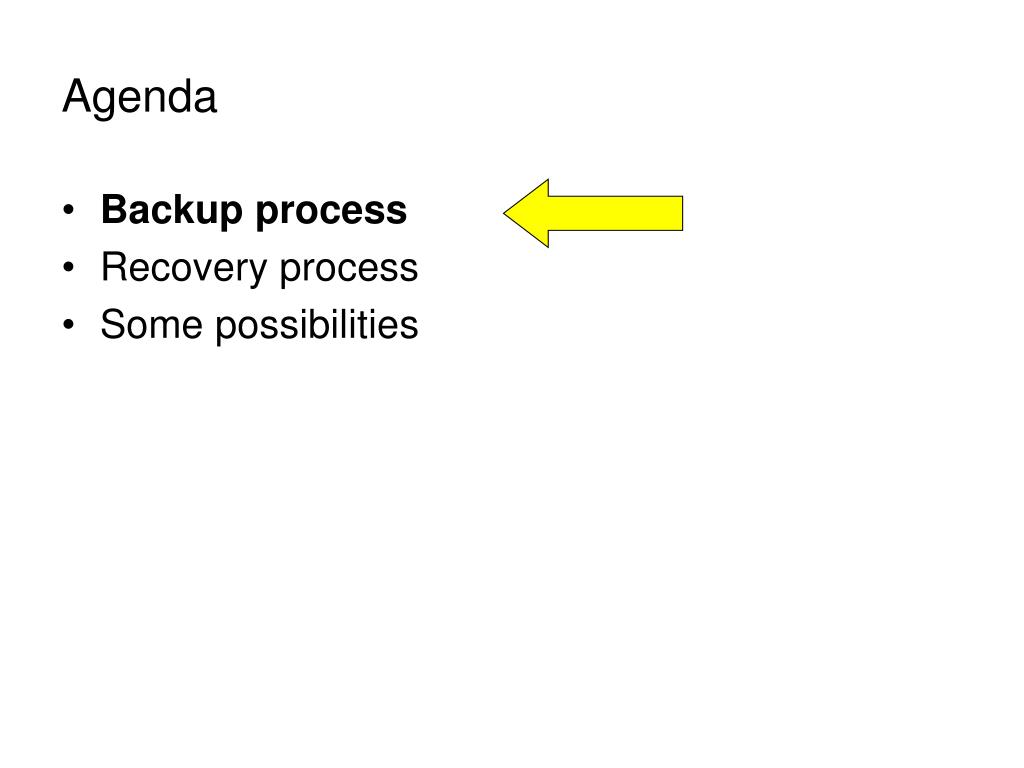

Agenda

  • Backup process

  • Recovery process

  • Some possibilities


The backup process l.jpg

The Backup Process

  • Suspend update transactions

  • Execute “fastcopy”

  • Resume update transactions


Adabas 7 4 release notes l.jpg

ADABAS 7.4 Release Notes


Suspend update transactions l.jpg

SUSPEND UPDATE TRANSACTIONS


Transactions suspend l.jpg

TRANSACTIONS SUSPEND

Optional Parameter - TTSYN

“Use this parameter to specify the maximum amount of time the nucleus is to wait for all ET users to reach ET status before it forcibly ends and backs out update transactions that are still running in order to quiesce the system. If this parameter is not specified, the default is the ADARUN TT value.”


Transactions suspend8 l.jpg

TRANSACTIONS SUSPEND

Optional Parameter - TRESUME

“Use this parameter to specify the amount of time in seconds the system is to remain quiesced after being suspended before the nucleus automatically resumes normal update transaction processing. If this parameter is not specified, the default is 120 seconds and the maximum is 86400 seconds or about 24 hours. The count begins when the nucleus has been successfully quiesced. ”


Transactions suspend9 l.jpg

TRANSACTIONS SUSPEND

Behind the scenes:

  • New update transactions held in the user queue.

  • In-flight transactions are allowed to complete (within TTSYN)

  • Buffer flush

  • Write checkpoint SYNC-73

  • ADADBS notified


Transactions suspend10 l.jpg

TRANSACTIONS SUSPEND

Issues:

  • Read processing continues

  • Utility conflicts (collisions)

  • TTSYN value

  • TRESUME value


Slide11 l.jpg

Execute “fastcopy”


Resume update transactions l.jpg

RESUME UPDATE TRANSACTIONS


Transactions resume l.jpg

TRANSACTIONS RESUME

Behind the scenes:

  • Write checkpoint SYNS-74

  • Suspended transactions released from the user queue

  • ADADBS notified


Transactions resume14 l.jpg

TRANSACTIONS RESUME

Issues:

  • Database not in SUSPEND status


Agenda15 l.jpg

Agenda

  • Backup process

  • Recovery process

  • Some possibilities


The recovery process l.jpg

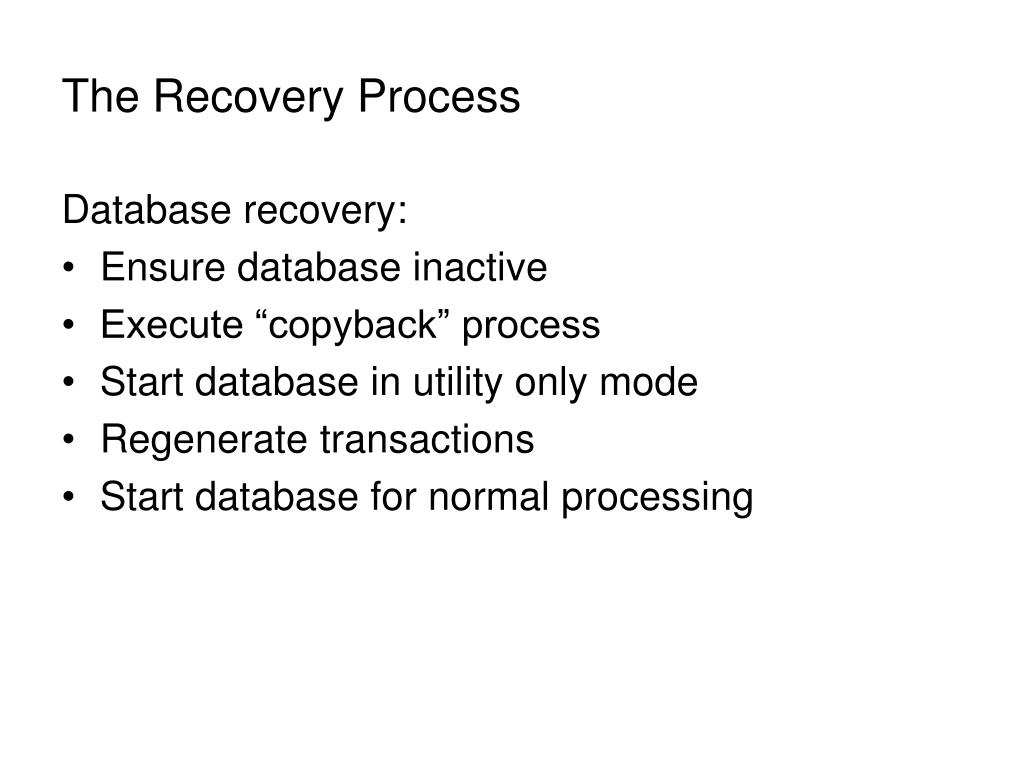

The Recovery Process

Database recovery:

  • Ensure database inactive

  • Execute “copyback” process

  • Start database in utility only mode

  • Regenerate transactions

  • Start database for normal processing


The recovery process17 l.jpg

The Recovery Process

File recovery:

  • Disable original file

  • Regenerate transactions on “snap” DB

  • Save file on “snap” database

  • Restore file to original database

  • Enable file for normal processing


Agenda18 l.jpg

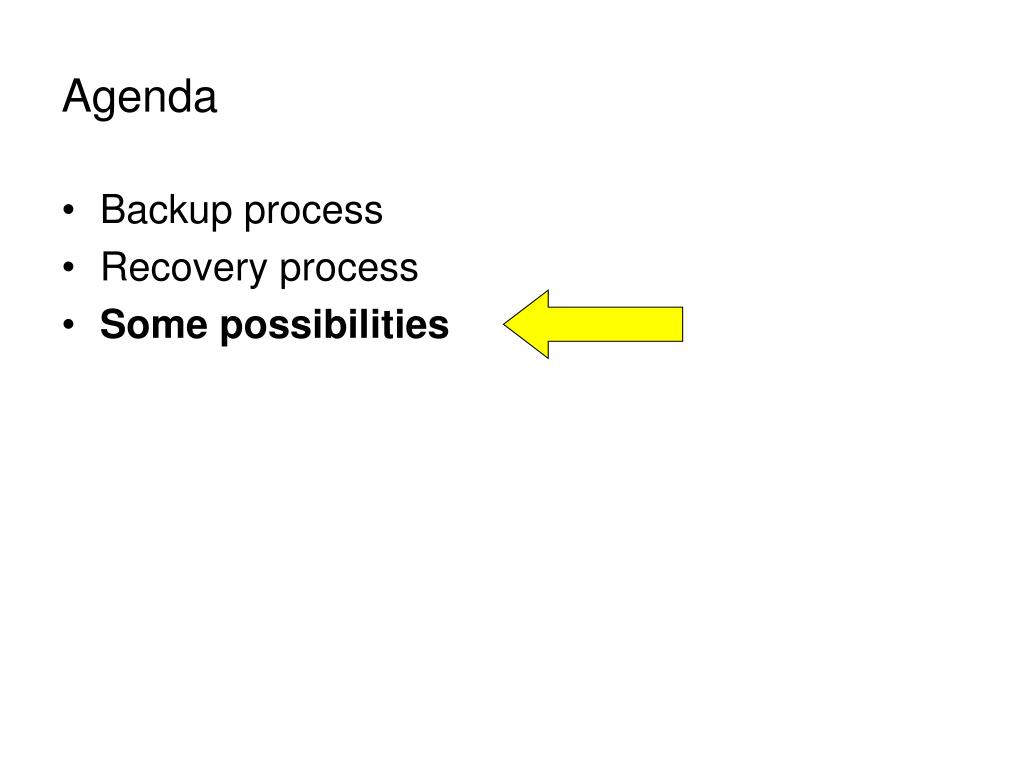

Agenda

  • Backup process

  • Recovery process

  • Some possibilities


Some possibilities l.jpg

Some Possibilities

How might the “snap” database be used?

  • Offline Save

  • Diagnostic utilities (ACK, ICK, VAL)

  • Static copy of Production database

  • Recovery purposes

  • ???


  • Login
