  1. CO1552 – Web Application Development Further JavaScript:Part 1: The Document Object Model (Last Week) Part 2: Functions and Events

  2. Overview • Part 1: The Document Object Model • How the browser “structures” your pages, HTML and JavaScript • Part 2: JavaScript Events and Event Handlers • How the browser can react to user input

  3. Simple JavaScript Statements • Simple statements perform single actions • Using SCRIPT tags document.write('hello'); • Using HTML tags <INPUT TYPE = "button" VALUE ="Press"onClick = "window.alert('Hello');"> • JavaScript actions enclosed within a string onMouseOver = "window.alert('Hello');" • Difficult to write complex actions in this way

  4. Functions • Functions are groups of JavaScript statements brought together to perform more complex tasks • Some pre-written standard functions • New functions can be created • Functions have names by which they are triggered or "called“ • Exactly the same principle as function in VB.NET

  5. Anatomy of a Function function name <HEAD> <SCRIPT> function calculate() { answer = (x*y)/2 * 100; } </SCRIPT> </HEAD> brackets ( ) functiondefinition curly brackets { }

  6. Calling a Function <BODY> <FORM NAME="calcform"> <INPUT TYPE="button" VALUE="Calculate" onClick="calculate();"> </FORM> </BODY> calling the function Function name + brackets

  7. Input Values (Arguments) Arguments defined in function • Define function <SCRIPT> function calculate(x,y) { answer = (x*y)/2 * 100; } </SCRIPT> • Call function <INPUT TYPE="button" VALUE="Calculate" onClick="calculate(5,10);"> Arguments supplied when function is called

  8. Output Values • Instructions in the function <SCRIPT> function calculate(x,y) { answer = (x*y)/2 * 100; document.calcform.answerbox.value = answer; } </SCRIPT> Change the value of the form element answerbox to the current value of answer

  9. Output Values • Create the output box <FORM NAME="calcform"> <INPUT TYPE="button" VALUE="Calculate" onClick="calculate(5,10);"> <INPUT TYPE="text" NAME="answerbox"> </FORM> New form element answerbox to display the value of answer

  10. Same result every time Hard-coded Arguments • Arguments can be "hard-coded" • Fixed value • Same result each time <INPUT TYPE="button" VALUE="Calculate" onClick="calculate(5,10);">

  11. User Supplied Arguments • Different values - different (specific) result • New form element • To receive input from user <INPUT TYPE"text" NAME="inputbox"> • Extra code in onClick • To supply new argument to the function onClick="calculate(5,document.calcform.inputbox.value);"

  12. Built-in Functions • Standard, pre-written functions in JavaScript • Easy to call and use • Examples include: • Mathematicallog() sqrt() • TexttoUpperCase() length() answer = Math.sqrt(25);

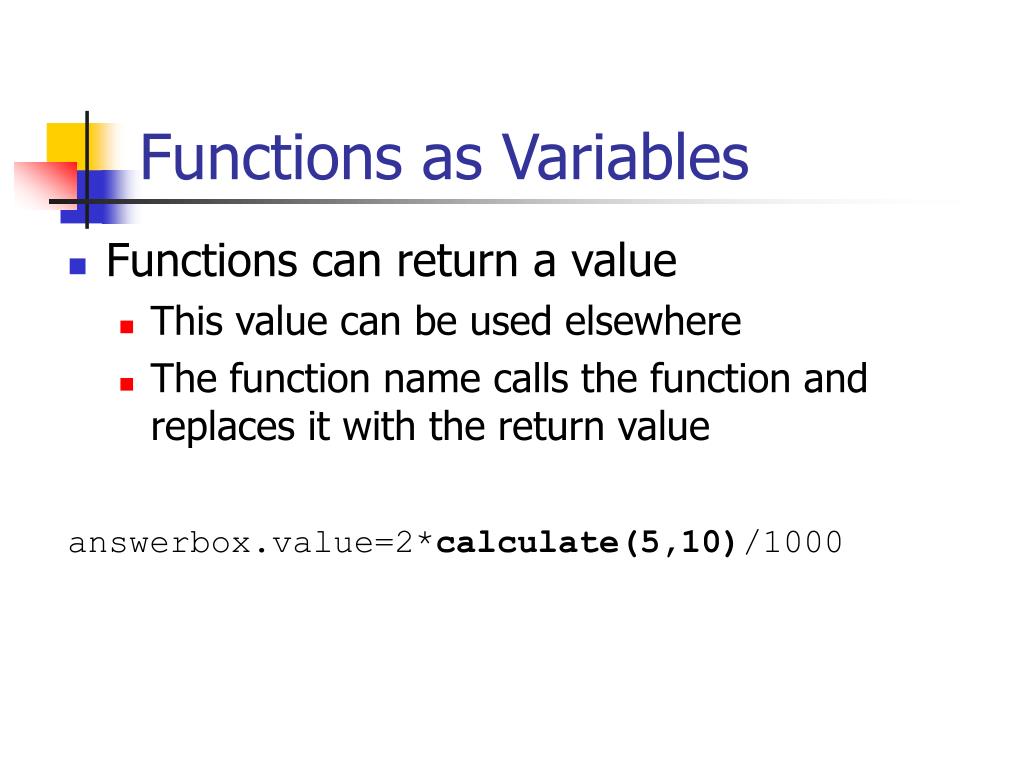

  13. Functions as Variables • Functions can return a value • This value can be used elsewhere • The function name calls the function and replaces it with the return value answerbox.value=2*calculate(5,10)/1000

  14. Events • Anything that happens on a web page • User initiated events • Clicking a mouse, pressing a key • Browser initiated events • Page finishes loading • Responded to by event handlers • Specify behaviour according to events • When a happens do b • Already seen and used event handlers in this presentation

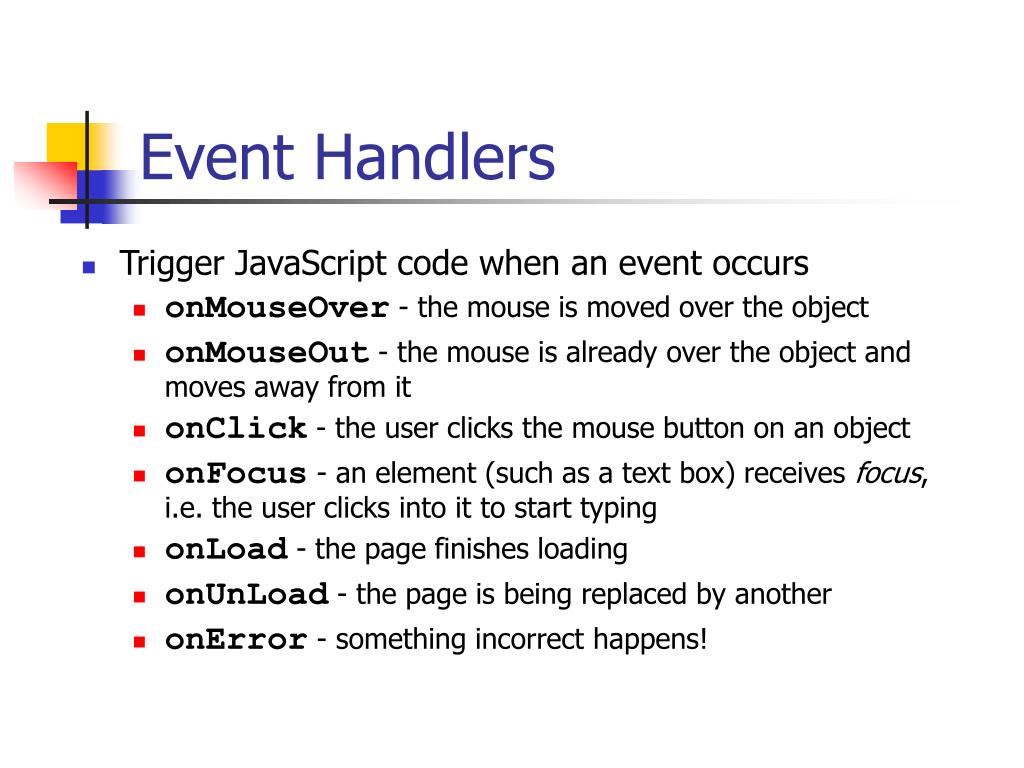

  15. Event Handlers • Trigger JavaScript code when an event occurs • onMouseOver - the mouse is moved over the object • onMouseOut - the mouse is already over the object and moves away from it • onClick- the user clicks the mouse button on an object • onFocus - an element (such as a text box) receives focus, i.e. the user clicks into it to start typing • onLoad - the page finishes loading • onUnLoad - the page is being replaced by another • onError - something incorrect happens!

  16. Event handler Event handler Code triggered Function called Using Event Handlers • Event occurs and creates a pop-up message onClick="window.alert('You clicked me');" • Event occurs and calls a function onClick="calculate(5,10);"

  17. Summary • Functions are used to group statements/logical units of code • Often put in the <SCRIPT></SCRIPT> section in the <HEAD> of the page • Functions are "called" by their unique name • Arguments are values supplied to the function • Events can be user or browser initiated • Event handlers trigger JavaScript statements • Functions often triggered by events
