  1. COMP541More on Verilog;Debouncing switches Montek Singh Feb 15, 2012

  2. First Topic • More Verilog…

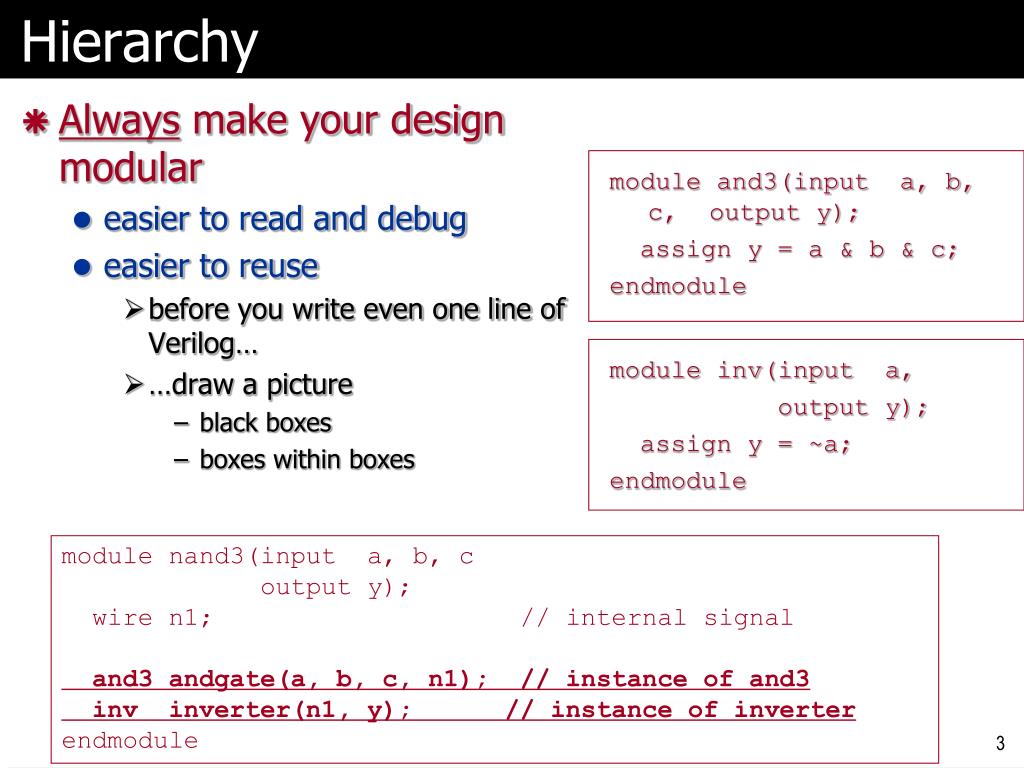

  3. Hierarchy • Always make your design modular • easier to read and debug • easier to reuse • before you write even one line of Verilog… • …draw a picture • black boxes • boxes within boxes module and3(input a, b, c, output y); assign y = a & b & c; endmodule module inv(input a, output y); assign y = ~a; endmodule module nand3(input a, b, c output y); wire n1; // internal signal and3 andgate(a, b, c, n1); // instance of and3 inv inverter(n1, y); // instance of inverter endmodule

  4. Internal Variables • Internals = those that are not inputs/outputs • declare them as wire or reg • depending on whether they are combinational or state holding module fulladder(input a, b, cin, output s, cout); wire p, g; // internal assign p = a ^ b; assign g = a & b; assign s = p ^ cin; assign cout = g | (p & cin); endmodule

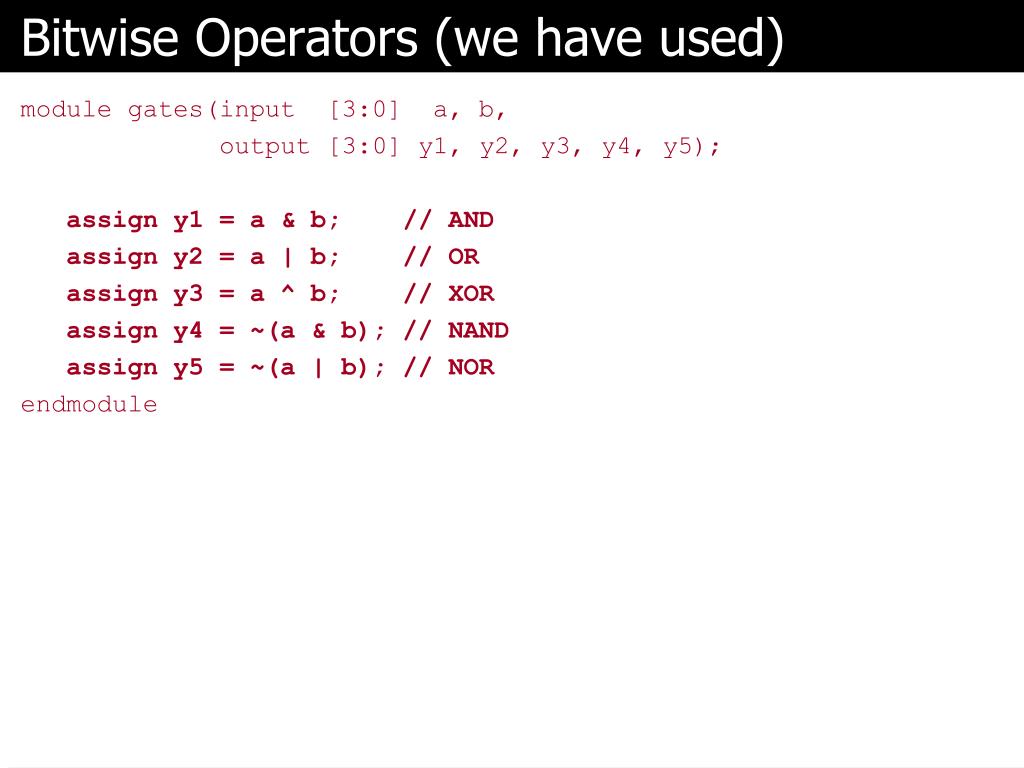

  5. Bitwise Operators (we have used) module gates(input [3:0] a, b, output [3:0] y1, y2, y3, y4, y5); assign y1 = a & b; // AND assign y2 = a | b; // OR assign y3 = a ^ b; // XOR assign y4 = ~(a & b); // NAND assign y5 = ~(a | b); // NOR endmodule

  6. Comments // single line comment /*…*/ multiline comment

  7. Reduction Operators (&) module and8(input [7:0] a, output y); assign y = &a; // &a is much easier to write than // assign y = a[7] & a[6] & a[5] & a[4] & // a[3] & a[2] & a[1] & a[0]; endmodule

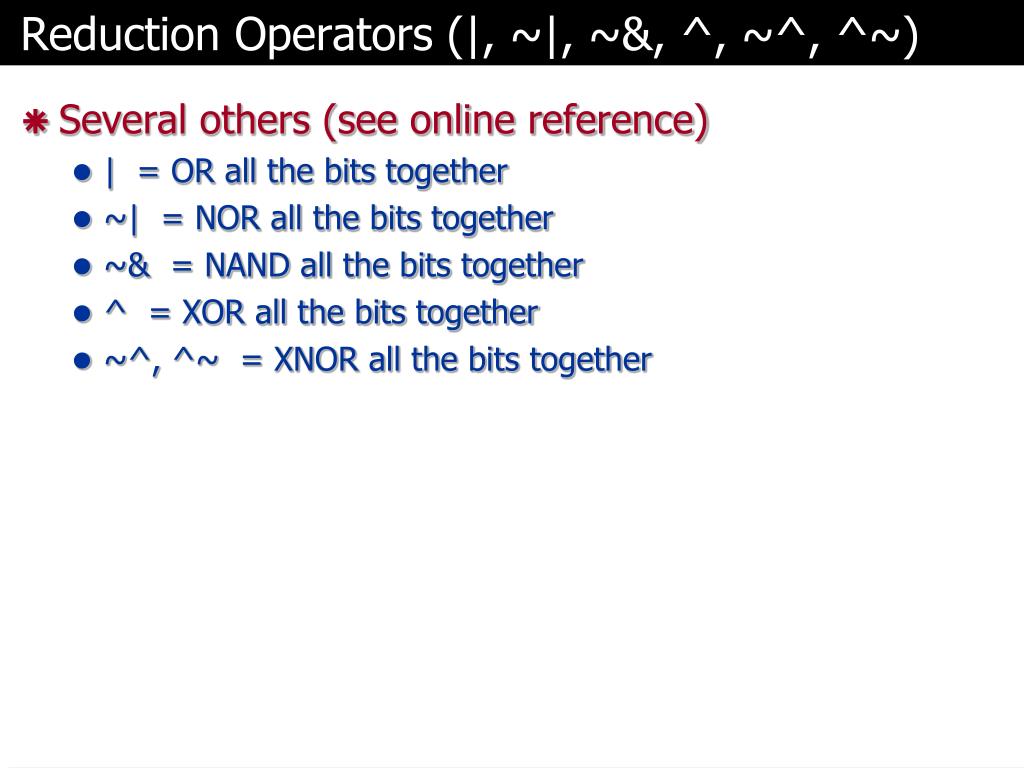

  8. Reduction Operators (|, ~|, ~&, ^, ~^, ^~) • Several others (see online reference) • | = OR all the bits together • ~| = NOR all the bits together • ~& = NAND all the bits together • ^ = XOR all the bits together • ~^, ^~ = XNOR all the bits together

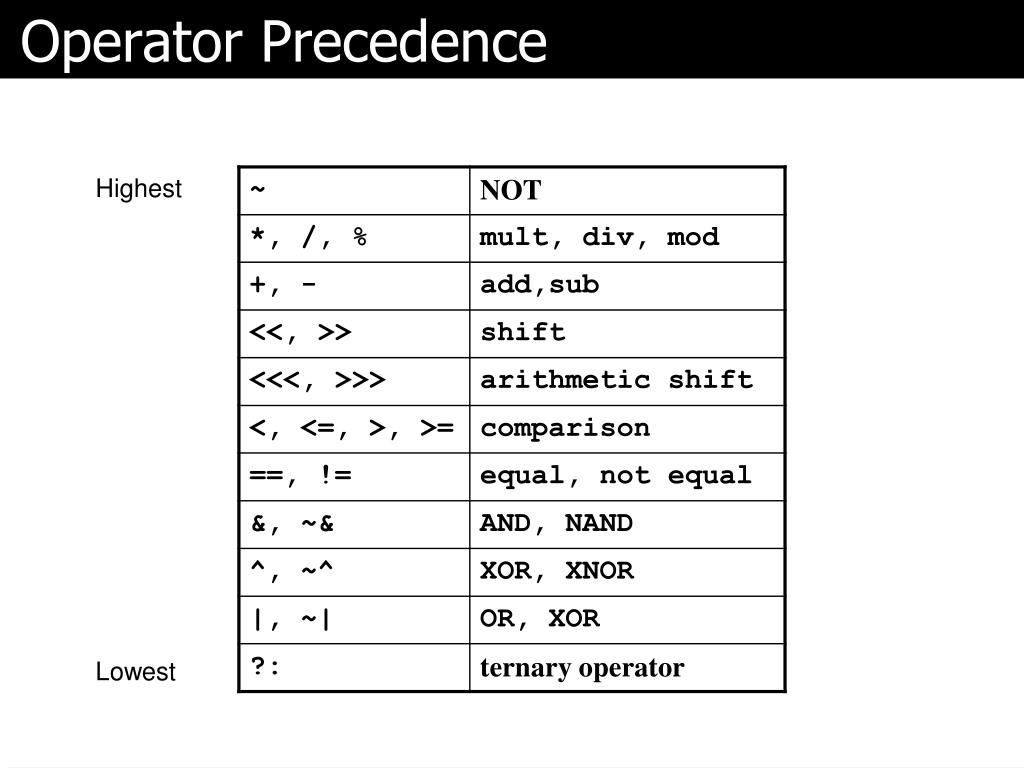

  9. Operator Precedence Highest Lowest

  10. Numbers • Format: N’Bvalue • N = number of bits, B = base • N’B is optional but recommended (default is decimal) • whenever in doubt, specify the # of bits

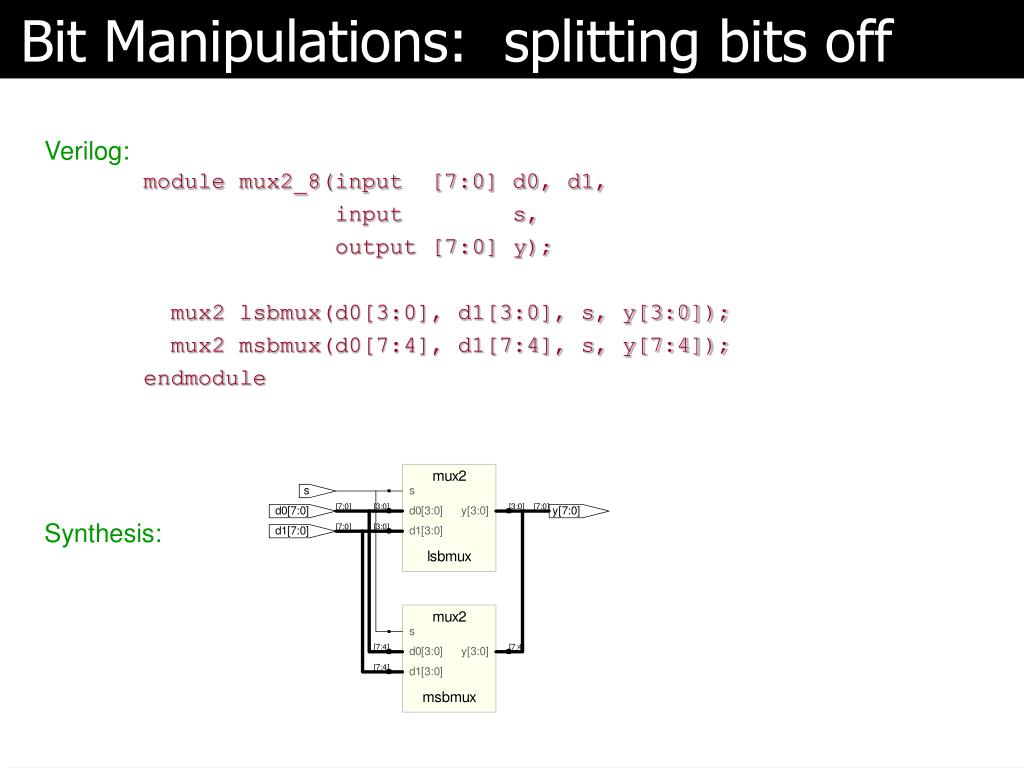

  11. Bit Manipulations: splitting bits off module mux2_8(input [7:0] d0, d1, input s, output [7:0] y); mux2 lsbmux(d0[3:0], d1[3:0], s, y[3:0]); mux2 msbmux(d0[7:4], d1[7:4], s, y[7:4]); endmodule Verilog: Synthesis:

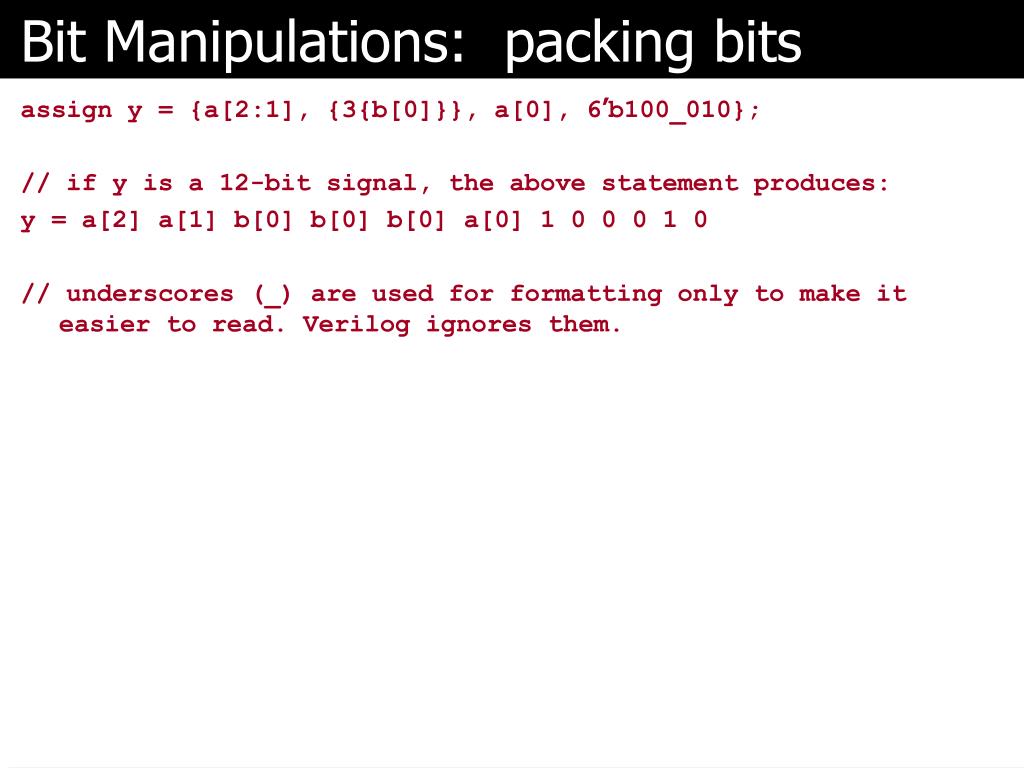

  12. Bit Manipulations: packing bits assign y = {a[2:1], {3{b[0]}}, a[0], 6’b100_010}; // if y is a 12-bit signal, the above statement produces: y = a[2] a[1] b[0] b[0] b[0] a[0] 1 0 0 0 1 0 // underscores (_) are used for formatting only to make it easier to read. Verilog ignores them.

  13. Debouncing switches What is switch bounce? Let’s solve it in class!

  14. Switch bounce • Switches bounce or “chatter” • each press/release can bounce hundreds of times! • Let’s design a chatter-free switch for Friday’s lab!

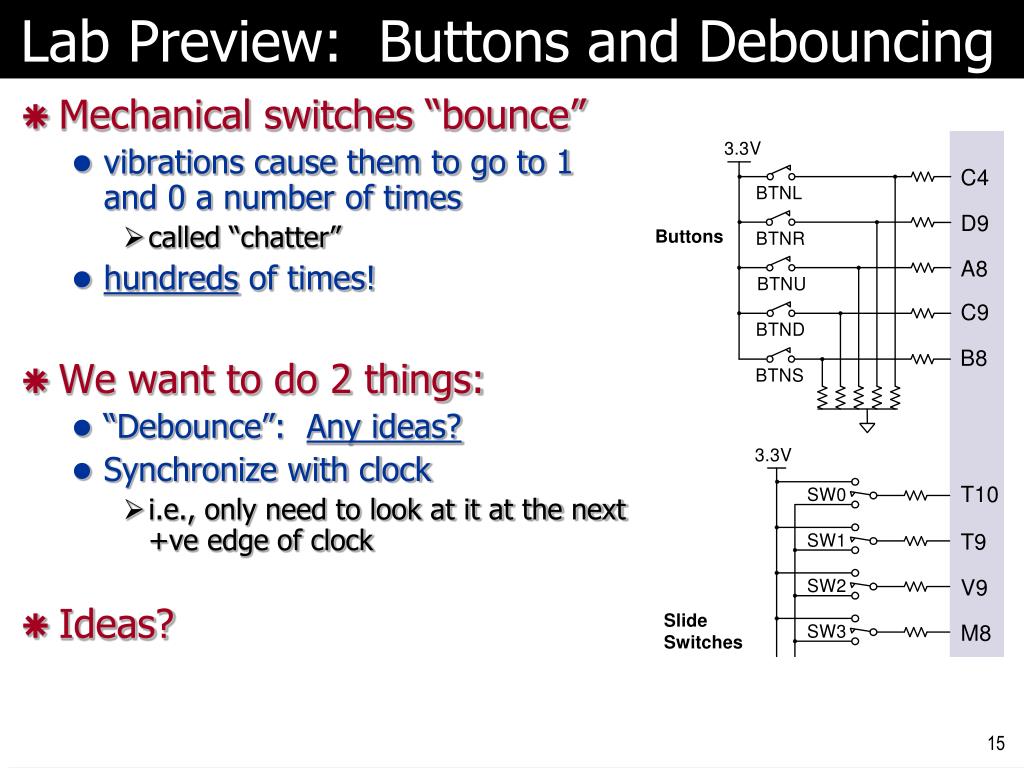

  15. Lab Preview: Buttons and Debouncing • Mechanical switches “bounce” • vibrations cause them to go to 1 and 0 a number of times • called “chatter” • hundreds of times! • We want to do 2 things: • “Debounce”: Any ideas? • Synchronize with clock • i.e., only need to look at it at the next +ve edge of clock • Ideas?
