Presentation Transcript


Cyanobacteria

Cyanobacteria

THE FIRST ALGAE!!!!!


Evolution

Evolution

  • Old 3.5 billion years

  • Dominated as biogenic reefs

  • During Proterozoic – Age of Bacteria (2.5 bya – 750 mya) they were wide spread

  • Then multicellularity took over

  • Cyanobacteria were first algae!


Cyanobacteria terminology

Cyanobacteria terminology

- Division Cyanophyta

- Cyanobacteria ‘formerly known as’ BlueGreen Algae

- Cyano = blue

- Bacteria – acknowledges that they are more closely related to prokaryotic bacteria than eukaryotic algae

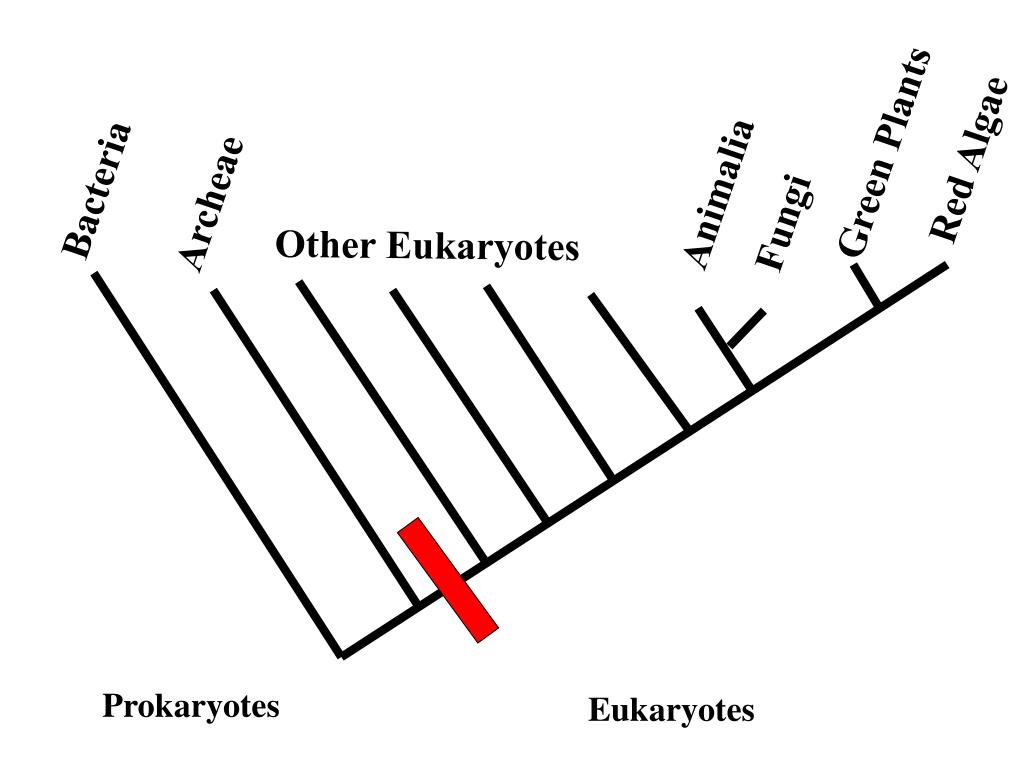

Cyanobacteria

Green Plants

Red Algae

Bacteria

Animalia

Archeae

Fungi

Other Eukaryotes

Prokaryotes

Eukaryotes


Cyanobacteria

Cyanobacteria

Green Plants

Brown Algae

Red Algae

Diatoms

Archeae

Fungi

BOTANY


Cyanobacteria1

Cyanobacteria

Microscopic organisms

Found in marine sediments and pelagic zone, freshwater lakes, soils,

Live in extreme environments – chemically and temperature.


Importance

!!!

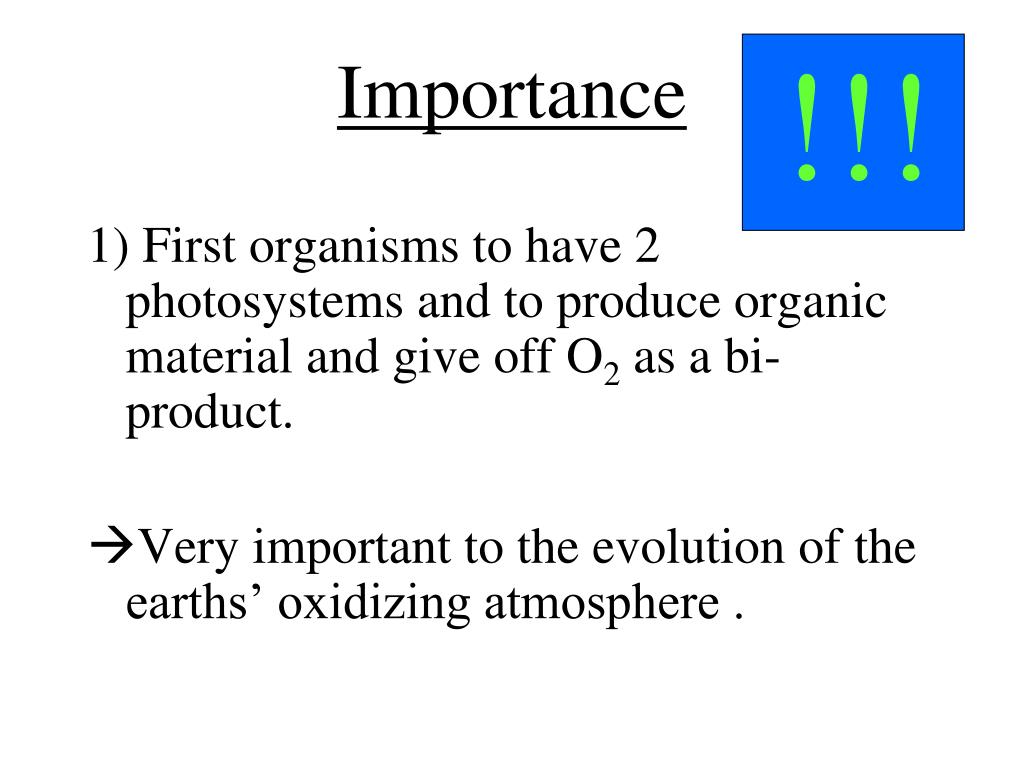

Importance

1) First organisms to have 2 photosystems and to produce organic material and give off O2 as a bi-product.

Very important to the evolution of the earths’ oxidizing atmosphere .


Importance1

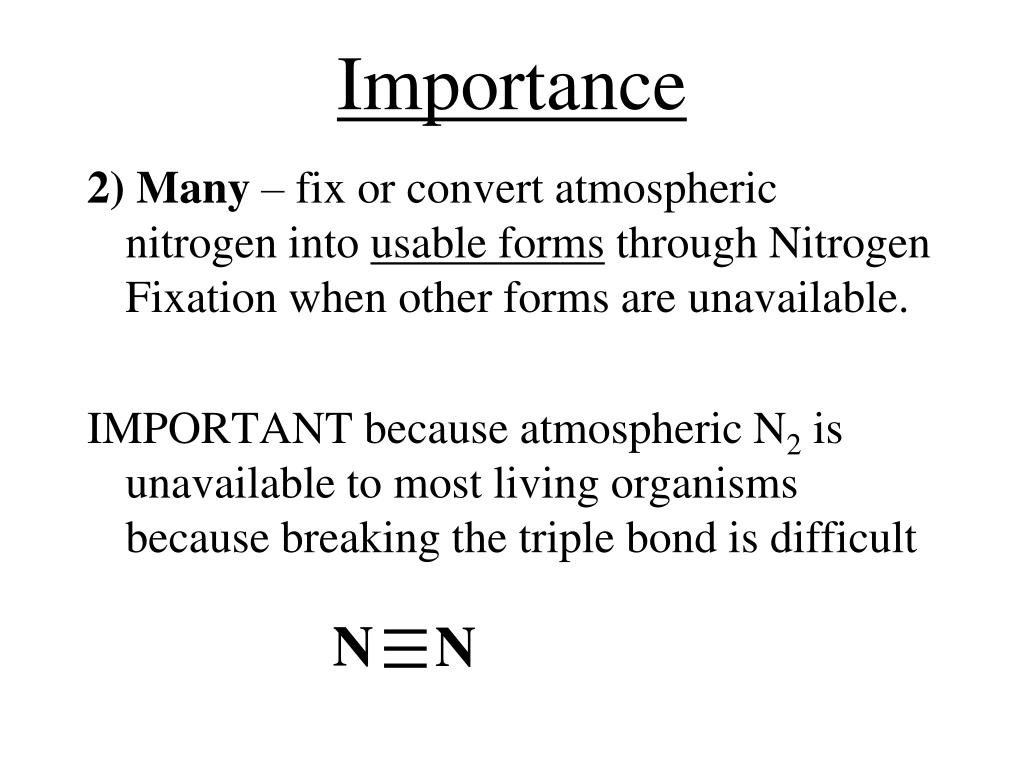

Importance

2) Many – fix or convert atmospheric nitrogen into usable forms through Nitrogen Fixation when other forms are unavailable.

IMPORTANT because atmospheric N2 is unavailable to most living organisms because breaking the triple bond is difficult

N

N


Cyanobacteria characteristics

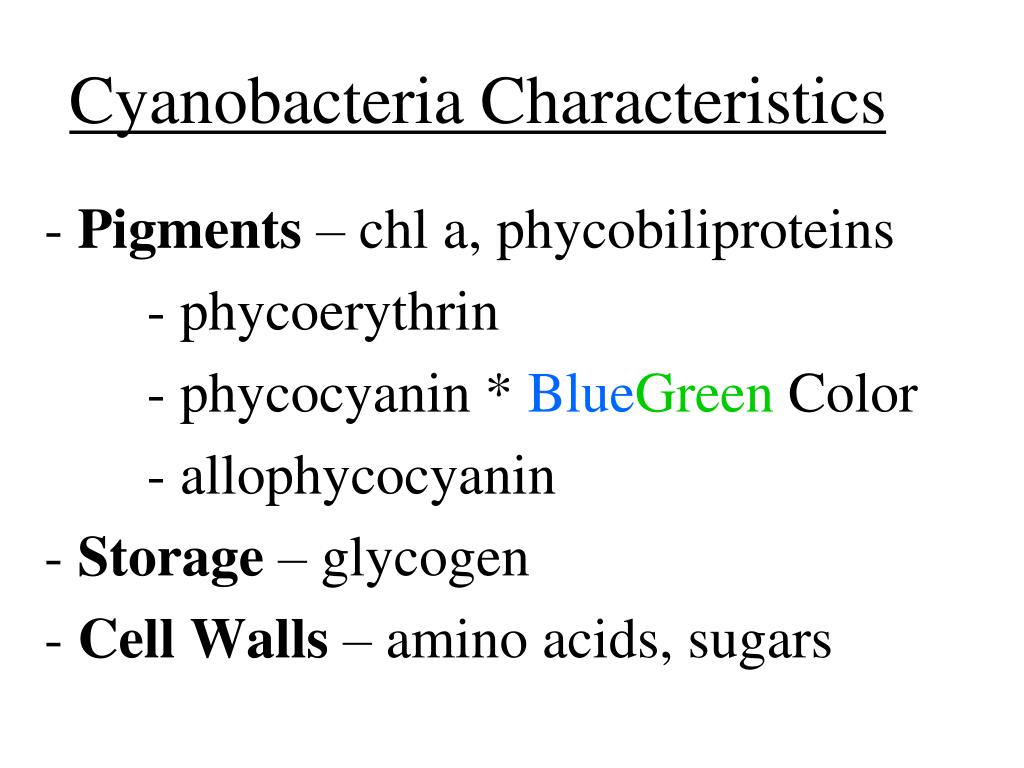

Cyanobacteria Characteristics

- Pigments – chl a, phycobiliproteins

- phycoerythrin

- phycocyanin * BlueGreen Color

- allophycocyanin

- Storage – glycogen

- Cell Walls – amino acids, sugars


Forms

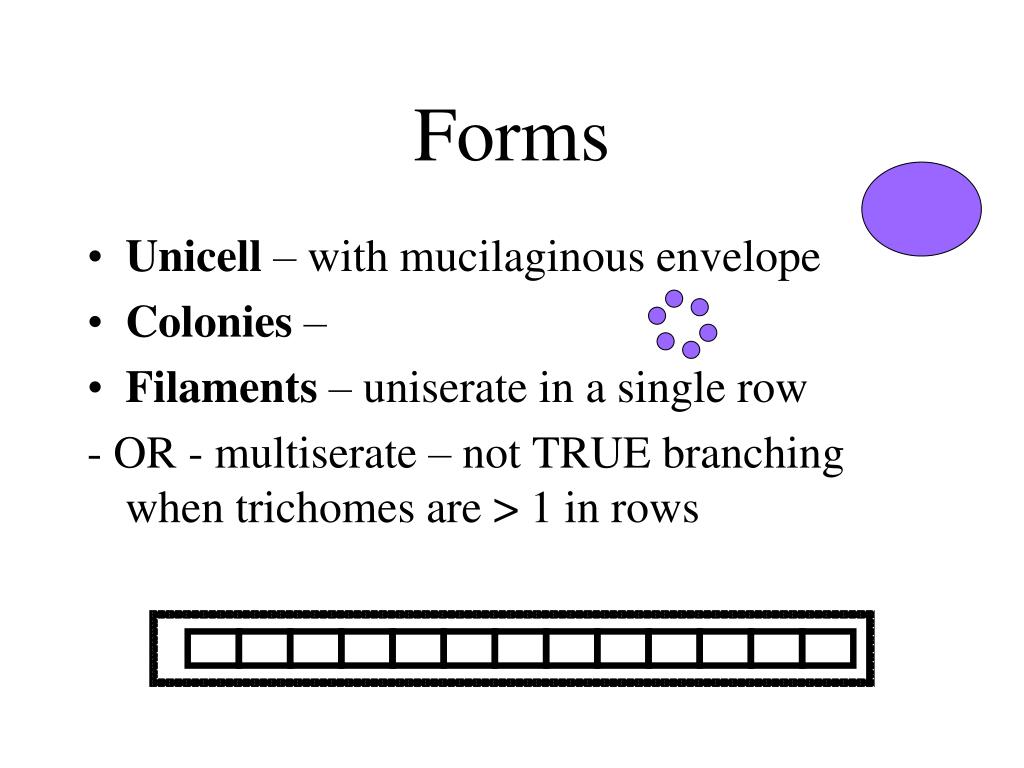

Forms

  • Unicell – with mucilaginous envelope

  • Colonies –

  • Filaments – uniserate in a single row

    - OR - multiserate – not TRUE branching when trichomes are > 1 in rows


Features

Features

} Filament

Trichome – row of cells

Mucilaginous sheath –

layer of mucilage outside of the cell wall.


Features1

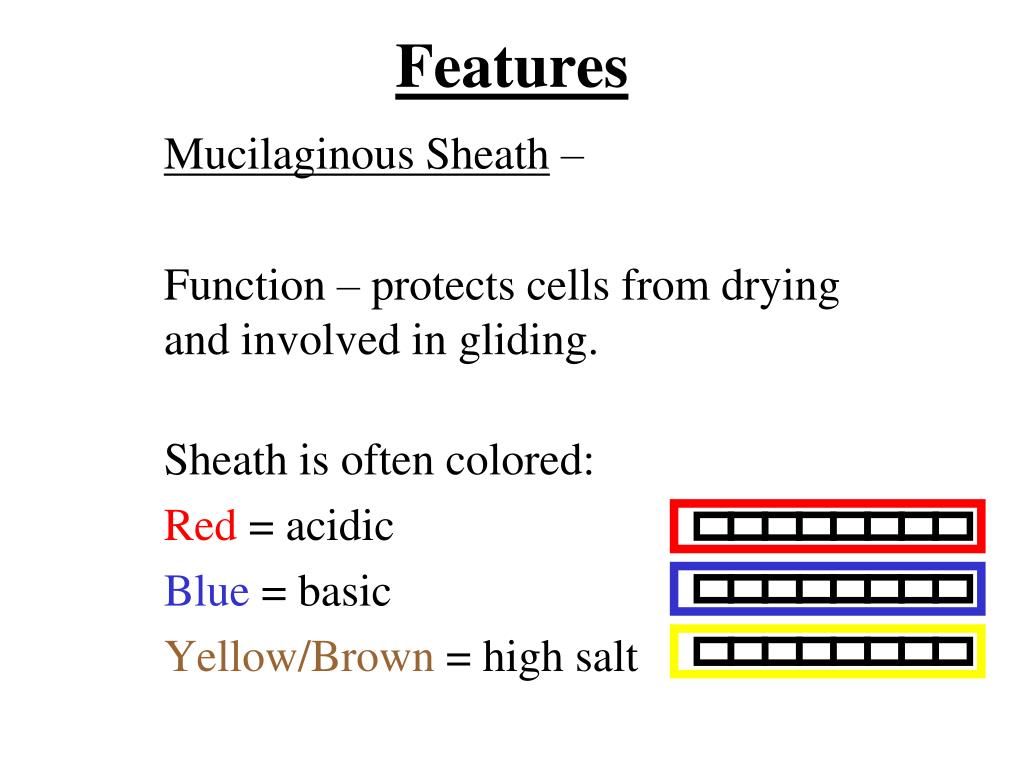

Features

Mucilaginous Sheath –

Function – protects cells from drying and involved in gliding.

Sheath is often colored:

Red = acidic

Blue = basic

Yellow/Brown = high salt


Features2

Features

Heterocyst – thick walled cell, hollow looking. Larger than vegetative cells.

FUNCTION – provides the anerobic environment for N fixation.

H- heterocyst


Cyanobacteria

Heterocyst

Vegetative cells

Anabaena


Habit success due to ability tolerate a wide range of conditions

Habit – success due to ability tolerate a wide range of conditions

  • Marine – littoral and pelagic

  • Fresh Water

  • Hot Springs

  • Terrestrial – soil flora


Heterocyst

Heterocyst

  • Larger than vegetative cells

  • Hollow looking

  • Thick walled – doesn’t allow atmospheric gas to enter.

  • Photosynthetically inactive

  • No CO2 fixation or O2 evolution

  • Formation of heterocysts triggered by [molybdenum] and and low [nitrogen]


Nitrogen

Nitrogen

  • Nitrogen is a limiting nutrient necessary for the production of amino acids = building blocks of life.


Nitrogen fixation

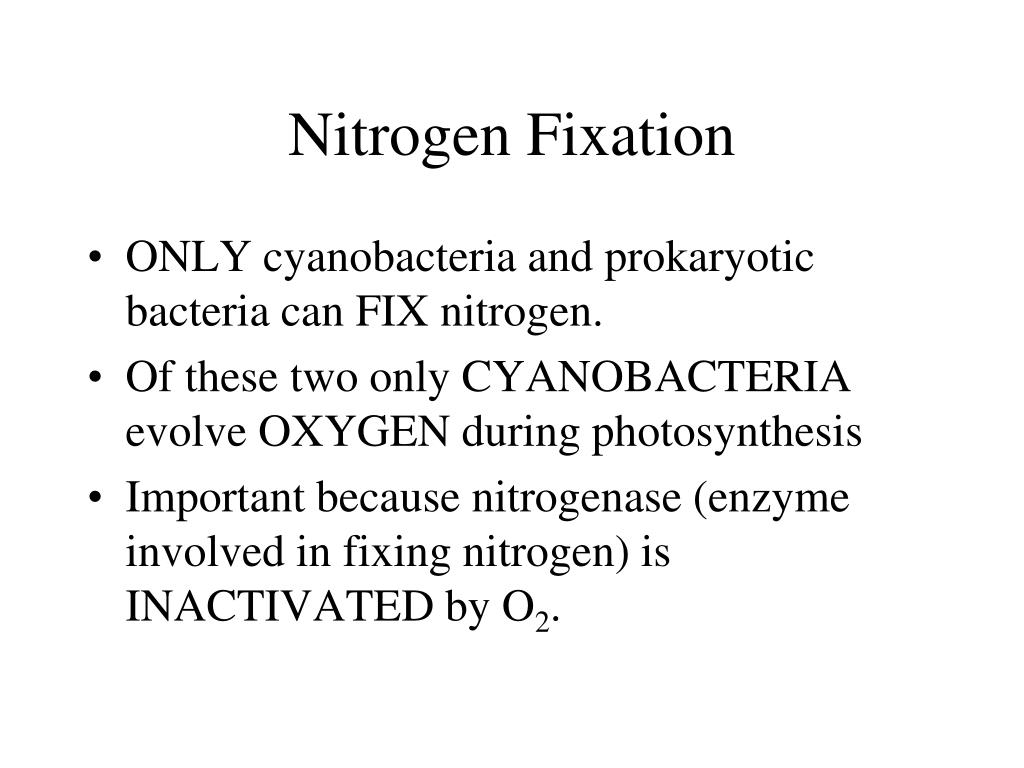

Nitrogen Fixation

  • ONLY cyanobacteria and prokaryotic bacteria can FIX nitrogen.

  • Of these two only CYANOBACTERIA evolve OXYGEN during photosynthesis

  • Important because nitrogenase (enzyme involved in fixing nitrogen) is INACTIVATED by O2.


Mechanisms to separate nitrogenase from oxygen

Mechanisms to Separate Nitrogenase from Oxygen

  • Heterocyst (spatial)

    OR

  • Fix Nitrogen in the DARK but not LIGHT – found in non-heterocystic cyanobacteria (temporal)


Aerobic

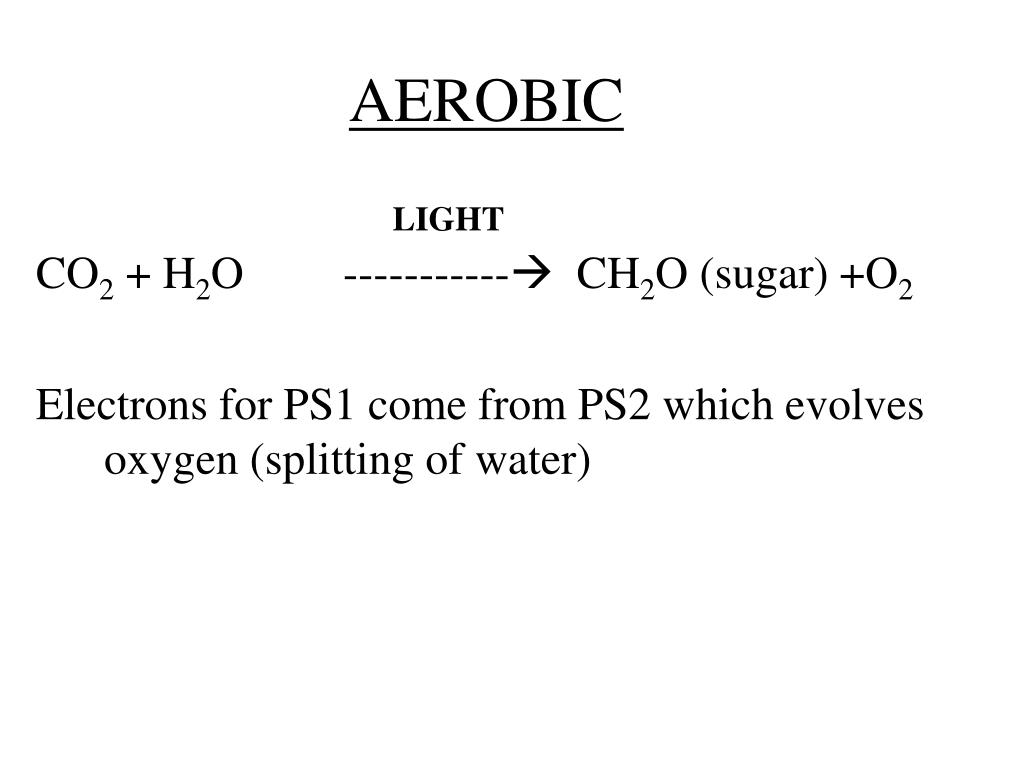

AEROBIC

LIGHT

CO2 + H2O ----------- CH2O (sugar) +O2

Electrons for PS1 come from PS2 which evolves oxygen (splitting of water)


Anaerobic in the presence of sulfer

ANAEROBIC in the presence of sulfer

2H2S + CO2-------- CH2O +2S + H2O

H2S is the electron donor – so the reaction does not produce oxygen.


Advantage for cyanobacteria

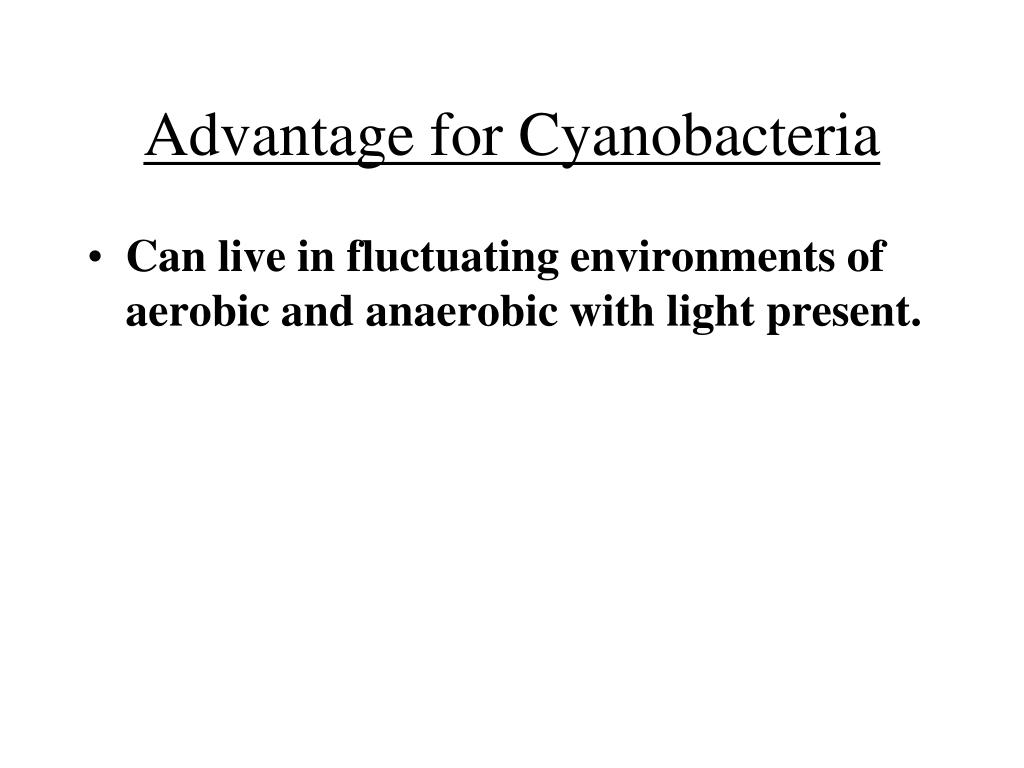

Advantage for Cyanobacteria

  • Can live in fluctuating environments of aerobic and anaerobic with light present.


Cyanotoxins in cyanobacteria

Cyanotoxins in Cyanobacteria

  • Neurotoxins – block neuron transmission in muscles (Anabaena, Oscillatoria)

  • Hepatotoxins – inhibit protein phosphatase, cause liver bleeding. Found in drinking water. (Anabaena, Oscillatoria, Nostoc)

    Eg. swimmers itch - Lygnbia


Movement

Movement

  • No flagellae or structures to enhance movement

  • Excrete mucilage – jet propulsion, gliding

  • Helix – fibers send waves of contraction

Spirulina


Cyanobacteria

Spirulina

  • filamentous

  • common in lakes with high pH

  • major food for flamingo populations

  • commercial food source


Cyanobacteria

  • Anabaena with a heterocyst

  • common bloom forming species with nutrient loads


Cyanobacteria

Lyngbia martensiana

Releases chemicals causing dermatitis


Asexual reproduction

Asexual Reproduction

- Hormogonia formation -

- Endospore / Akinete formation -

  • Fragmentation –

  • Exospore


Asexual reproduction1

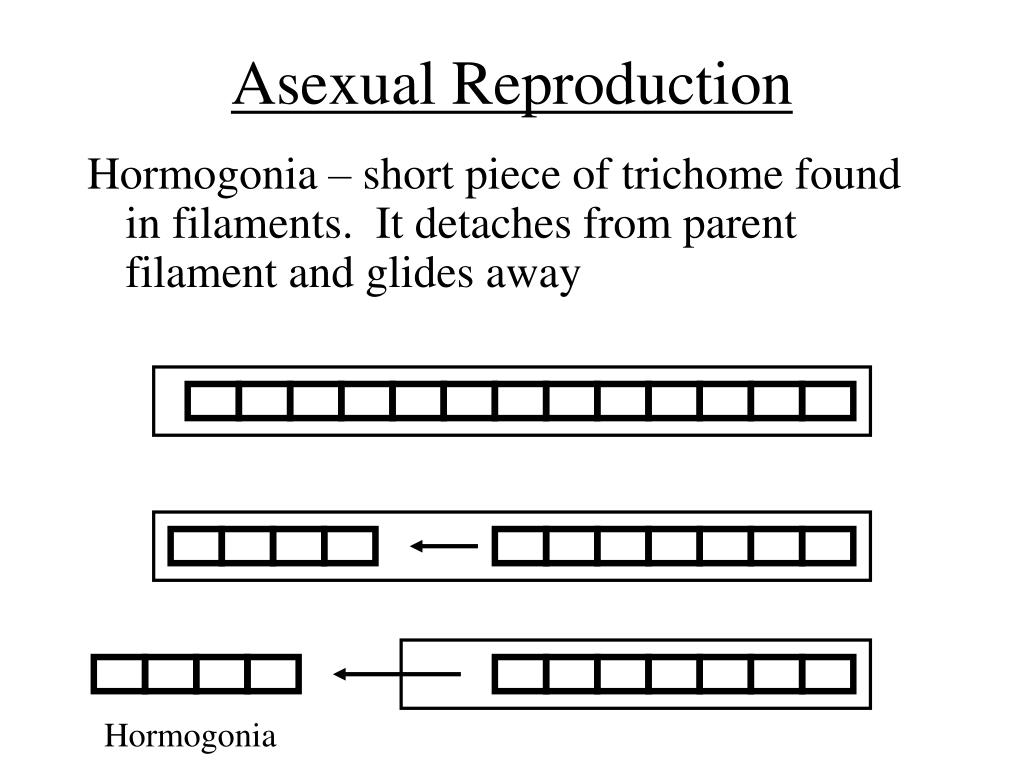

Asexual Reproduction

Hormogonia – short piece of trichome found in filaments. It detaches from parent filament and glides away

Hormogonia


Cyanobacteria

  • Oscillatoria with hormogonia

  • short pieces of a trichome that become detached from the parent filament and glide away to form new filament.


Cyanobacteria

Oscillatoria (filamentous) with hormogonia


Asexual reproduction2

A - akinete

H

Asexual Reproduction

Akinete – thick walled resting spore


Cyanobacteria

Akinete


Asexual reproduction3

A - akinete

H

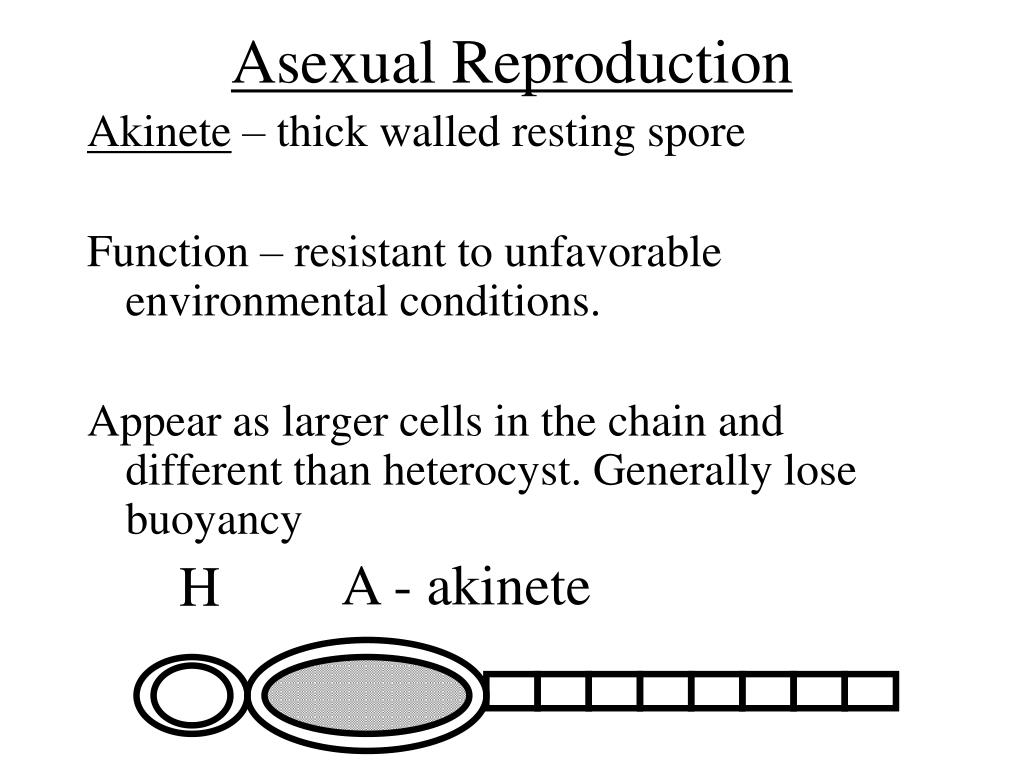

Asexual Reproduction

Akinete – thick walled resting spore

Function – resistant to unfavorable environmental conditions.

Appear as larger cells in the chain and different than heterocyst. Generally lose buoyancy


Asexual reproduction4

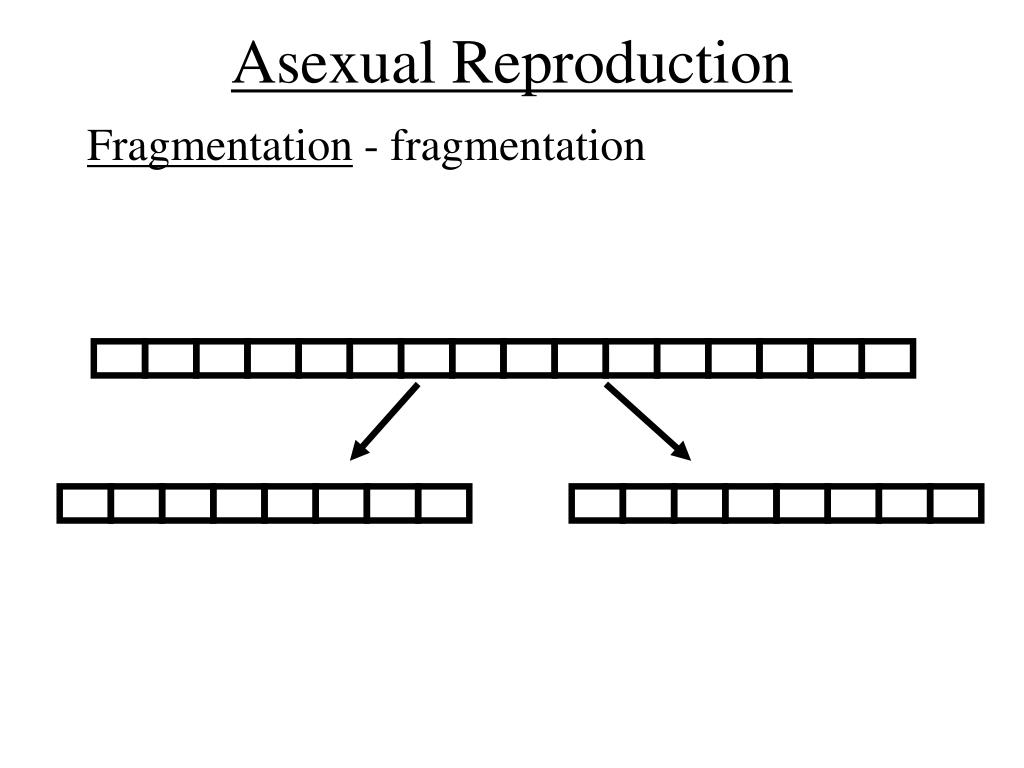

Asexual Reproduction

Fragmentation - fragmentation


Oldest fossils

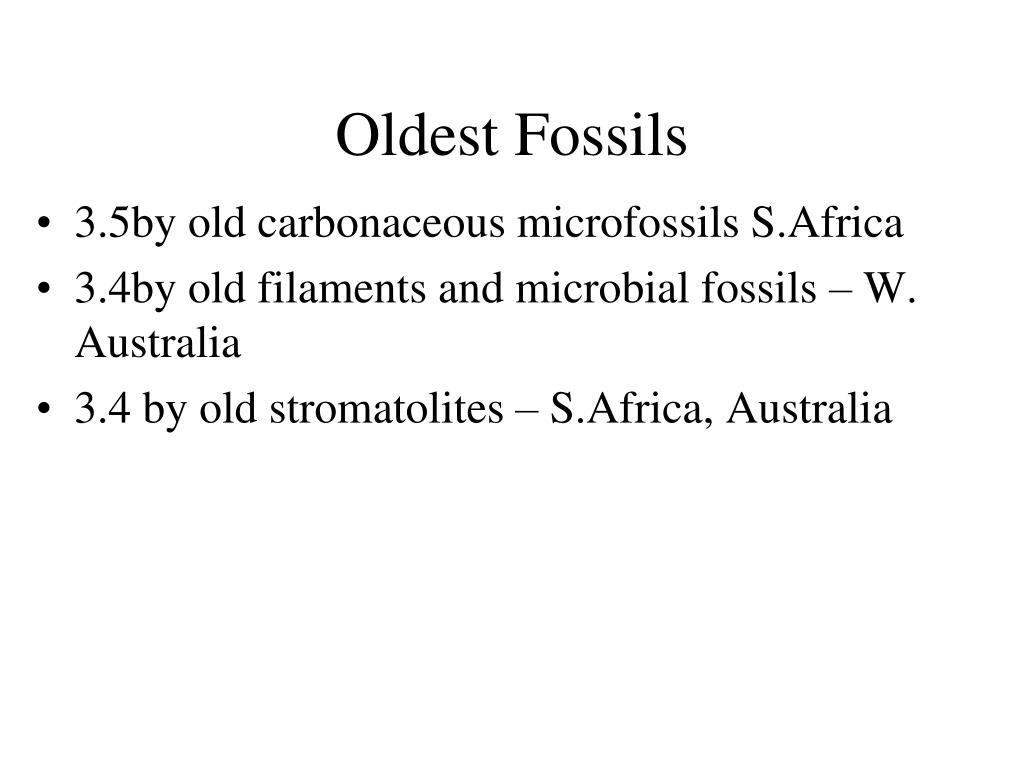

Oldest Fossils

  • 3.5by old carbonaceous microfossils S.Africa

  • 3.4by old filaments and microbial fossils – W. Australia

  • 3.4 by old stromatolites – S.Africa, Australia


Cyanobacteria

Cyanobacteria and Understanding the Past

Stromatolites – Shark Bay, W. Australia


Cyanobacteria
