Today s agenda

Today’s Agenda

Sorting


Insertion sort top down design

Insertion Sort – Top Down Design

Sort list: A[0] to A[N-1]

Sort list: A[0] to A[N-2]

Insert A[N-1] into sorted list

Sort list: A[0] to A[N-3]

Insert A[N-2] into sorted list

Sort list: A[0]

Insert A[1] into sorted list


Today s agenda

int insert(int res[],int x,int size) {

int i=0, j, k, flag=0;

if(size == 0)

{

res[0] = x; size = size + 1;

}

else

{

while(i< size)

{

if(res[i] < x || res[i] == x)

i++;

else {

j = i; flag = 1; break;

}

}

if(flag == 1)

{

for(k=size;k>j;k--)

res[k] = res[k-1];

res[k] = x;

}

else

res[i] = x;

size = size + 1;

}

return size; }


Today s agenda

#define MAX 20

int main()

{

int a[10] = {50,16,20,35,18,8,14,41,3,39};

int res[MAX];

int i,size=0;

size = insertInOrder(res,a[i],size);

for(i=0;i<size;i++)

printf("%d ",res[i]);

printf("\n");

}

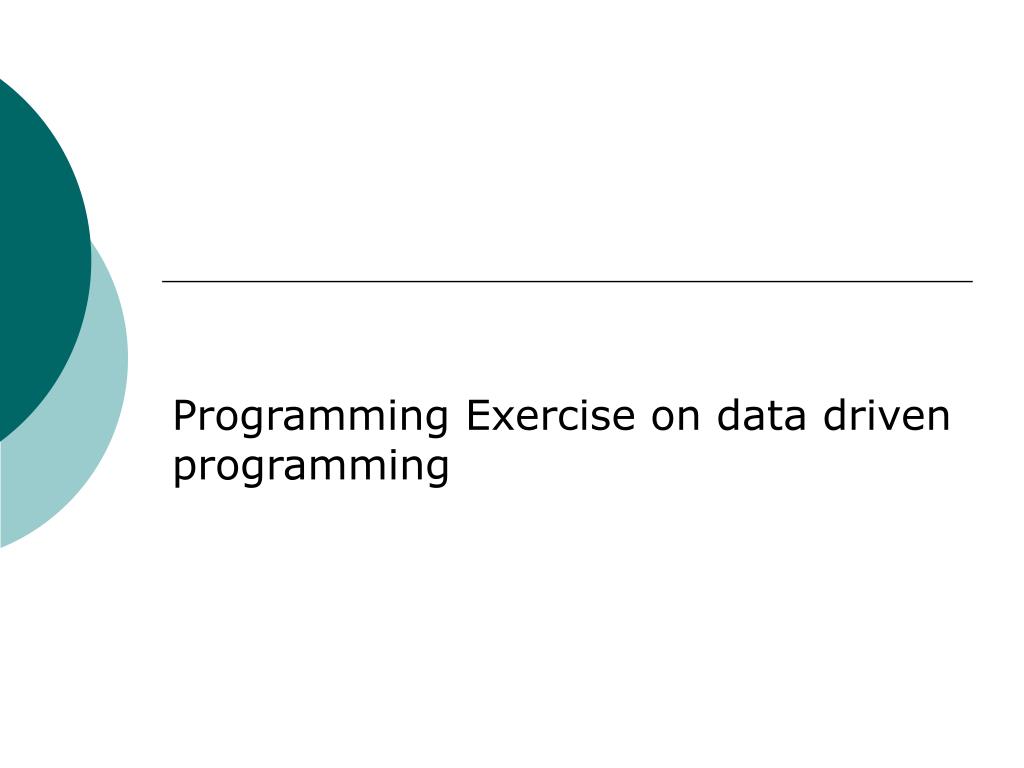

Programming exercise on data driven programming

Programming Exercise on data driven programming


Today s agenda

  • Consider a police department containing N police officers. Each police officer contains the following information in his record.

    1. An unsigned int id representing the unique identification number of the police.

    2. A character array of maximum 30 characters for the name.

    3. An unsigned int sc for the number of cases solved

    4. An unsigned int ac for the number of cases attended

    5. An unsigned int age for storing the age of the police

    6. An unsigned int jyr to store the joining year.

  • A police department is a list containing maximum of MAX_POL number of police officers where MAX_POL is 1000.


Today s agenda

  • readPoliceDept()

  • rank()

  • countPoliceOnRank()

  • countPoliceService()

  • sortPoliceDept()

  • comparePolice()

  • printPoliceDept()


Operations

Operations

(1) rank()

  • The rank of police officer is computed as follows.

  • rank = (100 * solvedCases / attendedCases)

  • if attendedCases = 0, rank = 0;


Today s agenda

  • comparePolice()

    • compares police p1 and p2 based on rank, if rank is same then compare based on id .


Today s agenda

PoliceDef.h

#define NAME_LEN 50 // Maximum length of Name

#define MAX_POL 1024 // Max number of Police in one Dept

typedef unsigned int ID; // Unique Police identification number

typedef char NAME[NAME_LEN]; // Name of Police

typedef unsigned int solvedCases; // Number of cases solved

typedef unsigned int attendedCases; // Total no. of cases attended

typedef unsigned int AGE; // Police officer's Age

typedef unsigned int joiningYear; // Police officer's joining year

typedef unsigned int noOfPolice; // number of Police officers in Dept


Policedef h

PoliceDef.h

typedef enum { GREATER = 1, EQUAL = 0, LESSER = -1 } ORDER;

typedef struct {

ID id;

NAME name;

solvedCases sc;

attendedCases ac;

AGE age;

joiningYear jyr;

} police; // The police structure

typedef police policeDept[MAX_POL]; // the policeDept


Policeops h

PoliceOps.h

  • Extern void readPoliceDept(policeDeptpdt, noOfPolice N);

  • Extern float rank(police p);

  • Extern int countPoliceOnRank (policeDept pdt, noOfPolice N);

    • Count the number of police who has rank more 75.

  • Extern int countPoliceService(policeDept pdt, noOfPolice N);

    • Count the number of police who has completed 25 years of service.

  • Extern order comparePolice(policep1,police p2);

  • Extern void sortPoliceDept(policeDept pdt, noOfPolice N);

    • Sort police based on their ranks.

  • Extern void printPoliceDept(policeDept pdt, noOfPolice N);


Comparepolice

comparePolice()

ORDER comparePolice (police p1, police p2)

{

if(rank(p1)<rank(p2))

return LESSER;

else if(rank(p1) == rank(p2))

{

if(p1.id < p2.id)

return LESSER;

else if(p1.id == p2.id)

return EQUAL;

else

return GREATER;

}

else

return GREATER;

}
