  1. SIM354 Microsoft System Center Operations Manager 2012: Network Monitoring, Part 3 Rob Kuehfus - Program Manager Maarten Goet - MVP

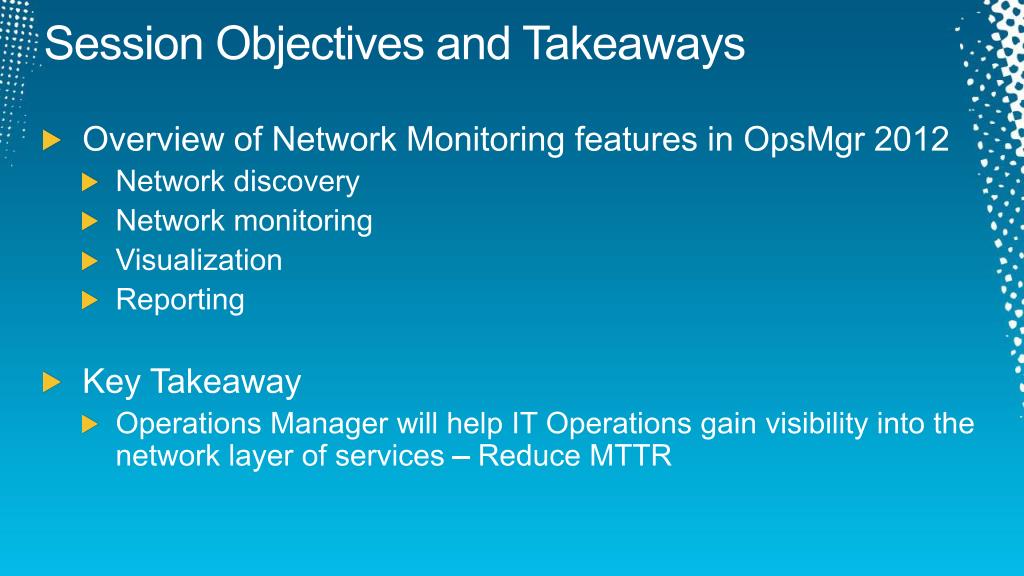

  2. Session Objectives and Takeaways • Overview of Network Monitoring features in OpsMgr 2012 • Network discovery • Network monitoring • Visualization • Reporting • Key Takeaway • Operations Manager will help IT Operations gain visibility into the network layer of services – Reduce MTTR

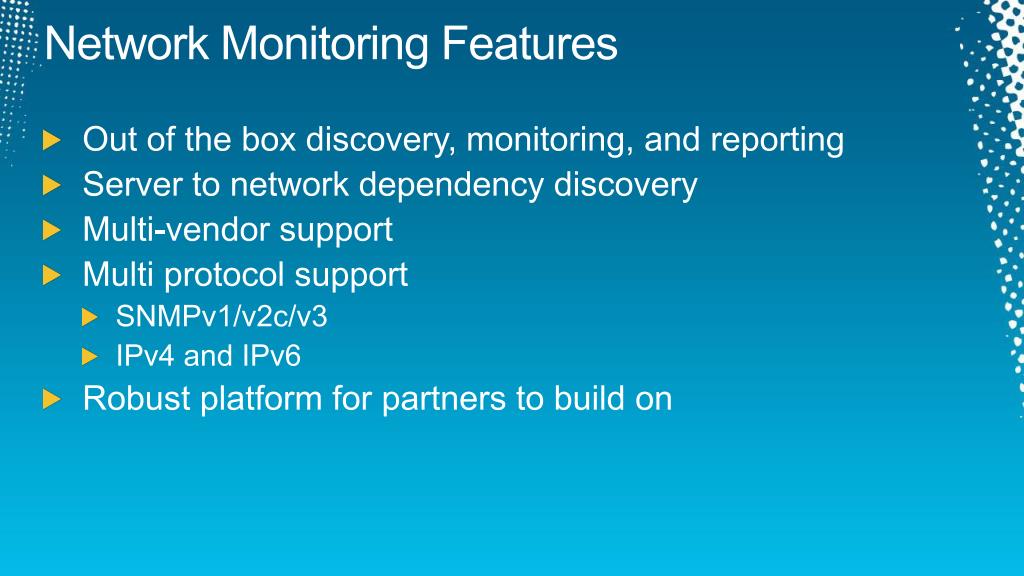

  3. Network Monitoring Features • Out of the box discovery, monitoring, and reporting • Server to network dependency discovery • Multi-vendor support • Multi protocol support • SNMPv1/v2c/v3 • IPv4 and IPv6 • Robust platform for partners to build on

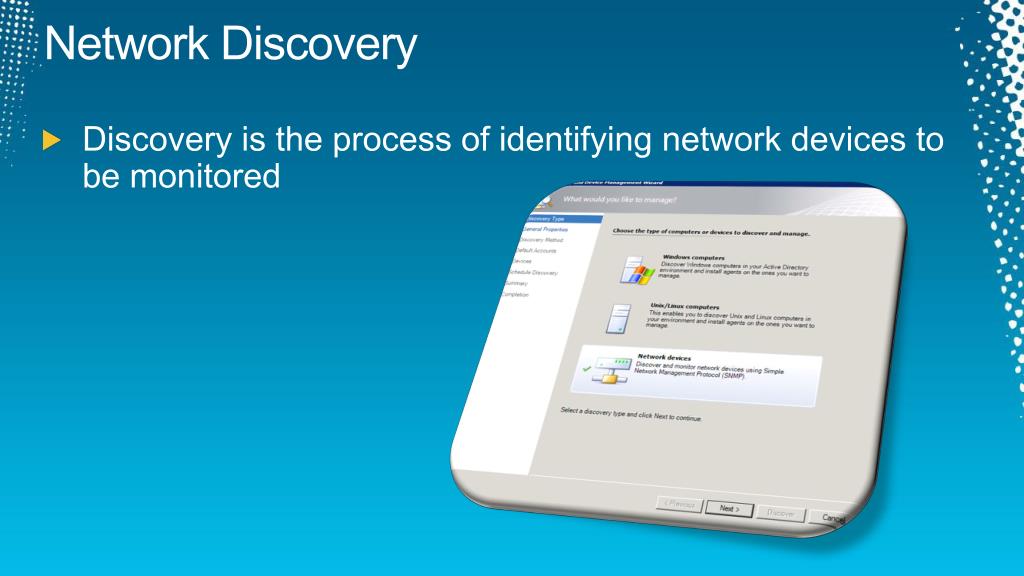

  4. Network Discovery • Discovery is the process of identifying network devices to be monitored

  5. Network Discovery demo

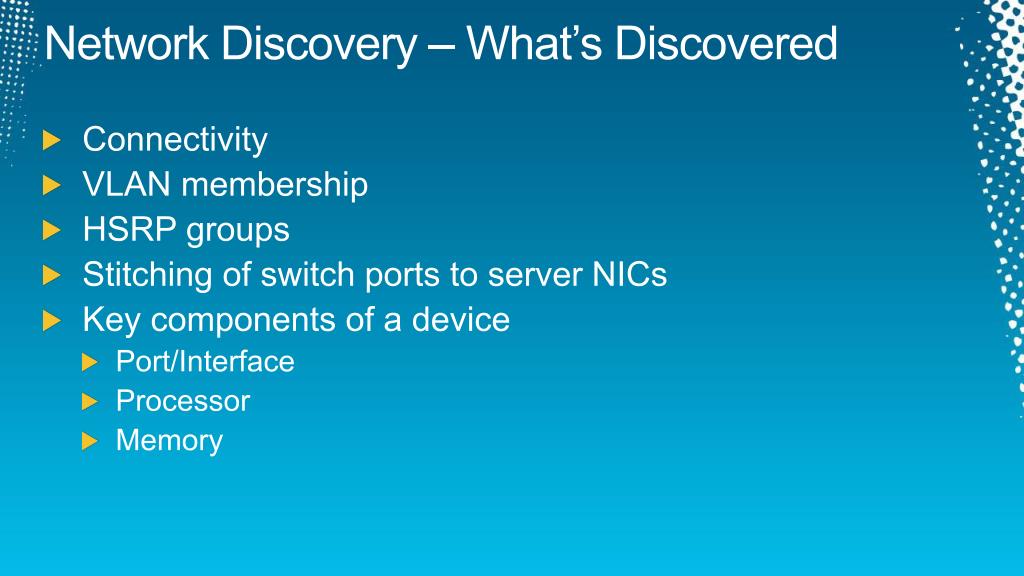

  6. Network Discovery – What’s Discovered • Connectivity • VLAN membership • HSRP groups • Stitching of switch ports to server NICs • Key components of a device • Port/Interface • Processor • Memory

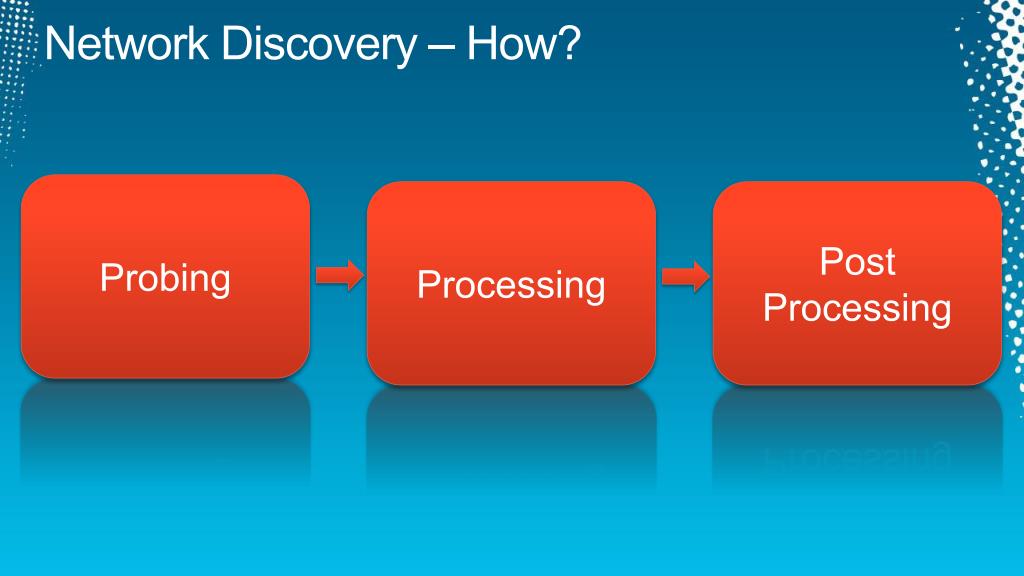

  7. Network Discovery – How? Probing Processing Post Processing

  8. Network Discovery – Additional Details • Two modes • Explicit • Recursive (ARP, IP, Topology MIB) • Works only on Gateway/Management Server • Single rule per Gateway/Management Server • Discovery runs on a scheduled basis or on demand • Limited discoveries can be triggered by device traps

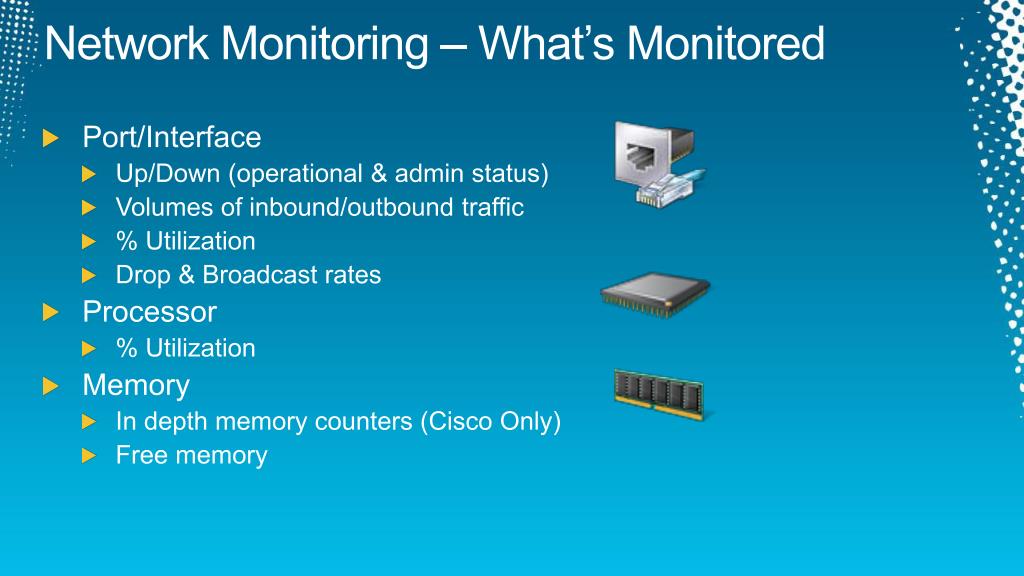

  9. Network Monitoring – What’s Monitored • Port/Interface • Up/Down (operational & admin status) • Volumes of inbound/outbound traffic • % Utilization • Drop & Broadcast rates • Processor • % Utilization • Memory • In depth memory counters (Cisco Only) • Free memory

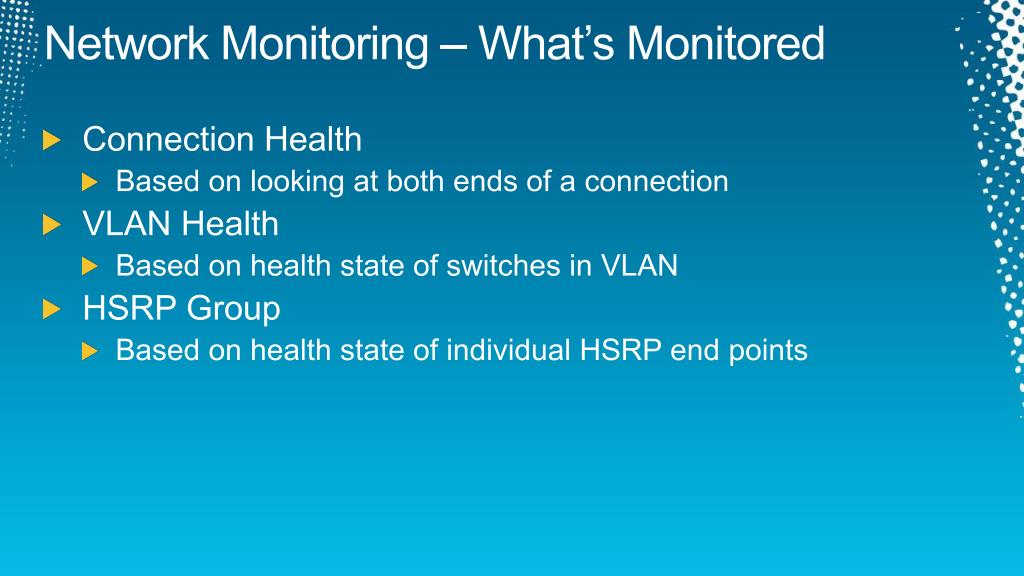

  10. Network Monitoring – What’s Monitored • Connection Health • Based on looking at both ends of a connection • VLAN Health • Based on health state of switches in VLAN • HSRP Group • Based on health state of individual HSRP end points

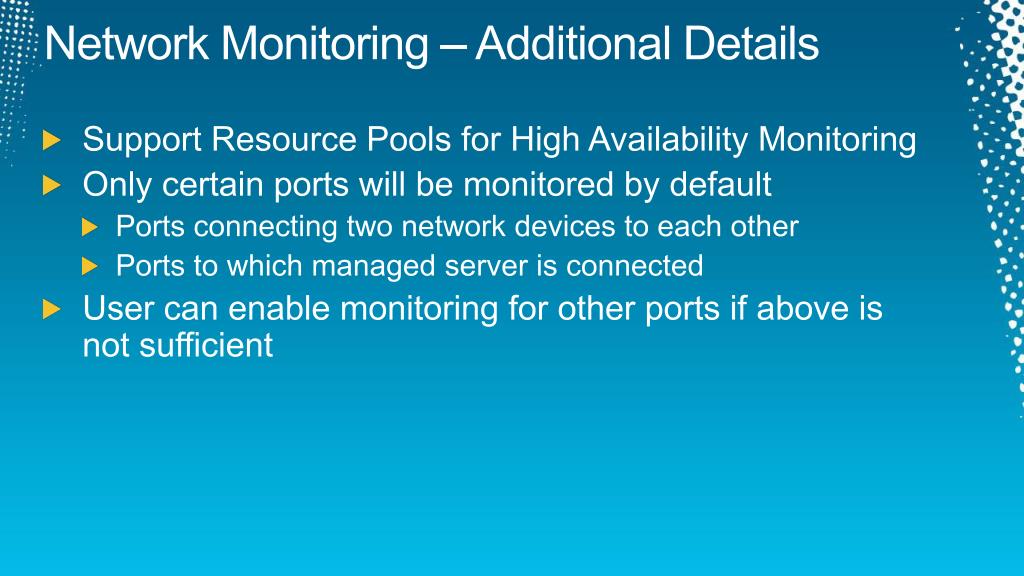

  11. Network Monitoring – Additional Details • Support Resource Pools for High Availability Monitoring • Only certain ports will be monitored by default • Ports connecting two network devices to each other • Ports to which managed server is connected • User can enable monitoring for other ports if above is not sufficient

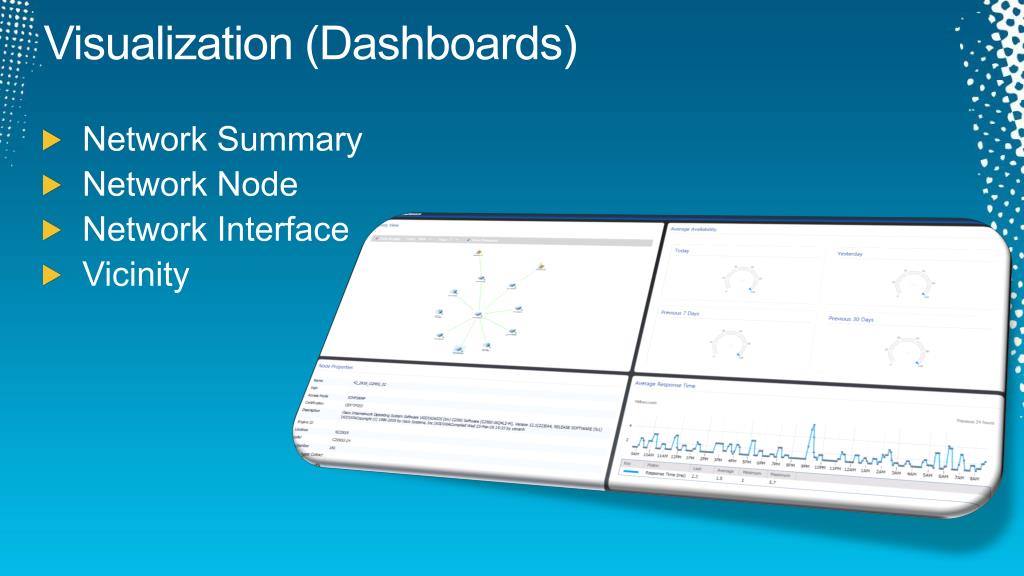

  12. Visualization (Dashboards) • Network Summary • Network Node • Network Interface • Vicinity

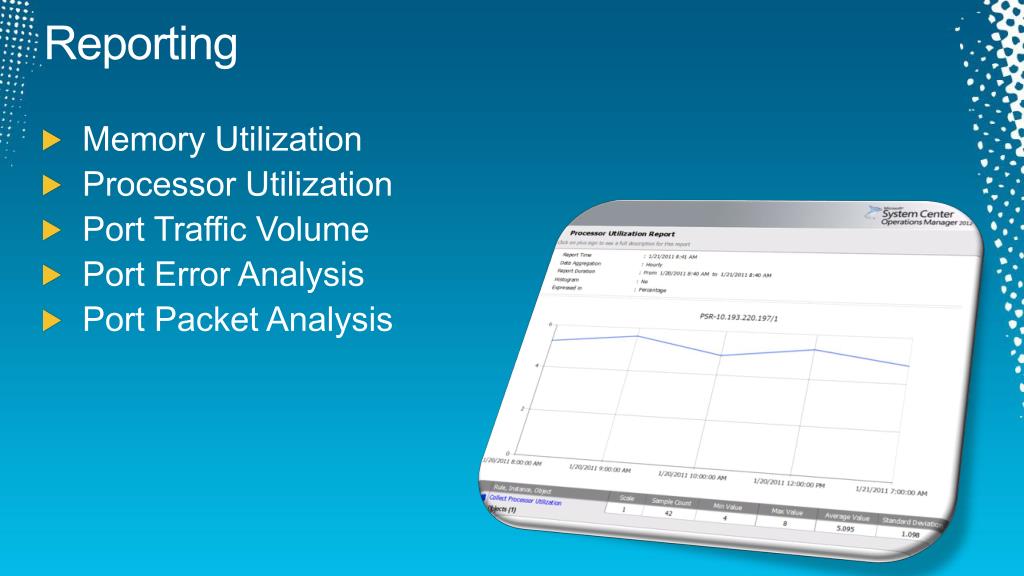

  13. Reporting • Memory Utilization • Processor Utilization • Port Traffic Volume • Port Error Analysis • Port Packet Analysis

  14. Network Monitoring and Visualizations demo

  15. In Review: Session Objectives and Takeaways • Overview of Network Monitoring features in OpsMgr 2012 • Network discovery • Network monitoring • Visualization • Reporting • Key Takeaway • Operations Manager will help IT Operations gain visibility into the network layer of services – Reduce MTTR

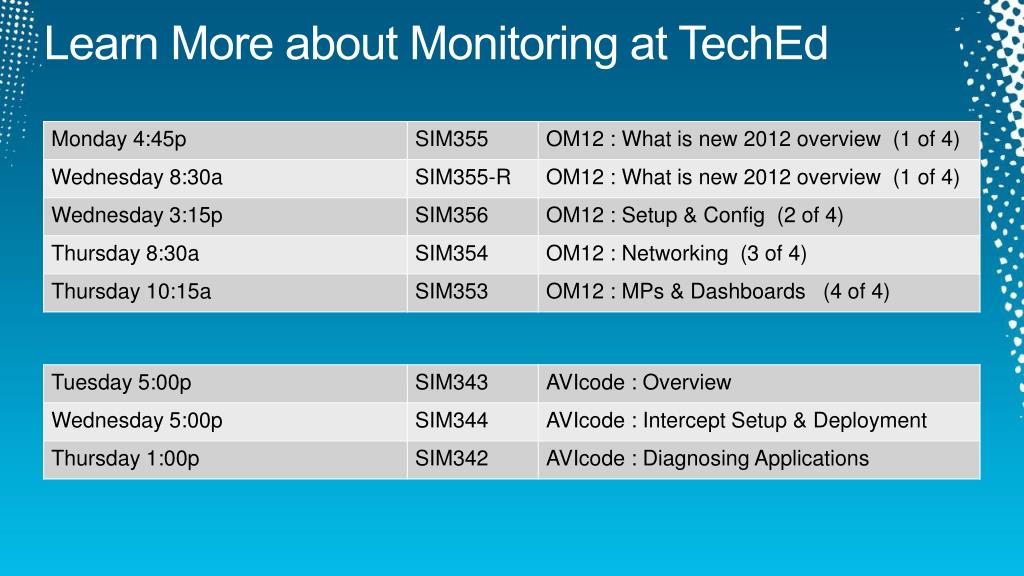

  16. Learn More about Monitoring at TechEd

  17. Learn More about Monitoring at TechEd

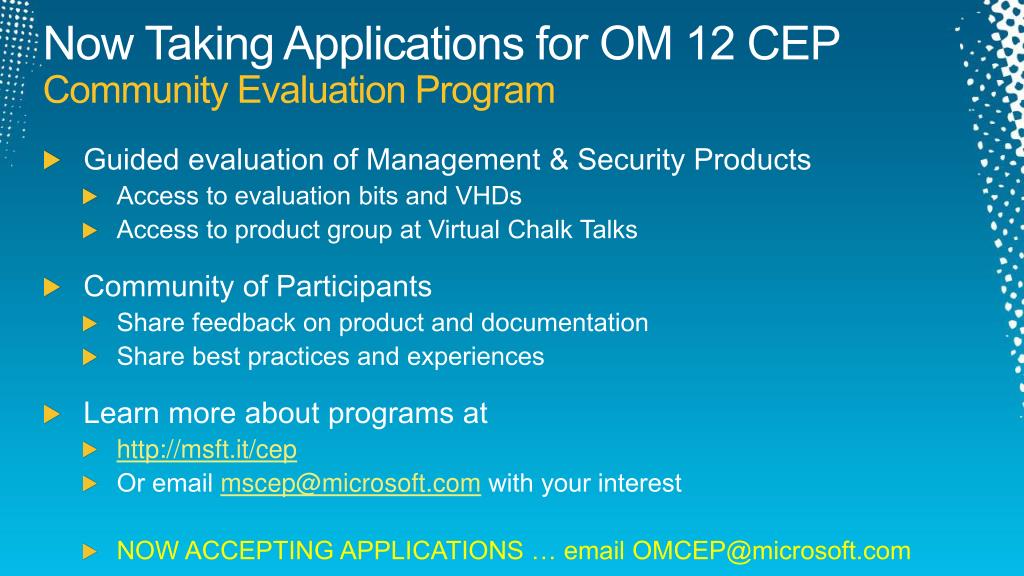

  18. Now Taking Applications for OM 12 CEPCommunity Evaluation Program • Guided evaluation of Management & Security Products • Access to evaluation bits and VHDs • Access to product group at Virtual Chalk Talks • Community of Participants • Share feedback on product and documentation • Share best practices and experiences • Learn more about programs at • http://msft.it/cep • Or email mscep@microsoft.com with your interest • NOW ACCEPTING APPLICATIONS … email OMCEP@microsoft.com

  19. Resources on Operations Manager Website www.microsoft.com/OpsMgr TechCentertechnet.microsoft.com/OpsMgr Forums social.technet.microsoft.com/Forums/en-US/category/OM Team Blog blogs.technet.com/MOMteam System Center Blogblogs.technet.com/SystemCenter Tweets @System_Center@MPreleases Ops Mgr CEP OMCEP@microsoft.com (now taking applications) Rob KuehfusRKUEHFUS@microsoft.com Maarten GoetMaarten.Goet@inovativ.nl Q & A

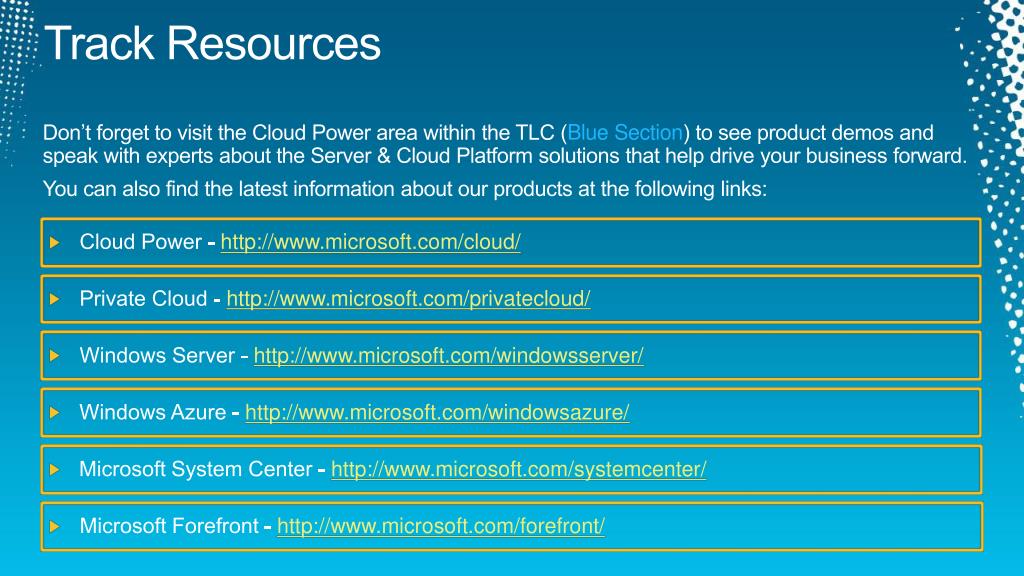

  20. Track Resources • Don’t forget to visit the Cloud Power area within the TLC (Blue Section) to see product demos and speak with experts about the Server & Cloud Platform solutions that help drive your business forward. • You can also find the latest information about our products at the following links: • Cloud Power - http://www.microsoft.com/cloud/ • Private Cloud - http://www.microsoft.com/privatecloud/ • Windows Server - http://www.microsoft.com/windowsserver/ • Windows Azure - http://www.microsoft.com/windowsazure/ • Microsoft System Center - http://www.microsoft.com/systemcenter/ • Microsoft Forefront - http://www.microsoft.com/forefront/
