  1. Intelligent Microgrid SolutionsEfficient, Reliable and Secure Solutions for Today’s Energy Challenges Rich Godlasky Sr. Manager, Intelligent Microgrid SolutionsLockheed Martinrichard.j.godlasky@lmco.com

  2. Microgrid Overview Fuel Cells Solar Wind • Definition:An intelligent energy system optimizing operation of electrical loads and distributed power sources, including renewables, connected to the utility grid or islanded • Benefits: • Increases Energy Efficiency • Reduces fuel consumption • Simplifies renewable integration • Decreases electricity cost (peak shaving) • Improves Power Reliability • Real-time monitoring/control • Optimally manage resources • Ensures Energy Security • Advanced cyber solutions • Bulk grid independent capability Generators Microgrid Controller Utility Grid Energy Storage Non-Critical Loads Vehicles Critical Loads Applications: FOBs Islands Military Bases Medical Business Campus Fixed Installations Remote Installations

  3. Key Characteristics of an Intelligent Microgrid Adaptively Meets the Needs of a Wide Variety of Customers Intelligent centralized and distributed control Algorithms to optimize operation Fast and secure communications Resilient fault coordination and recovery Plug-and-play integration of sources and loads Multi-mode operation based on customer requirements Meets cyber security requirements of NIST Pub 800-53

  4. How Installation Microgrids Operate • Microgrid Control System • Manages Distributed Assets Efficiently • Provides Un-Interrupted Power • Increases Stability/Surety • Islands as Required • Decreases Costs (Peak Shaving) • Communicates with the Local Grid • Meets IEEE 1547.4 standards • Meets cyber security requirements New Typical Ops Utility Microgrid Control System Sub-Station Distribution Installation Loads Distributed Controls

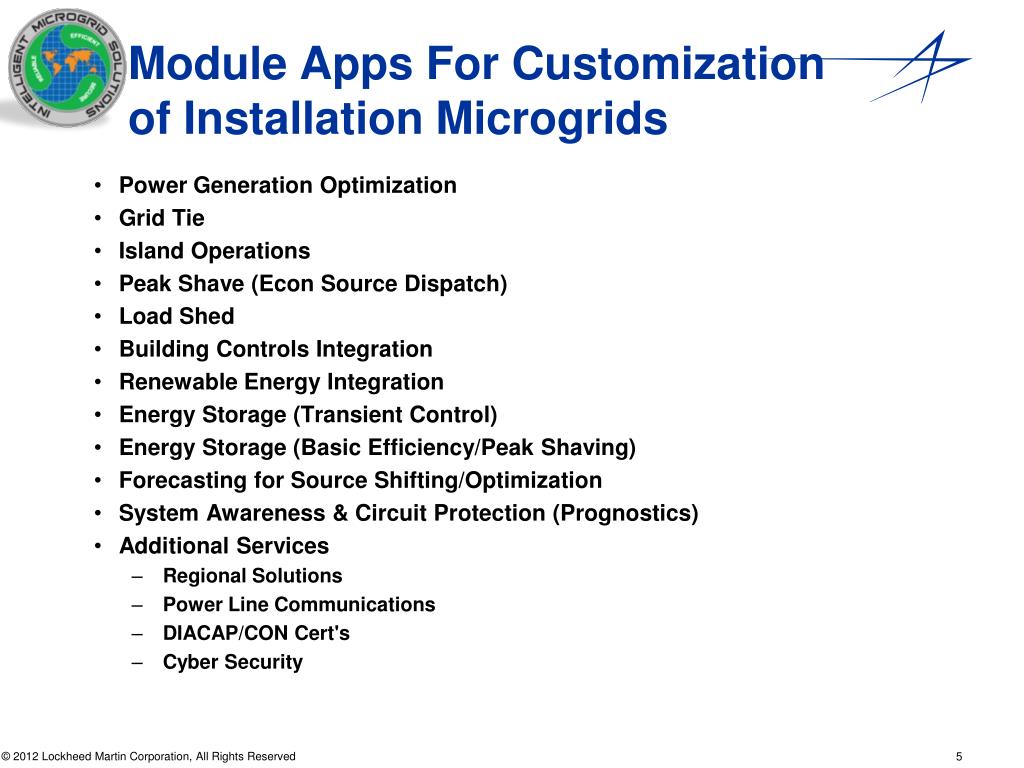

  5. Module Apps For Customization of Installation Microgrids Power Generation Optimization Grid Tie Island Operations Peak Shave (Econ Source Dispatch) Load Shed Building Controls Integration Renewable Energy Integration Energy Storage (Transient Control) Energy Storage (Basic Efficiency/Peak Shaving) Forecasting for Source Shifting/Optimization System Awareness & Circuit Protection (Prognostics) Additional Services • Regional Solutions • Power Line Communications • DIACAP/CON Cert's • Cyber Security

  6. ESTCP Fort Bliss BCT Microgrid • Features • Grid-tied or islanded • Renewable integration with legacy power • Grid services using onsite power sources (peak shaving and reactive power control) • Energy storage integration for renewable energy smoothing, arbitrage, and reactive power control • Benefits • Reduced electricity costs (≥10%) • Generator fuel usage reduction (≥20%) • Lower operating cost of legacy power generations assets (≥10%) • Overall reduced carbon emissions • Lower capital expenditure by energy source optimization • Enhanced energy security • Status • Commissioning Dec 2012, Demonstration through Jul 2013 • Fort Bliss DPW investigating expanding using 2013 ECIP funds Energy Security via Grid Tied and Grid Independent Operations

  7. Microgrid Development Center • Diverse set of prog. sources & loads • Renewables & energy storage • Real-time monitoring & control • Integrated with simulation Validate & Test Comprehensive Microgrid Architectures – Mitigates Customers Risk

  8. Capability Summary Partners to Help Customers Meet Their Defining Moments Microgrids provide efficient, reliable and secure power • Provide power via grid tied and islanded operations • Customized solutions tailored to a customer’s needs Allow for optimized and autonomous operations
