Presentation Transcript


Benefits of using a milking machine

BENEFITS OF USING A MILKING MACHINE

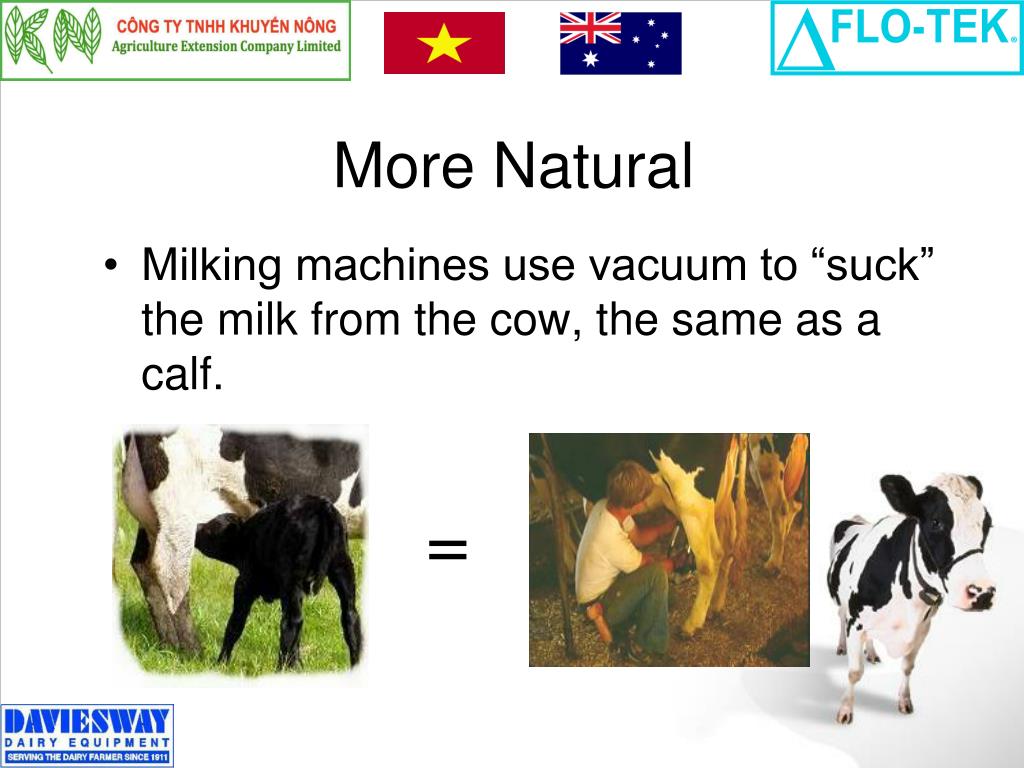

More natural

More Natural

  • Milking machines use vacuum to “suck” the milk from the cow, the same as a calf.

=


Faster milking

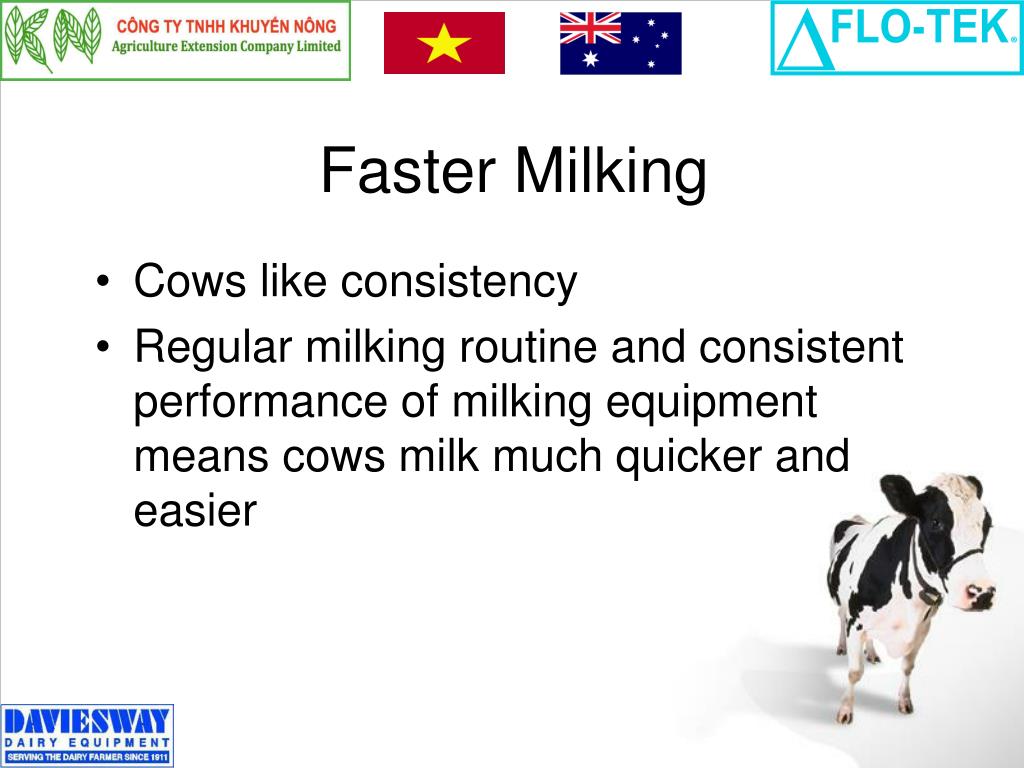

Faster Milking

  • Cows like consistency

  • Regular milking routine and consistent performance of milking equipment means cows milk much quicker and easier

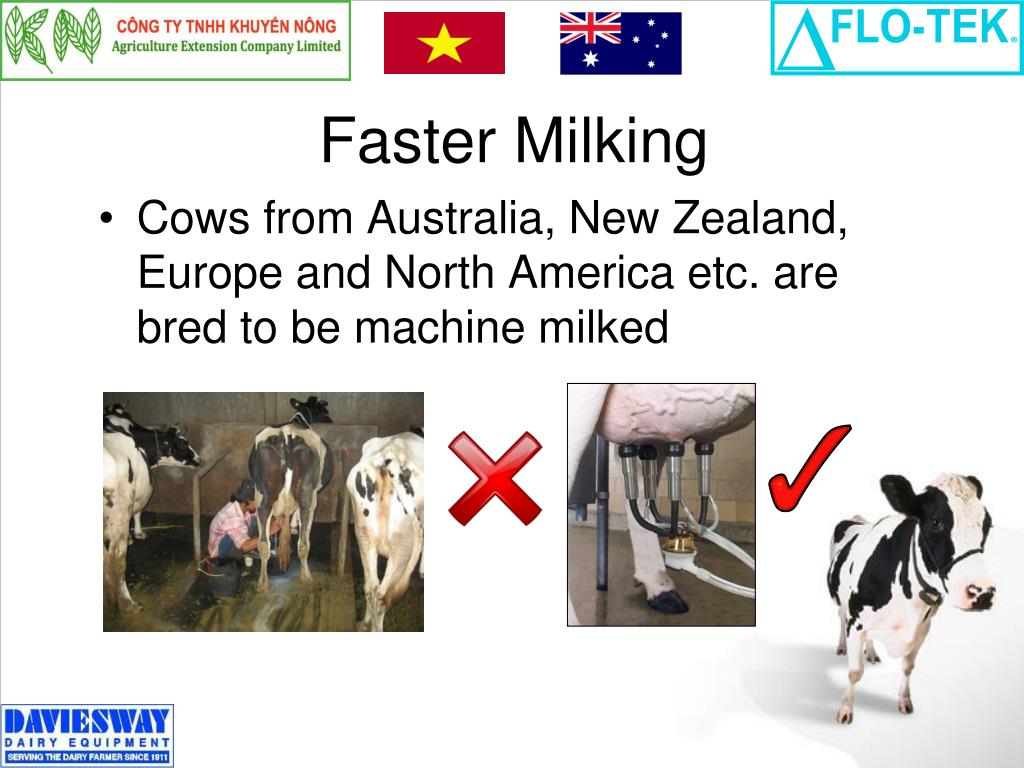

Faster milking1

Faster Milking

  • Cows from Australia, New Zealand, Europe and North America etc. are bred to be machine milked


Better milk let down

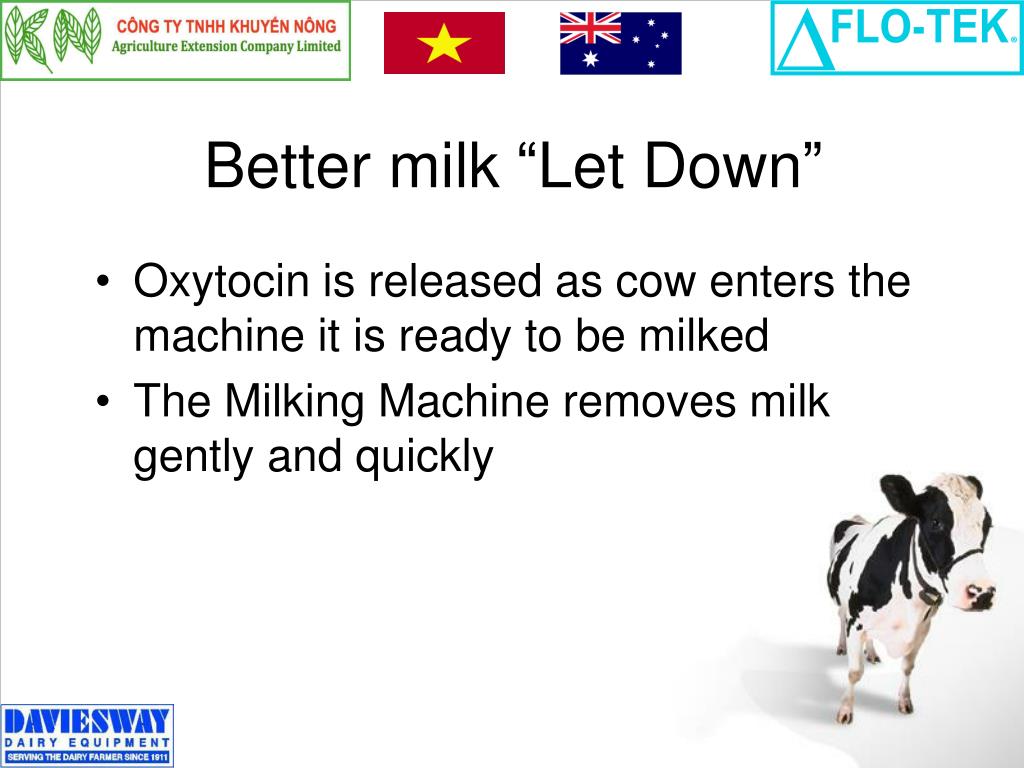

Better milk “Let Down”

  • Oxytocin is released as cow enters the machine it is ready to be milked

  • The Milking Machine removes milk gently and quickly


Reduces animal stress

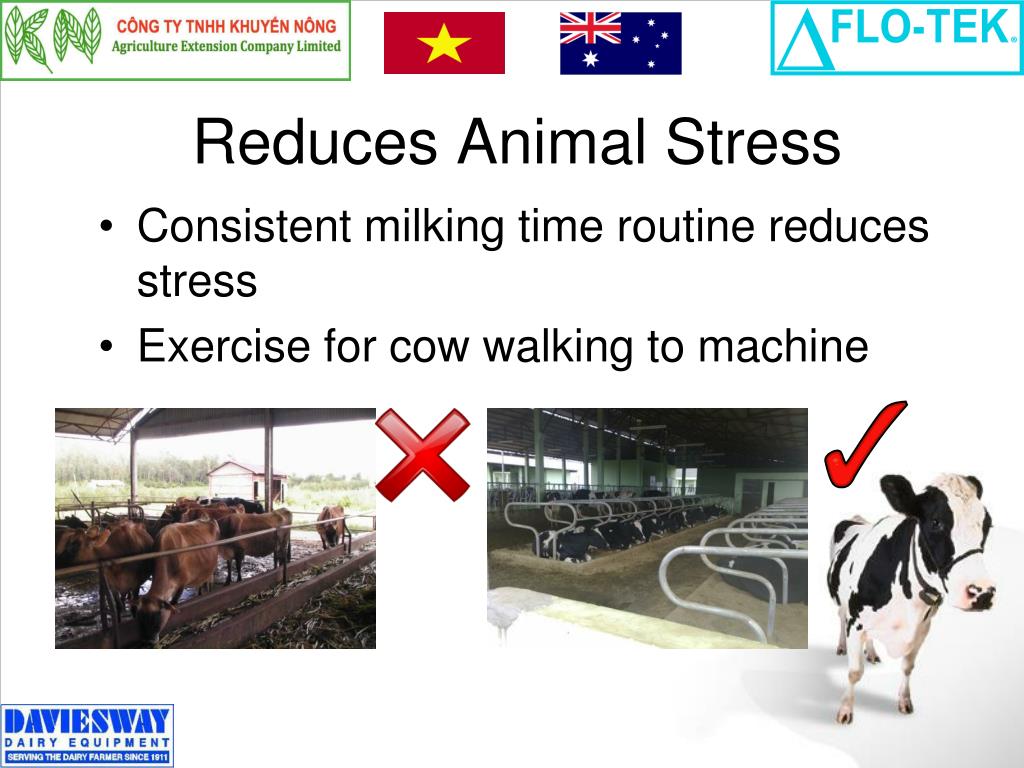

Reduces Animal Stress

  • Consistent milking time routine reduces stress

  • Exercise for cow walking to machine

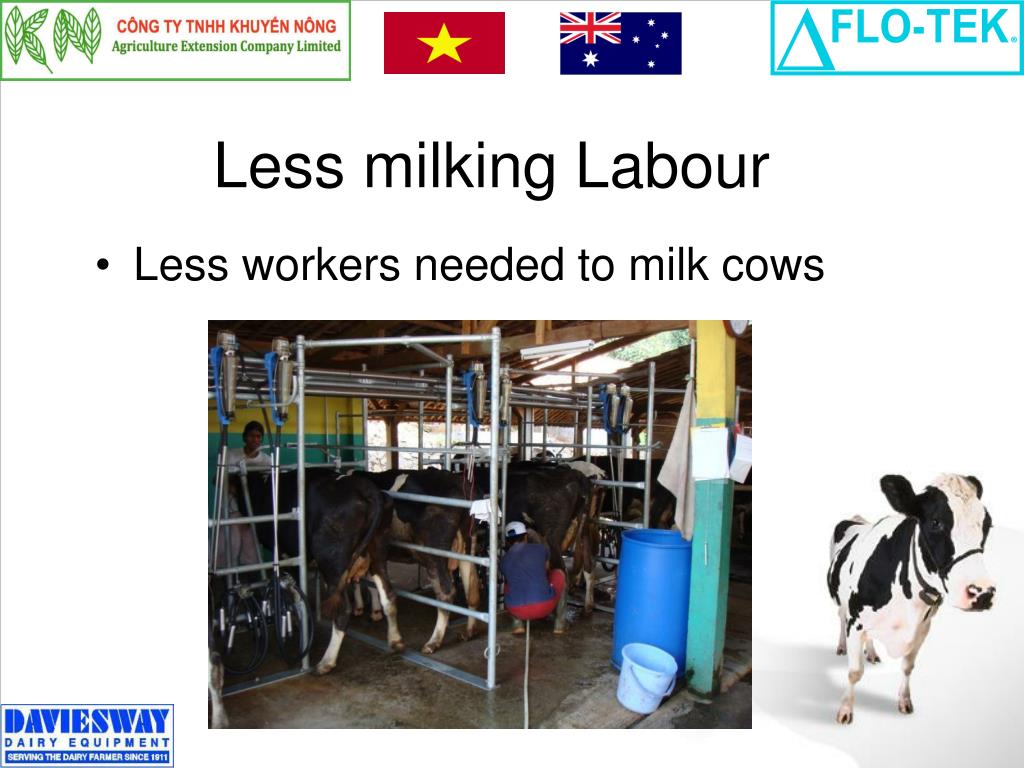

Less milking labour

Less milking Labour

  • Less workers needed to milk cows

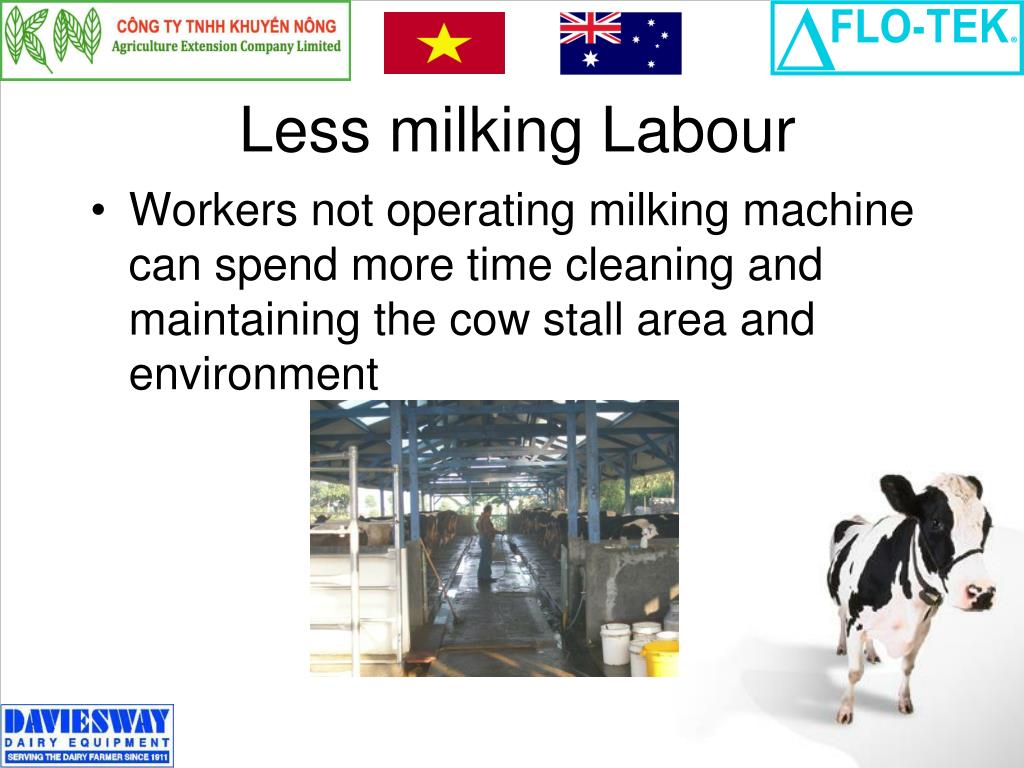

Less milking labour1

Less milking Labour

  • Workers not operating milking machine can spend more time cleaning and maintaining the cow stall area and environment


Prevents mastitis

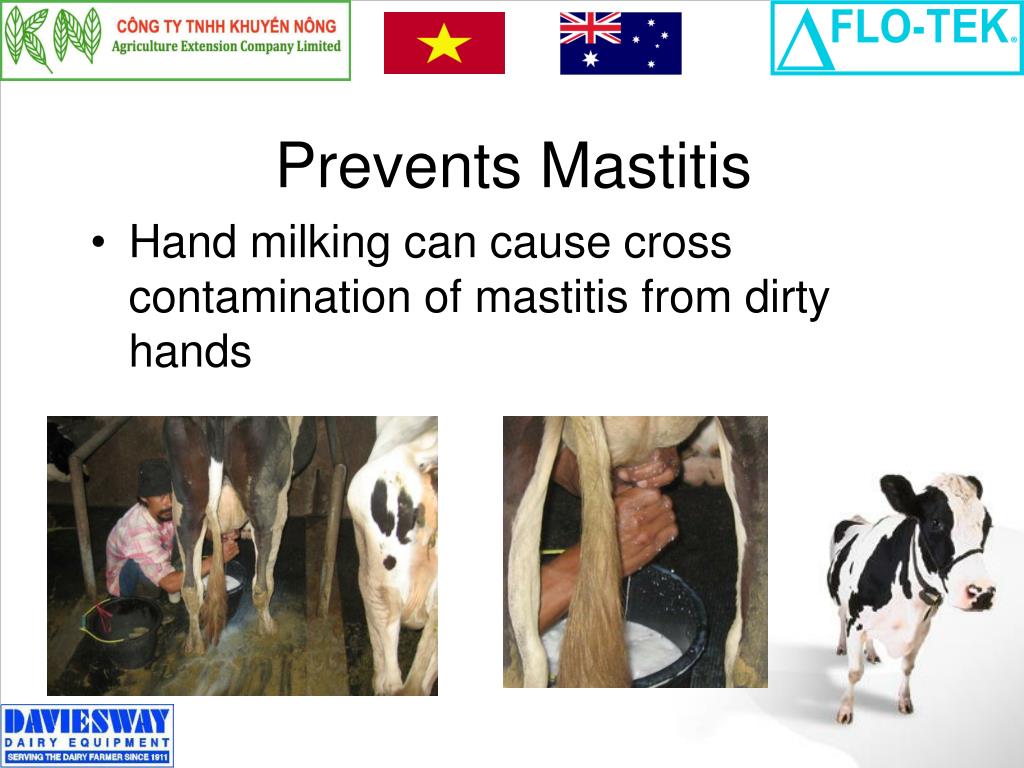

Prevents Mastitis

  • Hand milking can cause cross contamination of mastitis from dirty hands


Improved milk quality

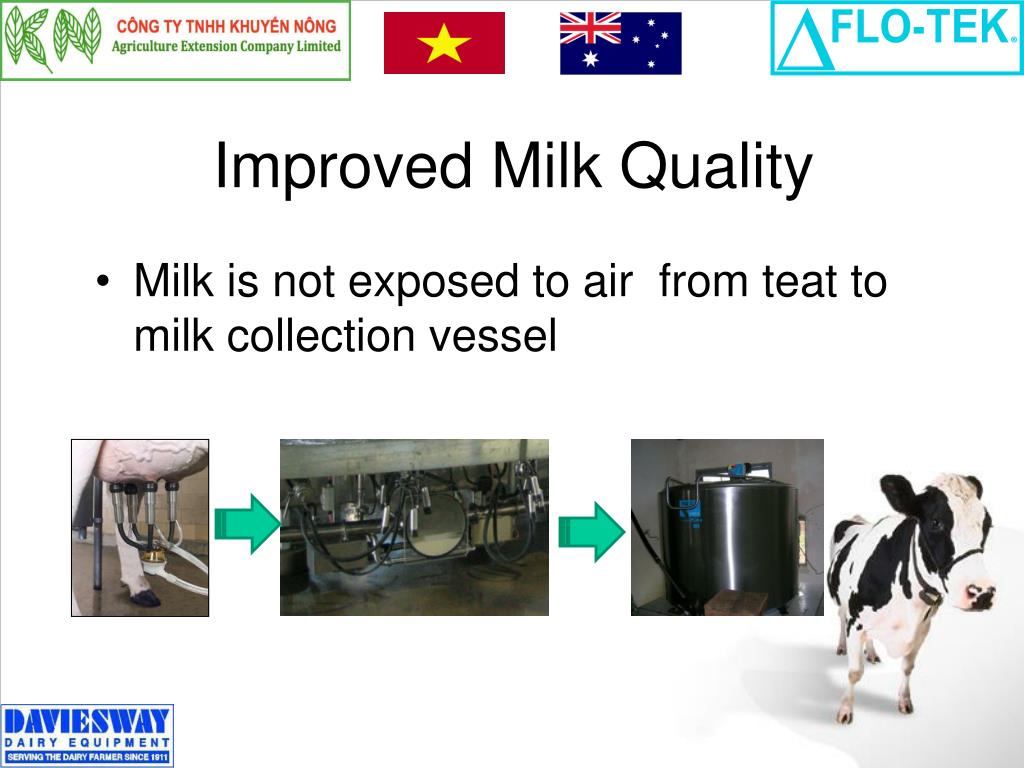

Improved Milk Quality

  • Milk is not exposed to air from teat to milk collection vessel

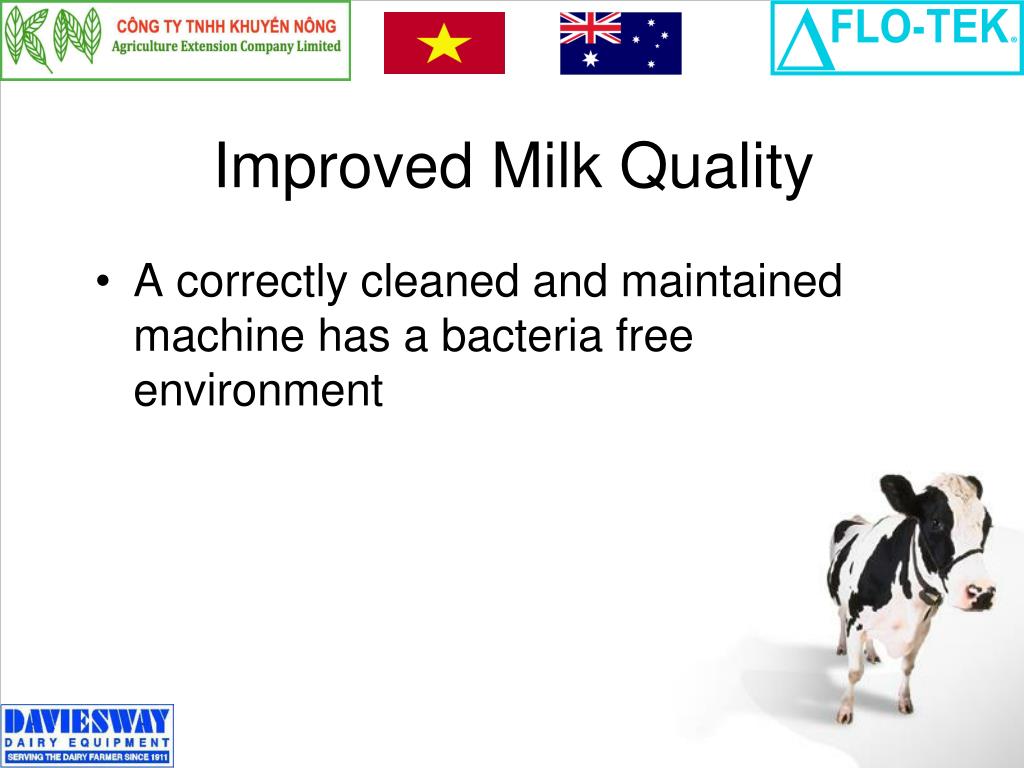

Improved milk quality1

Improved Milk Quality

  • A correctly cleaned and maintained machine has a bacteria free environment


Improved milk quality2

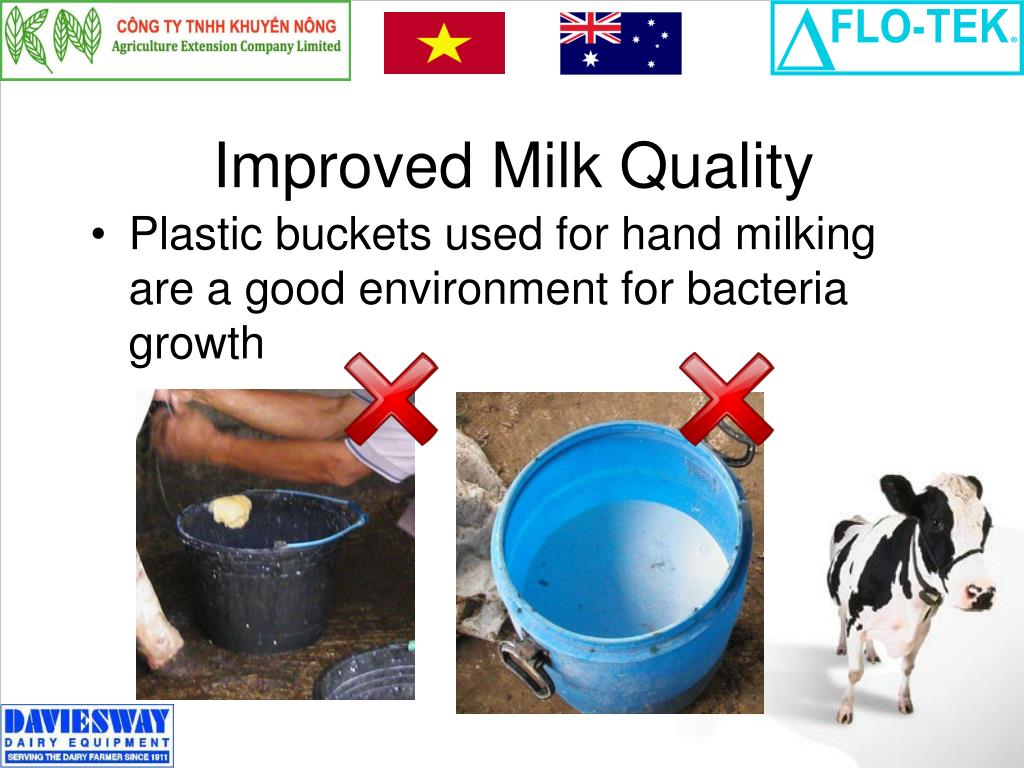

Improved Milk Quality

  • Plastic buckets used for hand milking are a good environment for bacteria growth


Mobile bucket milking system

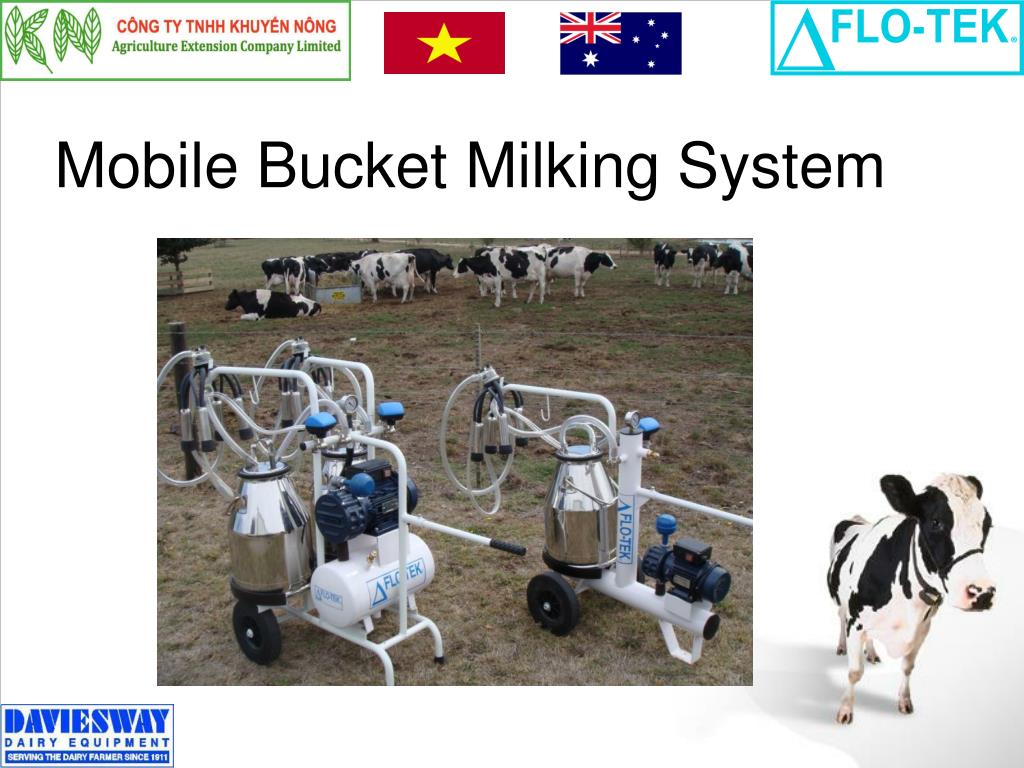

Mobile Bucket Milking System

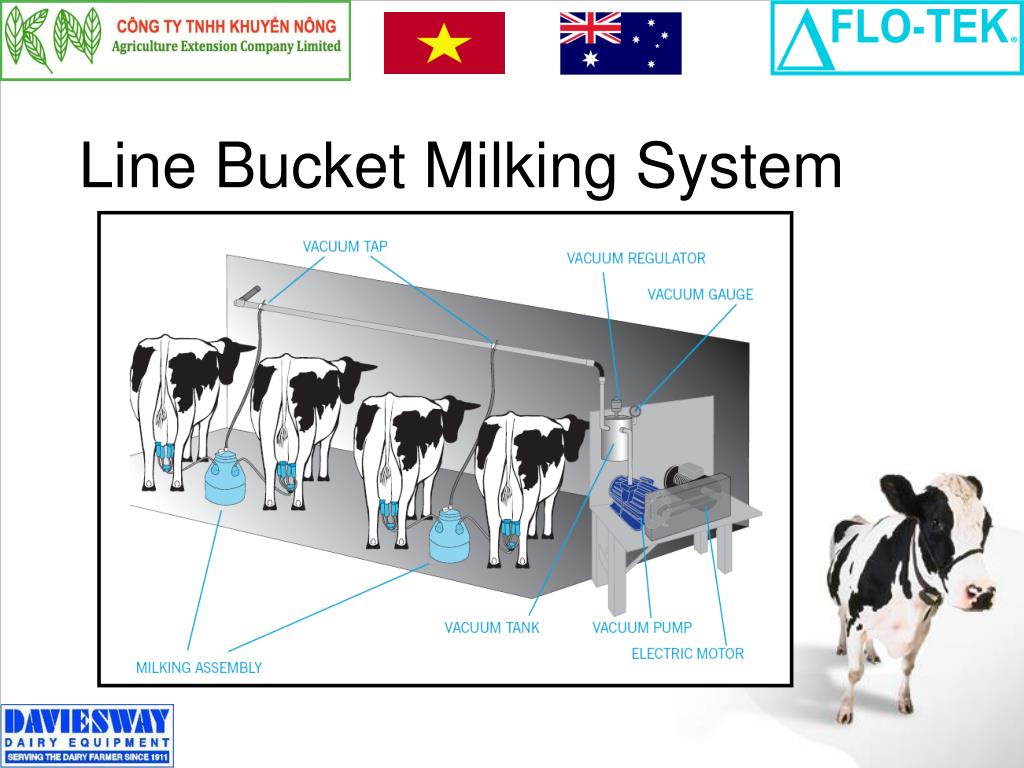

Line bucket milking system

Line Bucket Milking System


Line milking system

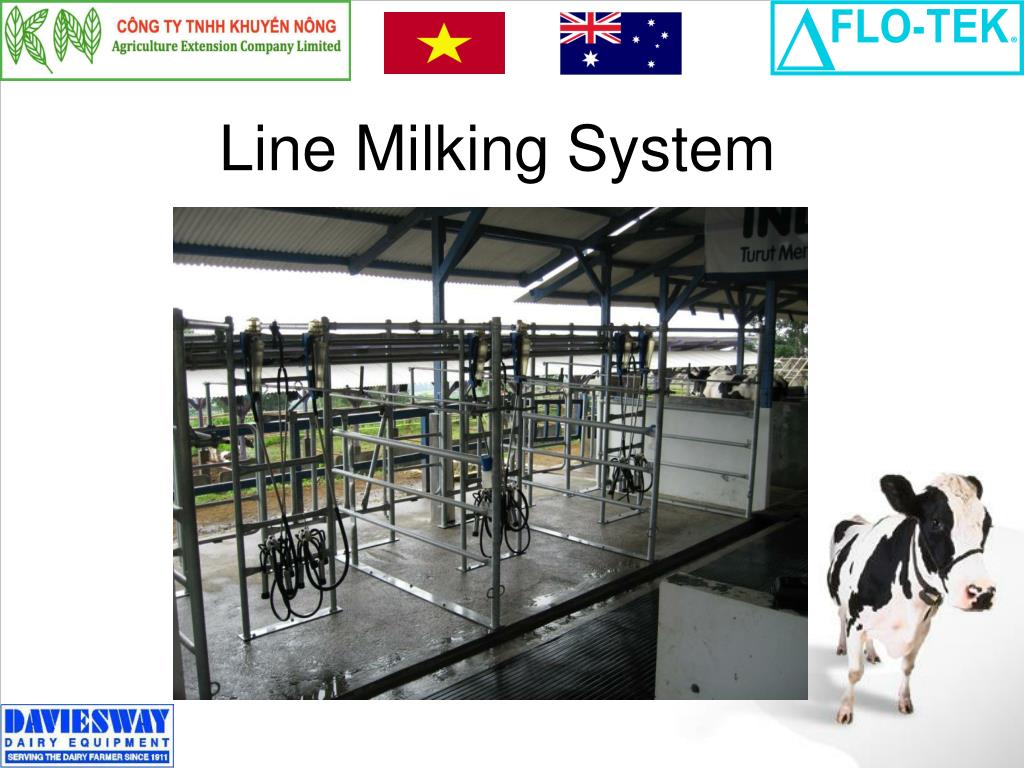

Line Milking System


Ezi milker system

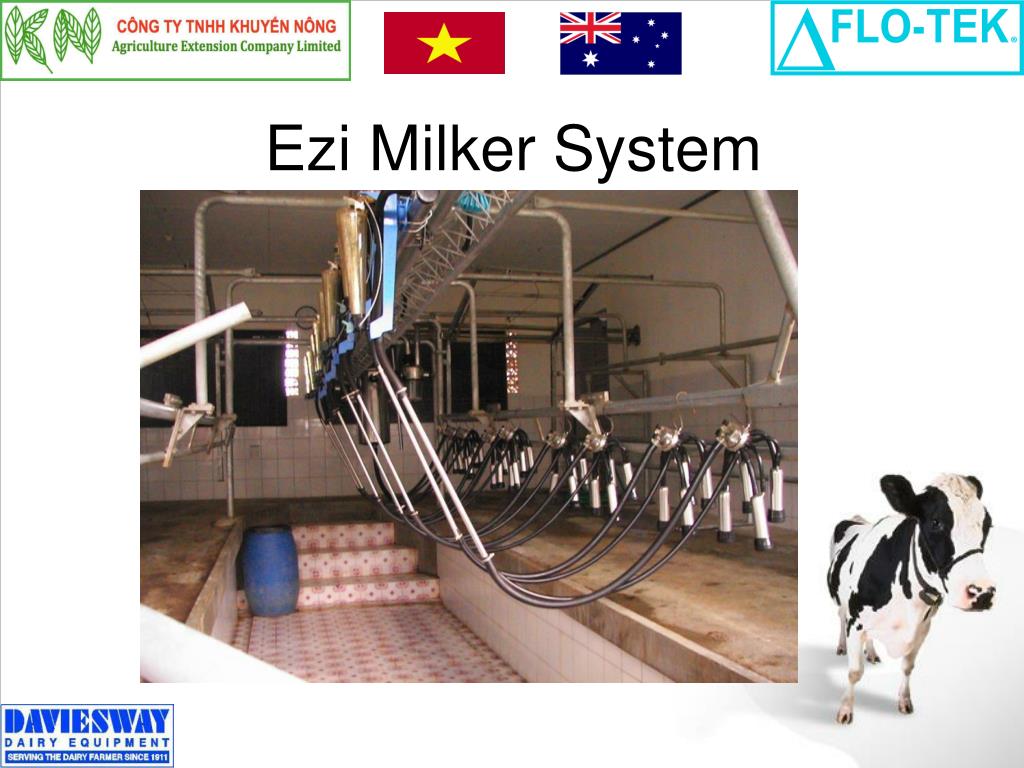

Ezi Milker System

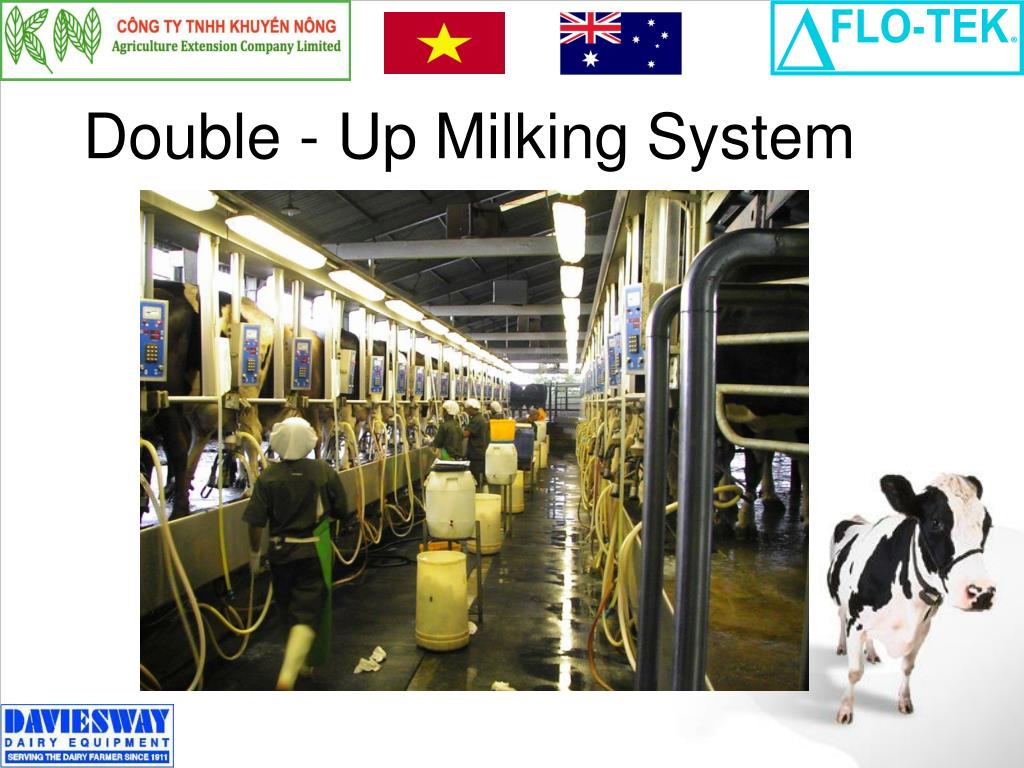

Double up milking system

Double - Up Milking System

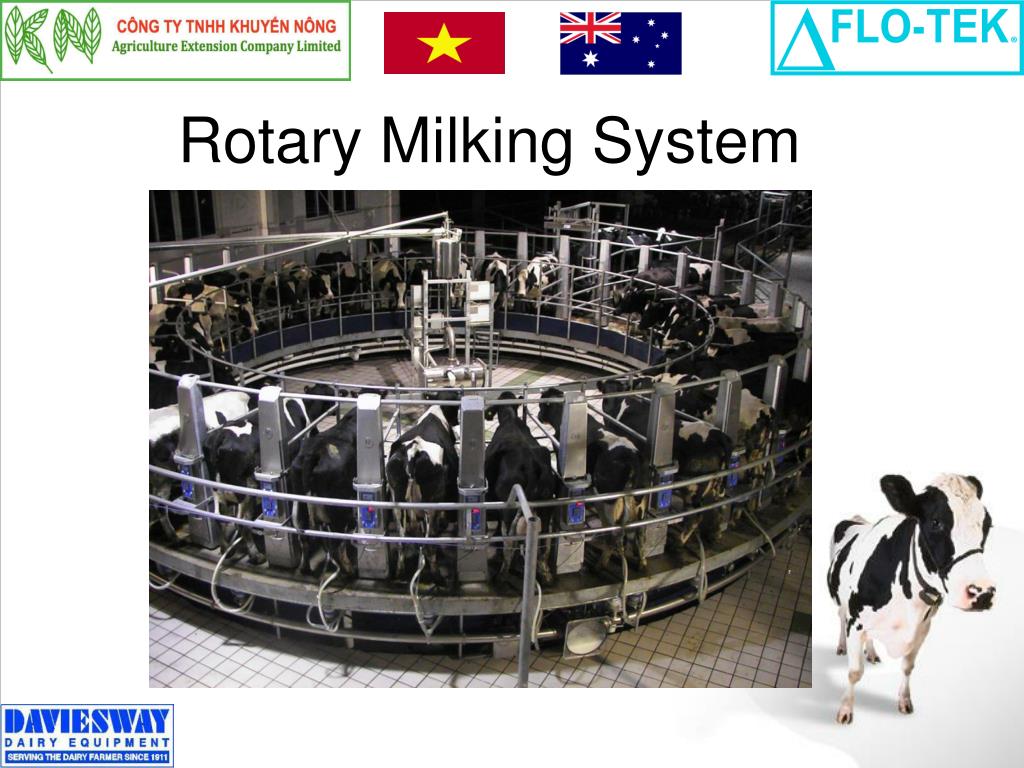

Rotary milking system

Rotary Milking System


Milking machine parts

Milking Machine Parts

Liner

  • Must be changed every 2500 cow milkings or 6 months (whichever comes first)


Milking machine parts1

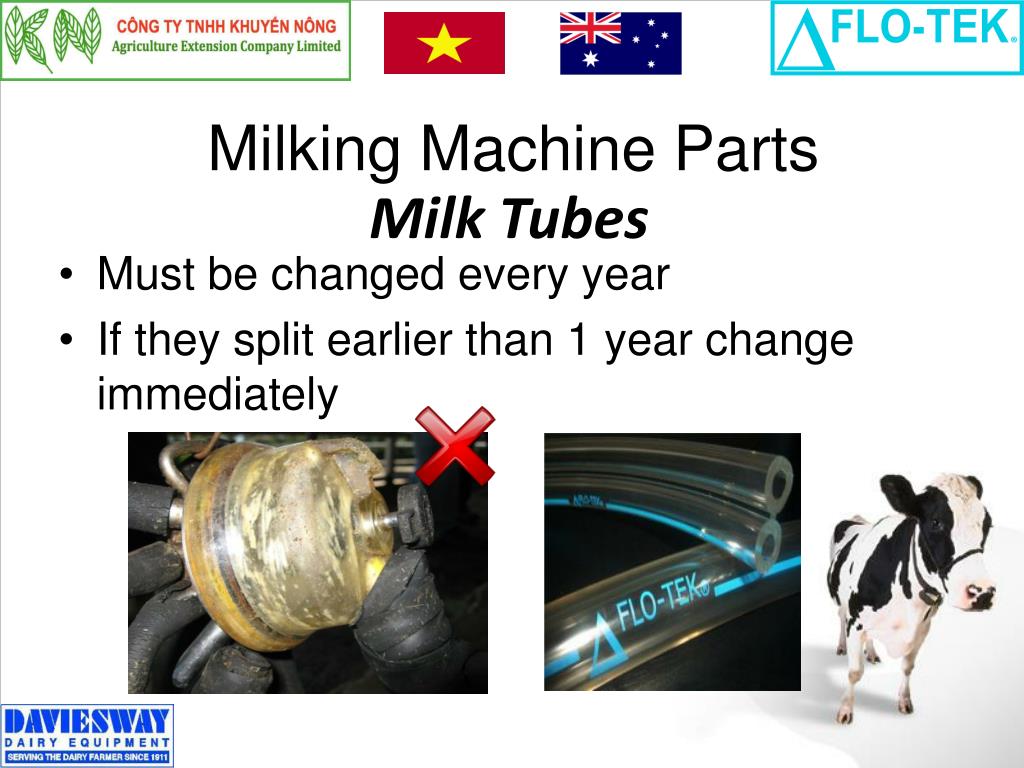

Milking Machine Parts

Milk Tubes

  • Must be changed every year

  • If they split earlier than 1 year change immediately

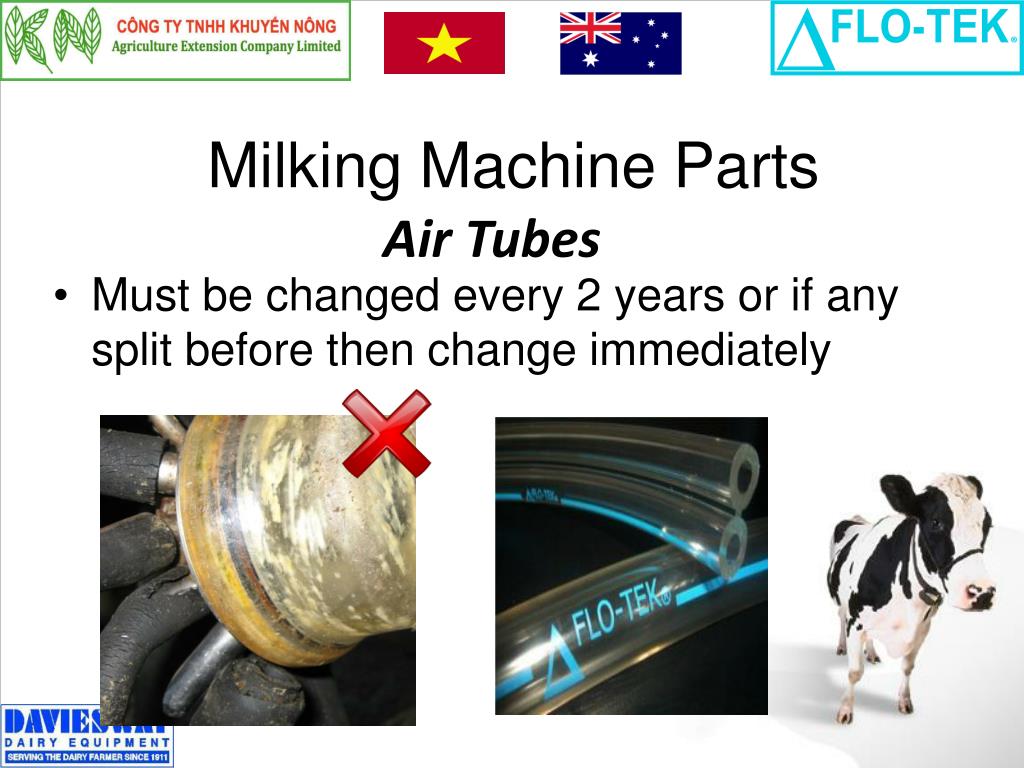

Milking machine parts2

Milking Machine Parts

Air Tubes

  • Must be changed every 2 years or if any split before then change immediately


Milking machine parts3

Milking Machine Parts

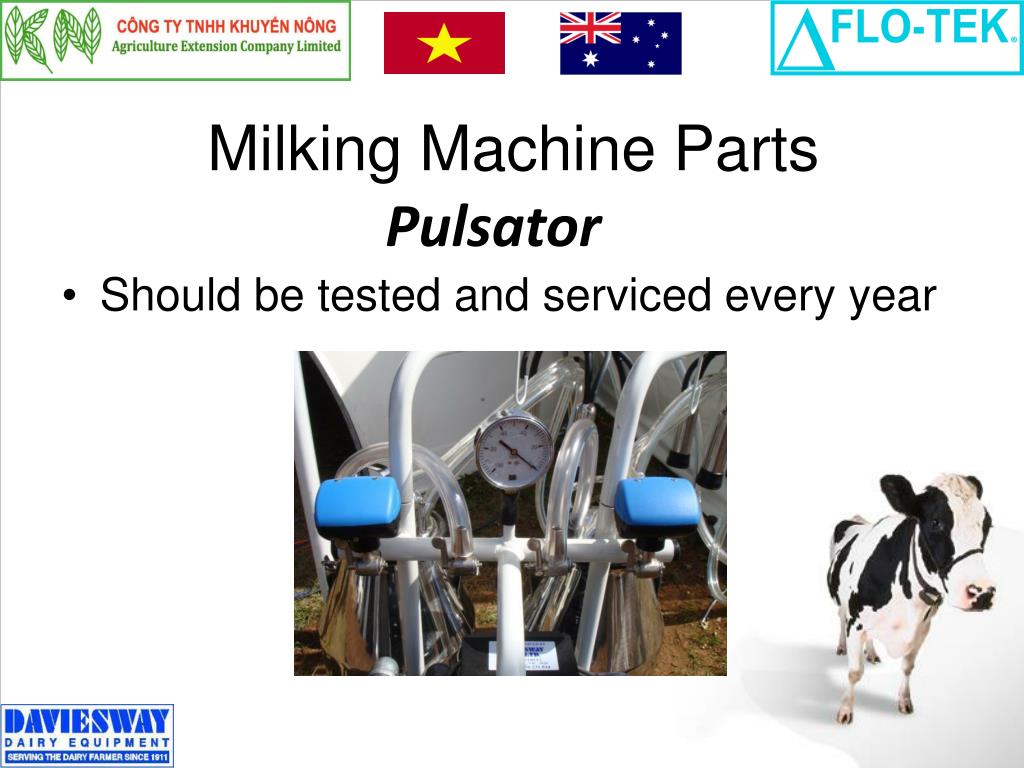

Pulsator

  • Should be tested and serviced every year

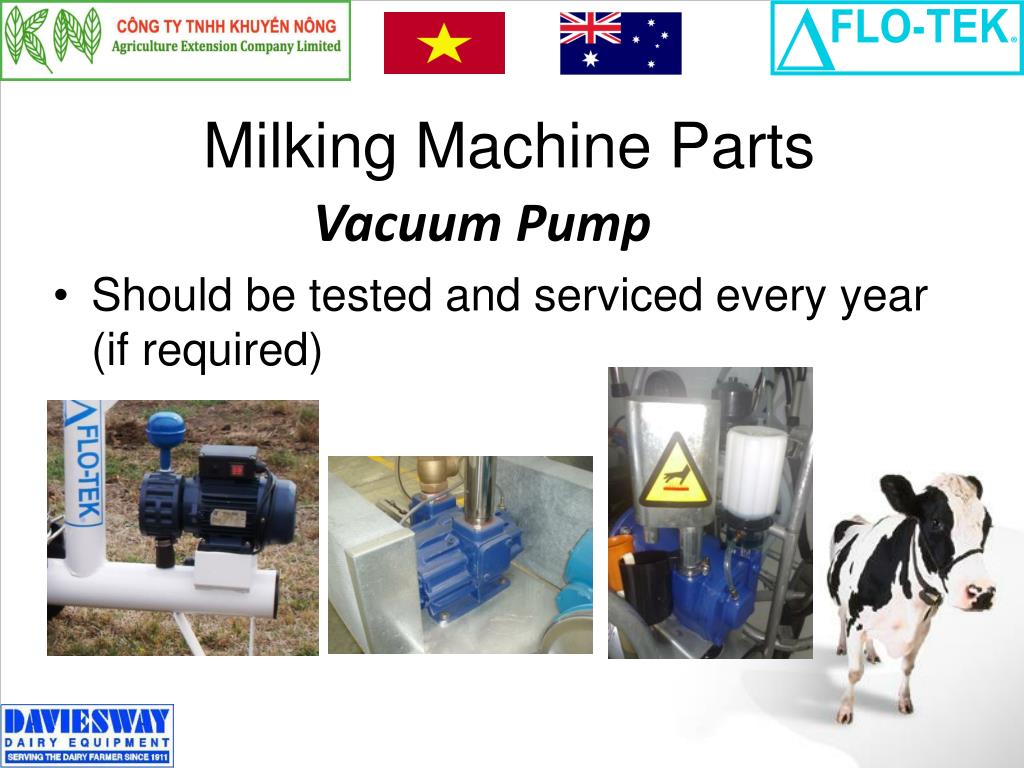

Milking machine parts4

Milking Machine Parts

Vacuum Pump

  • Should be tested and serviced every year (if required)

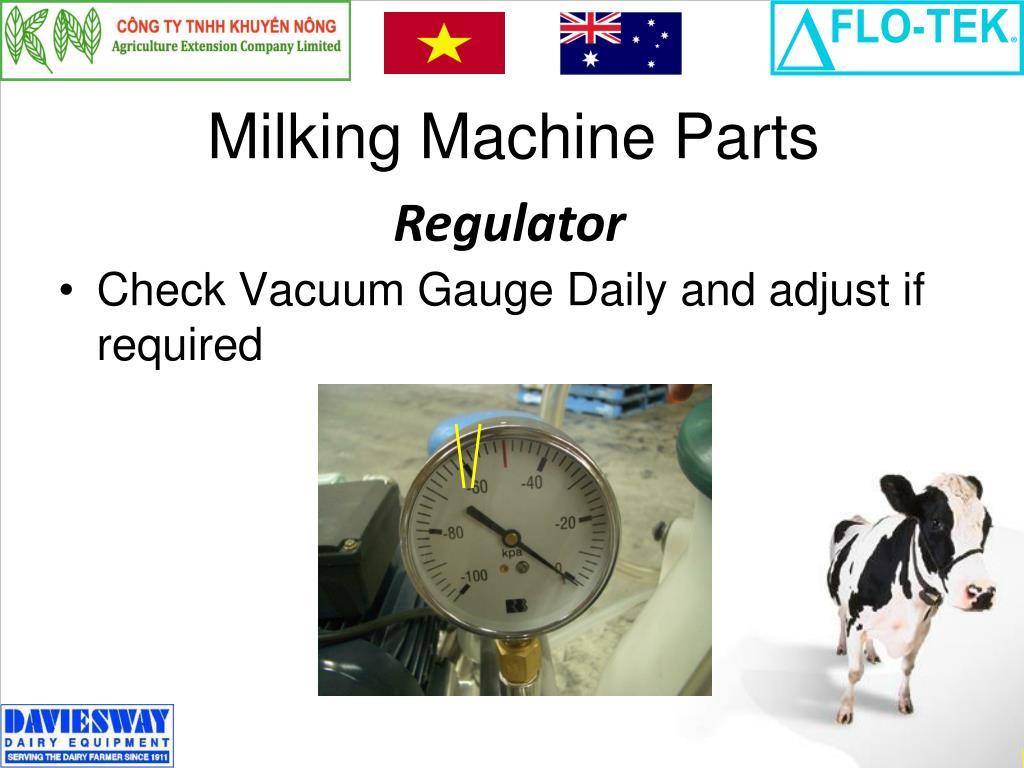

Milking machine parts5

Milking Machine Parts

Regulator

  • Check Vacuum Gauge Daily and adjust if required


Milk hygiene

Milk Hygiene

  • Milking Equipment must be cleaned after every milking session.

  • Correct detergents must be used to remove all residues


Milk hygiene1

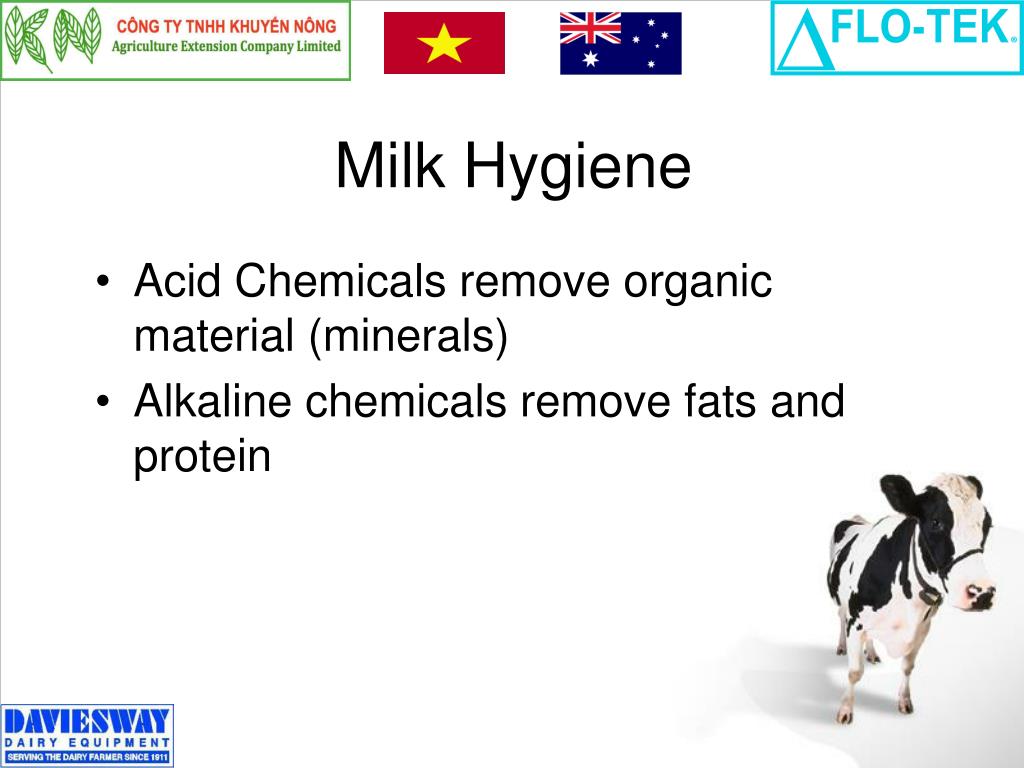

Milk Hygiene

  • Acid Chemicals remove organic material (minerals)

  • Alkaline chemicals remove fats and protein

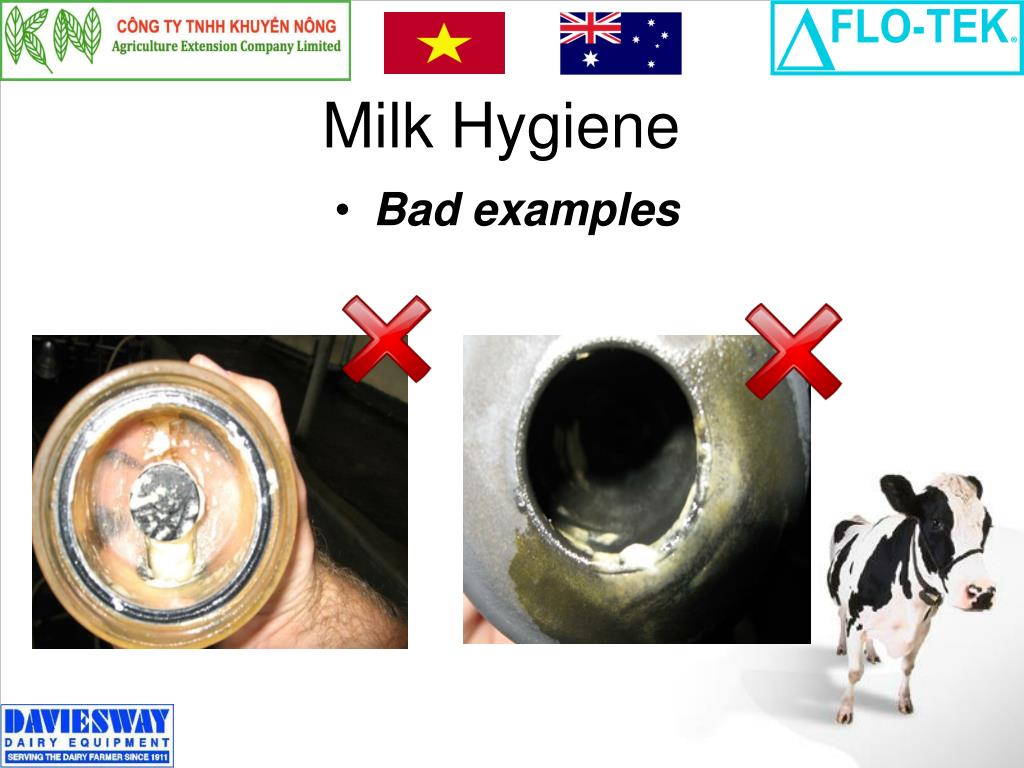

Milk hygiene2

Milk Hygiene

  • Bad examples


Milk hygiene3

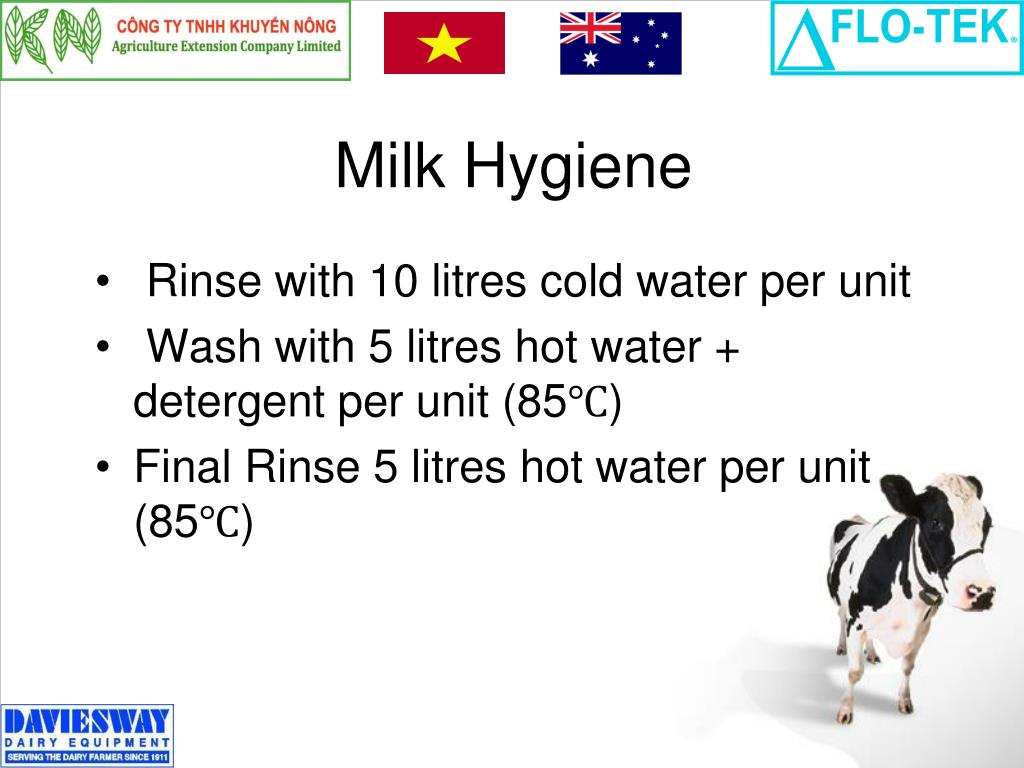

Milk Hygiene

  • Rinse with 10 litres cold water per unit

  • Wash with 5 litres hot water + detergent per unit (85℃)

  • Final Rinse 5 litres hot water per unit (85℃)


Benefits of using a milking machine

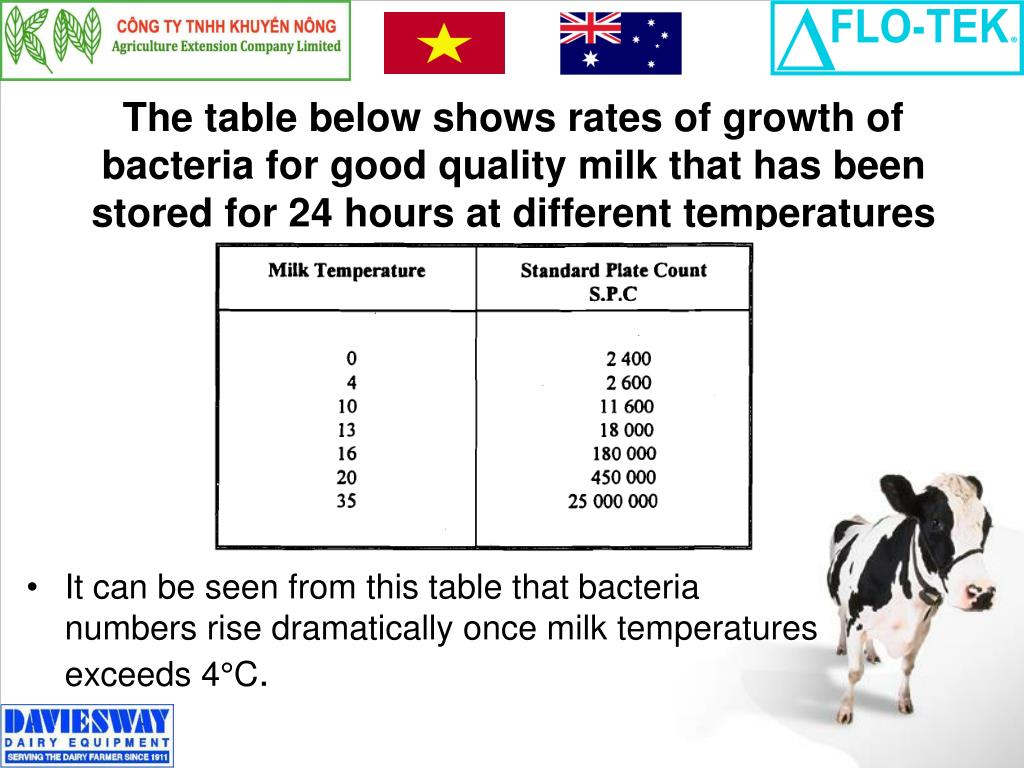

The table below shows rates of growth of bacteria for good quality milk that has been stored for 24 hours at different temperatures

  • It can be seen from this table that bacteria numbers rise dramatically once milk temperatures exceeds 4°C.


Benefits of using a milking machine

  • The graph below shows the rate of growth of bacteria in time and temperature

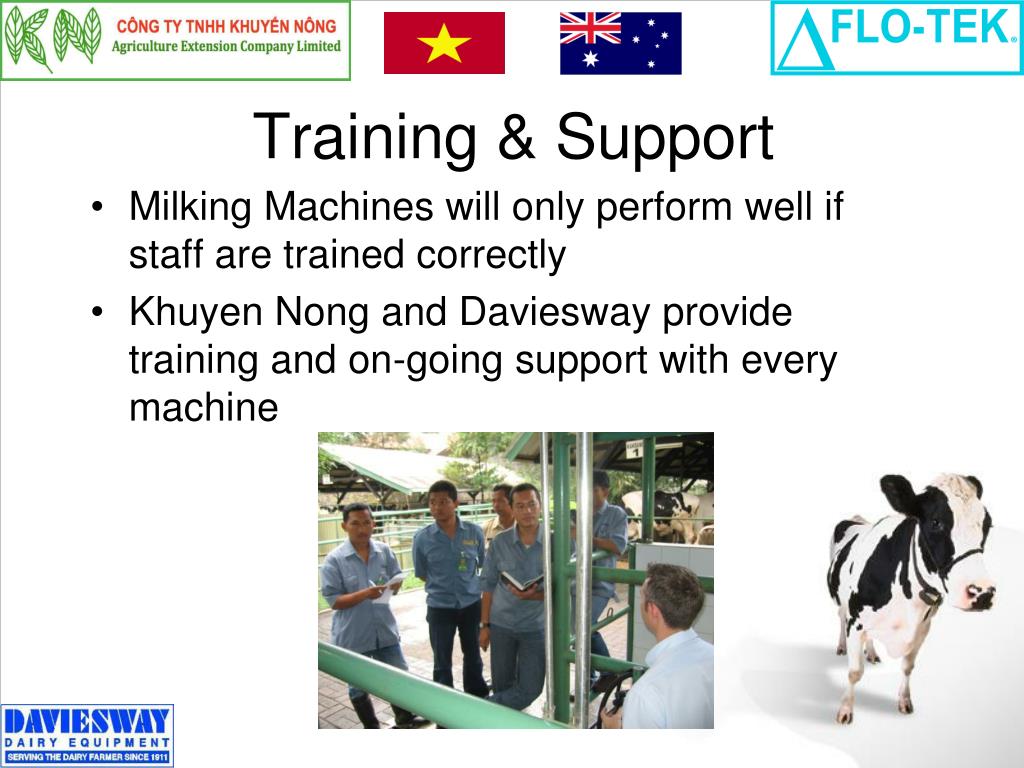

Training support

Training & Support

  • Milking Machines will only perform well if staff are trained correctly

  • Khuyen Nong and Daviesway provide training and on-going support with every machine


Total solutions

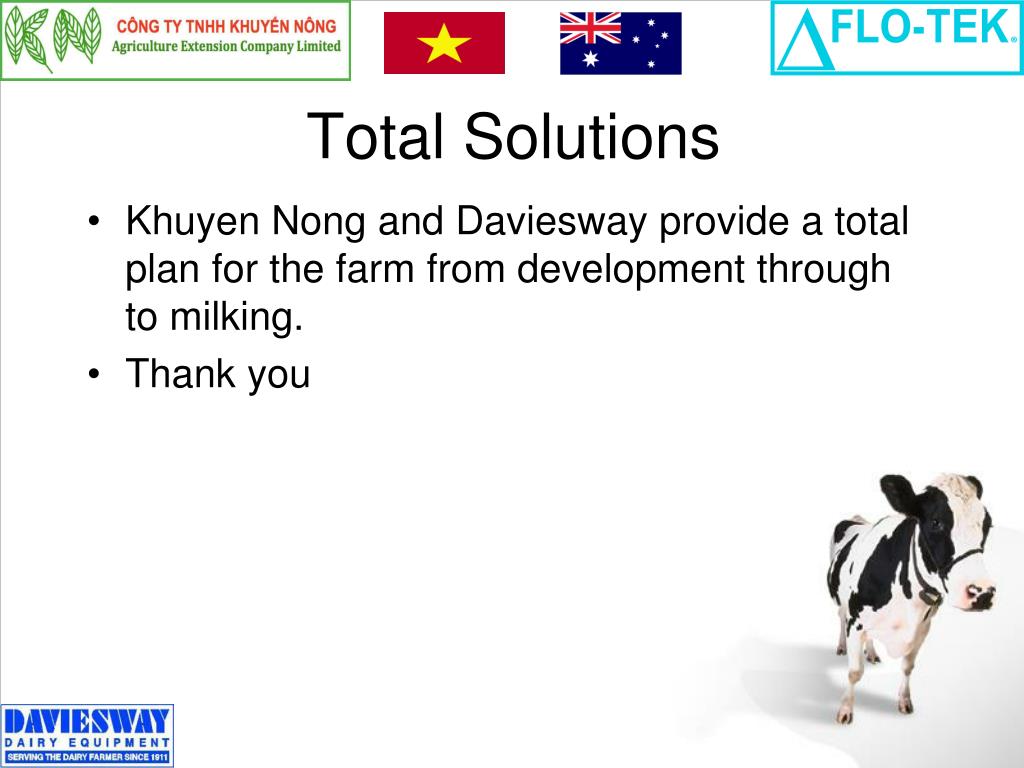

Total Solutions

  • Khuyen Nong and Daviesway provide a total plan for the farm from development through to milking.

  • Thank you
