  1. Visualization Schemas for Flexible Information Visualization Chris North, Nathan Conklin, Varun Saini Proceedings of IEEE Symposium on InforVis’02 Presented by Mei Huang, Chunyuan Liao Apr. 21,2005

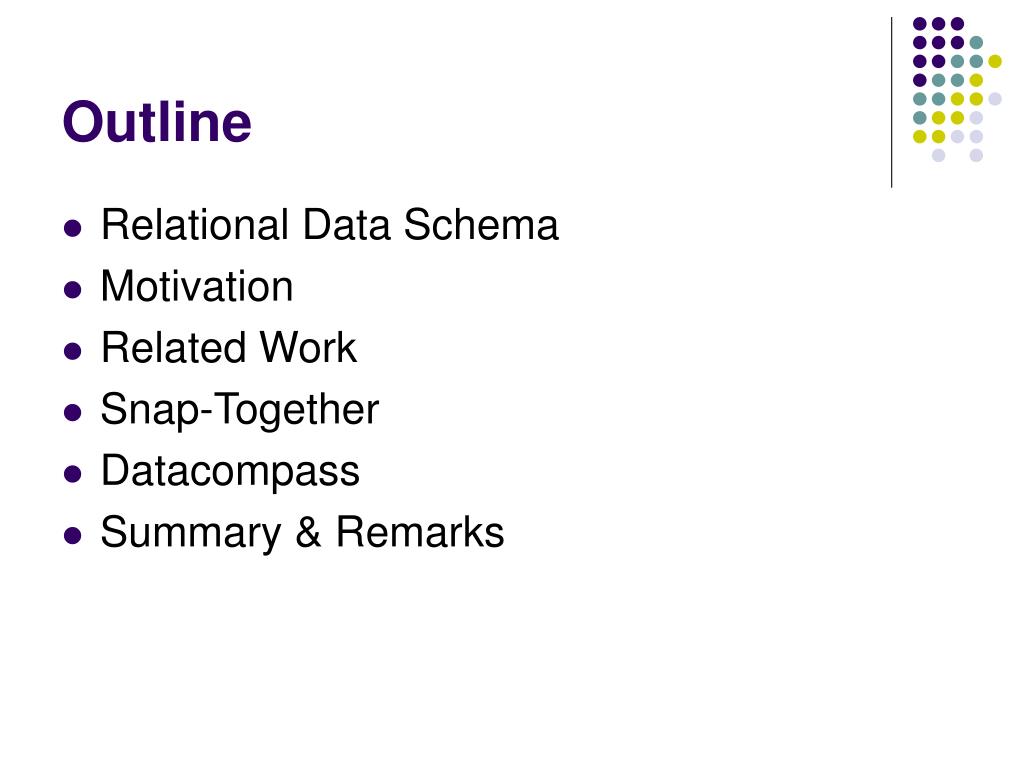

  2. Outline • Relational Data Schema • Motivation • Related Work • Snap-Together • Datacompass • Summary & Remarks

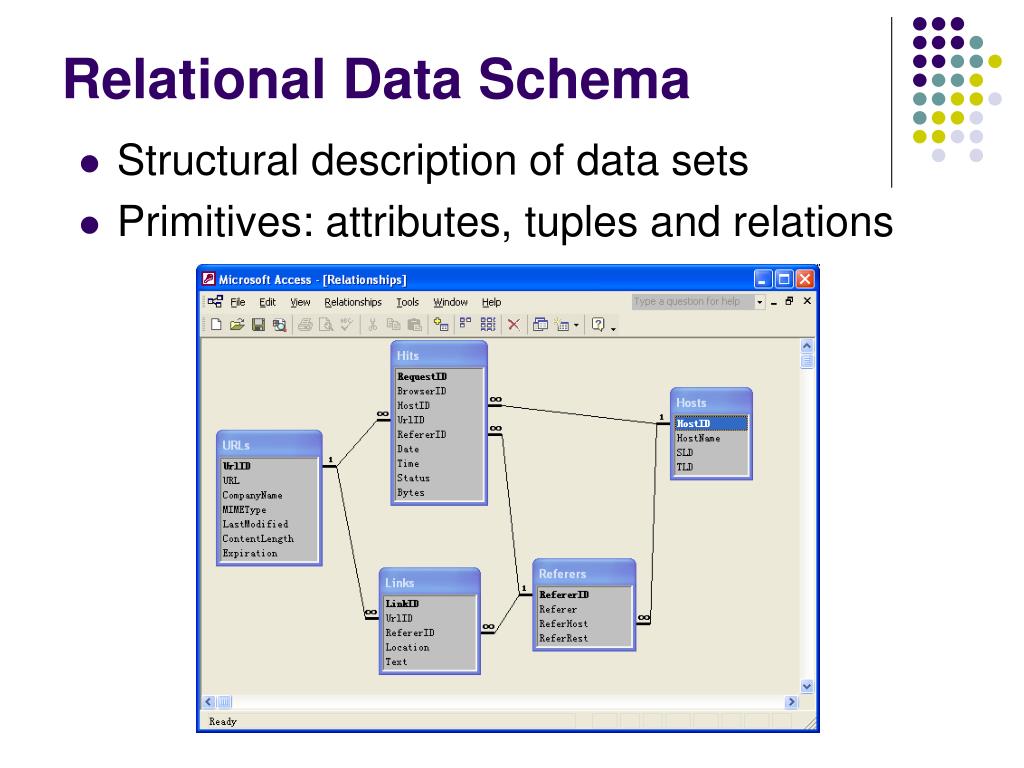

  3. Relational Data Schema • Structural description of data sets • Primitives: attributes, tuples and relations

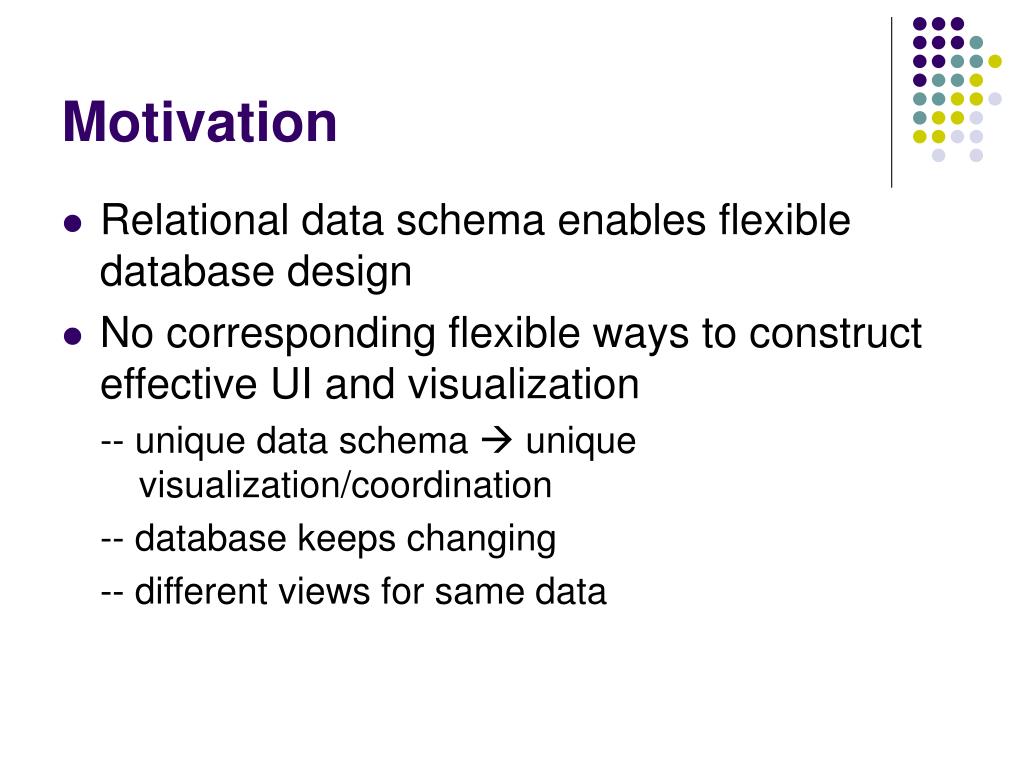

  4. Motivation • Relational data schema enables flexible database design • No corresponding flexible ways to construct effective UI and visualization -- unique data schema  unique visualization/coordination -- database keeps changing -- different views for same data

  5. Mismatch in design capabilities

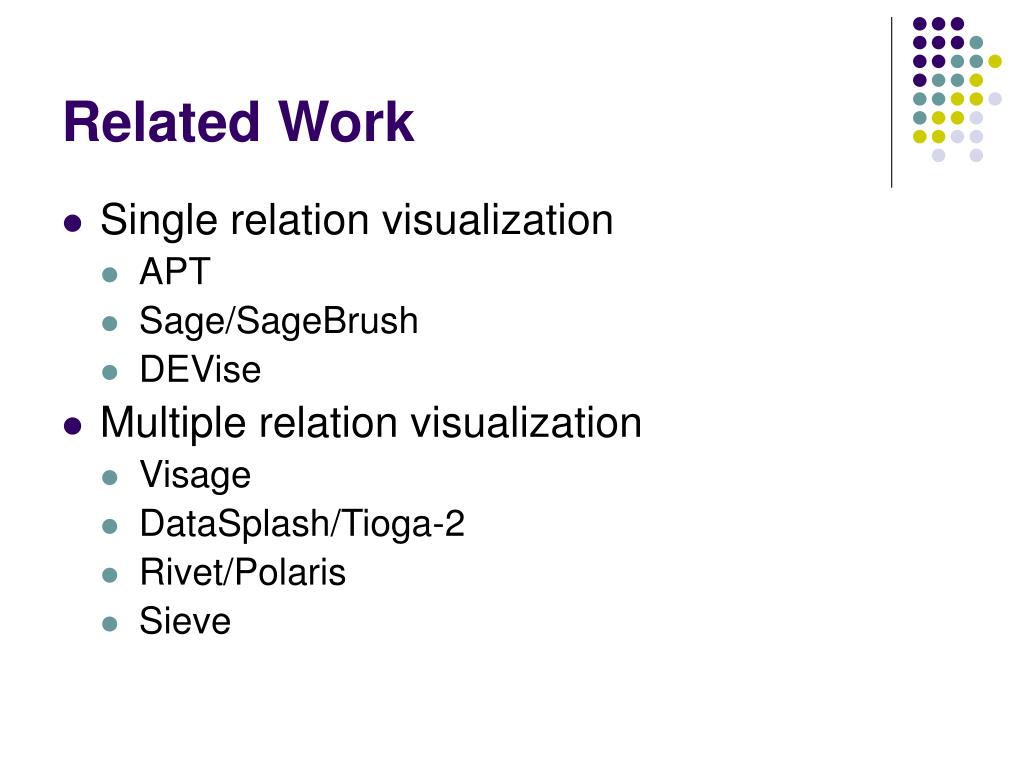

  6. Related Work • Single relation visualization • APT • Sage/SageBrush • DEVise • Multiple relation visualization • Visage • DataSplash/Tioga-2 • Rivet/Polaris • Sieve

  7. DEVise http://www.cs.wisc.edu/~devise/devise/quick_intro/index.html

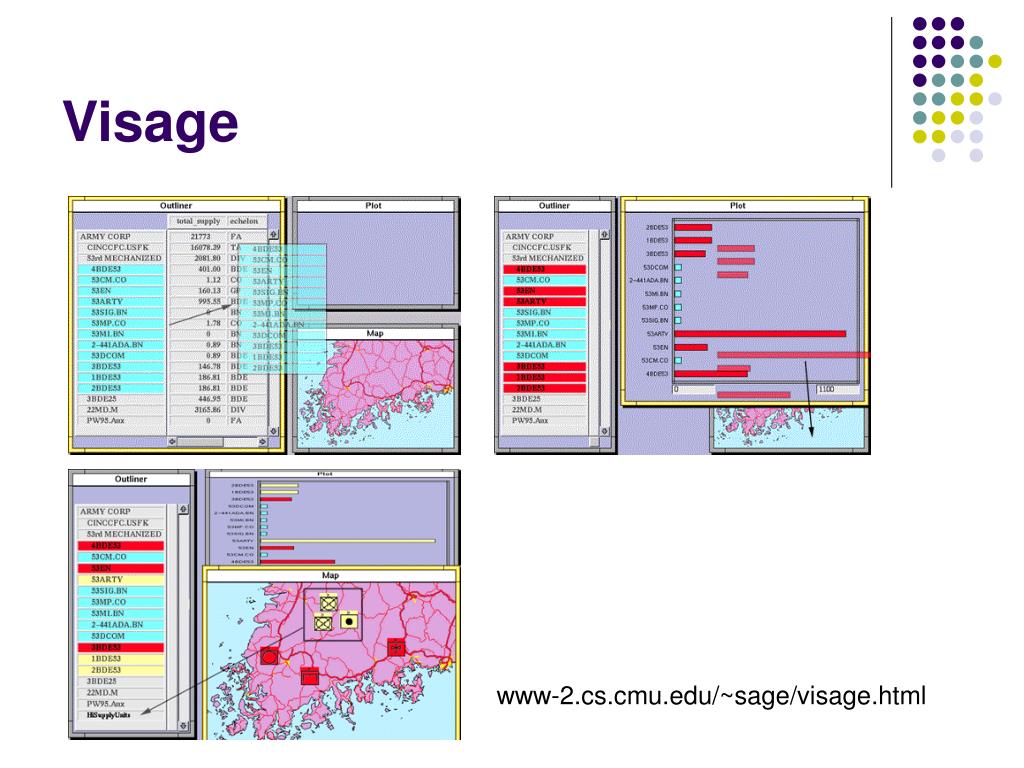

  8. Visage www-2.cs.cmu.edu/~sage/visage.html

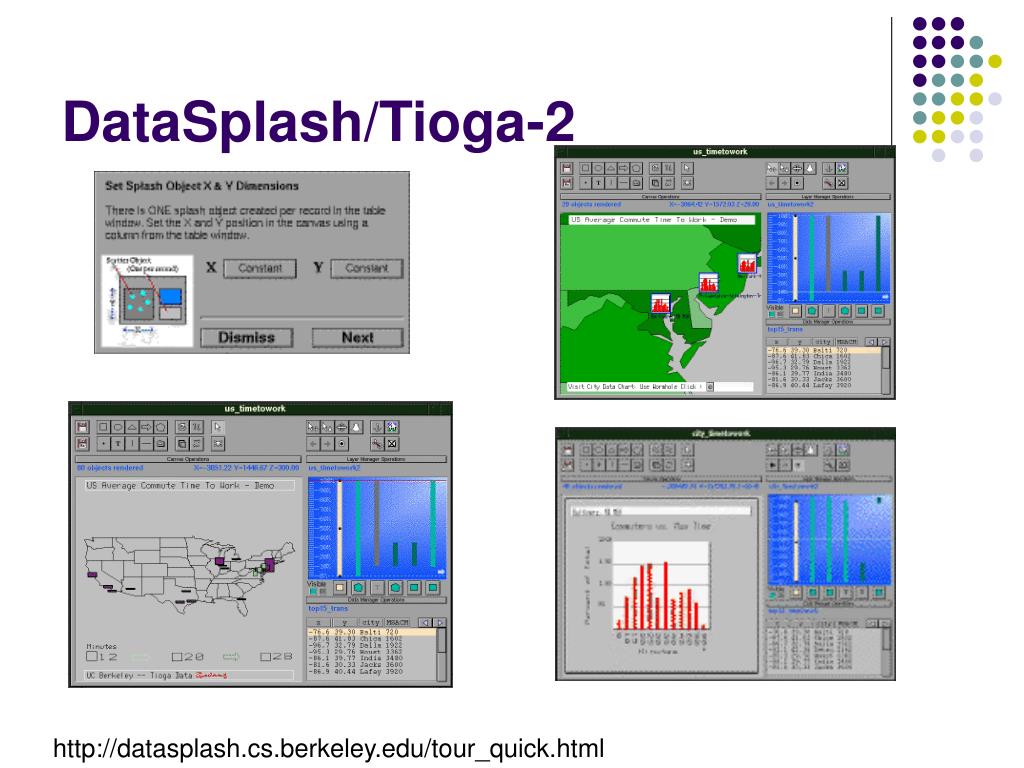

  9. DataSplash/Tioga-2 http://datasplash.cs.berkeley.edu/tour_quick.html

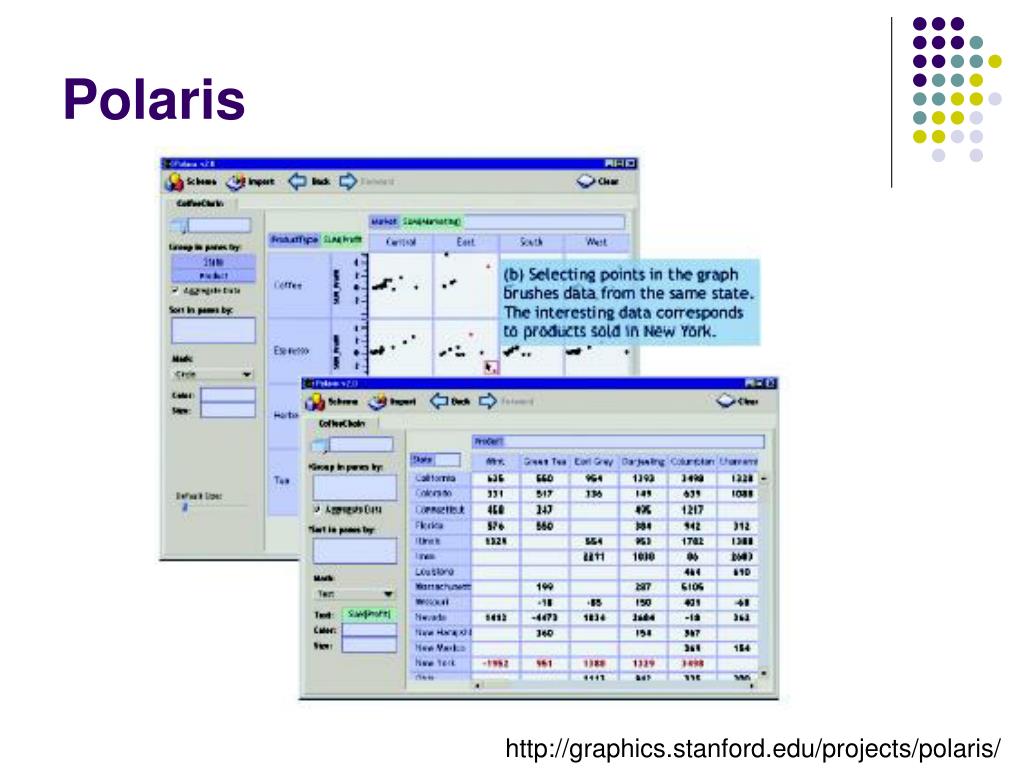

  10. Polaris http://graphics.stanford.edu/projects/polaris/

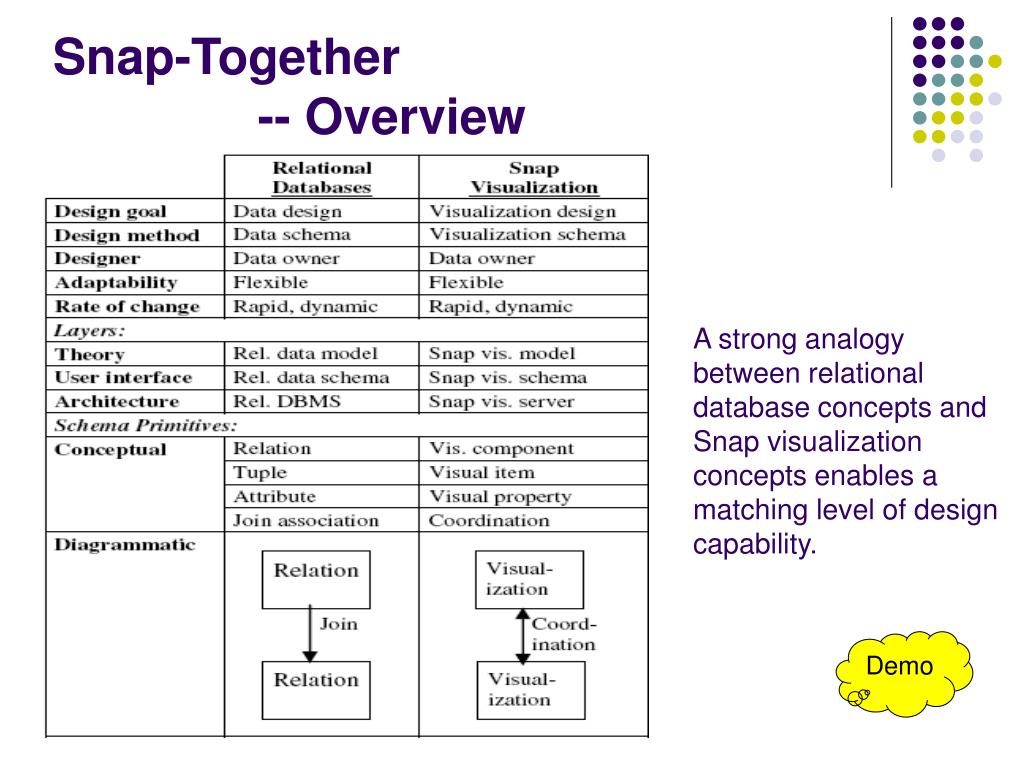

  11. Snap-Together -- Overview A strong analogy between relational database concepts and Snap visualization concepts enables a matching level of design capability. Demo

  12. Snap-Together -- Theory(1) • Snap Visualization Model • Multiple views/Components • Schema primitives • Data-centric coordination and Joins

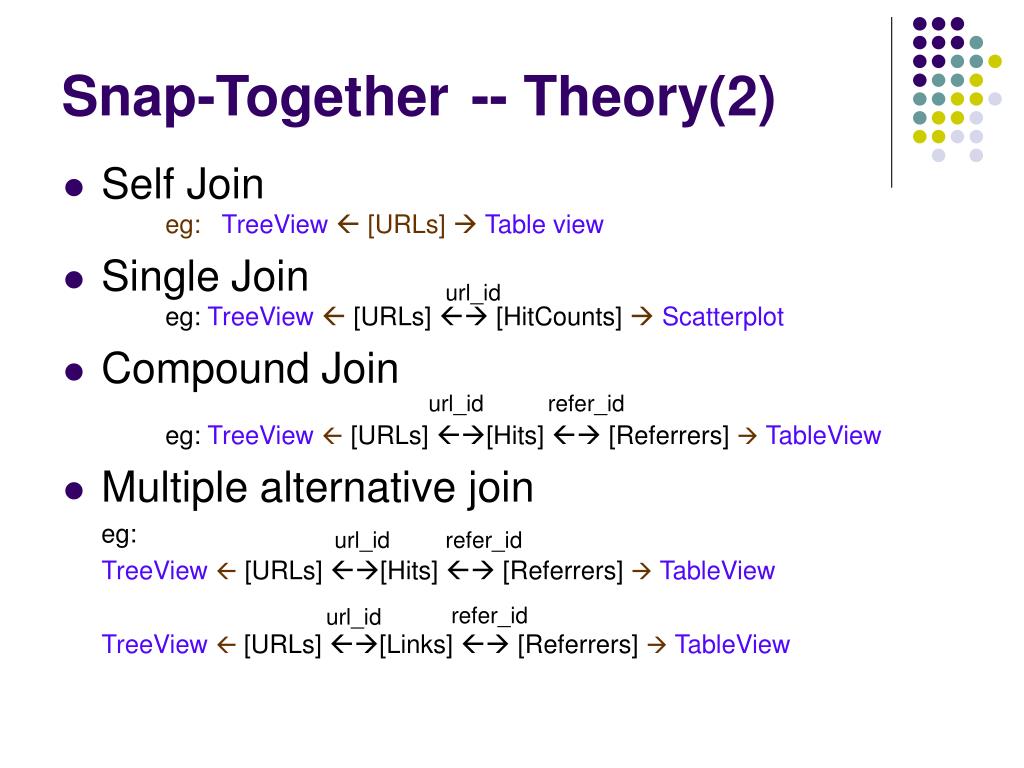

  13. Snap-Together -- Theory(2) • Self Join eg: TreeView [URLs]  Table view • Single Join eg: TreeView  [URLs]  [HitCounts] Scatterplot • Compound Join eg: TreeView [URLs] [Hits]  [Referrers] TableView • Multiple alternative join eg: TreeView [URLs] [Hits]  [Referrers] TableView TreeView [URLs] [Links]  [Referrers] TableView url_id url_id refer_id url_id refer_id refer_id url_id

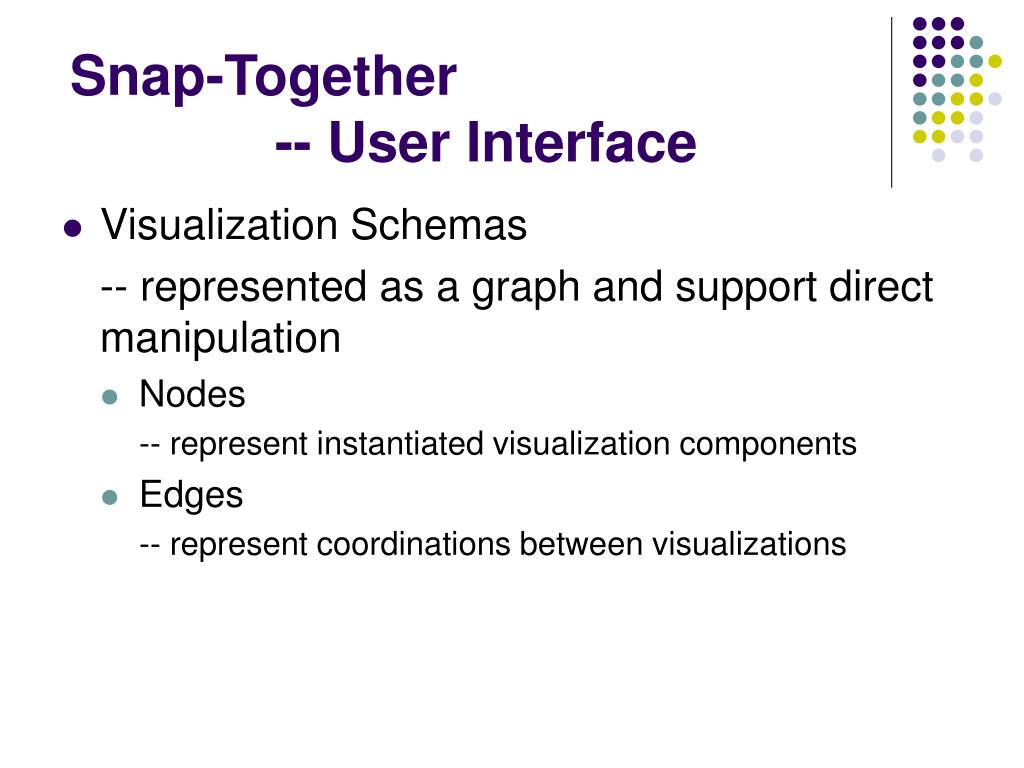

  14. Snap-Together -- User Interface • Visualization Schemas -- represented as a graph and support direct manipulation • Nodes -- represent instantiated visualization components • Edges -- represent coordinations between visualizations

  15. Snap-Together -- System Architecture Coordination Manager Visualization Schema Coordination Graph Database Manager Database Schema Relational Database Relational Database

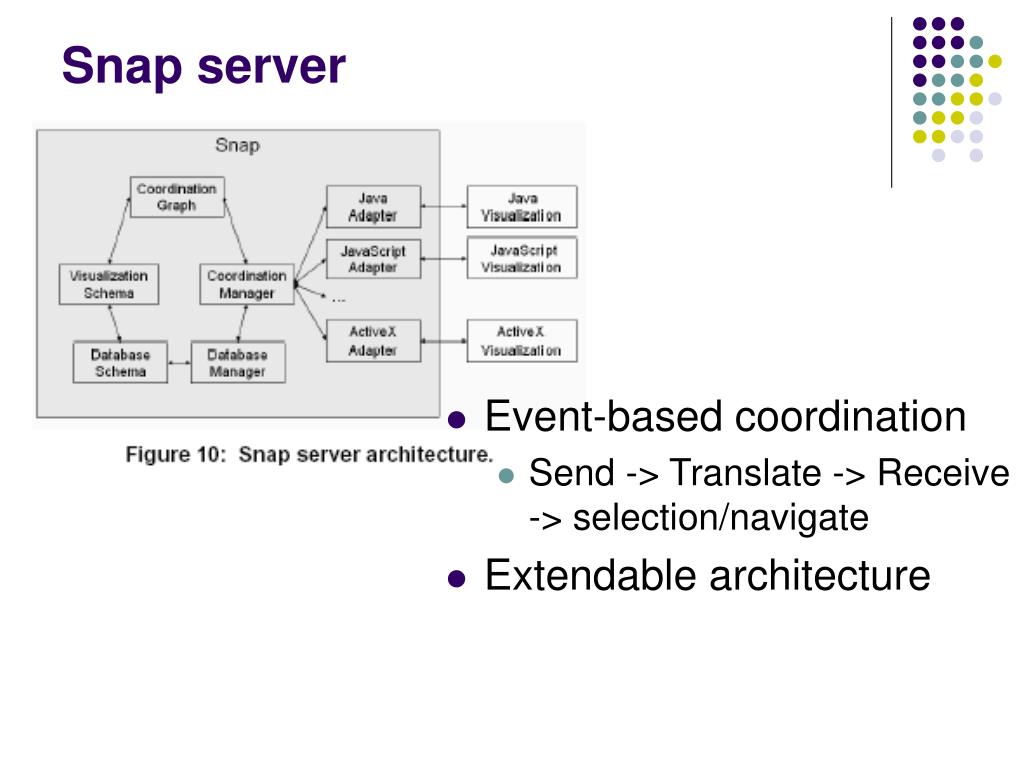

  16. Snap server • Event-based coordination • Send -> Translate -> Receive -> selection/navigate • Extendable architecture

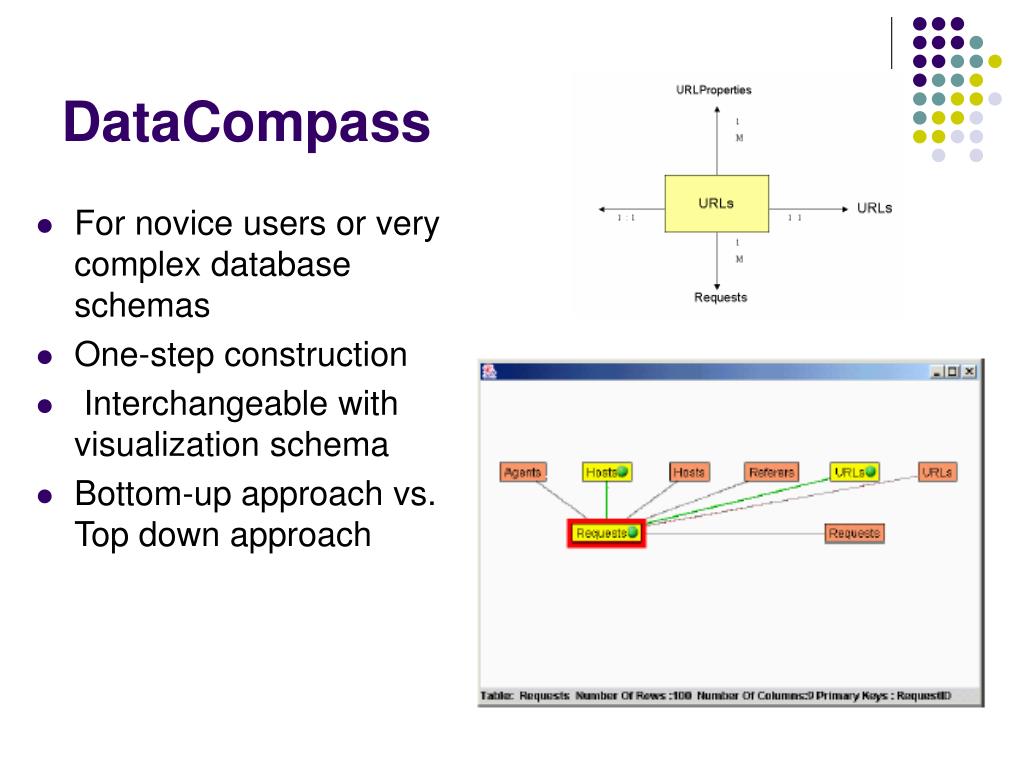

  17. DataCompass • For novice users or very complex database schemas • One-step construction • Interchangeable with visualization schema • Bottom-up approach vs. Top down approach

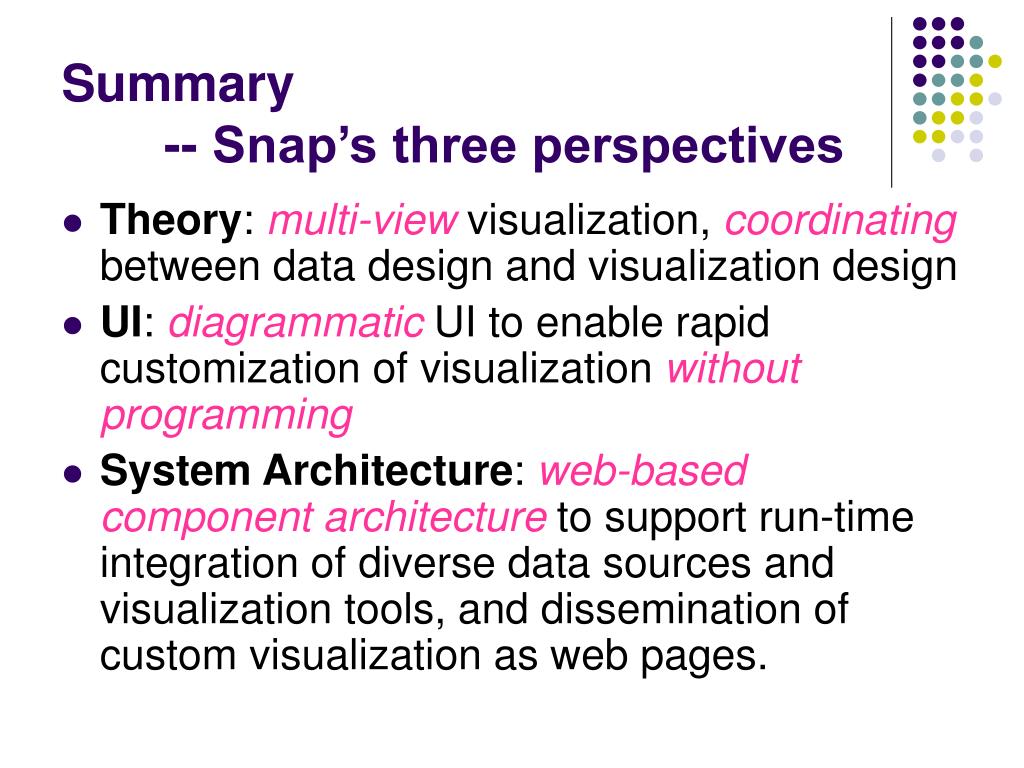

  18. Summary -- Snap’s three perspectives • Theory: multi-view visualization, coordinating between data design and visualization design • UI: diagrammatic UI to enable rapid customization of visualization without programming • System Architecture: web-based component architecture to support run-time integration of diverse data sources and visualization tools, and dissemination of custom visualization as web pages.

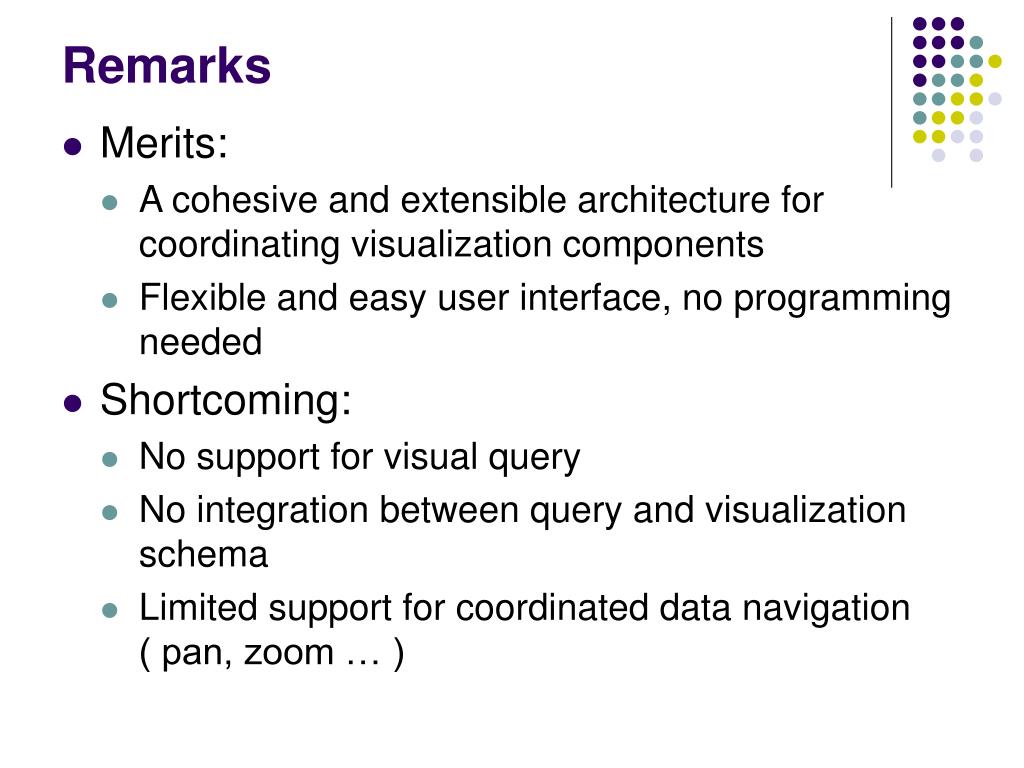

  19. Remarks • Merits: • A cohesive and extensible architecture for coordinating visualization components • Flexible and easy user interface, no programming needed • Shortcoming: • No support for visual query • No integration between query and visualization schema • Limited support for coordinated data navigation ( pan, zoom … )

  20. Thanks!
