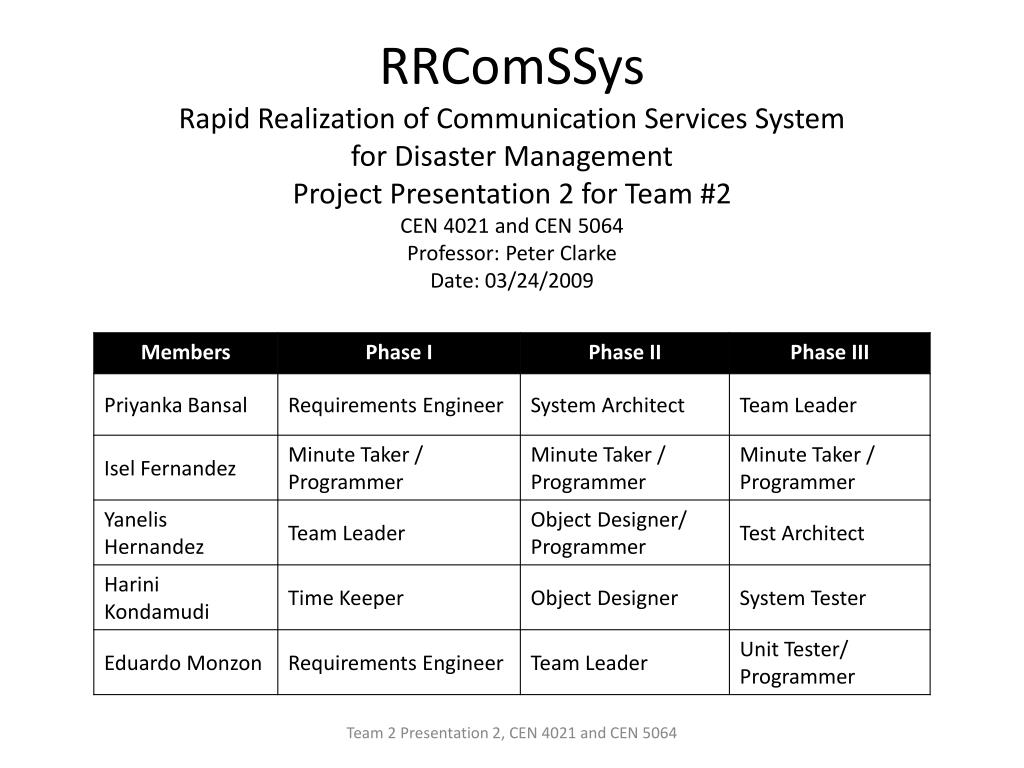

  1. RRComSSysRapid Realization of Communication Services Systemfor Disaster Management Project Presentation 2 for Team #2 CEN 4021 and CEN 5064Professor: Peter ClarkeDate: 03/24/2009 Team 2 Presentation 2, CEN 4021 and CEN 5064

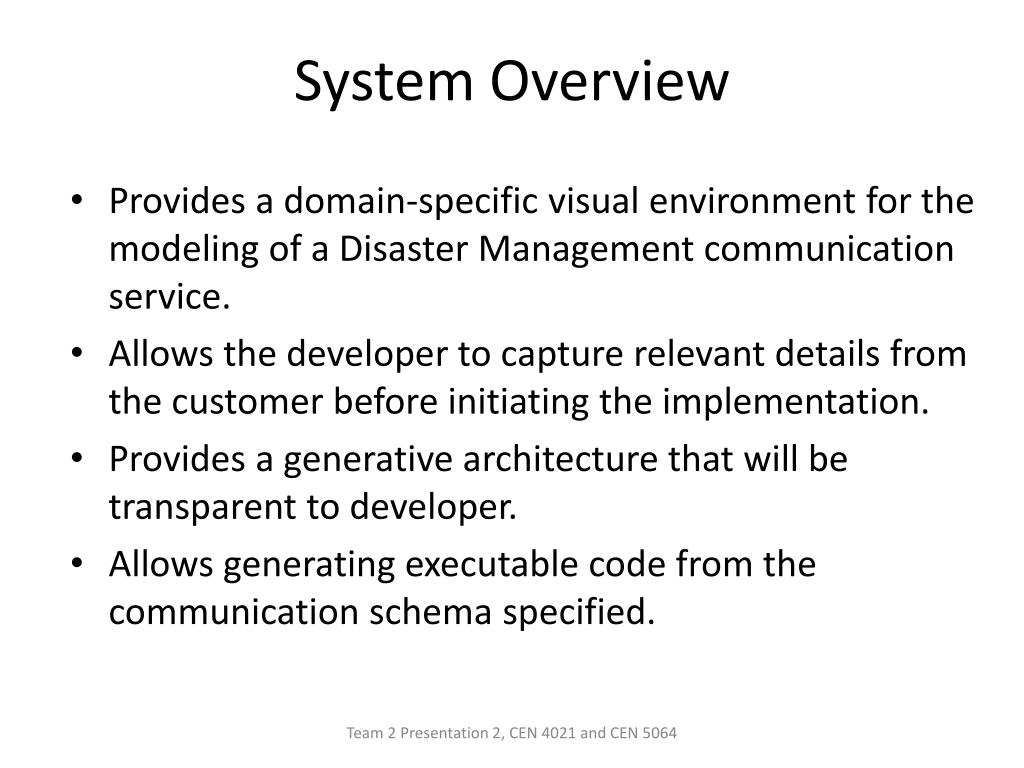

  2. System Overview • Provides a domain-specific visual environment for the modeling of a Disaster Management communication service. • Allows the developer to capture relevant details from the customer before initiating the implementation. • Provides a generative architecture that will be transparent to developer. • Allows generating executable code from the communication schema specified. Team 2 Presentation 2, CEN 4021 and CEN 5064

  3. System Requirements (I) • The system shall allow developers to successfully log-in into the system • The system shall allow developers to successfully log-out of the system • The system shall allow developers to create video schemas using a graphical modeling tool • The system shall allow developers to save communication schemas into the repository of models Team 2 Presentation 2, CEN 4021 and CEN 5064

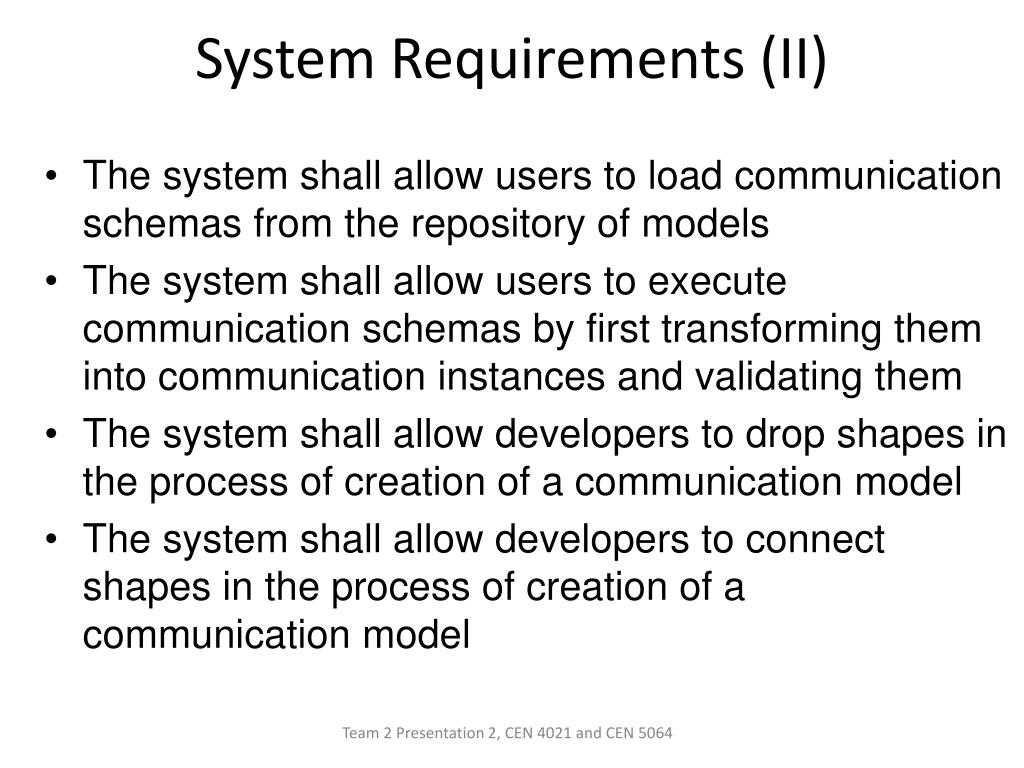

  4. System Requirements (II) • The system shall allow users to load communication schemas from the repository of models • The system shall allow users to execute communication schemas by first transforming them into communication instances and validating them • The system shall allow developers to drop shapes in the process of creation of a communication model • The system shall allow developers to connect shapes in the process of creation of a communication model Team 2 Presentation 2, CEN 4021 and CEN 5064

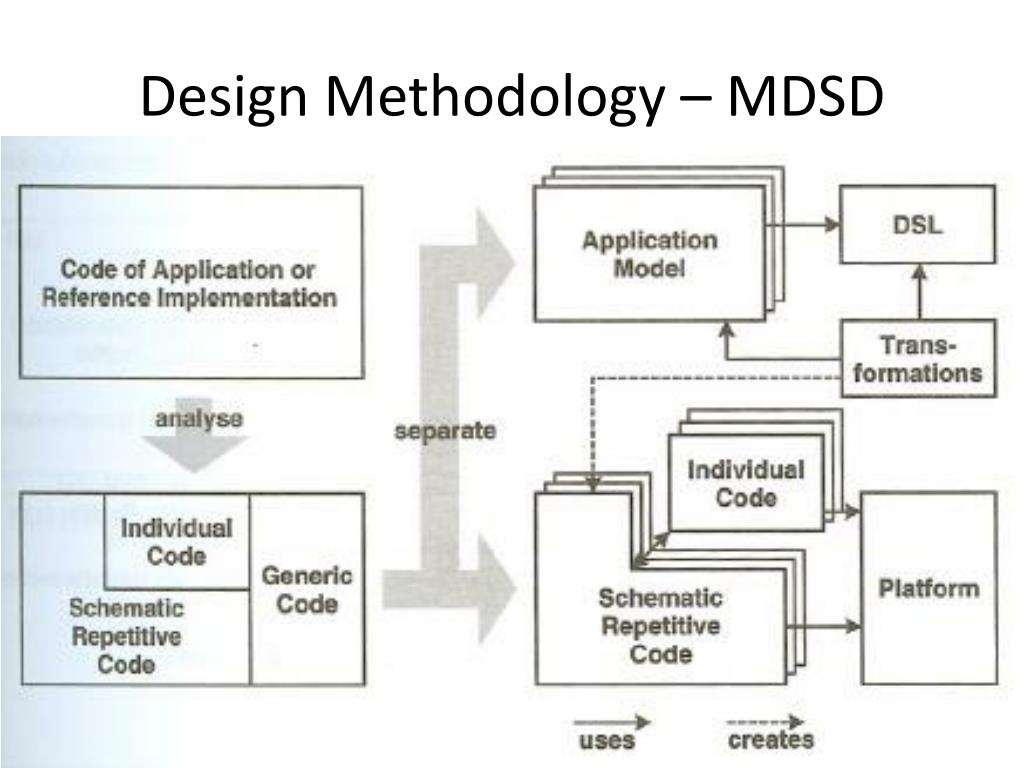

  5. Design Methodology – MDSD Team 2 Presentation 2, CEN 4021 and CEN 5064

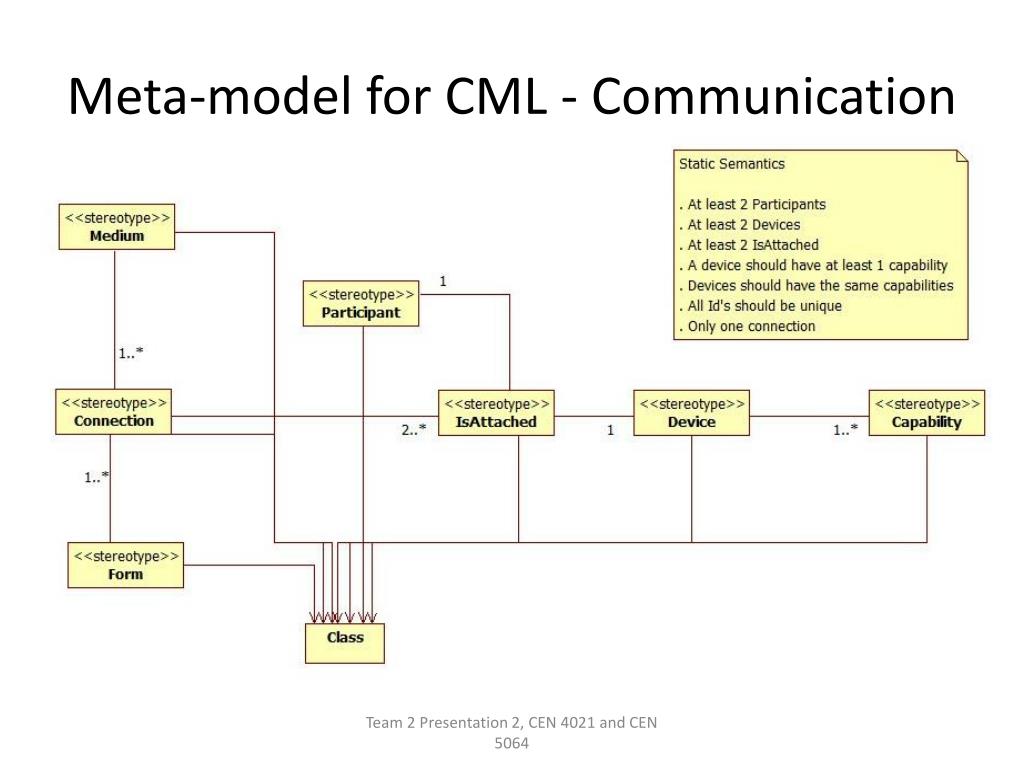

  6. Meta-model for CML - Communication Team 2 Presentation 2, CEN 4021 and CEN 5064

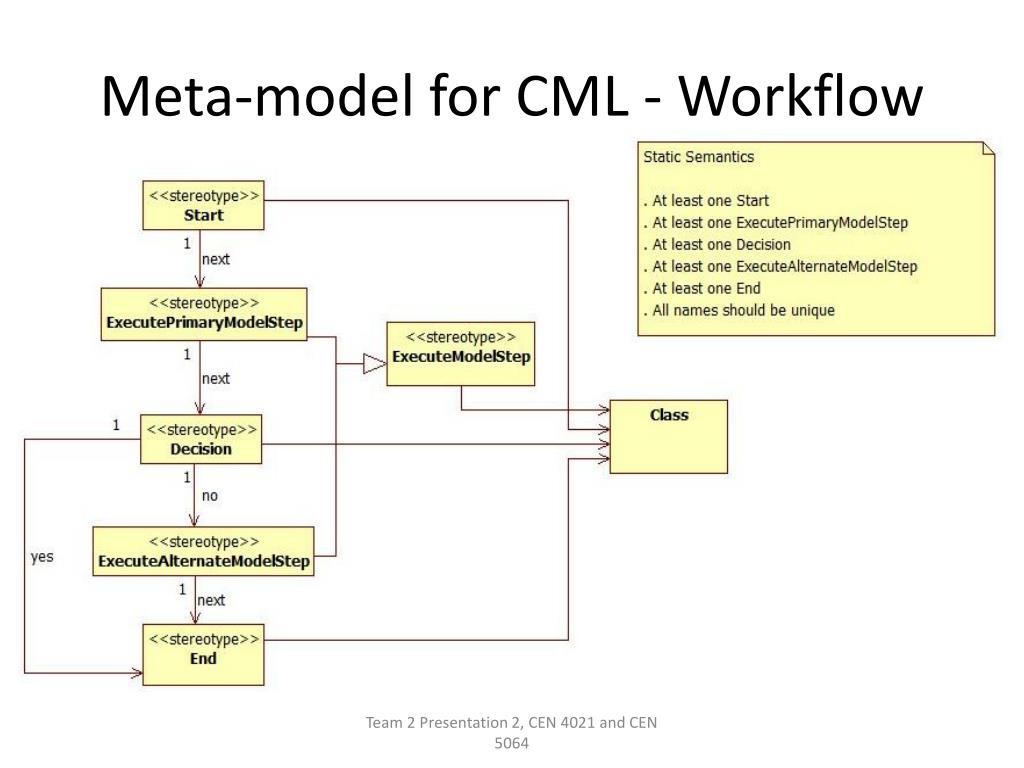

  7. Meta-model for CML - Workflow Team 2 Presentation 2, CEN 4021 and CEN 5064

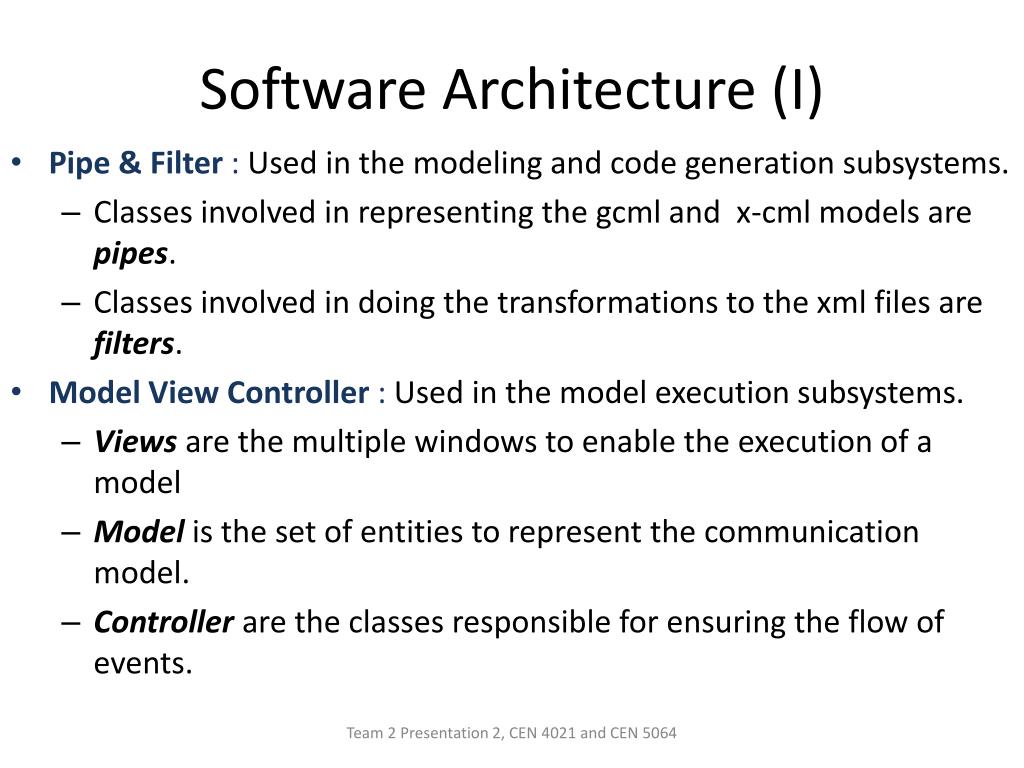

  8. Software Architecture (I) • Pipe & Filter : Used in the modeling and code generation subsystems. • Classes involved in representing the gcml and x-cml models are pipes. • Classes involved in doing the transformations to the xml files are filters. • Model View Controller : Used in the model execution subsystems. • Views are the multiple windows to enable the execution of a model • Model is the set of entities to represent the communication model. • Controller are the classes responsible for ensuring the flow of events. Team 2 Presentation 2, CEN 4021 and CEN 5064

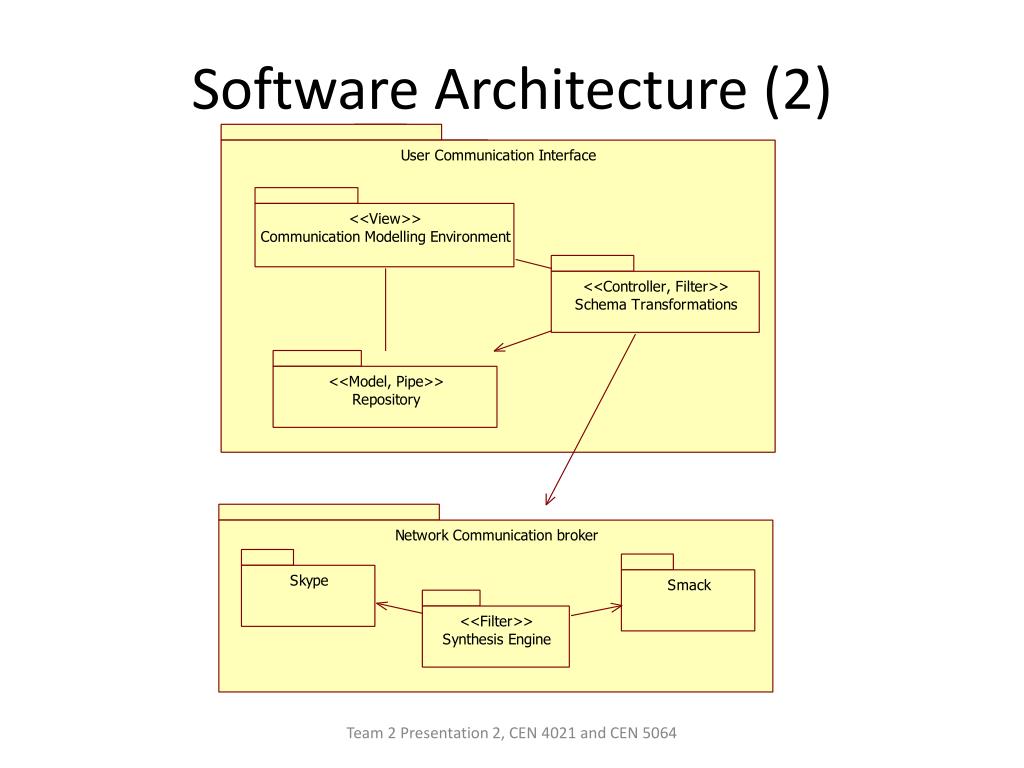

  9. Software Architecture (2) Team 2 Presentation 2, CEN 4021 and CEN 5064

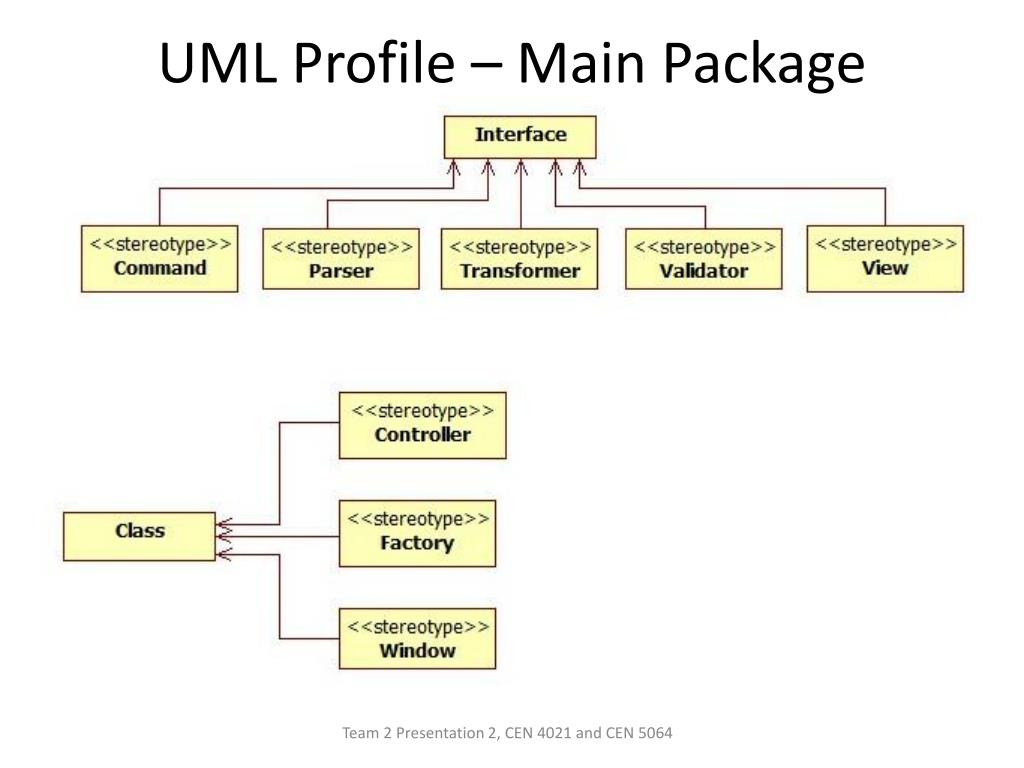

  10. UML Profile – Main Package Team 2 Presentation 2, CEN 4021 and CEN 5064

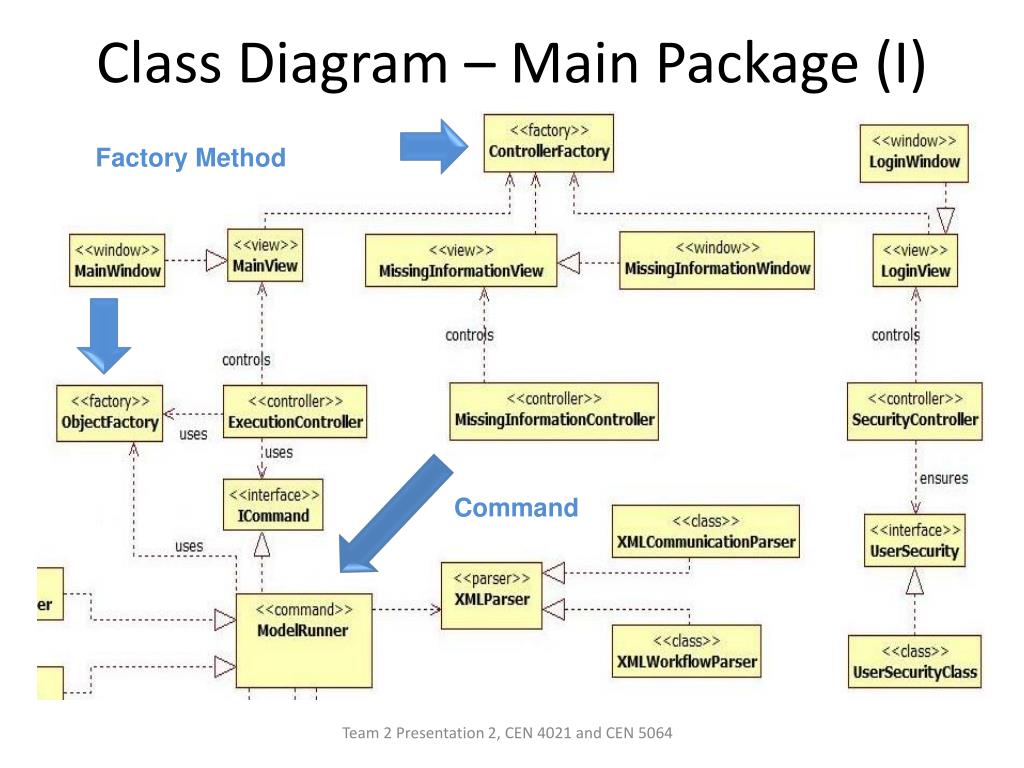

  11. Class Diagram – Main Package (I) Factory Method Command Team 2 Presentation 2, CEN 4021 and CEN 5064

  12. Class Diagram – Main Package (II) Singleton Team 2 Presentation 2, CEN 4021 and CEN 5064

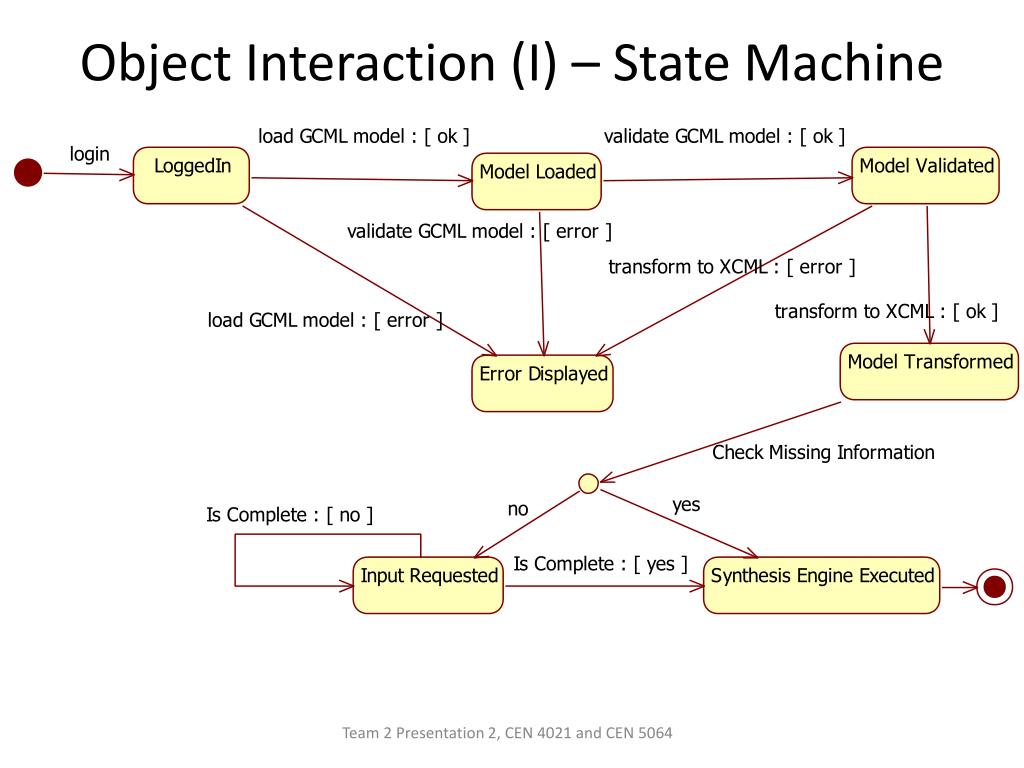

  13. Object Interaction (I) – State Machine Team 2 Presentation 2, CEN 4021 and CEN 5064

  14. Object Interaction (2) Create 2 Way Video Team 2 Presentation 2, CEN 4021 and CEN 5064

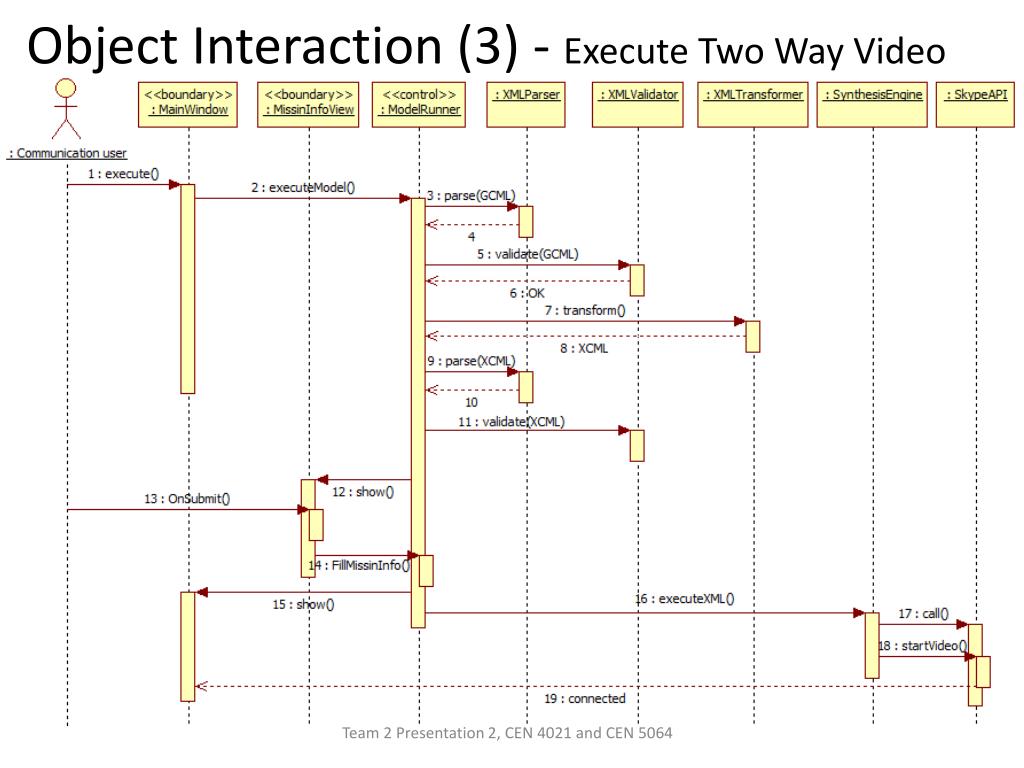

  15. Object Interaction (3) - Execute Two Way Video Team 2 Presentation 2, CEN 4021 and CEN 5064

  16. The End Thank you! Questions and Answers Team 2 Presentation 2, CEN 4021 and CEN 5064
