  1. Product Design and ConcurrentEngineeringEnvironment McGill University Department of Mechanical Engineering MMM Program Course:MECH528A - 001 Fall- 2003 Instructor: Angelo Segall Ind. Eng. MBA. P.Mgr Final Session : 13 PDT 1- 2 - 3- 4- 5- 6 – 7 December 2, 2003

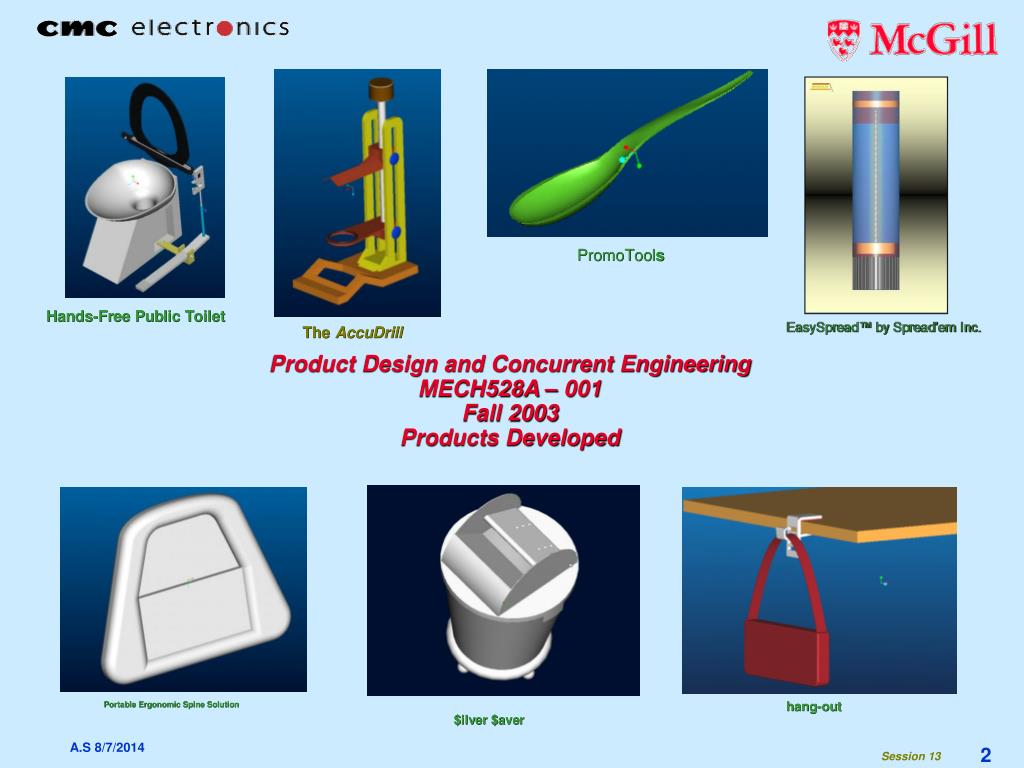

  2. Product Design and Concurrent Engineering MECH528A – 001 Fall 2003Products Developed

  3. PDT - 1Hands-Free Public Toilet Hands-Free Public Toilet Meets customer’s needs: Hands-Free and Easy to Use: Pedal operated mechanism to raise and lower the toilet seat based on: - the seesaw principle - the self-locking principle Market Product fulfills the need for people to be hygienic “Hands Free” brand identity reinforces the hygiene message Product packaging designed to be compact and stackable for bulk storage Industrial clients do not require ‘wow’ packaging Product has a total of 15 parts . • V. Good PDT presentation with Proto- well structured! • PDT Presentation 10/10% • plan of action • application of learned material • Good report ! • PDT Report 22/25% Team Leader (Project Manager) Yan Marketing Manager & Supply Fahad Product Manager/Safety/SPEC AyaDesign/Project Engineer Kun Manufacturing Engineer Bo

  4. PDT - 2The AccuDrill AccuDrill v1.0Meets Customer Needs (based on conducted interviews) …….We have the solution Hand drill attachment. Allows for STRAIGHT DRILLING every time! LIGHT WEIGHT and EASY-TO-USE! EXCELLENT VALUE! Easy to assemble, specially designed and engineered to hold most battery powered hand-drills. Market Target Market - house owners, construction companies, DIY lovers and anyone who uses drills frequently • V. Good PDT presentation - well structured! • PDT Presentation 10/10% • plan of action • application of learned material • V. Good report ! • PDT Report 24/25% Team Leader (Project Manager) Jean Pierre Marketing Manager Frank Product Manager Andrew Project Engineer Hernan Manufacturing Engineer Laurence Supply Management Representative G.S.Guliani Design Engineering Team JP, Hernan & Laurence

  5. PDT - 3PromoTools PromoTools- “magic spoon” Meets Customer Needs (based on conducted interviews) Is a device that measures juice concentration based on the changing properties of water Device is reusable , is easy to use , precise and easy to maintain, it is small, and indicates the concentration quickly Market Water Based Products such as: Nestle, Lipton, Kraft, Gatorade and Nestea. • V. Good PDT presentation with Proto- well structured! • PDT Presentation 10/10% • plan of action • application of learned material • Good report ! • PDT Report 23/25% Project Manager LouisProject Engineer Wei Xu Marketing Manager Marie-Eve Product Manage Pierre- Carl Dion Production Manager Rafael Product Design Nancy Dorvil

  6. PDT – 4EasySpread™ Butter Applicator Meets customer needs (based on conducted interviews) on : Easy to use, is Portable, Durable, Safe and Easy to Clean. EasySpread™ simplifies the storage and application of butter & other spreadable foods (peanut butter, cream cheese). It is also convenient, affordable, easy & fun device to apply butter without the need of a knife Market Primary market: Students and young professionals Secondary market: Parents with young childrenCampers and outdoor lovers. Marketing Manager Andrew LiProduct/Program Manager Doris Zhang Project Engineer Nada Manufacturing Engineer Linda Zhang Supply Management Representative Sid Lahiri Design Engineer Serena Hum Field Support Engineer Sid Lahir • V. Good PDT presentation with Proto- well structured! • PDT Presentation 10/10% • plan of action • application of learned material • Good report ! • PDT Report 23/25%

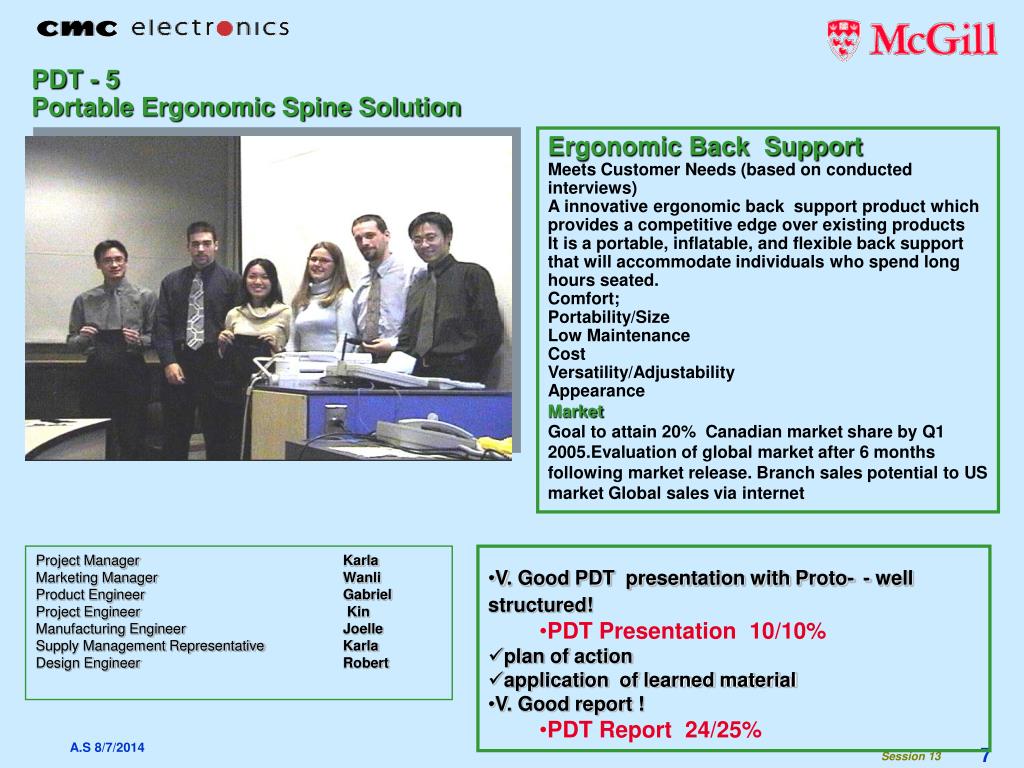

  7. PDT - 5Portable Ergonomic Spine Solution Ergonomic Back Support Meets Customer Needs (based on conducted interviews)A innovative ergonomic back support product which provides a competitive edge over existing products It is a portable, inflatable, and flexible back support that will accommodate individuals who spend long hours seated. Comfort; Portability/Size Low Maintenance Cost Versatility/Adjustability Appearance Market Goal to attain 20% Canadian market share by Q1 2005.Evaluation of global market after 6 months following market release. Branch sales potential to US market Global sales via internet Project Manager Karla Marketing Manager Wanli Product Engineer Gabriel Project Engineer Kin Manufacturing Engineer Joelle Supply Management Representative Karla Design Engineer Robert • V. Good PDT presentation with Proto-- well structured! • PDT Presentation 10/10% • plan of action • application of learned material • V. Good report ! • PDT Report 24/25%

  8. PDT - 6$ilver $aver $ilver $aver Meets Customer Needs (based on conducted interviews.) Helps prevent the accidental loss of expensive cutlery. Doesn't involved a complicated mechanism so anyone can use it. .Has an easy to empty feature, which allows the collected cutlery to be removed quickly. Uses standard 32 gallon garbage bags. The wheeled cart base allows for easy transportation . It is offered in a variety of colors. Slogan: “$ilver $aver, $aves you green as you clean” Market The product website will be advertised in magazines which target our lead users (i.e. cooking and owning your own business magazines). Attend industry trade shows to promote product .Door to door sales people will solicit restaurateurs to spark their interest by offering a free trial period of the product • V. Good PDT presentation - well structured! • PDT Presentation 10/10% • plan of action • application of learned material • V. Good report ! • PDT Report 24/25% Team Leader (Project Manager) William Marketing Manager Sirena Product Manager Nicolas Project Engineer Sam Liu Manufacturing Engineer Loukas Design Engineer James Gao

  9. PDT - 7hang-out, inc. • hang-out, incMeets Customer Needs (based on conducted interviews)A convenient device that will allow purse carriers to hang them right at the edge of the table where they are seated. It can adjust to different tables • hold a lot of weight, is small , compact and lightweight • Market • Primary Market: People carrying purses; Downtown Core; Students and Professionals; Outgoing and Active lifestyle; Ages: 18-55 • Secondary Market: Coffee Shops; Restaurants; • Public Places; Brand Name Bag Team Leader (Project Manager) Ricardo Marketing Manager Nola Product Manager SallyProject Engineer Andreea Manufacturing Engineer Jahir Supply Management Representative Jahir Design Engineer Sally • V. Good PDT presentation with Proto- well structured! • PDT Presentation 10/10% • plan of action • application of learned material • Good report ! • PDT Report 22/25%

  10. The Class of Product Design andConcurrent Engineering MECH528A – 001Fall 2003

  11. $ilver $aver

  12. The Class of Product Design andConcurrent Engineering MECH528A – 001 Fall 2003

  13. The Class of Product Design andConcurrent Engineering MECH528A – 001 Fall 2003

  14. Good Luck on your exams! Be well Do good work, and…….keep in touch! Adjunct Professor Angelo Segall

  15. Angelo Segall IND. Eng. MBA. P.MgrManager, Engineering Support Home: cn1204@vdn.ca Office: Angelo.Segall@cmcelectronics.ca 600 Dr. Frederick Philips Blvd.Ville Saint -Laurent, QC H4M 2S9Tel : [514] 748-3000 Ext. 4625Fax: [514] 748-3100 Visit our Product Design Home Page ! http://maxwell.mecheng.mcgill.ca/generator/mech528a
