Presentation Transcript


Thermochemistry l.jpg

Thermochemistry


Energy l.jpg

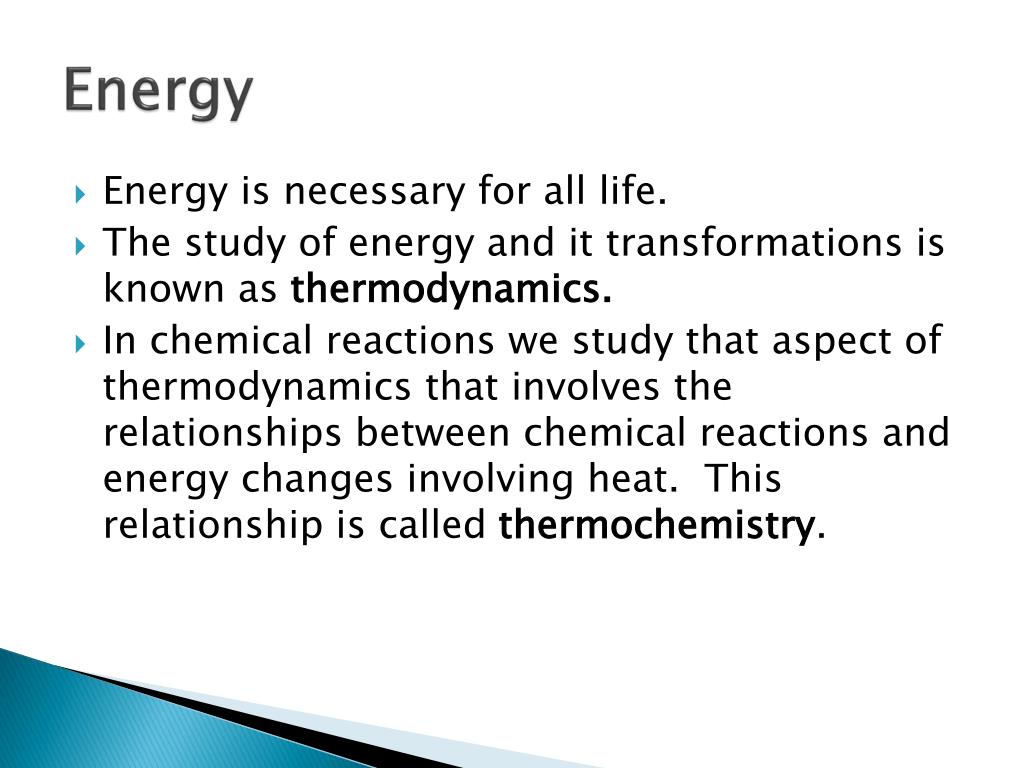

Energy

  • Energy is necessary for all life.

  • The study of energy and it transformations is known as thermodynamics.

  • In chemical reactions we study that aspect of thermodynamics that involves the relationships between chemical reactions and energy changes involving heat. This relationship is called thermochemistry.


The nature of energy l.jpg

The nature of energy

  • Energy is defined as the capacity to do work or to transfer heat.

  • Work is the force required to move an object against. It is the energy required to overcome friction and inertia.

  • Heat is the energy used to cause the temperature of an object to increase.


Kinetic energy l.jpg

Kinetic Energy

  • Kinetic energy is the energy of motion

    • Ek = ½ mv2

  • The kinetic energy of an object increases as the mass increases and as the square of the velocity increases.

  • A 1000 kg (2200 pounds) car traveling at 10 m/s (22.5 mph) has a kinetic energy of 50kJ. The same car traveling at 20 m/s (45 mph) has a kinetic energy of 200 KJ.


  • Potential energy l.jpg

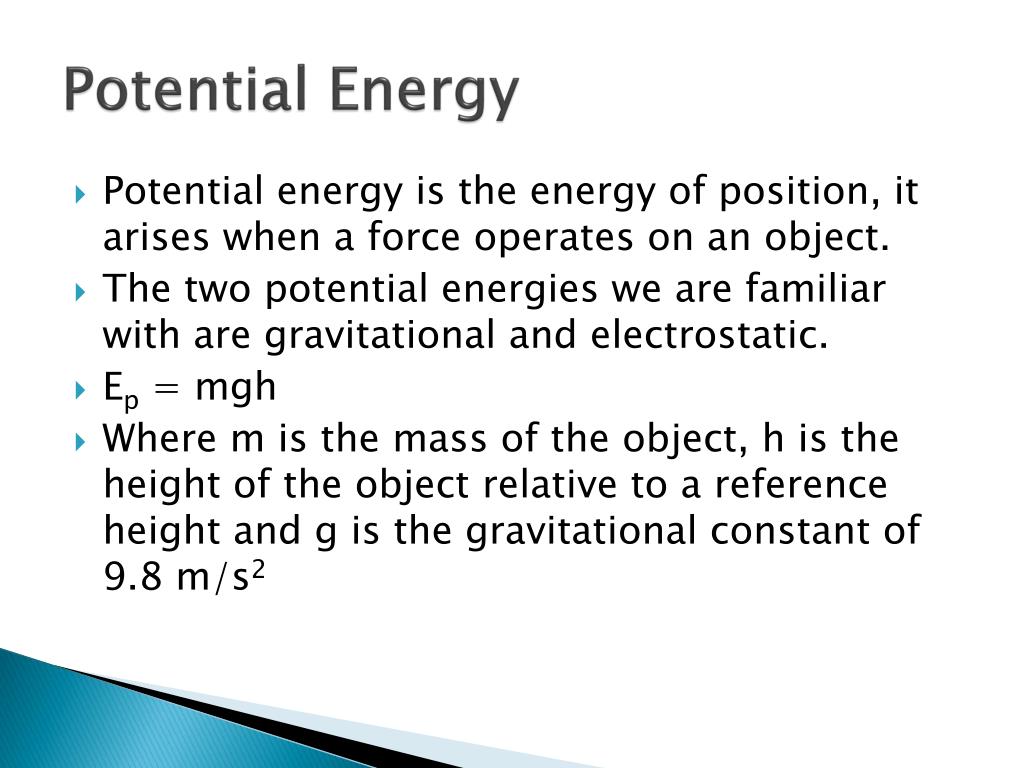

    Potential Energy

    • Potential energy is the energy of position, it arises when a force operates on an object.

    • The two potential energies we are familiar with are gravitational and electrostatic.

    • Ep = mgh

    • Where m is the mass of the object, h is the height of the object relative to a reference height and g is the gravitational constant of 9.8 m/s2


    Potential energy cont l.jpg

    Potential Energy (cont)

    • As chemists we don’t concern ourselves with the potential energy of gravitation due to the small size of the objects concerned.

    • Very concerned with electrostatic potential.

    • The electrostatic potential arises from the interactions between charged particles.

      • Eel = kQ1Q2/d

  • Where k is a constant of proportionality = 8.99 x 109 J-m/C2


  • Potential energy cont7 l.jpg

    Potential Energy (cont)

    • The chemical energy of molecules is due to the potential energy stored in the arrangements of their atoms.


    Units of energy l.jpg

    Units of Energy

    • The SI unit of energy is the joule, J

    • The car from the previous example –

      • A 1000 kg (2200 pounds) car traveling at 10 m/s (22.5 mph)

      • Ek = ½ mv2

      • = ½ (1000 kg)(10 m/s)2

      • = ½ (1000 kg)(100 m2/s2)

      • = 50,000 kg-m2/s2

      • = 50 kJ


    Units of energy9 l.jpg

    Units of Energy

    • The calorie was originally defined as the amount of energy required to raise the temperature of 1 g of water from 14.5 oC to 15.5 oC

    • 1 cal = 4.184 J (exactly)

    • Side note the calorie in food units is equal to 1 kcal.


    System and surroundings l.jpg

    System and Surroundings

    • We can not account for the entire universe when performing our analysis.

    • We focus on a small portion of the universe and that portion is called the system, everything else is the surroundings.

    • When we study the energy change that accompanies a chemical reaction, the reactants and products constitute the system.


    Systems l.jpg

    Systems

    • A closed system can exchange energy but not matter with the surroundings.

      • A car’s cylinder during ignition is a closed system.

    • An open system can exchange energy and matter with the surroundings.

      • A open beaker with boiling water

    • An isolated system can exchange neither energy nor matter with the surroundings.

      • An insulated thermos approximates an isolated system.


    Transferring energy work heat l.jpg

    Transferring Energy: Work & Heat

    • Energy is transferred between systems and surroundings via heat or work or both.

    • Energy used to cause an object to move is called work.

      • W = F x d

    • We perform work when we lift an object against the force of gravity.

    • Heat is the energy transferred from a hotter object to a colder one. Heat always flows from hotter to colder objects.


    The first law of thermodynamcis l.jpg

    The First Law of Thermodynamcis

    • Energy is conserved – energy can neither be created or destroyed only converted from one form to another.

    • The internal energy of a system is the sum of all the kinetic energy and potential energies of all its components.


    Internal energy l.jpg

    Internal Energy

    • The internal energy includes translational energies, vibrational energies, rotational energies of every atom in the system.

    • The numerical value of the internal energy of a system is generally not known to a high degree of accuracy. (Why?)

    • We can calculate the change in internal energy.

      • ΔE = Efinal – Einitial


    Internal energy15 l.jpg

    Internal Energy

    • ΔE contains three parts

      • A number

      • A unit

      • A direction

    • A negative value of ΔE indicates the system has lost energy to its surroundings

    • A positive value of ΔE indicates the system has gained energy from its surroundings

    • It is important to note that energy changes are from the point of view of the system not the surroundings.


    Internal energy cont l.jpg

    Internal Energy (cont)

    • In a chemical reaction, the initial state of the system refers to the reactants.

    • The final state of the system refers to the products.

    • When hydrogen and oxygen form water at a given temperature, the system loses energy to the surroundings, thus the internal energy of the products is less than that of the reactants.


    E heat and work l.jpg

    ΔE – heat and work

    • The internal energy of a system changes in magnitude as heat is added to or removed from the system or as work is done on it or by it.

    • ΔE = q + w

    • When heat is added to a system or work is done on a system, its internal energy increases.


    Endothermic and exothermic processes l.jpg

    Endothermic and Exothermic Processes

    • When a process occurs in which the system absorbs heat, the process is called endothermic.

    • During an endothermic process heat flows into the system from its surroundings

    • When a process occurs in which the system emits heat, the process is called exothermic.

    • During an exothermic process heat flows from the system to its surroundings.


    State functions l.jpg

    State functions

    • The value of a state function depends only on the present state of the system, not on the path the system took to reach that state.

    • Because E is a state function, ΔE, depends only on the initial and final states of the system, not on how the change occurs.

    • E is a state function however q and w are not.


    Enthalpy l.jpg

    Enthalpy

    • Even though most of the chemical reactions we will examine occur at a constant atmospheric pressure, work is still being performed. (w = F x d)

    • As an example dissolving Zn in and acid release H2 gas. The expansion of the gas against atmospheric pressure is work.

    • The work involved in the expansion or compression of a gas is called pressure-volume work.

    • w = -P ΔV


    Enthalpy cont l.jpg

    Enthalpy (cont)

    • Enthalpy is a thermodynamic function that accounts for heat flow in a process occurring at constant pressure when the only work performed is P-V work.

    • Enthalpy is denoted by the symbol H

    • H = E + PV

    • The change in enthalpy of a system equals the heat gained or lost at constant pressure.

    • p 176


    Enthalpies of reactions l.jpg

    Enthalpies of reactions

    • Since ΔH = Hproducts – Hreactants the enthalpy change that accompanies a reaction is called the enthalpy of reaction or heat of reaction.

    • When exactly 2 moles of H2 reacts with exactly 1 mole of O2 to form 2 moles of H2O at a constant pressure, the system releases 483.6 kJ of heat.

    • 2H2 + O2 2H2O(g) ΔH = -483.6 kJ

    • Examine energy state diagram p 177


    Thermochemical equations and enthalpy diagrams l.jpg

    Thermochemical equations and enthalpy diagrams

    • Enthalpy is an extensive property.

      • The magnitude of ΔH is directly proportional to the amount of reactant consumed in the process.

      • CH4(g) + O2(g)  CO2(g) + 2H2O(l) ΔH = -890 kJ

      • If two moles of methane are consumed then

      • ΔH = -1780 kJ

    • The enthalpy change for a reaction is equal in magnitude, but opposite in sign, to the ΔH of the reverse reaction.

      • CO2 (g) + 2H2O(l)  CH4(g) + O2(g) ΔH = 890 kJ


    Thermochemical equations and enthalpy diagrams cont l.jpg

    Thermochemical equations and enthalpy diagrams (cont)

    • The enthalpy change for a reaction depends on the state of the reactants.

    • If the products in the combustion of methane were gaseous H2O instead of liquid H2O ΔH would be -802 kJ instead of – 890 kJ.

    • It is necessary to specify the state of the reactants and products.


    Calorimetry l.jpg

    Calorimetry

    • The value of ΔH can be determined experimentally via a calorimeter.

    • The measurement of heat flow is calorimetry.

    • We determine the magnitude of the heat flow by measuring the magnitude of the temperature change.


    Statements of the obvious l.jpg

    Statements of the Obvious

    • The more heat an object gains, the hotter it gets.

    • All substances change temperature when they are heated.

    • But less obvious is that the magnitude of the change with a given heat varies from substance to substance.


    Heat capacity and specific heat l.jpg

    Heat Capacity and Specific Heat

    • The temperature change experienced by an object when it absorbs certain amount of heat is determined by its heat capacity, C.

    • The heat capacity of an object is the amount of heat required to raise its temperature by 1oC.

    • The heat capacity of a mole of a substance is it molar heat capacity. The heat capacity of one gram of a substance is its specific heat.


    Specific heat l.jpg

    Specific Heat

    • Specific heat = (quantity of heat transferred)

    • (gram of substance)(temp. change)

      • Cs = q/(m x ΔT)

      • Exercise 5.5 p 181


    Calorimetry29 l.jpg

    Calorimetry

    • Constant-Pressure calorimetry is the process of measuring the heat transfer at constant, usually atmospheric, pressure.

    • Constant-Volume calorimetry is the process of measuring heat flow at constant volume in a device called a bomb calorimetery. (p 183)


    Hess s law l.jpg

    Hess’s Law

    • Many enthalpies of reaction have been tabulated and from those tabulations it is possible to calculate the enthalpy of a reaction without the need for a calorimeter.

    • Hess’s law states that if a reaction is carried out in a series of steps, ΔH for the overall reaction will equal the sum of the enthalpies of reaction of the individual steps.


    Enthalpies of formation l.jpg

    Enthalpies of Formation

    • Enthalpy of formation is the enthalpy or heat change during formation of a compound from its constituent elements.

    • The magnitude of any enthalpy change depends on the conditions of temperature, pressure and state.

    • Therefore to compare enthalpies we must define a set of conditions called the standard state.

    • STP – standard temperature and pressure


    Standard enthalpy change l.jpg

    Standard enthalpy change

    • The standard enthalpy change of a reaction is defined as the enthalpy change when all reactants and products are in their standard states.

    • By definition, the standard enthalpy of formation of the most stable form of any element is zero.


    Examples l.jpg

    Examples

    • Example 5.10 pg 190

    • Using enthalpies of formation to calculate enthalpies of reaction


    Foods l.jpg

    Foods

    • The vast majority of the energy our bodies consume comes from carbohydrates and fats.

    • C6H12O6 + 6O2 6CO2 + 6H2O ΔH = -2803 kJ

    • Tristearin is a typical fat,

    • 2C57H110O6(s) + 163O2(g)  114 CO2 + 110 H2O(l) ΔH = -75,520 kJ


    Fuels l.jpg

    Fuels

    • Fossil Fuels

      • Natural gas

      • Petroleum

      • Coal
