Dialog boxes

Dialog Boxes


The openfiledialog and savefiledialog controls

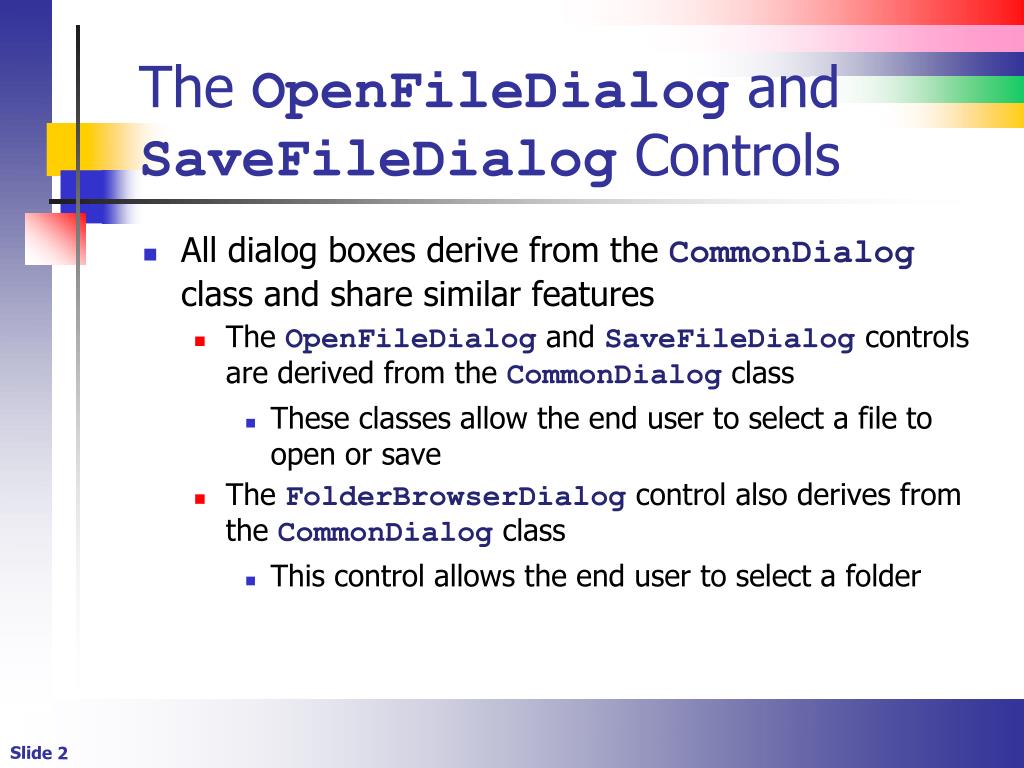

The OpenFileDialog and SaveFileDialog Controls

  • All dialog boxes derive from the CommonDialog class and share similar features

    • The OpenFileDialog and SaveFileDialog controls are derived from the CommonDialog class

      • These classes allow the end user to select a file to open or save

    • The FolderBrowserDialog control also derives from the CommonDialog class

      • This control allows the end user to select a folder


Members of the openfiledialog and savefiledialog classes

Members of the OpenFileDialog and SaveFileDialog Classes

  • The CheckFileExists and CheckPathExists properties control whether the end user can select a file or folder that does not exist

  • The FileName property contains the filename selected by the end user

  • The Filter property defines the type of files that will be displayed for selection

  • The FilterIndex property contains the index of the current filter

    • The Filter and FilterIndex properties work together


Members of the openfiledialog and savefiledialog classes continued

Members of the OpenFileDialog and SaveFileDialog Classes (continued)

  • The InitialDirectory property contains the initial folder where the search for files begins

  • The OverwritePrompt property applies only to the SaveFileDialog. If True, the end user will be prompted before a file is overwritten

  • The RestoreDirectory property defines whether the current directory will be restored after the end user selects a file

  • The ShowDialog method displays the respective dialog box


The filter property introduction

The Filter Property (introduction)

  • The Filter property restricts the files displayed based on a file extension

  • A filter consists of

    • A description

    • Followed by a vertical bar

    • Followed by the actual filter

  • Multiple filters can be connected together

  • Do not put spaces between the vertical bars


The filter property example

The Filter Property (Example)

  • Set the Filter to three possible filters (*.txt), (*.rtf), and (*.*)

  • Set the FilterIndex to select the second filter by default

    ofdMain.Filter = "Text files (*.txt)|*.txt|" _

    "Rich text files (*.rtf)|*.rtf|All files" _ "(*.*)|*.*"

    ofdMain.FilterIndex = 2


Using the savefiledialog control

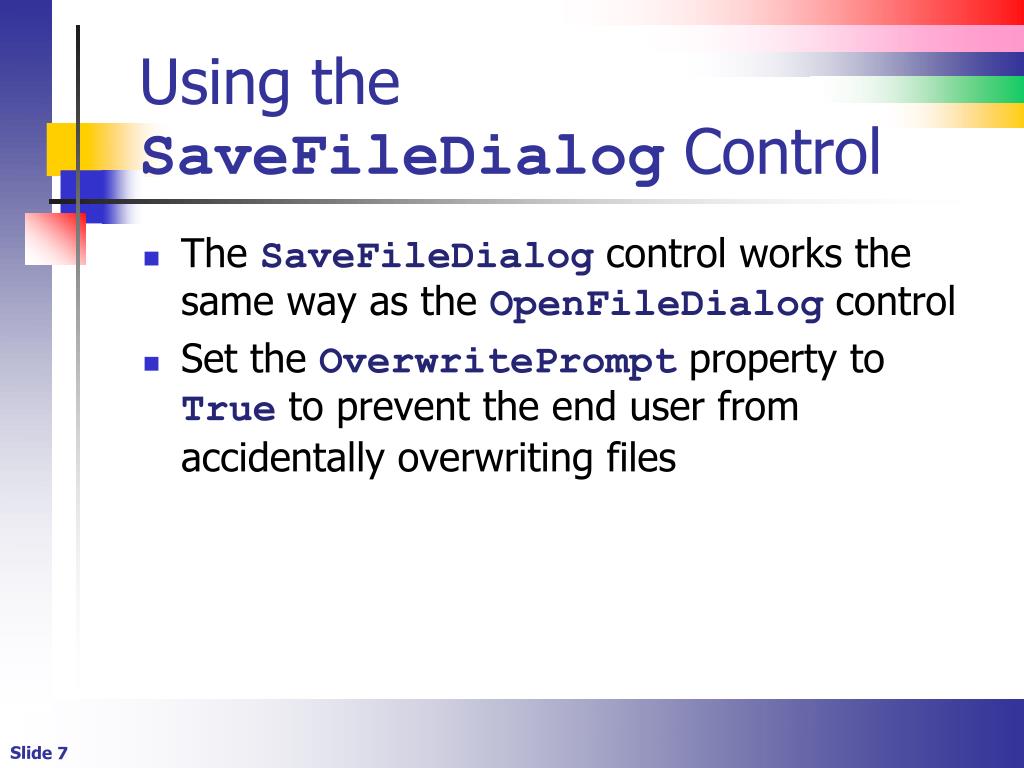

Using the SaveFileDialog Control

  • The SaveFileDialog control works the same way as the OpenFileDialog control

  • Set the OverwritePrompt property to Trueto prevent the end user from accidentally overwriting files


The folderbrowserdialog introduction

The FolderBrowserDialog(Introduction)

  • Use the FolderBrowserDialog to browse for folders instead of files

  • Members

    • The Description property contains the text appearing in the title bar

    • The RootFolder property contains the topmost folder appearing in the dialog box

    • The SelectedPath property contains the folder selected by the end user

    • The ShowDialog method displays the dialog box


Using windows defined directories

Using Windows-Defined Directories

  • Members of the System.Environmentclass are used to get system directories

    • The SystemDirectory property gets the Windows system directory

      • The directory is typically C:\Windows\System32

    • The CurrentDirectory property contains the directory from which the application was run

    • The GetFolderPath method gets a system special folder


Color about

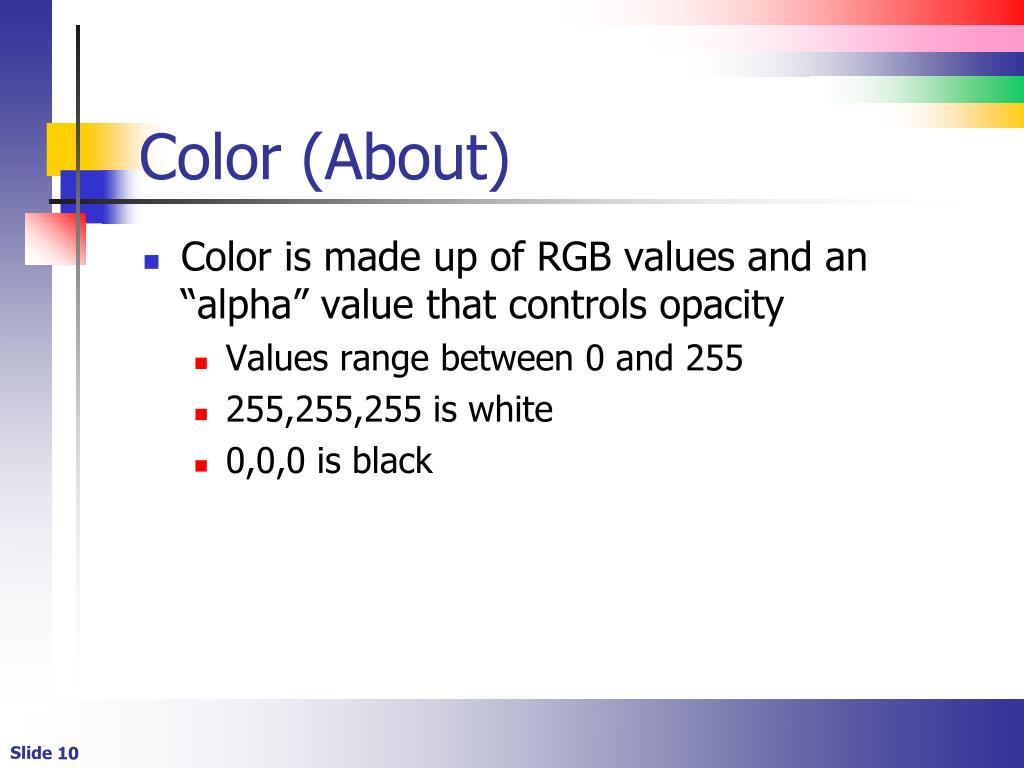

Color (About)

  • Color is made up of RGB values and an “alpha” value that controls opacity

    • Values range between 0 and 255

    • 255,255,255 is white

    • 0,0,0 is black


The colordialog introduction

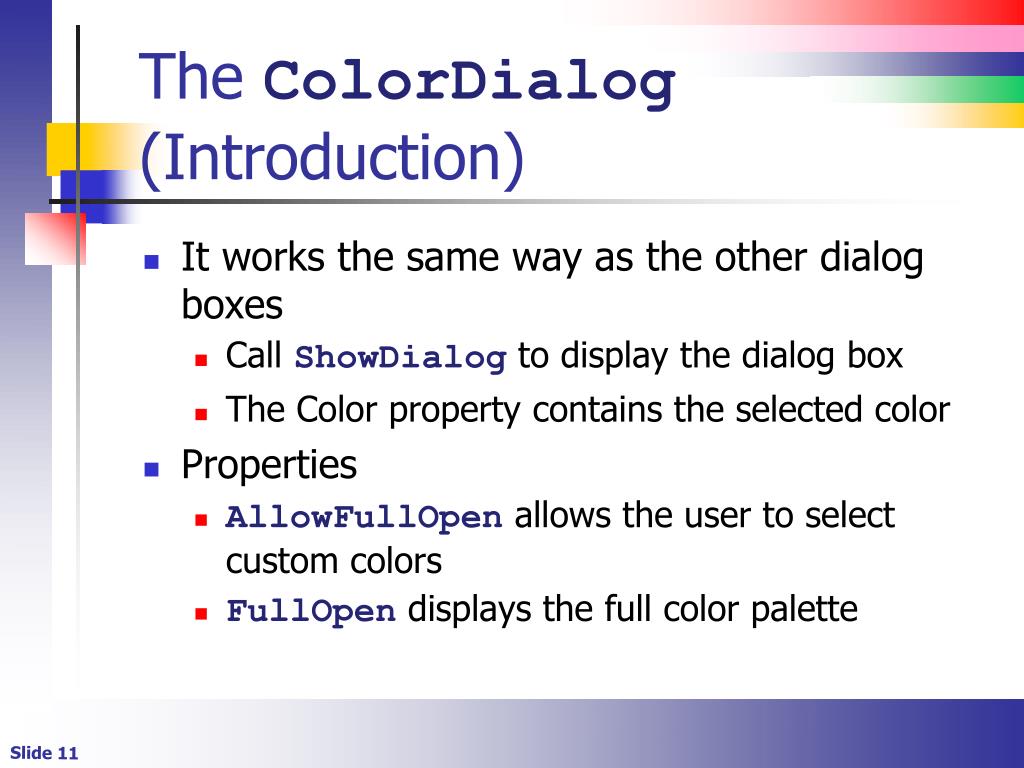

The ColorDialog (Introduction)

  • It works the same way as the other dialog boxes

    • Call ShowDialog to display the dialog box

    • The Color property contains the selected color

  • Properties

    • AllowFullOpen allows the user to select custom colors

    • FullOpen displays the full color palette


The fontdialog introduction

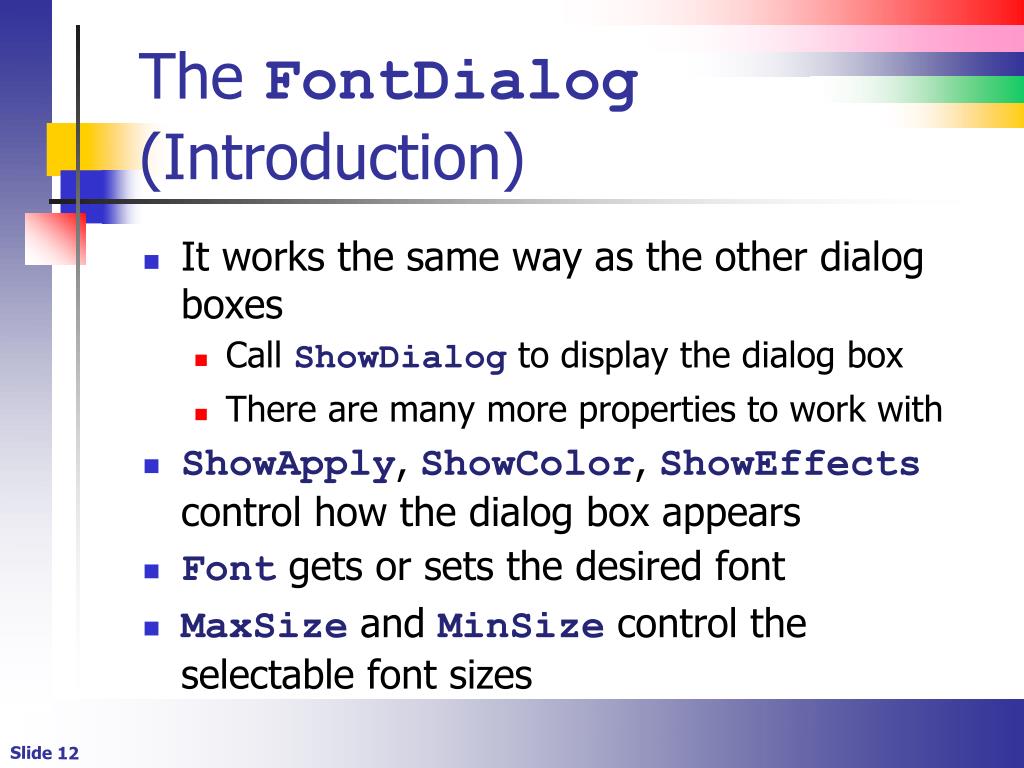

The FontDialog (Introduction)

  • It works the same way as the other dialog boxes

    • Call ShowDialog to display the dialog box

    • There are many more properties to work with

  • ShowApply, ShowColor, ShowEffects control how the dialog box appears

  • Font gets or sets the desired font

  • MaxSize and MinSize control the selectable font sizes
