Cgnat on vsm in 5 1 1

CGNAT on VSM in 5.1.1


What is vsm

What is VSM?

Virtualized Services Module(VSM) is virtualized platform in ASR9K to host multiple Service applications.

This document will be focusing on CGN/CGNv6(NAT44) as an example .


Cgnat on vsm in 5 1 1

VSM Architecture

Intel Cavecreek chipset

XAUI

PCIe

48-Port Niantic switch

Quad

PHY

SFP+

Can be used for FCOE; not enabled for 5.1.1 FCS

Crypto/DPI

Assist

SFP+

SFP+

SFP+

IvyBridge

48

ports

10GE

32GB

DDR3

Niantic

B

A

C

K

P

L

A

N

E

Typhoon

NPU

Fabric

ASIC 0

Crypto/DPI

Assist

IvyBridge

Niantic

32GB

DDR3

Niantic

32GB

DDR3

IvyBridge

Niantic

Niantic

Fabric

ASIC 1

Typhoon

NPU

Crypto/DPI

Assist

Intel x86 Ivy Bridge CPU

1 Intel CPU with 10 cores

Total of 4 CPU with 40 Cores.

With Intel Hyper-threading technology total of 80 cores for 4CPU; 20 cores per CPU can be achieved.

IvyBridge

Niantic

32GB

DDR3

Niantic

Crypto/DPI

Assist

Application Processor Module (APM)

Service Infra Module (SIM)


Vsm hardware

VSM Hardware

  • Intel x86 Ivy Bridge CPU

  • 1 Intel CPU with 10 cores

  • Total of 4 CPU with 40 Cores.

  • With Intel Hyper-threading technology total of 80 cores for 4CPU; 20 cores per CPU can be achieved.

  • Intel Cavecreek Chipset provides Crypto/DPI assist functionality.


Virtualized software infrastructure

Virtualized Software Infrastructure

KVM hypervisor runs on Linux.

Multiple Service Applications can be hosted.

Service chaining of applications can be achieved in two ways:

  • Via static route

  • Via OnePK


Interface terminologies

Interface Terminologies

a) SVI Infra (identified by ‘interface ServiceInfra’) –used to send SVI and CGv6 related control/mgmt traffic between XR and Linux side

b) SVI App (identified by ‘interface ServiceApp’) –used to send CGv6 data traffic to/from CGv6 applications.


Service instantiation and configuration

Service Instantiation and Configuration

Installing the CGv6 ova package

Step1 :

install 5.1.1 IOS-XR image along with services.pie and services-infra.pie.

Step 2:

copy the cgn.ova file to RSP (eg: disk0:)

Step 3 : Enable virtual-service

RP/0/RP0/CPU0:Starscream-UI-va(config)#virtual-service enable

RP/0/RP0/CPU0:Starscream-UI-va(config)#

Step 4: Install CGN VM , 0/3/CPU0 is location of VSM card.

RP/0/RP0/CPU0:Starscream-UI-va#virtual-service install name cgn123 package disk0:vsmcgv6_ivybridge.ova node 0/3/CPU0


Cgv6 installation status

CGv6 Installation status

Step 5: Status of Installation

RP/0/RP0/CPU0:Starscream-UI-va#sh virtual-service list

Virtual Service List:

Name Status Package Name Node Name

______________________________________________________________________________

cgn123 Installing vsmcgv6_ivybridge.ova 0/3/CPU0

RP/0/RP0/CPU0:Starscream-UI-va#sh virtual-service list

Virtual Service List:

Name Status Package Name Node Name

______________________________________________________________________________

cgn123 Installed vsmcgv6_ivybridge.ova 0/3/CPU0

RP/0/RP0/CPU0:Starscream-UI-va#


Cgv6 vm activate

CGv6 VM activate

Step 6: Configure CGv6 VM

RP/0/RP0/CPU0:Starscream-UI-va(config)#virtual-service cgn123

RP/0/RP0/CPU0:Starscream-UI-va(config-virt-service)# vnic interface TenGigE0/3$

RP/0/RP0/CPU0:Starscream-UI-va(config-virt-service)# vnic interface TenGigE0/3$

RP/0/RP0/CPU0:Starscream-UI-va(config-virt-service)# vnic interface TenGigE0/3$

RP/0/RP0/CPU0:Starscream-UI-va(config-virt-service)# vnic interface TenGigE0/3$

RP/0/RP0/CPU0:Starscream-UI-va(config-virt-service)# vnic interface TenGigE0/3$

RP/0/RP0/CPU0:Starscream-UI-va(config-virt-service)# vnic interface TenGigE0/3$

RP/0/RP0/CPU0:Starscream-UI-va(config-virt-service)# vnic interface TenGigE0/3$

RP/0/RP0/CPU0:Starscream-UI-va(config-virt-service)# vnic interface TenGigE0/3$

RP/0/RP0/CPU0:Starscream-UI-va(config-virt-service)# vnic interface TenGigE0/3$

RP/0/RP0/CPU0:Starscream-UI-va(config-virt-service)# vnic interface TenGigE0/3$

RP/0/RP0/CPU0:Starscream-UI-va(config-virt-service)# vnic interface TenGigE0/3$

RP/0/RP0/CPU0:Starscream-UI-va(config-virt-service)# vnic interface TenGigE0/3$

RP/0/RP0/CPU0:Starscream-UI-va(config-virt-service)#commit

RP/0/RP0/CPU0:Starscream-UI-va(config-virt-service)#activate

RP/0/RP0/CPU0:Starscream-UI-va(config-virt-service)#commit

Step 7: Check the status of the CGv6 VM

RP/0/RP0/CPU0:Starscream-UI-va#sh virtual-service list

Virtual Service List:

Name Status Package Name Node Name

______________________________________________________________________________

cgn123 Activated vsmcgv6_ivybridge.ova 0/3/CPU0

RP/0/RP0/CPU0:Starscream-UI-va#


Vsm nat44

VSM-NAT44

Basic Configuration Steps

  • Install asr9k-services-p.pie

  • Install asr9k-services-infra.pie

Int ServiceInfra1

IPv4:200.1.1.1/24

Ingress LC

VSM

Egress LC

VRF “Nat-inside”

VRF “Nat-outside”

CGN “cgn123/nat44”

Public IPv4 Pool (Nat-inside to Nat-outside): 100.2.0.0/24

IntGige 0/6/1/13

VRF: Nat-inside

IPv4:31.1.1.1/24

IntGige 0/6/1/14

[VRF: Nat-outside]

IPv4:41.1.1.1/24

intServiceApp 1

VRF: Nat-inside

IPv4: 14.1.1.1/24

Service-Type: cgn123/nat44

intServiceApp 2

[VRF: Nat-outside]

IPv4: 15.1.1.1/24

Service-Type: cgn123/nat44

router static

vrfNat-inside

address-family ipv4unicast

0.0.0.0/0 ServiceApp1

router static

[vrfNat-outside]

address-family ipv4 unicast

100.2.0.0/24 ServiceApp2


Getting started for cgv6 cgnat

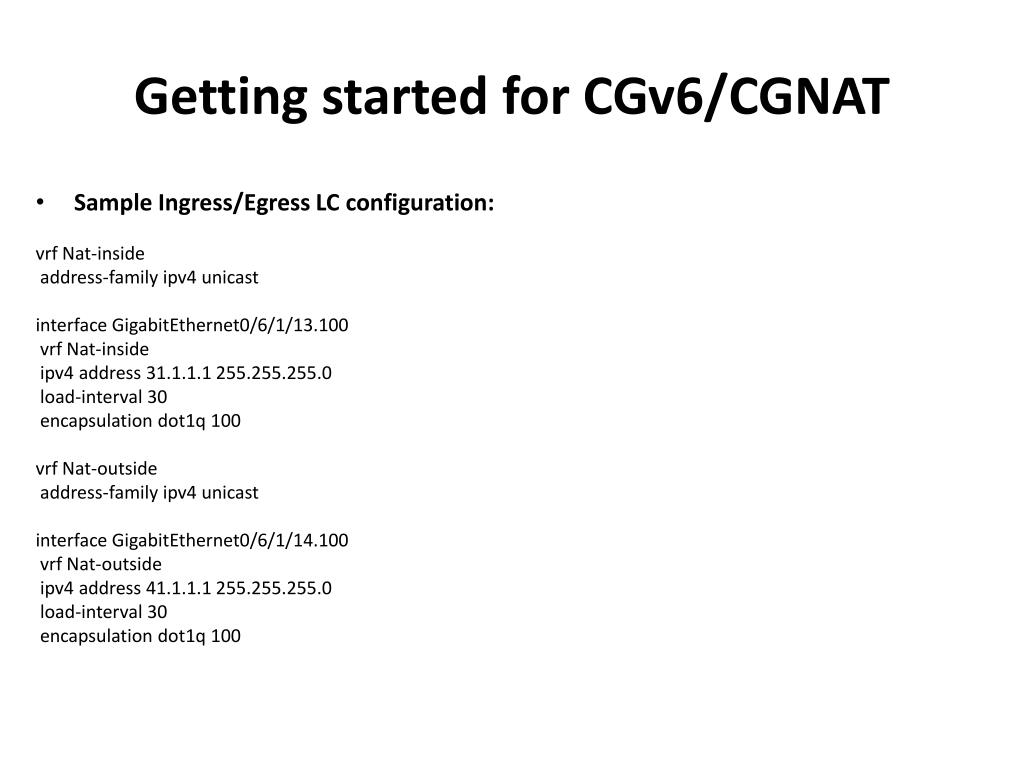

Getting started for CGv6/CGNAT

  • Sample Ingress/Egress LC configuration:

    vrf Nat-inside

    address-family ipv4 unicast

    interface GigabitEthernet0/6/1/13.100

    vrf Nat-inside

    ipv4 address 31.1.1.1 255.255.255.0

    load-interval 30

    encapsulation dot1q 100

    vrf Nat-outside

    address-family ipv4 unicast

    interface GigabitEthernet0/6/1/14.100

    vrf Nat-outside

    ipv4 address 41.1.1.1 255.255.255.0

    load-interval 30

    encapsulation dot1q 100


Service cgn and service type

Service CGN and service-type

******** CGN instance *******

service cgn cgn123

service-location preferred-active 0/3/CPU0

*****CGNAT service-type ******

service-type nat44 nat123

portlimit 65535

inside-vrf Nat-inside

map outside-vrf Nat-outside address-pool 100.2.0.0/24

!

protocol udp

session initial timeout 65535

session active timeout 65535

!

protocol tcp

session initial timeout 65535

session active timeout 65535

!


Service interfaces

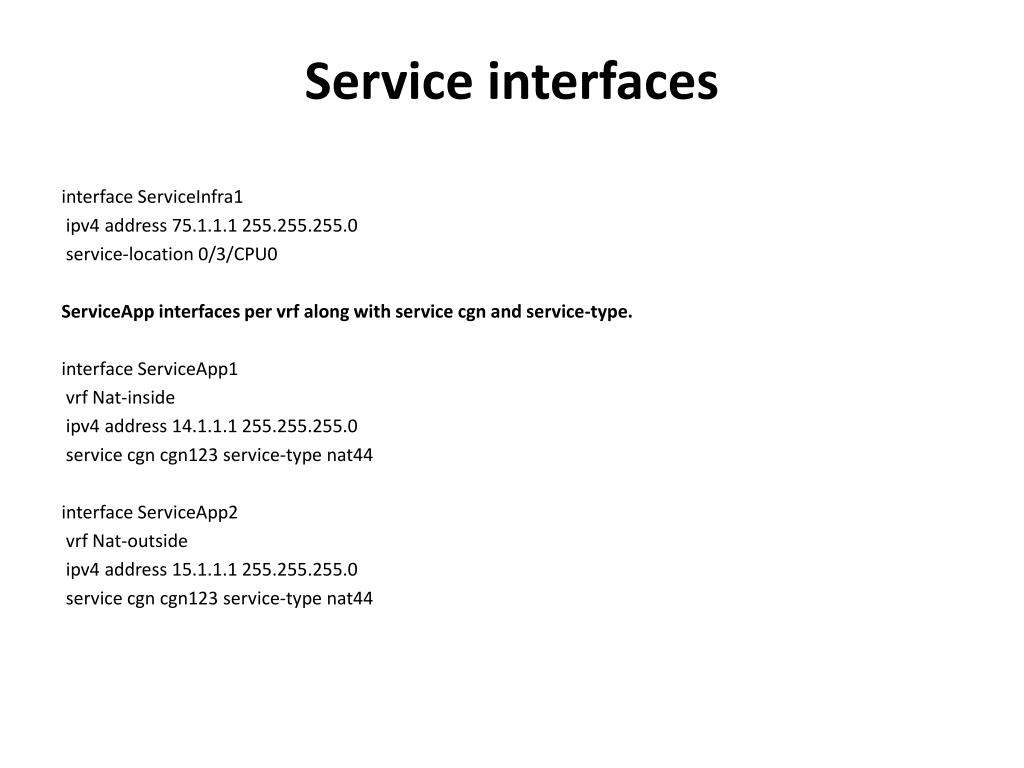

Service interfaces

interface ServiceInfra1

ipv4 address 75.1.1.1 255.255.255.0

service-location 0/3/CPU0

ServiceApp interfaces per vrfalong with service cgn and service-type.

interface ServiceApp1

vrf Nat-inside

ipv4 address 14.1.1.1 255.255.255.0

service cgn cgn123 service-type nat44

interface ServiceApp2

vrf Nat-outside

ipv4 address 15.1.1.1 255.255.255.0

service cgn cgn123 service-type nat44


Static routes

Static routes

Static route for Inside-to-outside; Redirect all traffic to Inside ServiceApp interface:

vrf Nat-inside

address-family ipv4 unicast

0.0.0.0/0 ServiceApp1

Static route for Outside-to-inside traffic; IP address should match Public pool configured under service cgn:

vrf Nat-outside

address-family ipv4 unicast

100.2.0.0/24 ServiceApp2


Vsm nat441

shcgn nat44 nat123 inside-translation protocol udpinside-vrf Nat-inside inside-address 31.1.1.2 port start 1 end 65535

VSM-NAT44

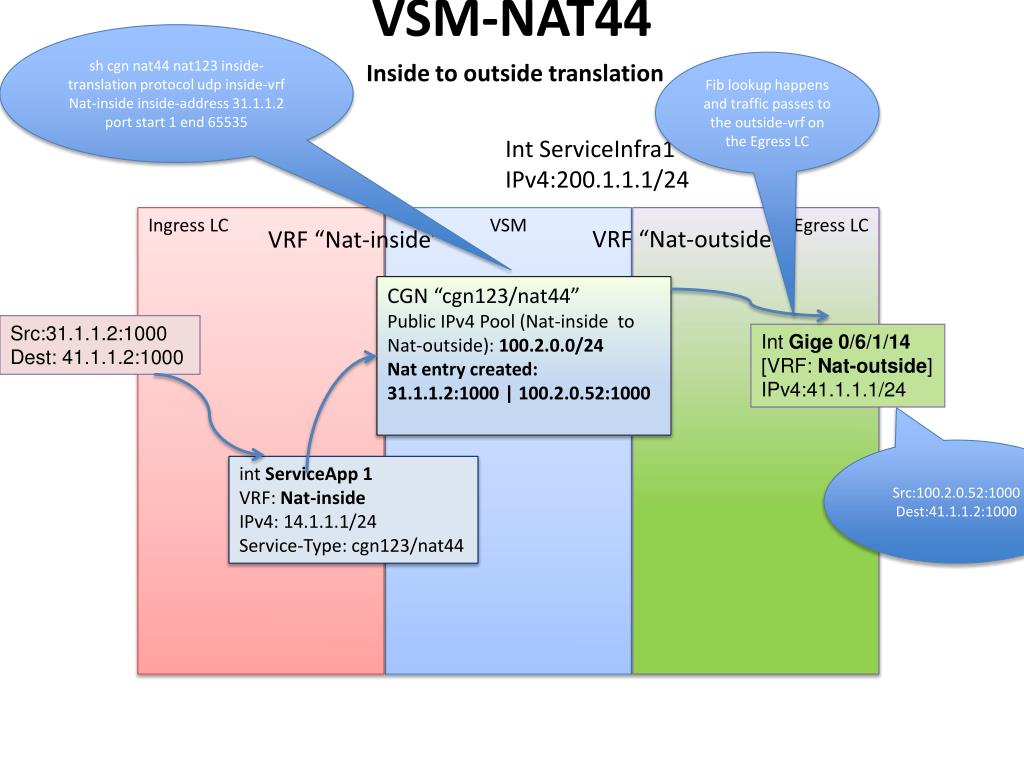

Inside to outside translation

Fib lookup happens and traffic passes to the outside-vrf on the Egress LC

Int ServiceInfra1

IPv4:200.1.1.1/24

Ingress LC

VSM

Egress LC

VRF “Nat-outside”

VRF “Nat-inside”

CGN “cgn123/nat44”

Public IPv4 Pool (Nat-inside to Nat-outside): 100.2.0.0/24

Nat entry created:

31.1.1.2:1000 | 100.2.0.52:1000

Src:31.1.1.2:1000

Dest: 41.1.1.2:1000

IntGige 0/6/1/14

[VRF: Nat-outside]

IPv4:41.1.1.1/24

Src:100.2.0.52:1000

Dest:41.1.1.2:1000

intServiceApp 1

VRF: Nat-inside

IPv4: 14.1.1.1/24

Service-Type: cgn123/nat44

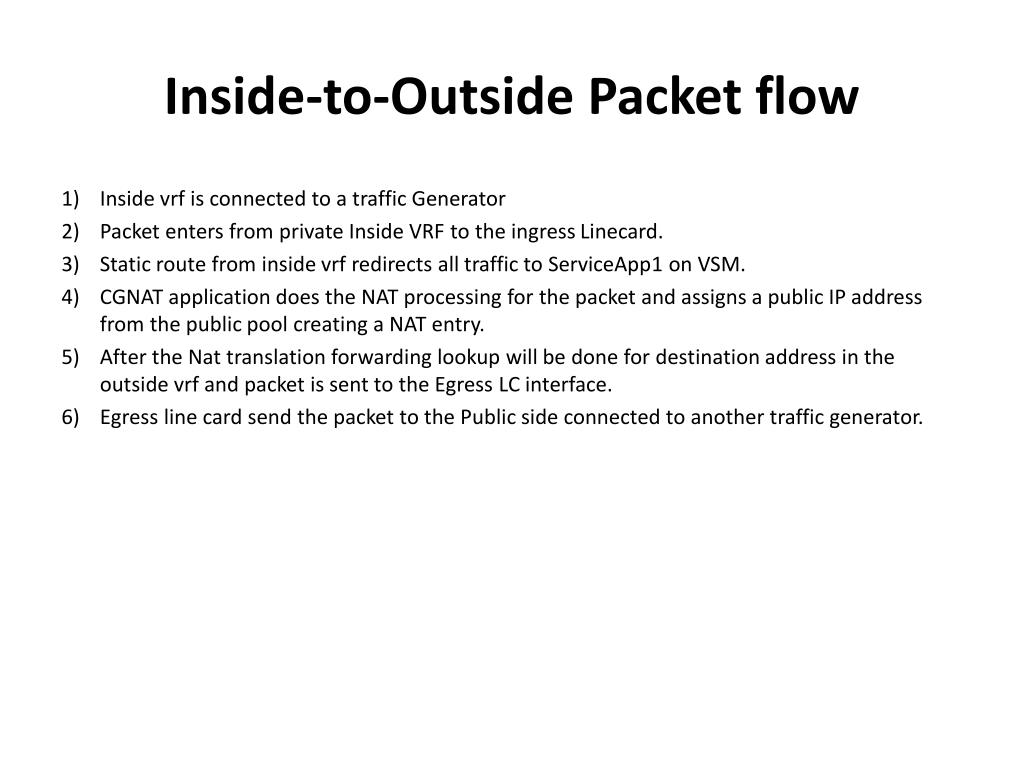

Inside to outside packet flow

Inside-to-Outside Packet flow

  • Inside vrf is connected to a traffic Generator

  • Packet enters from private Inside VRF to the ingress Linecard.

  • Static route from inside vrf redirects all traffic to ServiceApp1 on VSM.

  • CGNAT application does the NAT processing for the packet and assigns a public IP address from the public pool creating a NAT entry.

  • After the Nat translation forwarding lookup will be done for destination address in the outside vrf and packet is sent to the Egress LC interface.

  • Egress line card send the packet to the Public side connected to another traffic generator.


Vsm nat442

VSM-NAT44

Outside to Inside translation

shcgn nat44 nat123 outside-translation protocol udp outside-vrf Nat-outside outside-address 100.2.0.52 port start 1 end 65535

Ingress LC

VSM

Egress LC

VRF “Nat-inside”

VRF “Nat-outside”

CGN “cgn123/nat44”

Public IPv4 Pool (Nat-inside to Nat-outside): 100.2.0.0/24

IntGige 0/6/1/13

VRF: Nat-inside

IPv4:31.1.1.1/24

IntGige 0/6/1/14

[VRF: Nat-outside]

IPv4:41.1.1.1/24

intServiceApp 2

[VRF: Nat-outside]

IPv4: 15.1.1.1/24

Service-Type: cgn123/nat44

Src: 41.1.1.2:1000

Dest:100.2.0.52:1000

Fib lookup happens and traffic passes to the inside-vrf on the Egress LC


Outside to inside packet flow reverse nat

Outside to Inside Packet flow (reverse-nat)

  • Packet enters from Outside vrf - Public side

  • Based on Static route defined packet should be forwarded to the VSM card via the ServiceApp2 in the outside-vrf.

  • CGNAT application does the Nat processing and looks for corresponding NAT entry if present. If not it drops the packet. If the entry is present then it replaces destination ip and port with the corresponding Private IP address.

  • After the Reverse Nat translation forwarding lookup will be done for the destination IP address in the inside vrf and packet is sent to the Egress LC interface

  • Egress line card send the packet out to the Private side/ inside vrf.


Caveats in 5 1 1

Caveats in 5.1.1

  • VSM on Cluster is not supported

  • Commit replace and rollback:

    i) Commit replace does not have this restriction but its safer to deactivate Virtual- services in all cases.

    ii) Rollback:Virtual-services need to be deactivated before doing config rollback.

  • IP address configuration is not supported on the Tengig interfaces of the VSM LC.

  • 4 Front Panel SFP+ ports are not enabled and cannot be used.


Cgnat show commands

CGNAT Show commands

Inside-to-outside translation:

shcgn nat44 nat123 inside-translation protocol udp inside-vrf Nat-inside-101 inside-address 32.1.1.2 port start 1 end 65535

RP/0/RP1/CPU0:Starscream-UI-va#sh cgn nat44 nat123 inside-translation protocol$

Inside-translation details

---------------------------

NAT44 instance : nat123

Inside-VRF : Nat-inside-101

--------------------------------------------------------------------------------------------

Outside Protocol Inside Outside Translation Inside Outside

Address Source Source Type to to

Port Port Outside Inside

Packets Packets

--------------------------------------------------------------------------------------------

101.2.0.58 udp 1000 34656 dynamic 1805831 1294025

RP/0/RP1/CPU0:Starscream-UI-va#


Cgnat on vsm in 5 1 1

Outside-to-Inside Translation:

RP/0/RP0/CPU0:va#SH cgn nat44 nat123 outside-translation protocol udp outside-address 101.2.0.58 port start 1 end 65535

Outside-translation details

---------------------------

NAT44 instance : nat123

Outside-VRF : default

--------------------------------------------------------------------------------------------

Inside Protocol Outside Inside Translation Inside Outside

Address Destination Destination Type to to

Port Port Outside Inside

Packets Packets

--------------------------------------------------------------------------------------------

32.1.1.2 udp 34656 1000 dynamic 107491158 101560603

RP/0/RP0/CPU0:va#


Cef commands

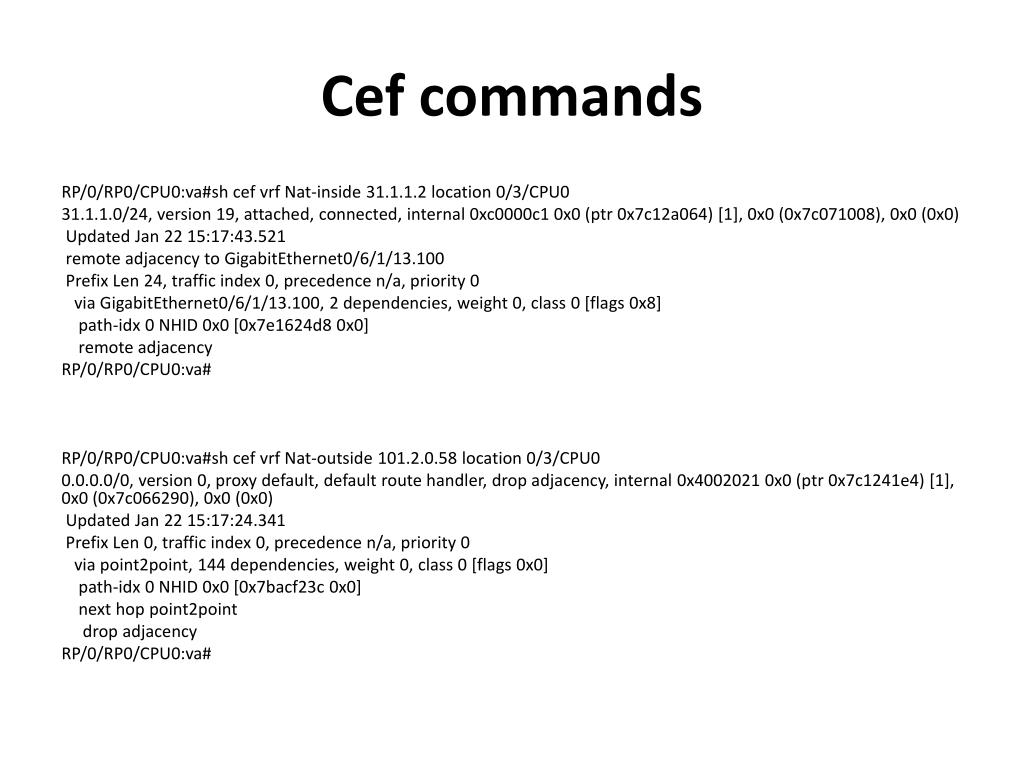

Cef commands

RP/0/RP0/CPU0:va#sh cefvrf Nat-inside 31.1.1.2 location 0/3/CPU0

31.1.1.0/24, version 19, attached, connected, internal 0xc0000c1 0x0 (ptr 0x7c12a064) [1], 0x0 (0x7c071008), 0x0 (0x0)

Updated Jan 22 15:17:43.521

remote adjacency to GigabitEthernet0/6/1/13.100

Prefix Len 24, traffic index 0, precedence n/a, priority 0

via GigabitEthernet0/6/1/13.100, 2 dependencies, weight 0, class 0 [flags 0x8]

path-idx 0 NHID 0x0 [0x7e1624d8 0x0]

remote adjacency

RP/0/RP0/CPU0:va#

RP/0/RP0/CPU0:va#sh cefvrf Nat-outside 101.2.0.58 location 0/3/CPU0

0.0.0.0/0, version 0, proxy default, default route handler, drop adjacency, internal 0x4002021 0x0 (ptr 0x7c1241e4) [1], 0x0 (0x7c066290), 0x0 (0x0)

Updated Jan 22 15:17:24.341

Prefix Len 0, traffic index 0, precedence n/a, priority 0

via point2point, 144 dependencies, weight 0, class 0 [flags 0x0]

path-idx 0 NHID 0x0 [0x7bacf23c 0x0]

next hop point2point

drop adjacency

RP/0/RP0/CPU0:va#


Cgnat statistics summary

CGNAT Statistics summary

RP/0/RP0/CPU0:va#sh cgn nat44 nat123 statistics

Statistics summary of NAT44 instance: 'nat123'

Number of active translations: 14

Number of sessions: 100

Translations create rate: 0

Translations delete rate: 0

Inside to outside forward rate: 67875

Outside to inside forward rate: 8539

Inside to outside drops port limit exceeded: 0

Inside to outside drops system limit reached: 0

Inside to outside drops resource depletion: 0

No translation entry drops: 13

PPTP active tunnels: 0

PPTP active channels: 0

PPTP ctrl message drops: 0

Number of subscribers: 14

Drops due to session db limit exceeded: 0

Drops due to source ip not configured: 0

Pool address totally free: 498

Pool address used: 14

Pool address usage:

-------------------------------------------------

External Address Ports Used

-------------------------------------------------

200.2.0.48 1

200.2.0.49 1

200.2.0.50 1

200.2.0.51 1

200.2.0.53 1

200.2.0.56 1


  • Login
