Circuit Symbols for JFETs

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Circuit symbols for jfets

Circuit Symbols for JFETs


Cross section of a jfet

Cross-Section of a JFET


Operation of a jfet

Operation of a JFET

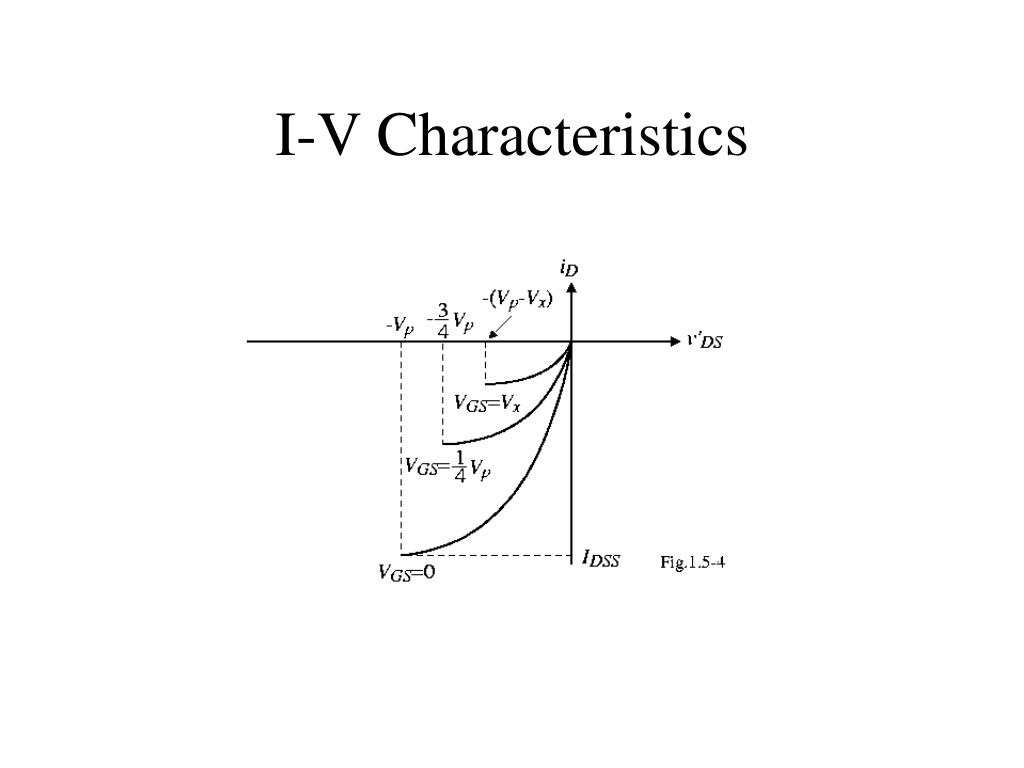

I v characteristics

I-V Characteristics

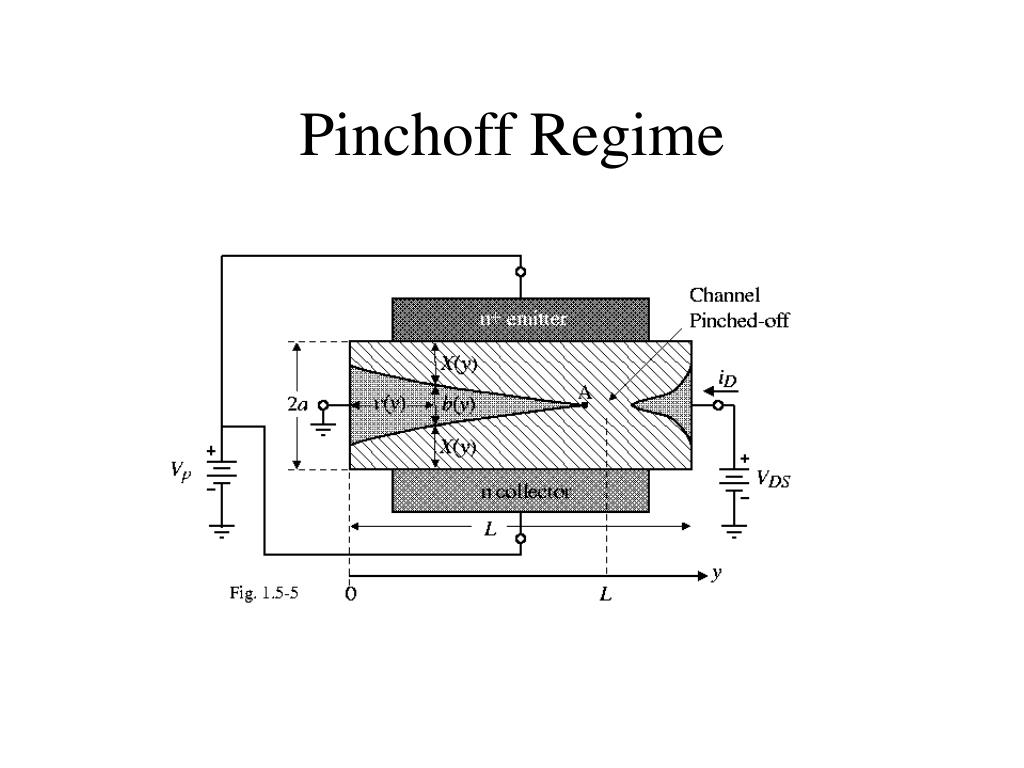

Pinchoff regime

Pinchoff Regime


Current voltage families

Current-Voltage Families

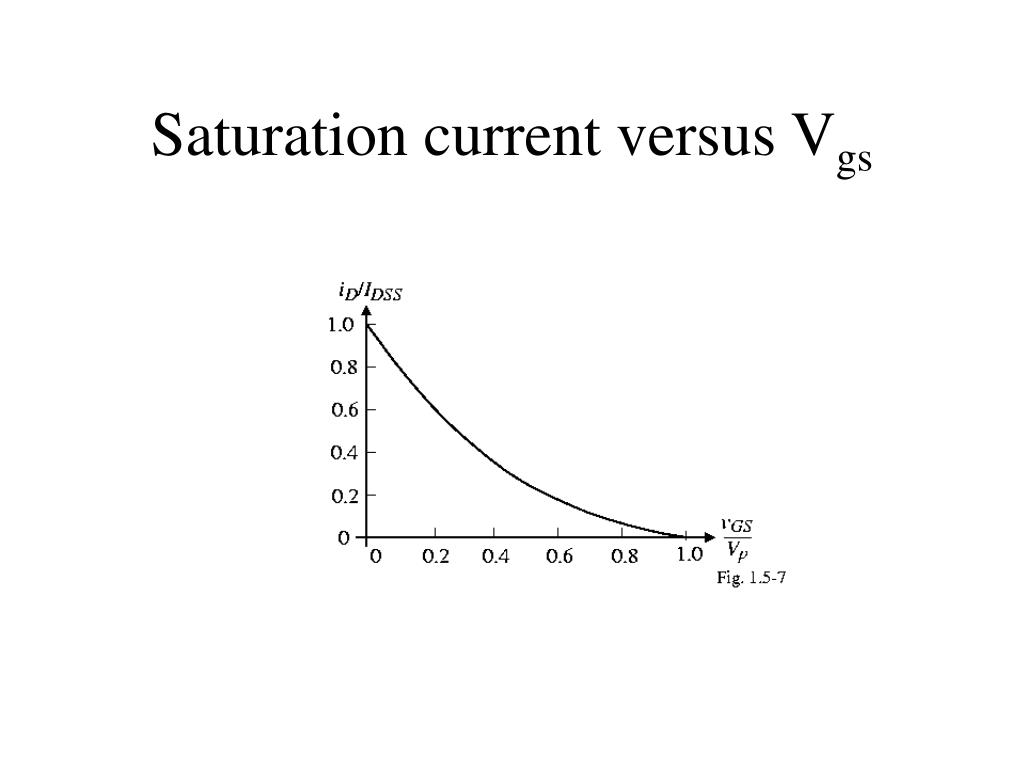

Saturation current versus v gs

Saturation current versus Vgs

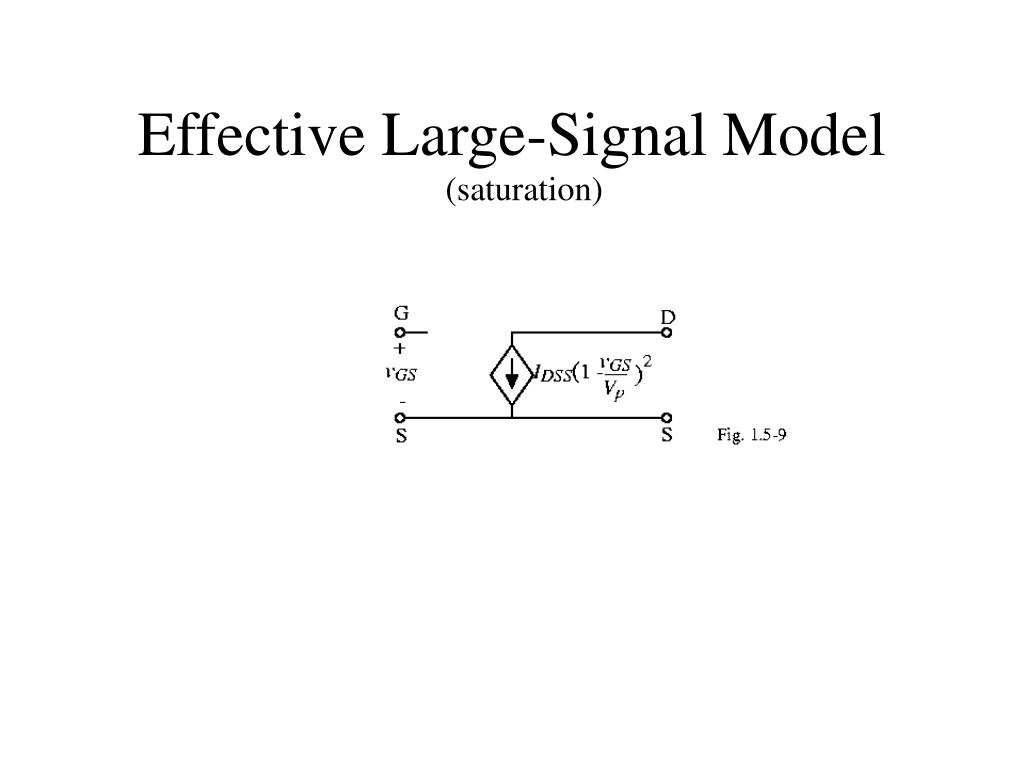

Effective large signal model

Effective Large-Signal Model

(saturation)


Jfet channel length modulation

JFET Channel-Length Modulation

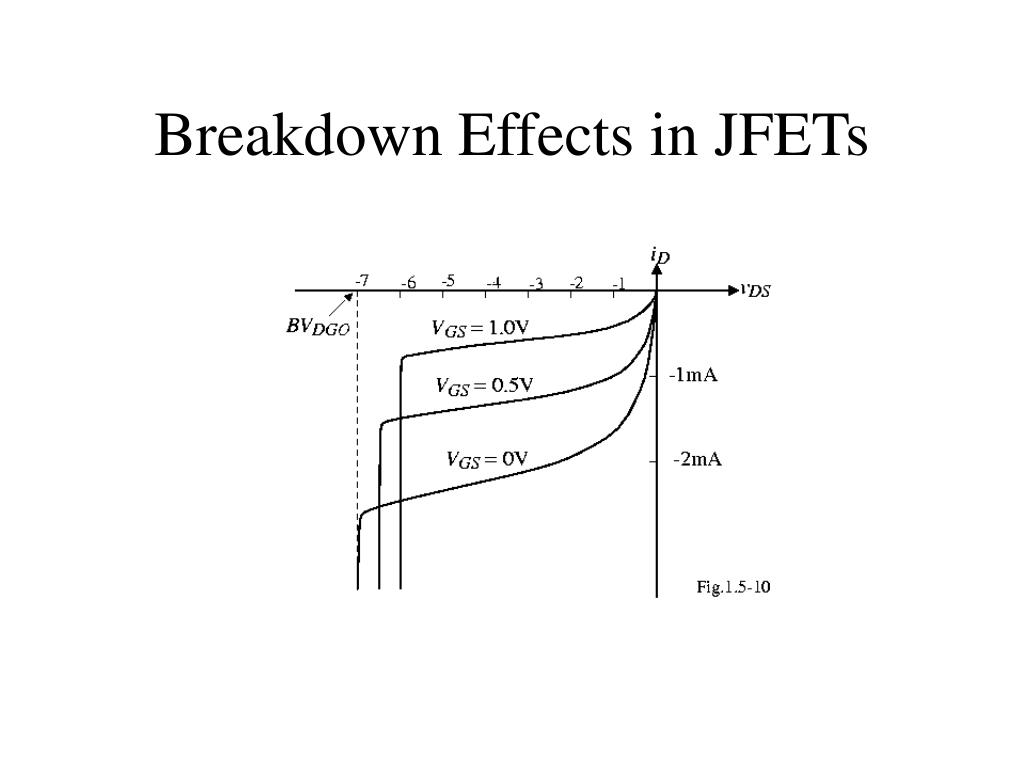

Breakdown effects in jfets

Breakdown Effects in JFETs

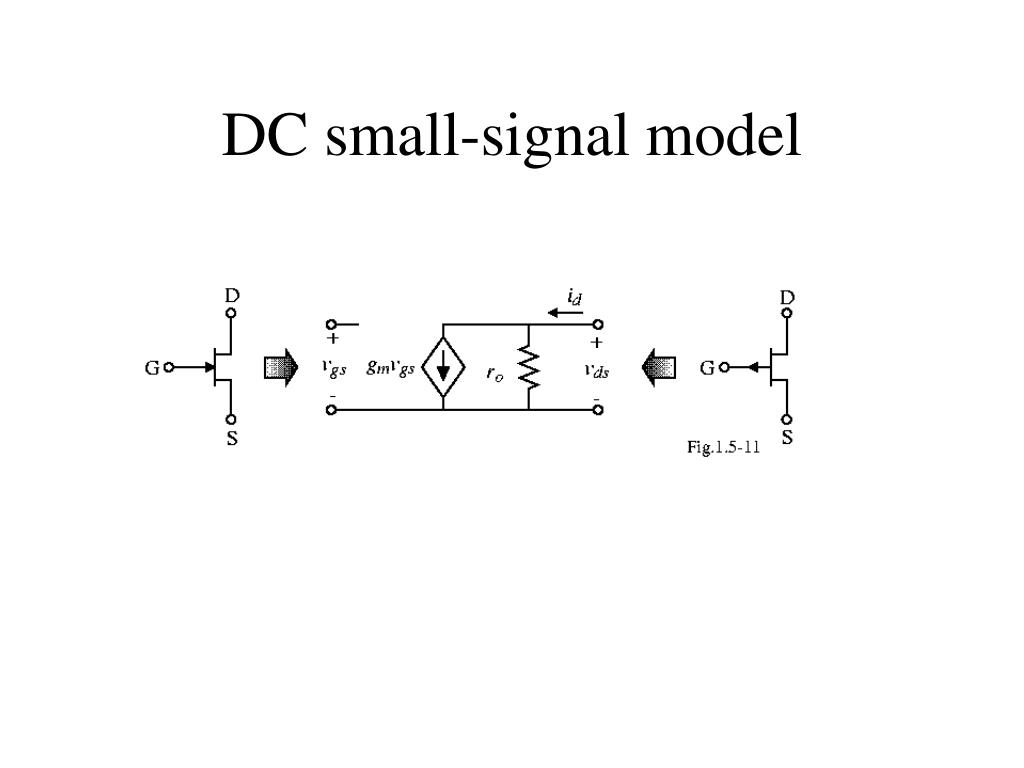

Dc small signal model

DC small-signal model

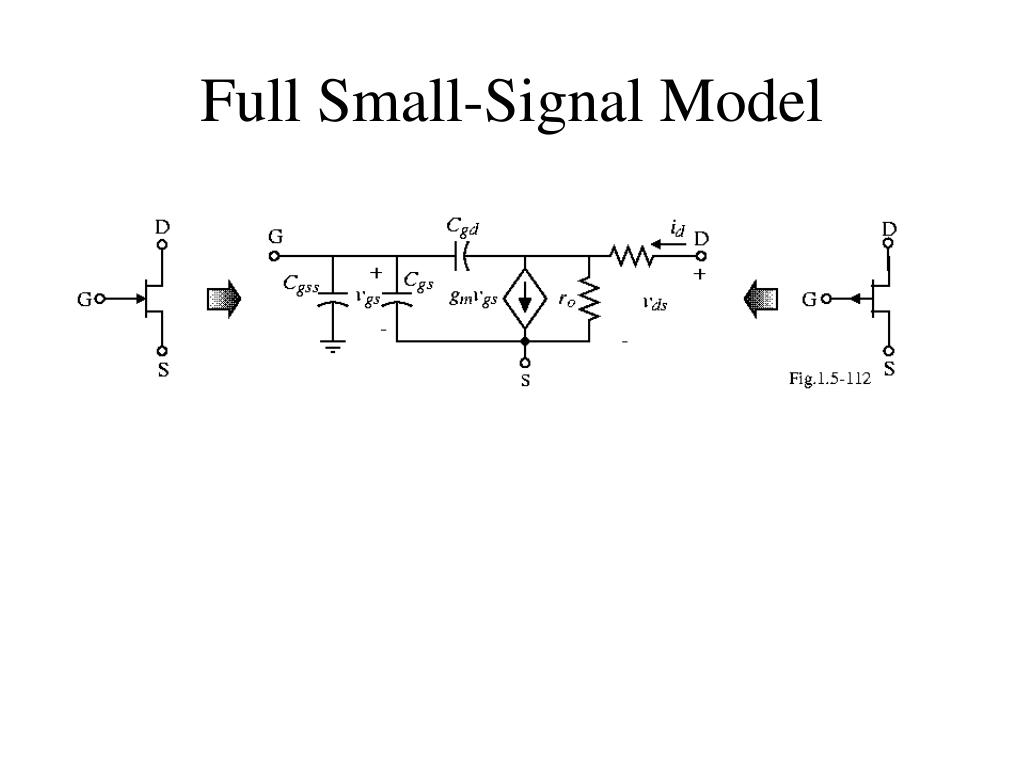

Full small signal model

Full Small-Signal Model
