  1. CHAPTER 4: Marine Sediments S Fig. CO-4

  2. S Marine sediments • Eroded rock particles and fragments • Transported to or produced in the ocean • Deposit by settling through water column • Oceanographers decipher Earth history through studying sediments

  3. P Classification of marine sediments • Classified by origin • Lithogenous (derived from land) • Biogenous (derived from organisms) • Hydrogenous (derived from water) • Cosmogenous (derived from outer space)

  4. P Lithogenous sediments • Eroded rock fragments from land (origin) • Transported from land by • Water (e.g., river transported sediment) • Wind (e.g., windblown dust) • Ice (e.g., ice-rafted rocks) • Gravity (e.g., turbidity currents)

  5. P BY PERCENT Transport Mechanism

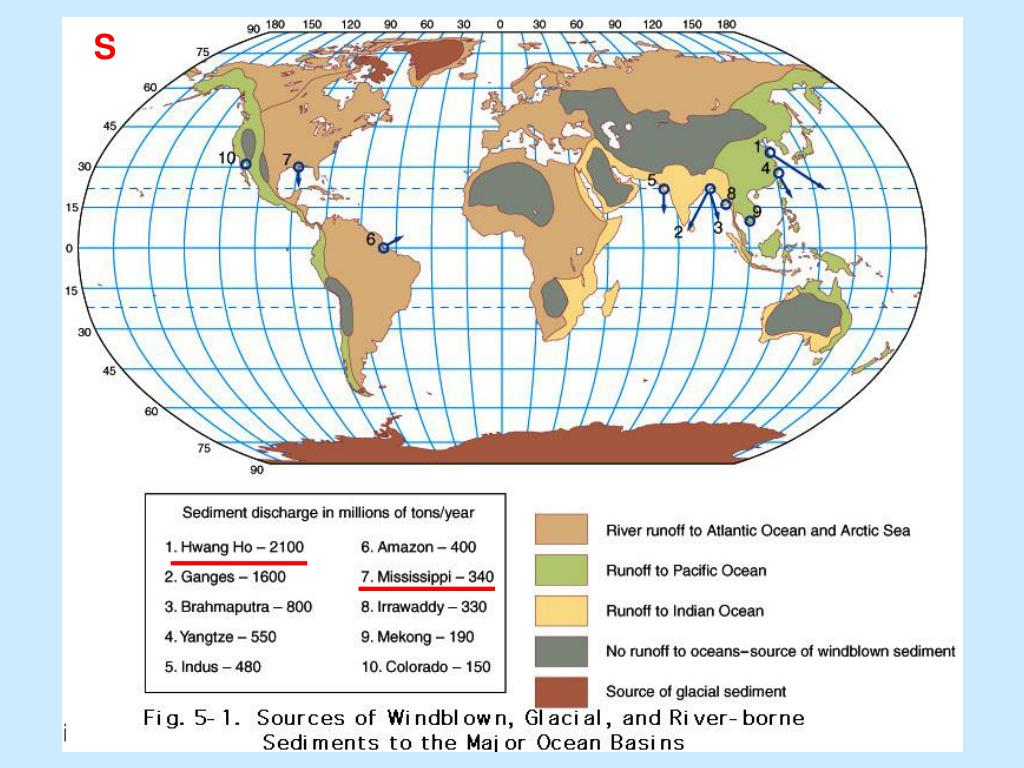

  6. S

  7. S Lithogenous sediments Fig. 4.5

  8. P Lithogenous sediments • Most lithogenous sediments at continental margins • Coarser sediments closer to shore • Finer sediments farther from shore WHY? • Mainly mineral quartz (SiO2)

  9. P

  10. S distance = rate x time d = rt t = d/r = 4km/ 2.5cm/sec = 4,000m/ 2.5cm/sec =4,000m(100cm/m)/ 2.5cm/sec =400,000cm / 2.5cm/sec =160,000sec/ 24hr/day x 3600sec/hr =160,000sec/ 86,400sec/day =1.85 days

  11. S Clay sinks 10,000 times slower than sank, so 1.8 days x 10,000 (or 104) = 18,000 days 18,000 days = 49.3 years 365 days/year

  12. S Smaller particles have a larger SA/Vol. ratio, increasing the frictional drag (sinking rates) and making small particles sink more slowly than large particles

  13. S Relationship of fine-grained quartz and prevailing winds Fig. 4.6b

  14. 04_06t S

  15. S Brazos River Meets the Gulf of Mexico FLOCCULATION- THE JOINING TOGETHER OF ELECTRICALLY CHARGED CLAY PARTICLES WHICH SETTLE MORE RAPIDLY THAN INDIVIDUAL ONES

  16. S Brazos River

  17. S Distribution of sediments • Neritic(NEARSHORE - OVER CONT. SHELF) • Shallow water deposits • Close to land • Dominantly lithogenous • Typically deposited quickly • Pelagic(OPEN OCEAN - OFF CONT. SHELF) • Deeper water deposits • Finer-grained sediments • Deposited slowly

  18. S Neritic lithogenous sediments • Beach deposits • Mainly wave-deposited quartz-rich sands • Continental shelf deposits • Relict sediments • Turbidite deposits • Glacial deposits • High latitude continental shelf

  19. S Pelagic lithogenous sediments • Sources of fine material: • Volcanic ash (volcanic eruptions) • Wind-blown dust • Fine grained material transported by deep ocean currents • Abyssal clay (red clay) • Oxidized iron • Abundant if other sediments absent

  20. P Biogenous marine sediments • Hard remains of once-living organisms • Shells, bones, teeth • Macroscopic (large remains) • Microscopic (small remains) • Tiny shells or tests settle through water column • Biogenic ooze (30% or more tests) • Mainly algae and protozoans

  21. P Biogenous marine sediments • Commonly either calcium carbonate(CaCO3)orsilica(SiO2 or SiO2.nH2O) • Usually planktonic (free-floating)

  22. P Silica in biogenic sediments • Diatoms (algae) • Photosynthetic • Diatomaceous earth

  23. S Siliceous ooze • Seawater undersaturated with silica • Siliceous ooze commonly associated with high biologic productivity in surface ocean Fig. 4.12

  24. P Calcium carbonate in biogenous sediments • Coccolithophores (algae) • Photo-synthetic • Coccoliths(nanno-plankton)

  25. S White Cliffs of Dover

  26. P Calcium carbonate in biogenous sediments • Foraminifera (protozoans) • Use external food • Calcareous ooze

  27. Living Foraminifera S

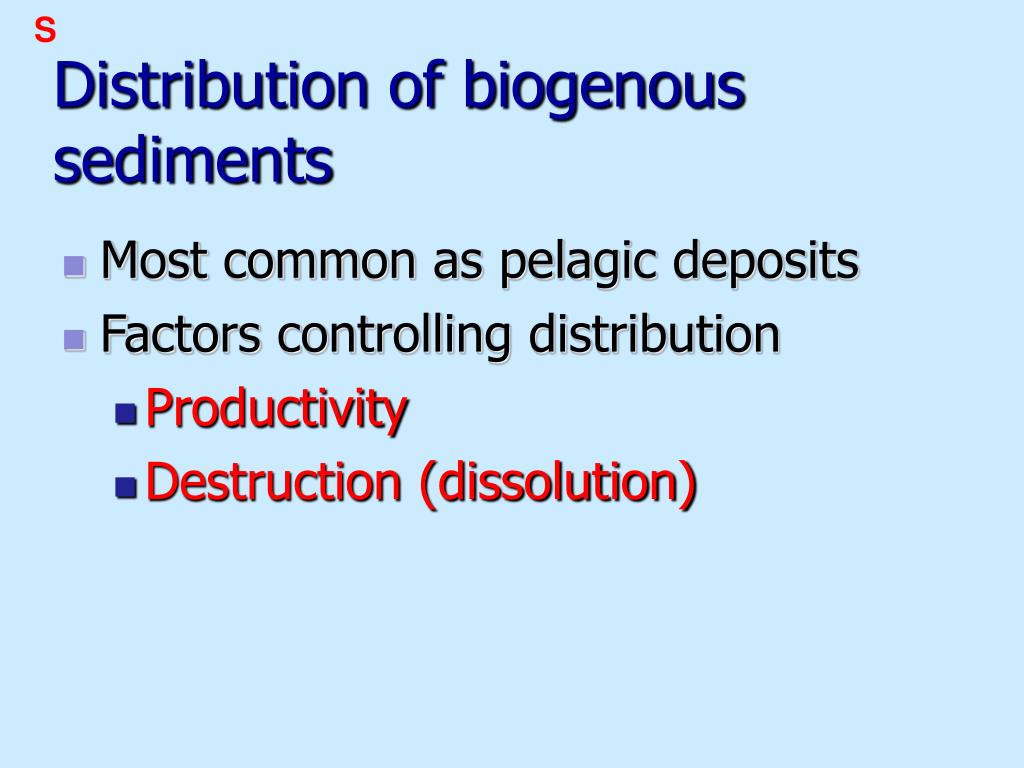

  28. S Distribution of biogenous sediments • Most common as pelagic deposits • Factors controlling distribution • Productivity • Destruction (dissolution)

  29. P Calcareous ooze and the CCD • Warm, shallow ocean saturated with calcium carbonate • Cool, deep ocean undersaturated with calcium carbonate • Lysocline--depth at which CaCO3 begins to dissolve rapidly • Calcite compensation depth CCD--depth where CaCO3 readily dissolves

  30. S Calcareous ooze and the CCD • Scarce calcareous ooze below 5000 m in modern ocean • Ancient calcareous oozes at greater depths if moved by sea floor spreading Fig. 4.13

  31. S Distribution of calcareous oozes in surface sediments of modern seafloor Why in these places?

  32. P Hydrogenous marine sediments • Minerals precipitate directly from seawater • Manganese nodules • Phosphates • Carbonates • Metal sulfides • Small proportion of marine sediments • Distributed in diverse environments

  33. P

  34. S Iron-Manganese nodules • Fist-sized lumps of manganese, iron, and other metals • Very slow accumulation rates Fig. 4.15a

  35. S

  36. Manganese nodules S Fig. 4.26

  37. P Cosmogenous marine sediments • Macroscopic meteor debris • Microscopic iron-nickel and silicate spherules • Tektites • Space dust • Overall, insignificant proportion of marine sediments

  38. 04_C S

  39. S Microtektites - extraterrestrial

  40. 04_D S

  41. 04_E S

  42. 04_F S

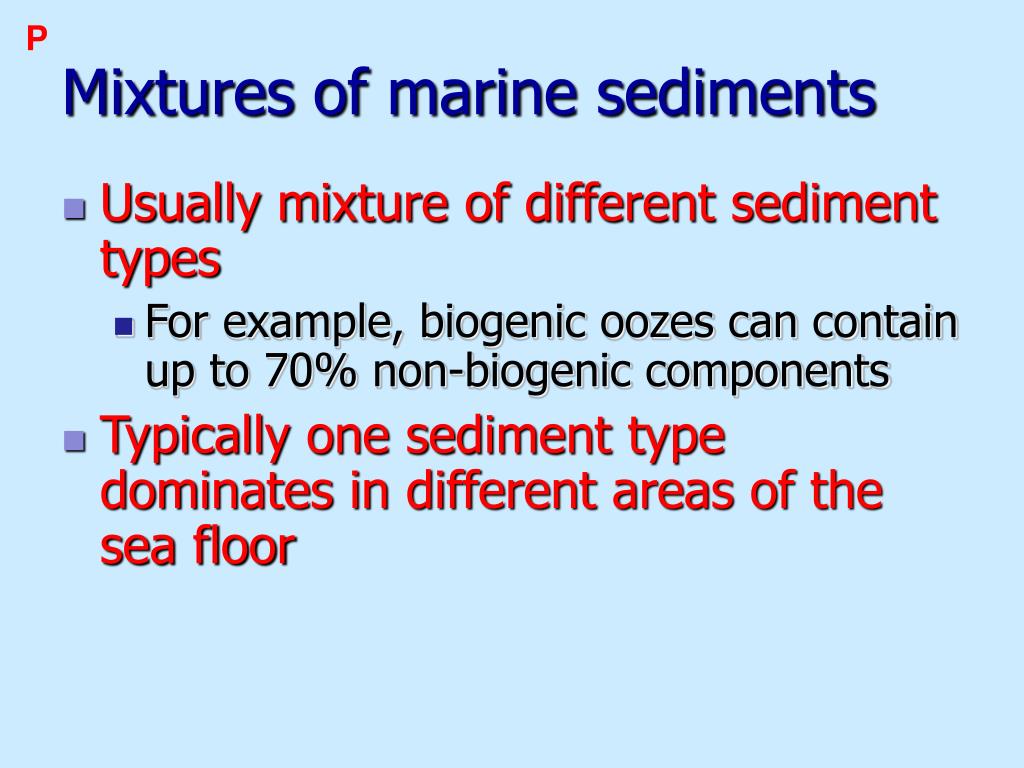

  43. P Mixtures of marine sediments • Usually mixture of different sediment types • For example, biogenic oozes can contain up to 70% non-biogenic components • Typically one sediment type dominates in different areas of the sea floor

  44. P Distribution of neritic and pelagic marine sediments Fig. 4.19

  45. 04_T04 P 1 m .01 m .001 m

  46. S

  47. S

  48. 04_18 P
