  1. AIXM Seminar2009, December 15th AIXM 4.5 to 5.1 Mapping

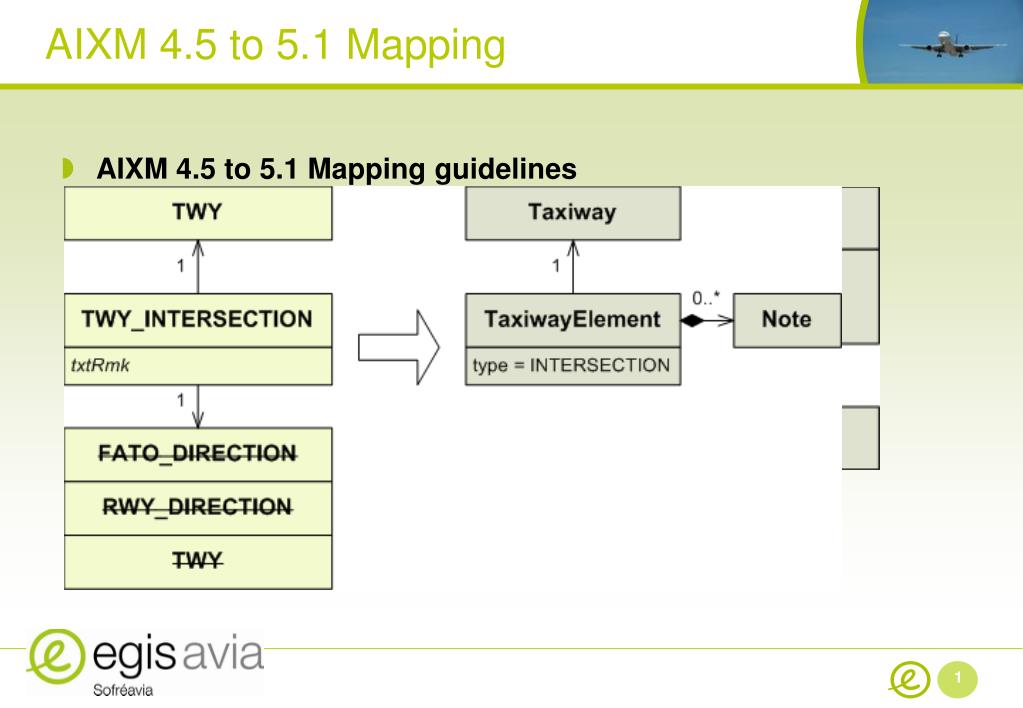

  2. AIXM 4.5 to 5.1 Mapping • AIXM 4.5 to 5.1 Mapping guidelines • Focused on mapping AIXM 4.5 data • UML perspective • Best suited for database mapping • Includes classes not implemented in XML • Does not show XML implementation

  3. AIXM 4.5 to 5.1 Mapping • Stereotypes • <<feature>> • <<object>> • <<codelist>>

  4. AIXM 4.5 to 5.1 Mapping • Geographical objects • Point and ElevatedPoint • Curve and Surface • Vertices

  5. AIXM 4.5 to 5.1 Mapping • Note objects • Mapping of text attributes • Mapping of other attributes

  6. AIXM 4.5 to 5.1 Mapping Q & A
