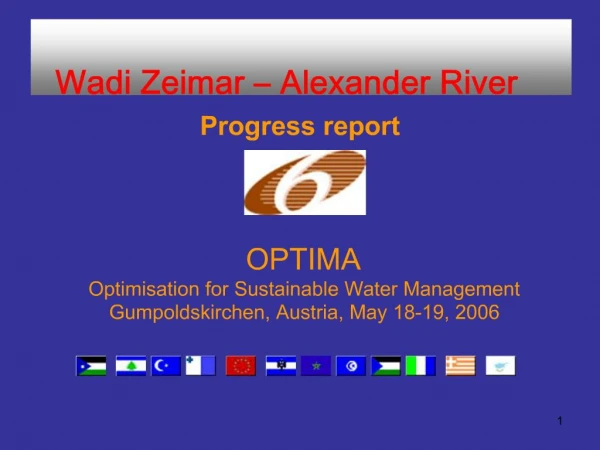

    1. 1 Wadi Zeimar – Alexander River Progress report

    2. 2 OPTIMA – 4rd Board Meeting Wadi Zeimar – Alexander river Progress report Nir Becker Eran Friedler Marwan Haddad Nancy Rumman Research assistant: Aviad Kahana

    3. 3

    4. 4 Outline Background Integration GIS presentation Scenarios Benefit estimation 2005 scenario results Cooperation

    5. 5

    6. 6 The Test case: Alexander - Zeimar River The River runs for about 44 km from the western side of the Mountain Belt across cultivated areas and past towns of the Coastal Plain to the Mediterranean Sea.

    7. 7

    8. 8

    9. 9

    10. 10 Added section: Vadi Zeimar

    11. 11 GIS Contribution Based on data from: The meteorological central station The geological institute The ministry of Agriculture The national center for mapping

    12. 12 Alexander - Zeimar Catchment

    13. 13 Alexander - Zeimar Catchment, General Map View

    14. 14 Alexander - Zeimar Catchment, General Map Themes

    15. 15 Alexander - Zeimar Catchment, General Map Zoom-In West

    16. 16 Alexander - Zeimar Catchment, General Map Zoom-In East

    17. 17 Alexander - Zeimar Cat., General Map Zoom-In Green Line

    18. 18 Alexander - Zeimar Catchment, Soil Groups and Precipitation

    19. 19 Alexander - Zeimar Catchment, Soil Groups

    20. 20 Alexander - Zeimar Catchment, Soil Groups Zoom-In

    21. 21 Alexander - Zeimar Catchment, Geology and Precipitation

    22. 22 Alexander - Zeimar Catchment, Geology

    23. 23 Alexander - Zeimar Catchment, Geology Zoom-In West

    24. 24 Alexander - Zeimar Catchment, Geology Zoom-In East

    25. 25 Precipitation

    26. 26

    27. 27 Other meteorological data

    28. 28 Scenarios River at 1995 River at 2005 Cost benefit Analysis of existing situation Look into the future: Cost effectiveness analysis of a prespecified benefit target W/O cooperation With cooperation

    29. 29 Quality measures Past ? Present ? Future

    30. 30 Benefit Estimation Travel Cost Model Contingent Valuation Model

    31. 31 TCM 300 surveys at the site (Dec. 2005 – March. 2006) Used to estimate only Use-value. Only 2005 situation. We used two sub-models Zonal travel cost Individual travel cost (will not be described here but was done).

    32. 32 Step 1: ZTCM base table

    33. 33 Step 2: Visitation against price increase

    34. 34 Step 3: Fitting a function

    35. 35 Step 3 (cont.) Total benefit of the site: (MNIS per year) Linear function: Visits =65577-157.32*(Travel Cost) TB=15,471,164 Cubistic function: Visits = 96554.5 – 796.7*TC + 2.3 (TC)2 – 0.0022 (TC)3 TB=10,268,534 Exponential function: Visits =[6.504756-ln(Travel Cost)]/0.00008426 Travel Cost =668.3*exp{-0.00008426*(Visits)} TB=7,929,665

    36. 36 CVM (In process) 300 surveys (200 at the site + 100 sample of general effected population) Payment card Can estimate Use + nonuse values Can estimate future hypothetical scenarios - We asked about future water quality improvement which can be thought of as almost usable for every purpose

    37. 37 Before

    38. 38 Present conditions

    39. 39 Possible future scenarios

    40. 40 Was it worth it? Is it worth it?

    41. 41 Was it worth it? Is it worth it?

    42. 42

    43. 43 Zeimar – Alexander basin The comparison between the years 1995 – 2005 focuses primarily on the four following points: Many secondary pollution sources were eliminated Natanya’s wastewater treatment facility Kubani Creek Wadi Zeimar.

    44. 44

    45. 45

    46. 46

    47. 47

    48. 48

    49. 49

    50. 50

    51. 51

    52. 52 An example of comparison-use of the model to estimate cost-effectiveness of changes that were made in the river:

    53. 53

    54. 54

    55. 55

    56. 56 Treatment Plant Site Selection

    57. 57

    58. 58 Wastewater Treatment Options Three different scenarios were evaluated for wastewater management within the Wadi Zeimar catchment area involving: 1. Primary treatment at Tulkarem pools only (BAU Scenario), No additional Costs except for O&M 2.1 Extended Aeration Treatment and Reuse System at Tulkarem only (Expected Future Scenario #1.1), 40 million US for the first phase and about 31 million US$ additional funds needed until 2030 2.2 Activated Sludge Treatment and Reuse System at Tulkarem only (Expected Future Scenario #1.2) 41 million US for the first phase and about 32 million US$ additional funds needed until 2030 3. Activated Sludge or Extended Aeration Treatment and Reuse System plus advanced treatment at Tulkarem and Nablus-West (Expected Future Scenario #2), 100 million US for the first phase and about 80 million US$ additional funds needed until 2030

    59. 59

    60. 60 Extended Aeration – Two Stage Plant Cost

    61. 61 Activated Sludge, Tulkarem Two Stage Plant Cost

    62. 62

    63. 63 Annual O & M Costs Ranging from 1,500,000 US$ in 2016 to 2,750,000 US$ in 2030 Distributed as : Wastewater treatment plant, % 80 Effluent Distribution and Reuse Sys,% 5 Wastewater Collection Sys, % 15

    64. 64

    65. 65

    66. 66 Cooperation

    67. 67
