Roadmap l.jpg


Concurrent Programming

Communication and Synchronization

Completing the Java Model

Overview of the RTSJ

Memory Management

Clocks and Time

Scheduling and Schedulable Objects

Asynchronous Events and Handlers

Real-Time Threads

Asynchronous Transfer of Control

Application requirements

Basic model


Resource Control

Schedulability Analysis



Asynchronous transfer of control l.jpg

Asynchronous Transfer of Control

Lecture aims

  • To explain the high level model and how to use the Interruptible interface

  • To consider multiple AsynchronouslyInterruptedExceptions (AIE)

  • To introduce the Timed class and show an example

Atc summary l.jpg

ATC Summary

  • All methods that are prepared to allow the delivery of an asynchronous exception must place the AIE exception in their throw list

  • The RTSJ calls such methods AI-methods (Asynchronously Interruptible)

  • If a method does not do this, it is called ATC-deferred and the asynchronous exception is not delivered but held pending until the thread is in a method which has the appropriate throw clause

  • Synchronized statement and methods are ATC deferred.

Slide4 l.jpg


public class AsynchronouslyInterruptedException extends

java.lang.InterruptedException {


public synchronized void disable();

public boolean doInterruptible (Interruptible logic);

public synchronized boolean enable();

public synchronized boolean fire();

public boolean clear ();

public staticAsynchronouslyInterruptedException getGeneric();

// returns the AsynchronouslyInterruptedException which

// is generated when RealtimeThread.interrupt() is invoked

// …


Interruptible l.jpg


  • An object which wishes to provide an interruptible method does so by implementing the Interruptible interface

  • The run method is the method that is interruptible; the interruptedAction method is called by the system if the run method is interrupted

public interface Interruptible{

public void interruptAction (

AsynchronouslyInterruptedException exception);

public void run (

AsynchronouslyInterruptedException exception)

throws AsynchronouslyInterruptedException;


Interruptible6 l.jpg


  • Once this interface is implemented, the implementation can be passed as a parameter to the doInterruptible method in the AIE class

  • The method can then be interrupted by calling the fire method in the AIE class

  • Further control over the AIE is given by

    • disable

    • enable

    • isEnabled

Only one schedulable object can be executing

a doInterruptible at once

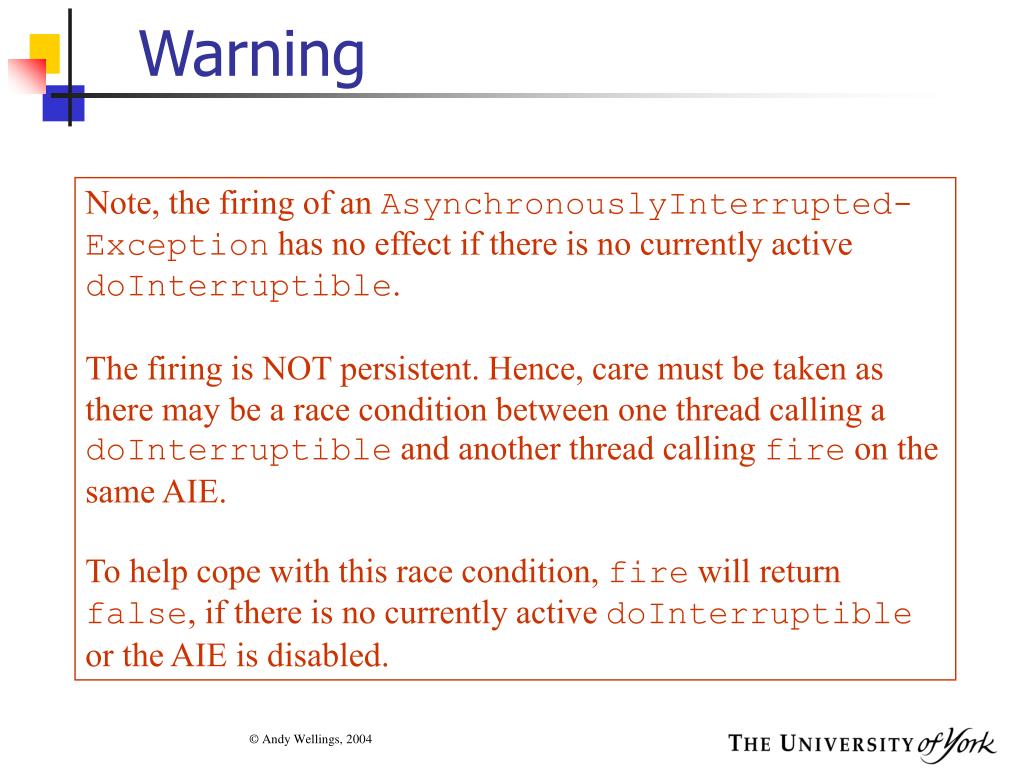

Warning l.jpg


Note, the firing of an AsynchronouslyInterrupted-Exception has no effect if there is no currently active doInterruptible.

The firing is NOT persistent. Hence, care must be taken as there may be a race condition between one thread calling a doInterruptible and another thread calling fire on the same AIE.

To help cope with this race condition, fire will return false, if there is no currently active doInterruptible or the AIE is disabled.

Mode change example i l.jpg

Mode Change Example I

import javax.realtime.*;

public class ModeA implements Interruptible {

public void run(AsynchronouslyInterruptedException aie)

throws AsynchronouslyInterruptedException {

// operation performed in Mode A


public void interruptAction(

AsynchronouslyInterruptedException aie){

// reset any internal state, so that when Mode A

// becomes current, it can contine



// similary for ModeB

Mode change example ii l.jpg

Mode Change Example II

import javax.realtime.*;

public class ModeChanger

extendsAsynchronouslyInterruptedException {

public static final int MODE_A = 0;

public static final int MODE_B = 1;

public ModeChanger(int initial) {


if(initial == MODE_A) current = MODE_A;

else if(initial == MODE_B) current = MODE_B;

else throw new IllegalArgumentException();


public synchronized int currentMode(){

return current;


Mode change example iii l.jpg

Mode Change Example III

public synchronized void setMode(int nextMode){

if(nextMode == MODE_A | nextMode == MODE_B)

current = nextMode;


throw new IllegalArgumentException();


public synchronized void toggleMode(){

if(current == MODE_A) current = MODE_B;

else current = MODE_A;


private int current;


Mode change example iv l.jpg

Mode Change Example IV

ModeChanger modeChange = newModeChanger(

ModeChanger.MODE_A) ;

public void run() // inside a RT thread with

// PeriodicParameters


ModeA modeA = new ModeA();

ModeB modeB = new ModeB();

boolean ok = true;

boolean result;

while(ok) {

if(modeChange.currentMode() == ModeChanger.MODE_A)

result = modeChange.doInterruptible(modeA);

//throw away result


result = modeChange.doInterruptible(modeB);

//throw away result

ok = waitForNextPeriod();





A persistent aie i l.jpg

A Persistent AIE I

import javax.realtime.*;

public class PersistentAIE

extends AsynchronouslyInterruptedException

{ // first attempt

public PersistentAIE(){


outstandingAIE = false;


public boolean fire() {



outstandingAIE = true;

return false;


else return true;


A persistent aie ii l.jpg

A Persistent AIE II

public boolean doInterruptible(Interruptible logic) {


outstandingAIE = false;


return true;


else {

return super.doInterruptible(logic);



private volatile boolean outstandingAIE;


Why does this fail?

A persistent aie iii l.jpg

A Persistent AIE III

public boolean doInterruptible(Interruptible logic) {


outstandingAIE = false;


return true;


else {

// fire comes in here!!

return super.doInterruptible(logic);



A persistent aie iv l.jpg

A Persistent AIE IV

import javax.realtime.*;

public class PersistentAIE

extends AsynchronouslyInterruptedException

implements Interruptible {

public PersistentAIE() {/* As before */ }

public boolean fire()

{ /* As before */ }

A persistent aie v l.jpg

A Persistent AIE V

public boolean doInterruptible(Interruptible logic) {

this.logic = logic;

return super.doInterruptible(this);


public void run(AIE aie) throws AIE {

if(outstandingAIE) {

outstandingAIE = false;;

} else {; }


public void interruptAction(AIE aie)

{logic.interruptAction(aie); }

private volatile boolean outstandingAIE;

private Interruptible logic;


Multiple aies and nested atcs l.jpg

Non InterruptibleMethod

Non InterruptibleMethod




Non Interruptible

Method Call

Interruptible A

Interruptible C

Interruptible B

Multiple AIEs and Nested ATCs

Pending AIE: AIE3

Pending AIE: AIE2

Pending AIE: none


Nested atcs l.jpg

Nested ATCs

  • Once the ATC-deferred region is exited, the currently pending AIE is thrown

  • This AIE will be caught by the interruptAction of the inner most nested AIE first

  • However, it will typically propagate the ATC

Nested atc eg l.jpg

Nested ATC Eg

public class NestedATC


AIE AIE1 = new AIE();

// similarly for AIE2 and AIE 3

public void method1() { /* ATC-deferred region */}

public void method2() throws AIE


AIE1.doInterruptible(new Interruptible()


public void run(AIE e) throws AIE

{method1(); }

Nested atc eg continued l.jpg

Nested ATC Eg Continued

public void interruptAction( AIE e)


// recovery here




// similarly for method3, whose run method calls method2,

// and for method4, whose run method calls method3

The timed class i l.jpg

The Timed Class I

  • With Real-Time Java, there is a subclass of AsynchronouslyInterruptedException called Timed

  • Both absolute and Relative times can be used

public class Timed extends AsynchronouslyInterruptedException



public Timed(HighResolutionTime time)

throws IllegalArgumentException;

public boolean doInterruptible (Interruptible logic);

public void resetTime(HighResolutionTime time);


The timed class ii l.jpg

The Timed Class II

  • When an instance of the Timed class is created, a timer is created and associated with the time value passed as a parameter

  • A timer value in the past results in the AIE being fired immediately the doInterruptible is called.

  • When a time value is passed which is not in the past, the timer is started when the doInterruptible is called

  • The timer can be reset for the next call to doInterruptible by use of the resetTime method

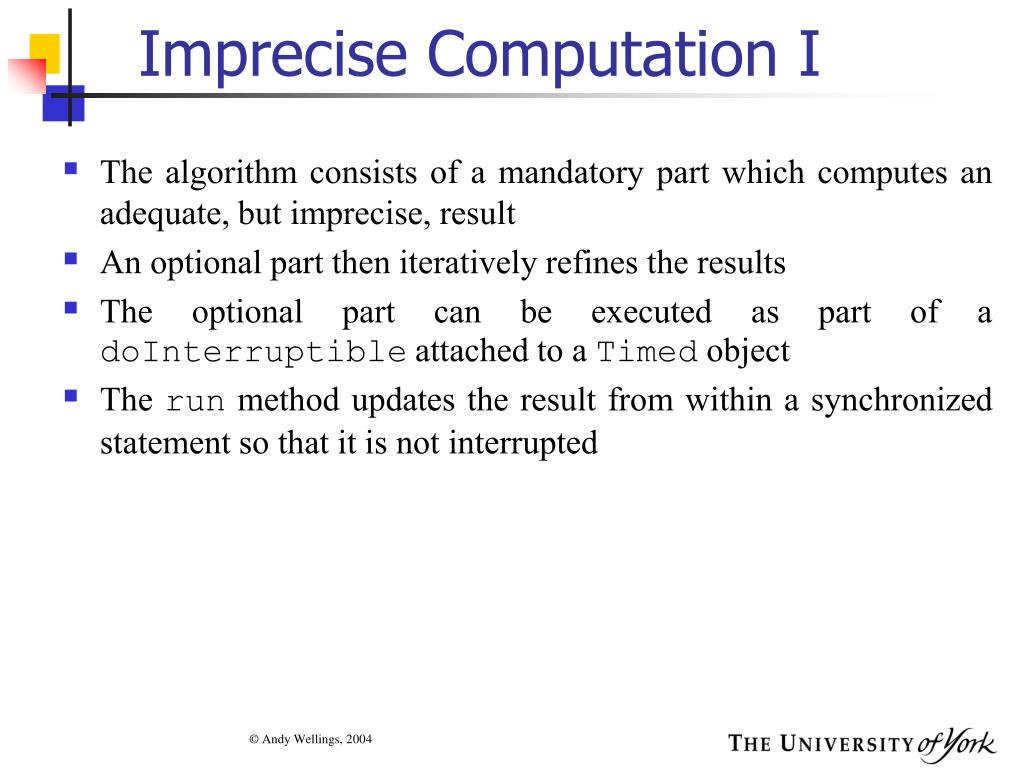

Imprecise computation i l.jpg

Imprecise Computation I

  • The algorithm consists of a mandatory part which computes an adequate, but imprecise, result

  • An optional part then iteratively refines the results

  • The optional part can be executed as part of a doInterruptible attached to a Timed object

  • The run method updates the result from within a synchronized statement so that it is not interrupted

Imprecise computation ii l.jpg

Imprecise Computation II

  • First, the ImpreciseResult is defined. Here, the result is an integer and there is a boolean indicating whether the result is imprecise

public class ImpreciseResult


public int value; // the result

public boolean preciseResult;

// indicates if value is imprecise


Imprecise computation iii l.jpg

Imprecise Computation III

import javax.realtime.*;

public class ImpreciseComputation


public ImpreciseComputation(HighResolutionTime T)


CompletionTime = T; //can be absolute or relative

result = new ImpreciseResult();


private int compulsoryPart()

{/* function which computes the compulsory part */};

public ImpreciseResult service() // public service


result.preciseResult = false;

result.value = compulsoryPart();

// compute the compulsory part

Interruptible I = new Interruptible()


Imprecise computation iv l.jpg

Imprecise Computation IV

public void run(

AsynchronouslyInterruptedException exception)

throws AsynchronouslyInterruptedException


// this is the optional function which improves

// on the compulsory part’s value

boolean canBeImproved = true;



// improve result

synchronized(result) { /* write result */ }


result.preciseResult = true;


public void interruptAction(

AsynchronouslyInterruptedException exception)

{result.preciseResult = false;}


Imprecise computation v l.jpg

Imprecise Computation V

Timed t = new Timed(CompletionTime);

boolean res = t.doInterruptible(I));

// execute the optional part,

// throw away the result of doInterruptible

return result;


private HighResolutionTime CompletionTime;

private ImpreciseResult result;

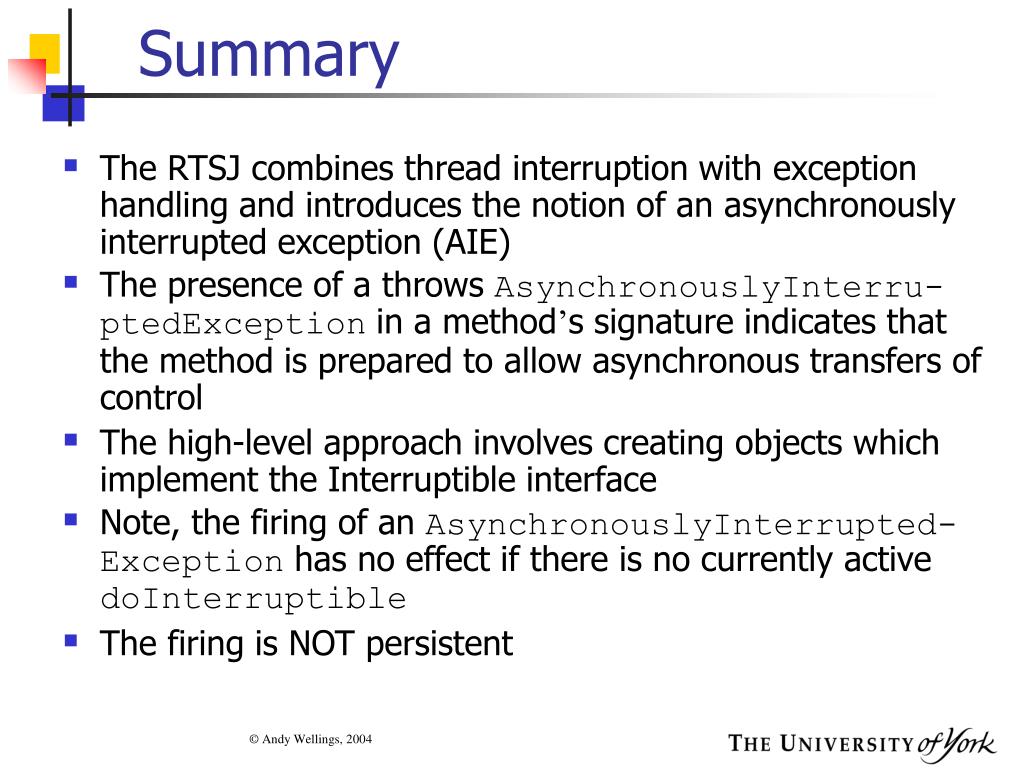

Summary l.jpg


  • The RTSJ combines thread interruption with exception handling and introduces the notion of an asynchronously interrupted exception (AIE)

  • The presence of a throws AsynchronouslyInterru-ptedException in a method’s signature indicates that the method is prepared to allow asynchronous transfers of control

  • The high-level approach involves creating objects which implement the Interruptible interface

  • Note, the firing of an AsynchronouslyInterrupted-Exception has no effect if there is no currently active doInterruptible

  • The firing is NOT persistent
