Chapter 16

Chapter 16

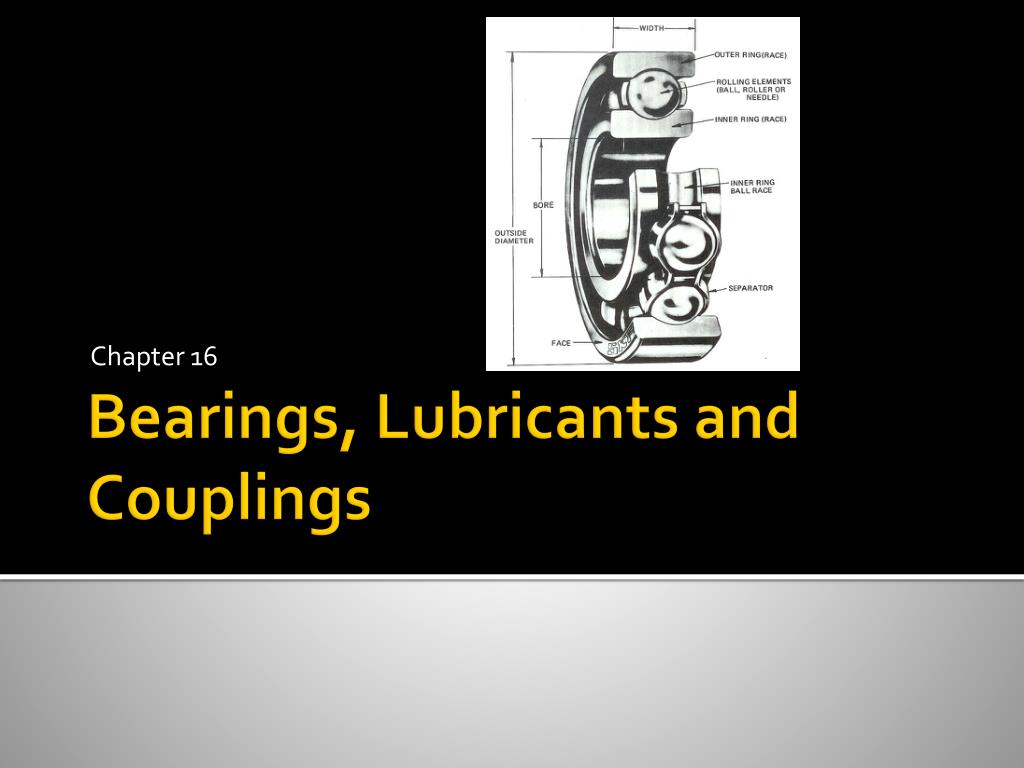

Bearings, Lubricants and Couplings


Bearings

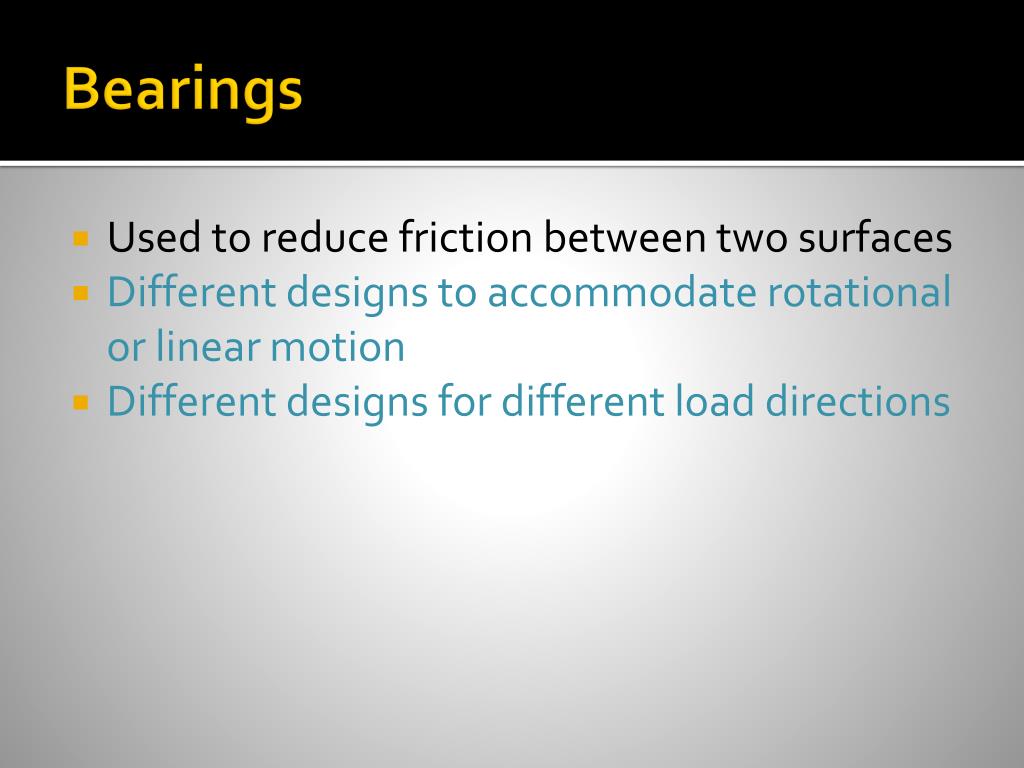

Bearings

  • Used to reduce friction between two surfaces

  • Different designs to accommodate rotational or linear motion

  • Different designs for different load directions


Bearing loads
Bearing Loads

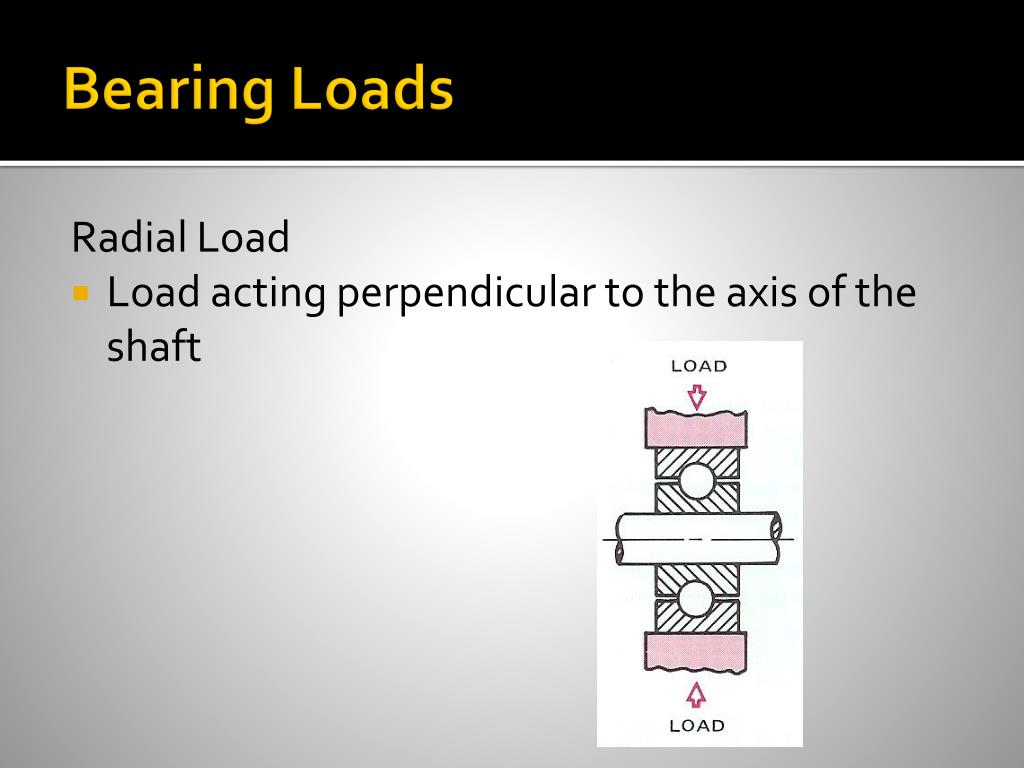

Radial Load

  • Load acting perpendicular to the axis of the shaft

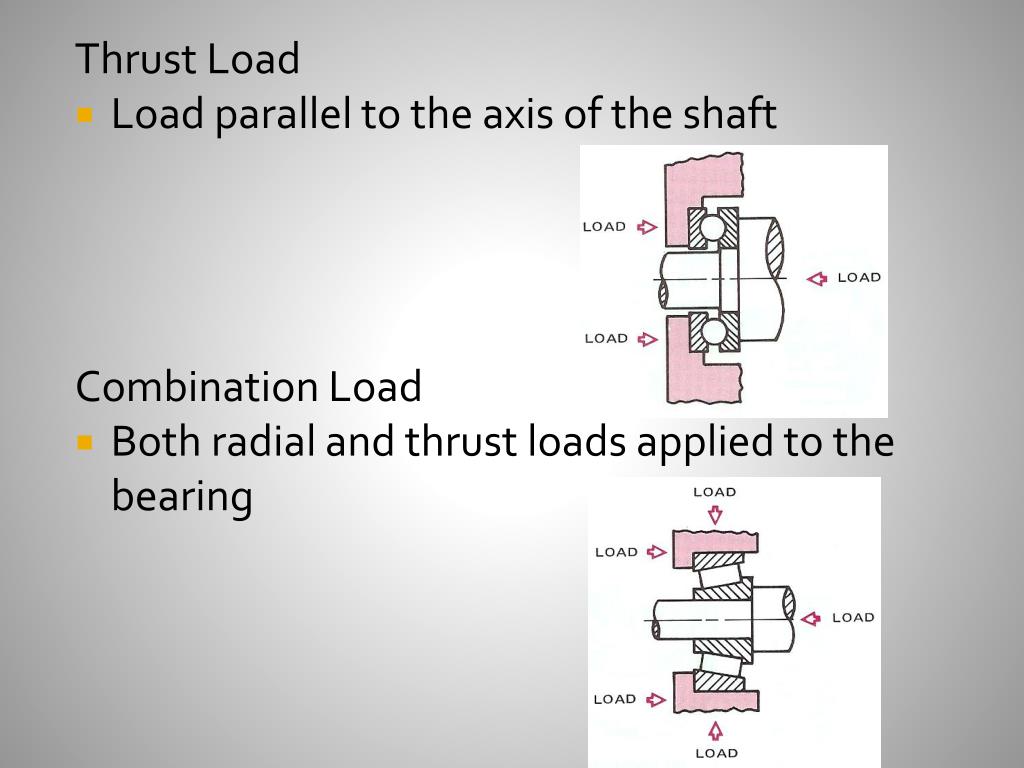

  • Thrust Load

  • Load parallel to the axis of the shaft

  • Combination Load

  • Both radial and thrust loads applied to the bearing


2 categories of bearings
2 categories of bearings

  • Plain bearings

  • Rolling element bearings


Plain bearings
Plain Bearings

  • Operation is based on sliding action between 2 parts

  • Bearing will have a press fit into the housing and a clearance fit to the shaft

  • No moving parts

  • Also called sleeve bearings, journal bearings and bushings


Plain bearing materials

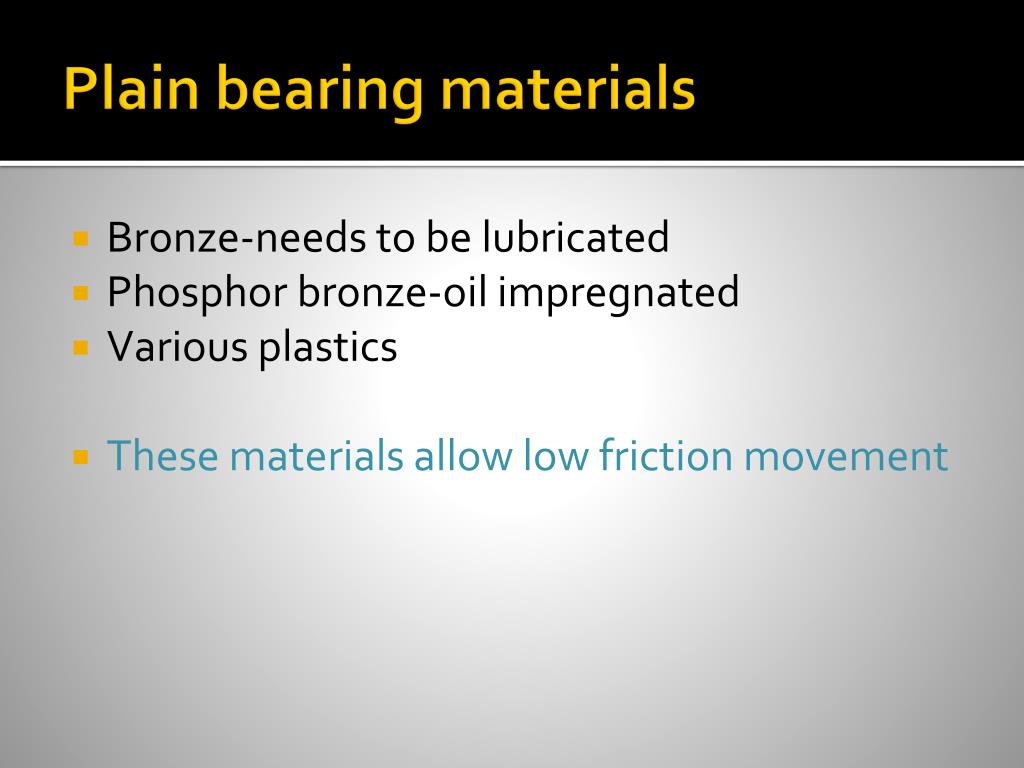

Plain bearing materials

  • Bronze-needs to be lubricated

  • Phosphor bronze-oil impregnated

  • Various plastics

  • These materials allow low friction movement


Rolling element bearings

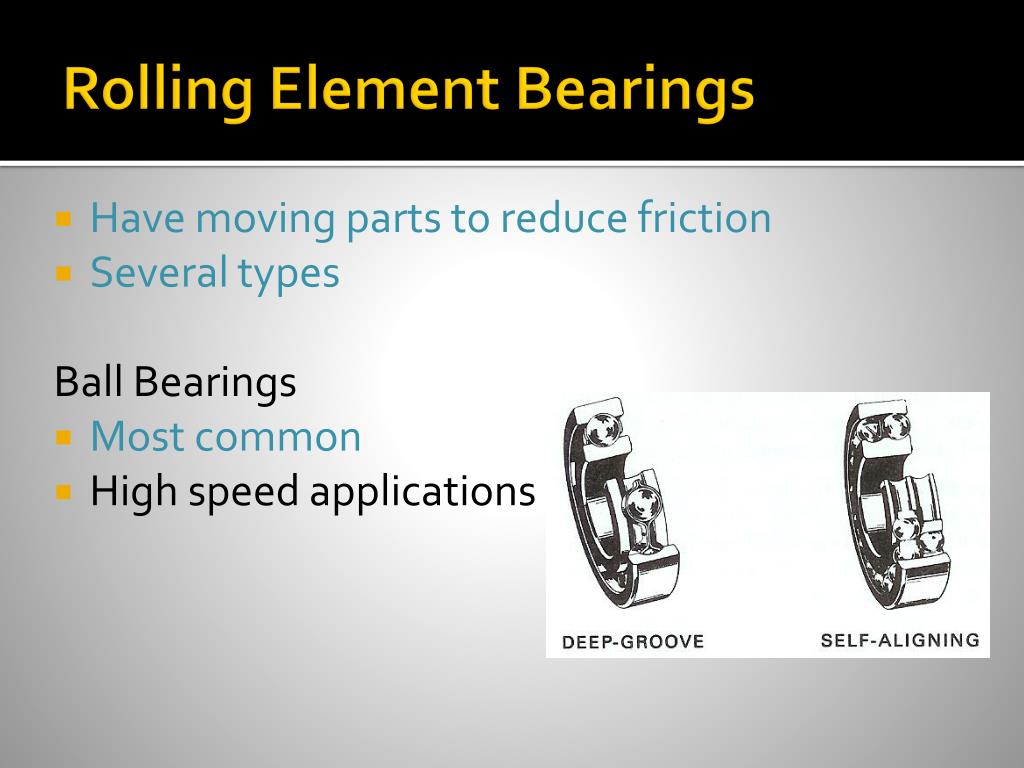

Rolling Element Bearings

  • Have moving parts to reduce friction

  • Several types

    Ball Bearings

  • Most common

  • High speed applications

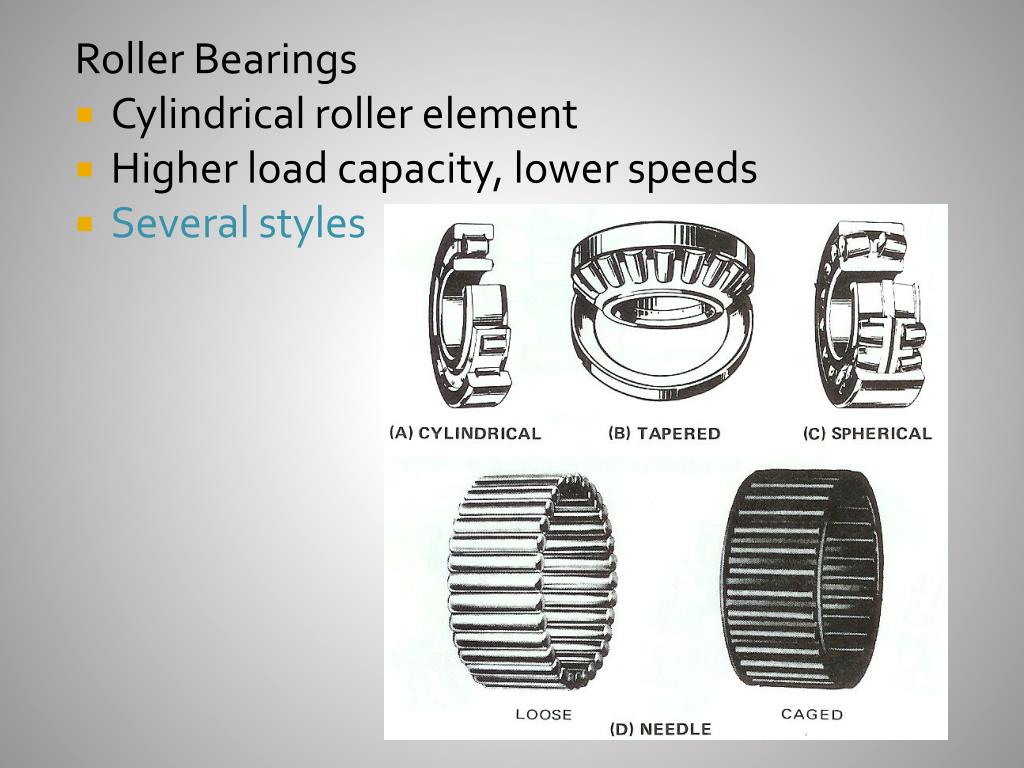

  • Roller Bearings

  • Cylindrical roller element

  • Higher load capacity, lower speeds

  • Several styles


Bearing symbols
Bearing Symbols

  • Bearings are purchased parts

  • Different symbols used depending on drawing type

  • Schematic symbols used for machine layout drawings


  • 3D models of products using bearings can use a simplified 3D model of any bearings in the product



Lubrication
Lubrication

  • Roller bearings require lubrication

  • Too much can result in high temps and bearing failure

  • Too little and friction will cause heat and failure

    Lubricants

  • Oil-slippery hydrocarbon liquids

  • Grease-semisolid, a fluid lubricant with a thickening agent


Assets of Oil

  • Easy to control volume

  • Travels well

  • Carry away heat

  • Carry away products of wear

Assets of Grease

  • Stays put

  • Less maintenance

  • Seals out moisture


Couplings
Couplings

  • Devices used to join two shafts together

  • 3 categories


1 solid couplings

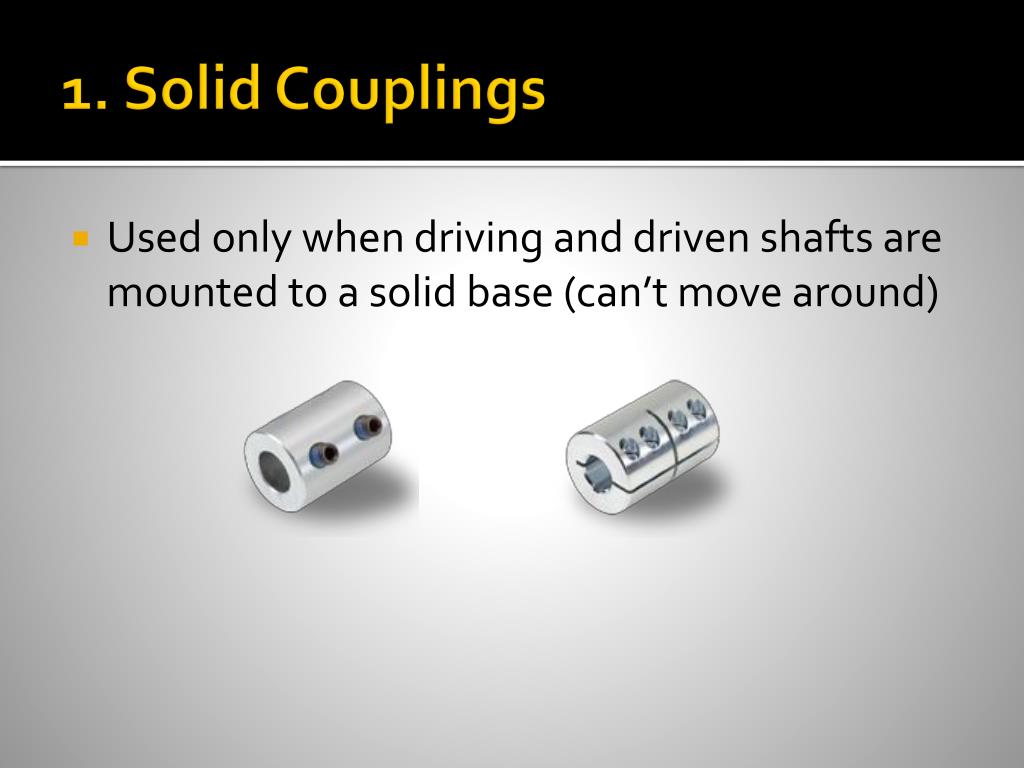

1. Solid Couplings

  • Used only when driving and driven shafts are mounted to a solid base (can’t move around)


2 flexible couplings
2. Flexible Couplings

  • Compensate for unintentional misalignment

  • Prevent shock from being transferred between the shafts


3 universal couplings
3. Universal Couplings

  • Used when shafts are at an angle to each other (angle can change)

  • Also called universal joints


Flexible shafts

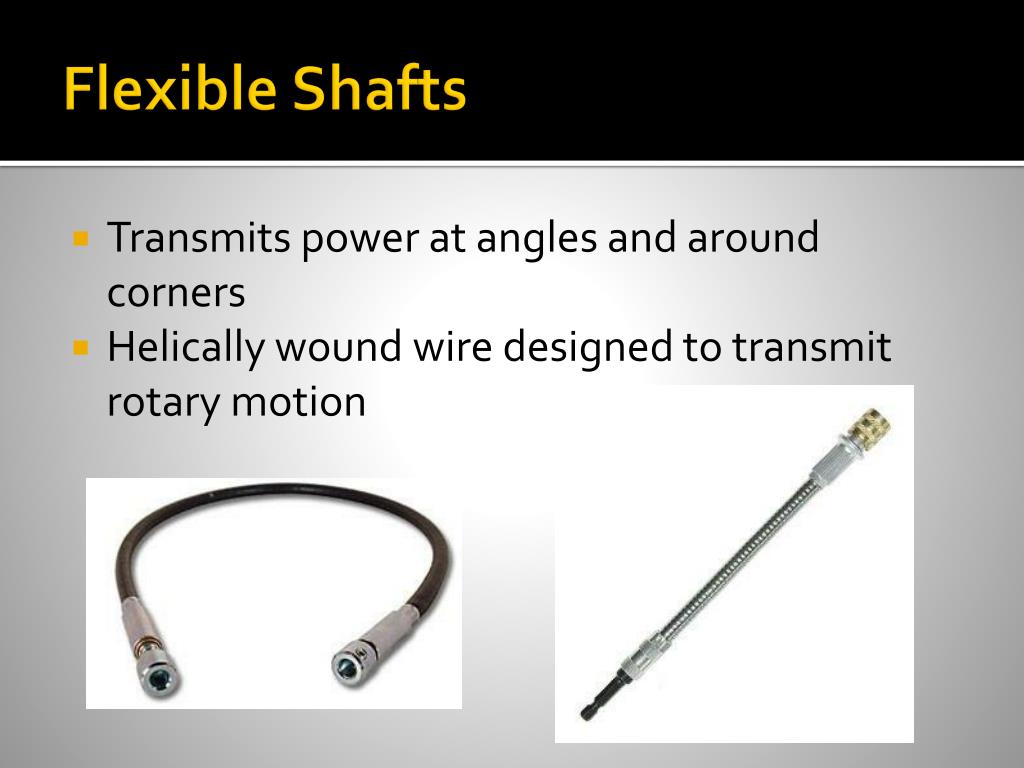

Flexible Shafts

  • Transmits power at angles and around corners

  • Helically wound wire designed to transmit rotary motion


  • TEST REVIEW

  • Mechanism

  • Linkage

  • Cam

  • Cam follower

  • Bearings

  • Plain bearing

  • Roller bearings

  • Ball bearings

  • Couplings

  • Flexible couplings

  • Universal couplings

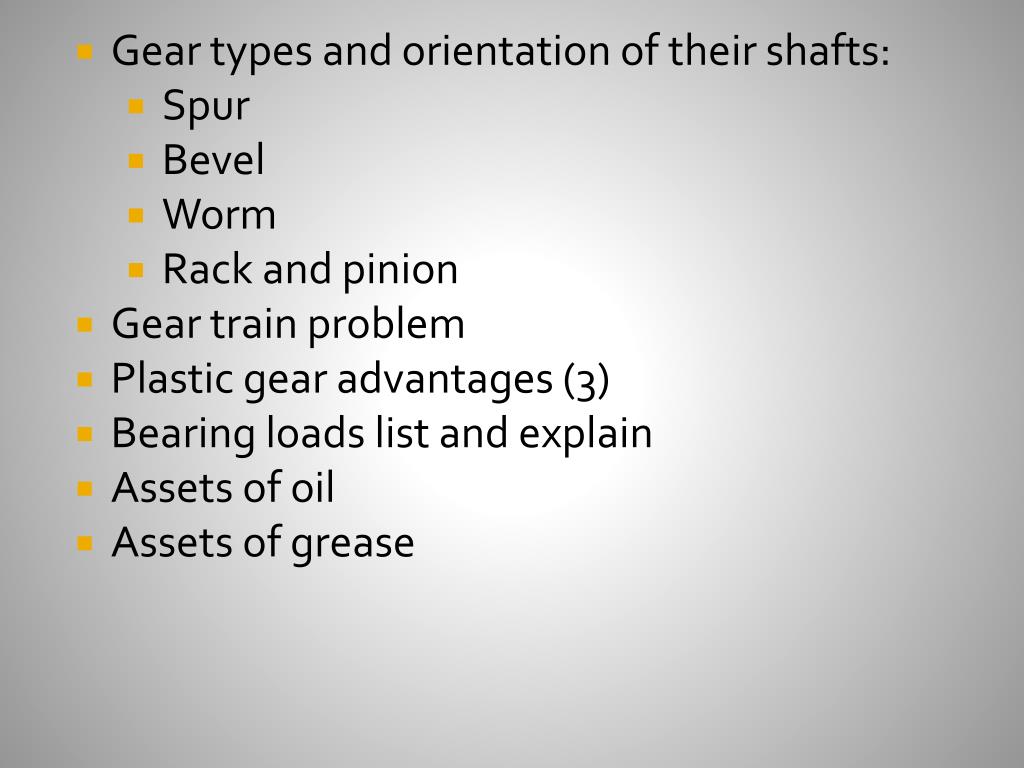

  • Gear types and orientation of their shafts:

    • Spur

    • Bevel

    • Worm

    • Rack and pinion

  • Gear train problem

  • Plastic gear advantages (3)

  • Bearing loads list and explain

  • Assets of oil

  • Assets of grease
