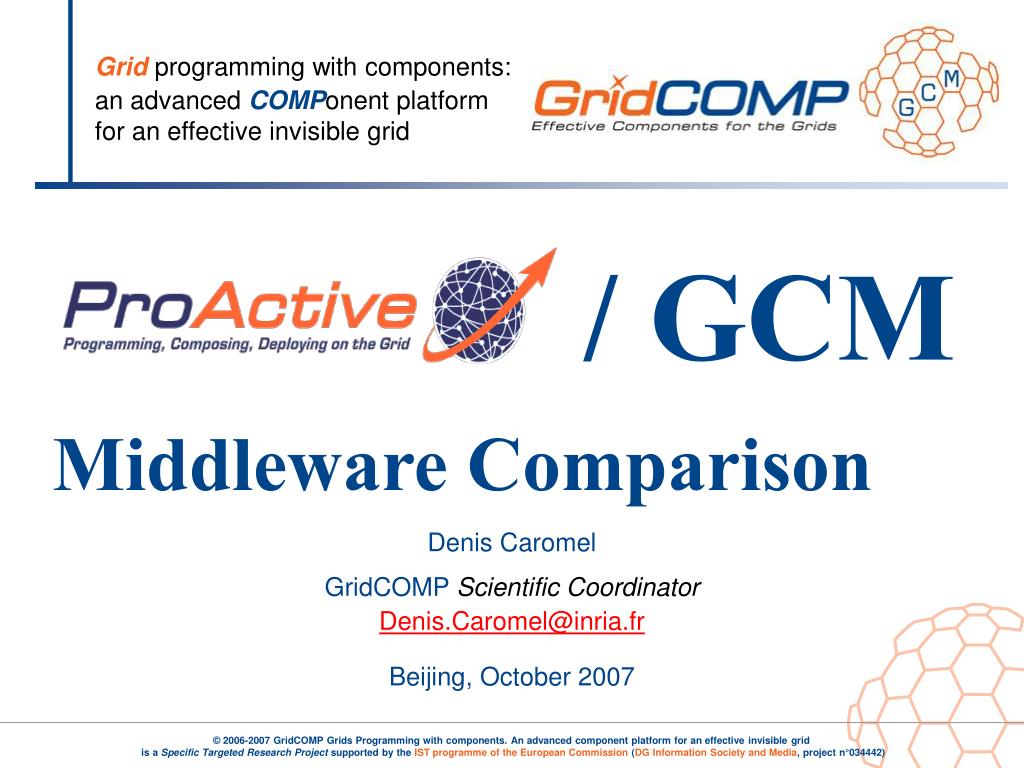

  1. Denis CaromelGridCOMP Scientific CoordinatorDenis.Caromel@inria.frBeijing, October 2007 / GCM Middleware Comparison

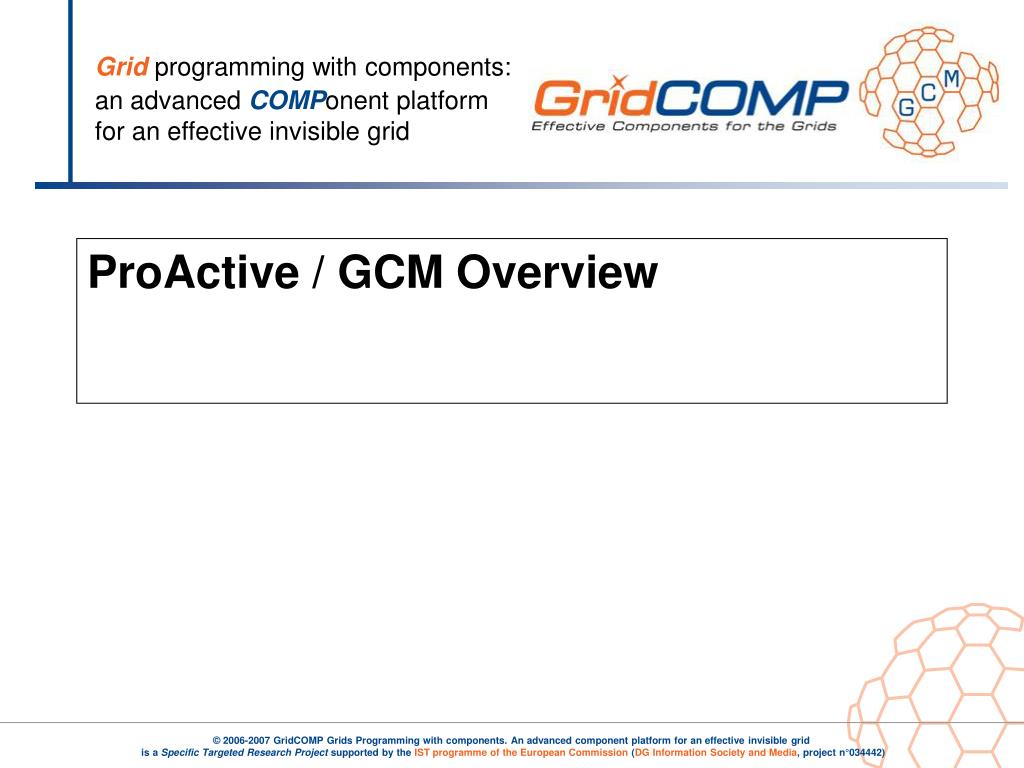

  2. ProActive / GCM Overview

  3. ProActive Parallel Suite (1) Grid programming with components: an advanced COMPonent platform for an effective invisible grid

  4. ProActive Parallel Suite (2) Grid programming with components: an advanced COMPonent platform for an effective invisible grid

  5. Integrated development environments (IDE)

  6. Rich GUI for Grid / Parallel Programming Grid programming with components: an advanced COMPonent platform for an effective invisible grid

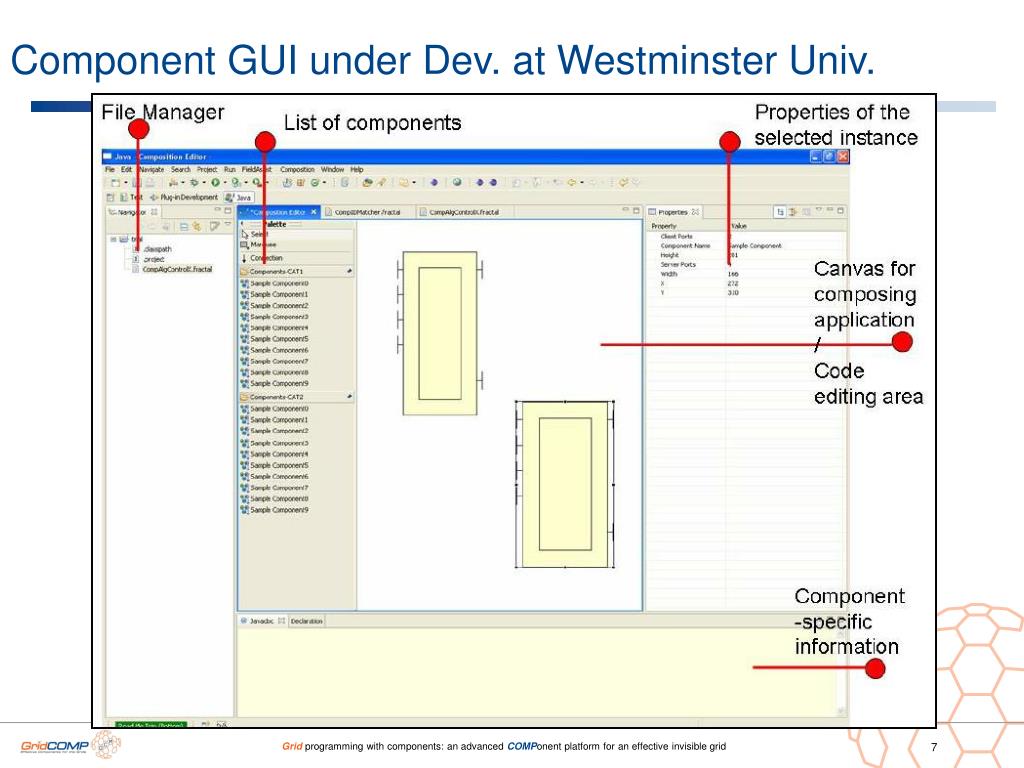

  7. Component GUI under Dev. at Westminster Univ. Grid programming with components: an advanced COMPonent platform for an effective invisible grid

  8. Programming Models

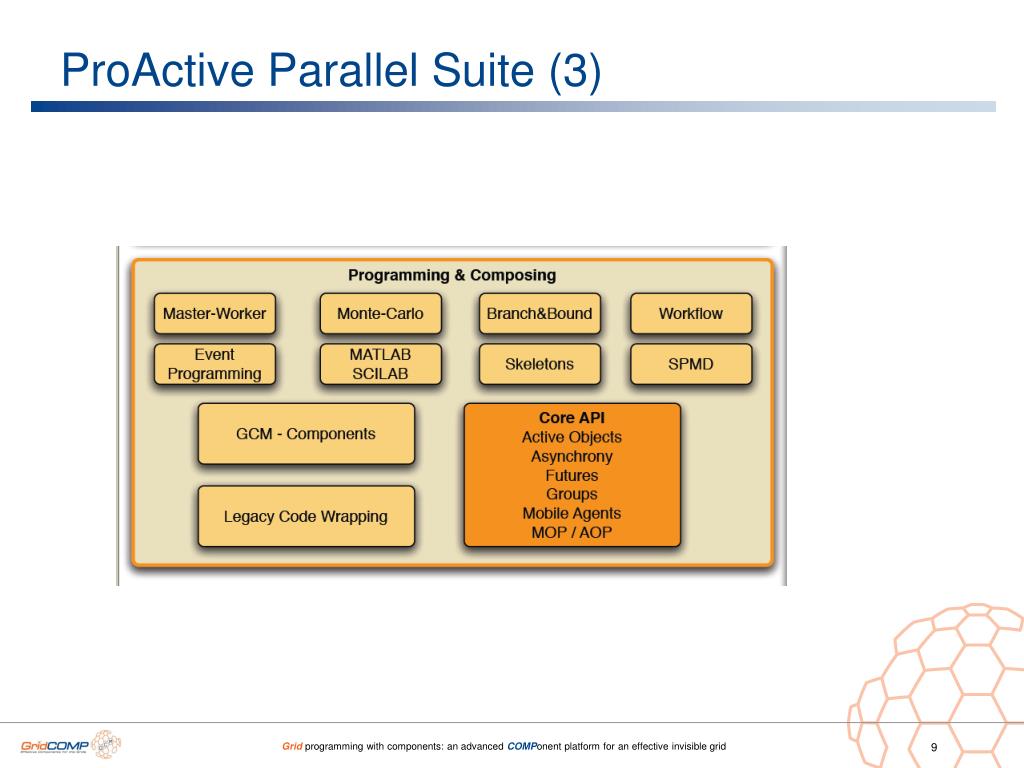

  9. ProActive Parallel Suite (3) Grid programming with components: an advanced COMPonent platform for an effective invisible grid

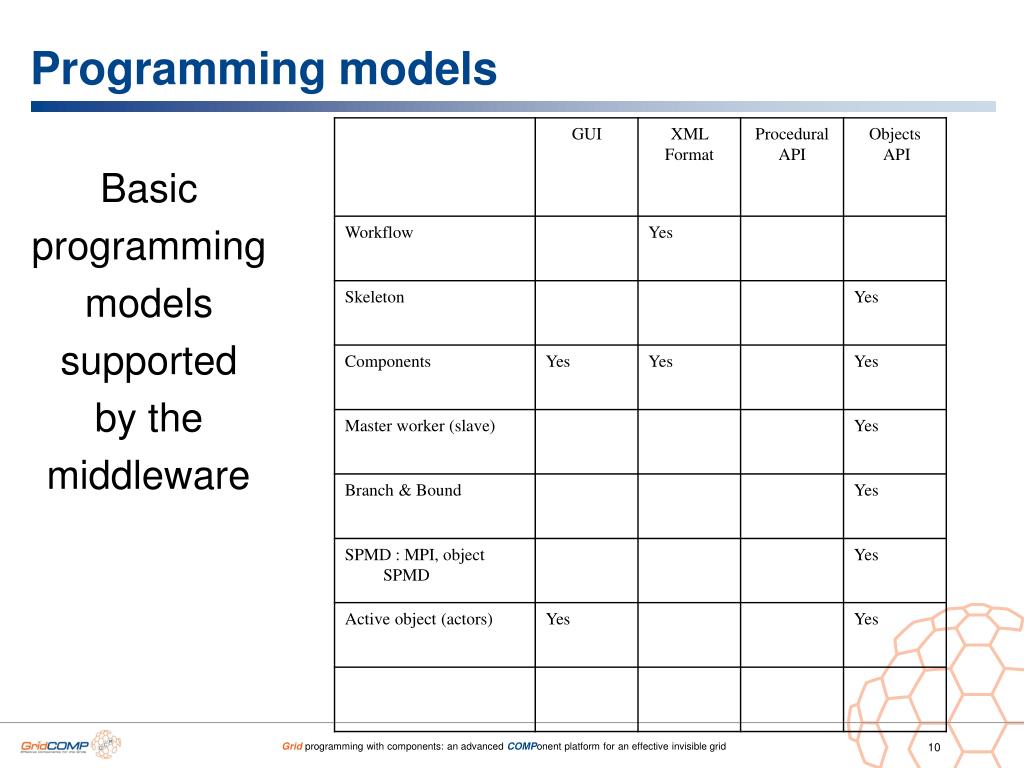

  10. Programming models Basic programming models supported by the middleware Grid programming with components: an advanced COMPonent platform for an effective invisible grid

  11. GCM + Scopes and Objectives: Grid Codes that Compose and Deploy No programming, No Scripting, … No Pain Innovation: Composite Components Multicast and GatherCast MultiCast GatherCast

  12. Data Management

  13. Data management: File transfer • Currently ProActive provides support for the following type of transfers: • To a remote node (Push) • From a remote node (Pull) • It could be used at: • Deployment time (XML) • Retrieval time (XML) • Execution time (Objects API) Grid programming with components: an advanced COMPonent platform for an effective invisible grid

  14. Infrastructure: Resource management & SLA

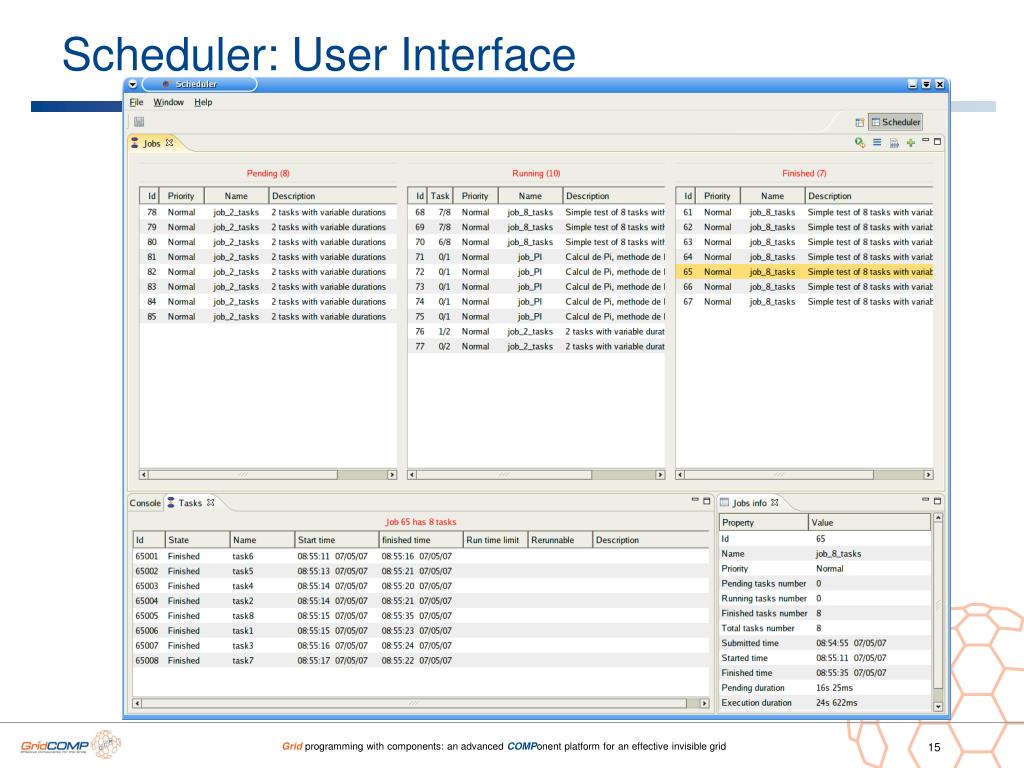

  15. Scheduler: User Interface Grid programming with components: an advanced COMPonent platform for an effective invisible grid

  16. Scheduler: Resource Manager Interface Grid programming with components: an advanced COMPonent platform for an effective invisible grid

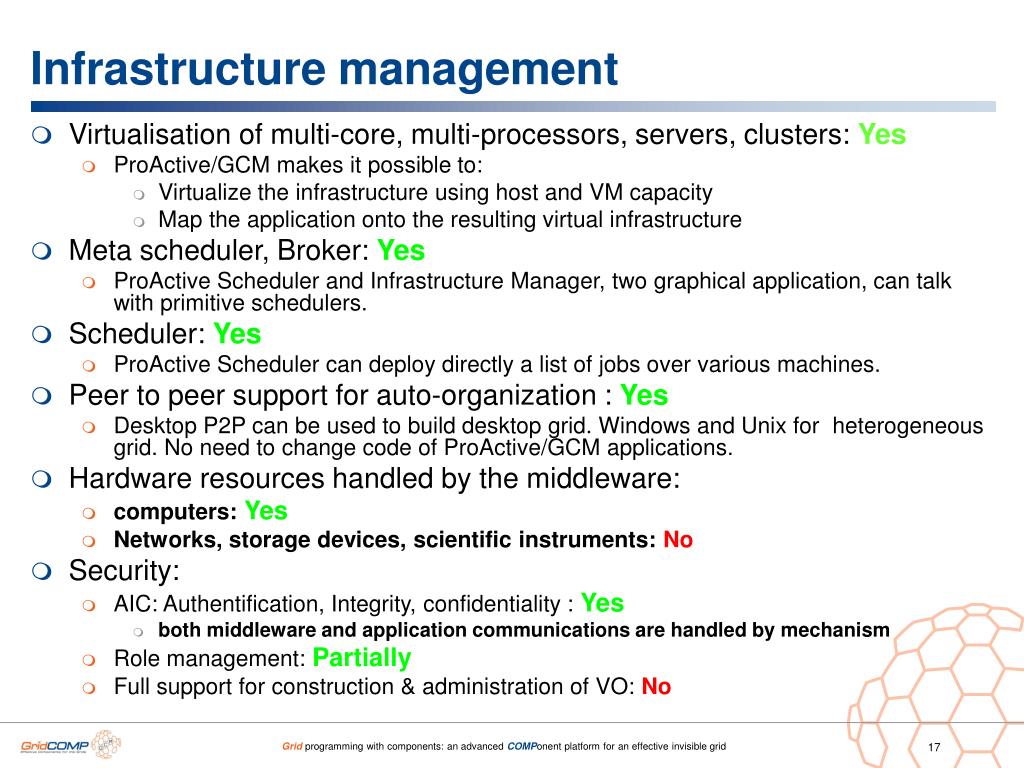

  17. Infrastructure management • Virtualisation of multi-core, multi-processors, servers, clusters: Yes • ProActive/GCM makes it possible to: • Virtualize the infrastructure using host and VM capacity • Map the application onto the resulting virtual infrastructure • Meta scheduler, Broker: Yes • ProActive Scheduler and Infrastructure Manager, two graphical application, can talk with primitive schedulers. • Scheduler: Yes • ProActive Scheduler can deploy directly a list of jobs over various machines. • Peer to peer support for auto-organization : Yes • Desktop P2P can be used to build desktop grid. Windows and Unix for heterogeneous grid. No need to change code of ProActive/GCM applications. • Hardware resources handled by the middleware: • computers: Yes • Networks, storage devices, scientific instruments: No • Security: • AIC: Authentification, Integrity, confidentiality : Yes • both middleware and application communications are handled by mechanism • Role management: Partially • Full support for construction & administration of VO: No Grid programming with components: an advanced COMPonent platform for an effective invisible grid

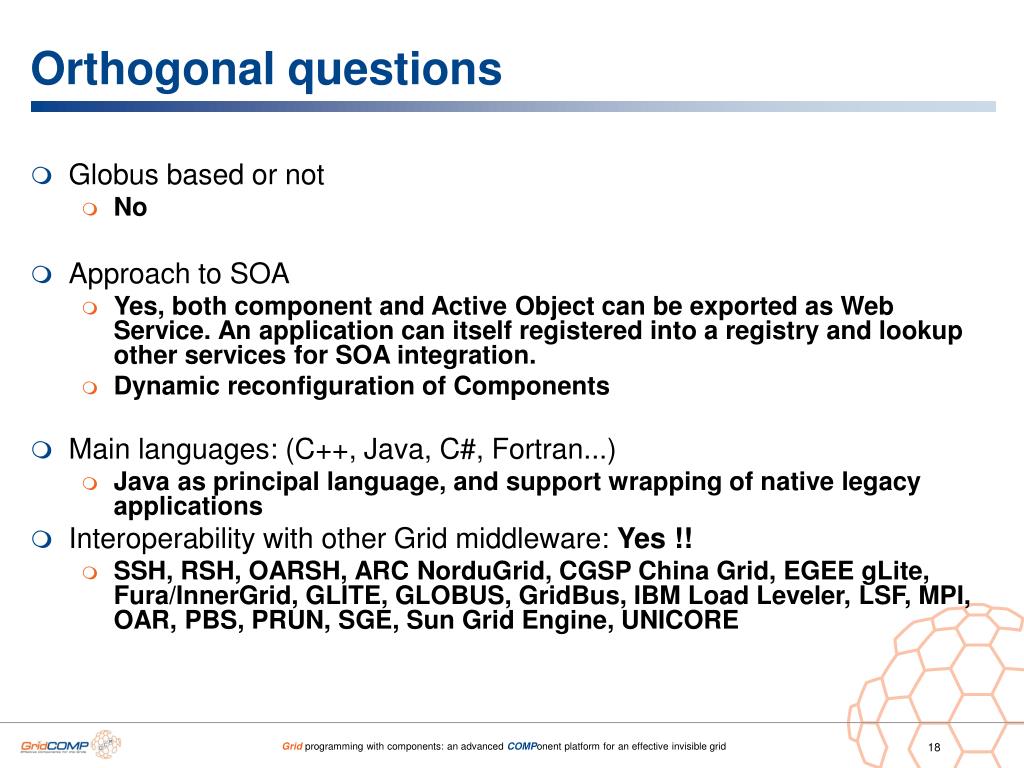

  18. Orthogonal questions • Globus based or not • No • Approach to SOA • Yes, both component and Active Object can be exported as Web Service. An application can itself registered into a registry and lookup other services for SOA integration. • Dynamic reconfiguration of Components • Main languages: (C++, Java, C#, Fortran...) • Java as principal language, and support wrapping of native legacy applications • Interoperability with other Grid middleware: Yes !! • SSH, RSH, OARSH, ARC NorduGrid, CGSP China Grid, EGEE gLite, Fura/InnerGrid, GLITE, GLOBUS, GridBus, IBM Load Leveler, LSF, MPI, OAR, PBS, PRUN, SGE, Sun Grid Engine, UNICORE Grid programming with components: an advanced COMPonent platform for an effective invisible grid

  19. Applications

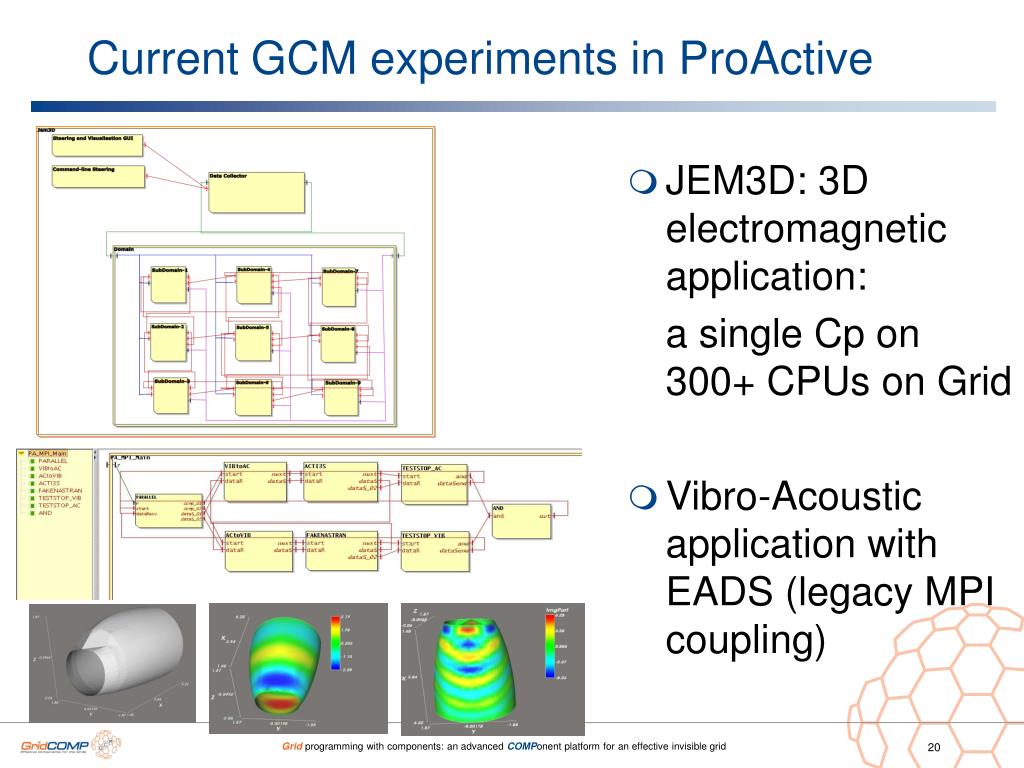

  20. Current GCM experiments in ProActive • JEM3D: 3D electromagnetic application: a single Cp on 300+ CPUs on Grid • Vibro-Acoustic application with EADS (legacy MPI coupling) Grid programming with components: an advanced COMPonent platform for an effective invisible grid

  21. Applications: successfully executed • GridCOMP use cases • Biometric Identification System • Days Sales Outstanding • The mean time that clients delay to pay an invoice • EDR processing • Extended Data Record, extract, transform and Load in database large amount of data • WingDesign • Computes the aerodynamic wing performance for a given configuration Grid programming with components: an advanced COMPonent platform for an effective invisible grid

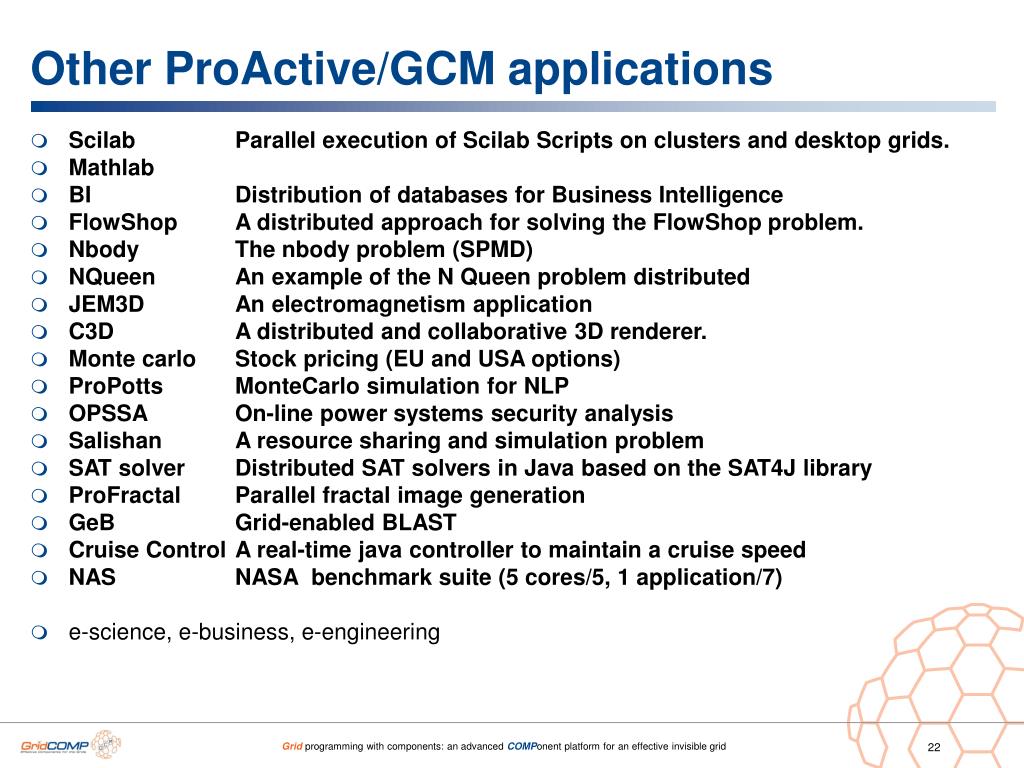

  22. Other ProActive/GCM applications • Scilab Parallel execution of Scilab Scripts on clusters and desktop grids. • Mathlab • BI Distribution of databases for Business Intelligence • FlowShop A distributed approach for solving the FlowShop problem. • Nbody The nbody problem (SPMD) • NQueen An example of the N Queen problem distributed • JEM3D An electromagnetism application • C3D A distributed and collaborative 3D renderer. • Monte carlo Stock pricing (EU and USA options) • ProPotts MonteCarlo simulation for NLP • OPSSA On-line power systems security analysis • Salishan A resource sharing and simulation problem • SAT solver Distributed SAT solvers in Java based on the SAT4J library • ProFractal Parallel fractal image generation • GeB Grid-enabled BLAST • Cruise Control A real-time java controller to maintain a cruise speed • NAS NASA benchmark suite (5 cores/5, 1 application/7) • e-science, e-business, e-engineering Grid programming with components: an advanced COMPonent platform for an effective invisible grid

  23. Distribution model • Open Source • Yes, the source code is under GPL version 2 licence. • Close Source • No • Commercial support • Yes, the ActiveEon company provides commercial support for the ProActive/GCM middleware. Grid programming with components: an advanced COMPonent platform for an effective invisible grid

  24. ActiveEon Grid programming with components: an advanced COMPonent platform for an effective invisible grid

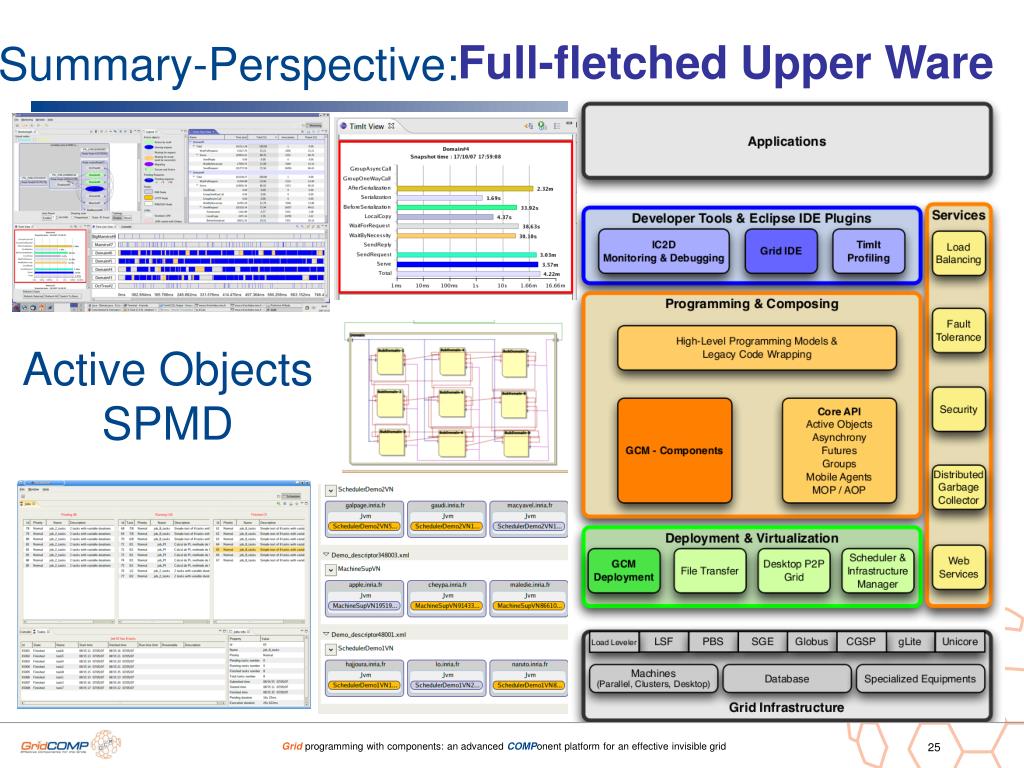

  25. Summary-Perspective: Full-fletched Upper Ware Active Objects SPMD Grid programming with components: an advanced COMPonent platform for an effective invisible grid

  26. Grid programming with components: an advanced COMPonent platform for an effective invisible grid

  27. Grid programming with components: an advanced COMPonent platform for an effective invisible grid

  28. Grid programming with components: an advanced COMPonent platform for an effective invisible grid

  29. Formof GCM Interoperability Deployment • Just an XML Schema: Specifies the deployment of the application Virtual Nodes onto the infrastructure (machine, OS, protocols, schedulers, etc.) • Example: EGEE gLite schema: Grid programming with components: an advanced COMPonent platform for an effective invisible grid

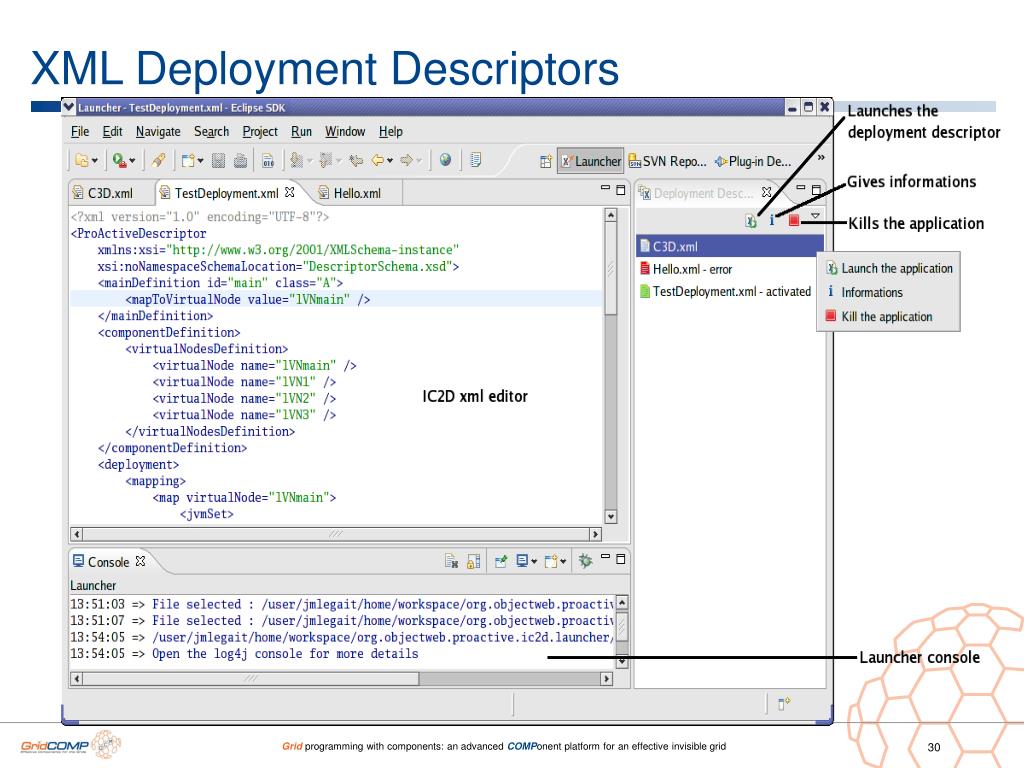

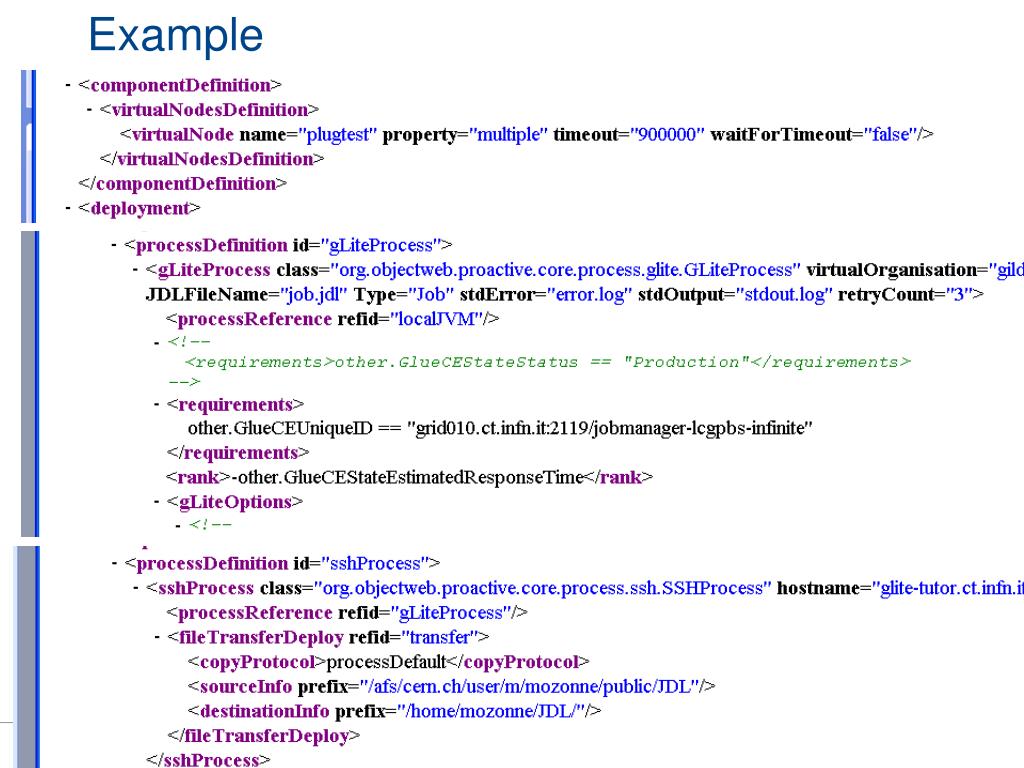

  30. XML Deployment Descriptors Grid programming with components: an advanced COMPonent platform for an effective invisible grid

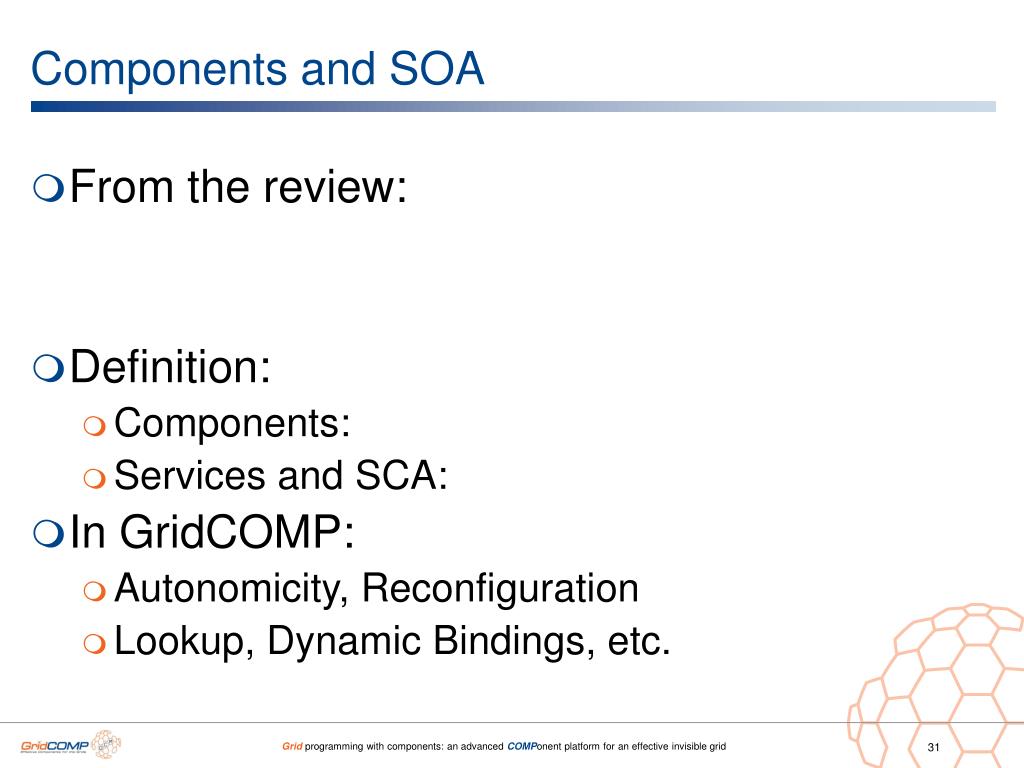

  31. Components and SOA • From the review: • Definition: • Components: • Services and SCA: • In GridCOMP: • Autonomicity, Reconfiguration • Lookup, Dynamic Bindings, etc. Grid programming with components: an advanced COMPonent platform for an effective invisible grid

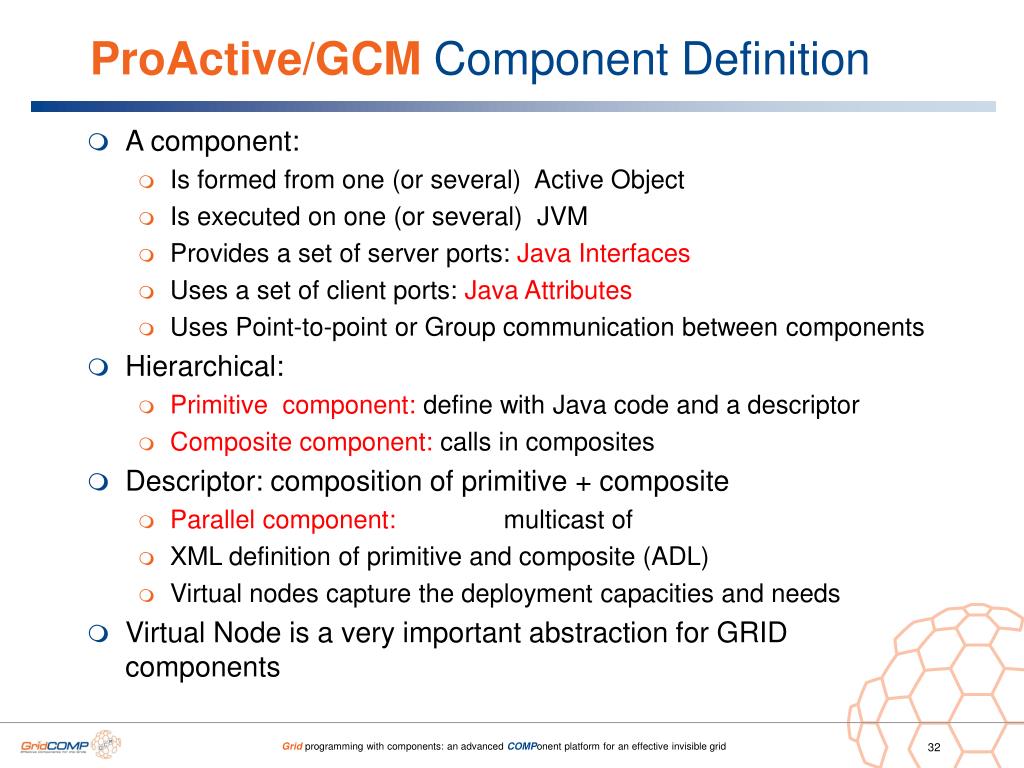

  32. ProActive/GCM Component Definition • A component: • Is formed from one (or several) Active Object • Is executed on one (or several) JVM • Provides a set of server ports: Java Interfaces • Uses a set of client ports: Java Attributes • Uses Point-to-point or Group communication between components • Hierarchical: • Primitive component: define with Java code and a descriptor • Composite component: calls in composites • Descriptor: composition of primitive + composite • Parallel component: multicast of • XML definition of primitive and composite (ADL) • Virtual nodes capture the deployment capacities and needs • Virtual Node is a very important abstraction for GRID components Grid programming with components: an advanced COMPonent platform for an effective invisible grid

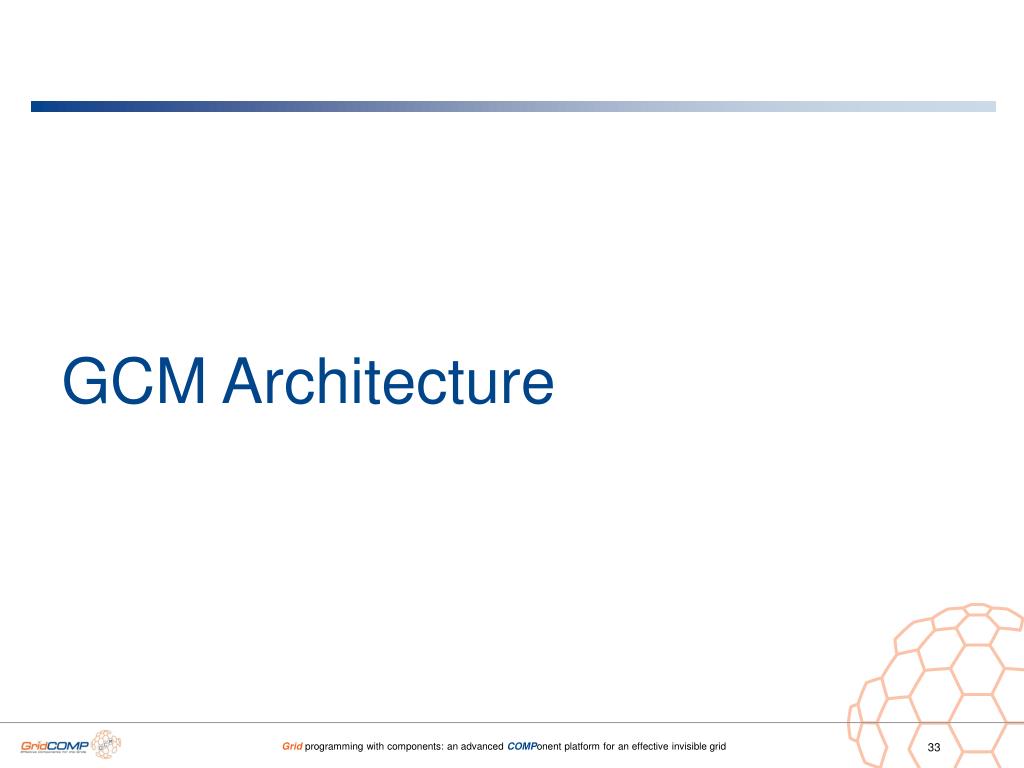

  33. GCM Architecture Grid programming with components: an advanced COMPonent platform for an effective invisible grid

  34. GCM Technical Structure • Component Specification as an XML schema or DTD • Run-Time API defined in several languages C, Java • Description and Information for Deployment (XML DD, Virtual Nodes, File Transfer, …) • Packaging described as an XML schema Grid programming with components: an advanced COMPonent platform for an effective invisible grid

  35. Main Technical Activities --- Objectives • WP 2, Task 2.1: Primitive Component Programming • WP 2, Task 2.2: Legacy Code Wrapping, Interoperability • WP 2, Task 2.3: Composition, Composite, and Deployment For memory: • Autonomic features (WP 3) • IDE for GCM, Composition GUI (WP 4) Grid programming with components: an advanced COMPonent platform for an effective invisible grid

  36. Collective Interfaces Grid programming with components: an advanced COMPonent platform for an effective invisible grid

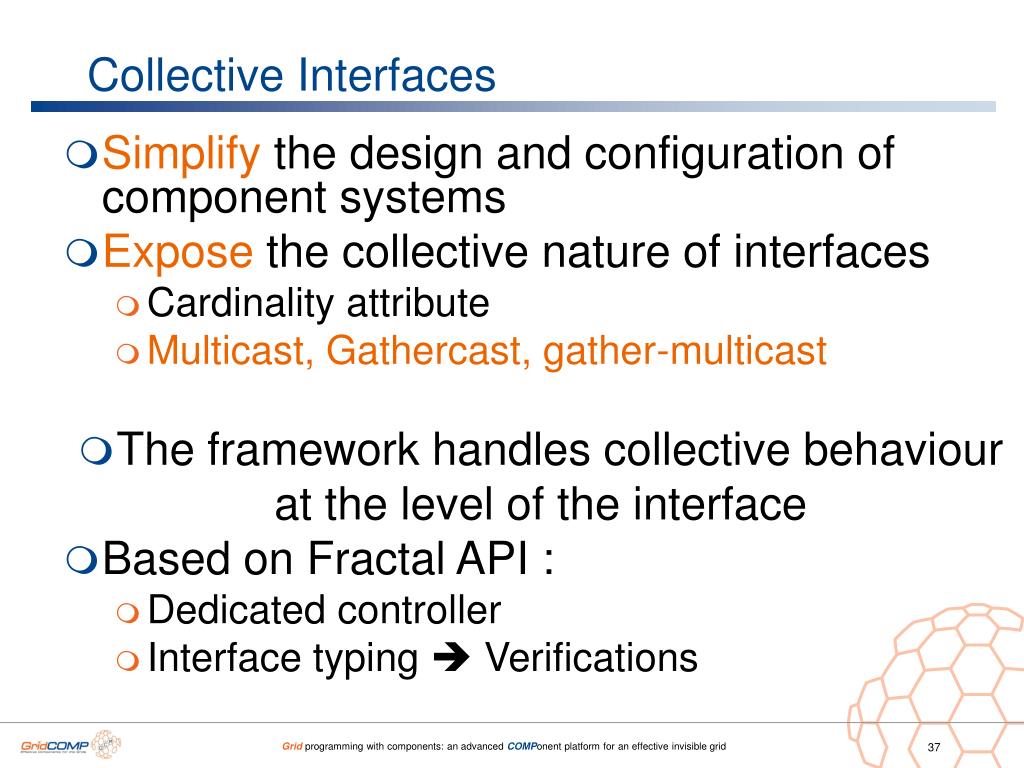

  37. Collective Interfaces • Simplify the design and configuration of component systems • Expose the collective nature of interfaces • Cardinality attribute • Multicast, Gathercast, gather-multicast • The framework handles collective behaviour at the level of the interface • Based on Fractal API : • Dedicated controller • Interface typing  Verifications Grid programming with components: an advanced COMPonent platform for an effective invisible grid

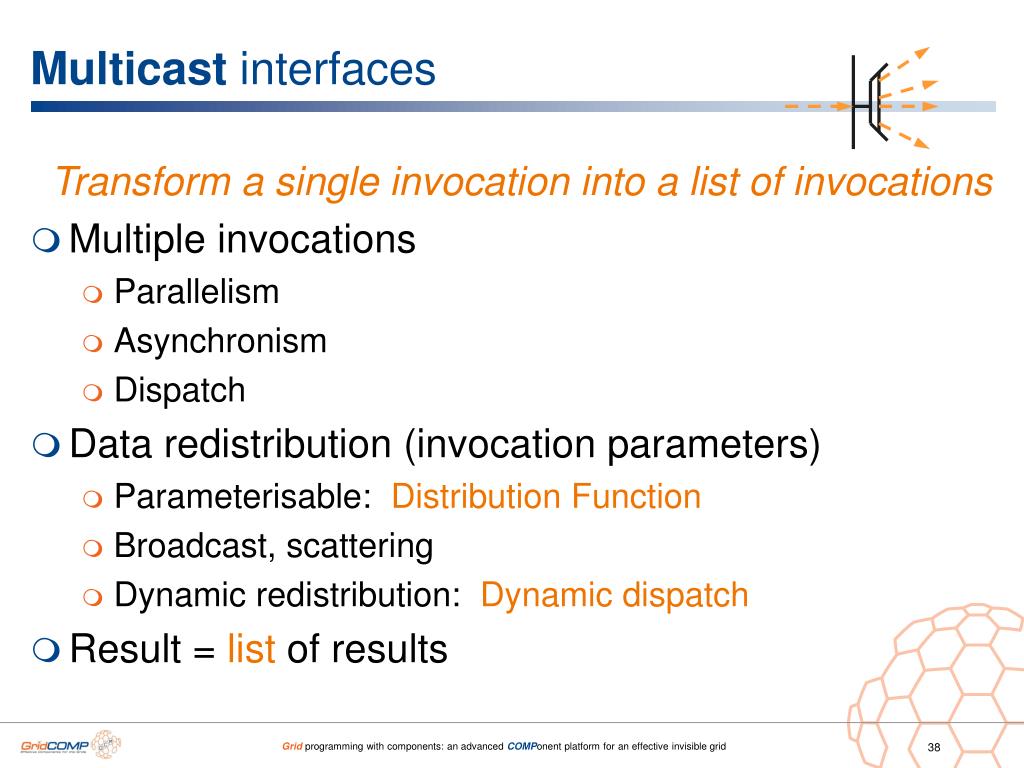

  38. Multicast interfaces Transform a single invocation into a list of invocations • Multiple invocations • Parallelism • Asynchronism • Dispatch • Data redistribution (invocation parameters) • Parameterisable: Distribution Function • Broadcast, scattering • Dynamic redistribution: Dynamic dispatch • Result = list of results Grid programming with components: an advanced COMPonent platform for an effective invisible grid

  39. Multicast interfaces Grid programming with components: an advanced COMPonent platform for an effective invisible grid

  40. Multicast interfaces • Results as lists of results • Invocation parameters may also be distributed from lists Grid programming with components: an advanced COMPonent platform for an effective invisible grid

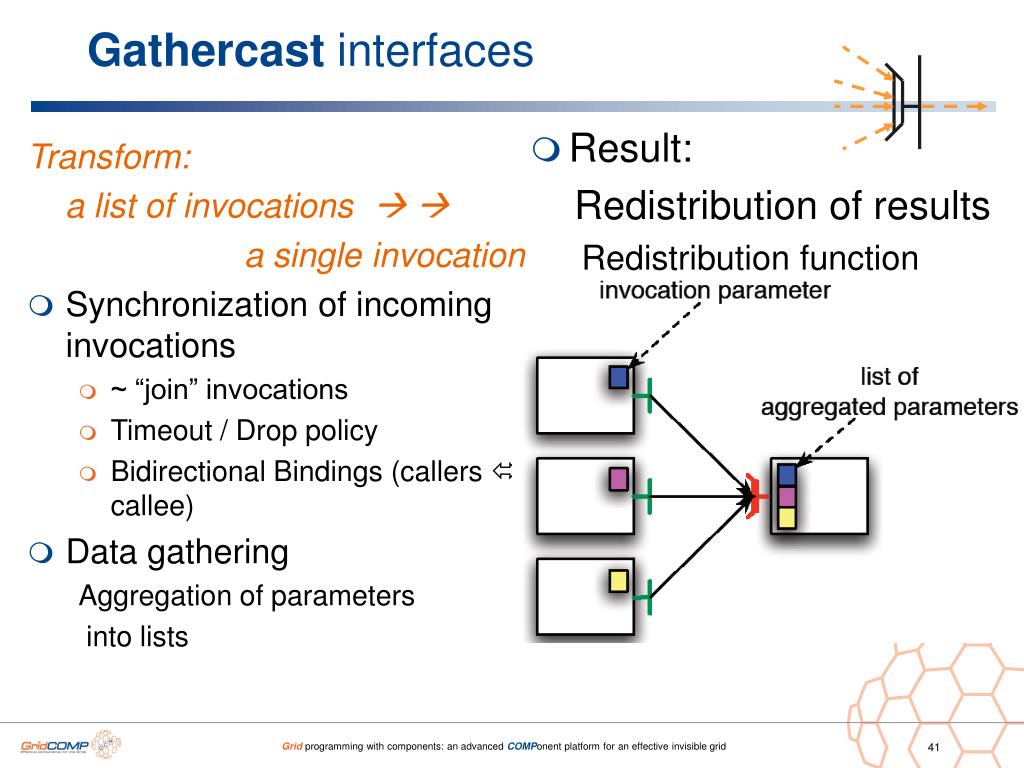

  41. Transform: a list of invocations   a single invocation Synchronization of incoming invocations ~ “join” invocations Timeout / Drop policy Bidirectional Bindings (callers  callee) Data gathering Aggregation of parameters into lists Result: Redistribution of results Redistribution function Gathercast interfaces Grid programming with components: an advanced COMPonent platform for an effective invisible grid

  42. Industrial exploitation : ActiveEon start-up • Support and Services around ProActive+GCM • Use standard GCM deployment for all developments • Use standard GCM programming model to develop components, and build component applications • Collaboration with GridSystems Grid programming with components: an advanced COMPonent platform for an effective invisible grid

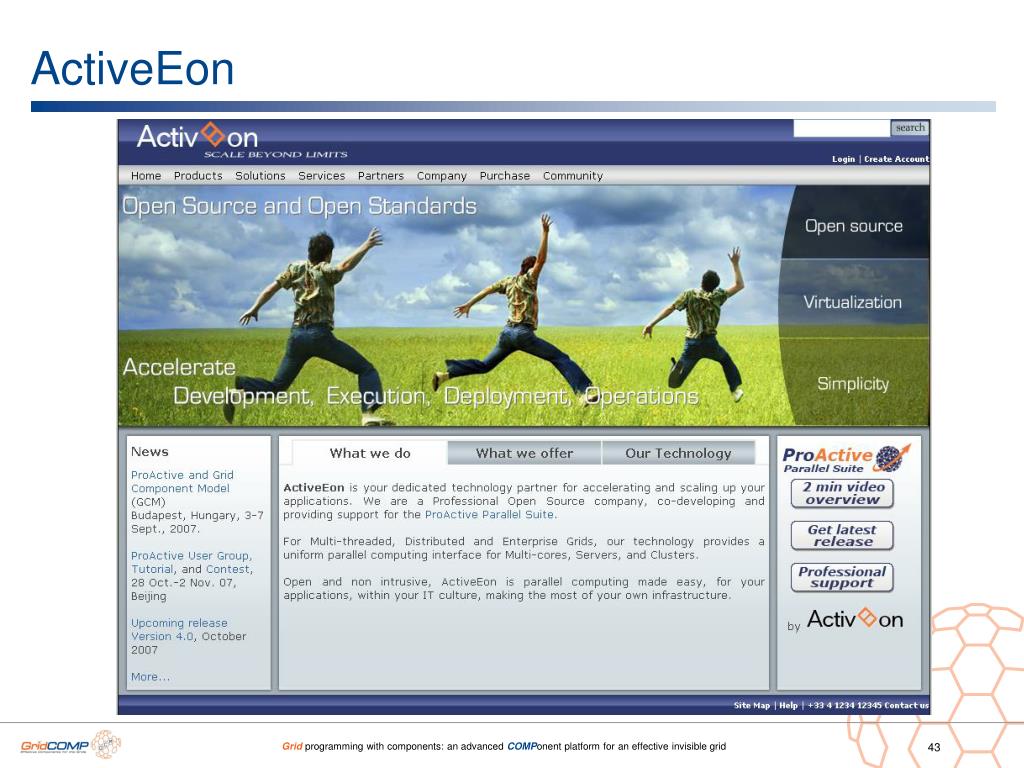

  43. ActiveEon Grid programming with components: an advanced COMPonent platform for an effective invisible grid

  44. ActiveEon Grid programming with components: an advanced COMPonent platform for an effective invisible grid

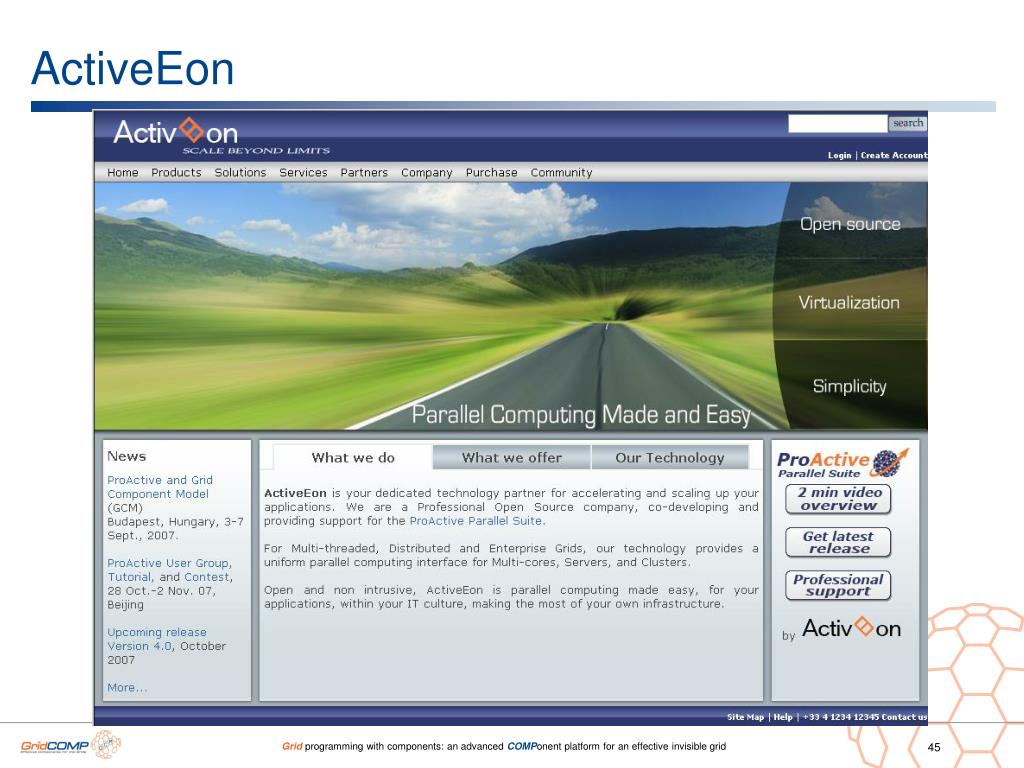

  45. ActiveEon Grid programming with components: an advanced COMPonent platform for an effective invisible grid

  46. More to come on Friday: ETSI TC Grid Meeting

  47. Example Grid programming with components: an advanced COMPonent platform for an effective invisible grid

  48. Apologies for being tough with refusal of August 30th Evaluation Date Samuel, August 30th 2007, 19H07, 3.7 Kg Grid programming with components: an advanced COMPonent platform for an effective invisible grid
