Visual Aspect-Oriented Programming ofResource Constrained Real-Time Embedded Systemsusing the Port-Based Object Model of Computation

Thomas W. Carley

Dept. of Electrical & Computer Engineering

University of Maryland, College Park

[email protected]

David B. Stewart

Embedded Research Solutions, LLC

http://www.embedded-zone.com

[email protected]


Introduction
Introduction

  • Resource Constrained Real-Time Embedded Systems (RCES)

  • Port-Based Object Model of Computation (PBO MoC)

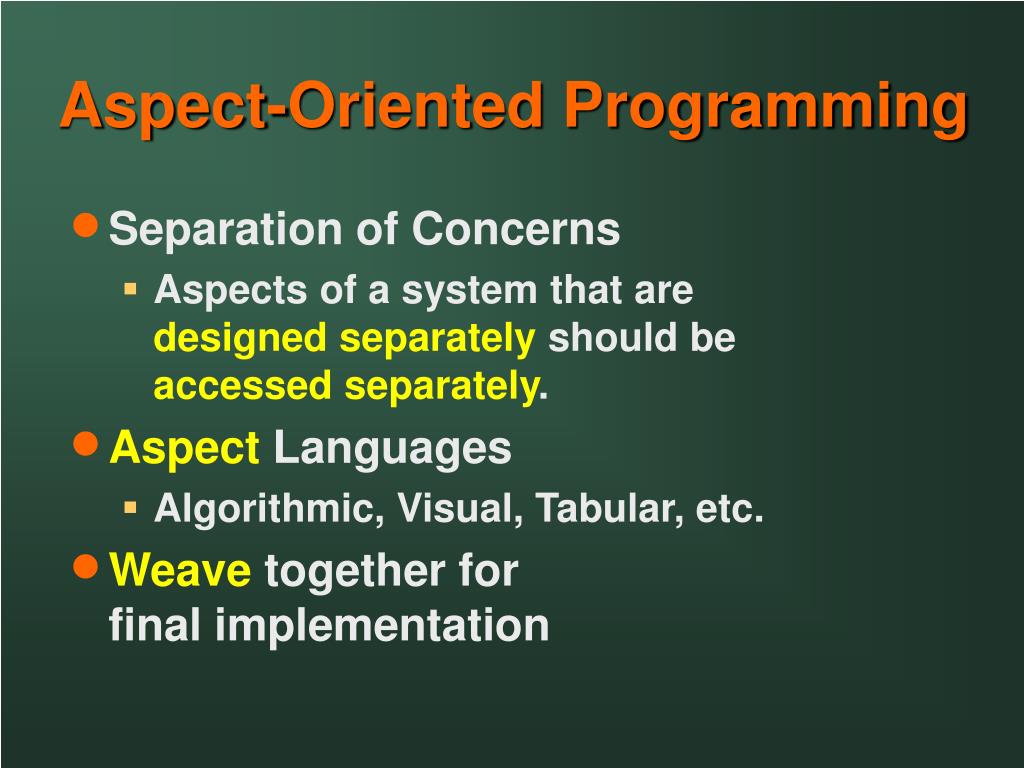

  • Separation of Concerns thru Aspect-Oriented Programming (AOP)

  • Domain Specific Visual Languages (DSVL) for some Aspects


Embedded systems
Embedded Systems

  • Definition

    • Computer system embedded in another system.

  • Examples

    • Personal: watch, pager, cell phone, PDA, smart card.

    • Home: TV, VCR, set-top box, stereo, appliance, security.

    • Transportation: automobile, train, plane, traffic control.

    • Industrial: factory robot, process control, safety monitor.

    • Military: missile control, remote sensing, communication.

    • Medical: biometric monitor, pace maker, artificial limb.


Real time systems
Real-Time Systems

  • A late answer is a wrong answer

  • Example: Beer Bottling Plant


Embedded system constraints

size

cost

weight

power

safety

Embedded System Constraints

  • Physical Constraints

  • Resulting Resource Constraints

    • Small & Slow processors

    • Limited memory

    • Antiquated development techniques



Port based object pbo moc
Port-Based Object (PBO) MoC*

  • Domain Specific Model for RCES

    • Formal Syntax

    • Formal Semantics

    • Analysis for Real-Time Predictability

  • Component Based Methodology

  • PBO Framework

    • Implementation of PBO Model

    • Based on hardware

* David B. Stewart. Software Components for Real-Time. Embedded Systems Programming, Dec. 2000, vol. 13, no. 13


Pbo component

configuration constants

Port-Based

Object

input

ports

output

ports

resource ports

(communication with sensors & actuators)

PBO Component


Pbo component framework interface

PBO

Framework

PBO

init

on

cycle

off

term

PBO Component & Framework Interface


Pbo moc semantics

NOT

CREATED

spawn

term

> in-consts

init

> out-consts

term

OFF

PBO

> out-consts

init

Legend

on

reinit

> in-vars

on

state of task

> in-consts

> out-vars

call specified

method of object

out-vars >

on

cycle

off

out-vars >

block until specified

event occurs

out-vars >

reinit

Aperiodic

Periodic

off

signal

ON

cycle

xxx >: copy from local into

global state variable table

term

> in/out >

sync

term

off

clock

interrupt

> in-vars

> xxx: copy from global into

local state variable table

off

off

wakeup

out-vars >

out-vars >

external

signal

PBO MoC Semantics


Example pbo system car cruise control

accel

engine

wheels

split-pm

control

brake

ccui

dy/dx

dashboard

position

Example PBO Systemcar cruise control


Pbo implementation using traditional techniques

/* =======================================================================// Echidna(tm) RTExec 1.0: FPBO Module// -----------------------------------------------------------------------// Cruise control.// If cruise control is on, this module calculates the force needed// to maintain the reference velocity. If cruise control is off// or the user presses the brakes (override), then this module// passes the direct force through to splitpm.//// State variable table:// INVAR: user_ref v_mez v_ref//// OUTVAR: v_ref f_direct//// ======================================================================= *//* *********************************************************************** // Include files// *********************************************************************** */#include <btypes.h>#include <fpbo.h>/* *********************************************************************** // Local table 'controlLocal_t' and module definition required by Echidna// *********************************************************************** */typedef struct { // Pointers to SVARs go here bool_t *user_ref; // cruise control ON or OFF uint16_t *v_mez; // measured velocity uint16_t *v_ref; // reference velocity for cruise ctrl int16_t *f_direct; // force for acceleration // Pointers to local variables go here etimeAbs_t time_new; etimeAbs_t time_old;} controlLocal_t; // Generate all of the function headers and structures for controlFPBO_MODULE(control);/* *********************************************************************** // FPBO Functions// *********************************************************************** */fpboStatus_t controlInit(control_t *fpbo) { // Map local SVAR pointers to SVARs in the global table fpbo->local->user_ref = svarXlateValue(&fpbo->svartable, "user_ref", bool_t); fpbo->local->v_mez = svarXlateValue(&fpbo->svartable, "v_mez", uint16_t); fpbo->local->v_ref = svarXlateValue(&fpbo->svartable, "v_ref", uint16_t); fpbo->local->f_direct = svarXlateValue(&fpbo->svartable, "f_direct", int16_t);

return FPBO_STATUS_CONTINUE;}fpboStatus_t controlReinit(control_t *fpbo) { // This function intentionally left blank. return FPBO_STATUS_CONTINUE;}fpboStatus_t controlOn(control_t *fpbo) { *fpbo->local->f_direct = 0; *fpbo->local->v_ref = 0; etimeClock(&fpbo->local->time_new); return FPBO_STATUS_CONTINUE;}fpboStatus_t controlCycle(control_t *fpbo) { bool_t *user_ref = fpbo->local->user_ref; uint16_t *v_mez = fpbo->local->v_mez; uint16_t *v_ref = fpbo->local->v_ref; int16_t *f_direct = fpbo->local->f_direct; etimeAbs_t *time_new = &fpbo->local->time_new; etimeAbs_t *time_old = &fpbo->local->time_old; //save old time *time_old = *time_new; // get new time etimeClock(time_new); // calculate force needed to maintain ref velocity if cruise is enabled if (*user_ref == FALSE) { // cruise disabled *f_direct = *v_mez / etimeDeltaT(*time_new, *time_old); *v_ref = *v_mez; } else { // cruise enabled *f_direct = (*v_ref - *v_mez) / etimeDeltaT(*time_new, *time_old); } return FPBO_STATUS_CONTINUE;}fpboStatus_t controlSync(control_t *fpbo) { // Define function if FPBO tasktype is aperiodic return FPBO_STATUS_CONTINUE;}fpboStatus_t controlOff(control_t *fpbo) { return FPBO_STATUS_OFF;}fpboStatus_t controlTerm(control_t *fpbo) { return FPBO_STATUS_TERM;}

PBO

Implementation

/* =======================================================================// Echidna(tm) RTExec 1.0: FPBO Module// -----------------------------------------------------------------------// Cruise control.// If cruise control is on, this module calculates the force needed// to maintain the reference velocity. If cruise control is off// or the user presses the brakes (override), then this module// passes the direct force through to splitpm.//// State variable table:// INVAR: user_ref v_mez v_ref//// OUTVAR: v_ref f_direct//// ======================================================================= *//* *********************************************************************** // Include files// *********************************************************************** */#include <btypes.h>#include <fpbo.h>/* *********************************************************************** // Local table 'controlLocal_t' and module definition required by Echidna// *********************************************************************** */typedef struct { // Pointers to SVARs go here bool_t *user_ref; // cruise control ON or OFF uint16_t *v_mez; // measured velocity uint16_t *v_ref; // reference velocity for cruise ctrl int16_t *f_direct; // force for acceleration // Pointers to local variables go here etimeAbs_t time_new; etimeAbs_t time_old;} controlLocal_t; // Generate all of the function headers and structures for controlFPBO_MODULE(control);/* *********************************************************************** // FPBO Functions// *********************************************************************** */fpboStatus_t controlInit(control_t *fpbo) { // Map local SVAR pointers to SVARs in the global table fpbo->local->user_ref = svarXlateValue(&fpbo->svartable, "user_ref", bool_t); fpbo->local->v_mez = svarXlateValue(&fpbo->svartable, "v_mez", uint16_t); fpbo->local->v_ref = svarXlateValue(&fpbo->svartable, "v_ref", uint16_t); fpbo->local->f_direct = svarXlateValue(&fpbo->svartable, "f_direct", int16_t);

return FPBO_STATUS_CONTINUE;}

fpboStatus_t controlReinit(control_t *fpbo) { // This function intentionally left blank. return FPBO_STATUS_CONTINUE;}fpboStatus_t controlOn(control_t *fpbo) { *fpbo->local->f_direct = 0; *fpbo->local->v_ref = 0; etimeClock(&fpbo->local->time_new); return FPBO_STATUS_CONTINUE;}fpboStatus_t controlCycle(control_t *fpbo) { bool_t *user_ref = fpbo->local->user_ref; uint16_t *v_mez = fpbo->local->v_mez; uint16_t *v_ref = fpbo->local->v_ref; int16_t *f_direct = fpbo->local->f_direct; etimeAbs_t *time_new = &fpbo->local->time_new; etimeAbs_t *time_old = &fpbo->local->time_old; //save old time *time_old = *time_new; // get new time etimeClock(time_new); // calculate force needed to maintain ref velocity if cruise is enabled if (*user_ref == FALSE) { // cruise disabled *f_direct = *v_mez / etimeDeltaT(*time_new, *time_old); *v_ref = *v_mez; } else { // cruise enabled *f_direct = (*v_ref - *v_mez) / etimeDeltaT(*time_new, *time_old); } return FPBO_STATUS_CONTINUE;}fpboStatus_t controlSync(control_t *fpbo) { // Define function if FPBO tasktype is aperiodic return FPBO_STATUS_CONTINUE;}fpboStatus_t controlOff(control_t *fpbo) { return FPBO_STATUS_OFF;}fpboStatus_t controlTerm(control_t *fpbo) { return FPBO_STATUS_TERM;}

PBO

Framework

PBO

Communication

PBO Implementationusing Traditional Techniques

Control Module


Pbo system configuration using traditional techniques

/* =======================================================================// Echidna(tm) RTExec 1.0: Main FPBO Module// -----------------------------------------------------------------------// Automobile Speed Control.// Takes input from wheel position resolver, cruise control user// interface, brake pedal, and accelerator pedal. Outputs to // engine, wheels, speedometer, and odometer. Applies different// forces depending on whether cruise control is on or off.//// State variable table:// INVAR: none//// OUTVAR: none//// ======================================================================= *//* *********************************************************************** // Include files// *********************************************************************** */#include <stdlib.h>#include <etime.h>#include <fpbo.h>#include <svar.h>#include <vt.h>/* *********************************************************************** // Internal macro definitions// *********************************************************************** */#define _PERIOD_MAIN ETIME_REL_INFINITY#define _PERIOD_ACCEL 1000 // x0.1 ms#define _PERIOD_BRAKE 1000 // x0.1 ms#define _PERIOD_CCUI 1000 // x0.1 ms#define _PERIOD_POSITION 1000 // x0.1 ms#define _PERIOD_SPLITPM 1000 // x0.1 ms#define _PERIOD_CONTROL 1000 // x0.1 ms#define _PERIOD_TDERIV 1000 // x0.1 ms#define _PERIOD_DASHBOARD 1000 // x0.1 ms#define _PERIOD_ENGINE 1000 // x0.1 ms#define _PERIOD_WHEELS 1000 // x0.1 ms

/* ***********************************************************************

// Local table 'mainLocal_t' and module definition required by Echidna

// *********************************************************************** */

typedef struct {

// Pointers to SVARs go here

// Pointers to local variables go here

fpboSBS_t *sbs;

} mainLocal_t;

// Generate all of the function headers and structures for main

FPBO_MODULE(main);

/* ***********************************************************************

// External definition of modules for main to create

// *********************************************************************** */

FPBO_INCLUDE(accel);

FPBO_INCLUDE(brake);

FPBO_INCLUDE(ccui);

FPBO_INCLUDE(position);

FPBO_INCLUDE(tderiv);

FPBO_INCLUDE(control);

FPBO_INCLUDE(splitpm);

FPBO_INCLUDE(engine);

FPBO_INCLUDE(wheels);

FPBO_INCLUDE(dashboard);

/* ***********************************************************************

// Pointers to FPBOs for main to create

// *********************************************************************** */

fpbo_t *ccui;

fpbo_t *position;

fpbo_t *tderiv;

fpbo_t *control;

fpbo_t *dashboard;

/* ***********************************************************************

// Configurations for FPBOs for main to create

// *********************************************************************** */

const fpboCfg_t dashboardFpboCfg = {

NULL, // next fpboCfg_t

NULL, // list of aliases

&dashboardMod, // fpboMod (from FPBO_INCLUDE)

"dashboard", // name of fpbo

PERIODIC, // tasktype (PERIODIC, APERIODIC)

_PERIOD_DASHBOARD // period

};

const fpboCfg_t controlFpboCfg = {

&dashboardFpboCfg, // next fpboCfg_t

NULL, // list of aliases

&controlMod, // fpboMod (from FPBO_INCLUDE)

"control", // name of fpbo

PERIODIC, // tasktype (PERIODIC, APERIODIC)

_PERIOD_CONTROL // period

};

const fpboCfg_t tderivFpboCfg = {

&controlFpboCfg, // next fpboCfg_t

NULL, // list of aliases

&tderivMod, // fpboMod (from FPBO_INCLUDE)

"tderiv", // name of fpbo

PERIODIC, // tasktype (PERIODIC, APERIODIC)

_PERIOD_TDERIV // period

};

const fpboCfg_t positionFpboCfg = {

&tderivFpboCfg, // next fpboCfg_t

NULL, // list of aliases

&positionMod, // fpboMod (from FPBO_INCLUDE)

"position", // name of fpbo

PERIODIC, // tasktype (PERIODIC, APERIODIC)

_PERIOD_POSITION // period

};

const fpboCfg_t ccuiFpboCfg = {

&positionFpboCfg, // next fpboCfg_t

NULL, // list of aliases

&ccuiMod, // fpboMod (from FPBO_INCLUDE)

"ccui", // name of fpbo

PERIODIC, // tasktype (PERIODIC, APERIODIC)

_PERIOD_CCUI // period

};

const fpboCfg_t mainFpboCfg = {

&ccuiFpboCfg, // next fpboCfg_t

NULL, // list of aliases

&mainMod, // fpboMod (from FPBO_INCLUDE)

"main", // name of fpbo

PERIODIC, // tasktype (PERIODIC, APERIODIC)

_PERIOD_MAIN // period

};

/* ***********************************************************************

// Linked list of FPBO configurations for main to create

// *********************************************************************** */

fpboCfg_t *cfglist = &mainFpboCfg; // points to header of list (main)

/* ***********************************************************************

// SVAR Attributes for main to place in global SVAR table

// *********************************************************************** */

const svarAttrib_t f_brake = {

"f_brake", // name

VT_UINT16_T, // type

1 // number of elements

};

const svarAttrib_t user_ref = {

"user_ref", // name

VT_BOOL_T, // type

1 // number of elements

};

const svarAttrib_t v_mez = {

"v_mez", // name

VT_UINT16_T, // type

1 // number of elements

};

const svarAttrib_t v_ref = {

"v_ref", // name

VT_UINT16_T, // type

1 // number of elements

};

const svarAttrib_t f_direct = {

"f_direct", // name

VT_INT16_T, // type

1 // number of elements

};

const svarAttrib_t x_mez = {

"x_mez", // name

VT_UINT32_T, // type

1 // number of elements

};

/* ***********************************************************************

// Array of SVARs for main to place in global SVAR table

// *********************************************************************** */

svarVar_t mainSvar[] = {

{&f_brake, NULL}, // {svarAttrib_t * attrib, void *value}

{&user_ref, NULL}, // {svarAttrib_t * attrib, void *value}

{&v_mez, NULL}, // {svarAttrib_t * attrib, void *value}

{&v_ref, NULL}, // {svarAttrib_t * attrib, void *value}

{&f_direct, NULL}, // {svarAttrib_t * attrib, void *value}

{&x_mez, NULL} // {svarAttrib_t * attrib, void *value}

};

/* ***********************************************************************

// FPBO Functions

// *********************************************************************** */

fpboStatus_t mainInit(main_t *fpbo) {

fpboSBS_t *sbs = fpbo->local->sbs;

svarGlobalTable_t *globt;

// Create the SVAR table

globt = svarCreate(mainSvar);

svarAttach(globt, &fpbo->svartable, fpbo->cfg->aliaslist);

// Initialize the subsystem configuration

sbs = fpboInitSBS(cfglist, globt);

// Create all FPBOs

ccui = fpboCreate(sbs, "ccui");

position = fpboCreate(sbs, "position");

tderiv = fpboCreate(sbs, "tderiv");

control = fpboCreate(sbs, "control");

dashboard = fpboCreate(sbs, "dashboard");

return FPBO_STATUS_CONTINUE;

}

// mainReinit is not defined. Default empty definition

fpboStatus_t mainReinit(main_t *fpbo) {

// This function intentionally left blank.

return FPBO_STATUS_CONTINUE;

}

fpboStatus_t mainOn(main_t *fpbo) {

// Turn on all FPBOs

fpboTurnon(ccui);

fpboTurnon(position);

fpboTurnon(tderiv);

fpboTurnon(control);

fpboTurnon(dashboard);

return FPBO_STATUS_CONTINUE;

}

// The mainCycle routine monitors various state variables, and

// can turn modules on and off as necessary to perform dynamic

// reconfiguration.

fpboStatus_t mainCycle(main_t *fpbo) {

return FPBO_STATUS_CONTINUE;

}

fpboStatus_t mainSync(main_t *fpbo) {

// Define function if FPBO tasktype is aperiodic

return FPBO_STATUS_CONTINUE;

}

fpboStatus_t mainOff(main_t *fpbo) {

// Turn off all FPBOs in opposite order of fpboTurnon

fpboTurnoff(dashboard);

fpboTurnoff(control);

fpboTurnoff(tderiv);

fpboTurnoff(position);

fpboTurnoff(ccui);

return FPBO_STATUS_OFF;

}

// cleanup: destroy the svar table that was created in mainInit

fpboStatus_t mainTerm(main_t *fpbo) {

// Destroy all FPBOs in opposite order of fpboCreate

fpboDestroy(dashboard);

fpboDestroy(control);

fpboDestroy(tderiv);

fpboDestroy(position);

fpboDestroy(ccui);

// Destroy the SVAR Table

svarDestroy(fpbo->local->sbs->globt);

return FPBO_STATUS_TERM;

}

/* =======================================================================// Echidna(tm) RTExec 1.0: Main FPBO Module// -----------------------------------------------------------------------// Automobile Speed Control.// Takes input from wheel position resolver, cruise control user// interface, brake pedal, and accelerator pedal. Outputs to // engine, wheels, speedometer, and odometer. Applies different// forces depending on whether cruise control is on or off.//// State variable table:// INVAR: none//// OUTVAR: none//// ======================================================================= *//* *********************************************************************** // Include files// *********************************************************************** */#include <stdlib.h>#include <etime.h>#include <fpbo.h>#include <svar.h>#include <vt.h>/* *********************************************************************** // Internal macro definitions// *********************************************************************** */#define _PERIOD_MAIN ETIME_REL_INFINITY#define _PERIOD_ACCEL 1000 // x0.1 ms#define _PERIOD_BRAKE 1000 // x0.1 ms#define _PERIOD_CCUI 1000 // x0.1 ms#define _PERIOD_POSITION 1000 // x0.1 ms#define _PERIOD_SPLITPM 1000 // x0.1 ms#define _PERIOD_CONTROL 1000 // x0.1 ms#define _PERIOD_TDERIV 1000 // x0.1 ms#define _PERIOD_DASHBOARD 1000 // x0.1 ms#define _PERIOD_ENGINE 1000 // x0.1 ms#define _PERIOD_WHEELS 1000 // x0.1 ms

/* ***********************************************************************

// Local table 'mainLocal_t' and module definition required by Echidna

// *********************************************************************** */

typedef struct {

// Pointers to SVARs go here

// Pointers to local variables go here

fpboSBS_t *sbs;

} mainLocal_t;

// Generate all of the function headers and structures for main

FPBO_MODULE(main);

/* ***********************************************************************

// External definition of modules for main to create

// *********************************************************************** */

FPBO_INCLUDE(accel);

FPBO_INCLUDE(brake);

FPBO_INCLUDE(ccui);

FPBO_INCLUDE(position);

FPBO_INCLUDE(tderiv);

FPBO_INCLUDE(control);

FPBO_INCLUDE(splitpm);

FPBO_INCLUDE(engine);

FPBO_INCLUDE(wheels);

FPBO_INCLUDE(dashboard);

/* ***********************************************************************

// Pointers to FPBOs for main to create

// *********************************************************************** */

fpbo_t *ccui;

fpbo_t *position;

fpbo_t *tderiv;

fpbo_t *control;

fpbo_t *dashboard;

/* ***********************************************************************

// Configurations for FPBOs for main to create

// *********************************************************************** */

const fpboCfg_t dashboardFpboCfg = {

NULL, // next fpboCfg_t

NULL, // list of aliases

&dashboardMod, // fpboMod (from FPBO_INCLUDE)

"dashboard", // name of fpbo

PERIODIC, // tasktype (PERIODIC, APERIODIC)

_PERIOD_DASHBOARD // period

};

const fpboCfg_t controlFpboCfg = {

&dashboardFpboCfg, // next fpboCfg_t

NULL, // list of aliases

&controlMod, // fpboMod (from FPBO_INCLUDE)

"control", // name of fpbo

PERIODIC, // tasktype (PERIODIC, APERIODIC)

_PERIOD_CONTROL // period

};

const fpboCfg_t tderivFpboCfg = {

&controlFpboCfg, // next fpboCfg_t

NULL, // list of aliases

&tderivMod, // fpboMod (from FPBO_INCLUDE)

"tderiv", // name of fpbo

PERIODIC, // tasktype (PERIODIC, APERIODIC)

_PERIOD_TDERIV // period

};

const fpboCfg_t positionFpboCfg = {

&tderivFpboCfg, // next fpboCfg_t

NULL, // list of aliases

&positionMod, // fpboMod (from FPBO_INCLUDE)

"position", // name of fpbo

PERIODIC, // tasktype (PERIODIC, APERIODIC)

_PERIOD_POSITION // period

};

const fpboCfg_t ccuiFpboCfg = {

&positionFpboCfg, // next fpboCfg_t

NULL, // list of aliases

&ccuiMod, // fpboMod (from FPBO_INCLUDE)

"ccui", // name of fpbo

PERIODIC, // tasktype (PERIODIC, APERIODIC)

_PERIOD_CCUI // period

};

const fpboCfg_t mainFpboCfg = {

&ccuiFpboCfg, // next fpboCfg_t

NULL, // list of aliases

&mainMod, // fpboMod (from FPBO_INCLUDE)

"main", // name of fpbo

PERIODIC, // tasktype (PERIODIC, APERIODIC)

_PERIOD_MAIN // period

};

/* ***********************************************************************

// Linked list of FPBO configurations for main to create

// *********************************************************************** */

fpboCfg_t *cfglist = &mainFpboCfg; // points to header of list (main)

/* ***********************************************************************

// SVAR Attributes for main to place in global SVAR table

// *********************************************************************** */

const svarAttrib_t f_brake = {

"f_brake", // name

VT_UINT16_T, // type

1 // number of elements

};

const svarAttrib_t user_ref = {

"user_ref", // name

VT_BOOL_T, // type

1 // number of elements

};

const svarAttrib_t v_mez = {

"v_mez", // name

VT_UINT16_T, // type

1 // number of elements

};

const svarAttrib_t v_ref = {

"v_ref", // name

VT_UINT16_T, // type

1 // number of elements

};

const svarAttrib_t f_direct = {

"f_direct", // name

VT_INT16_T, // type

1 // number of elements

};

const svarAttrib_t x_mez = {

"x_mez", // name

VT_UINT32_T, // type

1 // number of elements

};

/* ***********************************************************************

// Array of SVARs for main to place in global SVAR table

// *********************************************************************** */

svarVar_t mainSvar[] = {

{&f_brake, NULL}, // {svarAttrib_t * attrib, void *value}

{&user_ref, NULL}, // {svarAttrib_t * attrib, void *value}

{&v_mez, NULL}, // {svarAttrib_t * attrib, void *value}

{&v_ref, NULL}, // {svarAttrib_t * attrib, void *value}

{&f_direct, NULL}, // {svarAttrib_t * attrib, void *value}

{&x_mez, NULL} // {svarAttrib_t * attrib, void *value}

};

/* ***********************************************************************

// FPBO Functions

// *********************************************************************** */

fpboStatus_t mainInit(main_t *fpbo) {

fpboSBS_t *sbs = fpbo->local->sbs;

svarGlobalTable_t *globt;

// Create the SVAR table

globt = svarCreate(mainSvar);

svarAttach(globt, &fpbo->svartable, fpbo->cfg->aliaslist);

// Initialize the subsystem configuration

sbs = fpboInitSBS(cfglist, globt);

// Create all FPBOs

ccui = fpboCreate(sbs, "ccui");

position = fpboCreate(sbs, "position");

tderiv = fpboCreate(sbs, "tderiv");

control = fpboCreate(sbs, "control");

dashboard = fpboCreate(sbs, "dashboard");

return FPBO_STATUS_CONTINUE;

}

// mainReinit is not defined. Default empty definition

fpboStatus_t mainReinit(main_t *fpbo) {

// This function intentionally left blank.

return FPBO_STATUS_CONTINUE;

}

fpboStatus_t mainOn(main_t *fpbo) {

// Turn on all FPBOs

fpboTurnon(ccui);

fpboTurnon(position);

fpboTurnon(tderiv);

fpboTurnon(control);

fpboTurnon(dashboard);

return FPBO_STATUS_CONTINUE;

}

// The mainCycle routine monitors various state variables, and

// can turn modules on and off as necessary to perform dynamic

// reconfiguration.

fpboStatus_t mainCycle(main_t *fpbo) {

return FPBO_STATUS_CONTINUE;

}

fpboStatus_t mainSync(main_t *fpbo) {

// Define function if FPBO tasktype is aperiodic

return FPBO_STATUS_CONTINUE;

}

fpboStatus_t mainOff(main_t *fpbo) {

// Turn off all FPBOs in opposite order of fpboTurnon

fpboTurnoff(dashboard);

fpboTurnoff(control);

fpboTurnoff(tderiv);

fpboTurnoff(position);

fpboTurnoff(ccui);

return FPBO_STATUS_OFF;

}

// cleanup: destroy the svar table that was created in mainInit

fpboStatus_t mainTerm(main_t *fpbo) {

// Destroy all FPBOs in opposite order of fpboCreate

fpboDestroy(dashboard);

fpboDestroy(control);

fpboDestroy(tderiv);

fpboDestroy(position);

fpboDestroy(ccui);

// Destroy the SVAR Table

svarDestroy(fpbo->local->sbs->globt);

return FPBO_STATUS_TERM;

}

PBO

Implementation

PBO

Framework

PBO

Communication

PBO System Configurationusing Traditional Techniques

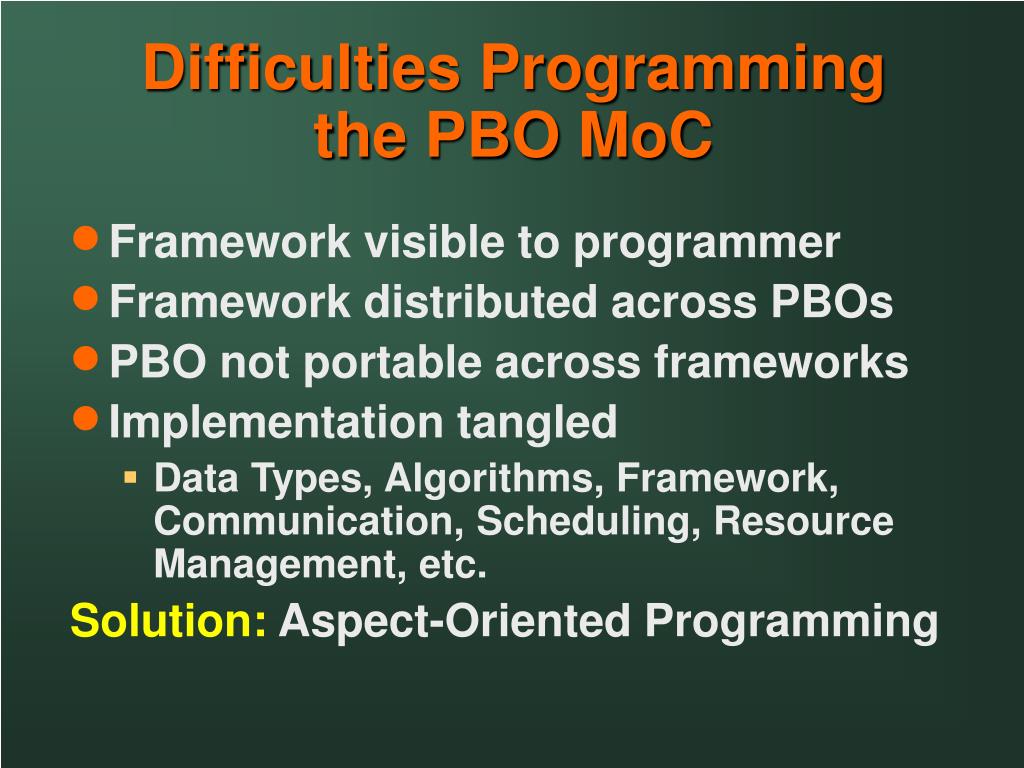

Difficulties programming the pbo moc
Difficulties Programming =======================================================================the PBO MoC

  • Framework visible to programmer

  • Framework distributed across PBOs

  • PBO not portable across frameworks

  • Implementation tangled

    • Data Types, Algorithms, Framework, Communication, Scheduling, Resource Management, etc.

      Solution: Aspect-Oriented Programming


Aspect oriented programming
Aspect-Oriented Programming =======================================================================

  • Separation of Concerns

    • Aspects of a system that are designed separately should be accessed separately.

  • Aspect Languages

    • Algorithmic, Visual, Tabular, etc.

  • Weave together forfinal implementation

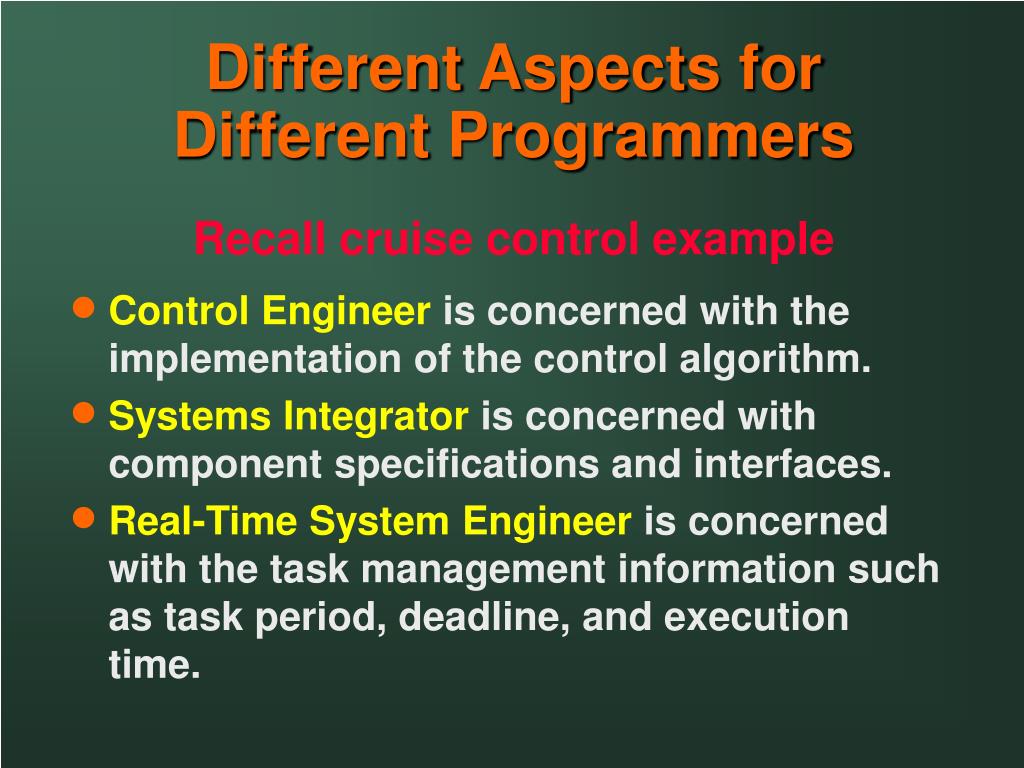

Different aspects for different programmers
Different Aspects for =======================================================================Different Programmers

  • Control Engineer is concerned with the implementation of the control algorithm.

  • Systems Integrator is concerned with component specifications and interfaces.

  • Real-Time System Engineer is concerned with the task management information such as task period, deadline, and execution time.

Recall cruise control example


Aspects for rces pbo moc
Aspects for RCES & PBO MoC =======================================================================

  • PBO Component Design

    • Control Engineer

  • PBO System Design

    • System Integrator

  • PBO Instance Management

    • Real-Time System Engineer

  • Memory Management

  • Power Management

  • Device Driver

  • Error Detection & Handling

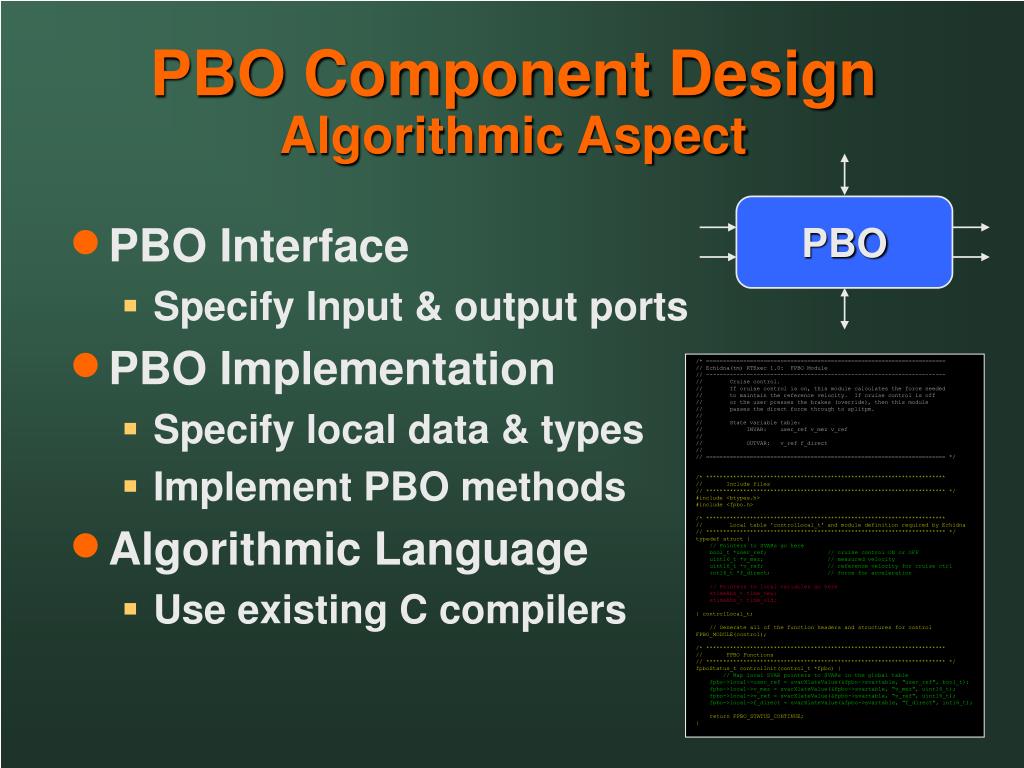

Pbo component design algorithmic aspect

PBO =======================================================================

PBO Component DesignAlgorithmic Aspect

  • PBO Interface

    • Specify Input & output ports

  • PBO Implementation

    • Specify local data & types

    • Implement PBO methods

  • Algorithmic Language

    • Use existing C compilers

/* =======================================================================// Echidna(tm) RTExec 1.0: FPBO Module// -----------------------------------------------------------------------// Cruise control.// If cruise control is on, this module calculates the force needed// to maintain the reference velocity. If cruise control is off// or the user presses the brakes (override), then this module// passes the direct force through to splitpm.//// State variable table:// INVAR: user_ref v_mez v_ref//// OUTVAR: v_ref f_direct//// ======================================================================= *//* *********************************************************************** // Include files// *********************************************************************** */#include <btypes.h>#include <fpbo.h>/* *********************************************************************** // Local table 'controlLocal_t' and module definition required by Echidna// *********************************************************************** */typedef struct { // Pointers to SVARs go here bool_t *user_ref; // cruise control ON or OFF uint16_t *v_mez; // measured velocity uint16_t *v_ref; // reference velocity for cruise ctrl int16_t *f_direct; // force for acceleration // Pointers to local variables go here etimeAbs_t time_new; etimeAbs_t time_old;} controlLocal_t; // Generate all of the function headers and structures for controlFPBO_MODULE(control);/* *********************************************************************** // FPBO Functions// *********************************************************************** */fpboStatus_t controlInit(control_t *fpbo) { // Map local SVAR pointers to SVARs in the global table fpbo->local->user_ref = svarXlateValue(&fpbo->svartable, "user_ref", bool_t); fpbo->local->v_mez = svarXlateValue(&fpbo->svartable, "v_mez", uint16_t); fpbo->local->v_ref = svarXlateValue(&fpbo->svartable, "v_ref", uint16_t); fpbo->local->f_direct = svarXlateValue(&fpbo->svartable, "f_direct", int16_t);

return FPBO_STATUS_CONTINUE;}


Pbo system design visual aspect

accel =======================================================================

engine

wheels

split-pm

control

brake

ccui

dy/dx

dashboard

position

PBO System DesignVisual Aspect

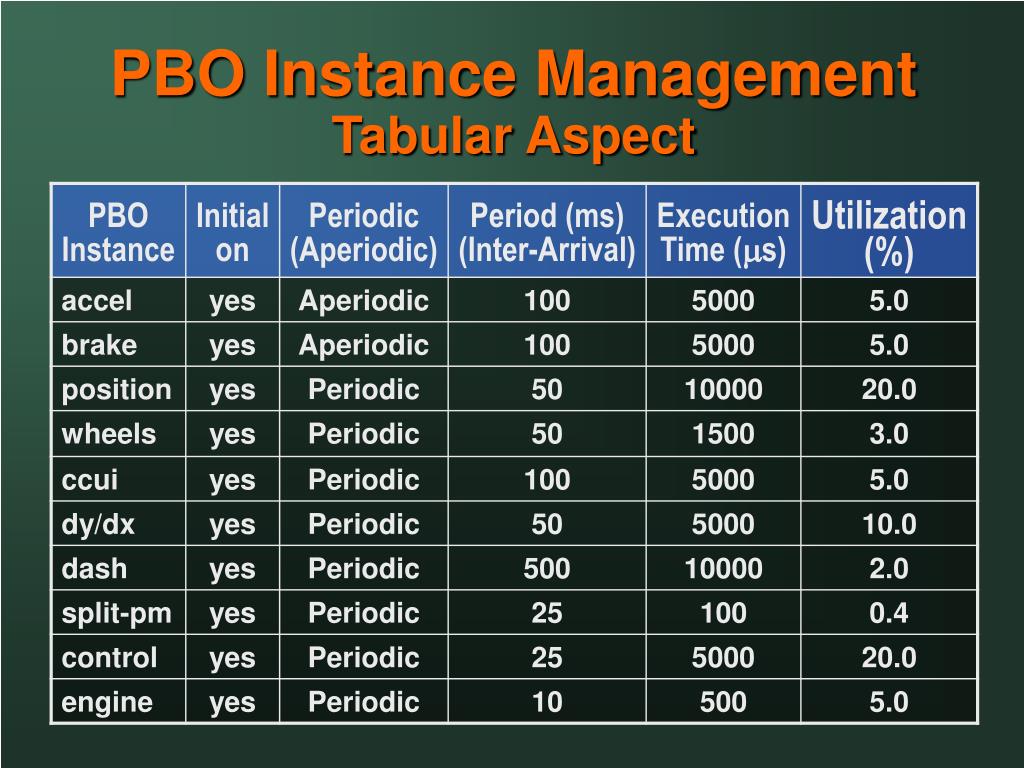

Pbo instance management tabular aspect
PBO Instance Management =======================================================================Tabular Aspect


Aspect weaver
Aspect Weaver =======================================================================

  • Synthesize each PBO Implementation

  • Create PBO Instances

  • Implement PBOCommunication

  • Synthesize PBO Framework

    • Task Scheduler

    • Communication Mechanism


ad
