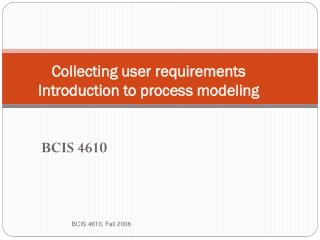

Collecting user requirements introduction to process modeling

Collecting user requirementsIntroduction to process modeling

BCIS 4610

BCIS 4610, Fall 2008


Agenda

Agenda

  • Schedule/Announcements

    • Project proposals

    • HW 1 due

    • HW 2

      • due Oct 1

      • Ch. 7, Pr 11 from your book

      • To be completed in Oracle Designer

  • Process modeling

  • Data flow modeling

  • Introduction to Oracle Designer

BCIS 4610, Fall 2008


System requirements determination

System Requirements Determination

BCIS 4610, Fall 2008


Requirements modeling techniques process flow modeling

Requirements Modeling Techniques: Process/Flow Modeling

  • Activity diagram – Object-Oriented

  • Data flow diagram

  • Flowchart – similar to workflow models, usually more technical, used for 3rd generations languages

  • Sequence diagram – Object-Oriented

  • State machine diagram

  • Workflow models (Process maps)

BCIS 4610, Fall 2008


Workflow diagrams

Workflow diagrams

BCIS 4610, Fall 2008


Workflow diagrams process maps

Workflow Diagrams/Process Maps

  • A workflow model is a visual representation of the flow of work in a business area. Workflow models are used to document how work processes are carried out, and to find opportunities for process improvement.

  • Purpose - Workflow models are used to depict the sequential flow of a work process.

  • A workflow model represents:

    • business activities,

    • the sequential flow of these activities,

    • the persons who perform the work,

    • key business decisions that affect the flow of work, and

    • the start and end points of the process flow.

BCIS 4610, Fall 2008


Key elements

Key elements

  • Activities/Tasks: rounded rectangles show the individual steps or pieces of work that must be completed in order to execute the business process.

  • Sequential flows: arrows indicate the direction of the step by step sequence of the workflow.

  • Decision points: diamond shapes show forks where the flow of work proceeds in two or more mutually exclusive flows and, optionally, where separate flows merge together.

  • Parallel flows: solid bars indicate branch points where the flow of work proceeds in two or more parallel paths which subsequently join together again.

  • Swim-lanes: horizontal or vertical divisions indicate responsibility for performance of the activities.

  • Terminal: symbols indicating the start and end points of the flow.

BCIS 4610, Fall 2008


Strengths and weaknesses

Strengths and weaknesses

  • Strengths

    • Ability to visually represent complex flows with multiple decision points and parallel flows

    • Easy to develop and easily understood by most audiences

    • Support the identification of problems and alternative solutions

    • Can show a workflow across the enterprise, or within one functional area

  • Weaknesses

    • Multiple sets of diagramming conventions (ANSI/ISO, UML, IDEF3, BPMN etc.)

BCIS 4610, Fall 2008


Collecting user requirements introduction to process modeling

BCIS 4610, Fall 2008


Collecting user requirements introduction to process modeling

BCIS 4610, Fall 2008


Collecting user requirements introduction to process modeling

BCIS 4610, Fall 2008


Ms visio notations

MS Visio notations

BCIS 4610, Fall 2008


Collecting user requirements introduction to process modeling

BCIS 4610, Fall 2008


Business process modeling notation b pmn

Business Process Modeling Notation (BPMN)

  • The (BPMN) is a standardized graphical notation for drawing business processes in a workflow.

  • BPMN was developed by Business Process Management Initiative (BPMI), and is now being maintained by the Object Management Group since the two organizations merged in 2005. Its current adopted version is 1.1 and the proposed one is 2.0.

  • The primary goal of BPMN is to provide a standard notation that is readily understandable by all business stakeholders.

BCIS 4610, Fall 2008


Business process modeling notation b pmn1

Business Process Modeling Notation (BPMN)

BCIS 4610, Fall 2008


Collecting user requirements introduction to process modeling

BCIS 4610, Fall 2008


Data flow diagrams

Data flow diagrams

BCIS 4610, Fall 2008


Collecting user requirements introduction to process modeling

DFDs

  • Purpose - To show how information is input, processed, stored, and output from a system.

  • Provides a data-centric view of the scope of the project, representing what the system does, not how it does it. It is intended as a communication method between business and system stakeholders. It may be used to represent an automated system or a business system.

  • The Data Flow Diagram (DFD) provides a visual representation of the:

    • External Entities that provide data to, or receive data from, a system

    • The Processes of the system that transform data

    • The Data Stores in which data is collected for some period of time

    • The Data Flows by which data moves between External Entities, Processes and

    • Data Stores

BCIS 4610, Fall 2008


Data flow diagram dfd

Data Flow Diagram (DFD)

  • A picture of the movement of data between external entities and the processes and data stores within a system

  • Difference from system flowcharts:

    • DFDs depict logical data flow independent of technology

    • Flowcharts depict details of physical systems

  • Difference from process maps (Wor

    • Process maps are concerned with timing and sequencing, and DFDs are not

    • Process maps are often concerns with roles and who is responsible for each step, and DFDs are not

    • In DFDs more attention should be paid to accuracy of each data flow

    • Process map boundaries are usually restricted by the process, and the DFD boundaries by the boundaries of the system

BCIS 4610, Fall 2008


Collecting user requirements introduction to process modeling

  • Strengths

    • May be used as a discovery technique for processes and data, or as a technique forverificationof a Functional Decomposition and Entity Relationship Diagram that havealreadybeen completed.

    • Most users find these diagrams quite easy to understand

    • Generally considered a useful analysis deliverable to developers in a structured programming environment.

  • Weaknesses

    • May not be the most useful analysis deliverable to developers in an object-oriented environment.

BCIS 4610, Fall 2008


Example of a dfd

Example of a DFD

BCIS 4610, Fall 2008


Dfd symbols cont

DFD Symbols (cont.)

  • Process: work or actions performed on data (inside the system)

  • Data store: data at rest (inside the system)

  • Source/sink: external entity that is origin or destination of data (outside the system)

  • Data flow: arrows depicting movement of data

BCIS 4610, Fall 2008


Dfd symbols

DFD Symbols

BCIS 4610, Fall 2008


Dfd for hoosier burger s inventory control system

DFD for Hoosier Burger’s Inventory Control System

BCIS 4610, Fall 2008


Differences between sources sinks and processes

Differences between Sources/Sinks and Processes

BCIS 4610, Fall 2008


Differences between sources sinks and processes1

Differences between Sources/Sinks and Processes

BCIS 4610, Fall 2008


Dfd diagramming rules process

DFD Diagramming RulesProcess

No process can have only outputs or only inputs…processes must have both outputs and inputs.

Process labels should be verb phrases.

BCIS 4610, Fall 2008


Dfd diagramming rules data store

DFD Diagramming RulesData Store

  • All flows to or from a data store must move through a process.

  • Data store labels should be noun phrases.

BCIS 4610, Fall 2008


Dfd diagramming rules source sink

DFD Diagramming RulesSource/Sink

  • No data moves directly between external entities without going through a process.

  • Interactions between external entities without intervening processes are outside the system and therefore not represented in the DFD.

  • Source and sink labels should be noun phrases.

BCIS 4610, Fall 2008


Dfd diagramming rules data flow

DFD Diagramming RulesData Flow

  • Bidirectional flow between process and data store is represented by two separate arrows.

  • Forked data flow must refer to exact same data item (not different data items) from a common location to multiple destinations.

BCIS 4610, Fall 2008


Dfd diagramming rules data flow cont

DFD Diagramming RulesData Flow (cont.)

  • Joined data flow must refer to exact same data item (not different data items) from multiple sources to a common location.

  • Data flow cannot go directly from a process to itself, must go through intervening processes.

BCIS 4610, Fall 2008


Dfd diagramming rules data flow cont1

DFD Diagramming RulesData Flow (cont.)

  • Data flow from a process to a data store means update (insert, delete or change).

  • Data flow from a data store to a process means retrieve or use.

  • Data flow labels should be noun phrases.

BCIS 4610, Fall 2008


Guidelines for drawing dfds

Guidelines for Drawing DFDs

  • Completeness

    • DFD must include all components necessary for system.

    • Each component must be fully described in the project dictionary or CASE repository.

  • Consistency

    • The extent to which information contained on one level of a set of nested DFDs is also included on other levels.

BCIS 4610, Fall 2008


Functional decomposition

Functional Decomposition

  • An iterative process of breaking a system description down into finer and finer detail

  • High-level processes described in terms of lower-level sub-processes

  • DFD charts created for each level of detail

BCIS 4610, Fall 2008


Guidelines for drawing dfds cont

Guidelines for Drawing DFDs (cont.)

  • Timing

    • Time is not represented well on DFDs.

    • Best to draw DFDs as if the system has never started and will never stop.

  • Iterative Development

    • Analyst should expect to redraw diagram several times before reaching the closest approximation to the system being modeled.

BCIS 4610, Fall 2008


Dfd levels

DFD Levels

  • Context DFD

    • Overview of the organizational system

  • Level-0 DFD

    • Representation of system’s major processes at high level of abstraction

  • Level-1 DFD

    • Results from decomposition of Level 0 diagram

  • Level-n DFD

    • Results from decomposition of Level n-1 diagram

BCIS 4610, Fall 2008


Context diagram

Context Diagram

Context diagram shows the system boundaries, external entities that interact with the system, and major information flows between entities and the system.

NOTE: only one process symbol, and no data stores shown.

BCIS 4610, Fall 2008


Level 0 dfd

Level-0 DFD

Level-0 DFD shows the system’s major processes, data flows, and data stores at a high level of abstraction.

Processes are labeled 1.0, 2.0, etc. These will be decomposed into more primitive (lower-level) DFDs.

BCIS 4610, Fall 2008


Level 1 dfd

Level-1 DFD

Level-1 DFD shows the sub-processes of one of the processes in the Level-0 DFD.

This is a Level-1 DFD for Process 4.0.

Processes are labeled 4.1, 4.2, etc. These can be further decomposed in more primitive (lower-level) DFDs if necessary.

BCIS 4610, Fall 2008


Level n dfd

Level-n DFD

Level-n DFD shows the sub-processes of one of the processes in the Level n-1 DFD.

This is a Level-2 DFD for Process 4.3.

Processes are labeled 4.3.1, 4.3.2, etc. If this is the lowest level of the hierarchy, it is called a primitive DFD.

BCIS 4610, Fall 2008


Rules for stopping decomposition

Rules for stopping decomposition

  • When each process has been reduced to a single decision, calculation or database operation

  • When each data store represents data about a single entity

  • When the system user does not care to see any more detail

  • When every data flow does not need to be split further to show that data are handled in various ways

  • When you believe that you have shown each business form or transaction, online display and report as a single data flow

  • When you believe that there is a separate process for each choice on all lowest-level menu options

BCIS 4610, Fall 2008


Dfd balancing

DFD Balancing

  • The conservation of inputs and outputs to a data flow process when that process is decomposed to a lower level

  • Balanced means:

    • Number of inputs to lower level DFD equals number of inputs to associated process of higher-level DFD

    • Number of outputs to lower level DFD equals number of outputs to associated process of higher-level DFD

BCIS 4610, Fall 2008


Unbalanced dfd

Unbalanced DFD

This is unbalanced because the process of the context diagram has only one input but the Level-0 diagram has two inputs.

1 input

1 output

2 inputs

1 output

BCIS 4610, Fall 2008


Balanced dfd

Balanced DFD

1 input

3 outputs

These are balanced because the numbers of inputs and outputs of context diagram process equal the number of inputs and outputs of Level-0 diagram.

BCIS 4610, Fall 2008


Balanced dfd cont

Balanced DFD (cont.)

These are balanced because the numbers of inputs and outputs to Process 1.0 of the Level-0 diagram equals the number of inputs and outputs to the Level-1 diagram.

1 input

4 outputs

BCIS 4610, Fall 2008


Data flow splitting

Data Flow Splitting

A composite data flow at a higher level may be split if different parts go to different processes in the lower level DFD.

This remains balanced because the same data is involved, but split into two parts.

BCIS 4610, Fall 2008


Dfd for a peer review system animated example

DFD for a Peer-Review System: Animated Example

By Anna Sidorova

BCIS 4610, Fall 2008


Description

Description

Please draw a context DFD and a level-0 DFD for the following peer-review system:

The purpose of the system is to support the pier-review process for a large national conference. Please assume that the editor is a part of the system.

  • First, the editor receives research papers from AUTHORS and stores them in a file. Names and contact information of the authors are saved in the Potential Reviewer Database.

  • For each paper, the editor contacts 3 potential REVIEWERS (using information from the Potential Reviewer Database), provides them with a copy of the paper and asks them if they would be willing to review it.

  • If REVIEWERS agree to review the paper, they submit their reviews to the editor; otherwise, they reply that they would not be able to review the paper. The reviews are also stored.

  • After the editor receives at least 2 reviews, he makes a decision whether to accept the paper, or to reject it based on the paper and reviewers’ comments. He then notifies the AUTHORS of the decision.

  • In case of acceptance, the AUTHORS submit a camera-ready copy of the paper to the editor, which is stored for future publication in the conference proceedings.

BCIS 4610, Fall 2008


Context diagram1

Paper

Review Request, Paper

Decision

Camera Ready Copy

Review, Responses

Context Diagram

Assume the entire system is one process!

Who is interacting with our system?

What are the data flows between our system and these external entities?

0

Peer-Review

System

AUTHORS

REVIEWERS

BCIS 4610, Fall 2008


Collecting user requirements introduction to process modeling

Cont. Info

Paper

D2: Pot. Reviewer DB

D1: Original Papers

Paper

… the editor receives research papers from AUTHORS and stores them in a file

Names and contact information of the authors is saved in the Potential Reviewer Database.

1.0

R & S

Papers &

Cont. Info

AUTHORS

BCIS 4610, Fall 2008


Collecting user requirements introduction to process modeling

Cont. Info

Paper

Cont. Info

Review Request,

Paper

D2: Pot. Reviewer DB

D1: Original Papers

Paper

Paper

For each paper, the editor contacts 3 potential REVIEWERS (using information from the Potential Reviewer Database), provides them with a copy of the paper and asks them if they would be willing to review it

1.0

R & S

Papers &

Cont. Info

2.0

Contact

Reviewers

REVIEWERS

AUTHORS

BCIS 4610, Fall 2008


Collecting user requirements introduction to process modeling

Cont. Info

Paper

Review Request,

Paper

Review, Response

D2: Pot. Reviewer DB

D1: Original Papers

D3: Reviews

Paper

Review

If REVIEWERS agree to review the paper, they submit their reviews to the editor; otherwise, they reply that they would not be able to review the paper. The reviews are also stored.

Cont. Info

1.0

R & S

Papers &

Cont. Info

2.0

Contact

Reviewers

REVIEWERS

3.0

R&S

Reviews

Paper

AUTHORS

BCIS 4610, Fall 2008


Collecting user requirements introduction to process modeling

Cont. Info

Paper

Review Request,

Paper

D2: Pot. Reviewer DB

D1: Original Papers

D3: Reviews

Paper

Paper

Decision

Review

After the editor receives at least 2 reviews, he makes a decision whether to accept the paper or reject it, based on the paper and reviewers’ comments. He then notifies the AUTHORS of the decision.

Cont. Info

1.0

R & S

Papers &

Cont. Info

2.0

Contact

Reviewers

REVIEWERS

Review Response

3.0

R&S

Reviews

Paper

AUTHORS

Review

4.0

Make Accept.

Decision &

Notify Auth.

BCIS 4610, Fall 2008


Collecting user requirements introduction to process modeling

Cont. Info

Paper

Review Request,

Paper

D4: Camera-Ready Copy

D2: Pot. Reviewer DB

D1: Original Papers

D3: Reviews

Paper

Camera- Ready Copy

C-R Copy

In case of acceptance, the AUTHORS submit a camera-ready copy of the paper to the editor, which is stored for future publication in the conference proceedings.

Cont. Info

1.0

R & S

Papers &

Cont. Info

2.0

Contact

Reviewers

REVIEWERS

Review, Response

3.0

R&S

Reviews

Paper

AUTHORS

Paper

Decision

Review

5.0

R & S

C-R Copy

4.0

Make Accept.

Decision &

Notify Auth.

Review

BCIS 4610, Fall 2008


Dfd diagramming rules data flow cont2

DFD Diagramming RulesData Flow (cont.)

  • Data flow from a process to a data store means update (insert, delete or change).

  • Data flow from a data store to a process means retrieve or use.

  • Data flow labels should be noun phrases.

BCIS 4610, Fall 2008


L et us look at another example

Let us look at another example

  • The order management system allows to load and store product information from the product database (external entity). For each product, the following information is stored: Product ID, short description, long description, price (for simplicity reasons, we assume constant availability of all the products).

  • The order management system also allows customers to register with the system. On registration, the following customer information is stored: login (e-mail), first name, last name, address, city, state, zip, day phone, and a password. A registered customer can log into the system by submitting a login and a password. During the login, the system will query the customer file.

  • After logging in a customer can view product information and place an order. Order information includes order number, date, shipment info, products included and quantities for each product, and the total order amount. An order may include multiple products, and a product can be included in multiple orders.

  • Order information is stored in an order database. Order information is provided to the order fulfillment system.

BCIS 4610, Fall 2008


Let us look at your hw2 problem 11 ch 7

Let us look at your HW2:Problem 11, ch. 7

  • Human resource acquisition

  • Personnel manager – inside the system

  • Employee – outside the system

  • Engineering manager – outside the system

BCIS 4610, Fall 2008


  • Login
