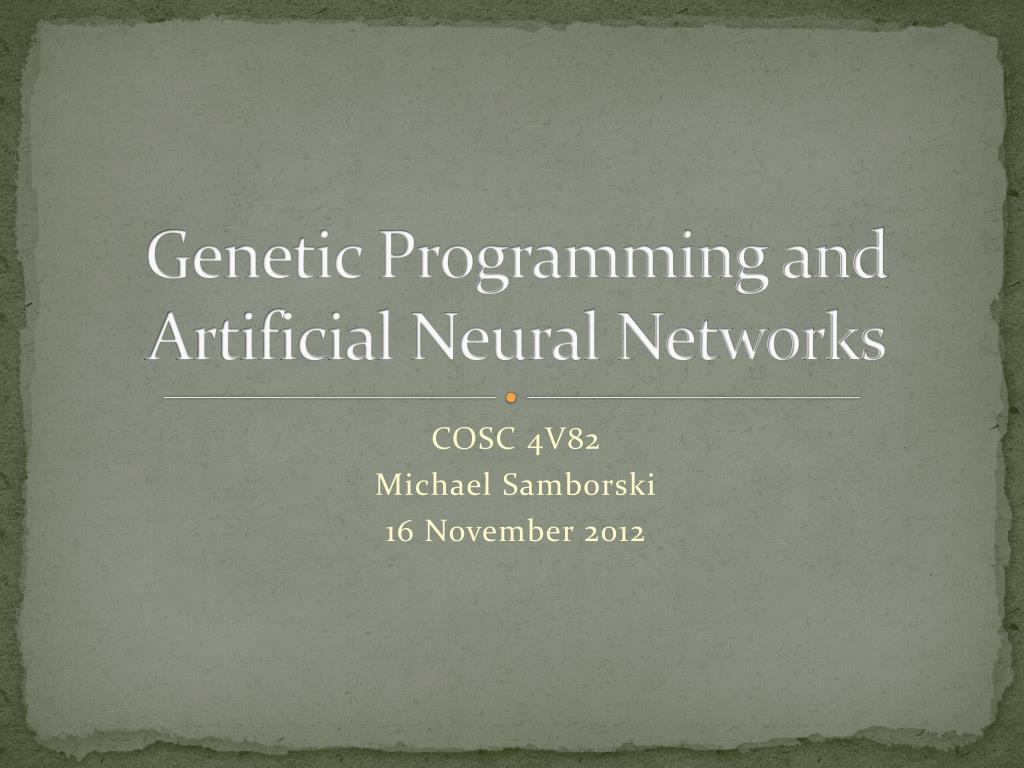

Genetic programming and artificial neural networks

Genetic Programming and Artificial Neural Networks


Michael Samborski

16 November 2012

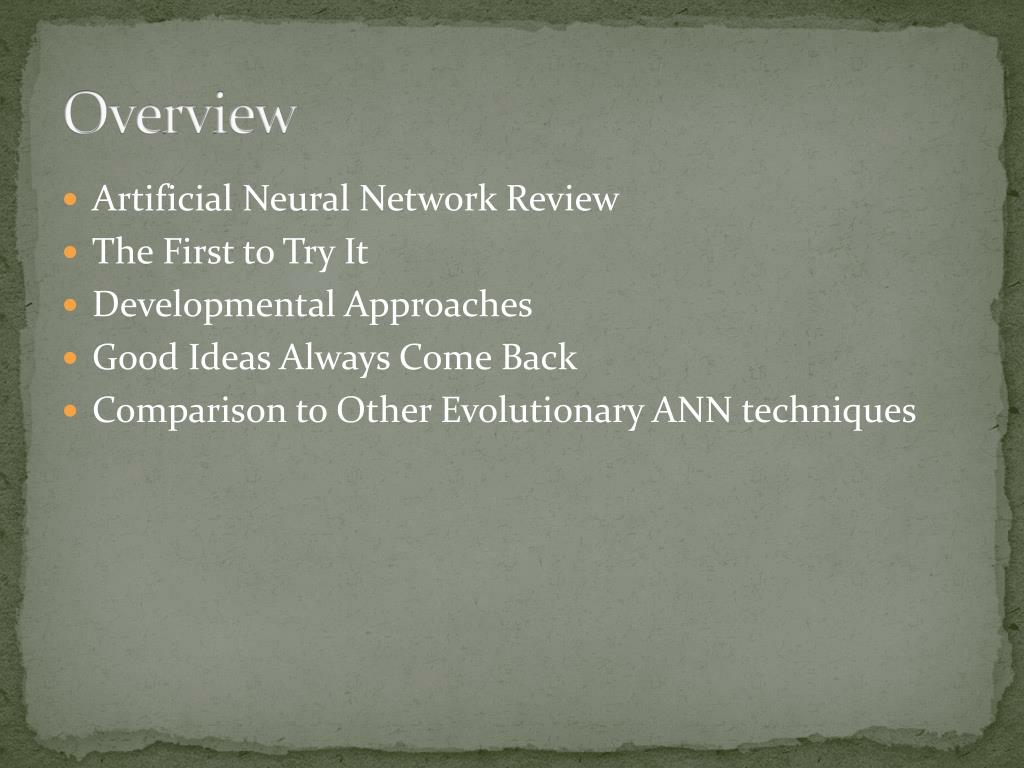

  • Artificial Neural Network Review

  • The First to Try It

  • Developmental Approaches

  • Good Ideas Always Come Back

  • Comparison to Other Evolutionary ANN techniques

Artificial neural networks anns

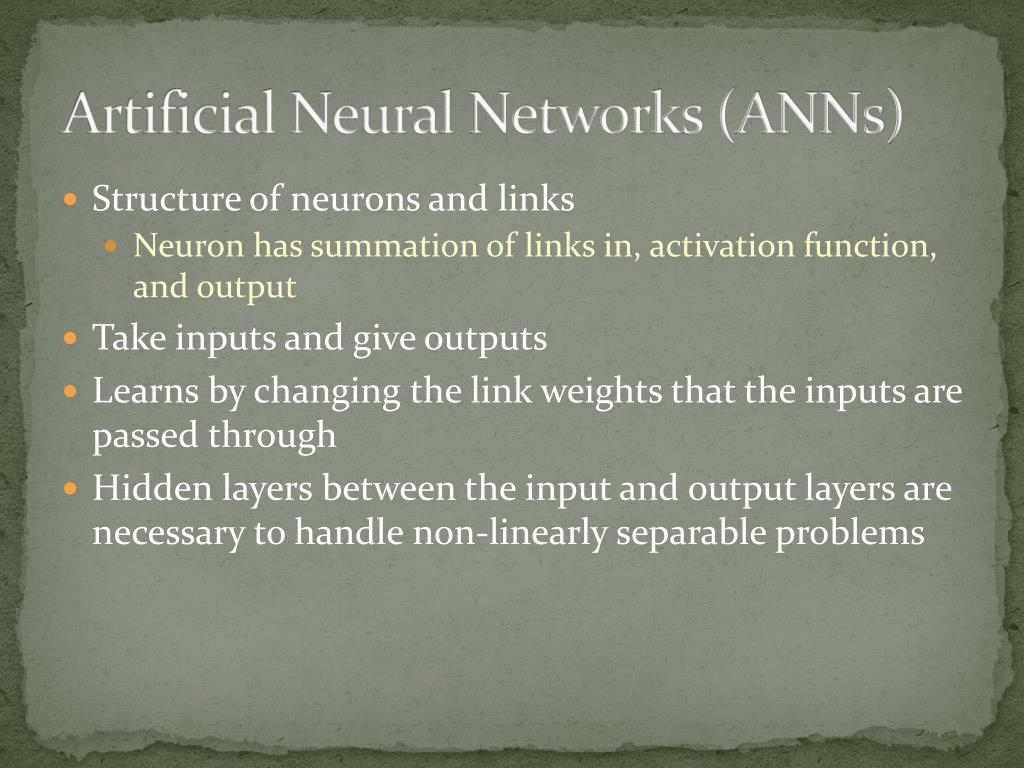

Artificial Neural Networks (ANNs)

  • Structure of neurons and links

    • Neuron has summation of links in, activation function, and output

  • Take inputs and give outputs

  • Learns by changing the link weights that the inputs are passed through

  • Hidden layers between the input and output layers are necessary to handle non-linearly separable problems

The problem with anns

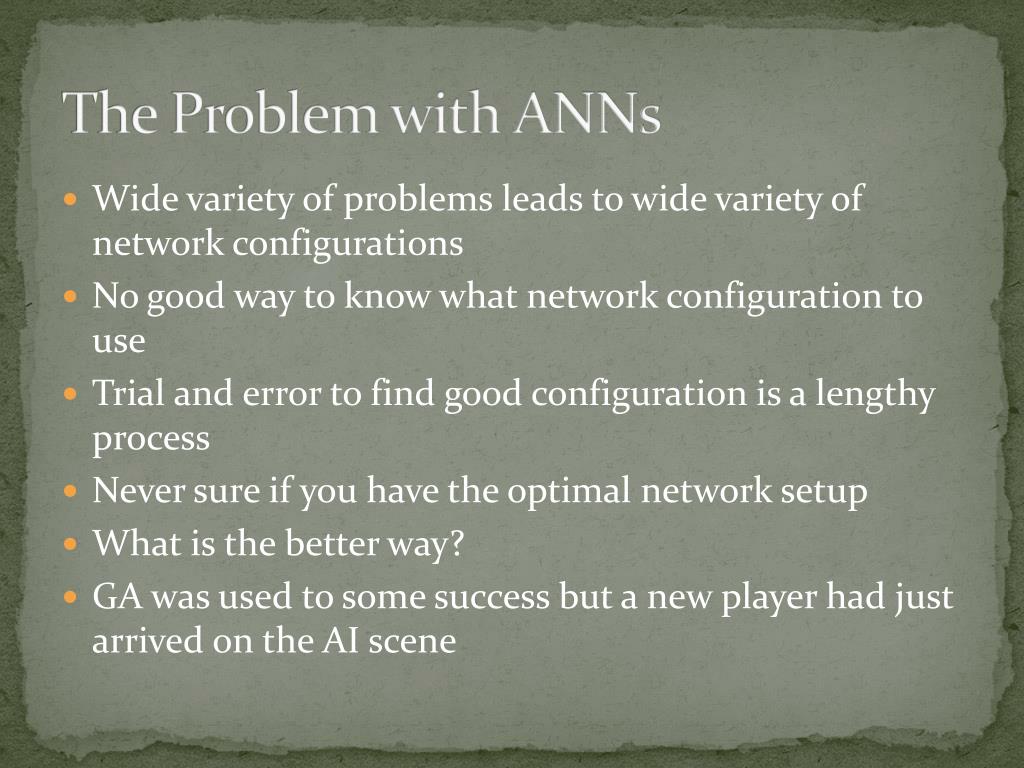

The Problem with ANNs

  • Wide variety of problems leads to wide variety of network configurations

  • No good way to know what network configuration to use

  • Trial and error to find good configuration is a lengthy process

  • Never sure if you have the optimal network setup

  • What is the better way?

  • GA was used to some success but a new player had just arrived on the AI scene

Gp and anns

GP and ANNs

  • Surprise, surprise, Koza is one of the first to try it

  • Used a direct representation of an ANN in GP language form

  • Tree would organize itself into a single root tree that could be seen as a single output arbitrary shape ANN

  • No regular layering of the tree

    • Nodes could be anywhere in his tree and there was no guaranteed organized structure of layers except for the output layer

Koza s ann gp language

Koza’s ANN GP Language

  • F = {P,W,+,-,*,/}

    • P is the linear activation function of a neuron

    • W multiplies all the branches coming into itself

    • Restrictions

      • Root of the tree must be P

      • All branches coming into a P must be Ws

      • Any subtree below and arithmetic operation must only contain more arithmetic operations or terminals

    • LIST function could be used to give multiple outputs

      • Only used as root and could only have P branches coming into it

  • T= {D0,D1,R}

    • Two inputs and ephemeral random constant

The xor gp tree

The XOR GP Tree

  • When Koza applied this to XOR, this tree result work 100% of the time

  • Translated to a 2-2-1 network

  • Easy problem = easy tree

  • What about a more complex problem?

Koza s full adder

Koza’s Full Adder

Koza s full adder con t

Koza’s Full Adder Con’t

  • This full adder tree performed at 100% as well

  • Over 102 runs of popsize = 500, a 100% solution was found 86% of the time after 51 generations

  • Koza’s idea seemed to have promise and as Koza’s ideas typically do, GP for ANN snowballed

Taking a developmental approach

Taking a Developmental Approach

  • Frederic Gruau used developmental GP performing operations on nodes of a ANN to create new ones

    • This lead to highly connected graphs and there were few ways to change the individual edges

  • Sean Luke and Lee Spector took Gruau’s idea but applied it to edges instead of nodes

    • This lead to less connected graphs that were able to change edges and nodes easier

  • Unfortunately Gruau’s report was inaccessible behind a pay wall and Luke and Spector only released a preliminary report so no data on how well these really performed was available

Ideas come full circle

Ideas Come Full Circle

  • D. Rivero et al. upon reading at the Gruau and Luke and Spector papers thought they had a better way

  • Have a language where there is a function to represent a neuron, a function to represent an input neuron, and a function to act as the tree root that takes in all the output neurons and lists them

  • Sounds familiar, doesn’t it?

Koza s gpann v2

Koza’s GPANN v2

  • Koza’s paper was never referenced in Rivero et al, 2005

    • Likely they came upon the idea organically just like Kozadid

  • While Koza’s tests for his GPANN could be considered toyish, it was tested much more rigorously this time

  • While not explicitly stated their activation function was likely more complex than the linear one Koza used

  • Attempted 4 different problems from the UCI database

Their results

Their Results

  • D. Rivero at al. didn’t compare themselves to Gruau, Luke, and Spector but did compare their ANN to the results found by Cantú-Paz and Kamath in a paper that compared many different ANN with evolutionary algorithms

  • Their method on these problems performed at least as good and better in most cases

  • All other algorithms had individual evaluation separate from the design process

  • The combination of these by Rivero et al. led to shorter training time and much less computational power used



  • Koza, John R., and James P. Rice. "Genetic generation of both the weights and architecture for a neural network." In Neural Networks, 1991., IJCNN-91-Seattle International Joint Conference on, vol. 2, pp. 397-404. IEEE, 1991.

  • F. Gruau, “Genetic micro programming of neural networks”, in Kinnear, Jr., K. E., editor, Advances in Genetic Programming, chapter 24, MIT Press, 1994. pp. 495–518,

  • Luke, Sean, and Lee Spector. "Evolving graphs and networks with edge encoding: Preliminary report." In Late Breaking Papers at the Genetic Programming 1996 Conference, pp. 117-124. Stanford, CA: Stanford University, 1996.

  • Rivero, Daniel, Julián Dorado, Juan R. Rabuñal, Alejandro Pazos, and Javier Pereira. "Artificial neural network development by means of genetic programming with graph codification." Transactions on Engineering, Computing and Technology 16 (2006): 209-214.
