Environmental Management. Environmental Needs. Maintain internal temp within operating temp of components. Optics: 10 Mp cameras -40 < 0 < 70. Electronics (all temps in C) FPGA 0 < T < 85 Connector Board 0 < T < 70 D3 supplied OEM Board -40 < T < 85

Download Presentation

Environmental Management

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Environmental Management

  2. Environmental Needs Maintain internal temp within operating temp of components Optics: 10 Mp cameras -40 < 0 < 70 • Electronics (all temps in C) • FPGA • 0 < T < 85 • Connector Board • 0 < T < 70 • D3 supplied OEM Board • -40 < T < 85 • Electronics Range • 0C < T < 70C

  3. Environmental Needs • Allow for standard Environmental conditions as defined by MIL-STD-810G and DO-160 Temperature Range: -32C to 45 C (on ground) Humidity: 90%

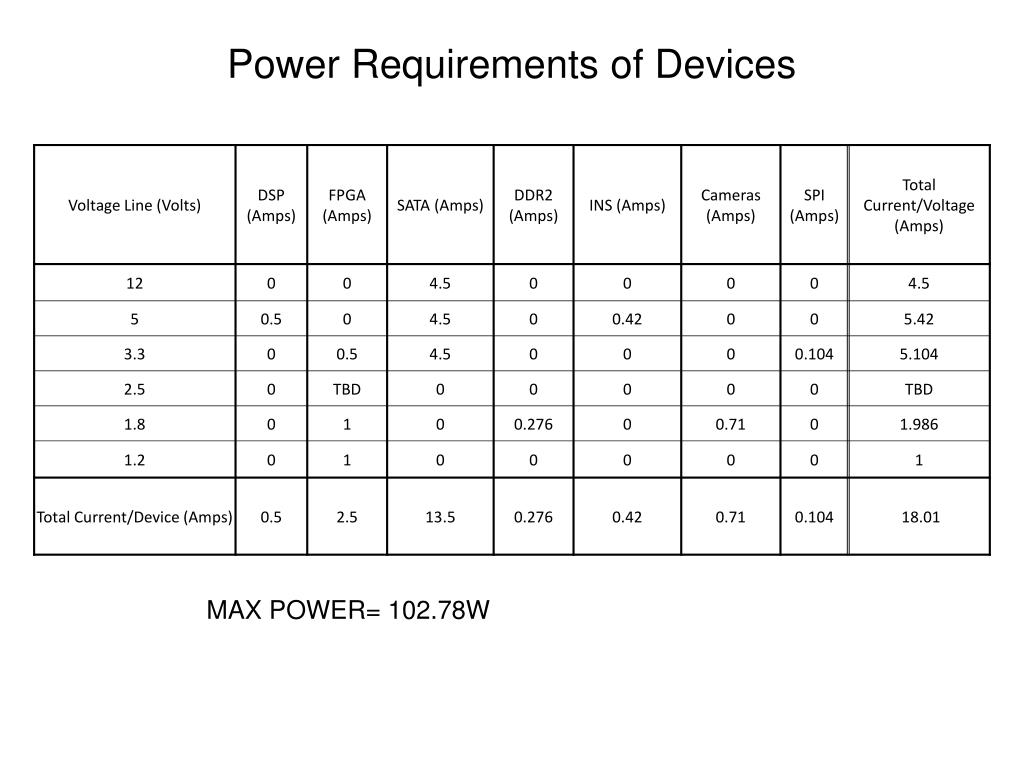

  4. Power Requirements of Devices MAX POWER= 102.78W

  5. Environmental Management: Heat • Major sources of heat generation inside chassis • Hard drive • about the half the heat produced comes from this • Voltage Regulator • FPGA • DSP • Net Heat generated by system can be estimated using the net power input to the system

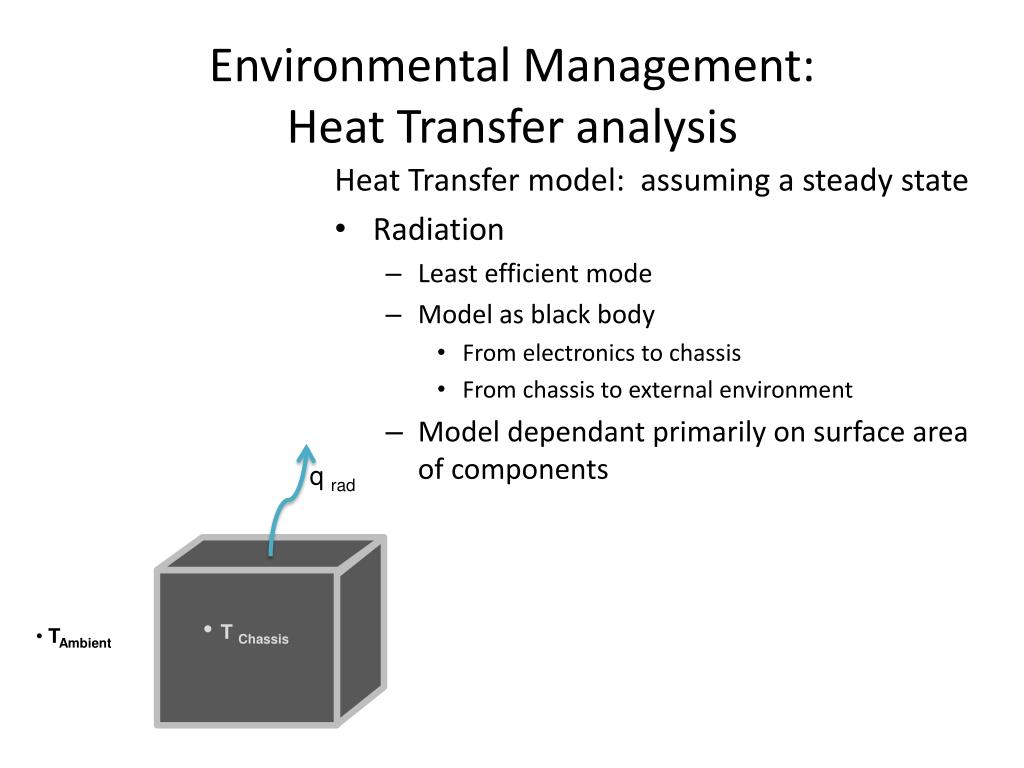

  6. Environmental Management:Heat Transfer analysis Heat Transfer model: assuming a steady state • Radiation • Least efficient mode • Model as black body • From electronics to chassis • From chassis to external environment • Model dependant primarily on surface area of components q rad • T Chassis • TAmbient

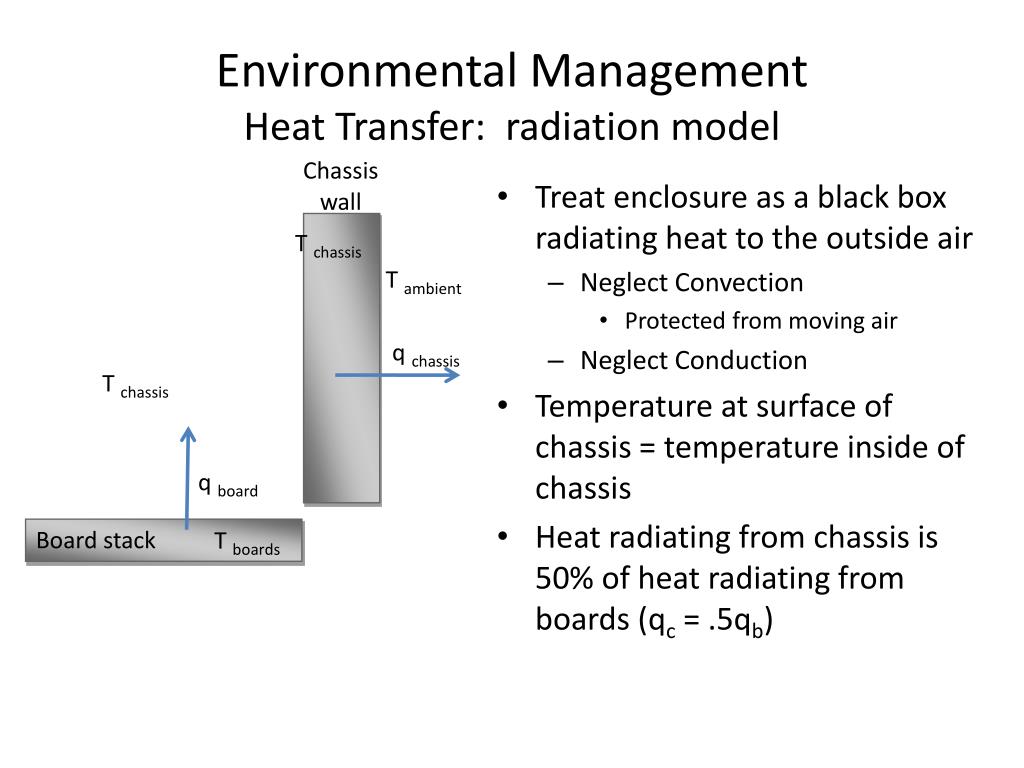

  7. Chassis wall T chassis T ambient q chassis T chassis q board Board stack T boards Environmental ManagementHeat Transfer: radiation model • Treat enclosure as a black box radiating heat to the outside air • Neglect Convection • Protected from moving air • Neglect Conduction • Temperature at surface of chassis = temperature inside of chassis • Heat radiating from chassis is 50% of heat radiating from boards (qc = .5qb)

  8. Environmental ManagementHeat Transfer: radiation model Used a ‘double’ radiation model • Radiation from electronics to chassis wall • Radiation from chassis wall to outside environment • Combined the two models into one by assuming an efficiency between the heat transfer rate of the electronics and the chassis wall

  9. Environmental ManagementHeat Transfer: radiation model ‘Safe zone’ between ~ 10 and ~ 30 W

  10. Environmental Management : Humiditydew point: should we be concerned with condensation? • Temperature at which water will condense on a surface • Function of ambient temperature and relative humidity • Used to determine whether additional steps should be taken to control temperature/ humidity inside the chassis. • Conclusion: Condensation will not be a big problem • May run into trouble at very high humidities (above 80%) • Dew point is very close to air temperatures

  11. Environmental Managementdew point: should we be concerned with condensation? • Some environmental management techniques may be valuable to prevent condensation at high humidities • Main options: • include a heating system to keep temperature inside the chassis above dew point • reduce humidity inside the chassis to lower the dew point inside the chassis • a common method : silica gel packs

  12. Appendix: Radiation • Assumptions: Treat enclosure as a black box • Neglect Convection • Neglect Conduction • Temperature at surface of chassis = temperature inside of chassis • All Power consumed by electronics is output as heat radiating out • = .89 • qc = .5qb

  13. Appendix: Humidity • Dew point temperature is given as: • Constants defined as follows: • Variables: • Td - Dew point (C) • T - Ambient temperature (C) • RH - Relative humidity (%) • m - Temperature range dependant constant (non-dimensional) • Tn - Temperature range dependant constant (C)
