Similarity

Proportions. Similarity Statements. Similarity Ratio. SSS~, SAS~, AA~. Indirect Measurement. 10. 10. 10. 10. 10. 20. 20. 20. 20. 20. 30. 30. 30. 30. 30. 40. 40. 50. Similarity.

Download Presentation

Similarity

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

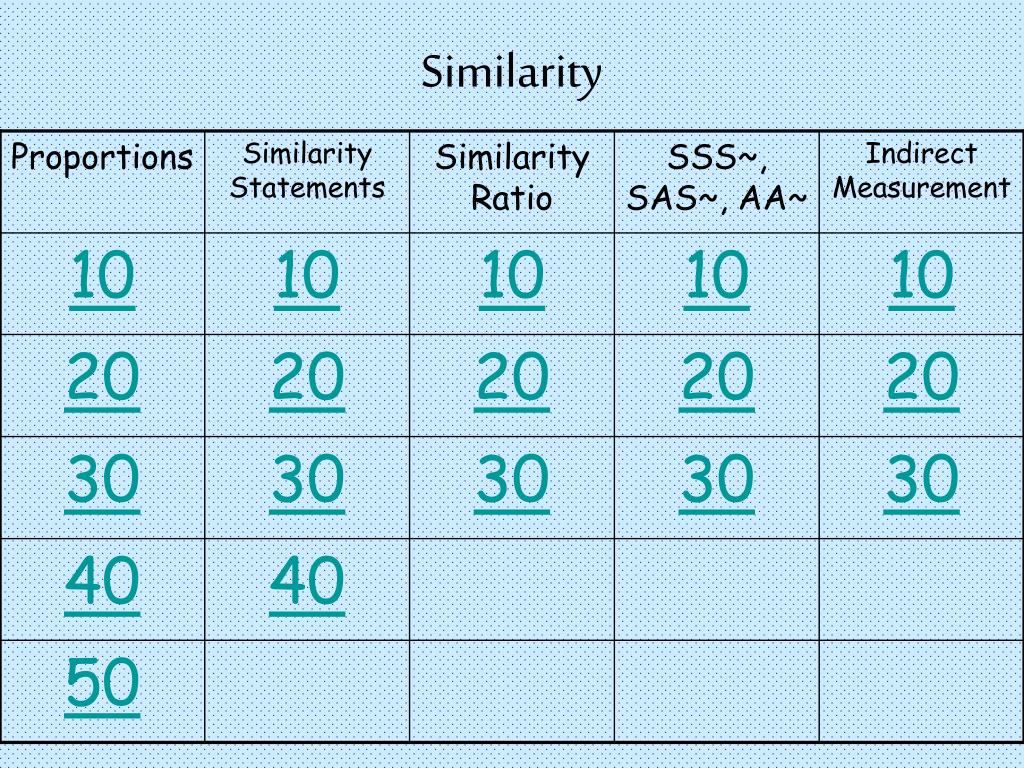

  1. Proportions Similarity Statements Similarity Ratio SSS~, SAS~, AA~ Indirect Measurement 10 10 10 10 10 20 20 20 20 20 30 30 30 30 30 40 40 50 Similarity

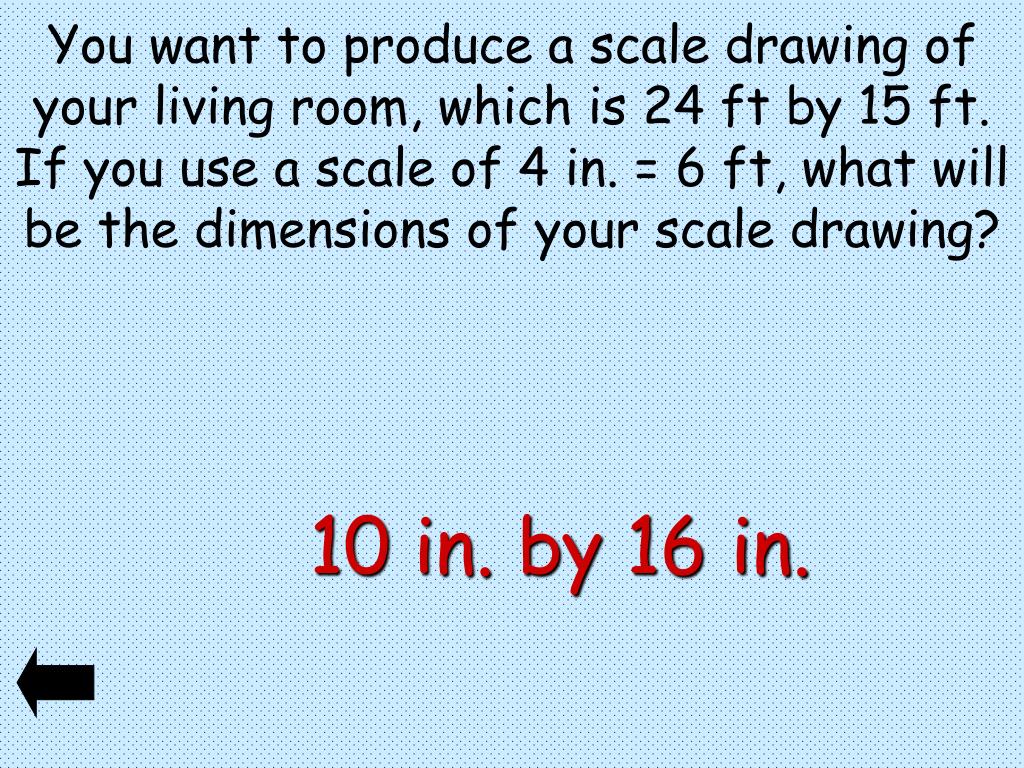

  2. You want to produce a scale drawing of your living room, which is 24 ft by 15 ft. If you use a scale of 4 in. = 6 ft, what will be the dimensions of your scale drawing? 10 in. by 16 in.

  3. A model is built having a scale of 1 : 100,000. How high would a 35,600-ft mountain be in the model? Give your answer to the nearest tenth of an inch. .36

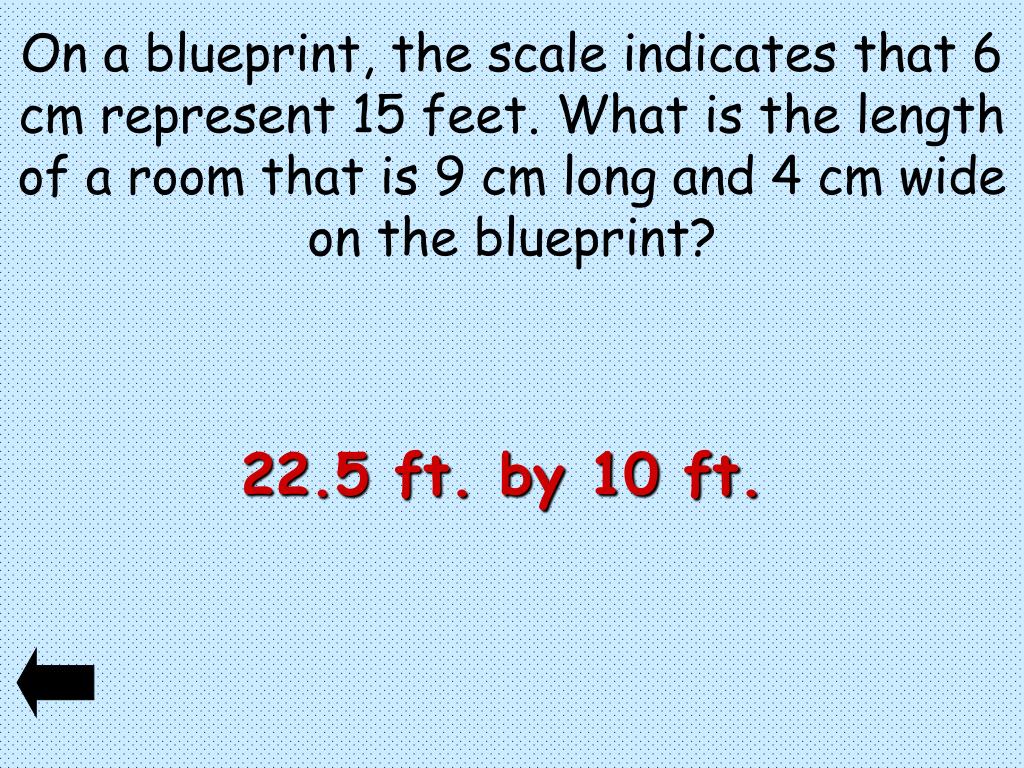

  4. On a blueprint, the scale indicates that 6 cm represent 15 feet. What is the length of a room that is 9 cm long and 4 cm wide on the blueprint? 22.5 ft. by 10 ft.

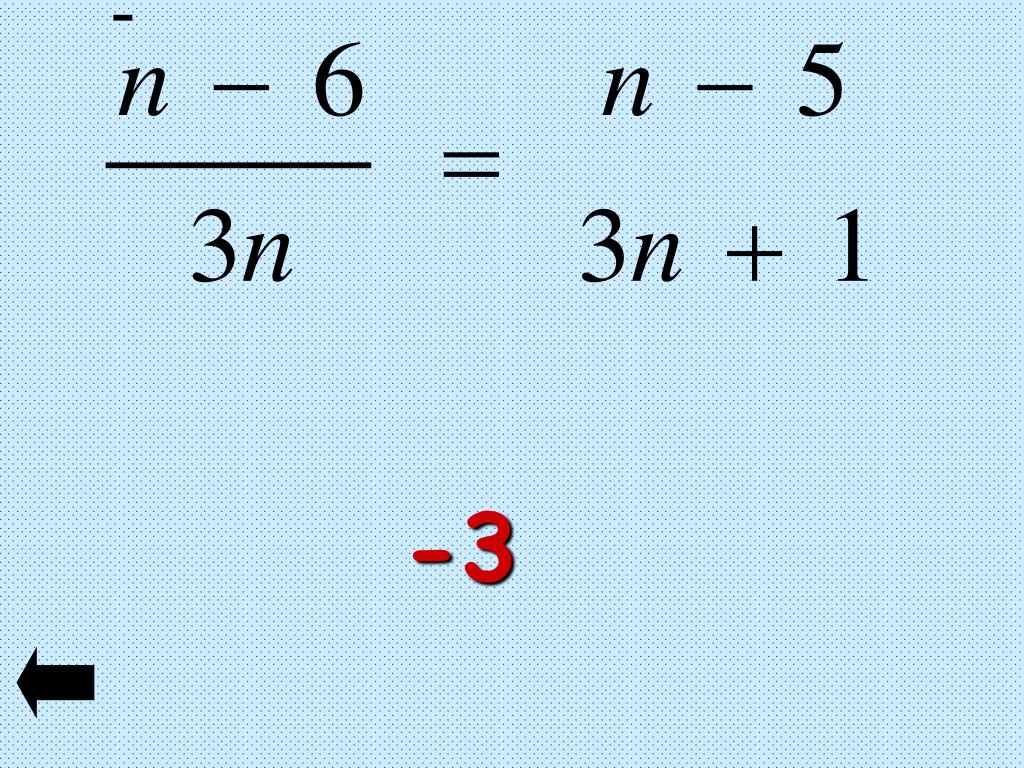

  5. -3

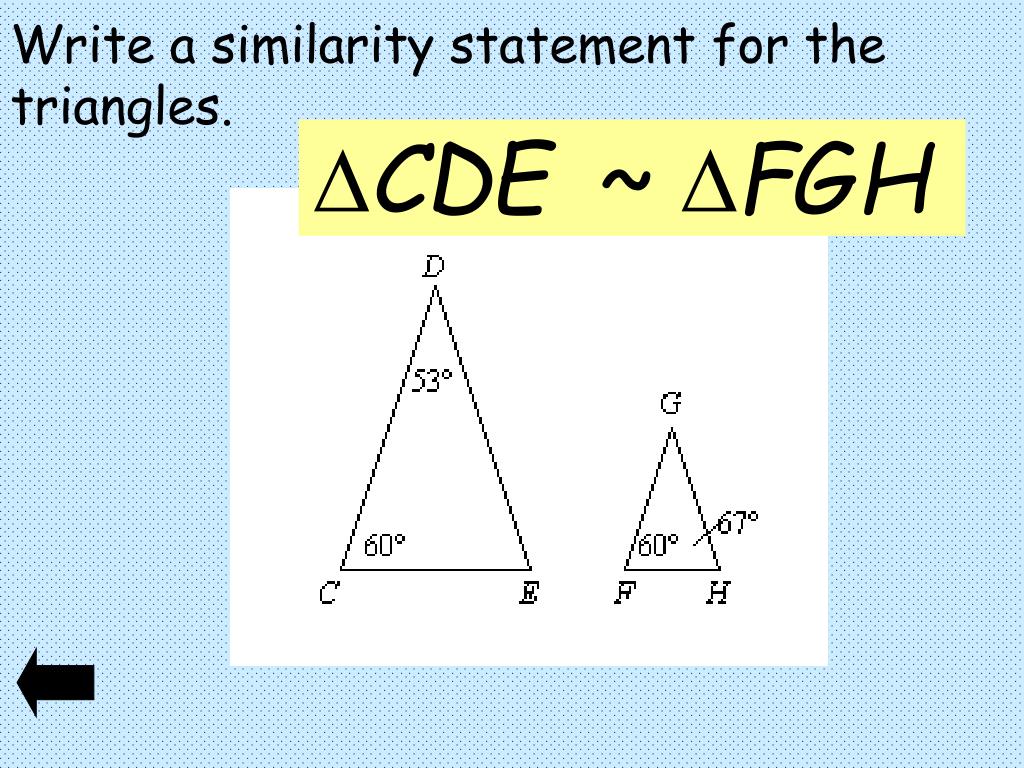

  6. Write a similarity statement for the triangles.

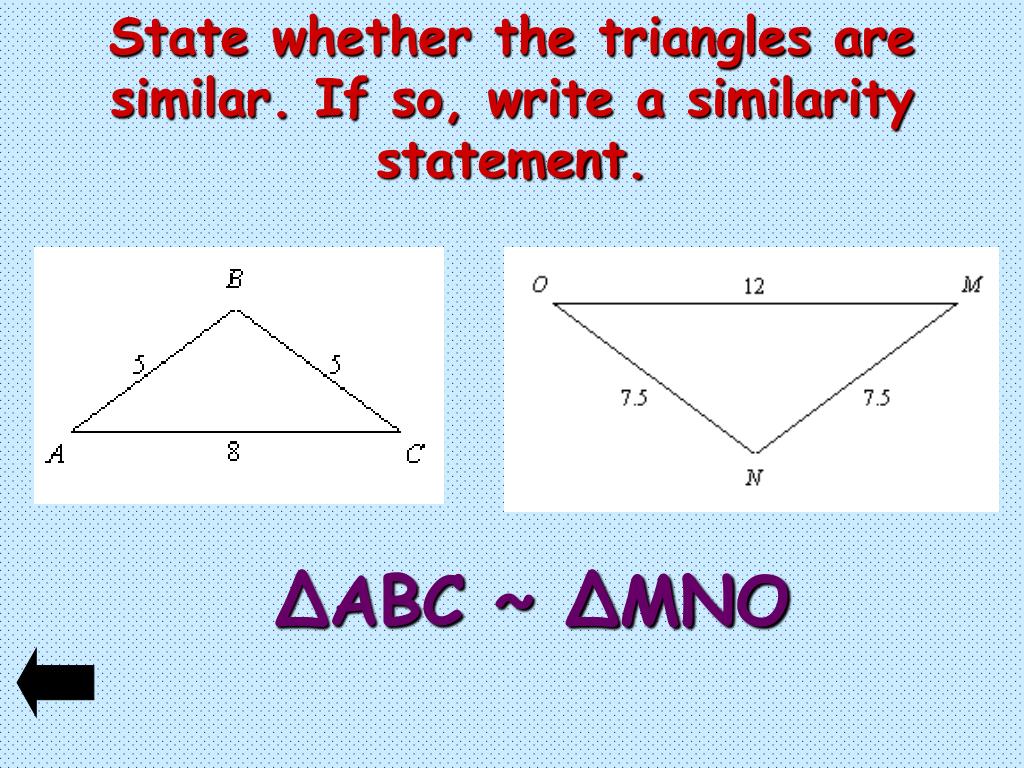

  7. State whether the triangles are similar. If so, write a similarity statement. ∆ABC ~ ∆MNO

  8. State whether the triangles are similar. If so, write a similarity statement. ∆ABD ~ ∆CBD

  9. State whether the triangles are similar. If so, write a similarity statement. In ∆ QRS, QR = 16, RS = 64, and mR = 29. In ∆UVT, VT = 8, TU = 32, and mT = 29. ∆QRS ~ ∆UVT

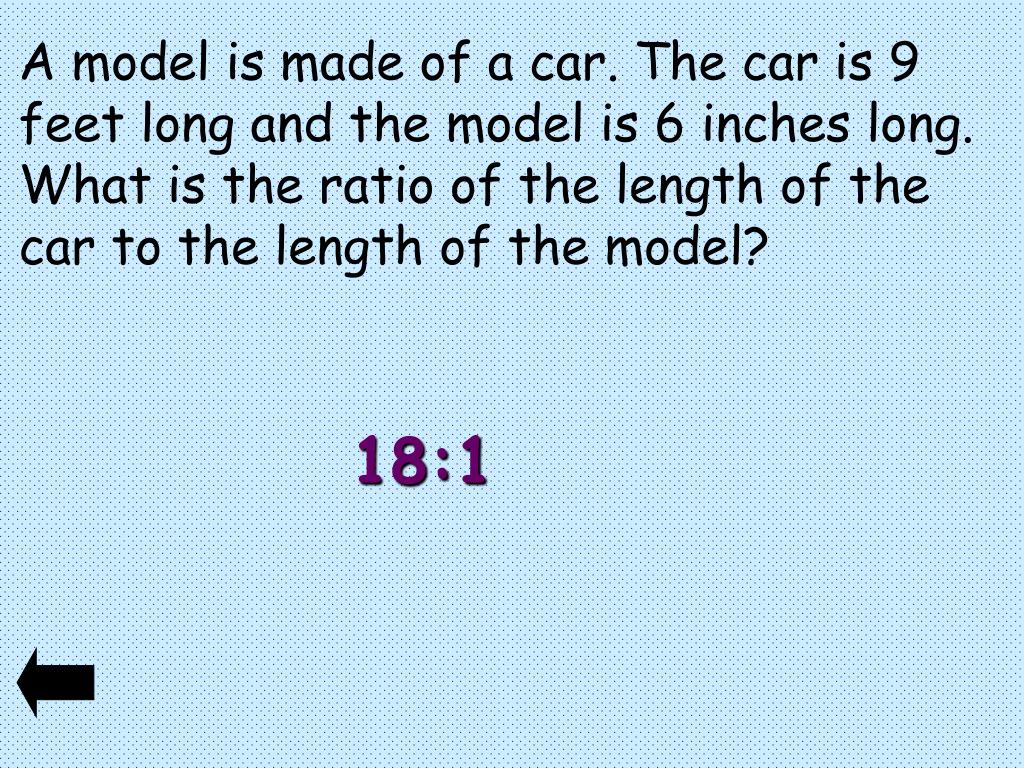

  10. A model is made of a car. The car is 9 feet long and the model is 6 inches long. What is the ratio of the length of the car to the length of the model? 18:1

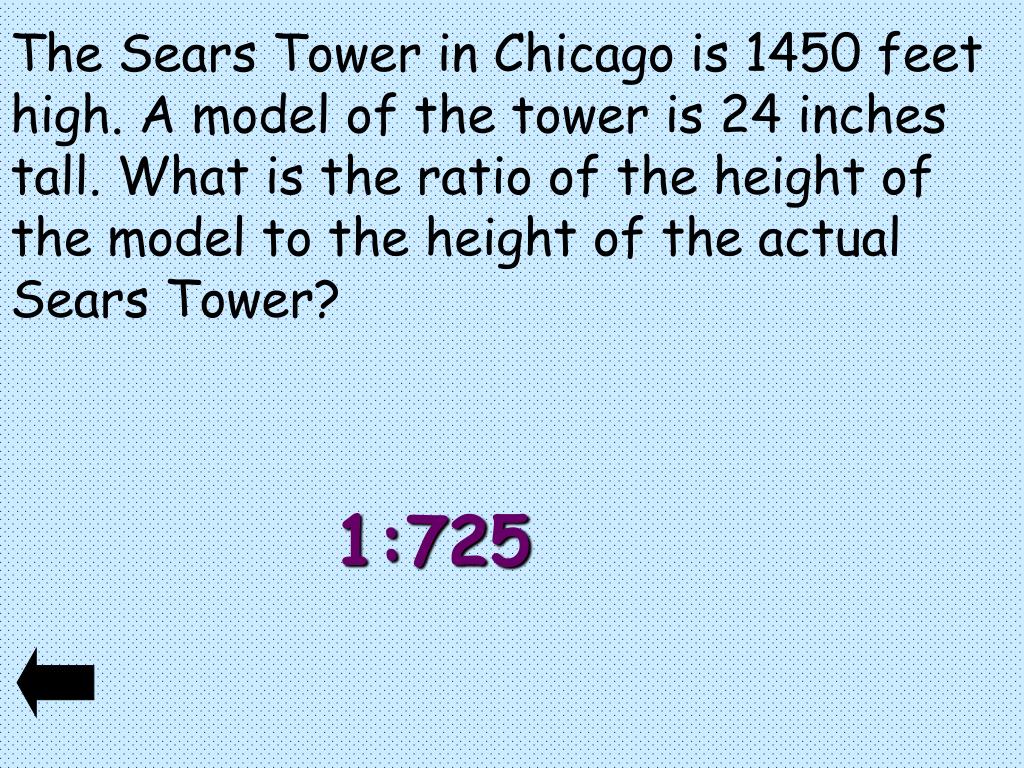

  11. The Sears Tower in Chicago is 1450 feet high. A model of the tower is 24 inches tall. What is the ratio of the height of the model to the height of the actual Sears Tower? 1:725

  12. Are the polygons similar? If they are, write a similarity statement and give the similarity ratio. In ∆RST, RS = 10, RT = 15, and m R = 32. In ∆UVW, UV = 12, UW = 18, and m U = 32.

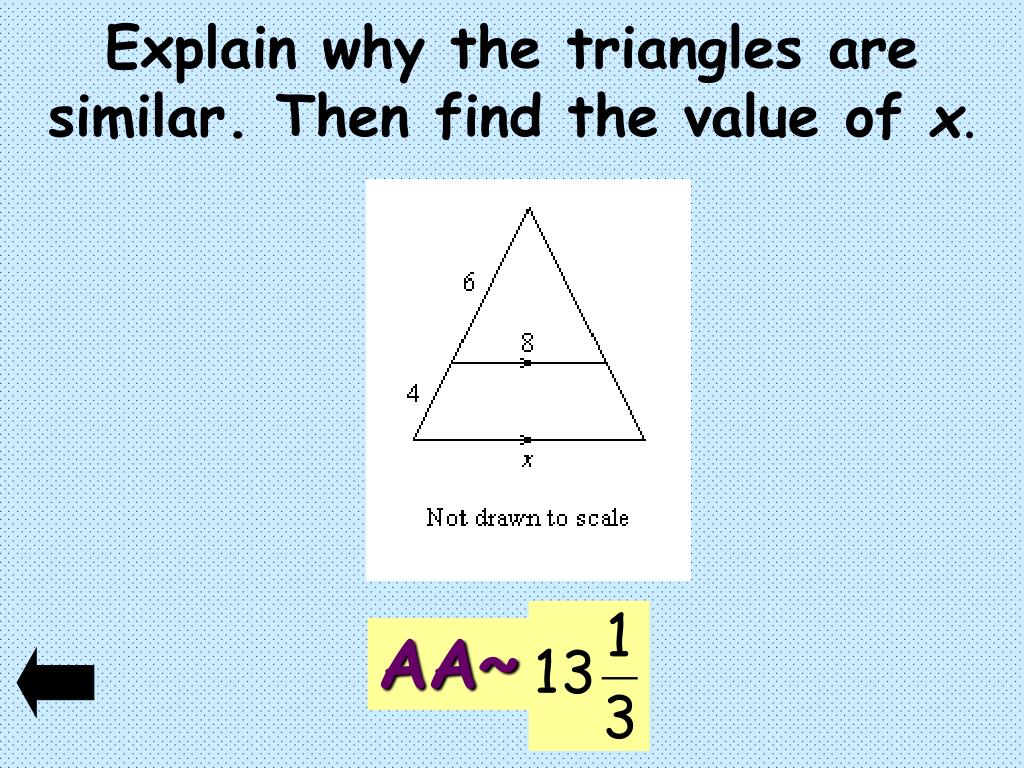

  13. Explain why the triangles are similar. Then find the value of x. AA~

  14. Explain why the triangles are similar. Then find the value of x. AA~

  15. Are the triangles similar? If so, explain why. AA~

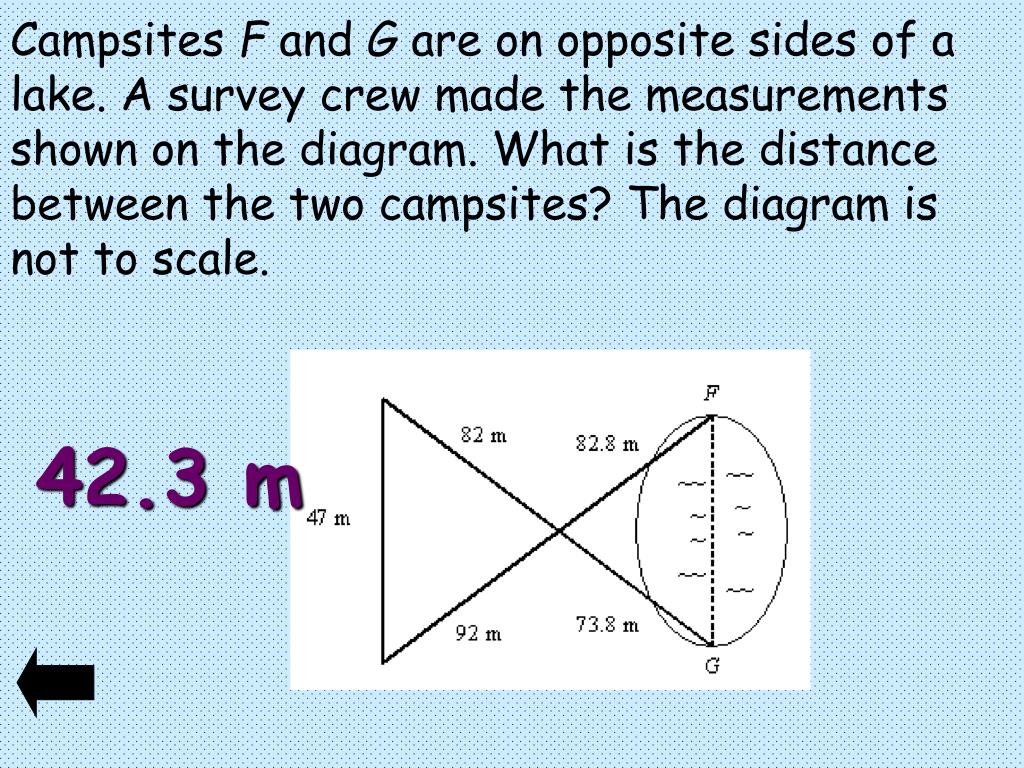

  16. Campsites F and G are on opposite sides of a lake. A survey crew made the measurements shown on the diagram. What is the distance between the two campsites? The diagram is not to scale. 42.3 m

  17. Use the information in the diagram to determine the height of the tree to the nearest foot. 80 ft

  18. Michele wanted to measure the height of her school’s flagpole. She placed a mirror on the ground 48 feet from the flagpole, then walked backwards until she was able to see the top of the pole in the mirror. Her eyes were 5 feet above the ground and she was 12 feet from the mirror. Using similar triangles, find the height of the flagpole to the nearest tenth of a foot. 20 ft
