1. IBM儲存備份解決方案 IBM Storage Solutions Efficient. Powerful. Easy. Expect More From Your Storage IBM STG FTSS 陳瑞基 AKIRA CHEN chenjc@tw.ibm.com

3. 你曾聽見的客戶抱怨 ???

4. 客戶說:唉呀!我們家的備份好爛!磁帶超慢，容量又小，有時還讀不出來!!客戶說:唉呀!我們家的備份好爛!磁帶超慢，容量又小，有時還讀不出來!! 4

5. (EMX/HDX/DEXX/NXX)等磁碟機專賣商說:對呀!磁帶落伍了!!沒有人要用磁帶櫃備份了，現在流行虛擬磁帶櫃!(EMX/HDX/DEXX/NXX)等磁碟機專賣商說:對呀!磁帶落伍了!!沒有人要用磁帶櫃備份了，現在流行虛擬磁帶櫃! 5

6. IBM業務人員說: 虛擬磁帶櫃??拜拖?!我們家也有，來PK阿!瞰!!誰怕誰?! 6

7. ~~~~~~~~~~~~你覺得這邏輯好嗎 ??

8. 為什麼主要競爭者只能講無帶化?

9. 客戶常問的問題…

10. Question A:我們家的磁帶櫃超慢，用的是LTO2/LTO3，現在還有新款的磁帶機嗎? 10

11. LTO2容量只有200GB，LTO6容量2.5TB，壓縮後6.25TB=>容量相差10倍以上!LTO2速度只有35MB/sec，LTO6速度有160MB/sec=>速度相差將近5倍!LTO2容量只有200GB，LTO6容量2.5TB，壓縮後6.25TB=>容量相差10倍以上!LTO2速度只有35MB/sec，LTO6速度有160MB/sec=>速度相差將近5倍! 11

12. Question B:我們家用TSM/HSM作備份，在舊的磁帶區(LTO3 Tape pool)下，萬一LTO3磁帶有壞掉，無法讀取資料，TSM/HSM 是否可以自動到新採購的磁帶區(LTO6 Tape pool)讀出該資料？? 12

13. 答案是肯定的!! TSM/HSM 可以提供copy pool功能，萬一磁帶有壞掉，無法讀取資料，是可以自動到copy pool讀出該資料，copy pool可以使用原來舊的磁帶區(LTO3 Tape pool)，也可分散到新的磁帶區(LTO6 Tape pool) ，並建議新的磁帶區(LTO6 Tape pool)，可以多設Primary pools ，因為效能比較好!! 13

14. Question C:舊磁帶壞掉，無法讀取資料，很討厭!有何預防措施?? 14

15. TSM/HSM 可以提供AUDIT VOLUME (Verify Database Information for a Storage Pool Volume)功能，可以訂出schedule利用每天磁帶系統較空暇的時間，作磁帶的健康檢查，其方法是TSM會將磁帶資料讀出再與其內部的資料庫作資料比對，預先找出壞掉的磁帶。 15

16. Question D:LTO6可以向下相容LTO4，如果只是讀取資料，TSM/HSM的環境下，為什麼不可以在同一個tape pool ?? 16

17. LTO可以向下相容兩代，但不同代的LTO效能差異很大，所以建議不同代的LTO不要置於同一個tape pool，就好像我們不會讓不同效能的硬碟放在同一個RAID Group，才能避免舊裝置拖延新設備。至於加入新的LTO6磁帶頭如何發揮其效能?我們可以透過資料高低水位的設定，將負載作調整，原來舊的磁帶區(LTO4 Tape pool)負載，可分散到新的磁帶區(LTO6 Tape pool)，如此原有舊的磁帶區及新的磁帶區即可共同作業，發揮最大效能!! 17

18. Question E:BACKUP POOL一定要在磁帶區嗎?? 18

19. TSM/HSM 的BACKUP POOL必需使用SEQUENTIAL DEVICE，磁帶區(Tape pool)即是SEQUENTIAL DEVICE，至於磁碟區(Disk pool)是可以作為SEQUENTIAL DEVICE或RANDOM DEVICE，也就是說BACKUP POOL可以在磁帶區或磁碟區。 19

20. Question F:如何增加TS3500磁帶櫃的資料處理速度？? 20

21. 在不壓縮狀況下每台LTO3的效能為80MB/sec，而每台LTO6的效能為160MB/sec，且於資料壓縮狀況下LTO3=240MB/sec，但LTO6=400MB/sec。另外可多裝磁帶頭以增加資料處理窗口!! 另外加裝機械臂也可增加效能!! 21

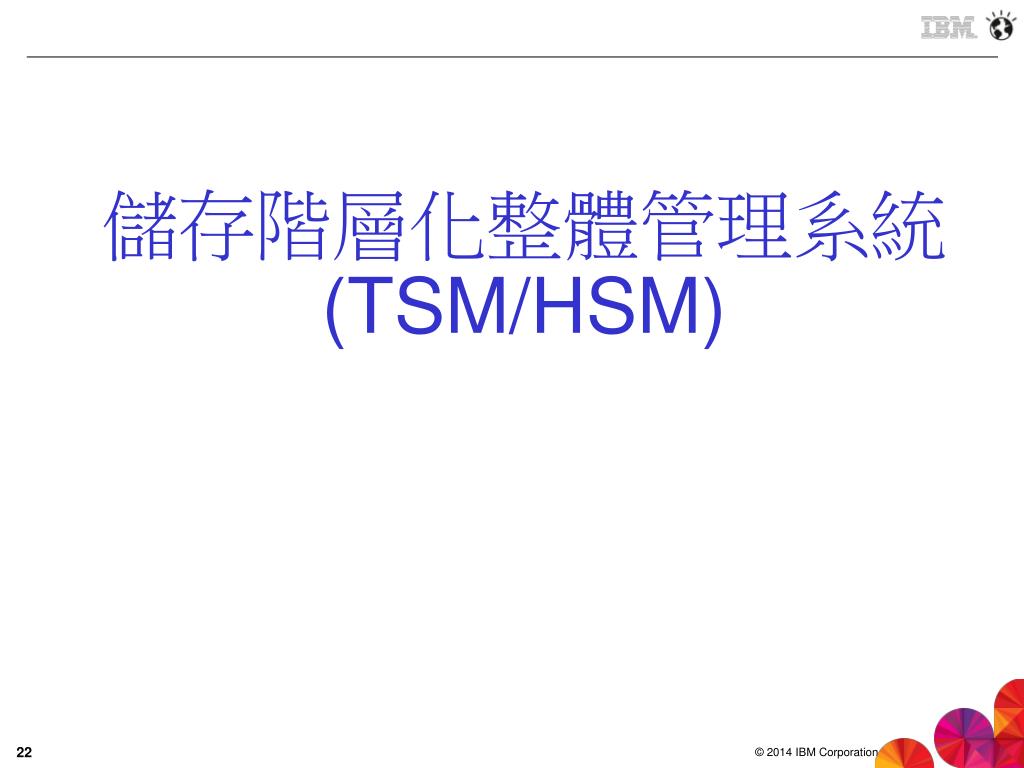

22. 儲存階層化整體管理系統(TSM/HSM)

23. 歷史資料的儲存與管理 • 資料儲存的難題 • 資料量持續的成長，儲存空間總是不敷使用 • 久未使用的歷史資料佔用了大量的磁碟空間 • 儲存空間的日常調整作業，費時又費力 • 資料儲存的解決方案 - IBM Tivoli 自動化空間管理機制 • 整合了磁碟與磁帶的特性，協助客戶以更少的成本管理更多的資料 • 提升儲存空間的利用率，減少人員投入使用和管理儲存系統的時間 23

24. 自動化資料備份與遷移作業 檔案伺服器/TSM備份/HSM空間管理 自動監控磁碟空間用量，接近滿載時將檔案搬移至磁帶 自動執行備份作業(差異備份) 伺服器 資料備份與遷移 使用者 自動取回 使用者調閱資料時，HSM自動將檔案取回， 不需人工介入 SVC + DCS3700/V7000磁碟陣列 TS3500磁帶館 24

25. 資料遷移說明 檔案符合搬移條件時(檔案大小、久未使用) 將自動搬移至磁帶 檔案實體已被搬移，檔案只剩下4KB標籤， 當使用者調閱資料時，系統自動取回資料實體， 完全背景作業，不需人工介入。 將資料搬移至磁帶可節省大量磁碟空間需求，並有效節省設備成本、電力耗能與機房空間。 25

26. IBM Linear Tape File System Enterprise Edition (LTFS EE)Tiered Operational Storage

27. What is LTFS LTFS Index XML File File File BOT EOT File • File format • File system Index Partition Guard Wraps Data Partition

28. LTFS – Easy Exchange of DataShare Data across Platforms LTO5, LTO6 TS1140 28

29. LTFS Phases LTFS Phase 1 LTFS Format Enablement Single Drive Support (2010) LTFS Phase 2 Tape Automation Support LTFS Phase 3 Integrated Tiered Storage Solutions Application file access to tiered storage Archive Management Solutions Application file access to tape NFS / CIFS File system Linux Server LTFS LE Disk file system Tape Library

30. LTFS-LE (Library Edition) • Mount point is the library • Cartridges are subdirectories • LTFS mounts cartridges into drive to service file access requests • Easy usage, no ISV required • Caching of tape indices in memory • For searching and displaying tape contents without needing a mount Schematic Example 30

31. LTFS Value Proposition Self-Describing cartridge Remove requirement to commit long term to tape software application Content protection in event of database corruption or loss Improve content interchange/distribution Eliminate need for common tape software across enterprise and/or interchange locations Reduce cost of data interchange vs pro-video $/GB, Power Reduce cost of digital storage – power and $ Open Standards Large diverse infrastructure requires open standard Standard/support of MXF video Long Term Content Archive Life Archive life desire for 50-100 years

32. 2010 TS7610 TS7680 60 years of tape innovation In tape drive technology & SW 2010 LTFS SDE 2011 LTFS LE 2012 LTFS SM 2012 1952 1952 1964 1964 2004 2007 2007 2010 LTO Gen6 2002 2002 2000 2000 1995 1995 IBM 726 IBM 726 IBM 2104 IBM 2104 LTO-4 LTO Gen3 LTO Gen2 LTO-5 st st st st LTO Gen1 LTO Gen1 1 1 magnetic tape drive magnetic tape drive 1 1 read/back drive read/back drive IBM 3590 IBM 3590 1959 1959 1984 1984 1999 1999 2005 2005 2008 2008 2011 2003 2003 IBM 729 IBM 729 IBM 3480 IBM 3480 IBM 3590E IBM 3590E TS1120 TS1120 TS1130 TS1130 TS1140 3592 Gen1 3592 Gen1 st st st st (3592 G4) 1 1 read/write drive read/write drive 1 1 cartridge drive cartridge drive (3592 G2) (3592 G2) (3592 G3) (3592 G3) In tape automation and virtualization 2008 2008 1992 1992 2011 TS2900 TS2900 IBM 3495 IBM 3495 2005 2005 1962 TS3500 2012 TS3500 TS3500 TS3200 TS3200 2000 2000 2007 2007 1994 1994 IBM Tractor System Connector &shuttle IBM TSLM software High Density High Density TS3300 TS3300 TS3400 TS3400 TS3500 TS3500 IBM 3494 IBM 3494 2008 2008 1999 1999 1997 1997 2001 2001 2006 1974 TS7720 TS7720 2011 TS7740 TS7720 VTS G2 VTS G2 VTS G1 VTS G1 TS7740 (VTS Gen 4) VTS G3 VTS G3 3850 MSS 2009 2009 2005 2005 2007 2007 2008 2008 2007 2007 TS7650 TS7650 TS7510 VTL TS7510 VTL TS7520 TS7520 TS7650G TS7650G TS7530 TS7530 Appliance Appliance

33. Introducing new IBM LTO Ultrium 6 technology • Sixth Generation of LTO Tape Drive • 160 MB/sec performance native data transfer rate • Up to 6.25 TB of capacity at 2.5:1 compression (2.5 TB native capacity) • 30% more energy efficient • Continued media support of prior generations, read/write LTO-5 media and read LTO-4 media • Continued Security standard method • Encryption of data • Continued data management and access – IBM Linear Tape File System implemented on dual partition • Provides file system access at the operating system level • Platform Support • Selected IBM System servers and other Linux and Windows open system servers

34. TS3200 (3573) TS3310 (3576) IBM Tape Systems Portfolio Entry Midrange Enterprise TS7610 ProtecTIER Appliance Express Tape virtualization TS7650, TS7680 ProtecTIER (3958) TS7650 ProtecTIER Deduplication Appliances TS7700 mainframe (3957) TS2900 (3572) Tape automation TS3500 (3584) TS3100 (3573) Tape Drives LTO 4, 5 & 6 HH LTO Media LTO 4, 5 & 6 TS1140 (3592) 3592 Media

35. IBM System Storage Tape family support of LTO-6 drive IBM intends to integrate its LTO 6 tape drives adhering to LTO Ultrium generation 6 standards into selected IBM System Storage tape products. Previews provide insight into IBM plans and direction. Specific availability dates, ordering, information, and terms and conditions will be provided when the product is announced. - TS2260 HH Tape Drive - TS2360 FH Tape Drive - TS2900 Tape Autoloader - TS3100 Tape Library - TS3200 Tape Library - TS3310 Tape Library • TS3500 Tape Library TS3310 Tape Library Drive-throughput Performance, Advanced Features Enterprise TS3200 Tape Library TS2260 or TS2360 External Tape Drives Midrange TS2900 Tape Autoloader TS3100 Tape Library Entry Capacity Requirements, Exponential Data Growth *Planned product preview

36. IBM System Storage TS2260 Tape Drive Express • External Tape Drive • Featuring the new IBM Ultrium 6 technology • Support for application managed encryption of data • Increased performance, up to 160 MBps native data transfer rate • Higher capacity with 6.25 TBwith 2.5:1 compression (2.5 TB native) • Supports IBM Linear Tape File System • Backward compatibility, read/write LTO-5 media and read LTO-4 media • A great solution for constrained resources • Featuring half height with an enclosure design to fit two units per rack mount shelf • TS2260 is designed with an easy to use interface and a simple front loading drive • A 3-year warranty is standard in most countries • TS2260 addresses the rapidly changing business environments • The TS2260 provides high capacity, high performance and industry standard encryption features • 6 Gbps dual SAS interface for continued improved availability Planned announcement: Nov 6, 2012 Planned availability: Dec 7, 2012

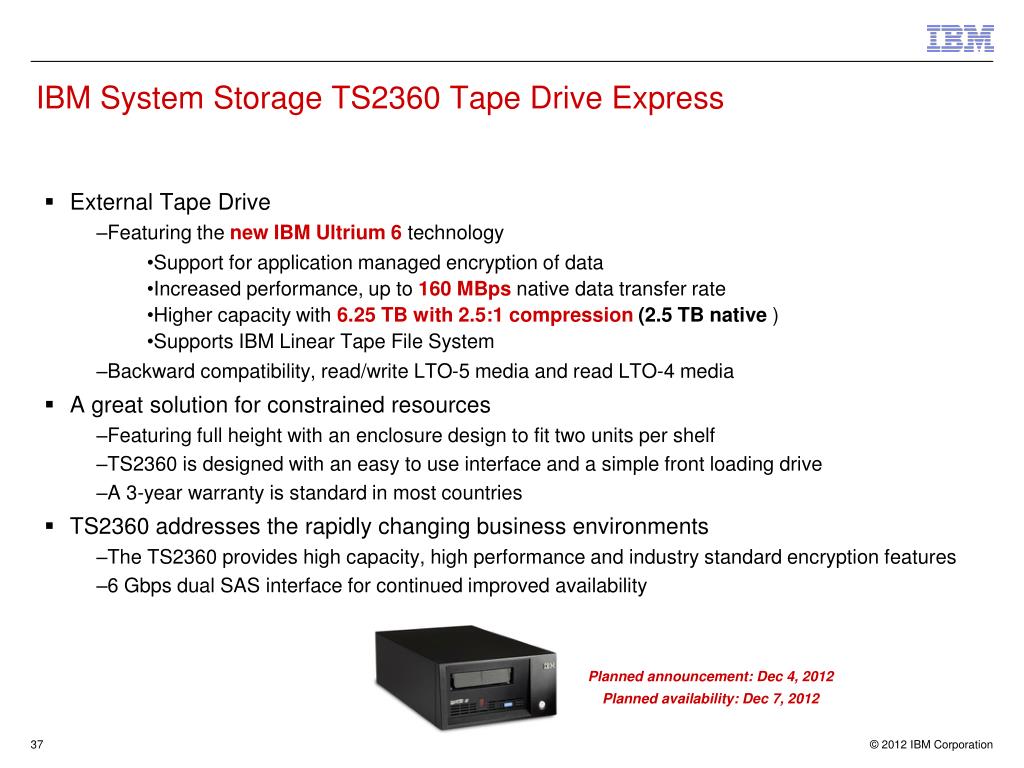

37. IBM System Storage TS2360 Tape Drive Express • External Tape Drive • Featuring the new IBM Ultrium 6 technology • Support for application managed encryption of data • Increased performance, up to 160 MBps native data transfer rate • Higher capacity with 6.25 TB with 2.5:1 compression(2.5 TB native ) • Supports IBM Linear Tape File System • Backward compatibility, read/write LTO-5 media and read LTO-4 media • A great solution for constrained resources • Featuring full height with an enclosure design to fit two units per shelf • TS2360 is designed with an easy to use interface and a simple front loading drive • A 3-year warranty is standard in most countries • TS2360 addresses the rapidly changing business environments • The TS2360 provides high capacity, high performance and industry standard encryption features • 6 Gbps dual SAS interface for continued improved availability Planned announcement: Dec 4, 2012 Planned availability: Dec 7, 2012

38. IBM System Storage TS2900 Tape Autoloader Express • 1 U form factor • Stand alone or rack mount configurations • Incorporates IBM’s patented high density slot technology • Contains either a single LTO-6, 5 or 4 tape drive • Half-Height SAS tape drive • LTO-6 and LTO-5 with 6 Gbps interface • One removable magazine • 9 cartridge slots, including a single I/O station • Bar code reader and Remote Management are standard • Can be configured to run in either sequential (autoloader) mode or random (library) mode • Manageable by local operator panel or remote web GUI • Total capacity up to • 56.25 TB with 2.5:1 compression with LTO-6 • 27 TB with 2:1 compression with LTO-5 • Warranty: 1 Year (Customer Exchange) • Supports encryption with LTO gen 6, 5 and 4 drives LTO-6 support Planned announcement: Nov 6, 2012 Planned availability: Dec 7, 2012

39. IBM TS3100 & TS3200 Tape Library Express • End-user flexibility and easy to use functionality • Barcode reader and remote management are standard features • Removable tape cartridge magazines • Three year standard warranty is standard, and basic parts are customer replaceable units (CRU) • Multiple drive options • Up to two half-height drives or one full-height drive with TS3100 • Up to four half-height drives or two full-height drives with TS3200 • Mix LTO Gen 4, 5 and 6 within the same library • Large Tape Storage capacity for rack mount environment • 24 or 48 data cartridge slots • 150 TB of storage capacity with 2.5:1 compression (60 TB native) with TS3100 • 300 TB of storage capacity with 2.5:1 compression (120 TB native) with TS3200 IBM TS3200 IBM TS3100 LTO-6 support Planned announcement: Nov 6, 2012 Planned availability: Dec 7, 2012

40. TS3310 Tape Library overview • Modular Library with LTO-6 tape drives • Up to 2.56 PB with 2.5:1 compression (1.02 PB native capacity) • Up to 409 max cartridge slots (35 to 403 + 6 input/output slots) • Up to 18 hot-swappable LTO Drives • Up to 8 Gbps dual-port Fibre Channels on each tape drive • Supports • Logical Partitioning and Native SMI-S • Optional features • Transparent encryption (with LTO-6 & LTO-5 tape drives) • Capacity on demand • Rack Mounting • Path Failover (Data and Control) • Redundant power LTO-6 support Planned announcement: Nov 6, 2012 Planned availability: Dec 7, 2012

41. TS3500 Tape Library Overview • Supporting the new IBM LTO Ultrium 6 tape drives • Improved capacity and performance to reduce footprint and improve productivity • LTO 6, up to 125 PB with 2.5:1 compressionper library(50 PB native), up to 1.875 EB per complex when compressed • Dual 8Gbps fibre channel port connectivity for industry leading performance and availability • Data encryption and WORM cartridge support for security and compliance • Optional dual robotics, high density frames and support for mixed generations of LTO and enterprise drives in the same TS3500 tape library • Work together to help protect customer current investments while integrating new technologies • Storage Authentication Service • Centralized authentication for improved storage administration security • Floating home cell option for standard density frames • Optimizes demount operations, reducing access time to data LTO-6 support Planned announcement: Oct 3, 2012 Planned availability: Nov 9, 2012

42. Higher Density Next Gen Enterprise Tape Automation 42

43. TS4500 HD2 base frameUp to 2.2 PB native capacity in a single frame tape library Up to 3.3X the slot density of TS3500 with more standard features including: • Advanced Library Management System (ALMS) • Dynamic partitioning • Transparent Capacity on Demand • Virtual I/O (VIO) • Cartridge cache • Two I/O Stations • System console capabilities e.g. broadband call home (formerly TSSC)

44. TS4500 HD2 drive expansion framesUp to 2.4X slot density, up to 1.3X drive density • New HD Capacity on Demand option • 2 I/O Stations optional • No capacity reduction for tape drives

45. TS4500 flexible growthGrow left or right of the base frame • All models come with all slots installed • Frame 1 left-most drive slots and left-most storage slots are inactive

46. TS4500 tape drive support • LTO-5, LTO-6, and TS1140 • New HD2-compatible packaging for up to 16 drives in each model Lx5/Dx5 HD2 frame • 3588 models F5C/F6C • 3592 model EH7 • Support for migration from model xx2/xx3 non-HD2 frames to new model xx5 HD2 frames: • 3588 F5A-to-F5C model conversion • 3588 F6A-to-F6C model conversion • 3592 E07-to-EH7 model conversion NOTE: Can upgrade either 3592 drive generation or 3592 drive packaging, but cannot upgrade both • 3592 E06-to-EH7

47. New option for customer-usable rack space • 10U of rack space above each TS3500 or TS4500 library frame • Field install • Opportunity for “zero footprint” rack-mount components such as Fibre Channel switches, Ethernet switches, IBM FlashSystems, and/or tape-attached servers • Treated as completely independent rack space – not tied to service/support of the tape library

48. Next Gen Enterprise Tape Automation Simplified Management Magazine I/O Integrated management Improved ease-of-use Extensible platform

49. TS4500 control - Magazine I/O

50. TS4500 control - Integrated management(More information: sTU80 - Demo of Next Gen Tape Automation Management on May 21) Reporting Tape System Reporter (integrated, improved) Other LDAP, DNS, NTP, SSL (integrated, improved) Management GUI/CLI (improved) Monitoring Email (SMTP), syslog, SNMP, mobile (integrated, improved) Admin and Service LANs Support Tape System Service Console (TSSC) capabilities (integrated) Integrated Management Console (IMC)
