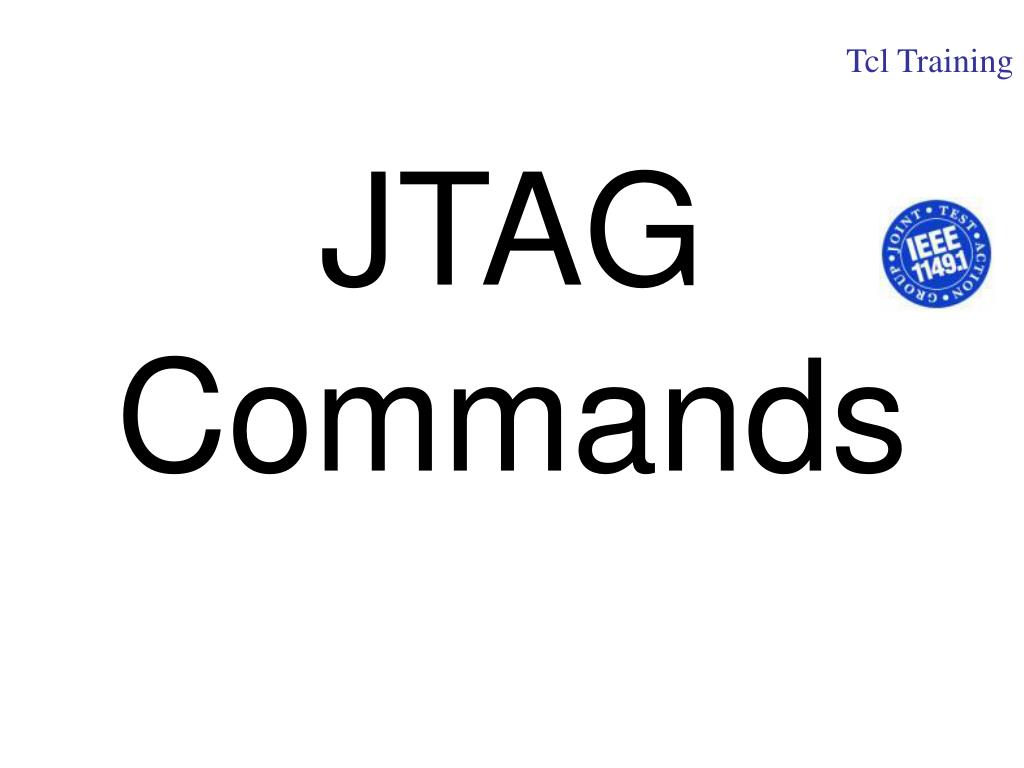

  1. Tcl Training JTAG Commands

  2. Aim and Topics • Aim • Looking at JTAG specific commands • Topics • The unit command • The instance command • The signal command • The pin command • The integer command

  3. Signal Command Examples • Setting all Boundary Scan Cells of a device to 0: # -> Select the Sample/Preload instruction instance U2 set EXTEST unit ir write # -> Set all the Boundary Scan bits to Zero foreach s [instance / signals] { signal ${s} set 0 } unit dr write Set instruction extest For each signal: loop Get the list of all instance signals Set signal $s to 0 Write DR register
