  1. Speaker Name: System Overview Detailed Version for Sales EngineersNetwork Communications Platform

  2. Network Communication Platform • Panasonic Network Communication Platforms provide cost effective solutions for small to medium business Market. • The solutions provide: • Extensive business telephony communicationsover local and broadband Networks • Enables Businesses to implement Unified Communications • Provides feature rich mobility solutions • Increases user and business productivity • Reduces complexity and cost

  3. Network Communication Platform • The systems are designed for: • Installation into standard IT equipment racks • Supports a range of • IP Telephone devices (MGCP, SIP) • Digital, & Analogue Telephone devices • Digital, Analogue & IP network connections • Integrated Applications • System Hardware Comprises of • Main Processor Card • Power Supply (as standard) Standard 19” Rack Installation

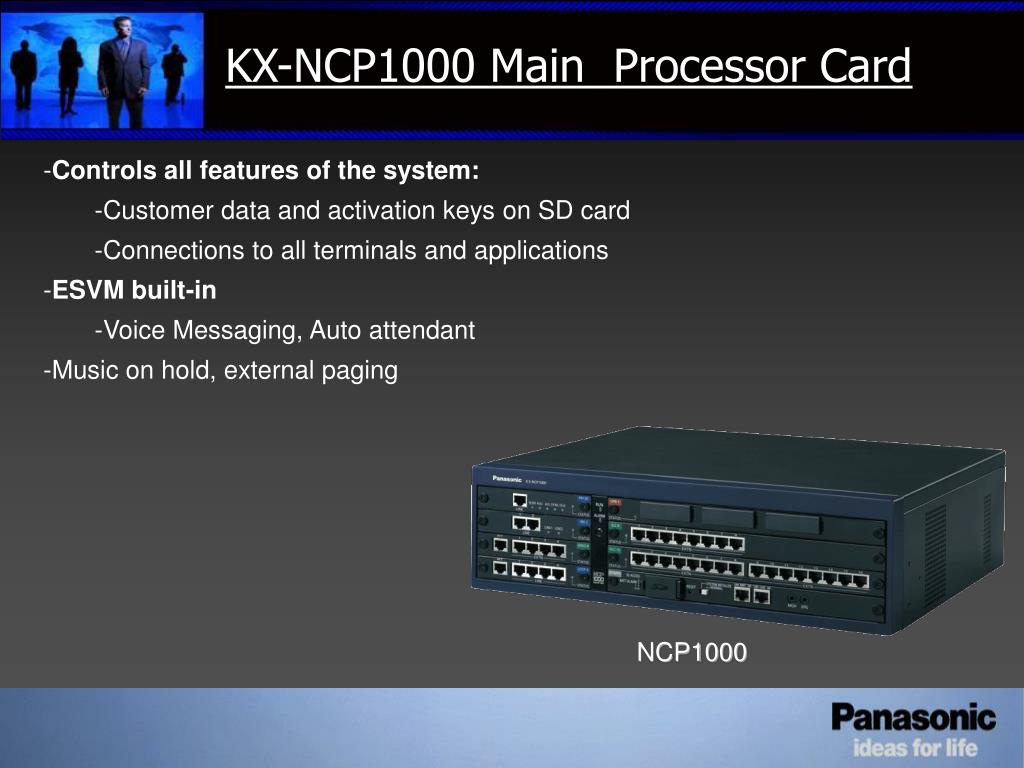

  4. KX-NCP1000 Main Processor Card • Controls all features of the system: • Customer data and activation keys on SD card • Connections to all terminals and applications • ESVM built-in • Voice Messaging, Auto attendant • Music on hold, external paging NCP1000

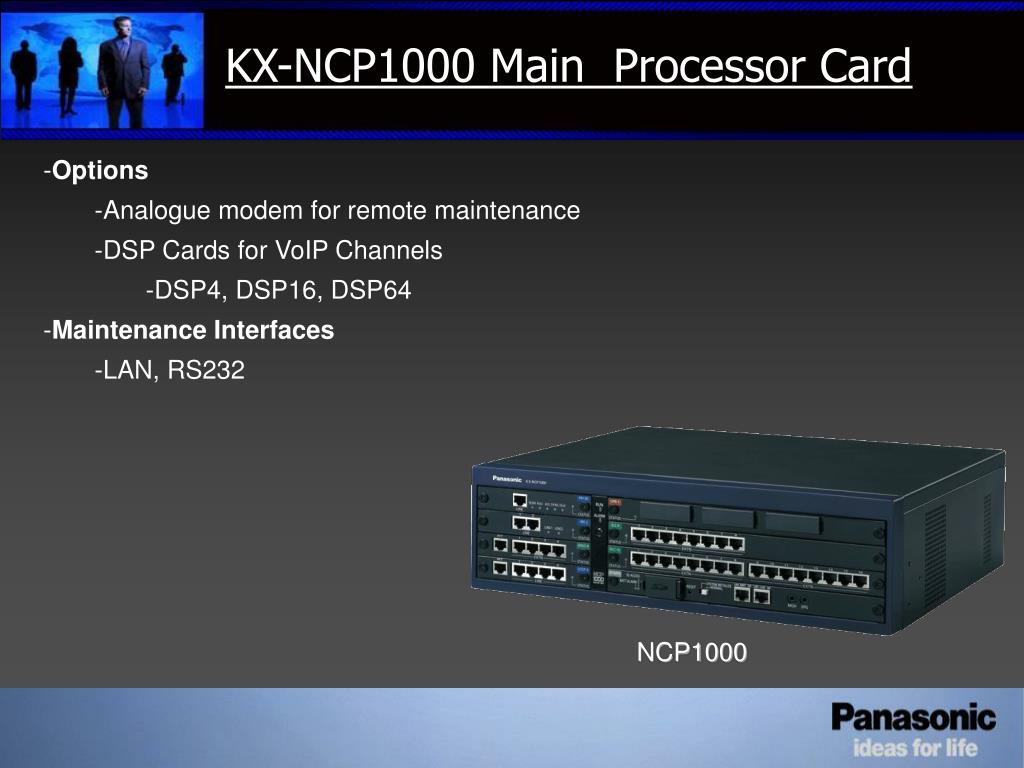

  5. KX-NCP1000 Main Processor Card • Options • Analogue modem for remote maintenance • DSP Cards for VoIP Channels • DSP4, DSP16, DSP64 • Maintenance Interfaces • LAN, RS232 NCP1000

  6. KX-NCP1000 – Block Diagram Main Processor Card Daughter board 4 Small Free Slots 3 Regular Free Slots DSP4/16/64 Extension Card IP Extensions IP Trunks Extension Card Analogue Trunk Extension Card Built-In Digital Trunk Digital Trunk • SD memory slot • ESVM • Voicemail • Auto Att. • MOH OPB3 Door Opening Additional Messaging I/O Card CA Application I/F(CSTA)

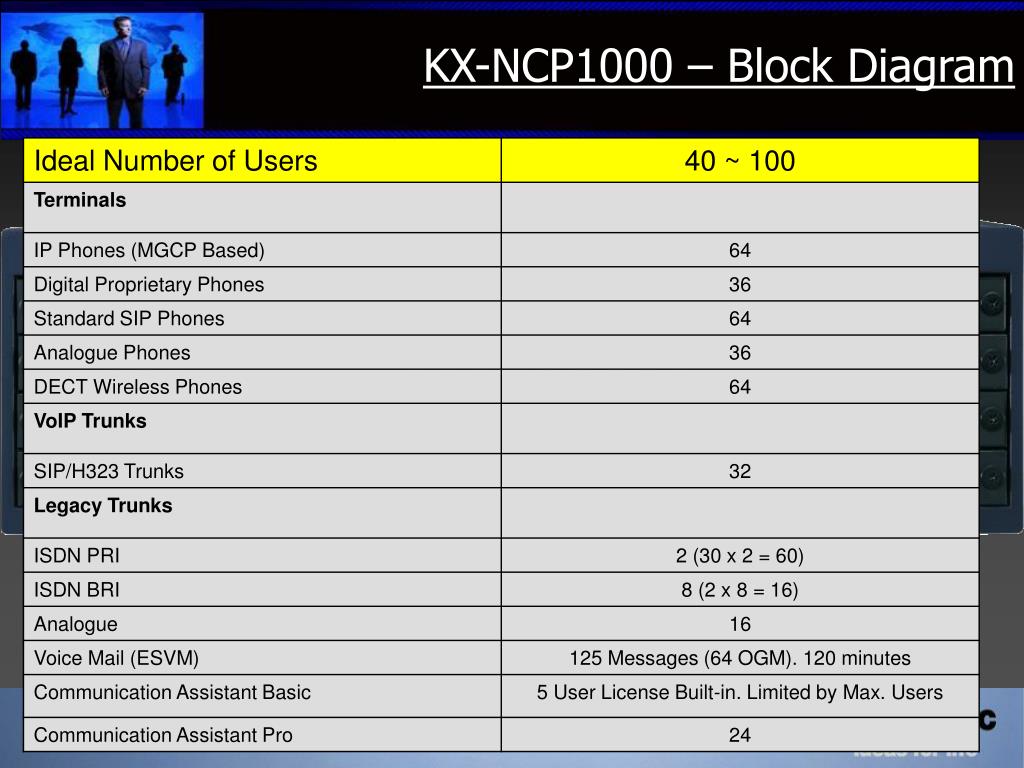

  7. KX-NCP1000 – Block Diagram

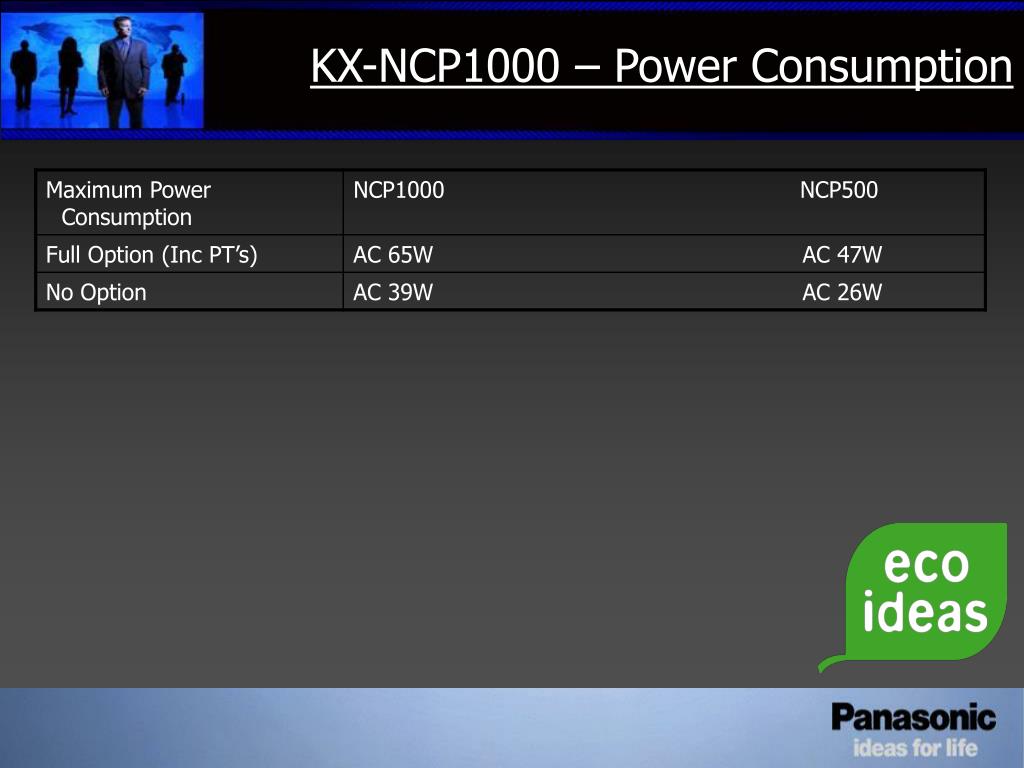

  8. KX-NCP1000 – Power Consumption

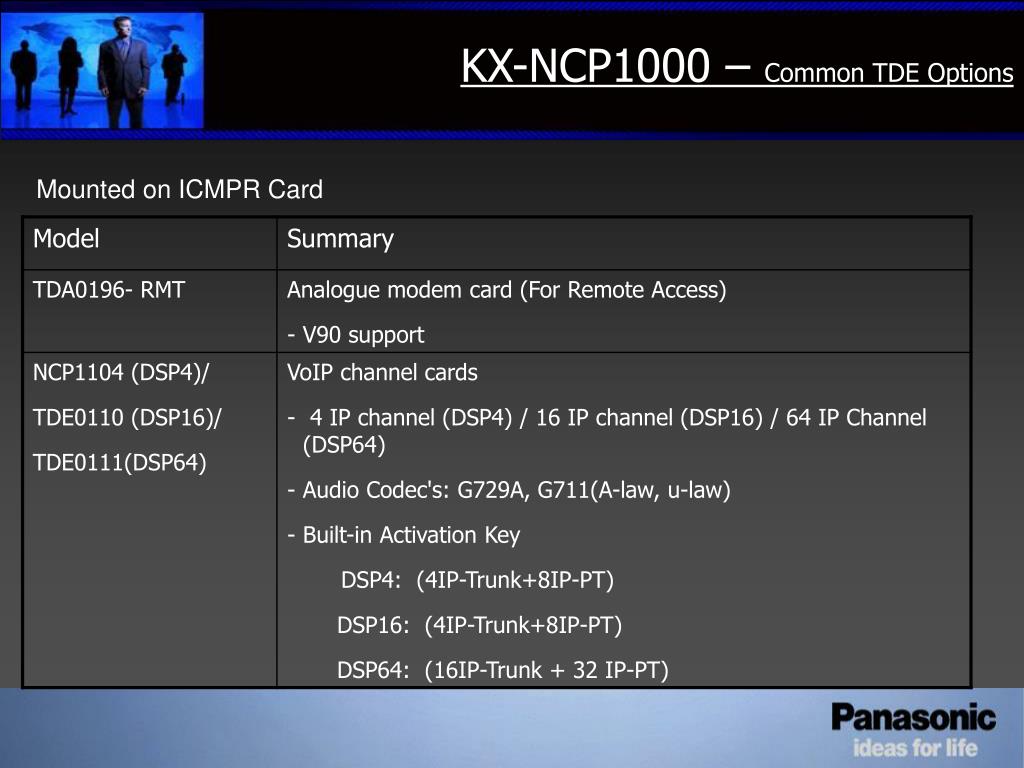

  9. KX-NCP1000 – Common TDE Options Mounted on ICMPR Card

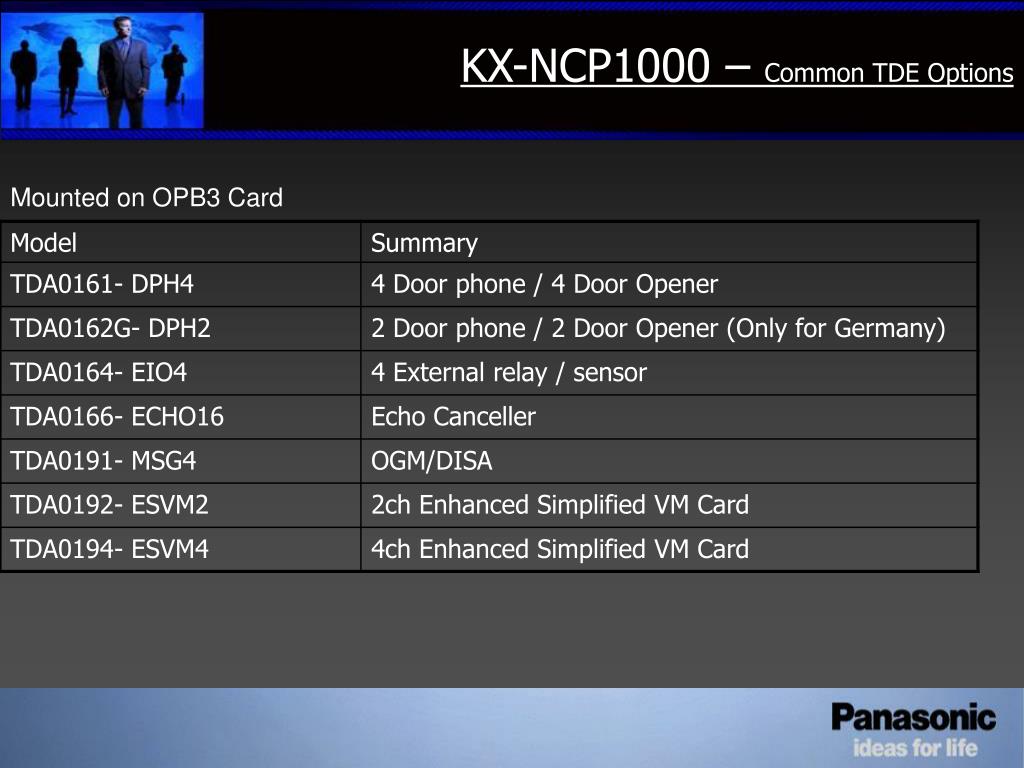

  10. KX-NCP1000 – Common TDE Options Mounted on OPB3 Card

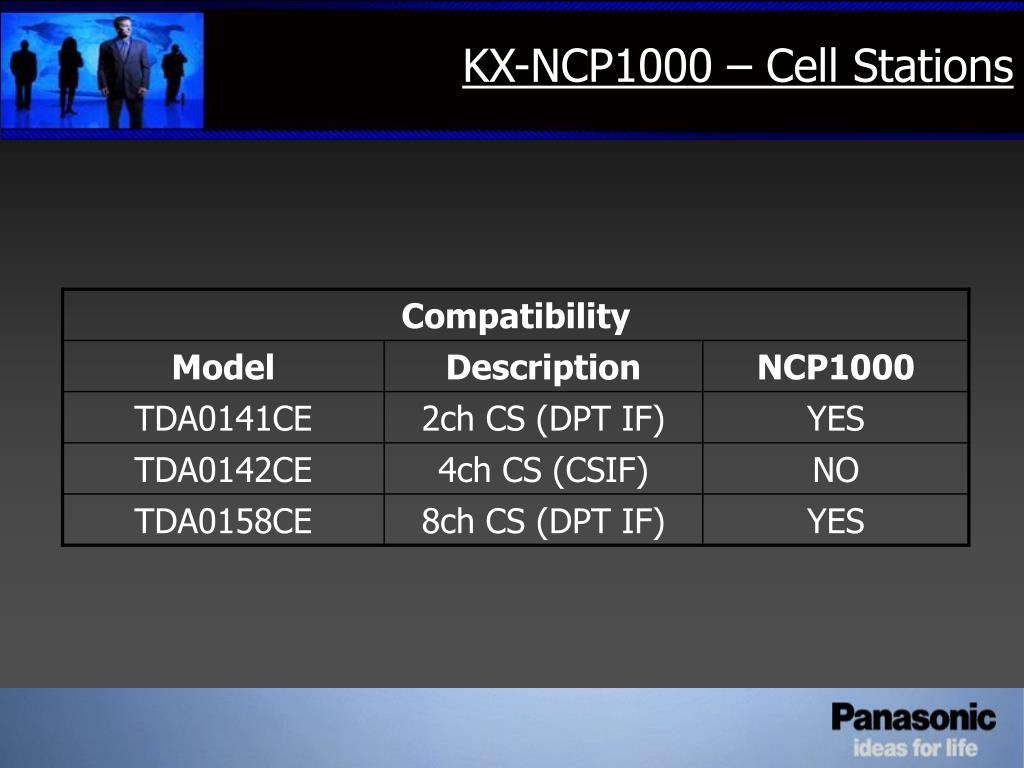

  11. KX-NCP1000 – Cell Stations

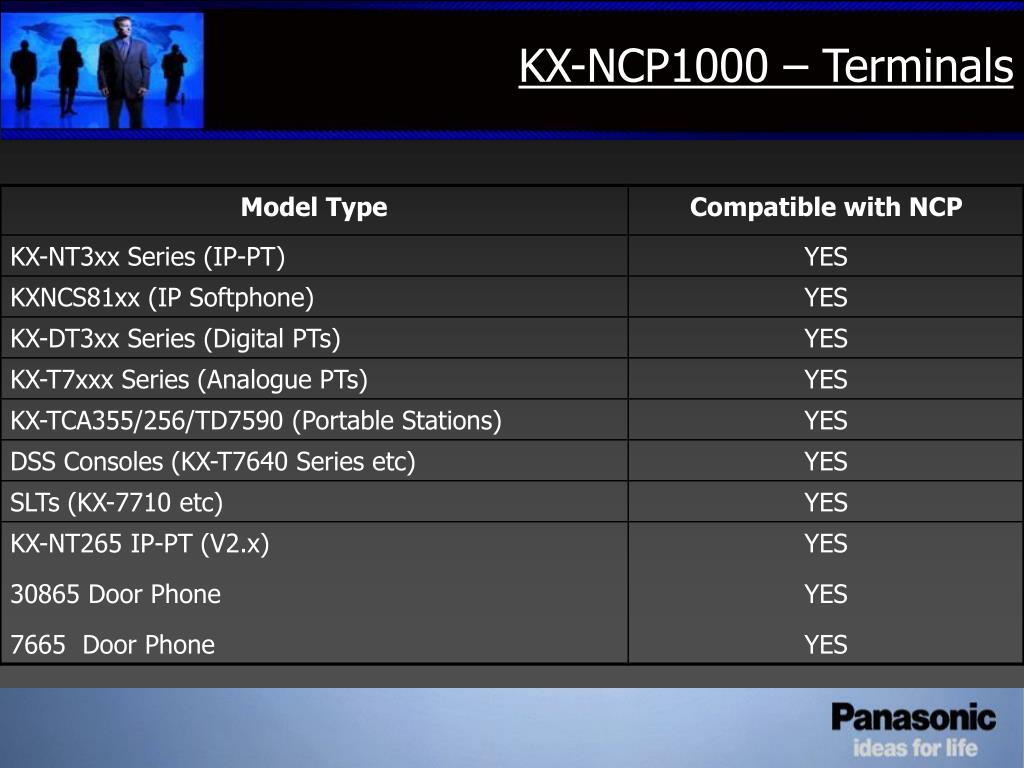

  12. KX-NCP1000 – Terminals

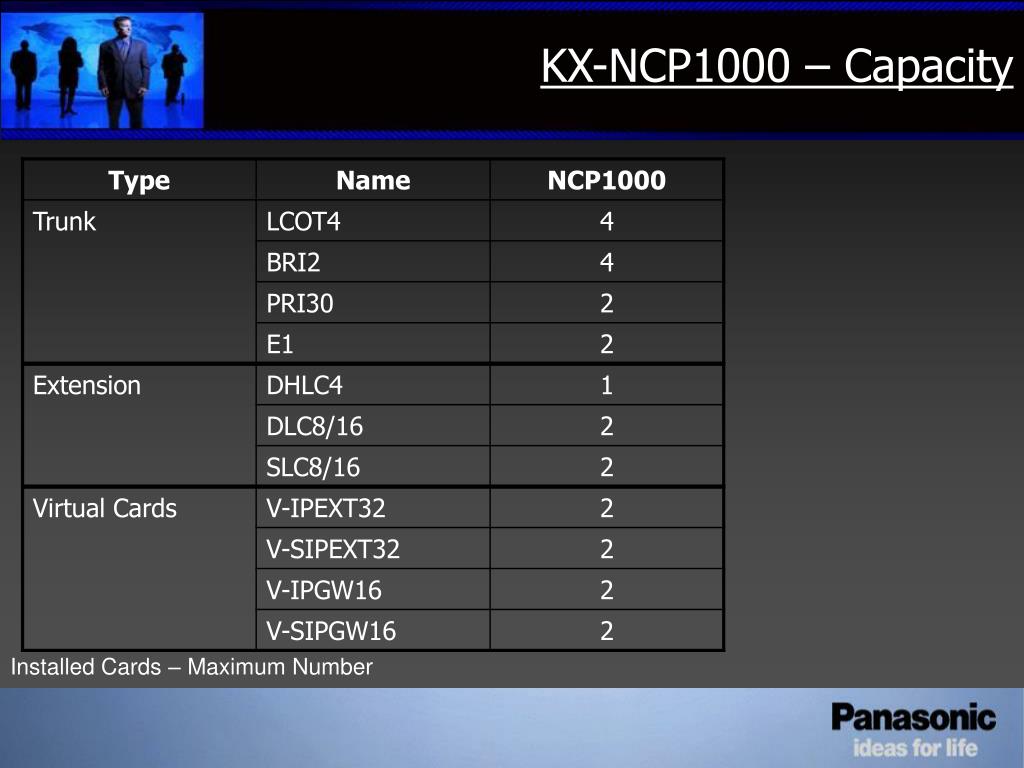

  13. KX-NCP1000 – Capacity Installed Cards – Maximum Number

  14. KX-NCP1000 – Capacity

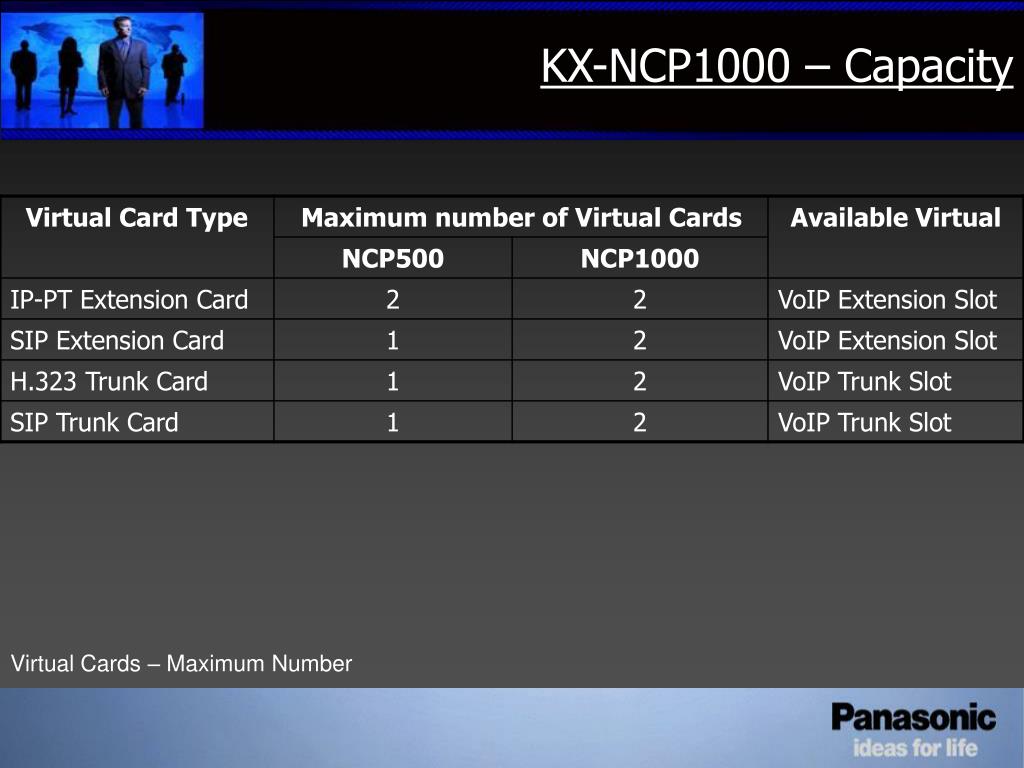

  15. KX-NCP1000 – Capacity Virtual Cards – Maximum Number

  16. KX-NCP1000 – Maxima Maximum Port Number (Trunk)

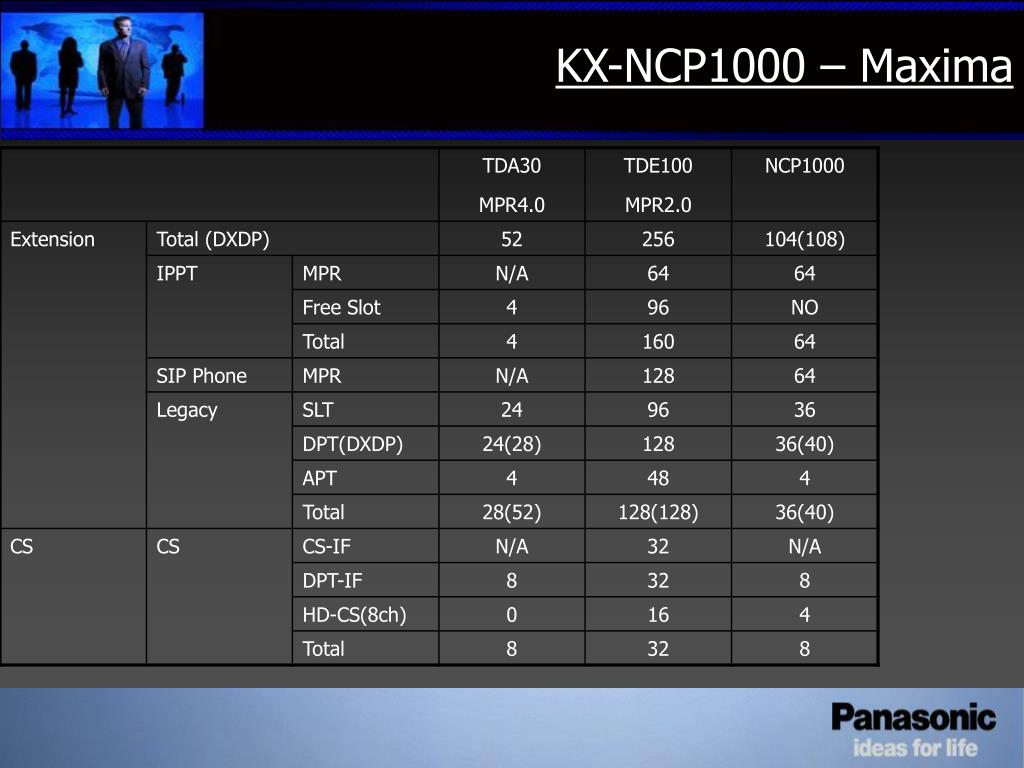

  17. KX-NCP1000 – Maxima

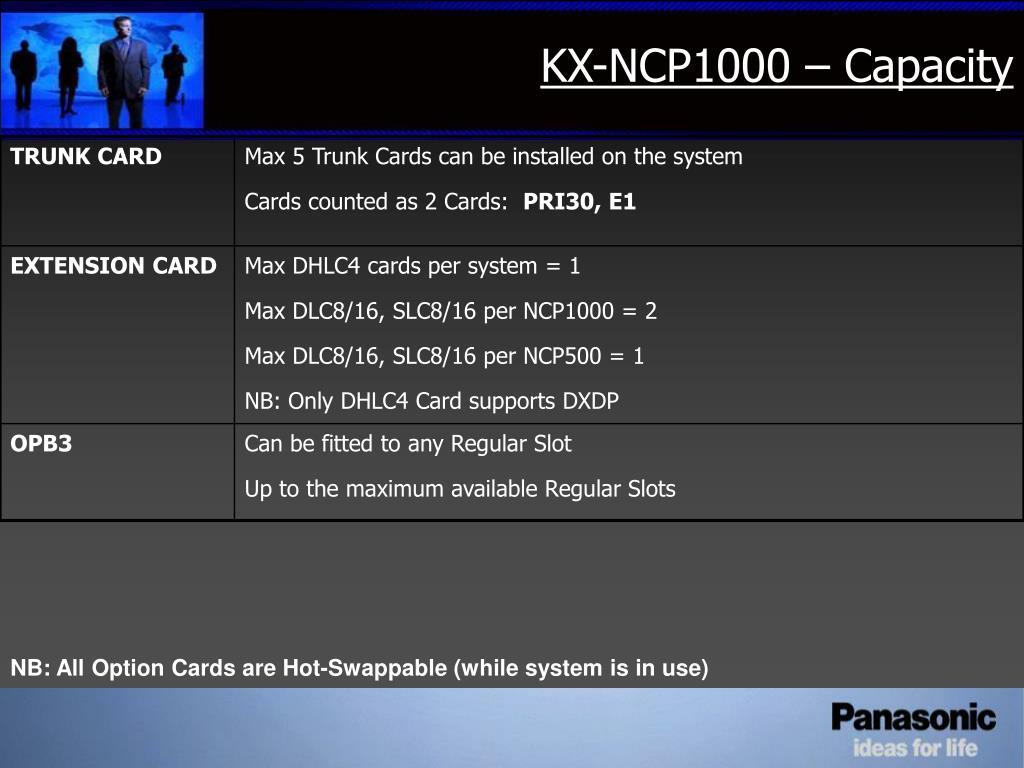

  18. KX-NCP1000 – Capacity NB: All Option Cards are Hot-Swappable (while system is in use)

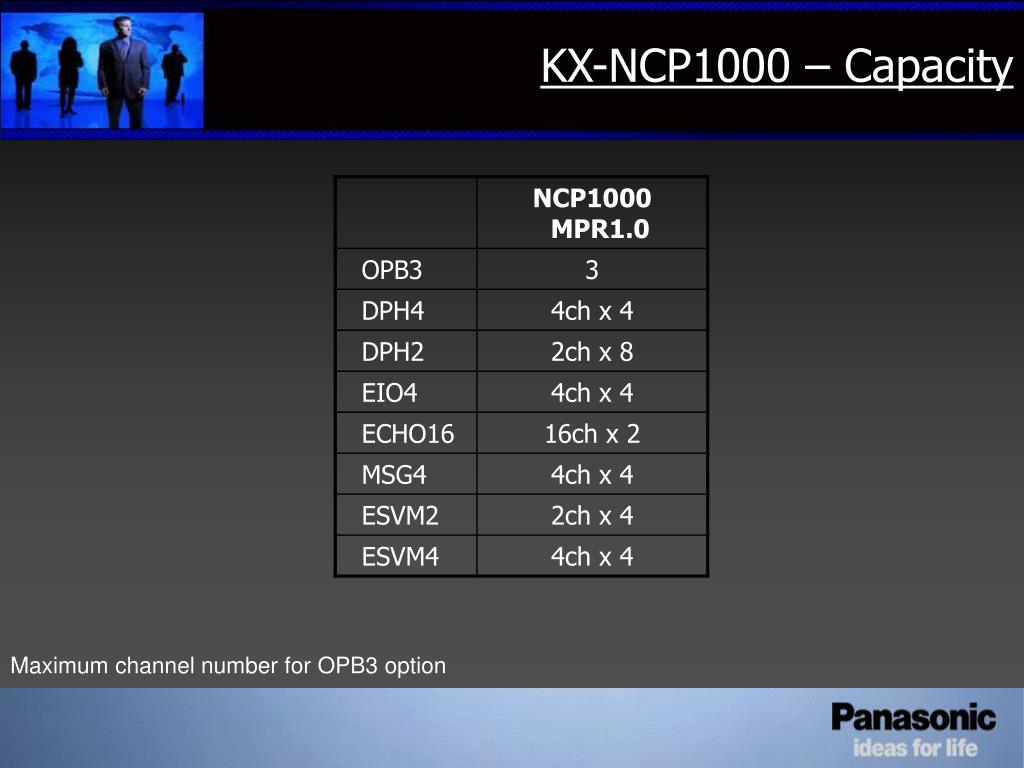

  19. KX-NCP1000 – Capacity Maximum channel number for OPB3 option

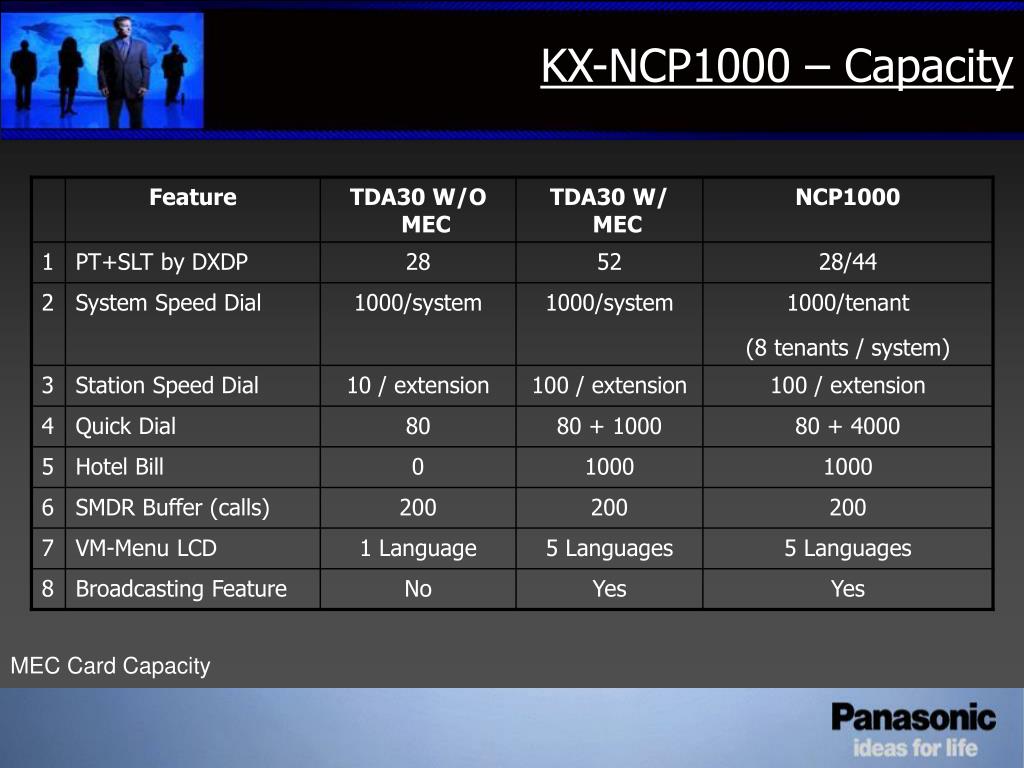

  20. KX-NCP1000 – Capacity MEC Card Capacity

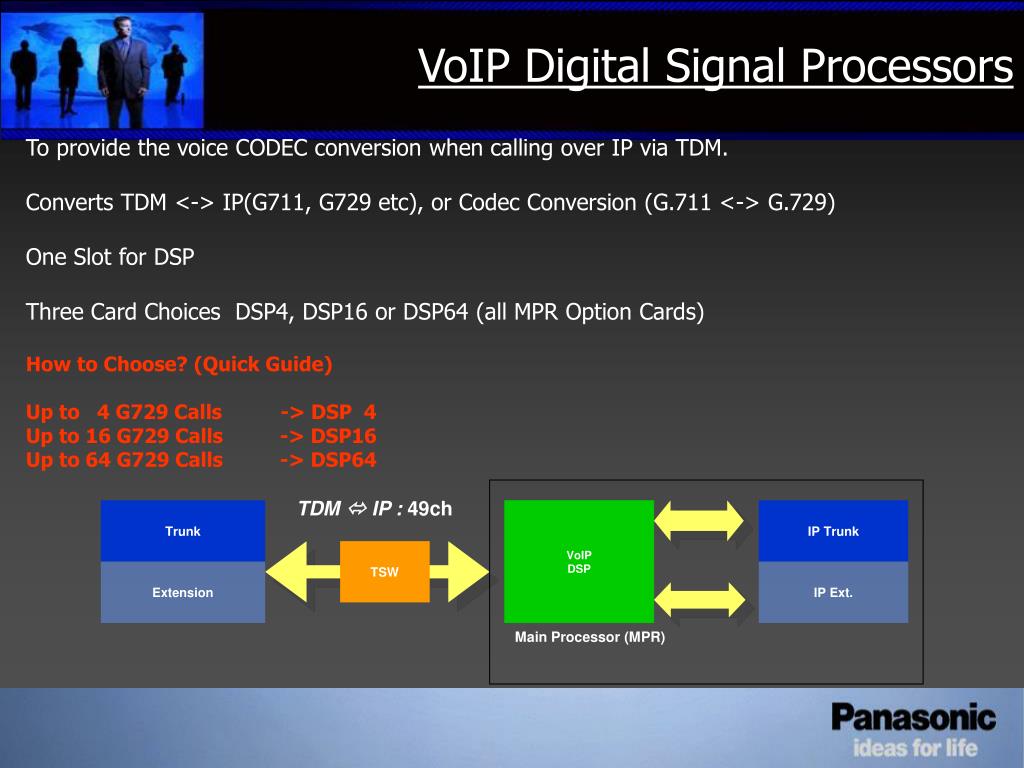

  21. VoIP Digital Signal Processors TDM  IP :49ch Trunk VoIP DSP IP Trunk TSW Extension IP Ext. Main Processor (MPR) To provide the voice CODEC conversion when calling over IP via TDM. Converts TDM <-> IP(G711, G729 etc), or Codec Conversion (G.711 <-> G.729) One Slot for DSP Three Card Choices DSP4, DSP16 or DSP64 (all MPR Option Cards) How to Choose? (Quick Guide) Up to 4 G729 Calls -> DSP 4 Up to 16 G729 Calls -> DSP16 Up to 64 G729 Calls -> DSP64

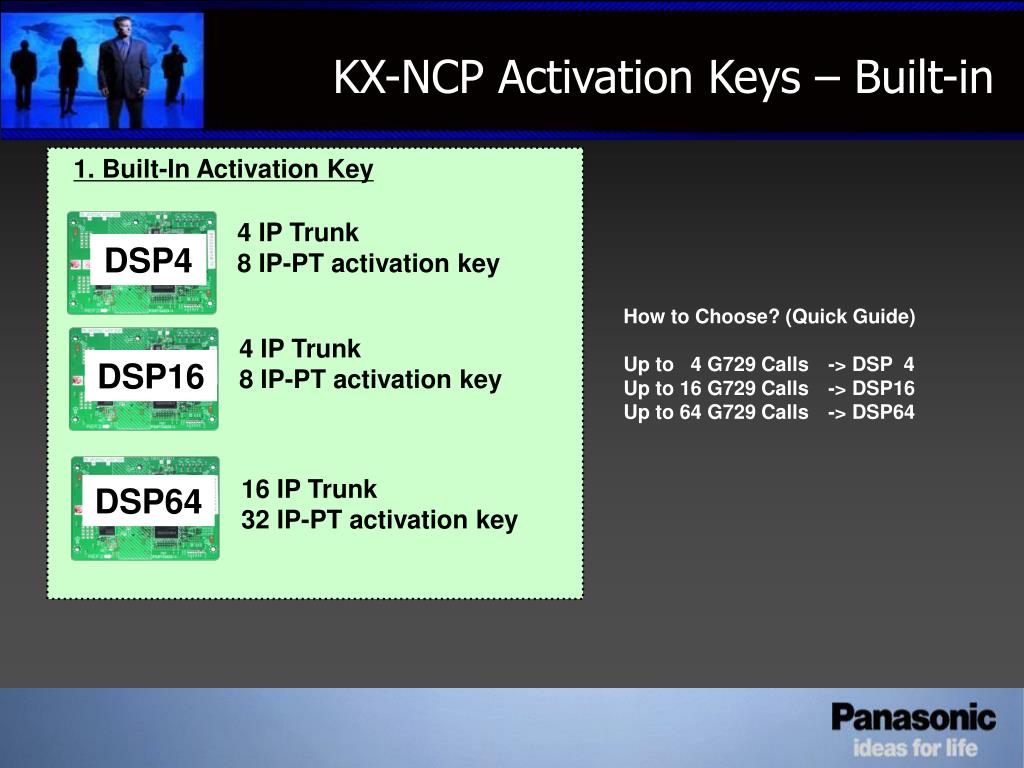

  22. KX-NCP Activation Keys – Built-in 1. Built-In Activation Key 4 IP Trunk 8 IP-PT activation key DSP4 How to Choose? (Quick Guide) Up to 4 G729 Calls -> DSP 4 Up to 16 G729 Calls -> DSP16 Up to 64 G729 Calls -> DSP64 4 IP Trunk 8 IP-PT activation key DSP16 DSP64 16 IP Trunk 32 IP-PT activation key

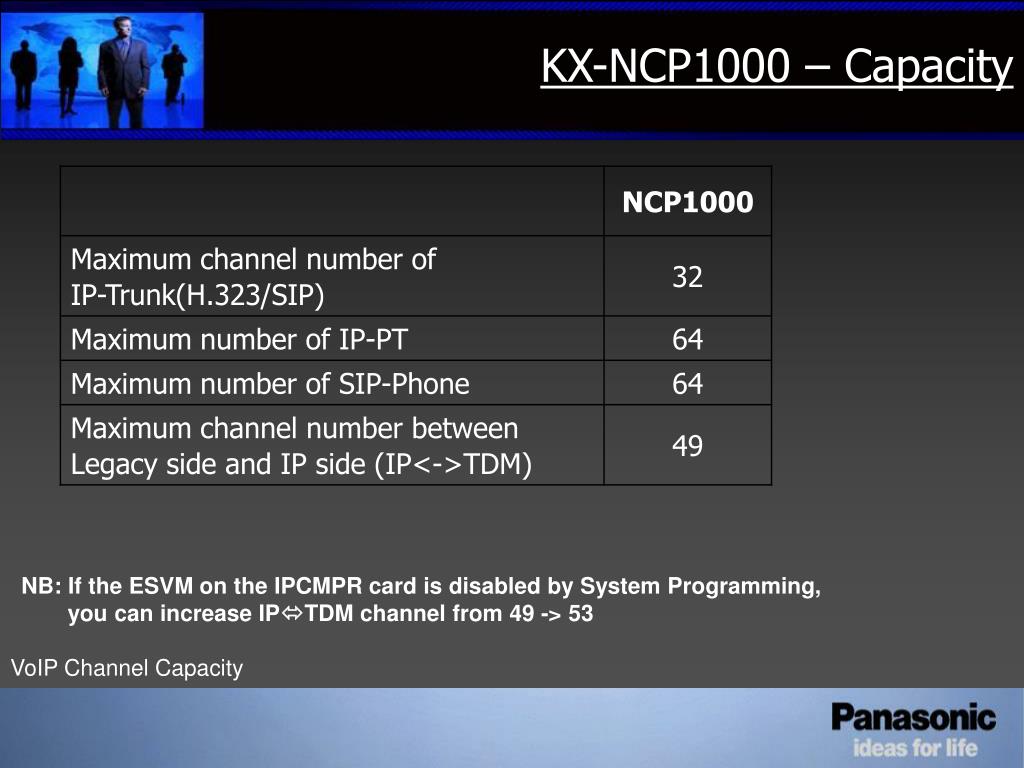

  23. KX-NCP1000 – Capacity NB: If the ESVM on the IPCMPR card is disabled by System Programming, you can increase IPTDMchannel from 49 -> 53 VoIP Channel Capacity

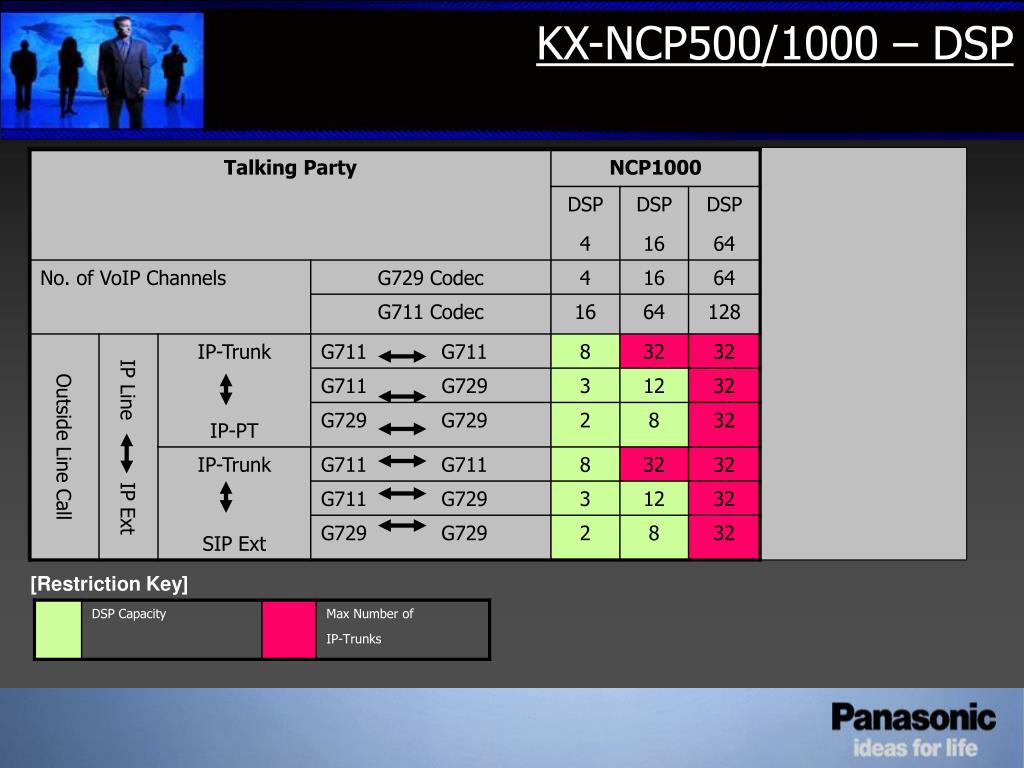

  24. KX-NCP500/1000 – DSP [Restriction Key]

  25. KX-NCP1000 – DSP [Restriction Key]

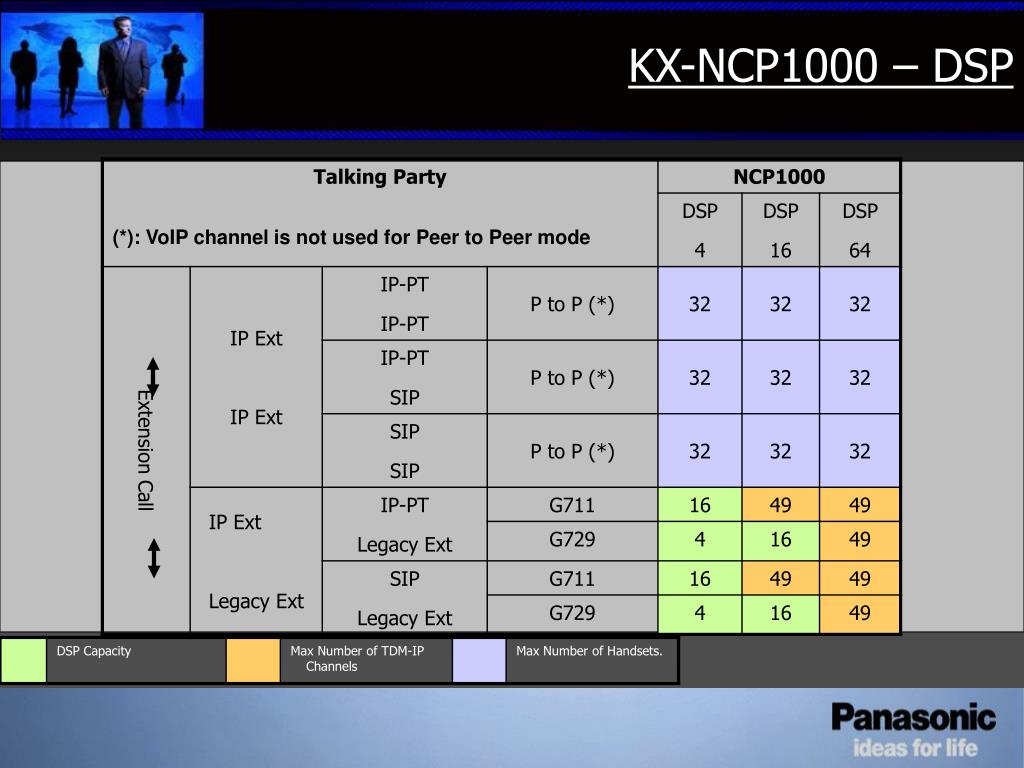

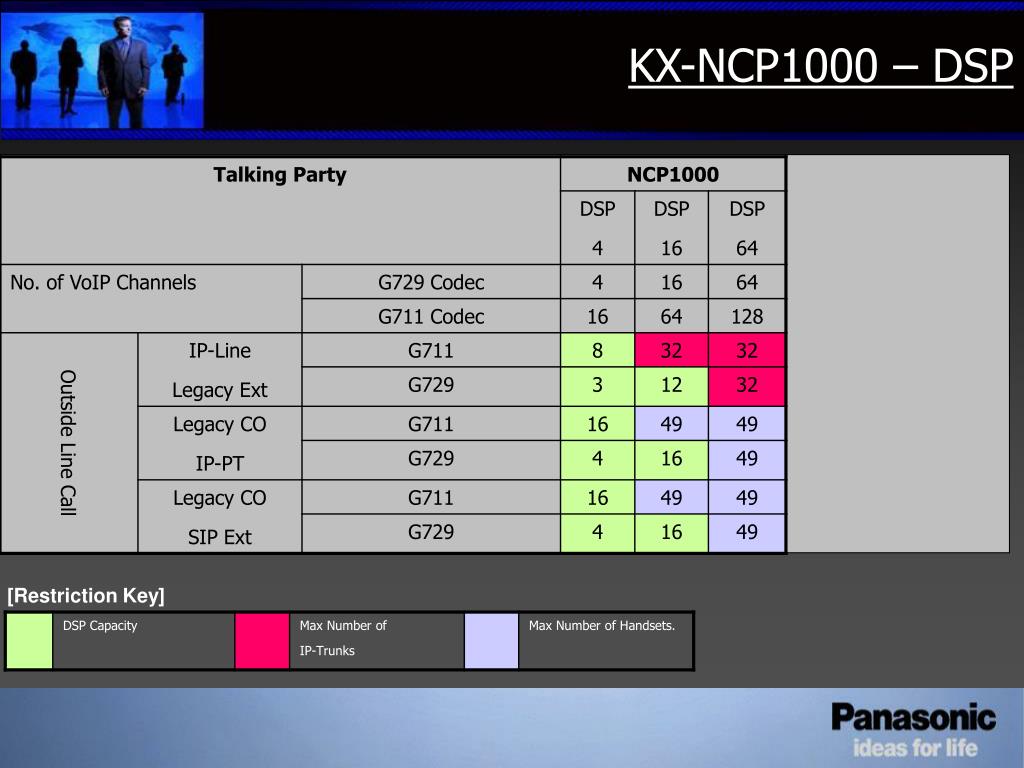

  26. KX-NCP1000 – DSP (*): VoIP channel is not used for Peer to Peer mode

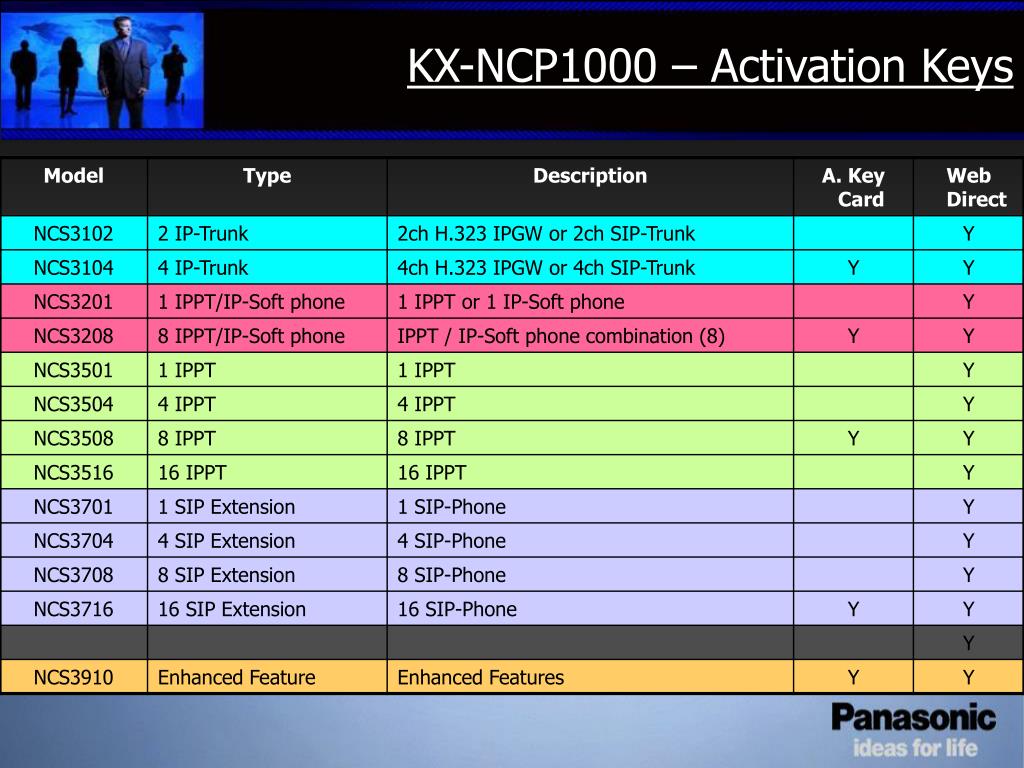

  27. KX-NCP1000 – Activation Keys

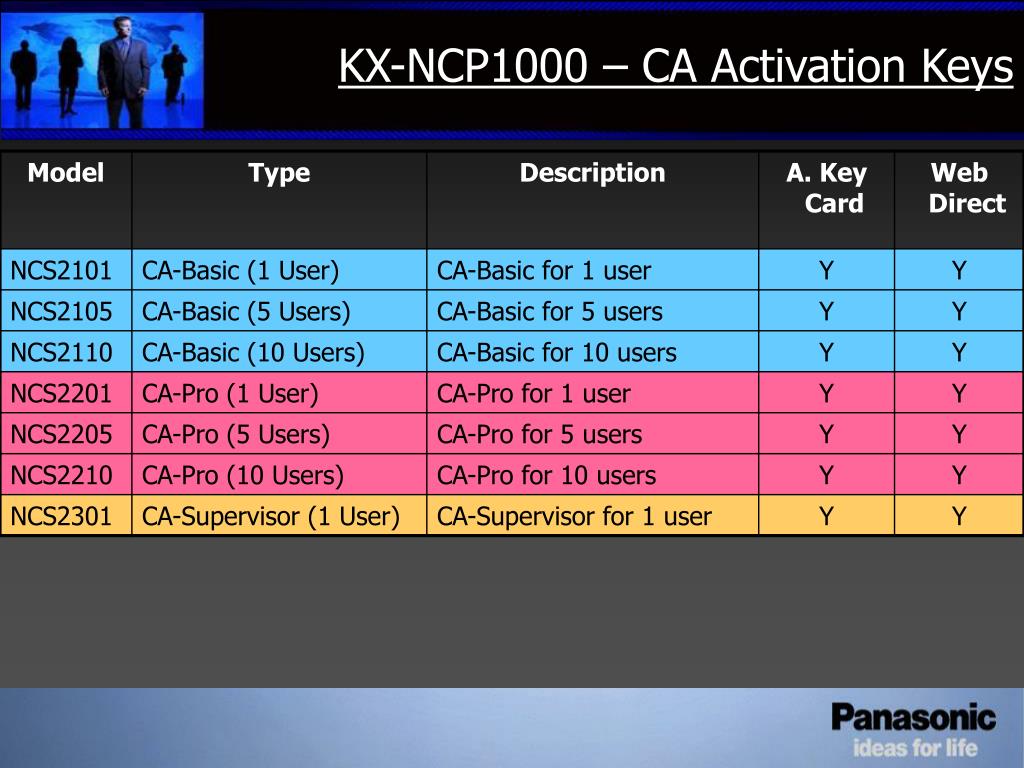

  28. KX-NCP1000 – CA Activation Keys

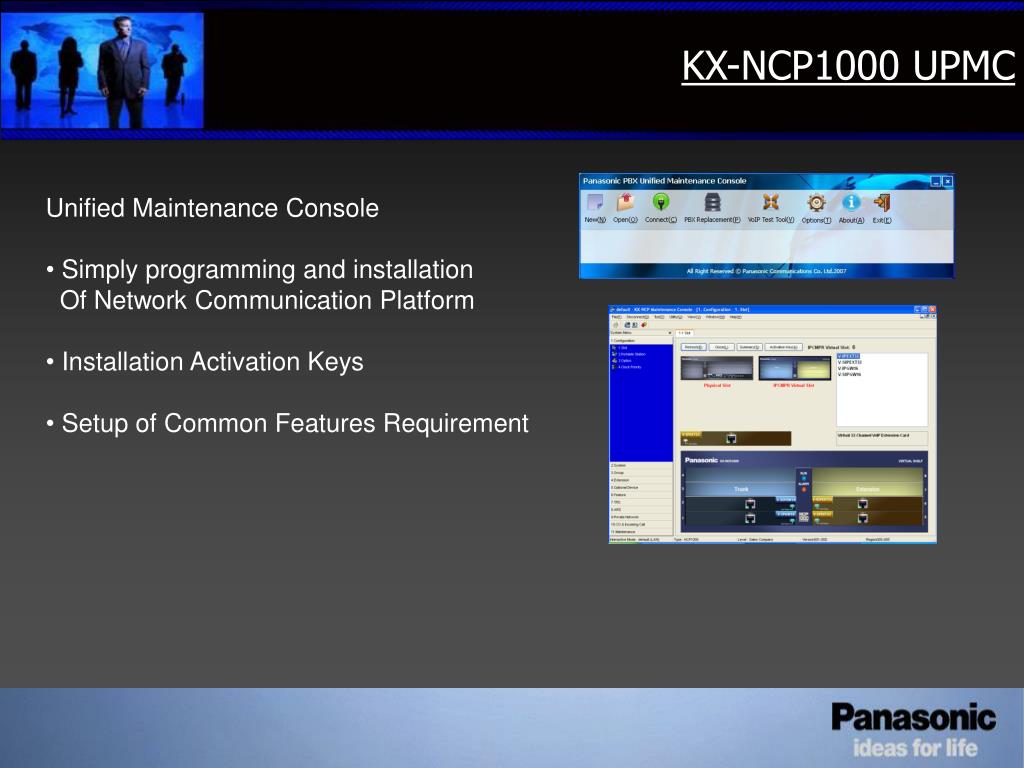

  29. KX-NCP1000 UPMC • Unified Maintenance Console • Simply programming and installation Of Network Communication Platform • Installation Activation Keys • Setup of Common Features Requirement
