  1. XML:A Revolution Unfolds Adam BosworthMicrosoft Corporation

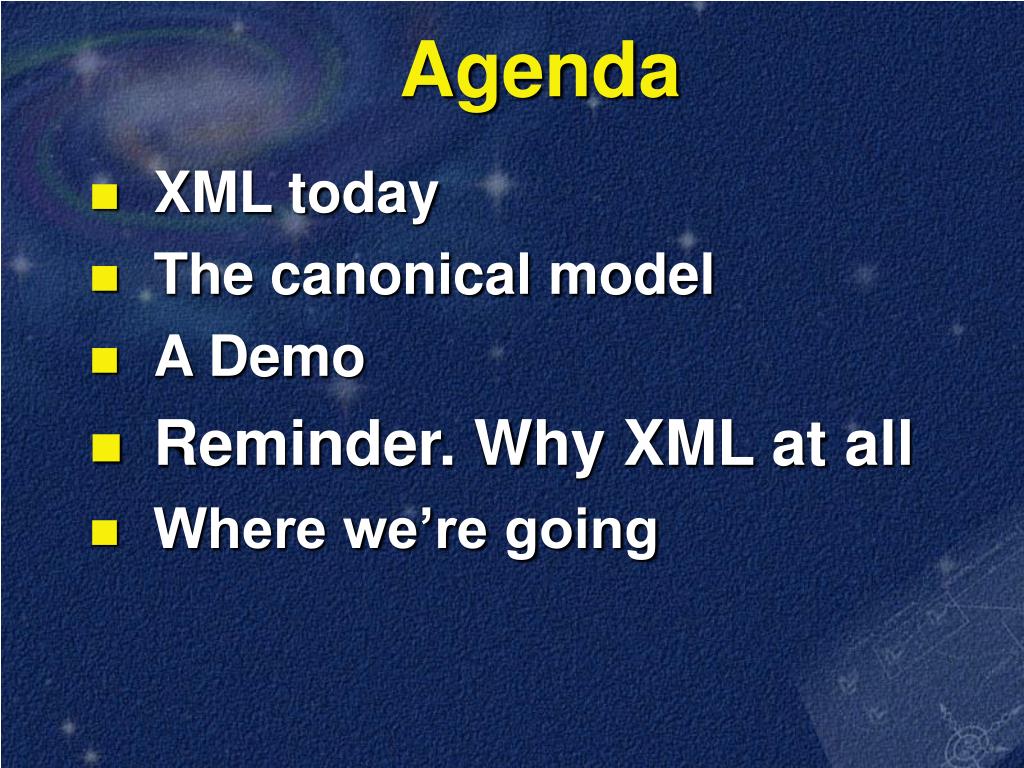

  2. Agenda • XML today • The canonical model • A Demo • Reminder. Why XML at all • Where we’re going

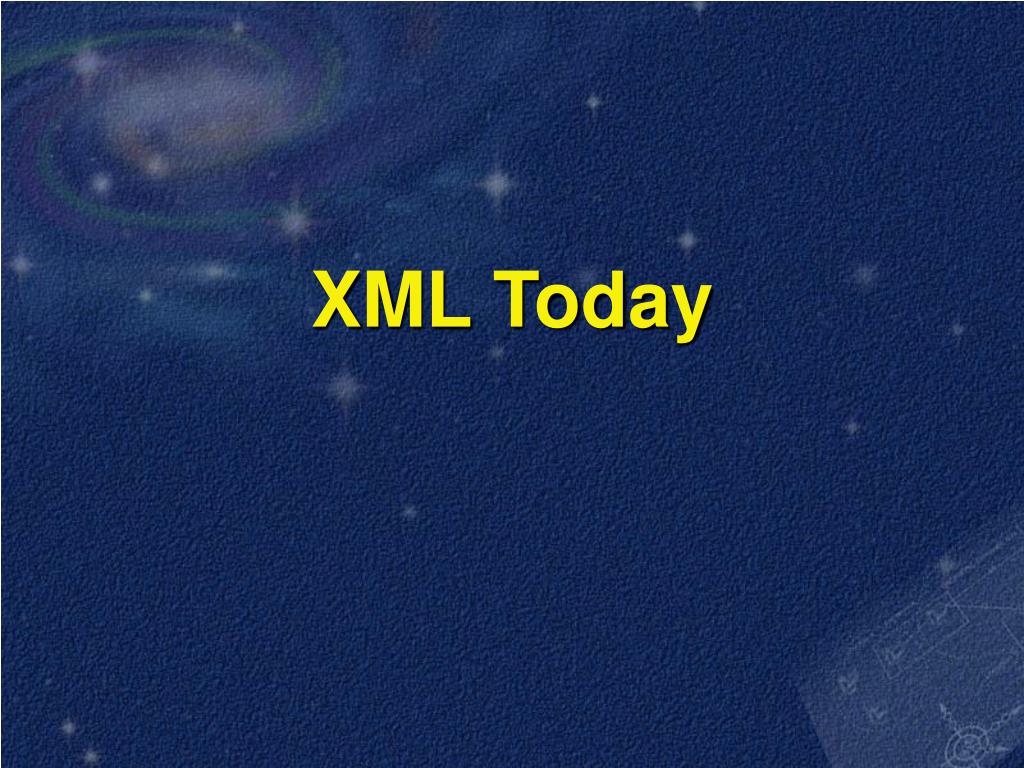

  3. XML Today

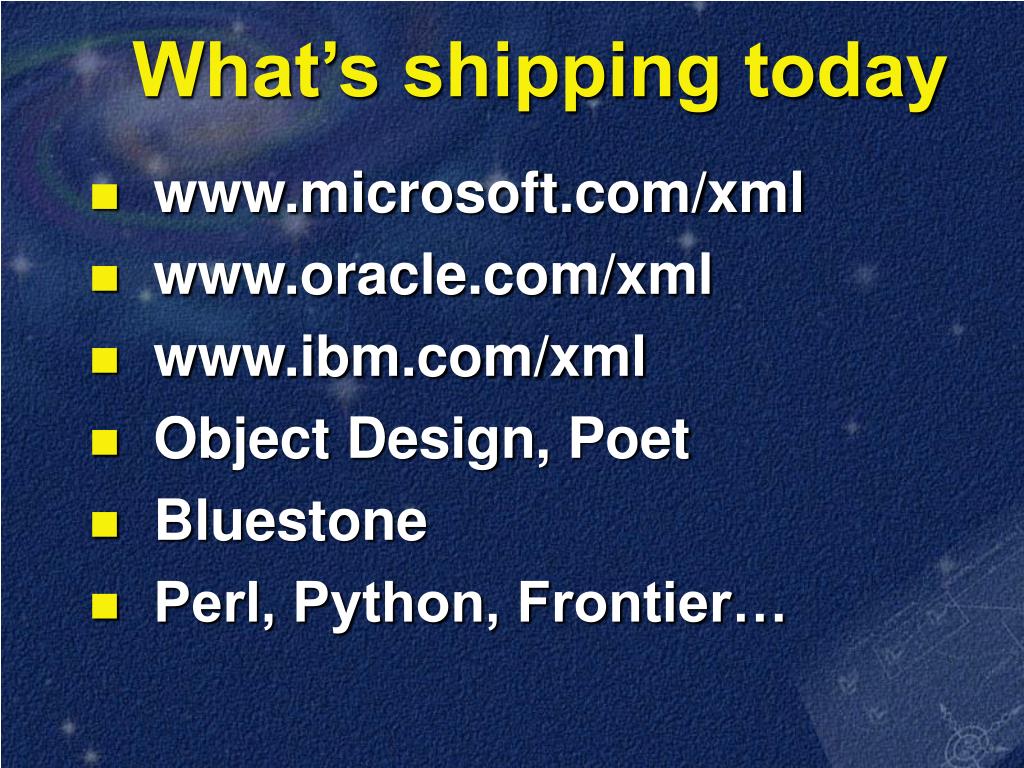

  4. What’s shipping today • www.microsoft.com/xml • www.oracle.com/xml • www.ibm.com/xml • Object Design, Poet • Bluestone • Perl, Python, Frontier…

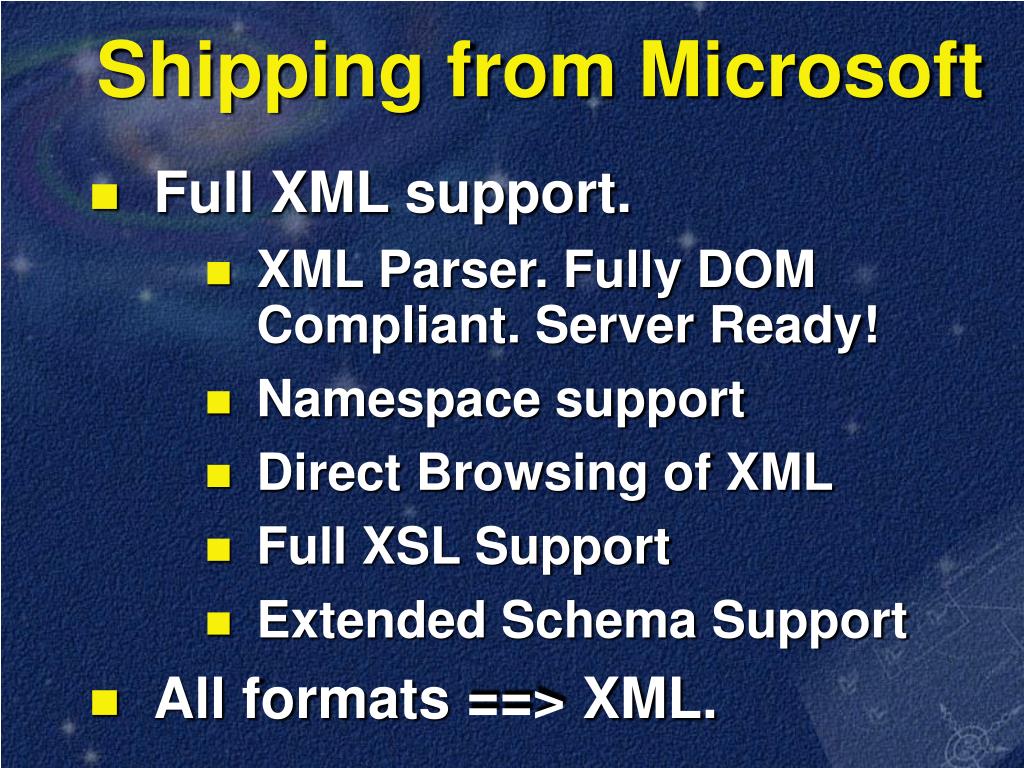

  5. Shipping from Microsoft • Full XML support. • XML Parser. Fully DOM Compliant. Server Ready! • Namespace support • Direct Browsing of XML • Full XSL Support • Extended Schema Support • All formats ==> XML.

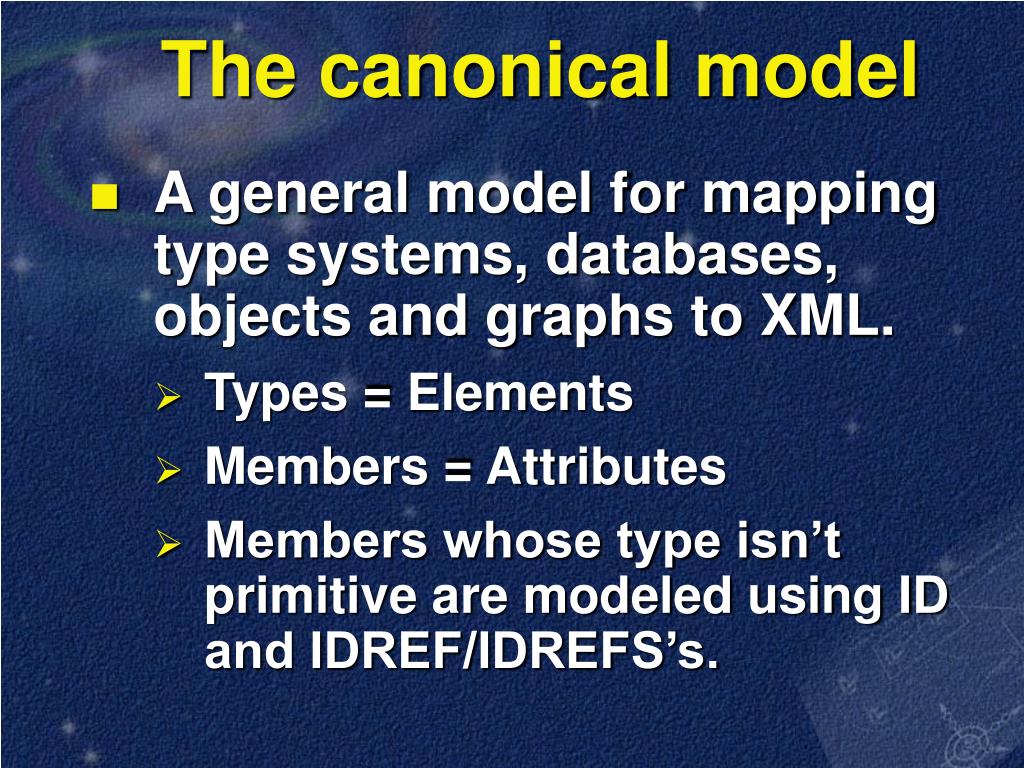

  6. The canonical model • A general model for mapping type systems, databases, objects and graphs to XML. • Types = Elements • Members = Attributes • Members whose type isn’t primitive are modeled using ID and IDREF/IDREFS’s.

  7. The canonical model • <INVOICE cost=“100.00” shipto = “Addr:1” billto = “Addr:2”> • <Address ID=“Addr:1” City=“NY” Zip=“11201”/> • <Address ID=“Addr:2” City=“MI” Zip = “98040”/> • </Invoice>

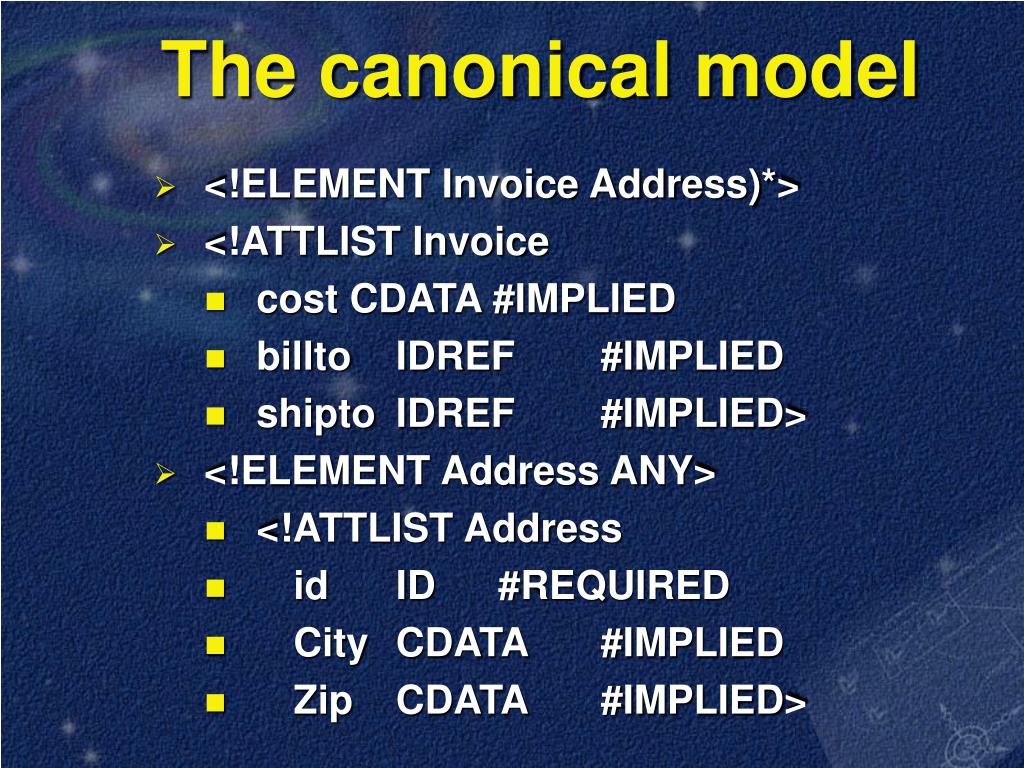

  8. The canonical model • <!ELEMENT Invoice Address)*> • <!ATTLIST Invoice • cost CDATA #IMPLIED • billto IDREF #IMPLIED • shipto IDREF #IMPLIED> • <!ELEMENT Address ANY> • <!ATTLIST Address • id ID #REQUIRED • City CDATA #IMPLIED • Zip CDATA #IMPLIED>

  9. The canonical model • Sharing • <Invoice … Customer=“C:1”/> • <Invoice … Customer=“C:2”/> • <Customer ID=“C1” …. /> • <Customer ID=“C2” …. />

  10. The canonical model • 1 to Many • <Customer name=“Adam” id=“C:1” orders = “o:1 o:2”> • <Order id=“o:1” cust=“c:1”…/> • <Order id=“o:2” cust=“c:1”…/> • <Order id=“o:3” cust=“c:1”…/> • </Customer>

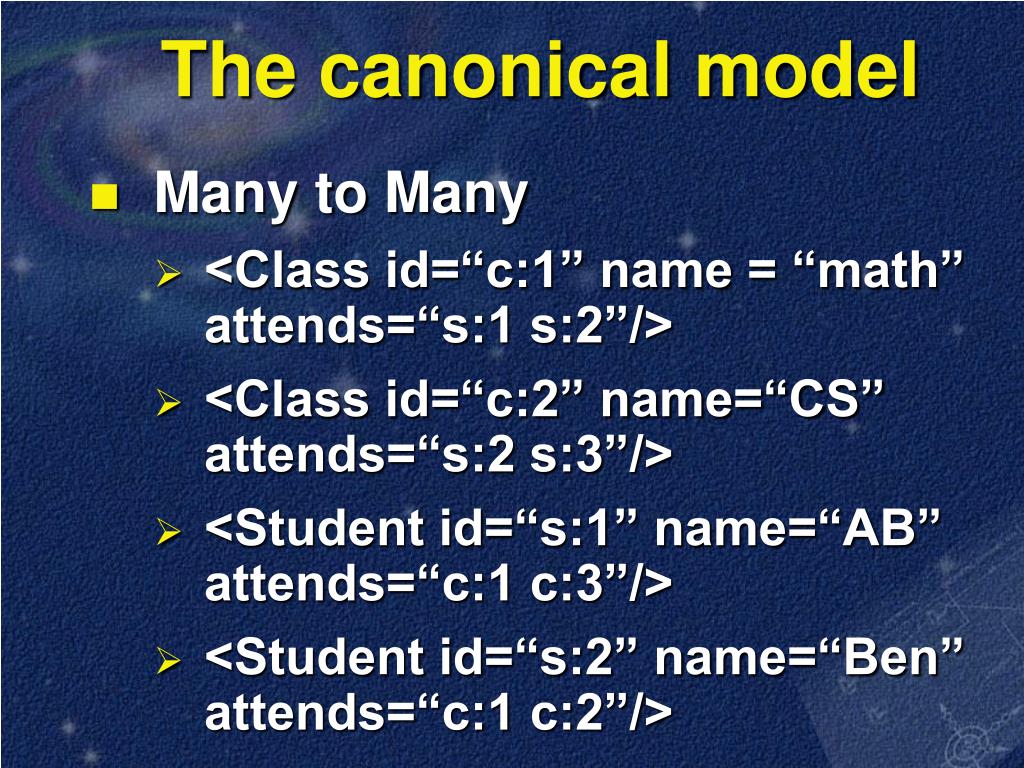

  11. The canonical model • Many to Many • <Class id=“c:1” name = “math” attends=“s:1 s:2”/> • <Class id=“c:2” name=“CS” attends=“s:2 s:3”/> • <Student id=“s:1” name=“AB” attends=“c:1 c:3”/> • <Student id=“s:2” name=“Ben” attends=“c:1 c:2”/>

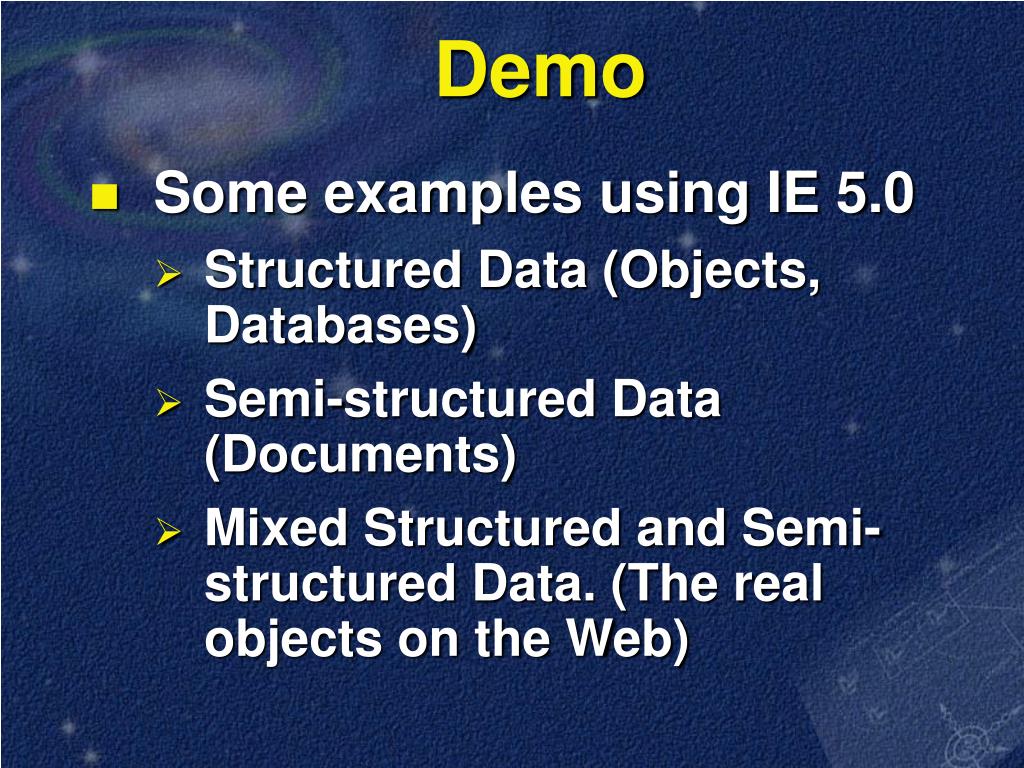

  12. Demo • Some examples using IE 5.0 • Structured Data (Objects, Databases) • Semi-structured Data (Documents) • Mixed Structured and Semi-structured Data. (The real objects on the Web)

  13. Reminder. Why XML? • Driven by two fundamental strategic imperatives: • Provide a model for finding goods, services, and other types of known information • Provide an applications architecture for the Web

  14. Scenarios • Search for: • Goods (e.g. Used Books) • Services (e.g. Lawn-mowing) • Information (e.g. Portfolios) • Share information between organizations and companies.

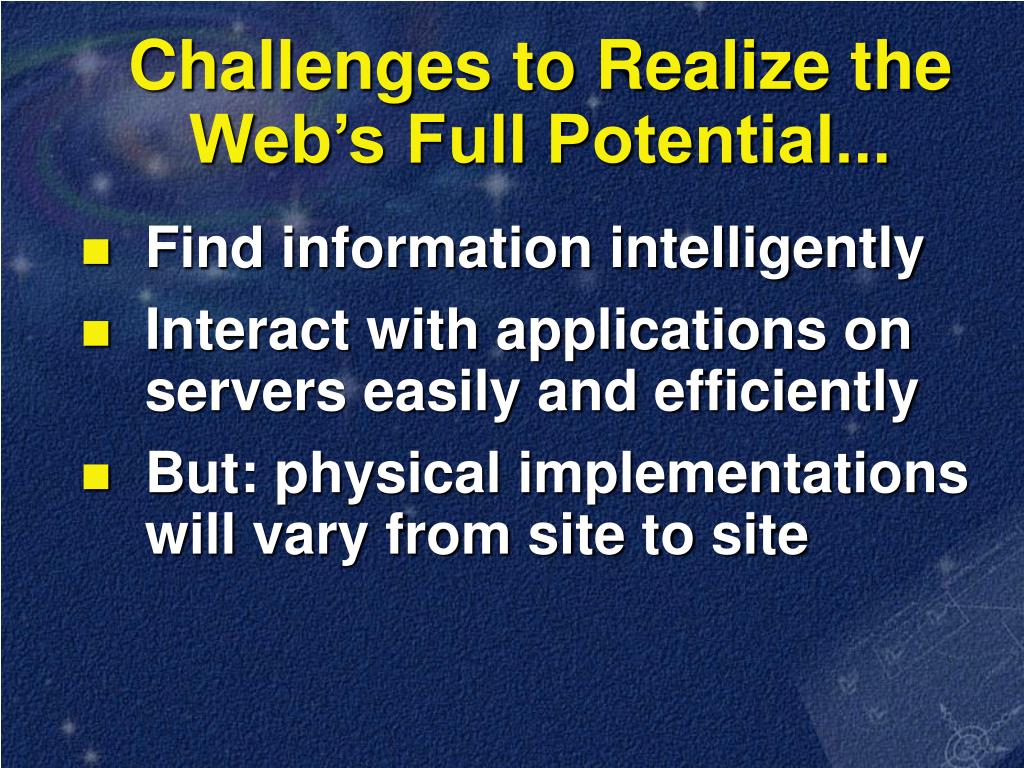

  15. Challenges to Realize the Web’s Full Potential... • Find information intelligently • Interact with applications on servers easily and efficiently • But: physical implementations will vary from site to site

  16. Web Sites Requirements • Standardize on logical views, not physical implementations • Standard description of logical views available • More than databases actually did • Sites can interact with each other and with clients!

  17. Lessons from the Web • Simplicity wins • Open, Easy, Flexible • Efficiency loses • Complex, Binary formats, Fixed vocabularies

  18. Lessons from Servers • Servers are like grocery stores • Good performance requires • Coarse-grained communication • Limited ability to multitask • Queues • Interruptible models • Standards

  19. We have learned • We need an architecture that lets us interact in a coarse-grained way through logical views • As a Web architecture, it must be easy, open, and flexible to build and interact with these logical views

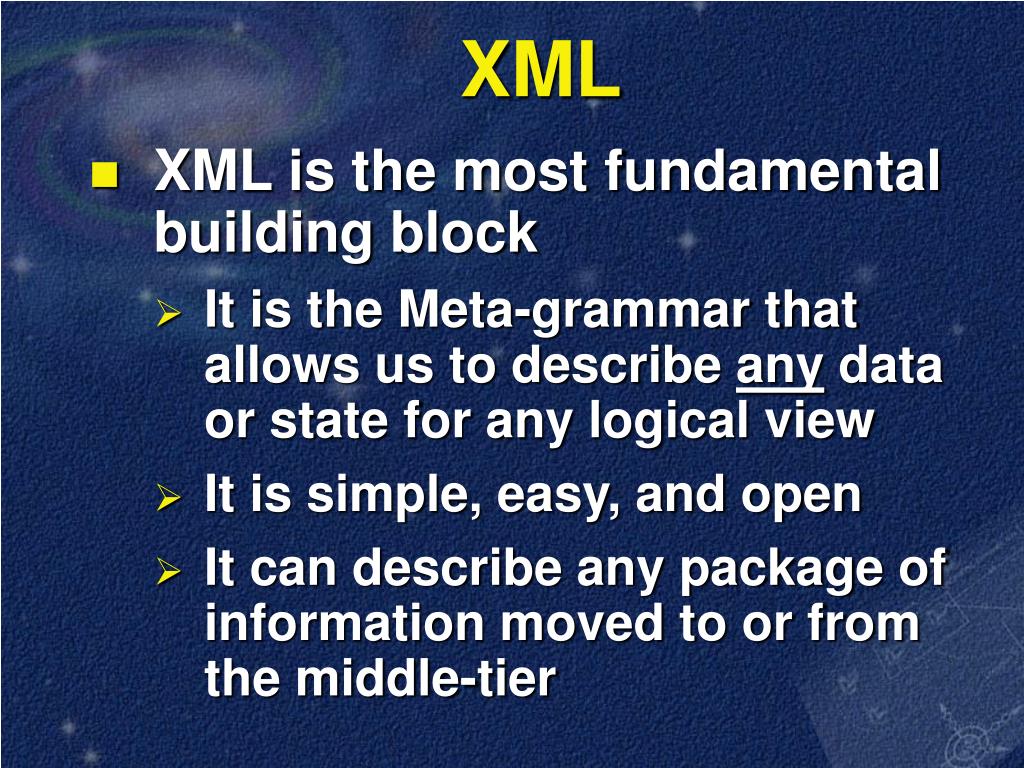

  20. XML • XML is the most fundamental building block • It is the Meta-grammar that allows us to describe any data or state for any logical view • It is simple, easy, and open • It can describe any package of information moved to or from the middle-tier

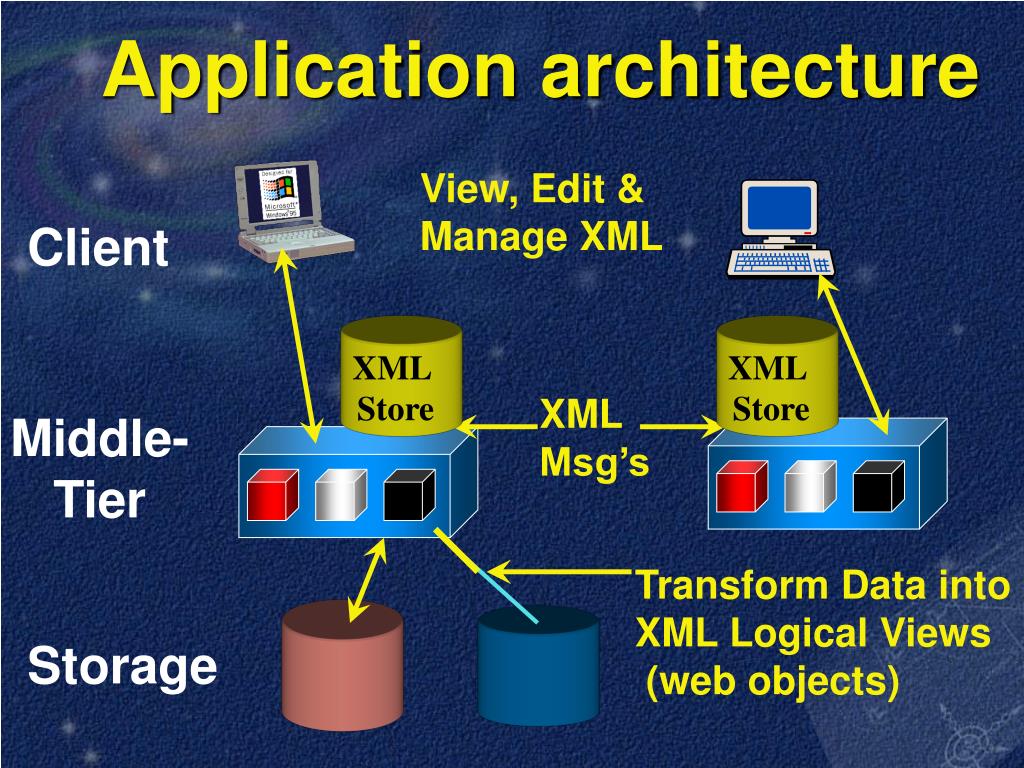

  21. XML Store XML Store Application architecture View, Edit &Manage XML Client XML Msg’s Middle- Tier Transform Data intoXML Logical Views (web objects) Storage

  22. Coming very soon • Stores and convertors • RPC’s • Schema support • “XQL” • eCommerce and XML

  23. Stores and Converters • Converters between physical implementations and XML-based logical views. Oracle has already got a stake in the ground here. • There is a need to cache, index, update, transact, and in short, have a store for managing XML. ODI & eXcelon

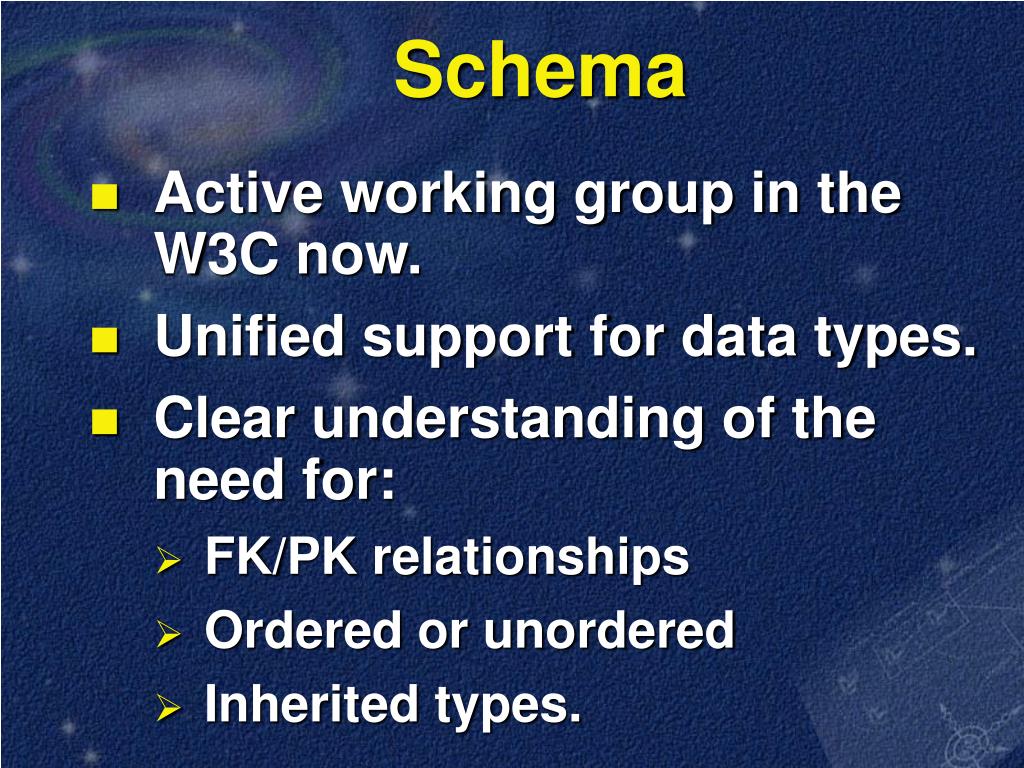

  24. Schema • Active working group in the W3C now. • Unified support for data types. • Clear understanding of the need for: • FK/PK relationships • Ordered or unordered • Inherited types.

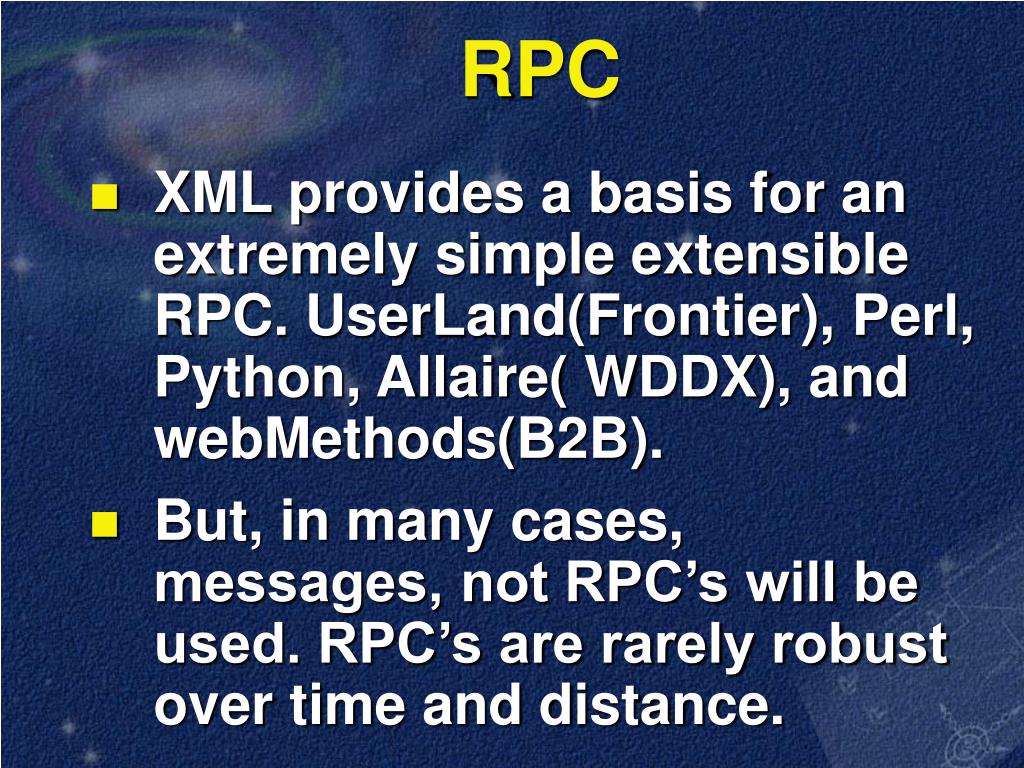

  25. RPC • XML provides a basis for an extremely simple extensible RPC. UserLand(Frontier), Perl, Python, Allaire( WDDX), and webMethods(B2B). • But, in many cases, messages, not RPC’s will be used. RPC’s are rarely robust over time and distance.

  26. Unified “XQL” • The Query language is the object construction language. • Which language? • XSL? Sql? • Key W3C Meeting in Boston in December. • Database vendors and object vendors will end up working together on this “XQL”

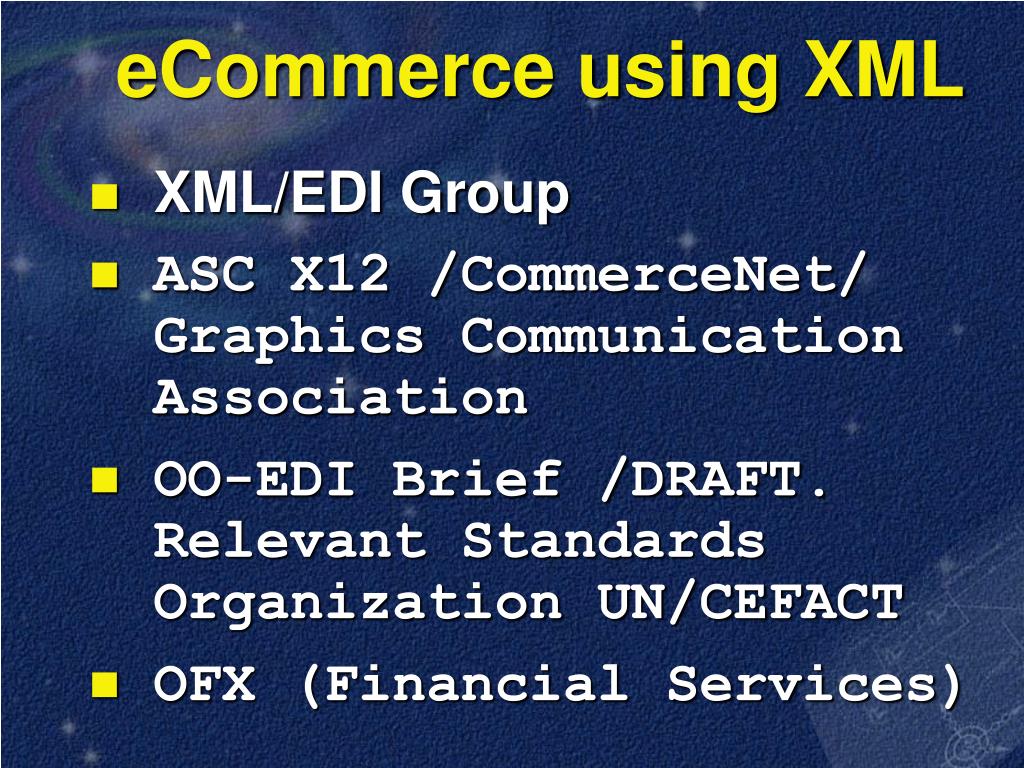

  27. eCommerce using XML • XML/EDI Group • ASC X12 /CommerceNet/ Graphics Communication Association • OO-EDI Brief /DRAFT. Relevant Standards Organization UN/CEFACT • OFX (Financial Services)

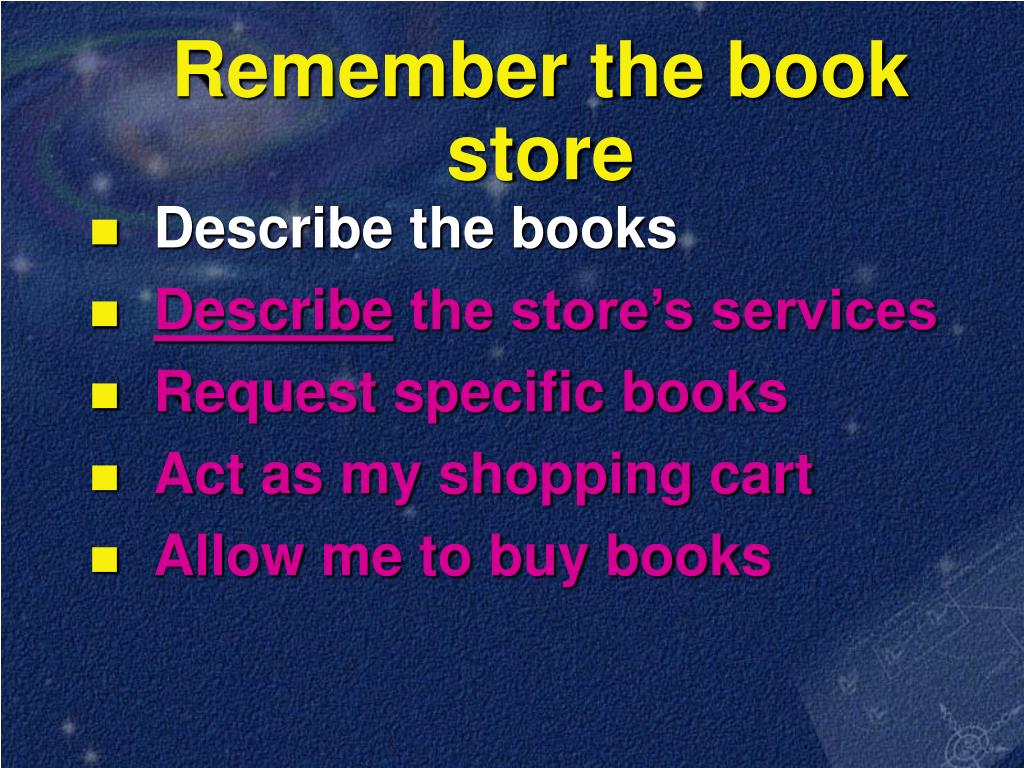

  28. Remember the book store • Describe the books • Describe the store’s services • Request specific books • Act as my shopping cart • Allow me to buy books

  29. “XUL” We need a grammar to act as an intelligent diff or updating grammar to XML. This is actually a hard problem when the document being updated is “virtual” rather than real. Still to come…

  30. Still to come • Application Services Broker • This mediates between sites, discovering which sites provide which services meeting certain filters or characteristics. • It should, if scalability can be handled, allow subscription and notification based upon criteria.

  31. Still to come • Application Bus • This allows general publish/subscribe to messages of interest. It assumes a general message queue accessible through HTTP. • Ideally, it will be able to post messages directly to other machines message queues.

  32. What can be built today? • Line-of-business applications • Planning • Notification • Data Capture • Information searching • Collaboration

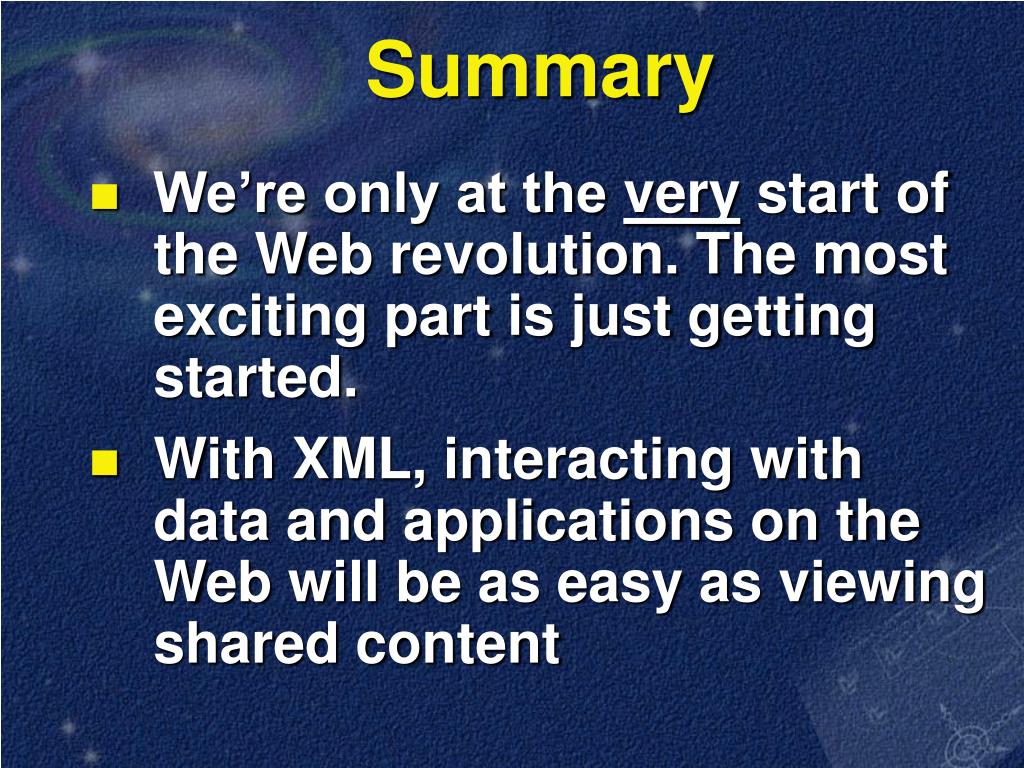

  33. Summary • We’re only at the very start of the Web revolution. The most exciting part is just getting started. • With XML, interacting with data and applications on the Web will be as easy as viewing shared content

  34. XML Store XML Store Application architecture View, Edit &Manage XML Client XML Msg’s Middle- Tier Transform Data intoXML Logical Views (web objects) Storage

  35. ™ http://www.microsoft.com/xml
