  1. ESTeem Overview

  2. ESTeem Product Categories • Licensed Serial • Long Range Application • Exclusive Use of FCC Frequency • PLC Emulation for Repeating and Grouping • Unlicensed Serial • No Site License Required for Serial Applications • Serial and Ethernet for future expansions • Wireless Ethernet • 802.11g Based Industrial Wireless Ethernet Products • 900 MHz Spread Spectrum • Licensed 4.9 GHz

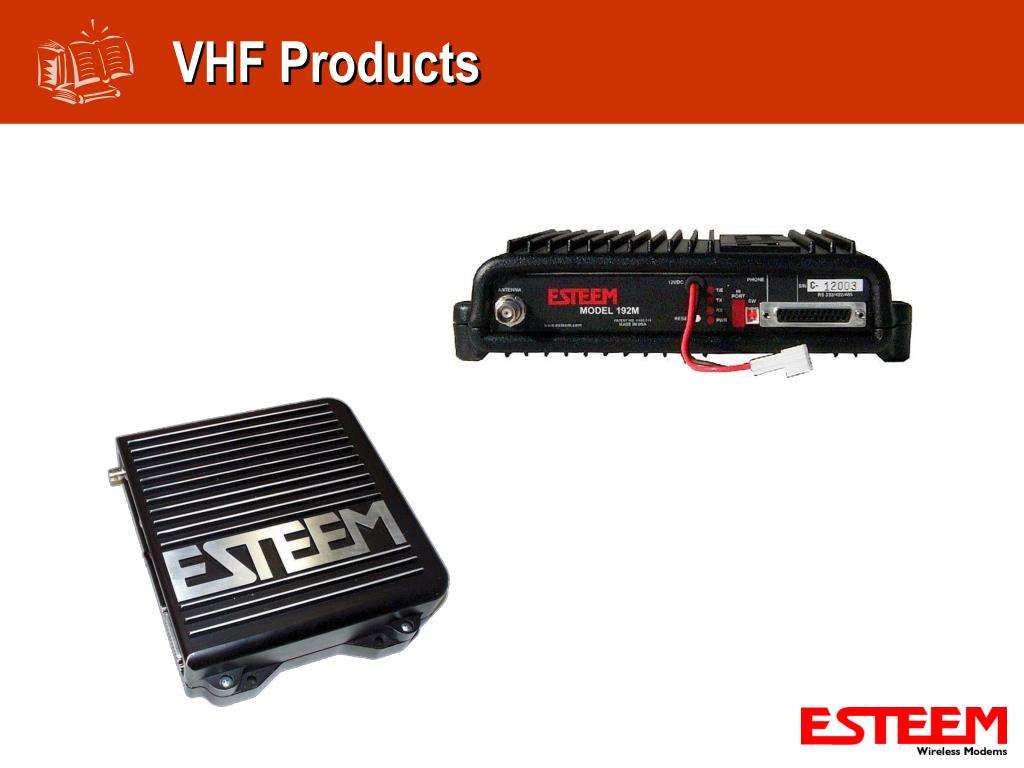

  3. VHF Products

  4. Receive Signal Strength Meter Signal to Noise Ratio IR Communications Port -30 To 60 Degrees C 11-15 VDC 150-174 MHz Simplex 19,200 Baud Rate Software Selectable 12.5 kHz Channel Spacing 5 kHz Channel Spacing 2-5 Watt Output Power Software Selectable Receiver Squelch Analog Squelch Noise (Digital) Squelch Model 192M

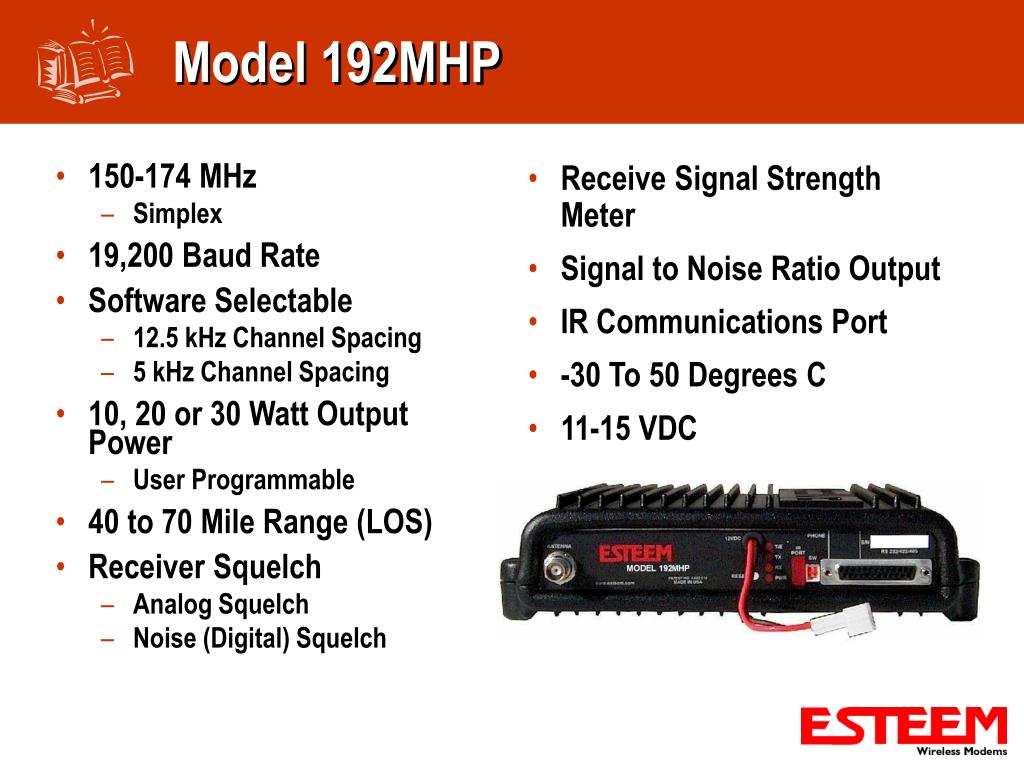

  5. 150-174 MHz Simplex 19,200 Baud Rate Software Selectable 12.5 kHz Channel Spacing 5 kHz Channel Spacing 10, 20 or 30 Watt Output Power User Programmable 40 to 70 Mile Range (LOS) Receiver Squelch Analog Squelch Noise (Digital) Squelch Receive Signal Strength Meter Signal to Noise Ratio Output IR Communications Port -30 To 50 Degrees C 11-15 VDC Model 192MHP

  6. UHF Products

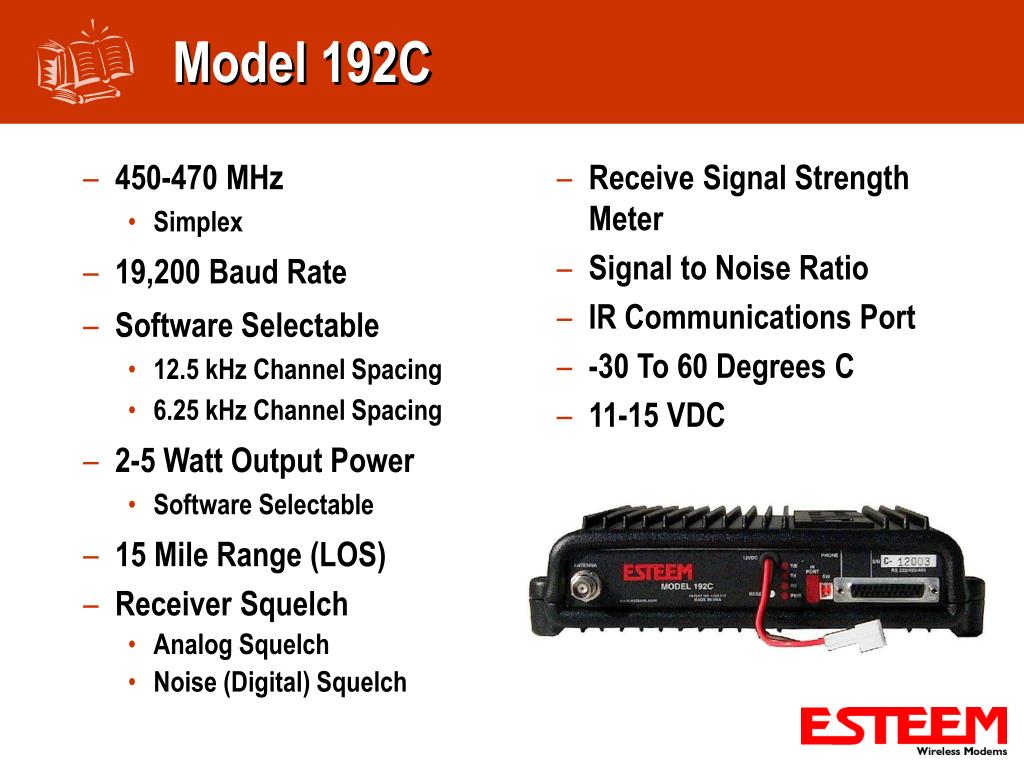

  7. 450-470 MHz Simplex 19,200 Baud Rate Software Selectable 12.5 kHz Channel Spacing 6.25 kHz Channel Spacing 2-5 Watt Output Power Software Selectable 15 Mile Range (LOS) Receiver Squelch Analog Squelch Noise (Digital) Squelch Receive Signal Strength Meter Signal to Noise Ratio IR Communications Port -30 To 60 Degrees C 11-15 VDC Model 192C

  8. 450-470 MHz Simplex 19,200 Baud Rate Software Selectable 12.5 kHz Channel Spacing 6.25 kHz Channel Spacing 10-30 Watt Output Power Software Selectable 50 Mile Range (LOS) Receiver Squelch Analog Squelch Noise (Digital) Squelch Receive Signal Strength Meter Signal to Noise Ratio IR Communications Port -30 To 60 Degrees C 11-15 VDC Model 192CHP

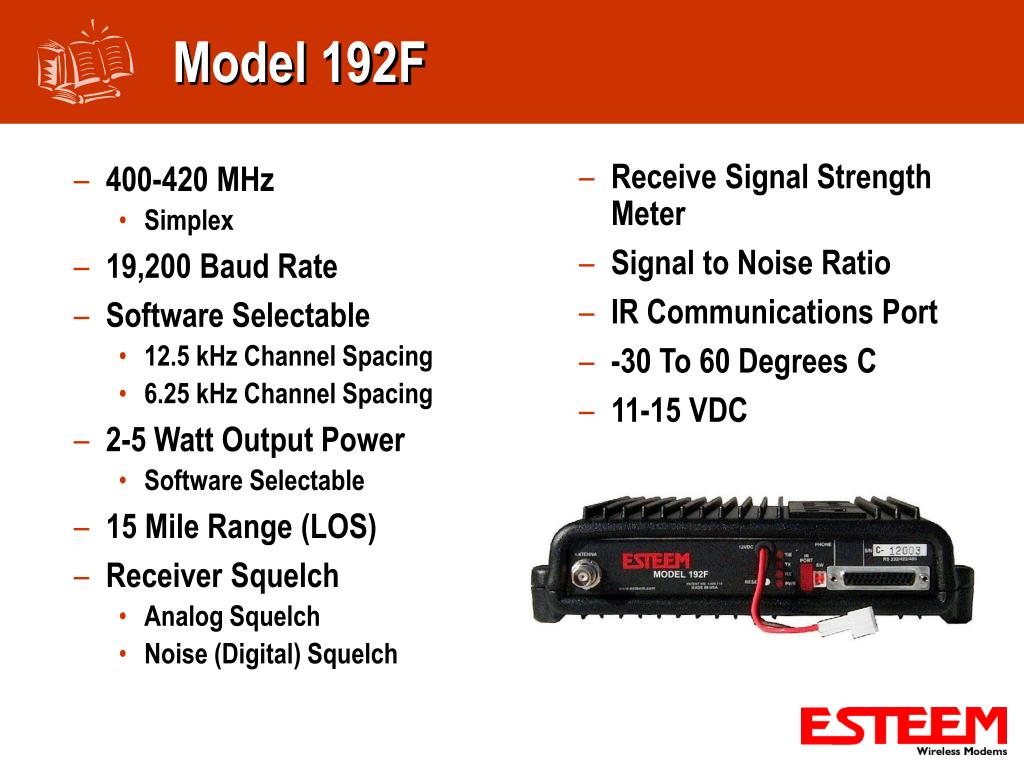

  9. 400-420 MHz Simplex 19,200 Baud Rate Software Selectable 12.5 kHz Channel Spacing 6.25 kHz Channel Spacing 2-5 Watt Output Power Software Selectable 15 Mile Range (LOS) Receiver Squelch Analog Squelch Noise (Digital) Squelch Receive Signal Strength Meter Signal to Noise Ratio IR Communications Port -30 To 60 Degrees C 11-15 VDC Model 192F

  10. Noise Squelch • Analog Squelch • Set by Asquelch Command • Signal Strength Threshold • Digital Squelch • Set by Squelch Command • Noise Squelch - Frequency Quieting • Works Best for High Noise Areas

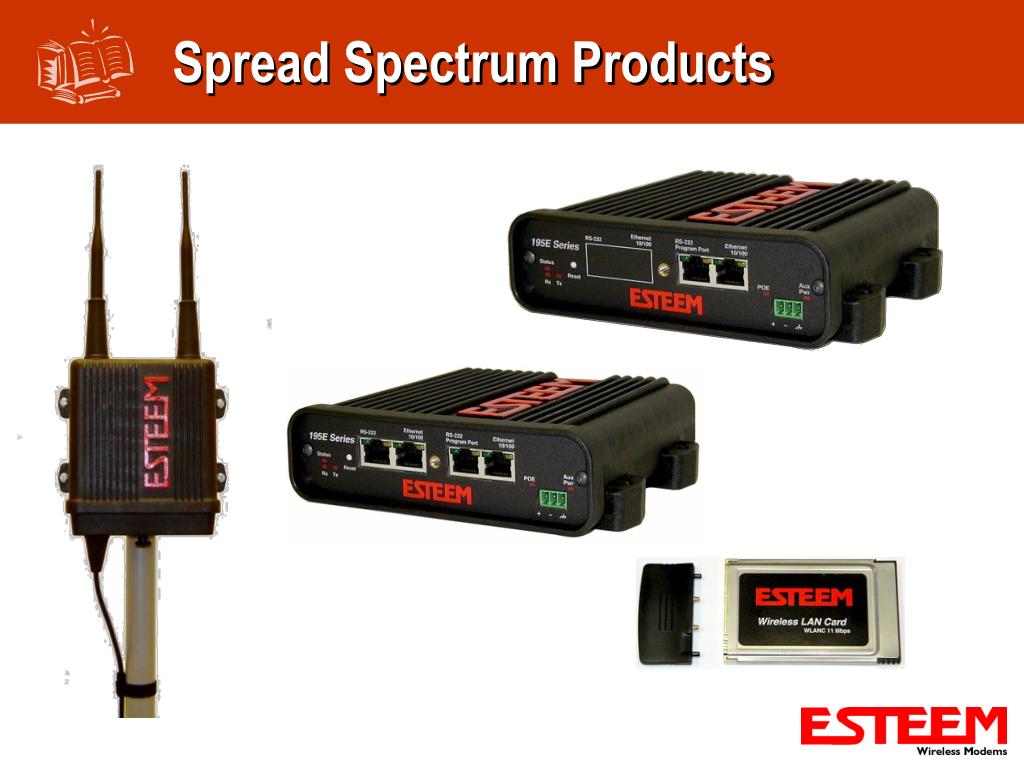

  11. Spread Spectrum Products

  12. Model 195Eg Features • 2.4 GHz - No Licensed Required • 802.11g and b Compatible • 1-54 M bps RF data rate (Auto Scaling) • 1 Watt RF Output • 5 to 7 miles Line-of-Sight Range • Direct Pole Mounting • NEMA4 Waterproof Case • Power over Ethernet (PoE) Compatible Model 195Eg • Security • WPA2 – 802.11i • AES-CCMP • WPA - Enterprise and PSK • Temporal Key Integrity Protocol (TKIP) • Access Control List (ACL) • Wired Equivalent Privacy (WEP) 128 Bit (Legacy) • Modes • Access Point Modes • Ethernet Bridge Modes • MESH Repeater Modes • Client Modes for Mobile Applications • Optional – Serial Data Port

  13. Model 195Ed Features • 900 MHz - No Licensed Required • 1-54 M bps RF data rate (Auto Scaling) • Multiple Bandwidth Settings • 630 mW RF Output • 5 to 7 miles Line-of-Sight Range • Direct Pole Mounting • NEMA4 Waterproof Case • Power over Ethernet (PoE) Compatible Model 195Ed • Security • AES-CCMP • WPA - Enterprise and PSK • Temporal Key Integrity Protocol (TKIP) • Access Control List (ACL) • Wired Equivalent Privacy (WEP) 128 Bit (Legacy) • Modes • Access Point Modes • Ethernet Bridge Modes • MESH Repeater Modes • Client Modes for Mobile Applications • Serial Data Port

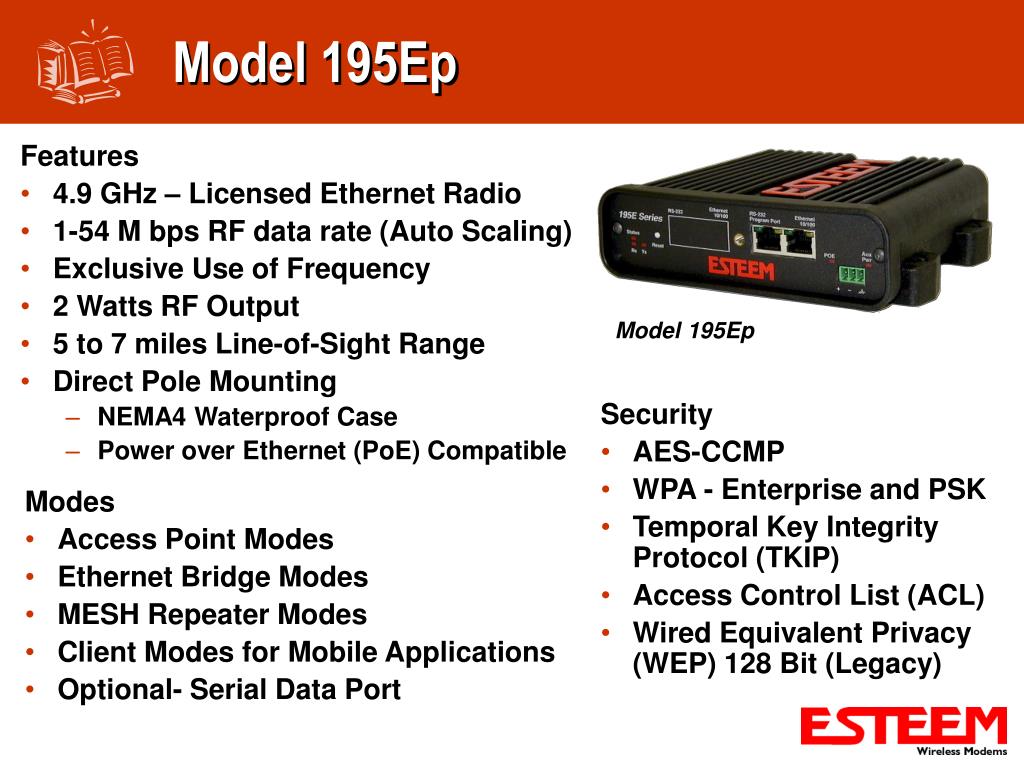

  14. Model 195Ep Features • 4.9 GHz – Licensed Ethernet Radio • 1-54 M bps RF data rate (Auto Scaling) • Exclusive Use of Frequency • 2 Watts RF Output • 5 to 7 miles Line-of-Sight Range • Direct Pole Mounting • NEMA4 Waterproof Case • Power over Ethernet (PoE) Compatible Model 195Ep • Security • AES-CCMP • WPA - Enterprise and PSK • Temporal Key Integrity Protocol (TKIP) • Access Control List (ACL) • Wired Equivalent Privacy (WEP) 128 Bit (Legacy) • Modes • Access Point Modes • Ethernet Bridge Modes • MESH Repeater Modes • Client Modes for Mobile Applications • Optional- Serial Data Port

  15. Model 195Es Features • 900 MHz - No Licensed Required • Frequency Hopping Spread Spectrum • Ethernet 10/100BaseT – RJ-45 Interface • 200 Kbps RF data rate • 1 Watt RF Output • 10 miles Line-of-Sight Range • Direct Pole Mounting • NEMA4 Waterproof Case • Power over Ethernet (PoE) Compatible Model 195Es • Security • AES-CCMP • WPA - Enterprise and PSK • Temporal Key Integrity Protocol (TKIP) • Access Control List (ACL) • Wired Equivalent Privacy (WEP) 128 Bit (Legacy) • Modes • Access Point Modes • Ethernet Bridge Modes • MESH Repeater Modes • Client Modes for Mobile Applications • Serial Data Port

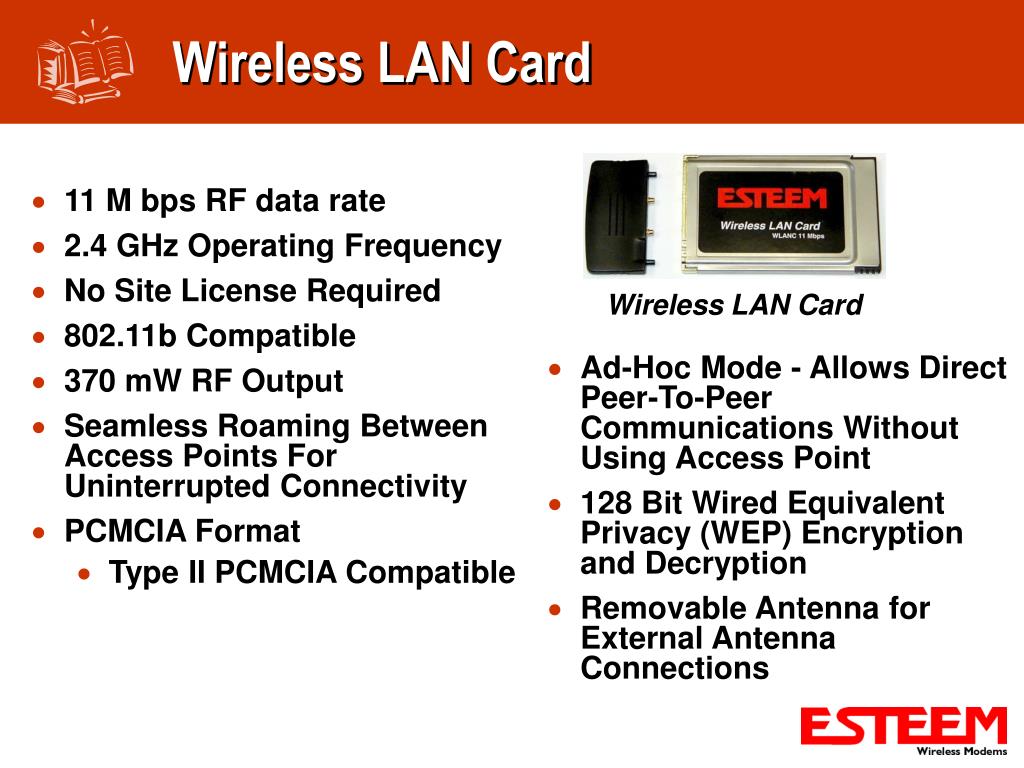

  16. Wireless LAN Card Wireless LAN Card • 11 M bps RF data rate • 2.4 GHz Operating Frequency • No Site License Required • 802.11b Compatible • 370 mW RF Output • Seamless Roaming Between Access Points For Uninterrupted Connectivity • PCMCIA Format • Type II PCMCIA Compatible • Ad-Hoc Mode - Allows Direct Peer-To-Peer Communications Without Using Access Point • 128 Bit Wired Equivalent Privacy (WEP) Encryption and Decryption • Removable Antenna for External Antenna Connections

  17. ESTeem Model 192C/CHP/M/MHP/F Front Panel T/E LED RS-232/422/485 Connector Sub-D Female • Link Connect/Disconnect • Auto Connect Enable • RS-232/422 Framing Error IR Port Transmit LED Power LED RS-232/422/485 Setup Switches Receive LED Antenna TNC Connector 12 VDC Input 2 Pin Molex

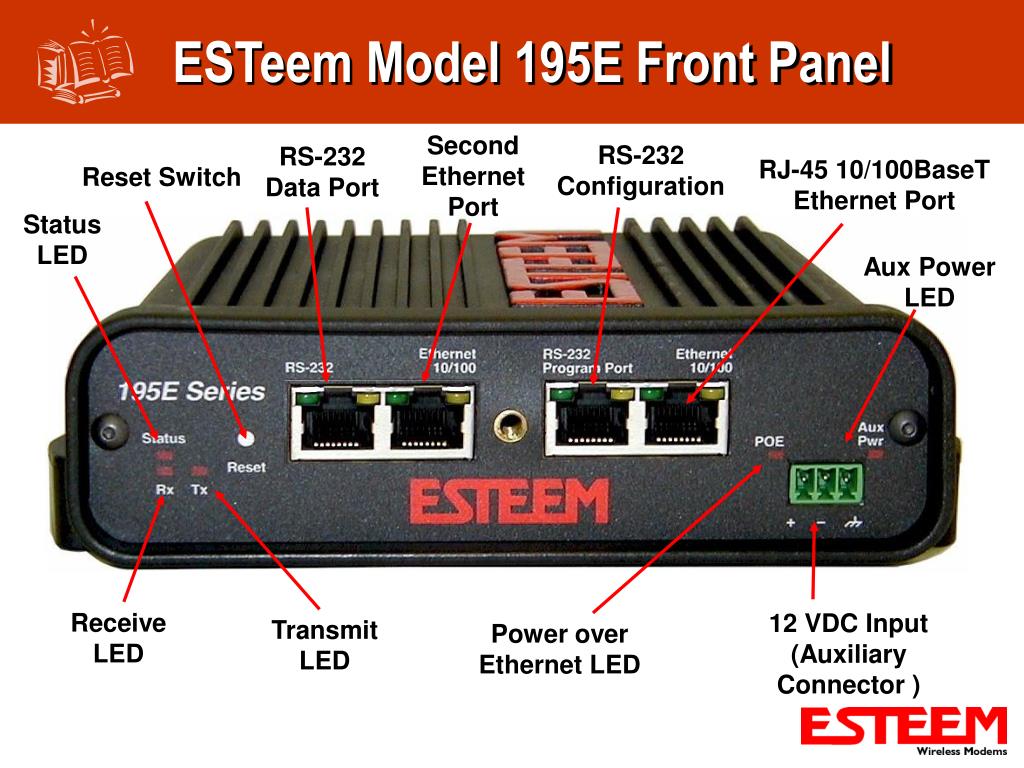

  18. ESTeem Model 195E Front Panel Second Ethernet Port RS-232 Configuration RS-232 Data Port RJ-45 10/100BaseT Ethernet Port Reset Switch Status LED Aux Power LED Receive LED 12 VDC Input (Auxiliary Connector ) Transmit LED Power over Ethernet LED

  19. Intrinsic Safety • ESTeem Modem Itself Not Certified • Must Use Intrinsically Safe Enclosure

  20. Power Sources

  21. AC Power Sources • AA174 Universal Input Power Supply • 90-264 VAC • 12 VDC Output • Switching Power Supply • Uninterruptible Power Supply (UPS) • Power Backup • Inexpensive line filter • On-line UPS vs. Standard

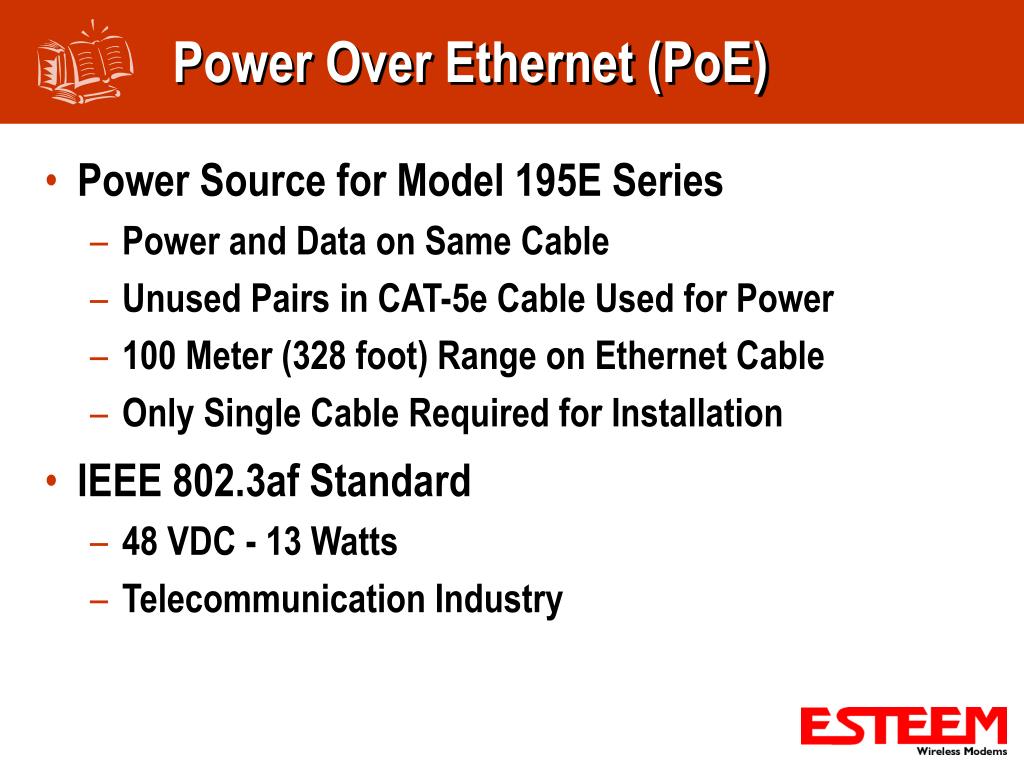

  22. Power Over Ethernet (PoE) • Power Source for Model 195E Series • Power and Data on Same Cable • Unused Pairs in CAT-5e Cable Used for Power • 100 Meter (328 foot) Range on Ethernet Cable • Only Single Cable Required for Installation • IEEE 802.3af Standard • 48 VDC - 13 Watts • Telecommunication Industry

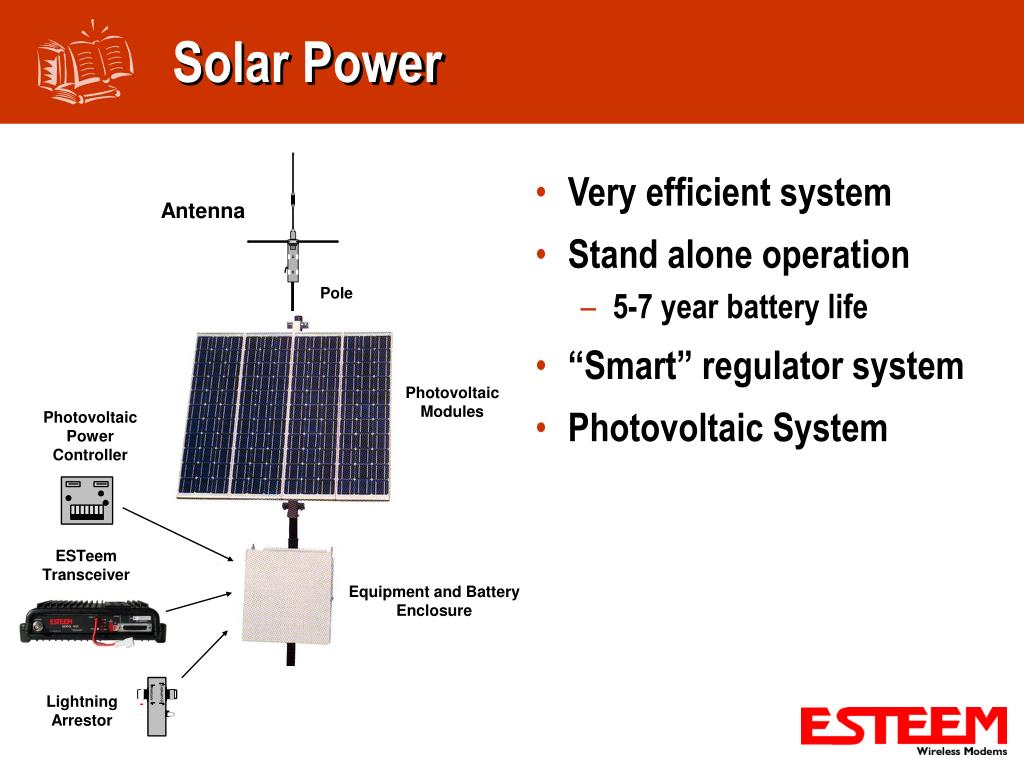

  23. Solar Power ANTENNA EQUIPMENT • Very efficient system • Stand alone operation • 5-7 year battery life • “Smart” regulator system • Photovoltaic System Antenna Pole Photovoltaic Modules Photovoltaic Power Controller ESTeem Transceiver Equipment and Battery Enclosure Lightning Arrestor

  24. Thermopile Diagram Thermopile Propane Battery Bank Charger/Controller 12 VDC Power To Load

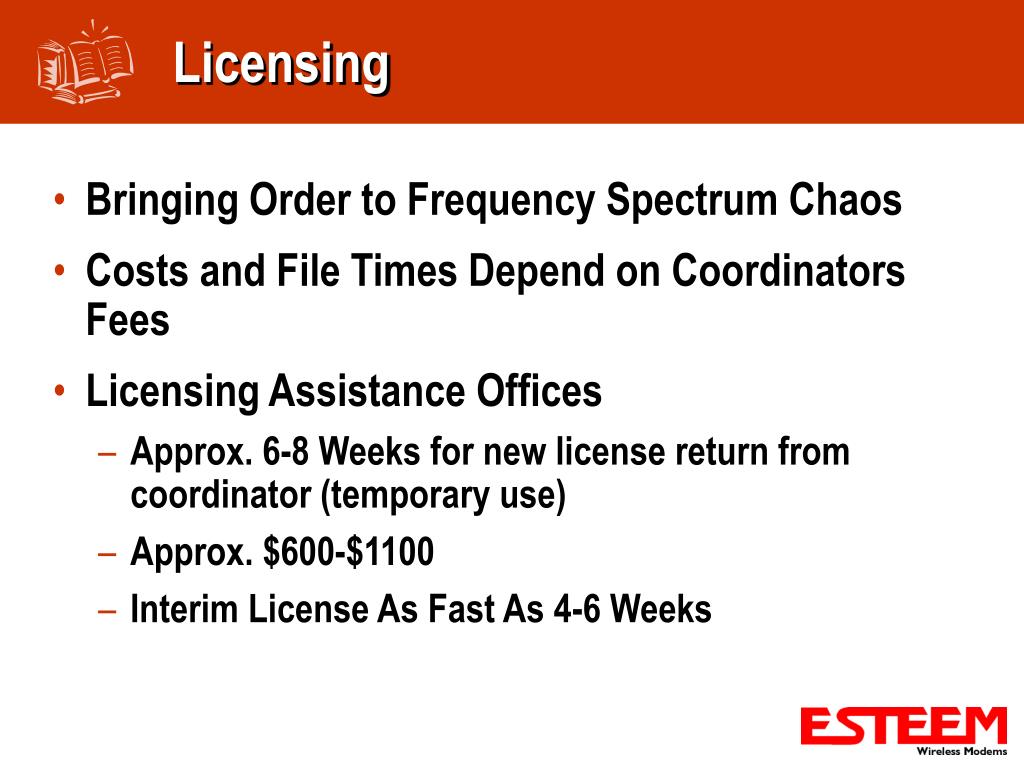

  25. Licensing • Bringing Order to Frequency Spectrum Chaos • Costs and File Times Depend on Coordinators Fees • Licensing Assistance Offices • Approx. 6-8 Weeks for new license return from coordinator (temporary use) • Approx. $600-$1100 • Interim License As Fast As 4-6 Weeks
