Presentation Transcript

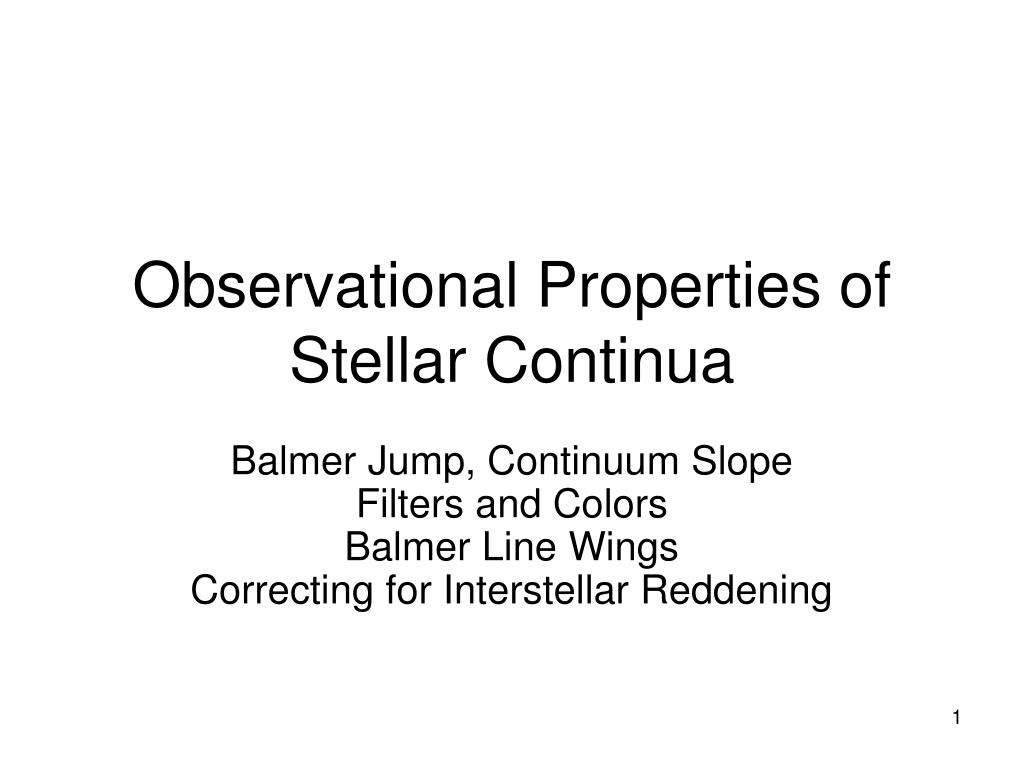

Observational properties of stellar continua

Observational Properties ofStellar Continua

Balmer Jump, Continuum SlopeFilters and ColorsBalmer Line WingsCorrecting for Interstellar Reddening

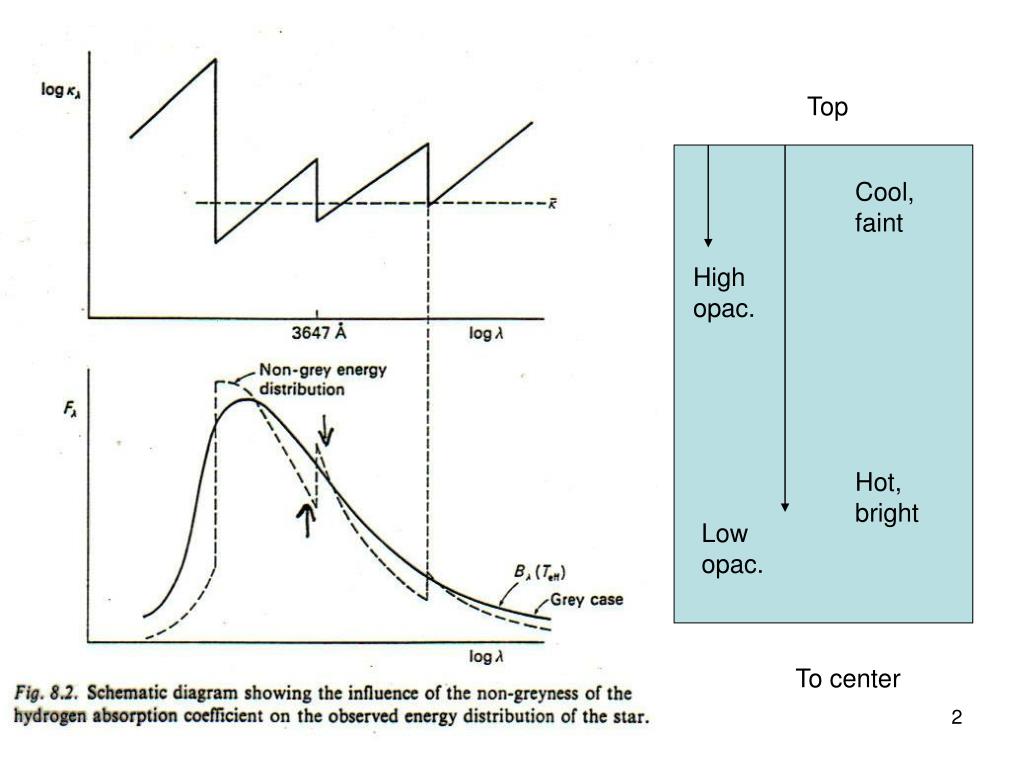

Top

Cool, faint

High opac.

Hot, bright

Low opac.

To center


Balmer jump
Balmer Jump

  • Measures change in opacity due to onset of H b-f absorption from n=2 level

  • At λ<3647Å high opacity, so radiation comes from upper atmosphere (cooler, less flux)

  • At λ>3647Å lower opacity, see deeper into atmosphere (hotter, more flux)


Change in the balmer jump along the main sequence
Change in the Balmer Jump Along the Main Sequence

  • F, G stars: also consider H- opacitySaha equation:Depends on both T (n=2 to n=1 levels of H) and pressure (log g or ne)

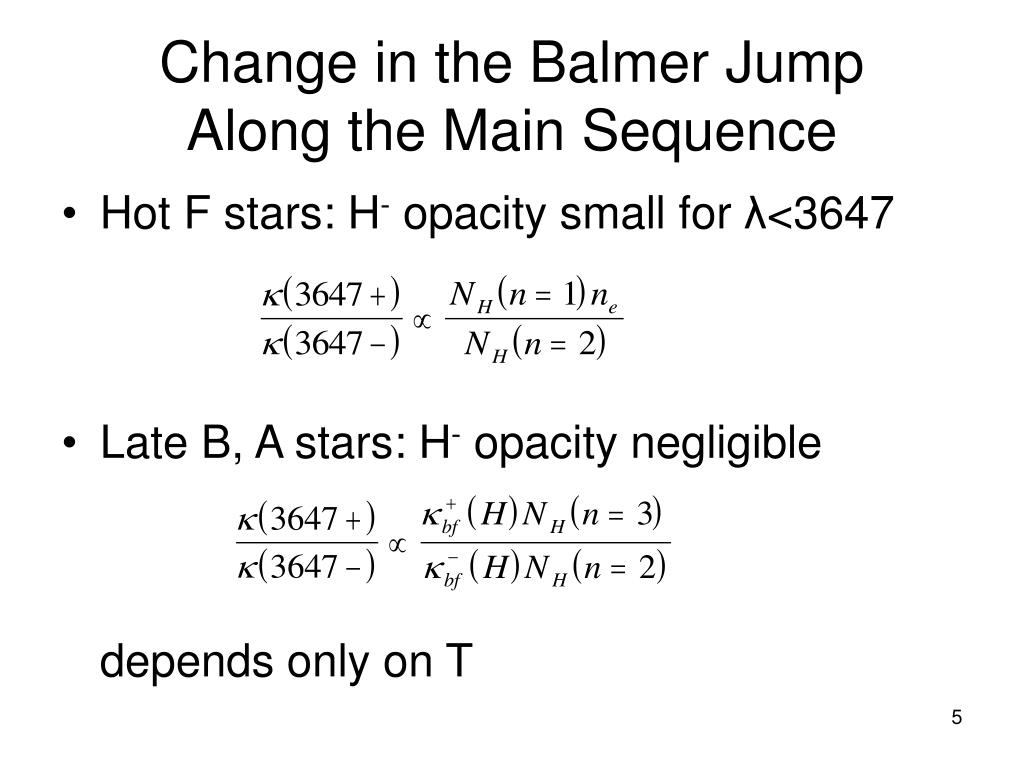

Change in the balmer jump along the main sequence1
Change in the Balmer Jump Along the Main Sequence

  • Hot F stars: H- opacity small for λ<3647

  • Late B, A stars: H- opacity negligibledepends only on T

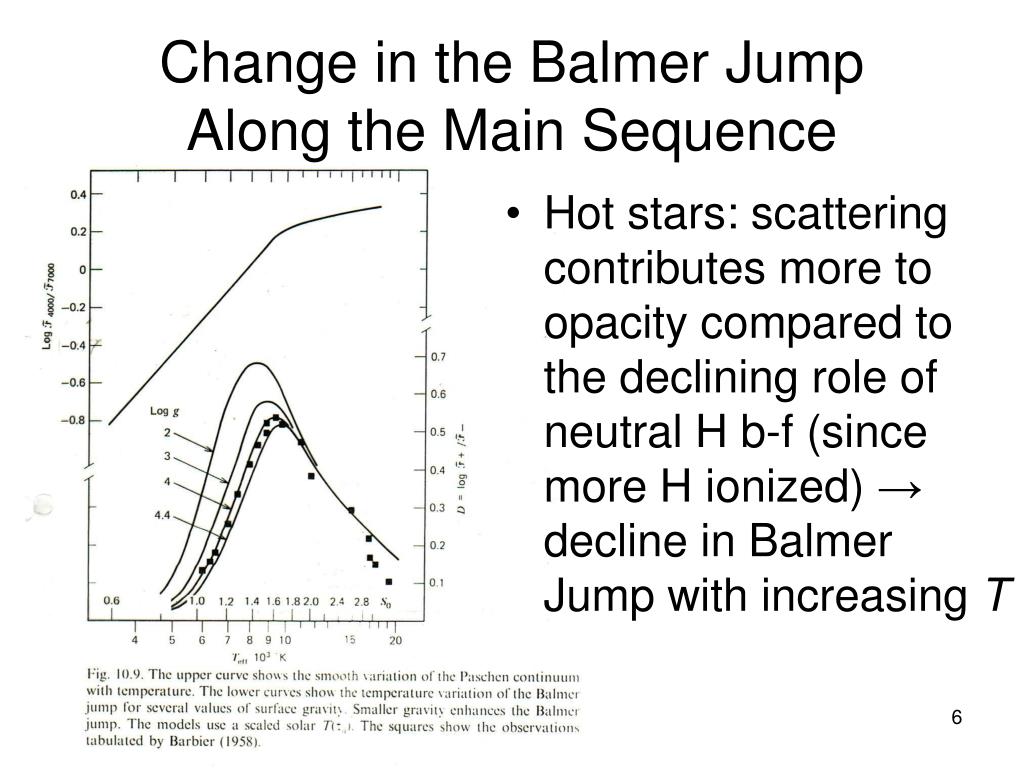

Change in the balmer jump along the main sequence2
Change in the Balmer Jump Along the Main Sequence

  • Hot stars: scattering contributes more to opacity compared to the declining role of neutral H b-f (since more H ionized) → decline in Balmer Jump with increasing T



Johnson colors buser kurucz 1978 a a 70 555
Johnson Colors(Buser & Kurucz 1978, A&A, 70, 555)


Johnson ubv colors
Johnson UBV Colors

  • U 3650 Å, B 4400 Å, V 5500 Å

  • Balmer Jump: U measures flux from both sides but most influenced by drop in flux for λ<3647 Å

  • Progressing up the MS, larger BJ → (U-B) looks redder (larger)(B-V) continues to get bluer (smaller)

  • Lines important in UV and optical make stars appear redder (especially in U-B)



Balmer line wings in early type stars t dependence
Balmer Line Wings in Early-Type Stars: T dependence

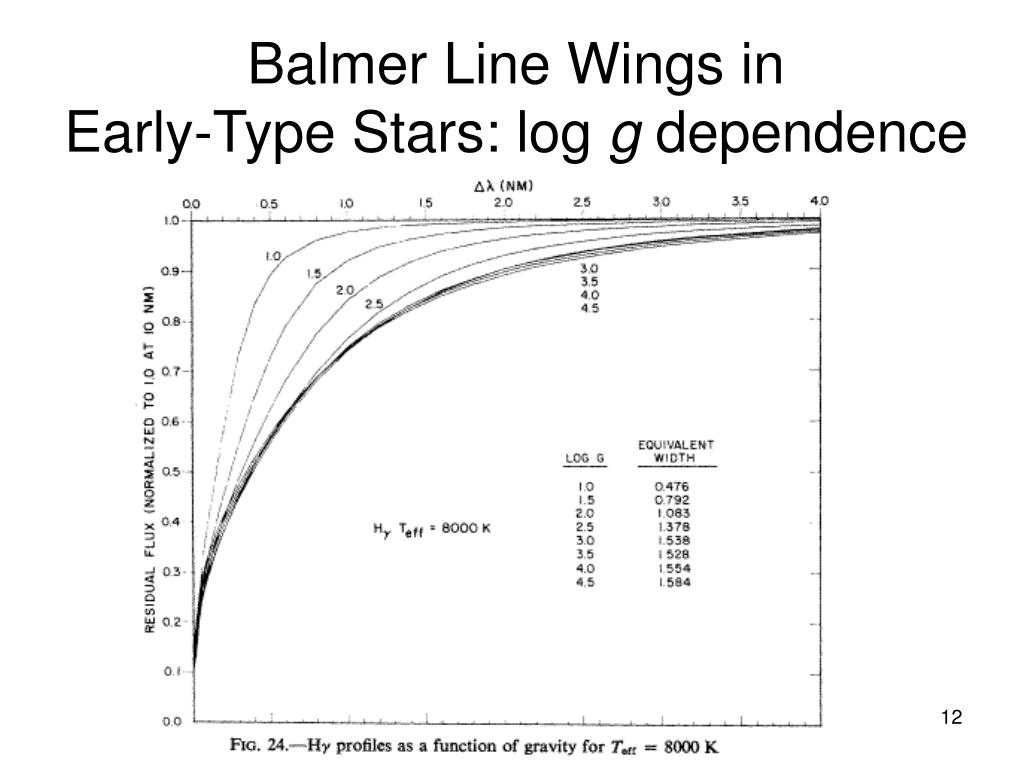

Balmer line wings in early type stars log g dependence
Balmer Line Wings in Early-Type Stars: log g dependence

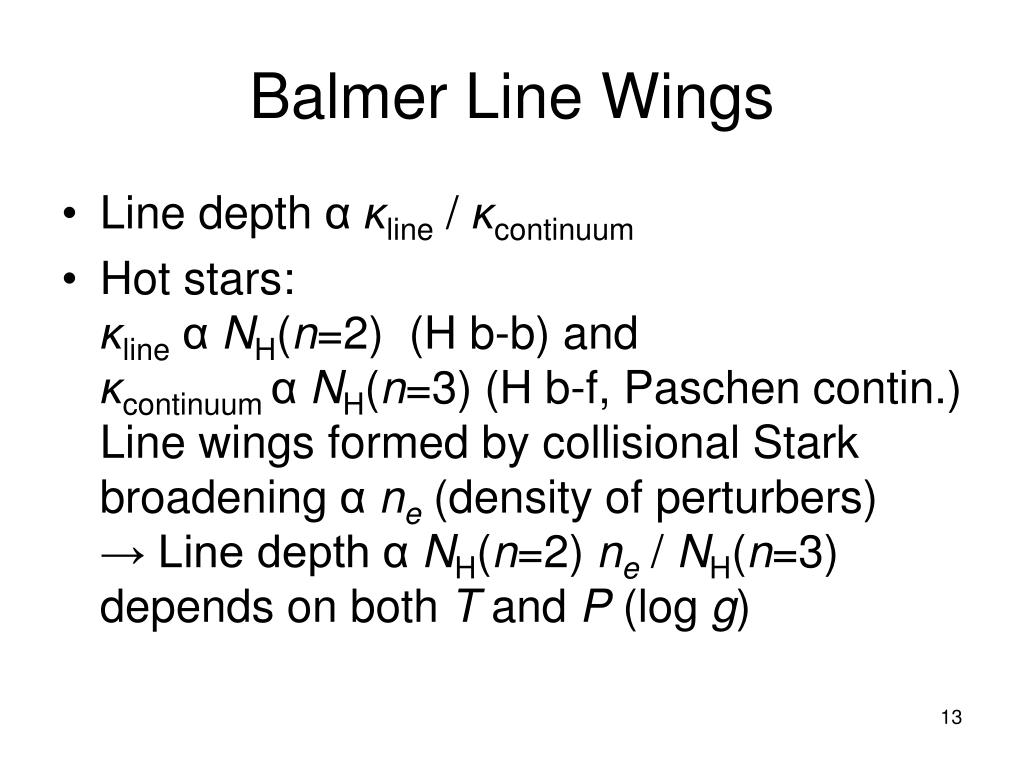

Balmer line wings
Balmer Line Wings

  • Line depth ακline / κcontinuum

  • Hot stars: κlineαNH(n=2) (H b-b) and κcontinuum αNH(n=3) (H b-f, Paschen contin.)Line wings formed by collisional Stark broadening αne (density of perturbers)→ Line depth αNH(n=2) ne / NH(n=3)depends on both T and P (log g)


Balmer line wings1
Balmer Line Wings

  • Cool stars: Continuum opacity mainly due to H-→ Line depth αNH(n=2) ne / N(H-)αNH(n=2) ne / [NH(n=1) nef(T)] = NH(n=2) / [NH(n=1) f(T)] → depends only on T

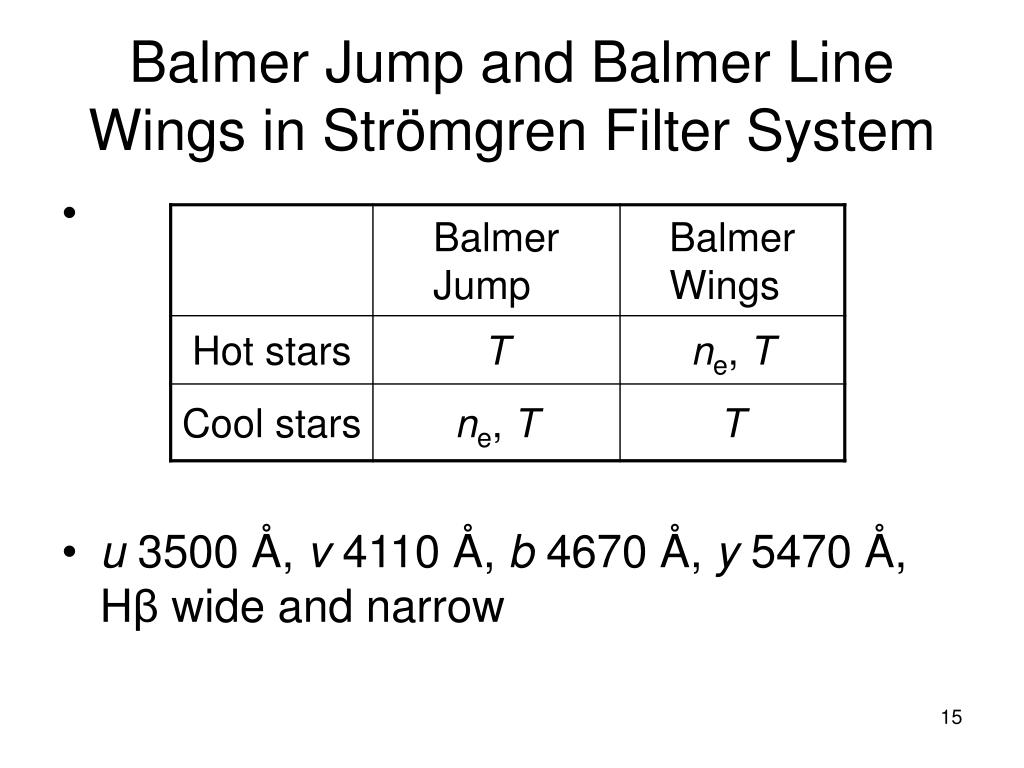

Balmer jump and balmer line wings in str mgren filter system
Balmer Jump and Balmer Line Wings in Strömgren Filter System

  • u 3500 Å, v 4110 Å, b 4670 Å, y 5470 Å, Hβ wide and narrow


Str mgren indices
Strömgren Indices

  • b-y slope of Paschen continuum

  • c1 = (u-v) – (v-b) oractual grad. across BJ – long λ gradient→ measure of Balmer Jump

  • β = m(30 Å) – m(150 Å)→ measures strength of Hβ

  • m1 = (v-b) – (b-y) → measure metallic line absorptions (stronger in blue-green than yellow-red)


Trends in str mgren indices lester gray kurucz 1986 apjs 61 509
Trends in Strömgren Indices(Lester, Gray, & Kurucz 1986, ApJS, 61, 509)

c1 : T hot; T, ne cool

β : T, ne hot; T cool



Reddening free parameters
Reddening Free Parameters ones)

  • Johnson Q

  • Strömgren reddening free indices
