Presentation Transcript


Probabilistic topic models and associative memory l.jpg

Probabilistic Topic Models and Associative Memory


Overview l.jpg

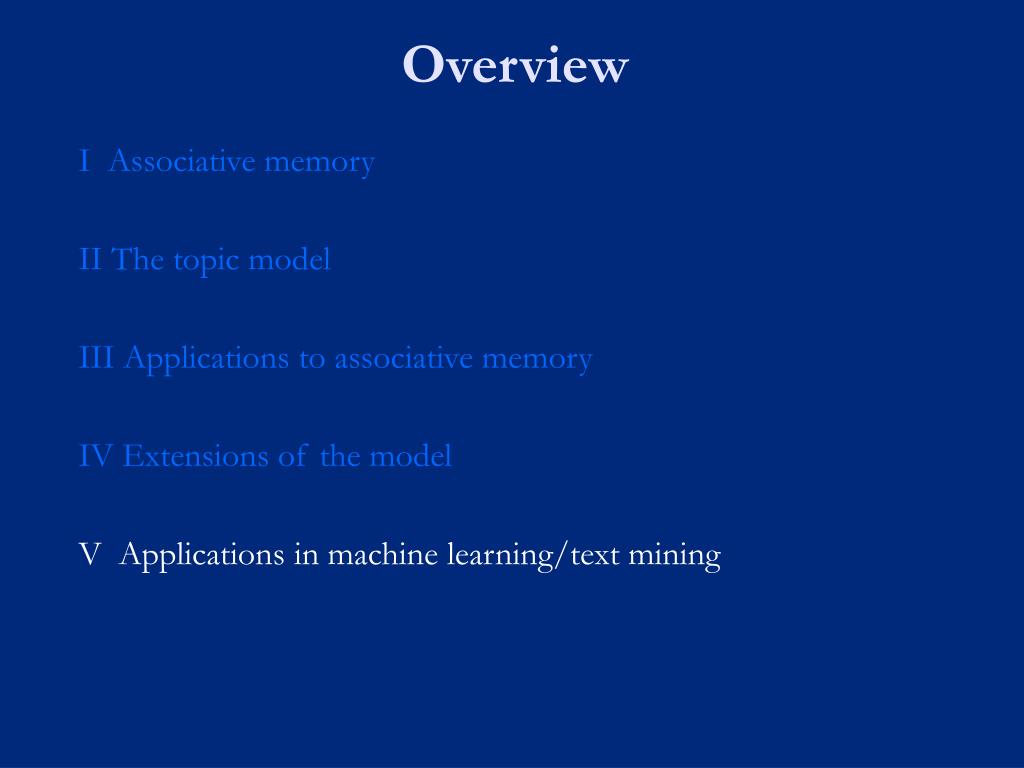

Overview

I Associative memory

II The topic model

III Applications to associative memory

IV Extensions of the model

V Applications in machine learning/text mining


Example of associative memory word association l.jpg

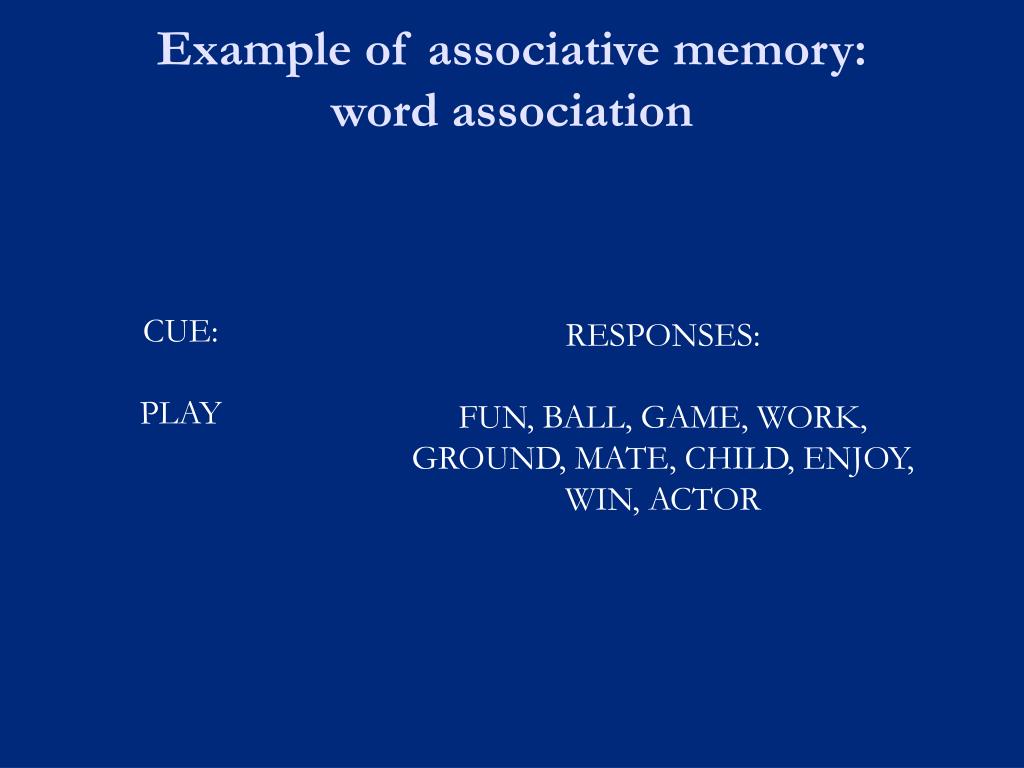

Example of associative memory: word association

CUE:

PLAY

RESPONSES:

FUN, BALL, GAME, WORK, GROUND, MATE, CHILD, ENJOY, WIN, ACTOR


Example of associative memory free recall l.jpg

Example of associative memory: free recall

STUDY THESE WORDS: Bed, Rest, Awake, Tired, Dream, Wake, Snooze, Blanket, Doze, Slumber, Snore, Nap, Peace, Yawn, Drowsy

RECALL WORDS .....

FALSE RECALL: “Sleep” 61%


A theory for semantic association l.jpg

A theory for semantic association

  • Semantic association as probabilistic inference

  • Representation of semantic structure


Latent semantic structure l.jpg

Latent Semantic Structure

Distribution over words

Latent Structure

Inferring latent structure

Words

Prediction


Overview7 l.jpg

Overview

I Associative memory

II The topic model

III Applications to associative memory

IV Extensions of the model

V Applications in machine learning/text mining


Probabilistic topic models l.jpg

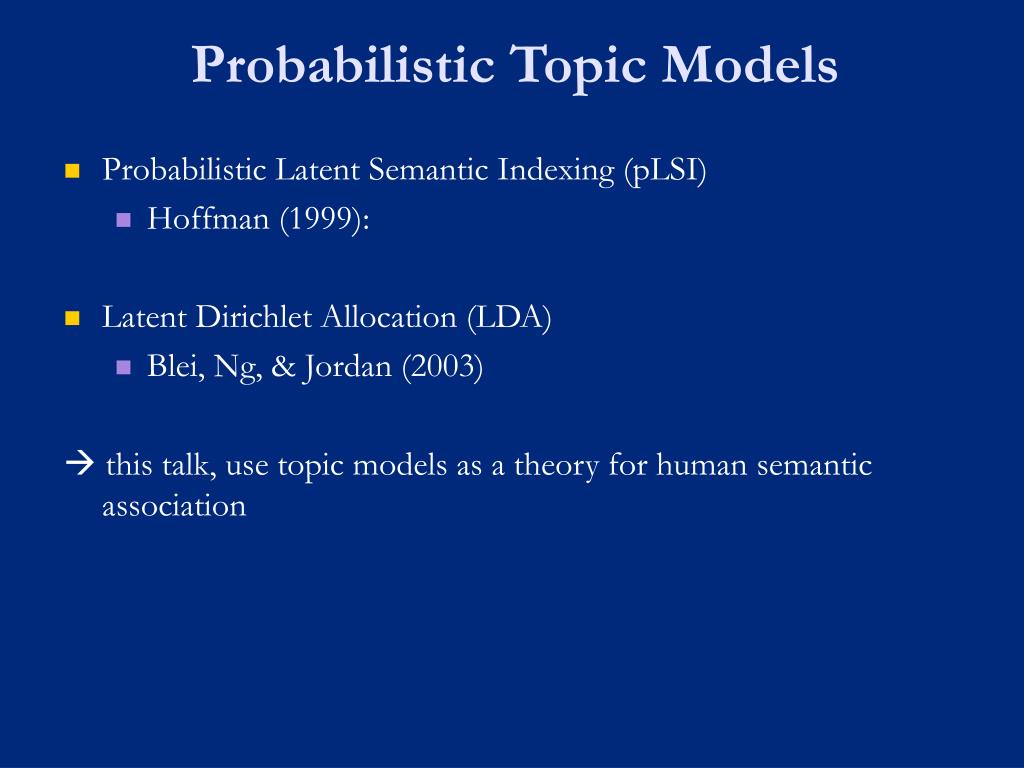

Probabilistic Topic Models

  • Probabilistic Latent Semantic Indexing (pLSI)

    • Hoffman (1999):

  • Latent Dirichlet Allocation (LDA)

    • Blei, Ng, & Jordan (2003)

       this talk, use topic models as a theory for human semantic association


Topic model l.jpg

Topic Model

  • Unsupervised learning of topics (“gist”) of documents:

    • articles/chapters

    • conversations

    • emails

    • .... any verbal context

  • Topics are useful latent structures to explain semantic association


Probabilistic generative model l.jpg

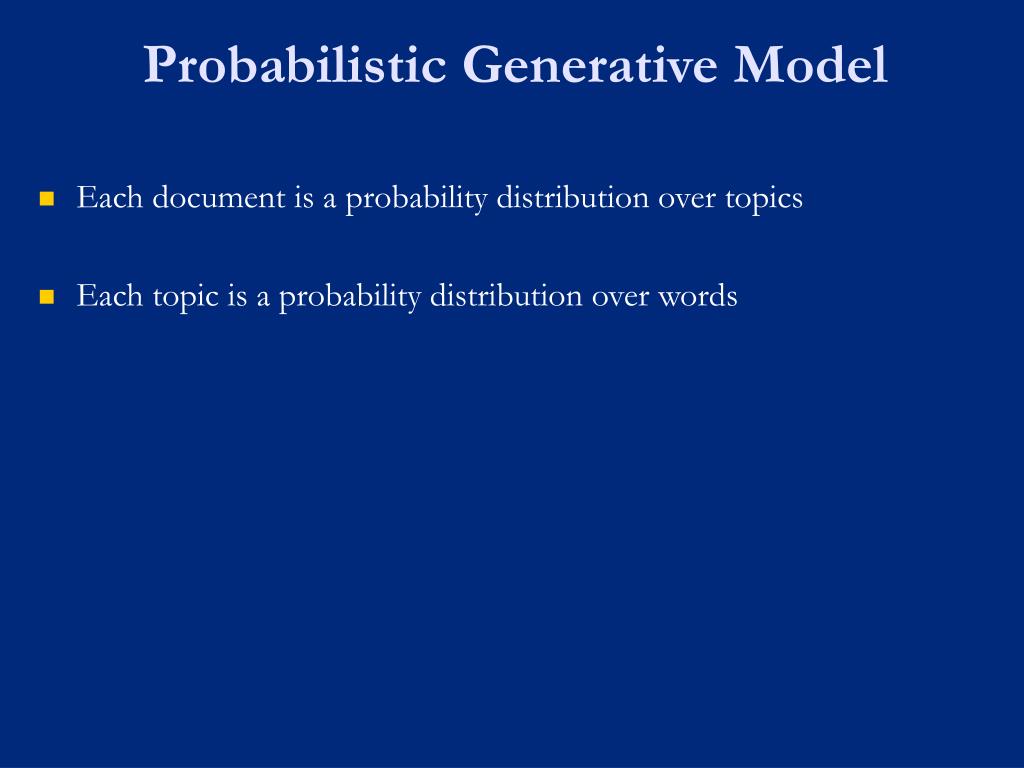

Probabilistic Generative Model

  • Each document is a probability distribution over topics

  • Each topic is a probability distribution over words


Generative process l.jpg

GENERATIVE PROCESS

money

money

loan

bank

DOCUMENT 1: money1 bank1 bank1 loan1river2 stream2bank1 money1river2 bank1 money1 bank1 loan1money1 stream2bank1 money1 bank1 bank1 loan1river2 stream2bank1 money1river2 bank1 money1 bank1 loan1bank1 money1 stream2

.8

loan

bank

bank

loan

.3

TOPIC 1

.2

DOCUMENT 2: river2 stream2 bank2 stream2 bank2money1loan1 river2 stream2loan1 bank2 river2 bank2bank1stream2 river2loan1 bank2 stream2 bank2money1loan1river2 stream2 bank2 stream2 bank2money1river2 stream2loan1 bank2 river2 bank2money1bank1stream2 river2 bank2 stream2 bank2money1

river

bank

river

.7

stream

river

bank

stream

TOPIC 2

Bayesian approach: use priors

Mixture weights ~ Dirichlet( a )

Mixture components ~ Dirichlet( b )

Mixture

components

Mixture

weights


Slide12 l.jpg

The probability of choosing a word:

word probability

in topic j

probability of topic jin document


Graphical model l.jpg

Graphical Model

sample a distribution over topics

a

q

sample a topic

z

b

f

sample a word from that topic

w

N

d

D

T


Inverting the generative process l.jpg

INVERTING THE GENERATIVE PROCESS

DOCUMENT 1: A Play is written to be performed on a stage before a live audience or before motion picture or television cameras ( for later viewingby large audiences). A Play is written because playwrights have something ...

?

?

TOPIC 1

DOCUMENT 2: He was listening to music coming from a passing riverboat. The music had already captured his heart as well as his ear. It was jazz. Bix beiderbecke had already had music lessons. He wanted to play the cornet. And he wanted to play jazz.......

?

TOPIC 2

We estimate the assignments of topics to words


Inverting the generative process15 l.jpg

INVERTING THE GENERATIVE PROCESS

DOCUMENT 1: APlay082iswritten082to beperformed082on astage082before alive093audience082or beforemotion270picture004ortelevision004cameras004( forlater054viewing004bylarge202audiences082). APlay082iswritten082becauseplaywrights082have something ...

?

?

TOPIC 1

DOCUMENT 2: He waslistening077tomusic077coming009from apassing043riverboat.Themusic077had alreadycaptured006hisheart157as well as hisear119. It wasjazz077. Bix beiderbecke had already hadmusic077lessons077. Hewanted268toplay077the cornet. And hewanted268 toplay077 jazz077.......

?

TOPIC 2

We estimate the assignments of topics to words


Statistical inference l.jpg

Statistical Inference

  • Fix number of topics T

  • We estimate the posterior over topic assignments

  • Markov Chain Monte Carlo (MCMC) with Gibbs sampling


Choosing number of topics l.jpg

Choosing number of topics

  • Subjective interpretability

  • Bayesian model selection

    • Griffiths & Steyvers (2004)

  • Generalization test

  • Non-parametric Bayesian statistics

    • Infinite models; models that grow with size of data

      • Teh, Jordan, Teal, & Blei (2004)

      • Blei, Griffiths, Jordan, Tenenbaum (2004)


Procedure l.jpg

Procedure

INPUT:

word-document counts

OUTPUT:

topic assignments to each word

likely words in each topic

likely topics for a document (“gist”)


Example topics from an educational corpus tasa l.jpg

Example: topics from an educational corpus (TASA)

  • 37K docs, 26K words

  • 1700 topics, e.g.:

PRINTING

PAPER

PRINT

PRINTED

TYPE

PROCESS

INK

PRESS


PRINTER

PRINTS

PRINTERS

COPY

COPIES

FORM

OFFSET

GRAPHIC

SURFACE

PRODUCED

CHARACTERS

PLAY

PLAYS

STAGE

AUDIENCE

THEATER

ACTORS

DRAMA

SHAKESPEARE

ACTOR

THEATRE

PLAYWRIGHT

PERFORMANCE

DRAMATIC

COSTUMES

COMEDY

TRAGEDY

CHARACTERS

SCENES

OPERA

PERFORMED

TEAM

GAME

BASKETBALL

PLAYERS

PLAYER

PLAY

PLAYING

SOCCER

PLAYED

BALL

TEAMS

BASKET

FOOTBALL

SCORE

COURT

GAMES

TRY

COACH

GYM

SHOT

JUDGE

TRIAL

COURT

CASE

JURY

ACCUSED

GUILTY

DEFENDANT

JUSTICE

EVIDENCE

WITNESSES

CRIME

LAWYER

WITNESS

ATTORNEY

HEARING

INNOCENT

DEFENSE

CHARGE

CRIMINAL

HYPOTHESIS

EXPERIMENT

SCIENTIFIC

OBSERVATIONS

SCIENTISTS

EXPERIMENTS

SCIENTIST

EXPERIMENTAL

TEST

METHOD

HYPOTHESES

TESTED

EVIDENCE

BASED

OBSERVATION

SCIENCE

FACTS

DATA

RESULTS

EXPLANATION

STUDY

TEST

STUDYING

HOMEWORK

NEED

CLASS

MATH

TRY

TEACHER

WRITE

PLAN

ARITHMETIC

ASSIGNMENT

PLACE

STUDIED

CAREFULLY

DECIDE

IMPORTANT

NOTEBOOK

REVIEW


Polysemy l.jpg

Polysemy

PRINTING

PAPER

PRINT

PRINTED

TYPE

PROCESS

INK

PRESS


PRINTER

PRINTS

PRINTERS

COPY

COPIES

FORM

OFFSET

GRAPHIC

SURFACE

PRODUCED

CHARACTERS

PLAY

PLAYS

STAGE

AUDIENCE

THEATER

ACTORS

DRAMA

SHAKESPEARE

ACTOR

THEATRE

PLAYWRIGHT

PERFORMANCE

DRAMATIC

COSTUMES

COMEDY

TRAGEDY

CHARACTERS

SCENES

OPERA

PERFORMED

TEAM

GAME

BASKETBALL

PLAYERS

PLAYER

PLAY

PLAYING

SOCCER

PLAYED

BALL

TEAMS

BASKET

FOOTBALL

SCORE

COURT

GAMES

TRY

COACH

GYM

SHOT

JUDGE

TRIAL

COURT

CASE

JURY

ACCUSED

GUILTY

DEFENDANT

JUSTICE

EVIDENCE

WITNESSES

CRIME

LAWYER

WITNESS

ATTORNEY

HEARING

INNOCENT

DEFENSE

CHARGE

CRIMINAL

HYPOTHESIS

EXPERIMENT

SCIENTIFIC

OBSERVATIONS

SCIENTISTS

EXPERIMENTS

SCIENTIST

EXPERIMENTAL

TEST

METHOD

HYPOTHESES

TESTED

EVIDENCE

BASED

OBSERVATION

SCIENCE

FACTS

DATA

RESULTS

EXPLANATION

STUDY

TEST

STUDYING

HOMEWORK

NEED

CLASS

MATH

TRY

TEACHER

WRITE

PLAN

ARITHMETIC

ASSIGNMENT

PLACE

STUDIED

CAREFULLY

DECIDE

IMPORTANT

NOTEBOOK

REVIEW


Overview21 l.jpg

Overview

I Associative memory

II The topic model

III Applications to associative memory

IV Extensions of the model

V Applications in machine learning/text mining


Example associative structure l.jpg

Example associative structure

BAT

BALL

BASEBALL

GAME

PLAY

STAGE

THEATER

(Association norms by Doug Nelson et al. 1998)


Explaining structure with topics l.jpg

Explaining structure with topics

BAT

BALL

topic 1

BASEBALL

GAME

PLAY

topic 2

STAGE

THEATER


Tasa corpus l.jpg

Tasa corpus

  • Need a suitable corpus to model human associations

  • TASA

    • an educational corpus of text

    • 37K documents

    • 26K words


Modeling word association l.jpg

Modeling Word Association

  • Word association modeled as prediction

  • Given that a single word is observed, what future other words might occur?

  • Under a single topic assumption:

Cue

Response


Observed associates for the cue play l.jpg

Observed associates for the cue “play”


Model predictions l.jpg

Model predictions

RANK 9


Median rank of first associate l.jpg

Median rank of first associate

Median Rank


Latent semantic analysis landauer dumais 1997 l.jpg

Latent Semantic Analysis(Landauer & Dumais, 1997)

  • Each word is a single point in semantic space

  • Similarity measured by cosine of angle between word vectors

high dimensional space

Singular value

decomposition

STREAM

RIVER

word-document

counts

BANK

MONEY


Median rank of first associate30 l.jpg

Median rank of first associate

Median Rank


Triangle inequality in spatial representations l.jpg

Triangle Inequality in Spatial Representations

THEATER

w1

w2

w3

SOCCER

PLAY

Cosine similarity:

cos(w1,w3) ≥ cos(w1,w2)cos(w2,w3) – sin(w1,w2)sin(w2,w3)


Testing violation of triangle inequality l.jpg

Testing violation of triangle inequality

  • Look for triplets of associates w1 w2 w3 such that

    P( w2 | w1 ) > t

    P( w3 | w2 ) > t

    and measure P( w3 | w1 )

  • Vary threshold t


Recall example study list l.jpg

Recall: example study List

STUDY: Bed, Rest, Awake, Tired, Dream, Wake, Snooze, Blanket, Doze, Slumber, Snore, Nap, Peace, Yawn, Drowsy

FALSE RECALL: “Sleep” 61%


Recall as a reconstructive process l.jpg

Recall as a reconstructive process

  • Reconstruct study list based on the stored “gist”

  • The gist can be represented by a distribution over topics

  • Under a single topic assumption:

Retrieved word

Study list


Predictions for the sleep list l.jpg

Predictions for the “Sleep” list

STUDYLIST

EXTRALIST

(top 8)


Correlation between intrusion rates and predictions l.jpg

Correlation between intrusion rates and predictions

.69

.53

.37


Latent semantic analysis vs topics l.jpg

Latent Semantic Analysis vs. Topics

  • Quantitative differences

  • Qualitative differences

    • probabilistic generative models can work with more structured representations

    • Extensions of topic models:

      • hierarchies

      • syntax-semantics


Overview39 l.jpg

Overview

I Associative memory

II The topic model

III Applications to associative memory

IV Extensions of the model

V Applications in machine learning/text mining


Integrating topics and syntax l.jpg

Integrating Topics and Syntax

(Griffiths, Steyvers, Blei, & Tenenbaum, 2004)

  • Syntactic dependencies  short range dependencies

  • Semantic dependencies  long-range

q

Semantic state: generate words from topic model

z1

z2

z3

z4

w1

w2

w3

w4

Syntactic states: generate words from HMM

s1

s2

s3

s4


Slide41 l.jpg

ATTENTION

SEARCH

VISUAL

PROCESSING

TASK

PERFORMANCE

INFORMATION

ATTENTIONAL

MEMORY

TERM

LONG

SHORT

RETRIEVAL

STORAGE

MEMORIES

AMNESIA

IQ

BEHAVIOR

EVOLUTIONARY

ENVIRONMENT

GENES

HERITABILITY

GENETIC

SELECTION

DRUG

AROUSAL

NEURAL

BRAIN

HABITUATION

BIOLOGICAL

TOLERANCE

BEHAVIORAL

SOCIAL

SELF

ATTITUDE

IMPLICIT

ATTITUDES

PERSONALITY

JUDGMENT

PERCEPTION

...

IN

BY

WITH

ON

AS

FROM

TO

FOR

IS

ARE

BE

HAS

HAVE

WAS

WERE

AS

THE

A

AN

THIS

THEIR

ITS

EACH

ONE

BASED

PRESENTED

DISCUSSED

PROPOSED

DESCRIBED

SUCH

USED

DERIVED

THEORY

MODEL

PROCESSES

MODELS

SYSTEM

PROCESS

EFFECTS

INFORMATION

(S) THESEARCHINLONG TERM MEMORY ……

(S) A MODEL OFVISUAL ATTENTION ……


Random sentence generation l.jpg

Random sentence generation

LANGUAGE:

[S] RESEARCHERS GIVE THE SPEECH

[S] THE SOUND FEEL NO LISTENERS

[S] WHICH WAS TO BE MEANING

[S] HER VOCABULARIES STOPPED WORDS

[S] HE EXPRESSLY WANTED THAT BETTER VOWEL


Topic hierarchies l.jpg

Topic Hierarchies

  • In regular topic model, no relations between topics

  • Alternative: hierarchical topic organization

topic 1

topic 2

topic 3

topic 6

topic 5

topic 7

topic 4

  • Nested Chinese Restaurant Process

    • Blei, Griffiths, Jordan, Tenenbaum (2004)

    • Learn hierarchical structure, as well as topics within structure


Example psych review abstracts l.jpg

Example: Psych Review Abstracts

THE

OF

AND

TO

IN

A

IS

A

MODEL

MEMORY

FOR

MODELS

TASK

INFORMATION

RESULTS

ACCOUNT

SELF

SOCIAL

PSYCHOLOGY

RESEARCH

RISK

STRATEGIES

INTERPERSONAL

PERSONALITY

SAMPLING

MOTION

VISUAL

SURFACE

BINOCULAR

RIVALRY

CONTOUR

DIRECTION

CONTOURS

SURFACES

DRUG

FOOD

BRAIN

AROUSAL

ACTIVATION

AFFECTIVE

HUNGER

EXTINCTION

PAIN

RESPONSE

STIMULUS

REINFORCEMENT

RECOGNITION

STIMULI

RECALL

CHOICE

CONDITIONING

SPEECH

READING

WORDS

MOVEMENT

MOTOR

VISUAL

WORD

SEMANTIC

ACTION

SOCIAL

SELF

EXPERIENCE

EMOTION

GOALS

EMOTIONAL

THINKING

GROUP

IQ

INTELLIGENCE

SOCIAL

RATIONAL

INDIVIDUAL

GROUPS

MEMBERS

SEX

EMOTIONS

GENDER

EMOTION

STRESS

WOMEN

HEALTH

HANDEDNESS

REASONING

ATTITUDE

CONSISTENCY

SITUATIONAL

INFERENCE

JUDGMENT

PROBABILITIES

STATISTICAL


COLOR

MONOCULAR

LIGHTNESS

GIBSON

SUBMOVEMENT

ORIENTATION

HOLOGRAPHIC

CONDITIONIN

STRESS

EMOTIONAL

BEHAVIORAL

FEAR

STIMULATION

TOLERANCE

RESPONSES


Generative process45 l.jpg

Generative Process

THE

OF

AND

TO

IN

A

IS

A

MODEL

MEMORY

FOR

MODELS

TASK

INFORMATION

RESULTS

ACCOUNT

SELF

SOCIAL

PSYCHOLOGY

RESEARCH

RISK

STRATEGIES

INTERPERSONAL

PERSONALITY

SAMPLING

MOTION

VISUAL

SURFACE

BINOCULAR

RIVALRY

CONTOUR

DIRECTION

CONTOURS

SURFACES

DRUG

FOOD

BRAIN

AROUSAL

ACTIVATION

AFFECTIVE

HUNGER

EXTINCTION

PAIN

RESPONSE

STIMULUS

REINFORCEMENT

RECOGNITION

STIMULI

RECALL

CHOICE

CONDITIONING

SPEECH

READING

WORDS

MOVEMENT

MOTOR

VISUAL

WORD

SEMANTIC

ACTION

SOCIAL

SELF

EXPERIENCE

EMOTION

GOALS

EMOTIONAL

THINKING

GROUP

IQ

INTELLIGENCE

SOCIAL

RATIONAL

INDIVIDUAL

GROUPS

MEMBERS

SEX

EMOTIONS

GENDER

EMOTION

STRESS

WOMEN

HEALTH

HANDEDNESS

REASONING

ATTITUDE

CONSISTENCY

SITUATIONAL

INFERENCE

JUDGMENT

PROBABILITIES

STATISTICAL


COLOR

MONOCULAR

LIGHTNESS

GIBSON

SUBMOVEMENT

ORIENTATION

HOLOGRAPHIC

CONDITIONIN

STRESS

EMOTIONAL

BEHAVIORAL

FEAR

STIMULATION

TOLERANCE

RESPONSES


Overview46 l.jpg

Overview

I Associative memory

II The topic model

III Applications to associative memory

IV Extensions of the model

V Applications in machine learning/text mining


Applications in machine learning text mining l.jpg

Applications in machine learning/ text mining


Applications in machine learning l.jpg

Applications in Machine Learning

  • Automatically learn topics from large text collections

    • NSF/NIH grant proposals

    • 18th century newspapers

    • Enron email

  • Topics provide quick overview of content


Enron email data l.jpg

Enron email data

500,000 emails

5000 authors

1999-2002

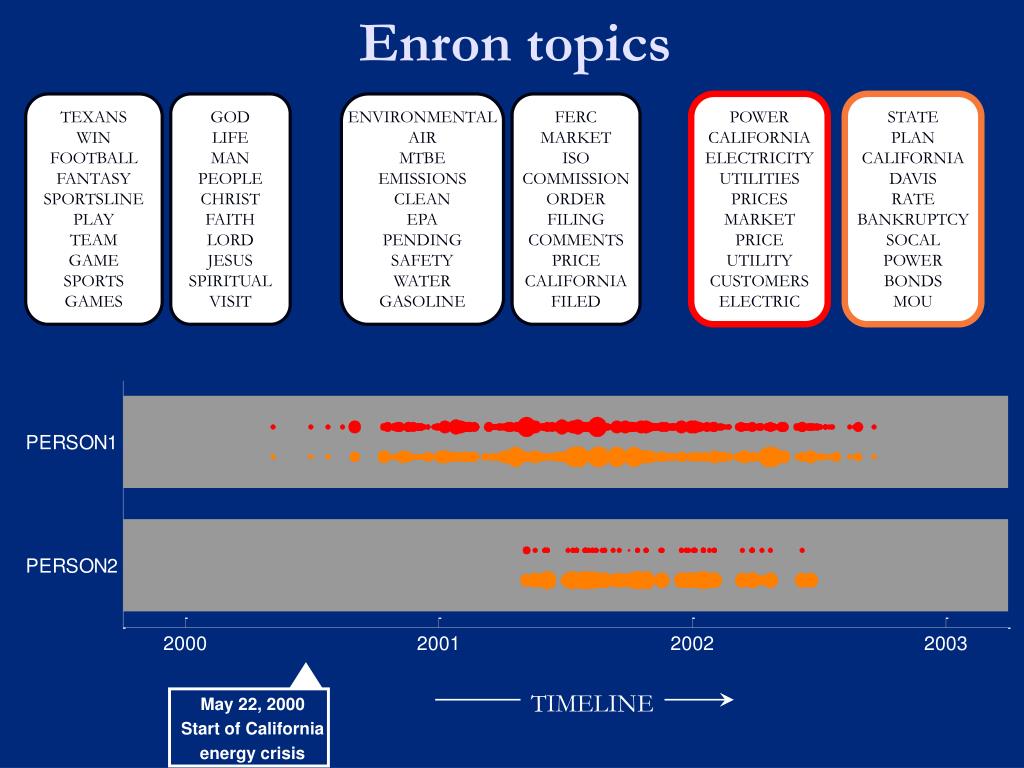

Enron topics l.jpg

Enron topics

TEXANS

WINFOOTBALL

FANTASY

SPORTSLINE

PLAY

TEAM

GAME

SPORTS

GAMES

GOD

LIFE

MAN

PEOPLE

CHRIST

FAITH

LORD

JESUS

SPIRITUAL

VISIT

ENVIRONMENTAL

AIR

MTBE

EMISSIONS

CLEAN

EPA

PENDING

SAFETY

WATER

GASOLINE

FERC

MARKET

ISO

COMMISSION

ORDER

FILING

COMMENTS

PRICE

CALIFORNIA

FILED

POWER

CALIFORNIA

ELECTRICITY

UTILITIES

PRICES

MARKET

PRICE

UTILITY

CUSTOMERS

ELECTRIC

STATE

PLAN

CALIFORNIA

DAVIS

RATE

BANKRUPTCY

SOCAL

POWER

BONDS

MOU

TIMELINE

May 22, 2000

Start of California

energy crisis


Nsf nih grant abstracts l.jpg

NSF & NIH grant abstracts

  • Analyze 22,000+ active grants during 2002

    • NIH – NIMH, NCI

    • NSF – BIO, SBE

  • What topics are funded?

  • Topic map of funding programs


Example topics l.jpg

Example topics


Slide53 l.jpg

NSF – SBE

NSF – BIO

NIH


Pennsylvania gazette l.jpg

Pennsylvania Gazette

(courtesy of David Newman & Sharon Block, UC Irvine)

1728-1800

80,000 articles


Historical trends in pen gazette l.jpg

Historical Trends in Pen. Gazette

(courtesy of David Newman & Sharon Block, UC Irvine)

STATE

GOVERNMENT

CONSTITUTION

LAW

UNITED

POWER

CITIZEN

PEOPLE

PUBLIC

CONGRES

SILK

COTTON

DITTO

WHITE

BLACK

LINEN

CLOTH

WOMEN

BLUE

WORSTED


Conclusion l.jpg

Conclusion

  • Semantic association as probabilistic inference

    • prediction (compare with ACT-R)

  • Relation to other theories of memory

    • REM

    • ACT-R

  • Generative models are useful

    • makes modeling assumptions explicit

    • flexible

  • Cognitive Science  Machine Learning


  • Login
