  1. FlexCache Date August 7, 2008 Presenter Marty Turner

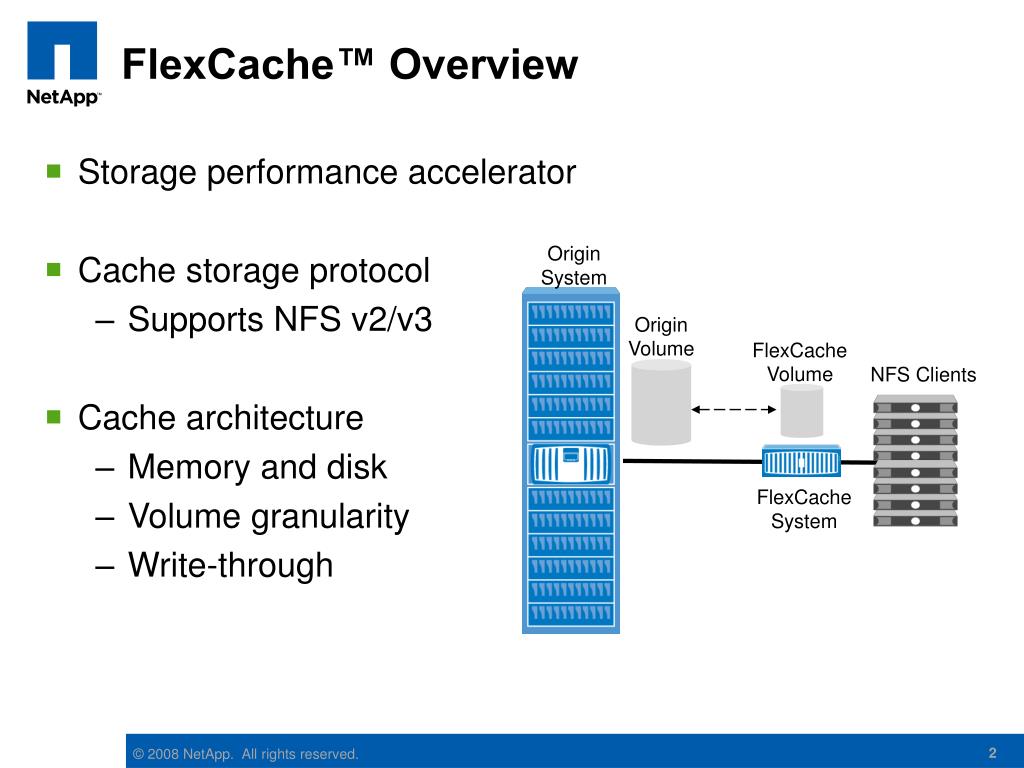

  2. FlexCache™ Overview Storage performance accelerator Cache storage protocol Supports NFS v2/v3 Cache architecture Memory and disk Volume granularity Write-through Origin System Origin Volume FlexCache Volume NFS Clients FlexCache System

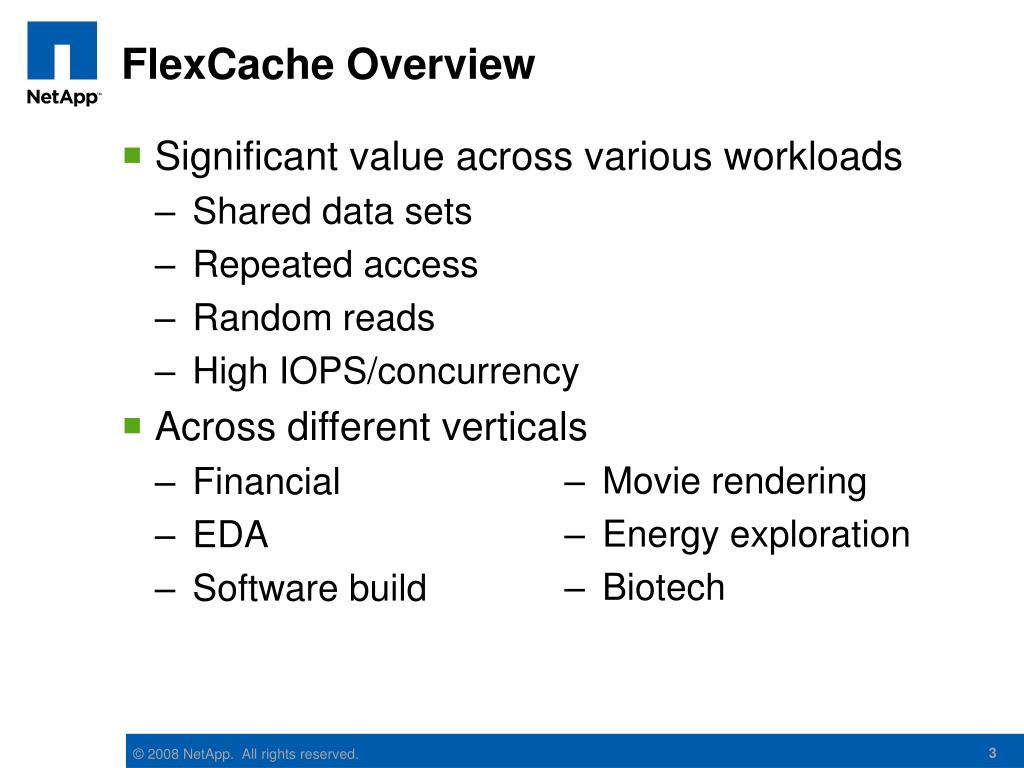

  3. FlexCache Overview • Movie rendering • Energy exploration • Biotech Significant value across various workloads • Shared data sets • Repeated access • Random reads • High IOPS/concurrency Across different verticals • Financial • EDA • Software build

  4. FlexCache Use Cases • Three primary: • (A) Scale out performance • (B) Reduce WAN latency • (C) Offload resources • Also: • Tiered storage FlexCache Volumes NFS Clients Origin System Caching Systems Origin Volume (A) FlexCache Volume Caching System (C) WAN WAN (B) NFS Clients

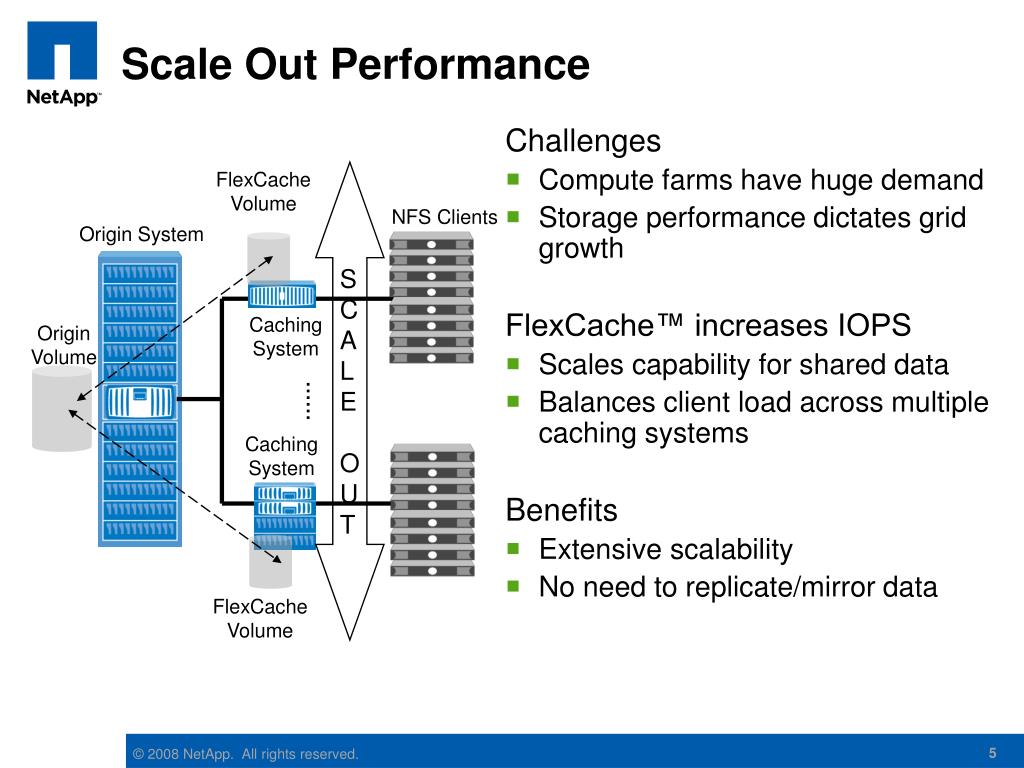

  5. Scale Out Performance Challenges Compute farms have huge demand Storage performance dictates grid growth FlexCache™ increases IOPS Scales capability for shared data Balances client load across multiple caching systems Benefits Extensive scalability No need to replicate/mirror data FlexCache Volume SCALE OUT NFS Clients Origin System Caching System Origin Volume …… Caching System FlexCache Volume

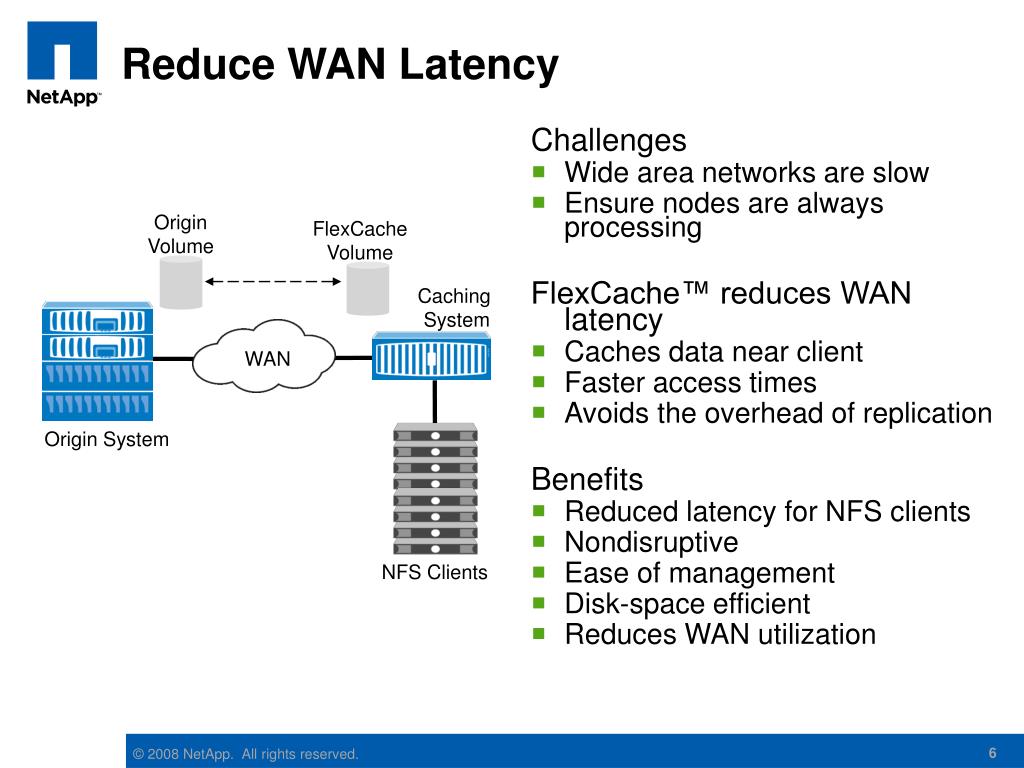

  6. Reduce WAN Latency Challenges Wide area networks are slow Ensure nodes are always processing FlexCache™ reduces WAN latency Caches data near client Faster access times Avoids the overhead of replication Benefits Reduced latency for NFS clients Nondisruptive Ease of management Disk-space efficient Reduces WAN utilization Origin Volume FlexCache Volume Caching System WAN WAN Origin System NFS Clients

  7. Offload Resources Challenge Overloaded storage system or network infrastructure FlexCache™ offloads resources Origin available for other tasks NFS ops served from cache Benefits Offloads storage Offloads network Simplifies administration FlexCache Volumes NFS Clients Origin System Caching Systems Origin Volume FlexCache Volume Caching System WAN WAN NFS Clients

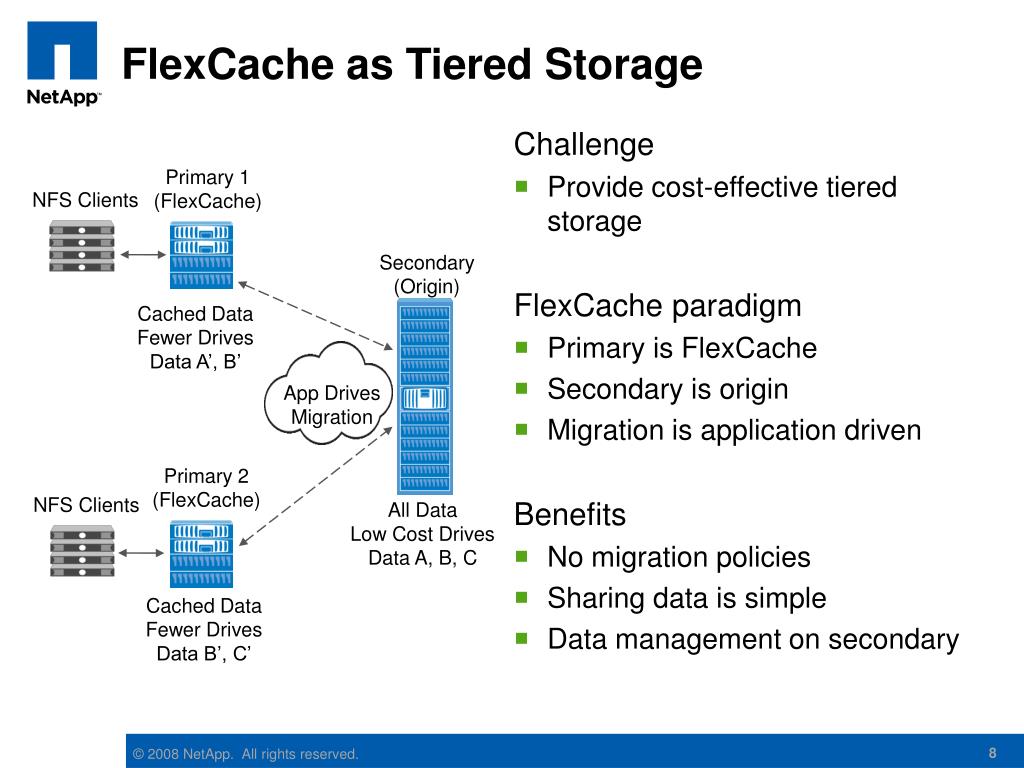

  8. FlexCache as Tiered Storage NFS Clients NFS Clients App Drives Migration • Challenge • Provide cost-effective tiered storage • FlexCache paradigm • Primary is FlexCache • Secondary is origin • Migration is application driven • Benefits • No migration policies • Sharing data is simple • Data management on secondary Primary 1 (FlexCache) Secondary (Origin) Cached Data Fewer Drives Data A’, B’ Primary 2 (FlexCache) All Data Low Cost Drives Data A, B, C Cached Data Fewer Drives Data B’, C’

  9. FlexCache Deployment Choices FlexCache™ license: Multipurpose or repurposed FAS Any FAS or V-Series with Data ONTAP® 7G NetApp® SA system: Dedicated, cost-effective cache

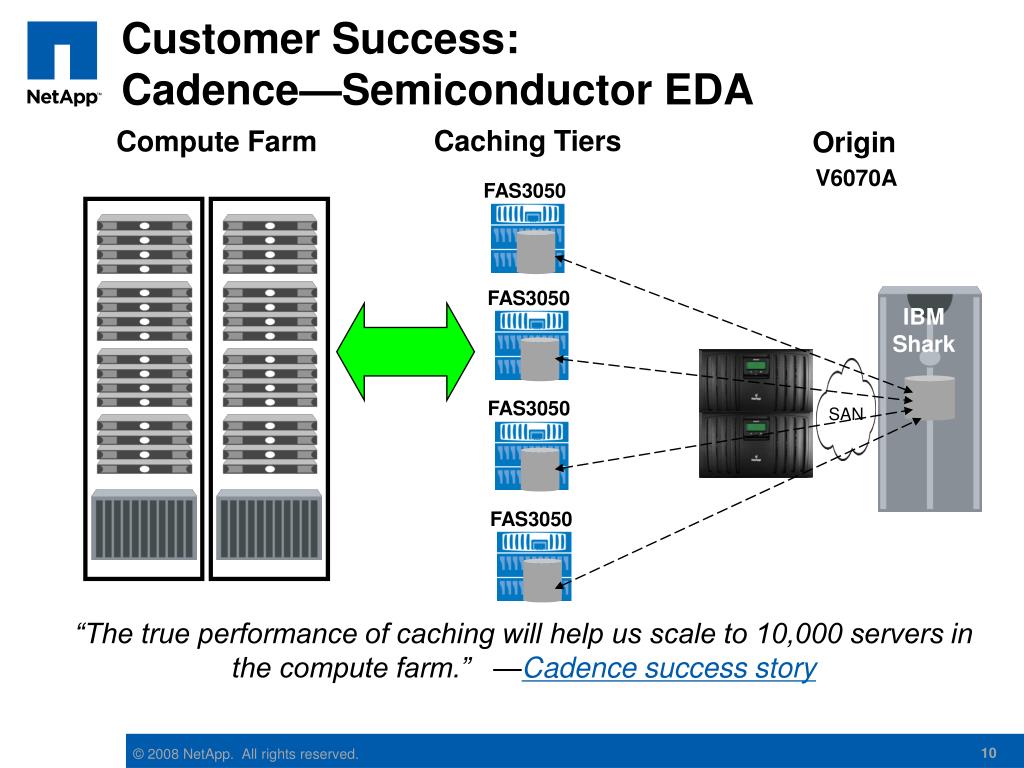

  10. Customer Success:Cadence—Semiconductor EDA FAS3050 FAS3050 FAS3050 FAS3050 Caching Tiers Compute Farm Origin V6070A IBM Shark SAN “The true performance of caching will help us scale to 10,000 servers in the compute farm.” —Cadence success story

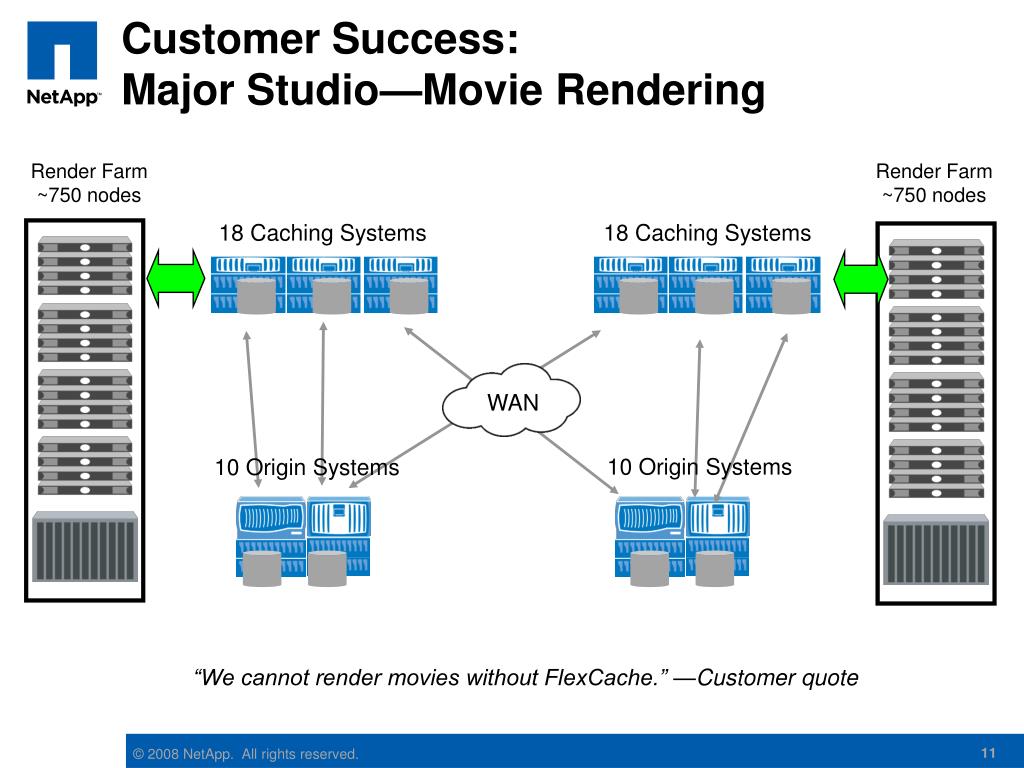

  11. Customer Success: Major Studio—Movie Rendering Render Farm ~750 nodes Render Farm ~750 nodes WAN 18 Caching Systems 18 Caching Systems 10 Origin Systems 10 Origin Systems “We cannot render movies without FlexCache.” —Customer quote

  12. Thank you! © 2008 NetApp. All rights reserved.
