Chapter 9 – Network Layer Addresses

CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman


Network address examples

Network Address Examples

LAN A

  • IP – per interface

  • IPX – per interface

  • IPv6 – per interface

  • CLNP – per node

  • AppleTalk – per interface

  • DECnet – per node

Interface 0

Host

X

Interface 1

LAN B

CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman


Hierarchical addresses fixed bdry

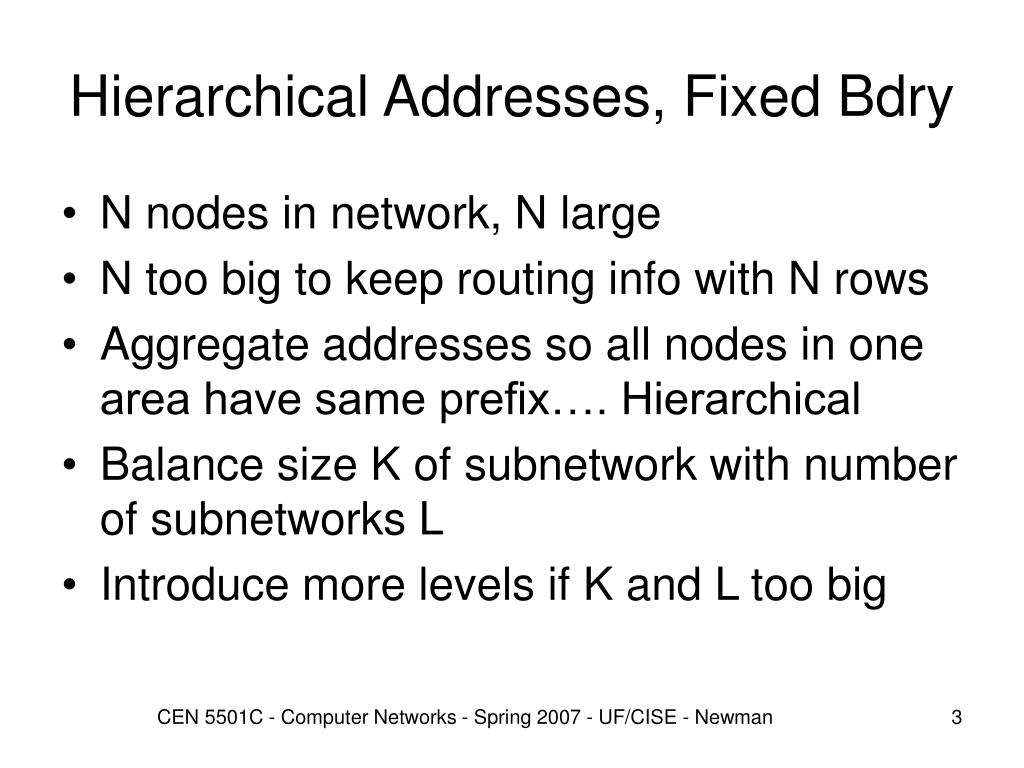

Hierarchical Addresses, Fixed Bdry

  • N nodes in network, N large

  • N too big to keep routing info with N rows

  • Aggregate addresses so all nodes in one area have same prefix…. Hierarchical

  • Balance size K of subnetwork with number of subnetworks L

  • Introduce more levels if K and L too big

CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman


Hierarchical addresses fixed bdry1

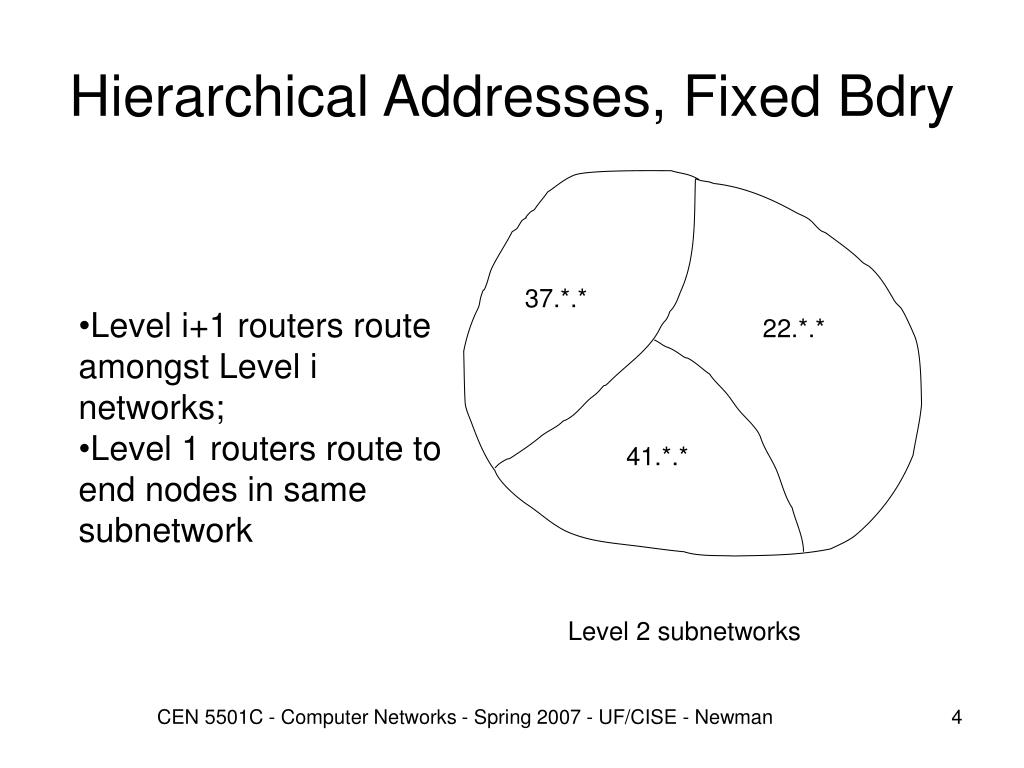

Hierarchical Addresses, Fixed Bdry

37.*.*

  • Level i+1 routers route amongst Level i networks;

  • Level 1 routers route to end nodes in same subnetwork

22.*.*

41.*.*

Level 2 subnetworks

CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman


Hierarchical addresses fixed bdry2

Hierarchical Addresses, Fixed Bdry

37.23.*

22.56.*

37.3.*

37.1.*

22.23.*

22.3.*

37.12.*

41.12.*

22.12.*

41.97.*

41.17.*

3-level address:

22.1.*

41.5.*

Level 2

subnetwork

Level 1

subnetwork

end

host

Level 3 subnetworks

CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman


Hierarchical addrs flexible bdry

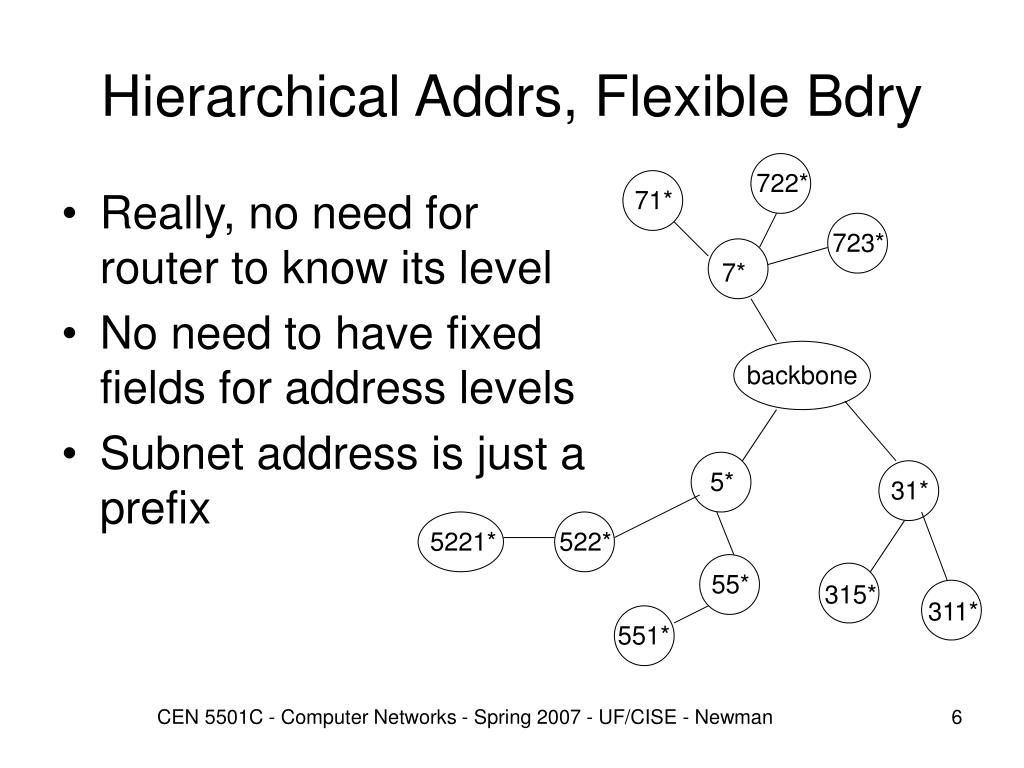

Hierarchical Addrs, Flexible Bdry

722*

  • Really, no need for router to know its level

  • No need to have fixed fields for address levels

  • Subnet address is just a prefix

71*

723*

7*

backbone

5*

31*

5221*

522*

55*

315*

311*

551*

CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman


Owning vs renting

Owning vs. Renting

  • Initially, IP addresses obtained in blocks from IANA

  • Blocks given according to size and order of request

  • Results in non-topological addresses

  • Now addresses given to providers

  • Providers distribute sub-addresses

  • Address must change with provider…

CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman


Address types

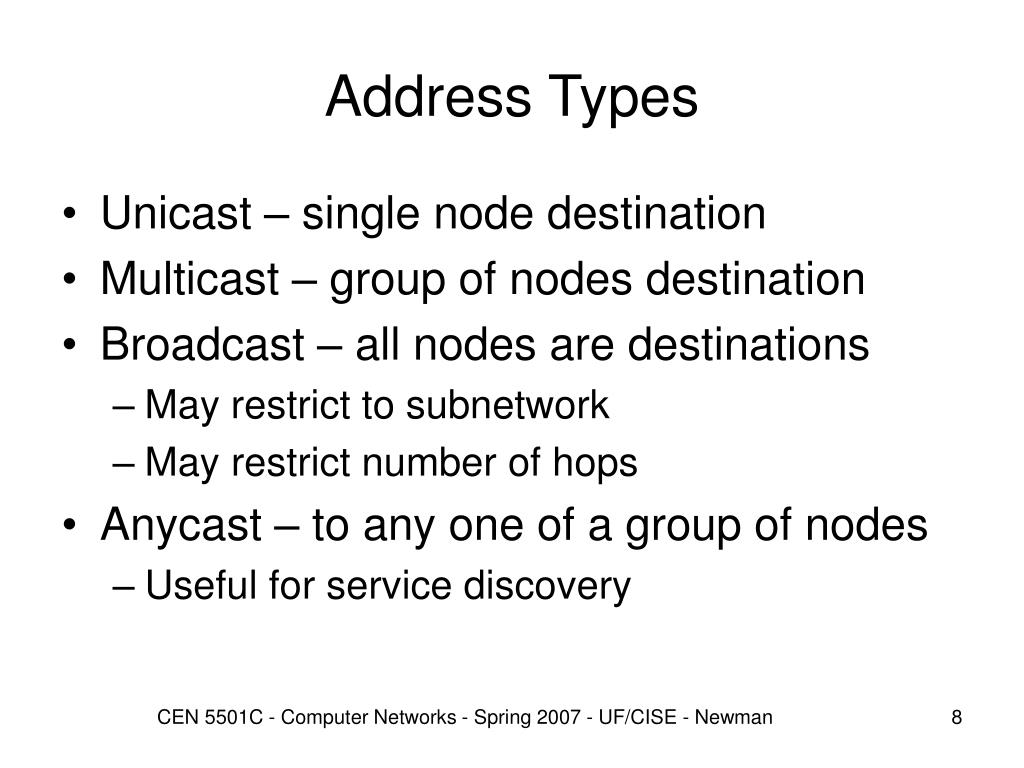

Address Types

  • Unicast – single node destination

  • Multicast – group of nodes destination

  • Broadcast – all nodes are destinations

    • May restrict to subnetwork

    • May restrict number of hops

  • Anycast – to any one of a group of nodes

    • Useful for service discovery

CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman


Ipv4 addresses

IPv4 Addresses

  • RFC 791 – generically, IP

  • 4 octets long (32 bits)

  • Link and host parts (boundary varies with subnetwork)

  • Subnet mask used to define boundary

    • 1’s where subnet bits are, 0’s for host bits

    • In practice, contiguous bits

  • Address depends on subnetwork!

CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman


Obtaining ip addresses

Obtaining IP Addresses

  • Manually configured address and mask

  • Obtain from server

    • BOOTP (RFC 951)

    • DHCP (RFC 1531)

    • RARP (RFC 903)

    • Start with LAN address, and either broadcast to or know address of server (BOOTP, DHCP)

    • Server provides mask and address

CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman


Ipv4 addresses original

IPv4 Addresses (original)

Dotted Decimal

0

net

host

1.0.0.0 to

127.255.255.255

Class A address

1

0

net

host

128.0.0.0 to

191.255.255.255

Class B address

1

1

0

net

host

192.0.0.0 to

223.225.225.225

Class C address

224.0.0.0 to

239.225.225.225

1

1

1

0

Multicast address

Class D address

1

1

1

1

0

reserved

240.0.0.0 to

247.255.255.255

Class E address

CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman


Special ipv4 addresses

Special IPv4 Addresses

Dotted Decimal

00000000000000000000000000000000

0.0.0.0

This host

000000…0000000

host

0.x.y.z

Host on this network

11111111111111111111111111111111

225.225.225.225

Broadcast on local network

net

111111…11111

Broadcast on remote network

127.a.b.c

127

anything

loopback

CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman


Subnet mask

Subnet Mask

1

0

network

subnetwork

host

  • Flexible subnet mask not supported by old routing protocols (RIP, EGP, early BGPs)

  • Solves “Three Bears Problem”

  • CIDR

Network address

11111111111111111111111111

000000

Subnet mask

CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman


Computer networks

CIDR

  • Classless InterDomain Routing (RFC 1519)

  • Specify subnet by dotted decimal (filling in host part with 0’s)/<bits in network address>

  • Example: 227.128.64.64/27 has

    32-27=5 bits of host address

  • Allows geographic distribution of Class C’s:

    • 194.0.0.0 – 195.255.255.255 to Europe

    • 198.0.0.0 – 199.255.255.255 to Africa

    • 200.0.0.0 – 201.255.255.255 to Cent. & So. Amer.

    • 202.0.0.0 – 203.255.255.255 to Asia & Pacific

CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman


Ipx addresses

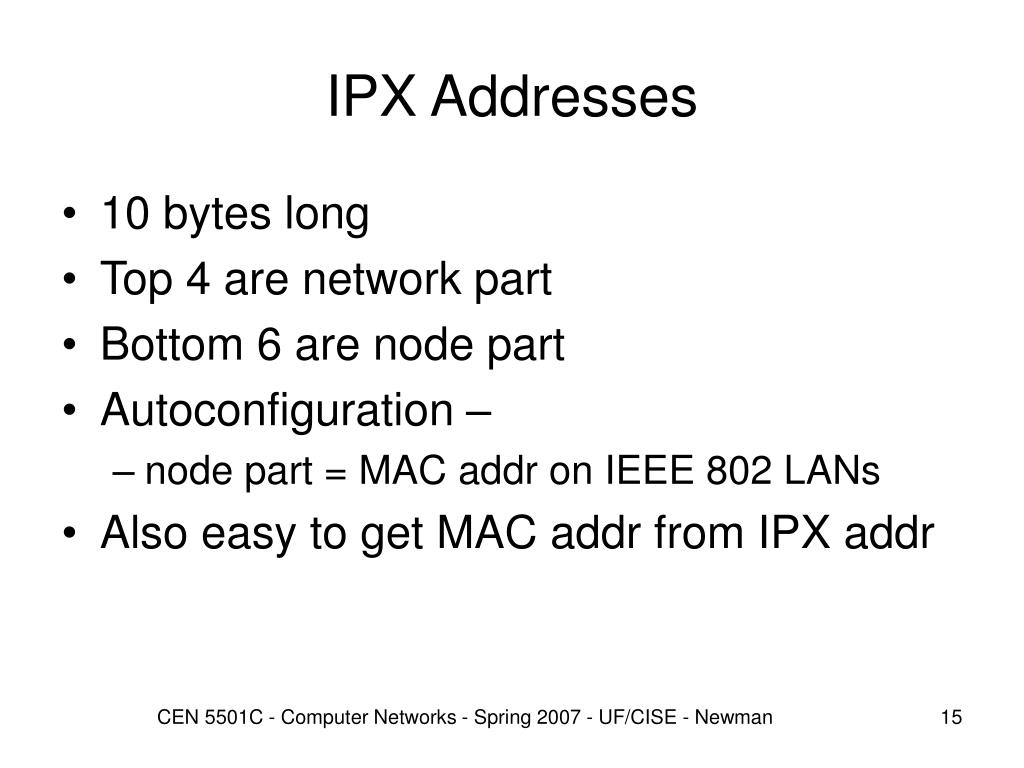

IPX Addresses

  • 10 bytes long

  • Top 4 are network part

  • Bottom 6 are node part

  • Autoconfiguration –

    • node part = MAC addr on IEEE 802 LANs

  • Also easy to get MAC addr from IPX addr

CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman


Ipx addresses1

IPX+ Addresses

  • 16 bytes long

  • New top 6 are domain number

    • Obtained automatically from service provider

  • Bottom 10 as before

  • One mode of IPv6 resembles this

  • Extra header added after IPX header

    • Old routers only look at old header

  • In domain, route on 4 byte net part

  • Boundary routers route on 6 byte domain

CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman


Ipv6 addresses

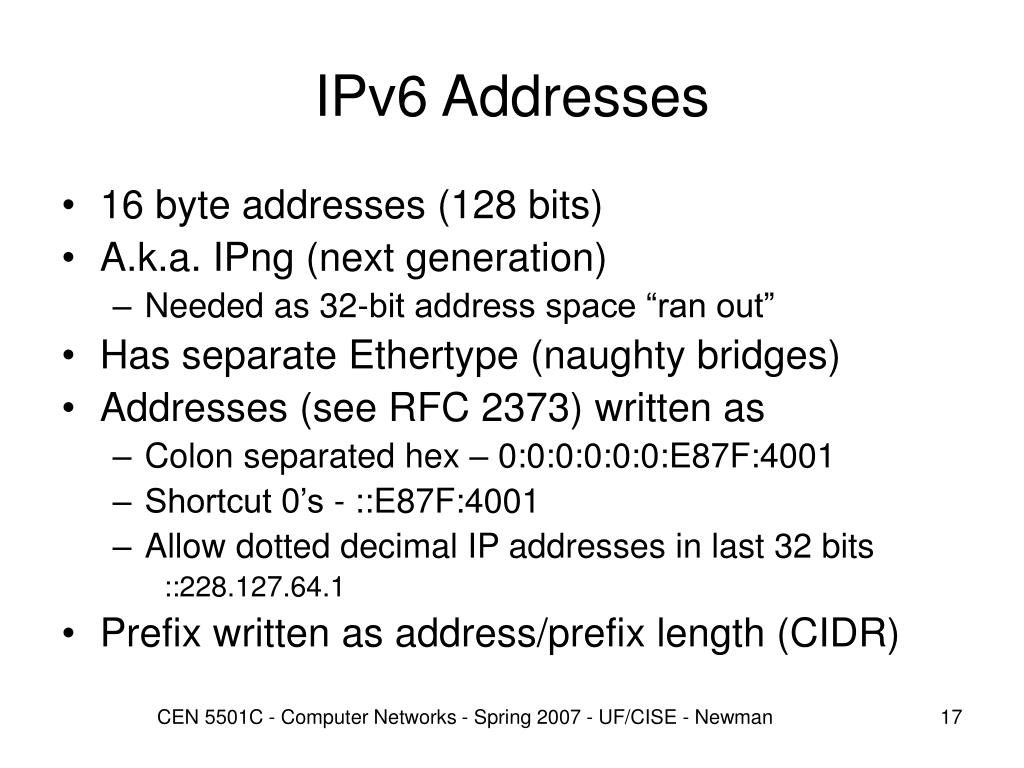

IPv6 Addresses

  • 16 byte addresses (128 bits)

  • A.k.a. IPng (next generation)

    • Needed as 32-bit address space “ran out”

  • Has separate Ethertype (naughty bridges)

  • Addresses (see RFC 2373) written as

    • Colon separated hex – 0:0:0:0:0:0:E87F:4001

    • Shortcut 0’s - ::E87F:4001

    • Allow dotted decimal IP addresses in last 32 bits

      ::228.127.64.1

  • Prefix written as address/prefix length (CIDR)

CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman


Eui 64

EUI-64

  • IEEE defined 8-byte address space for “next-generation” LANs

  • EUI-48 is standard 48-bit address

  • How to expand?

    • Longer OUI, same address block?

    • Same OUI, longer address block?

  • Consider implications…

CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman


Ipv6 address conventions

IPv6 Address Conventions

  • ::0 (this network and node)

  • ::1 (loopback)

  • ::IPv4 (bottom 32 bits IPv4 address, rest 0)

  • ::FFFF:IPv4 (bottom 32 bits are IPv4, next are FFFF, rest 0 – for IPv4 only nodes)

  • 2000::/3 (normal aggregatable unicast – bottom 8 bytes is EUI-64* node address)

  • FE80::/10 (link-local – bottom 8 bytes EUI-64*, not to be forwarded)

  • FEA0:/10 (site-local – bottom 8 node, next 2 subnet ID, not sent off-site)

  • Anycast – link prefix, then all 0’s

  • FF00::/8 (Multicast – flags/8, scope/4, then 112 bits of address)

CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman


Ipv4 to ipv6 transition

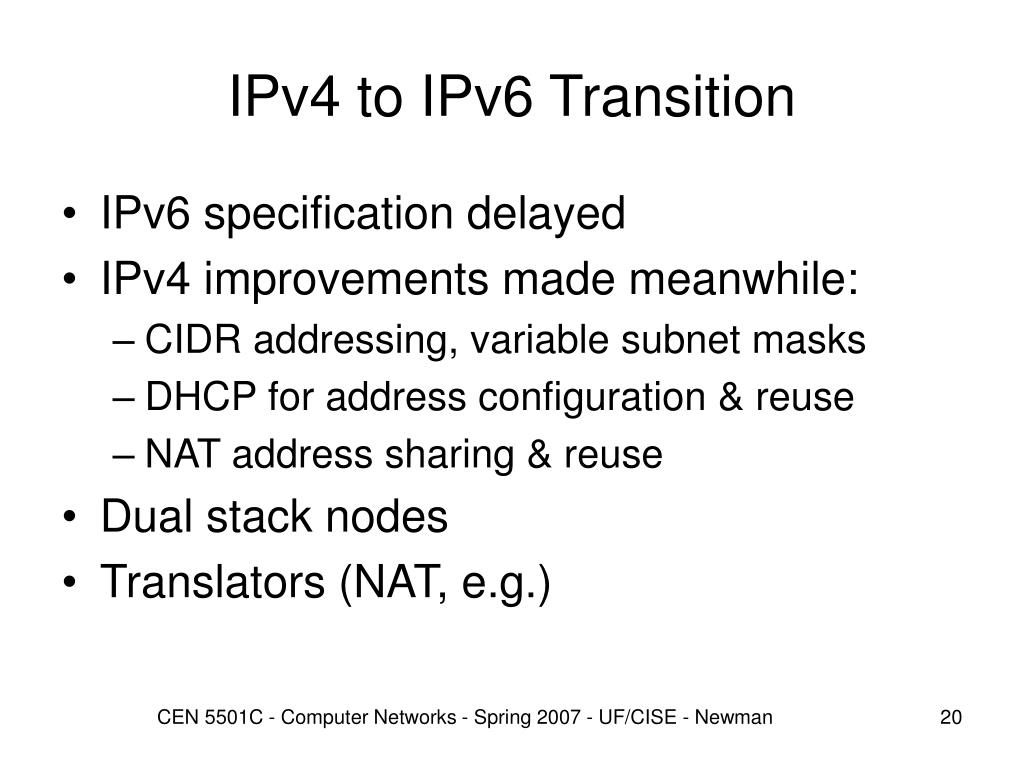

IPv4 to IPv6 Transition

  • IPv6 specification delayed

  • IPv4 improvements made meanwhile:

    • CIDR addressing, variable subnet masks

    • DHCP for address configuration & reuse

    • NAT address sharing & reuse

  • Dual stack nodes

  • Translators (NAT, e.g.)

CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman


Clnp addresses

CLNP Addresses

  • Connectionless Network Layer Protocol

  • ISO defined, used by DECnet Phase V, ATM, CDPD (cellular digital packet data)

  • Variable length addresses, max 20 octets

  • Extra octet to specify length

  • Area/ID(0-8)/SEL(1)

    • Area is larger than single link – like network

    • ID has no topological significance – like MAC

    • SEL is like DSAP/SSAP or protocol

CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman


Clnp addresses1

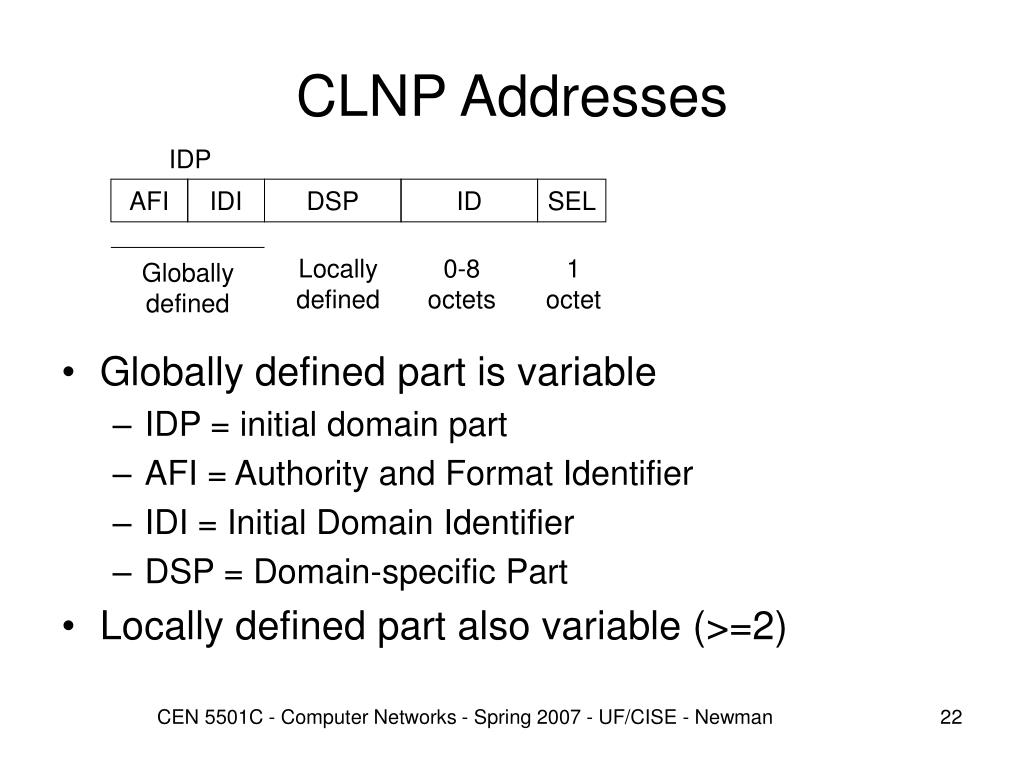

CLNP Addresses

IDP

  • Globally defined part is variable

    • IDP = initial domain part

    • AFI = Authority and Format Identifier

    • IDI = Initial Domain Identifier

    • DSP = Domain-specific Part

  • Locally defined part also variable (>=2)

AFI

IDI

DSP

ID

SEL

Locally

defined

0-8

octets

1

octet

Globally

defined

CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman


Appletalk addresses

AppleTalk Addresses

  • 3 byte addresses

    • 2 bytes net (can specify range for large LAN)

    • 1 byte node

  • Autoconfiguration

    • See chapter 11!

CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman


Decnet addresses

DECnet Addresses

  • Phase III – 2-byte addresses, no hierarchy

  • Phase IV – 2-byte addresses

    • 6 bit area

    • 10 bit node

  • Used CLNP for packet format – delayed…

  • Map DECnet address to Ethernet

    • Force top 4 bytes to be AA-00-04-00

    • Reassign NIC address when DECnet boots

    • Better boot first!

CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman


Network address translation nat

Network Address Translation (NAT)

  • NAT box has set of globally unique network addresses it can assign

  • Local nodes have only locally significant addresses

  • NAT assigns global address to local node

  • Extend by assigning (address,port) pairs to (address,port) pairs

  • Issues with addresses passed (FTP), etc.

CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman
