遍历算法应用. 按先序序列建立二叉树的算法. Status CreateBiTree(BiTree &T){ // 按先序次序输入二叉树中的结点值 ( 一个字符 ) , // 空格表示空树, // 构造二叉链表表示的二叉树 T scanf(&ch); if (ch ==‘ ’) T = NULL; else { if (!(T = (BiTNode *)malloc(sizeof(BiTNode)))) exit(OVERFLOW); T->data = ch;

Download Presentation

遍历算法应用

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


3796280

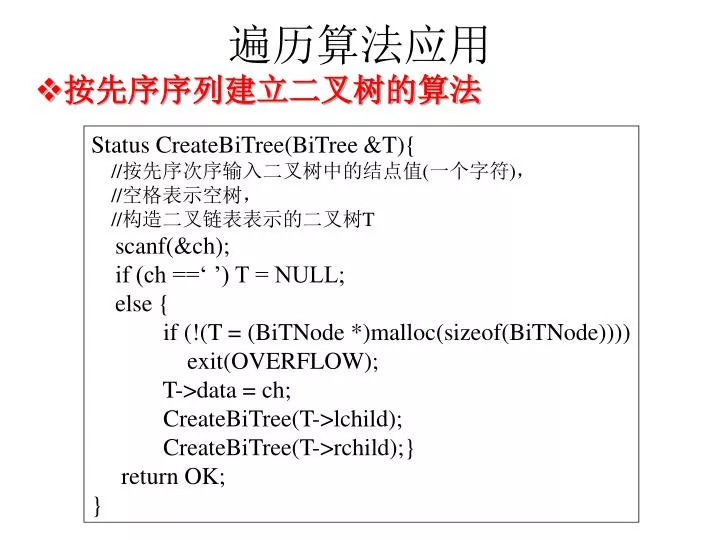

遍历算法应用

  • 按先序序列建立二叉树的算法

Status CreateBiTree(BiTree &T){

//按先序次序输入二叉树中的结点值(一个字符),

//空格表示空树,

//构造二叉链表表示的二叉树T

scanf(&ch);

if (ch ==‘ ’) T = NULL;

else {

if (!(T = (BiTNode *)malloc(sizeof(BiTNode))))

exit(OVERFLOW);

T->data = ch;

CreateBiTree(T->lchild);

CreateBiTree(T->rchild);}

return OK;

}


3796280

F

E

D

C

B

A

G

按先序序列建立二叉树的算法

输入A B C _ _ D E _ G _ _ F _ _ _

生成的二叉树及其存储结构为

T

A

B

C

D

E

F

G


3796280

按先序序列建立二叉树的算法

  • 若希望建立如下二叉树对应的存储结构,应输入的字符序列是

-

+

/

a

*

e

f

b

-

输入:

- + a _ _ * b _ _ - c _ _ d _ _ / e _ _ f _ _

c

d


3796280

A

B

C

D

E

F

G

统计二叉树中叶子结点个数算法

#include <alloc.h>

#include <stdio.h>

typedef struct node

{ char data;

struct node *lchild,*rchild;

}JD;

void countleaf(JD *bt,int *count)

{ if(bt!=NULL)

{ if((bt->lchild==NULL)&&(bt->rchild==NULL))

{ (*count)++;

return; }

countleaf(bt->lchild,count);

countleaf(bt->rchild,count);

}

}


3796280

void main()

{ /* ABC00DE0G00F000 */

JD *head=NULL;

int count=0;

head=crt_bt_pre(head);

countleaf(head,&count);

printf("count of leaf node is %d\n",count);}

JD *crt_bt_pre(JD *bt)

{ char ch;

printf("ch=");

scanf("%c",&ch);

if(ch==' ') bt=NULL;

else {

bt=(JD *)malloc(sizeof(JD));

bt->data=ch;

bt->lchild=crt_bt_pre(bt->lchild);

bt->rchild=crt_bt_pre(bt->rchild);}

return(bt);

}


3796280

求二叉树深度算法

void treedepth(JD *bt,int *l,int *h)

{

int l1=0,l2=0,h1=0,h2=0;

if(bt!=NULL)

{ (*l)++;

if (*l>*h) *h=*l;

treedepth(bt->lchild,&l1,&h1);

treedepth(bt->rchild,&l2,&h2);

if (h1>h2) *h=*h+h1;

else*h=*h+h2;

}

}

# include <alloc.h>

#include <stdio.h>

typedef struct node

{ char data;

struct node *lchild,*rchild;

}JD;


3796280

JD *crt_bt_pre(JD *bt)

{ char ch;

printf("ch=");

scanf("%c",&ch);

getchar();

if(ch==' ') bt=NULL;

else {

bt=(JD *)malloc(sizeof(JD));

bt->data=ch;

bt->lchild=crt_bt_pre(bt->lchild);

bt->rchild=crt_bt_pre(bt->rchild); }

return(bt);

}

void main()

{ /* ABC00DE0G00F000 */

JD *head=NULL;

int level=0,high=0;

head=crt_bt_pre(head);

treedepth(head,&level,&high);

printf("depth of tree is %d\n",high);

}


3796280

几个问答

  • 具有n个结点的不同形态的二叉树有多少棵?

    • 有 棵,如n=3时,有5种不同形态

  • 已知结点先序序列和中序序列,是否可以唯一地确定一棵二叉树?

    • 能,如先序序列ABCDEFG,中序序列CBEDAFG,对应的二叉树为

A

A

A

B

F

B

F

BCDE

C

D

FG

G

C

DE

G

E

Step1

Step2

Step3


3796280

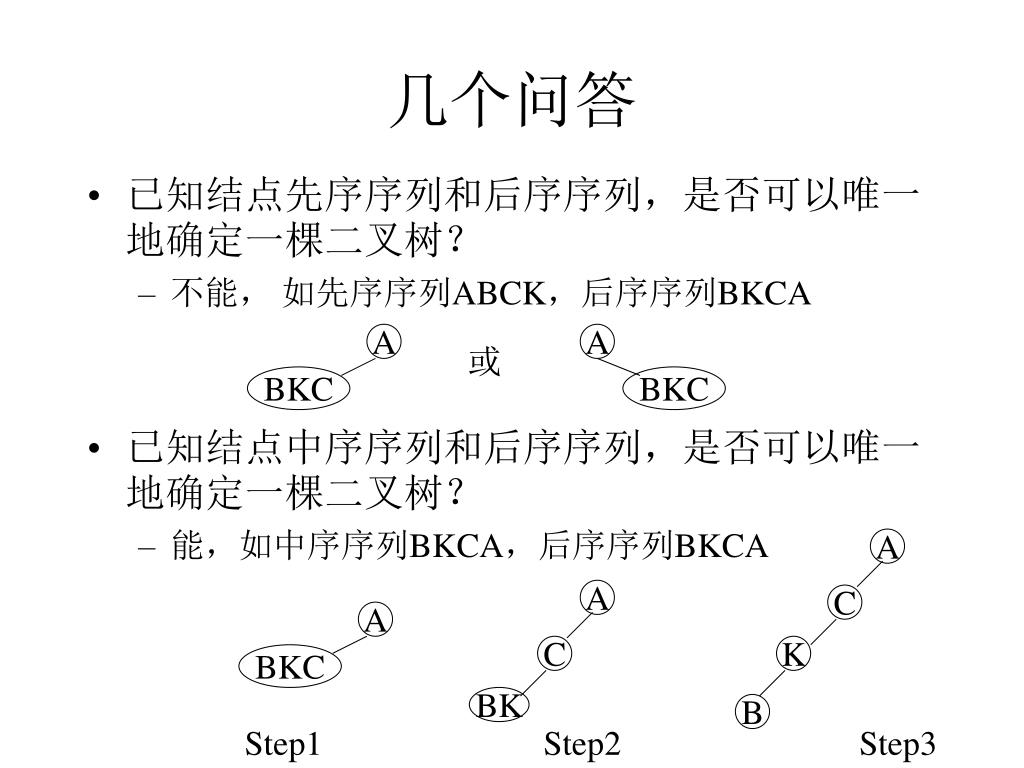

几个问答

  • 已知结点先序序列和后序序列,是否可以唯一地确定一棵二叉树?

    • 不能, 如先序序列ABCK,后序序列BKCA

  • 已知结点中序序列和后序序列,是否可以唯一地确定一棵二叉树?

    • 能,如中序序列BKCA,后序序列BKCA

A

A

BKC

BKC

A

A

C

A

C

K

BKC

BK

B

Step1

Step2

Step3
