Advanced technologies in real time monitoring and modeling for drinking water safety and security

Advanced Technologies in Real-Time Monitoring and Modeling for Drinking Water Safety and Security

June 27-28, 2002

Ron Hunsinger

Manager of Water Quality

Oakland, California

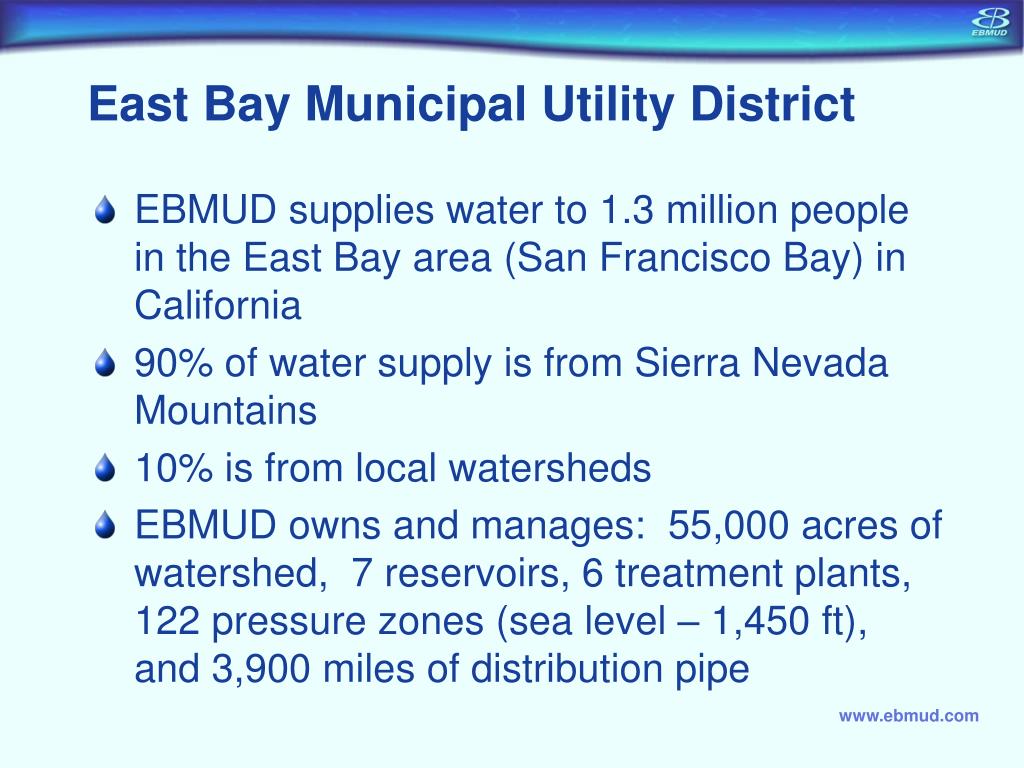

East Bay Municipal Utility District

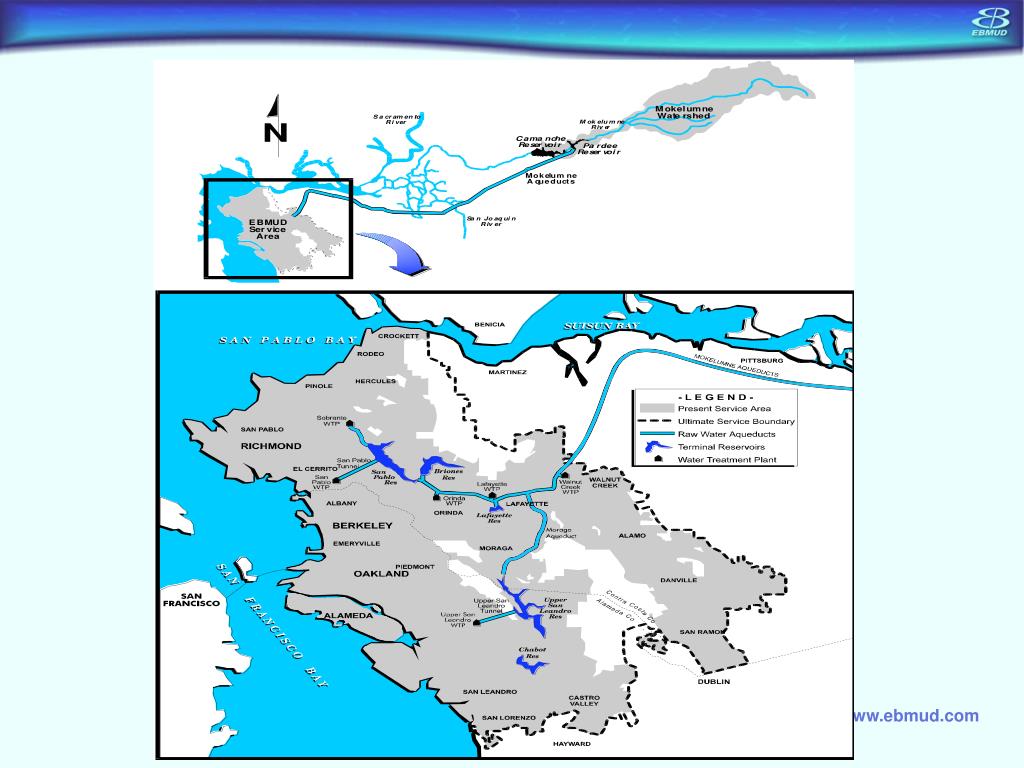

  • EBMUD supplies water to 1.3 million people in the East Bay area (San Francisco Bay) in California

  • 90% of water supply is from Sierra Nevada Mountains

  • 10% is from local watersheds

  • EBMUD owns and manages: 55,000 acres of watershed, 7 reservoirs, 6 treatment plants, 122 pressure zones (sea level – 1,450 ft), and 3,900 miles of distribution pipe

www.ebmud.com

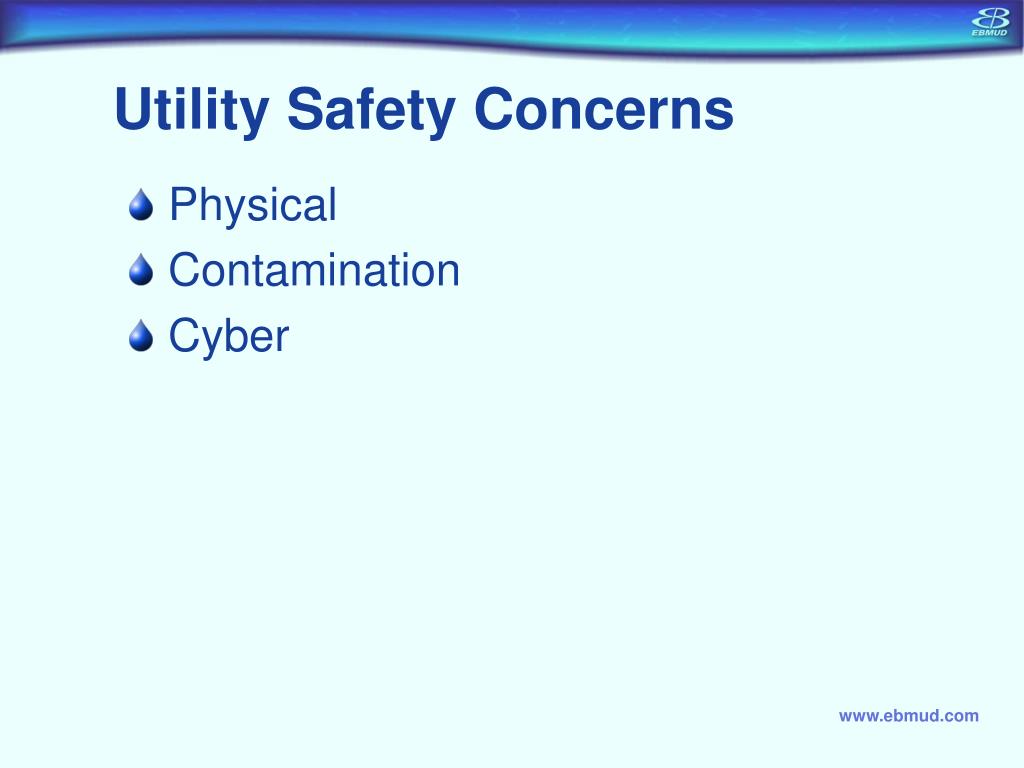

Utility safety concerns
Utility Safety Concerns

  • Physical

  • Contamination

  • Cyber

www.ebmud.com


Current Monitoring

  • Designed to meet regulatory and operational needs

    • Source, Treatment & Distribution

    • On-line and Grab Samples

      Current Model

  • Hydraulic

www.ebmud.com


“One of the most challenging feats for those responsible for the public health is the interpretation of information in real time with inadequate or incomplete data.”

Dr. Marcelle Layton, Head of Communicable Diseases from the New York City Bureau of Communicable Diseases (NYCDOH)

www.ebmud.com

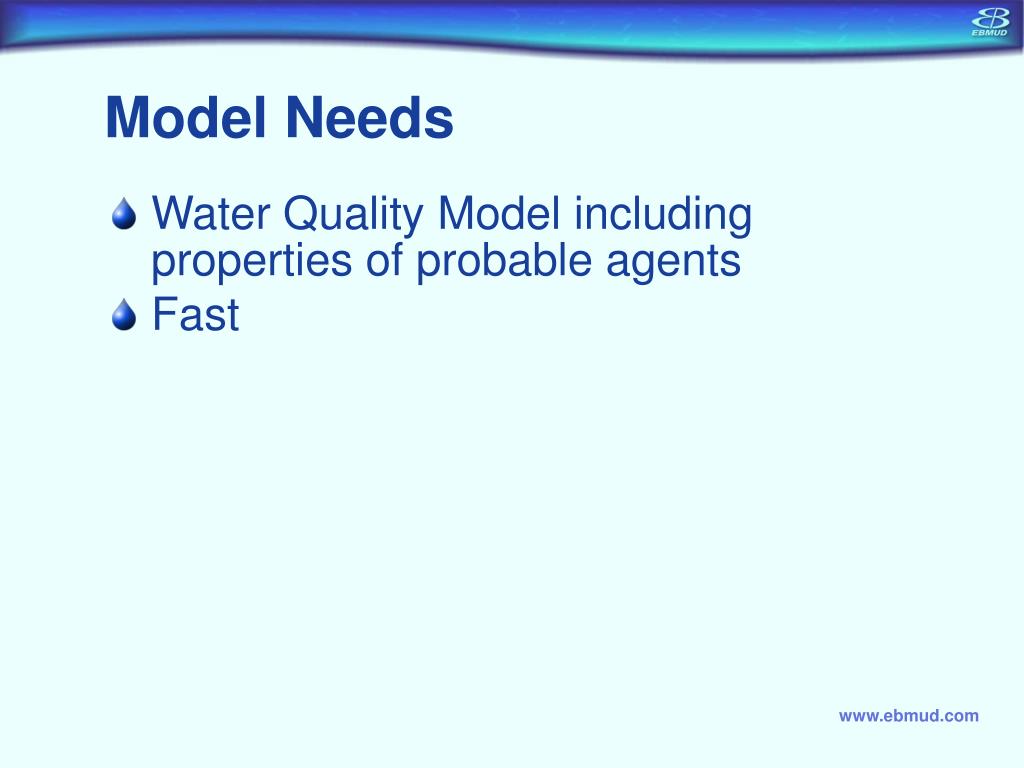

Model needs
Model Needs for the public health is the interpretation of information in real time with inadequate or incomplete data

  • Water Quality Model including properties of probable agents

  • Fast

www.ebmud.com

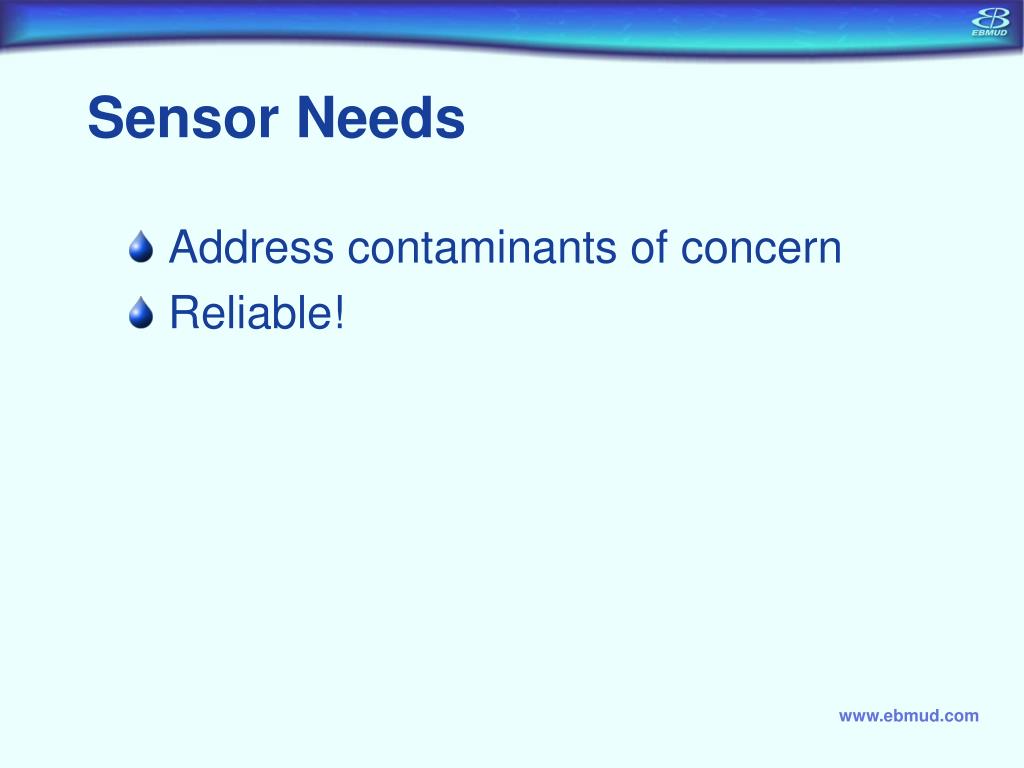

Sensor needs
Sensor Needs for the public health is the interpretation of information in real time with inadequate or incomplete data

  • Address contaminants of concern

  • Reliable!

www.ebmud.com

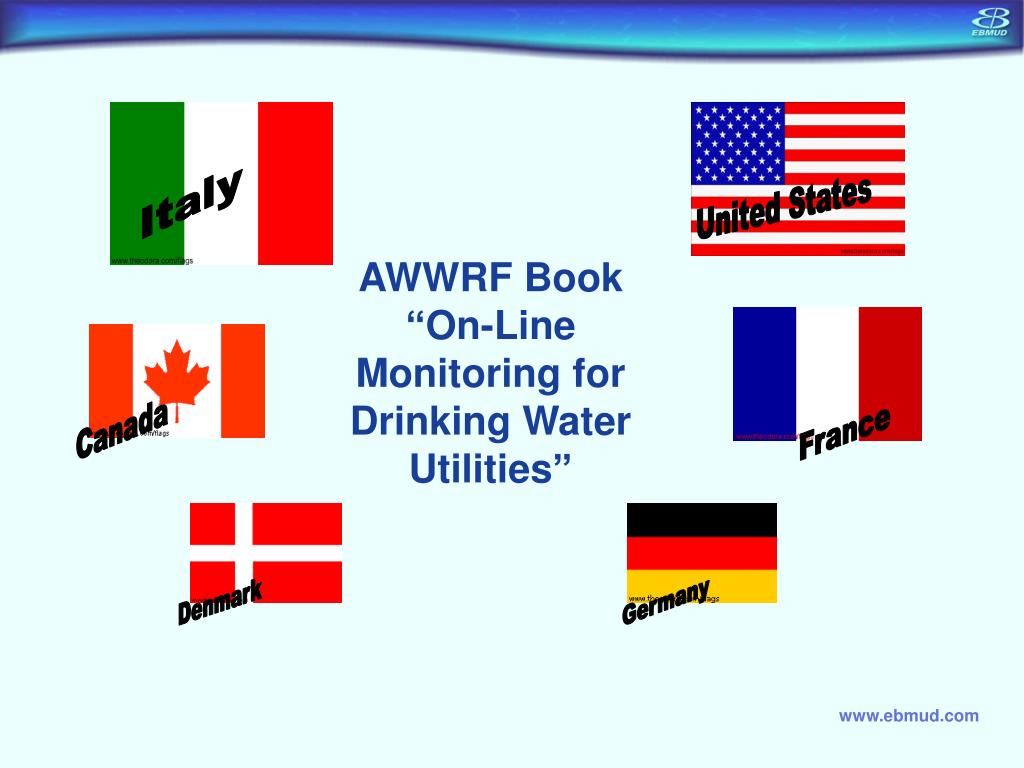

Canada for the public health is the interpretation of information in real time with inadequate or incomplete data

United States

France

Italy

Denmark

Germany

AWWRF Book “On-Line Monitoring for Drinking Water Utilities”

www.ebmud.com

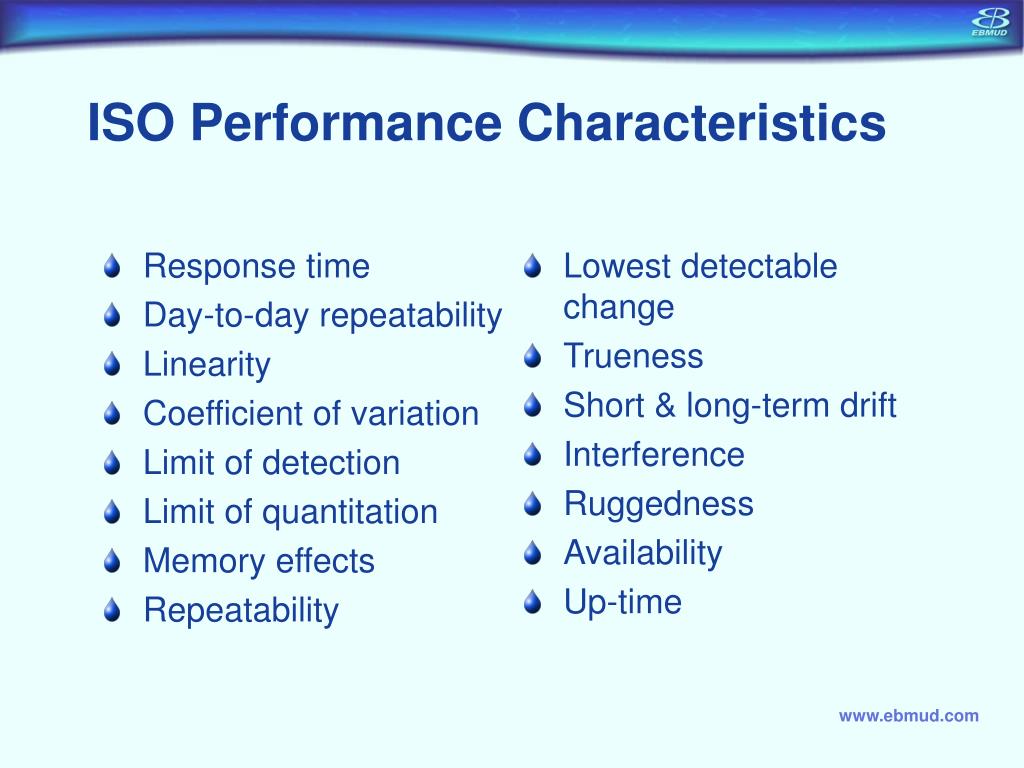

Iso performance characteristics
ISO Performance Characteristics for the public health is the interpretation of information in real time with inadequate or incomplete data

www.ebmud.com

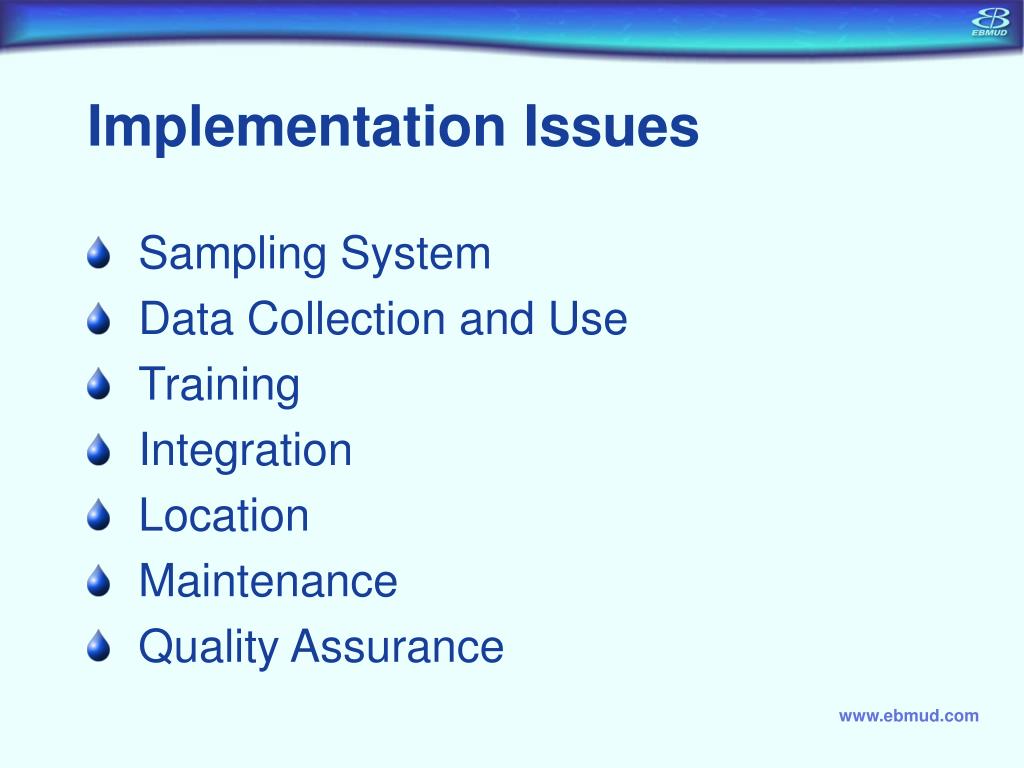

Implementation issues
Implementation Issues for the public health is the interpretation of information in real time with inadequate or incomplete data

  • Sampling System

  • Data Collection and Use

  • Training

  • Integration

  • Location

  • Maintenance

  • Quality Assurance

www.ebmud.com

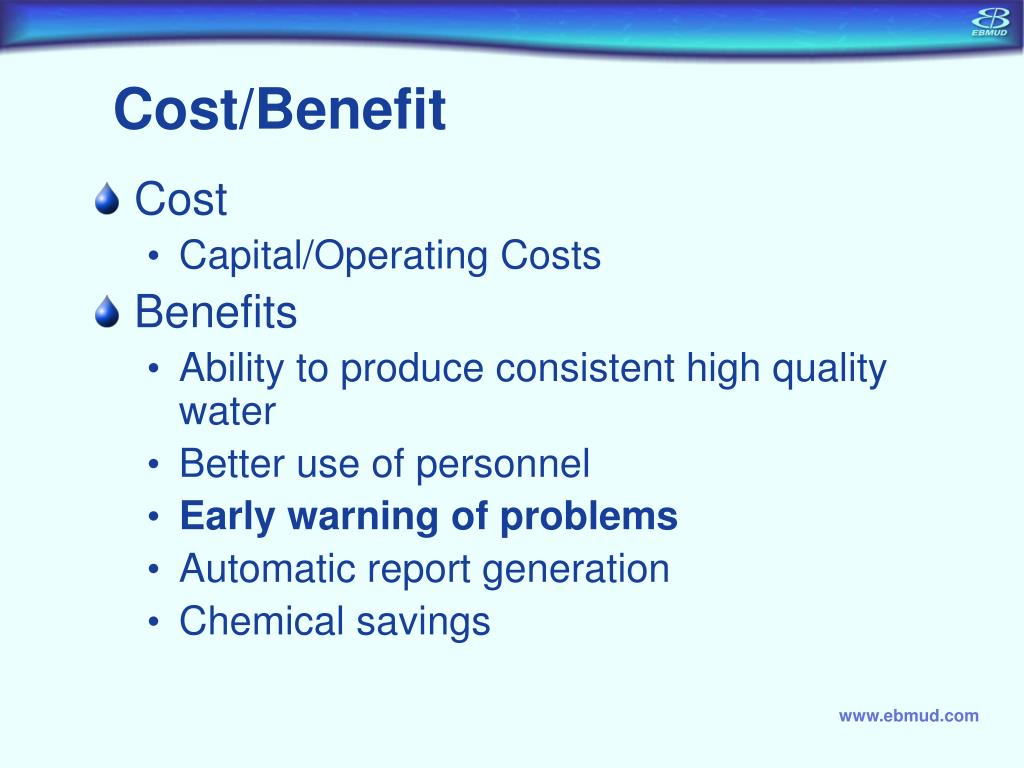

Cost benefit
Cost/Benefit for the public health is the interpretation of information in real time with inadequate or incomplete data

  • Cost

    • Capital/Operating Costs

  • Benefits

    • Ability to produce consistent high quality water

    • Better use of personnel

    • Early warning of problems

    • Automatic report generation

    • Chemical savings

www.ebmud.com

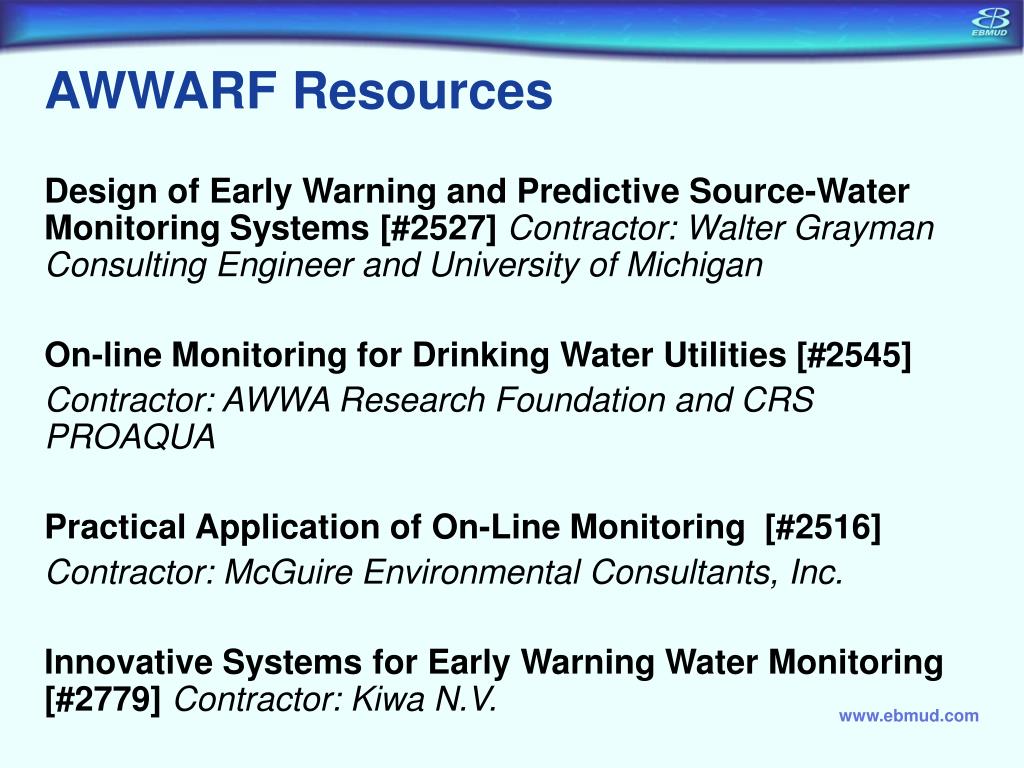

AWWARF Resources for the public health is the interpretation of information in real time with inadequate or incomplete data

Design of Early Warning and Predictive Source-Water Monitoring Systems [#2527] Contractor: Walter Grayman Consulting Engineer and University of Michigan

On-line Monitoring for Drinking Water Utilities [#2545]

Contractor: AWWA Research Foundation and CRS PROAQUA

Practical Application of On-Line Monitoring [#2516]

Contractor: McGuire Environmental Consultants, Inc.

Innovative Systems for Early Warning Water Monitoring [#2779] Contractor: Kiwa N.V.

www.ebmud.com

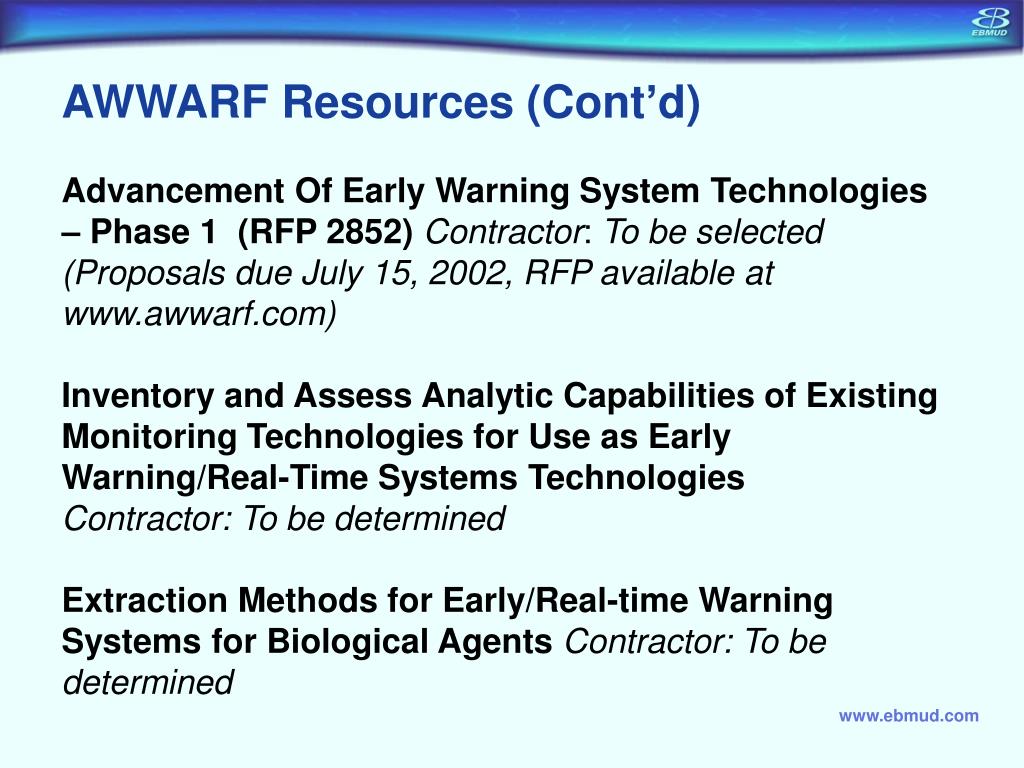

AWWARF Resources (Cont’d) for the public health is the interpretation of information in real time with inadequate or incomplete dataAdvancement Of Early Warning System Technologies – Phase 1 (RFP 2852)Contractor: To be selected (Proposals due July 15, 2002, RFP available at www.awwarf.com)Inventory and Assess Analytic Capabilities of Existing Monitoring Technologies for Use as Early Warning/Real-Time Systems TechnologiesContractor: To be determinedExtraction Methods for Early/Real-time Warning Systems for Biological AgentsContractor: To be determined

www.ebmud.com
