Ch 4: Relational Database Design

Ch 4 relational database design

4.1 Features of Good Relational designs

  • Four Informal measures

  • Semantics of the relation attributes

  • Reducing the redundant values in tuples.

  • Reducing the null values

  • Disallowing the possibility of generating spurious(wrong) tuples

1 semantics of the relation attributes

1. Semantics of the relation attributes

  • Design a realm schema so that it is easy to explain its meaning .Do not combine attributes from multiple entity types & relationship into single relation.

  • In general ,the easier it is to explain the semantics of relation, the better the relation schema design will be.

2 redundant information in tuples update anomalies

2. Redundant Information in Tuples & Update Anomalies

  • Goal of dbase is to reduce storage space used by relationship.

  • Grouping attributes into relation schemas has a significant effect on storage space.

  • For e.g. if we combine Employee with department & project , works_on will result into EMP_DEPT & EMP_PRJ.

  • Resultant relation shows repetition of several values leading to higher storage.

  • Other serious problems is of Update anomalies which is classified as insert, delete & modification anomalies.

Insertion anomalies

Insertion Anomalies

  • Insert a new emp , we must include value for dept or need to place NULL (if emp doesnot work for dept yet.) & need to enter correctly so consistency problem donot occur.

  • It is difficult to enter new dept that has no employee as we cannot insert Null in ENO as its is primary key

Deletion anomalies

Deletion Anomalies

  • If we delete from EMP_DEPT an employee that happens to represent the last employee in that dept , the info abt dept is also lost from dbase

Modification anomalies

Modification Anomalies

  • If we change the value of one of attributes say that of manager of dept 5 , we need to change in each tuple where dept no is 5, else it will lead to inconsistent.

  • Design Dbase so that no insertion, deletion & modification anomalies are present .

3 null values in tuples

3. Null values in tuples

  • NULL have multiple interpretations such as:

    • Attributes that do not apply to this tuple.

    • Attribute value for this tuple is unknown.

    • Value is known but absent, i.e. it has not been recorded yet.

  • Problem may occur in JOIN , and aggregrate operations.

4 generation of spurious tuples

4. Generation of Spurious Tuples

  • Design relation schemas so that they can be joined with equality condition on attributes that are primary or foreign key.

4 2 functional dependencies fd

4.2 Functional Dependencies (FD)

  • A functional dependency, denoted by X  Y (Read X functionally determines Y), between two sets of attributes X and Y that are subsets of R specifies a constraint on possible tuples that can be form a relation state r of R.

  • The constraint is that for for all pairs of tuples t1 and t2 in r such that

    t1 [X] = t2 [X] , they must also have,

    t1 [Y] = t2 [Y].

    In other words

    Whenever two tuples of r agree on their X value, they also agree on their Y value.

Functional dependency

Functional Dependency

  • Main concept associated with normalization.

  • Functional Dependency

    • Describes relationship between attributes in a relation.

    • If A and B are attributes of relation R, B is functionally dependent on A (denoted A  B), if each value of A in R is associated with exactly one value of B in R.

Functional dependency1

Functional Dependency

  • Diagrammatic representation:

  • Determinant of a functional dependency refers to attribute or group of attributes on left-hand side of the arrow.

Example functional dependency

Example - Functional Dependency

Functional dependencies cont

Functional Dependencies (Cont.)

  • K is a superkey for relation schema R if and only if K R

  • K is a candidate key for R if and only if

    • K R, and

    • for no   K,  R

  • Functional dependencies allow us to express constraints that cannot be expressed using superkeys. Consider the schema:

    bor_loan = (customer_id, loan_number, amount ).

    We expect this functional dependency to hold:


    but would not expect the following to hold:

    amount customer_name

Functional dependencies cont1

Functional Dependencies (Cont.)

  • Main use of FD is to describe further relation schema R by specifying constraints on its attributes that must hold all times.

  • Certain FD can be specified without referring to specific relation.

  • {state, driving_licence} ENO

  • {pincode) area

  • {telephone code}city

Functional dependencies cont2

Functional Dependencies (Cont.)




  • Eno uniquely determines emp name

  • Pnumber uniquely determines project name & location

  • Combination of eno , pnumber uniquely determines numbers of hours that employee had worked on that project.

  • FD plays a key role in differentiating good DB design from bad DB design.

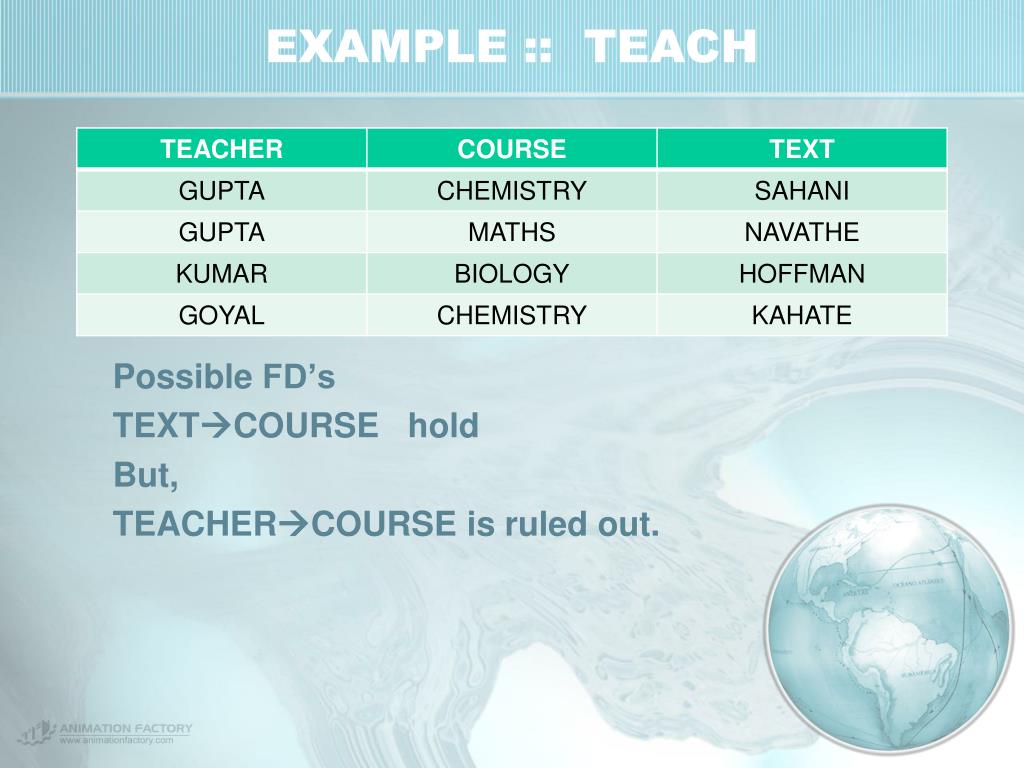

Example teach


  • Possible FD’s

  • TEXTCOURSE hold

  • But,

  • TEACHERCOURSE is ruled out.

Use of functional dependency

Use of Functional Dependency

  • To test relations to see whether they are legal under a given set of functional dependencies. If a relation r is legal under a set F of FD’s, we say that r satisfies F.

  • To specify constraints on the set of legal relations. If we wish to constrain ourselves to relations on schema R that satisfy a set F of functional dependencies, we say that F holds on K.

Fd a few more examples

FD – A Few More Examples

  • Suppose one is designing a system to track vehicles and the capacity of their engines. Each vehicle has a unique vehicle identification number(VIN). One would write VIN → EngineCapacity because it would be inappropriate for a vehicle's engine to have more than one capacity. (Assuming, in this case, that vehicles only have one engine.)

  • However, EngineCapacity → VIN, is incorrect because there could be many vehicles with the same engine capacity.

Trivial and non trivial fd

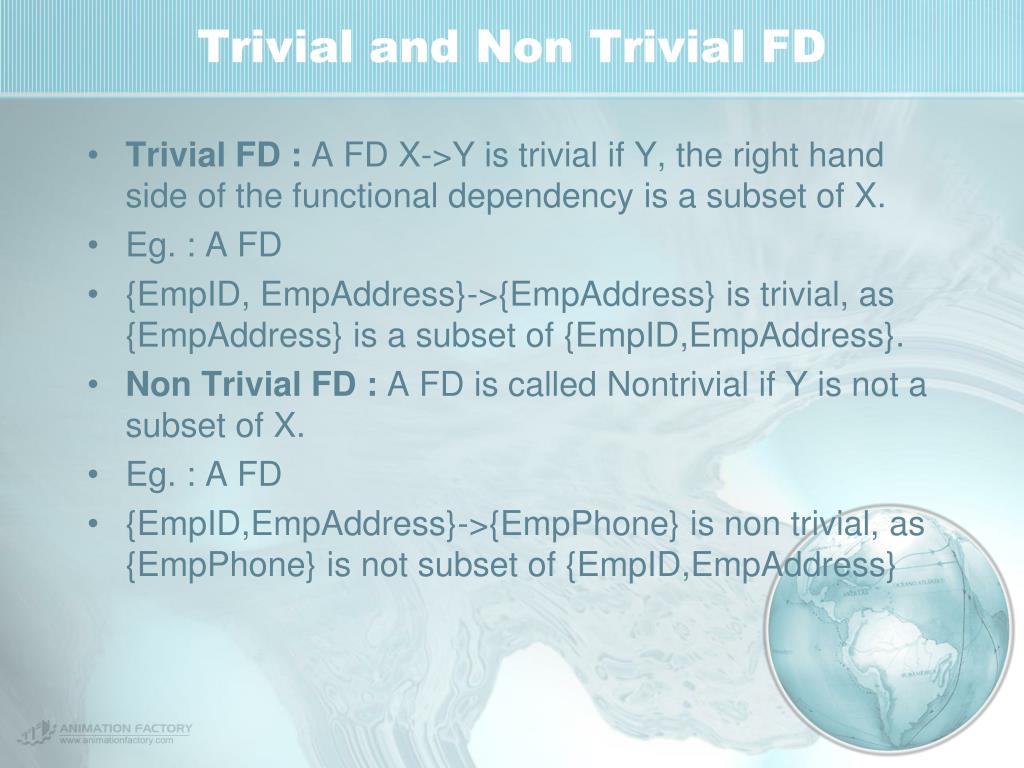

Trivial and Non Trivial FD

  • Trivial FD : A FD X->Y is trivial if Y, the right hand side of the functional dependency is a subset of X.

  • Eg. : A FD

  • {EmpID, EmpAddress}->{EmpAddress} is trivial, as {EmpAddress} is a subset of {EmpID,EmpAddress}.

  • Non Trivial FD : A FD is called Nontrivial if Y is not a subset of X.

  • Eg. : A FD

  • {EmpID,EmpAddress}->{EmpPhone} is non trivial, as {EmpPhone} is not subset of {EmpID,EmpAddress}



  • The set of all FDs that include F as well as all dependencies that are implied by a given set F of FDs is called the closure of F, denoted by F+.






Inference rules for fd or axioms

Inference rules for FD Or AXIOMS

  • Reflexive: if B is a subset of A, then A  B.

  • Augmentation: if A  B then AC  BC

  • Transitivity: it A  B and B  C then A  C.

  • Self – determination: A  A.

  • Decomposition: If A  BC, then AB, AC.

  • Union: it A  B and A  C, then A  BC

  • Composition: if A  B, C  D then AC  BD.

  • Pseudo transitive : if A  B and rBC then Ar C.

Armstrong axioms


  • First three axioms

  • Reflexive: if B is a subset of A, then A  B.

  • Augmentation: if A  B then AC  BC

  • Transitivity: it A  B and B  C then A  C.

    are sound & complete

    By sound, we mean that given a set of FD on relation R, any dependency that can infer from F holds in every reln satisfies the dependencies. They do not generate incorrect FD.

    By complete, we mean that using 3 FC repeatedly to a complete set of all possible dependencies that can be inferred from F.

Example find closure of f

Example: find closure of F

  • R = (A, B, C, G, H, I)F = { A BA CCG HCG IB H}

  • some extra members of F+

    • A H

      • by transitivity from A B and B H

    • AG I

      • by augmentingA C with G, to get AG CG and then transitivity with CG I

    • CG HI

      • by unionCG I & CG H

      • OR

      • by augmentingCG I to infer CG  CGI,

        and augmenting of CG H to inferCGI HI,

        and then transitivity

Closure of attribute sets

Closure of Attribute Sets

  • Given a set of attributes a, define the closureof aunderF (denoted by a+) as the set of attributes that are functionally determined by a under F

  • Algorithm to compute a+, the closure of a under F

    result := a;while (changes to result) dofor each  in F dobeginif  result then result := result end

Example of attribute set closure

Example of Attribute Set Closure

  • R = (A, B, C, G, H, I)

  • F = {A BA C CG HCG IB H}

  • (AG)+

    1.result = AG

    2.result = ABCG(A C and A  B)

    3.result = ABCGH(CG H and CG  AGBC)

    4.result = ABCGHI(CG I and CG  AGBCH)

Canonical cover

Canonical Cover

  • Sets of functional dependencies may have redundant dependencies that can be inferred from the others

    • For example: A  C is redundant in: {AB, BC}

    • Parts of a functional dependency may be redundant

      • E.g.: on RHS: {AB, BC, ACD} can be simplified to {A B, BC, AD}

      • E.g.: on LHS: {A B, BC, ACD} can be simplified to {A B, BC, AD}

  • Intuitively, a canonical cover of F is a “minimal” set of functional dependencies equivalent to F, having no redundant dependencies or redundant parts of dependencies

Extraneous attributes

Extraneous Attributes

  • Consider a set F of functional dependencies and the functional dependency   in F.

    • Attribute A is extraneous in  if A   and F logically implies (F – {})  {( – A) }.

    • Attribute A is extraneous in  if A  and the set of functional dependencies (F – {})  {(– A)} logically implies F.

  • Note: implication in the opposite direction is trivial in each of the cases above, since a “stronger” functional dependency always implies a weaker one

  • Example: Given F = {AC, ABC }

    • B is extraneous in AB C because {AC, AB C} logically implies AC (I.e. the result of dropping B from AB C).

  • Example: Given F = {AC, ABCD}

    • C is extraneous in ABCD since AB C can be inferred even after deleting C

Testing if an attribute is extraneous

Testing if an Attribute is Extraneous

  • Consider a set F of functional dependencies and the functional dependency   in F.

  • To test if attribute A   is extraneousin

    • compute ({} – A)+ using the dependencies in F

    • check that ({} – A)+ contains ; if it does, A is extraneous in

  • To test if attribute A  is extraneous in 

    • compute + using only the dependencies in F’ = (F – {})  {(– A)},

    • check that + contains A; if it does, A is extraneous in 

Canonical cover1

Canonical Cover

  • A canonical coverfor F is a set of dependencies Fc such that

    • F logically implies all dependencies in Fc, and

    • Fclogically implies all dependencies in F, and

    • No functional dependency in Fccontains an extraneous attribute, and

    • Each left side of functional dependency in Fcis unique.

  • To compute a canonical cover for F:repeatUse the union rule to replace any dependencies in F11 and 12 with 112Find a functional dependency  with an extraneous attribute either in  or in If an extraneous attribute is found, delete it from until F does not change

  • Note: Union rule may become applicable after some extraneous attributes have been deleted, so it has to be re-applied

Computing a canonical cover

Computing a Canonical Cover

  • R = (A, B, C)F = {A BC B C A BABC}

  • Combine A BC and A B into A BC

    • Set is now {A BC, B C, ABC}

  • A is extraneous in ABC

    • Check if the result of deleting A from ABC is implied by the other dependencies

      • Yes: in fact, BC is already present!

    • Set is now {A BC, B C}

  • C is extraneous in ABC

    • Check if A C is logically implied by A B and the other dependencies

      • Yes: using transitivity on A B and B  C.

        • Can use attribute closure of A in more complex cases

  • The canonical cover is: A BB C

Ch 4 relational database design


  • Now we define a set of FD to be irreducible as minimal; if and only if it satisfies the following two properties.

    (1) The right hand side of every FD in S involve just one attribute (i.e., it is a singleton set)

    (2)The left hand side of every FD in S is irreducible in turn meaning that no attribute can be discarded from the determinant without changing the CLOSURE S+.



  • A  BC,

  • B  C

  • A  B

  • AB  C

  • AC  D

    Compute an irreducible set of FD that is equivalent to this given set.

Bring answer in reducible form



(1)The step is to rewrite the FD such that each has a singleton right hand side.

  • A  B

  • A  C

  • B  C

  • A  B

  • AB  C

  • AC  D

    We observe that the FD A  B occurs twice. So one occurrence will be eliminated.

A  BC,

B  C

A  B

AB  C

AC  D



  • Next, attributed C can be eliminated from the left hand side of the FD AC  D

  • Because we have A  C,

  • By augmentation AA AC

    • A AC

      (Augmentation: if X  Y then XZ  YZ)

  • And we are given AC  D,

    • A AC AC D

  • So A  D by transitivity;

    Thus C on the left hand side is redundant.

  • A  C

    B  C

    A  B

    AB  C

    AC  D



    3.Next, we observe that the FD AB  C can be eliminated, because again we have

    A  C

    By augmentation AB  CB

    By decomposition AB  C AB  B

    4.Finally, the FD A  C is implied by the FD A  B and B  C, by transitivity so it can be eliminated.

    Now we have A  B

    B  C

    A  D

    This set is irreducible.

    A  C

    B  C

    A  B

    AB  C

    A  D
