Best practices in Deployment and Operation: Capacity Building

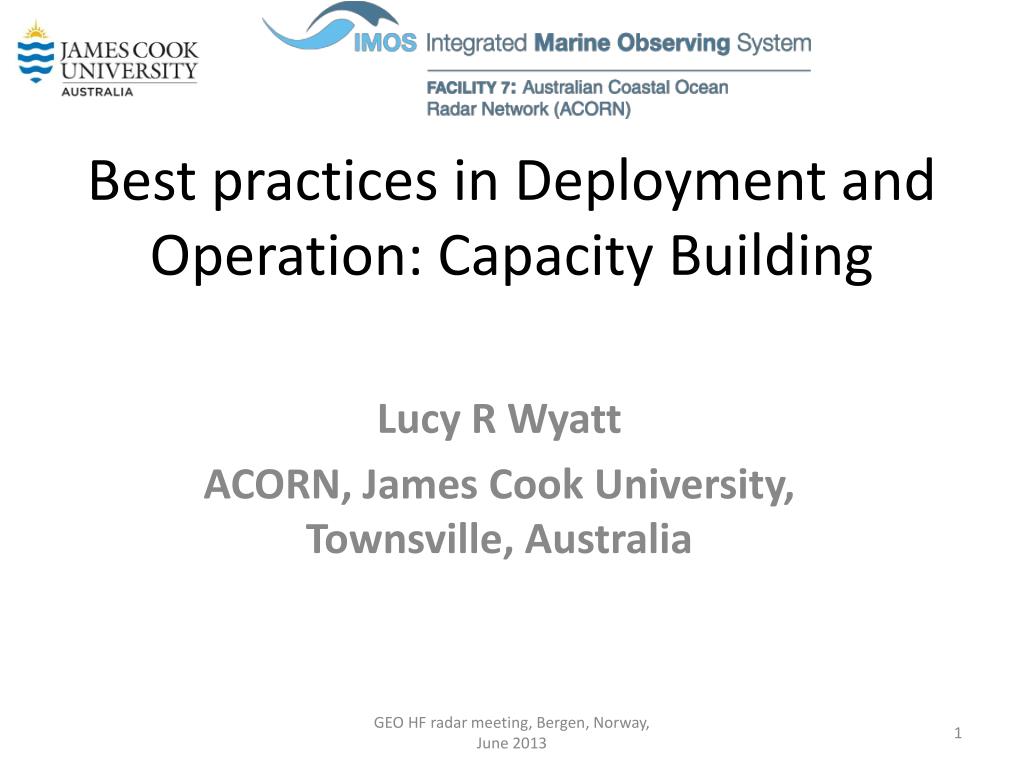

1. Best practices in Deployment and Operation: Capacity Building Lucy R Wyatt ACORN, James Cook University, Townsville, Australia GEO HF radar meeting, Bergen, Norway, June 2013

2. This presentation is not intended to be the definitive statement on best practices in deployment and operation of HF radar systems. • This is an attempt to get discussion going on these issues with a view to sharing experiences and, from that, identify best practices to aid future installers and operators of HF radar systems and networks • What follows is the ACORN experience GEO HF radar meeting, Bergen, Norway, June 2013

3. The ACORN Team Director: Lucy Wyatt Data Manager: Arnstein Prytz Senior Research Officers (who, amongst other things, do all the on site maintenance work): Dan Atwater Paul Lethaby Admin: Robyn Nickalls Emeritus: Mal Heron Site Caretakers GEO HF radar meeting, Bergen, Norway, June 2013

4. What were the main issues during the installation phase? • Site Selection and Approvals • Radar choice • Environmental Concerns – electromagnetic • Environmental Concerns – impacts on ground, plants, animals, views • Power • Communications GEO HF radar meeting, Bergen, Norway, June 2013

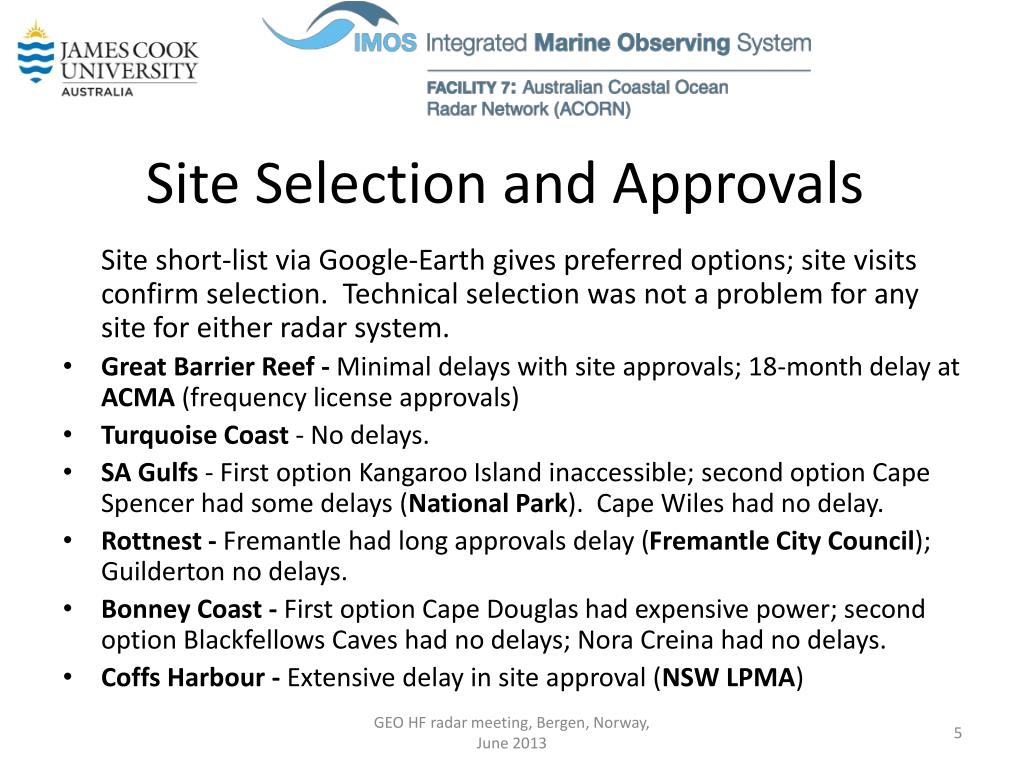

5. Site Selection and Approvals Site short-list via Google-Earth gives preferred options; site visits confirm selection. Technical selection was not a problem for any site for either radar system. • Great Barrier Reef - Minimal delays with site approvals; 18-month delay at ACMA (frequency license approvals) • Turquoise Coast- No delays. • SA Gulfs- First option Kangaroo Island inaccessible; second option Cape Spencer had some delays (National Park). Cape Wiles had no delay. • Rottnest - Fremantle had long approvals delay (Fremantle City Council); Guilderton no delays. • Bonney Coast - First option Cape Douglas had expensive power; second option Blackfellows Caves had no delays; Nora Creina had no delays. • Coffs Harbour- Extensive delay in site approval (NSW LPMA) GEO HF radar meeting, Bergen, Norway, June 2013

6. Radar Choice • ACORN wanted to provide Australian researchers with the opportunity to see both phased array and direction finding radars in action hence IMOS funded 2 WERAs and 2 SeaSondes. • Surface current measurement is the primary purpose of all systems. • Two sites were funded separately and, at these, wave measurement was also a requirement so WERAs were purchased. • In most cases long range, to at least 150km, was a requirement. GEO HF radar meeting, Bergen, Norway, June 2013

7. ACORN WERA at Fremantle and Guilderton Equipment rack and man at work Transmit antenna Receive antenna GEO HF radar meeting, Bergen, Norway, June 2013

8. Transmit antenna ACORN SeaSonde in Seabird, WA Receive antenna Equipment rack Photos by Dan Atwater GEO HF radar meeting, Bergen, Norway, June 2013

9. Environmental Concerns - electromagnetic ACMA licences come with a self-regulatory requirement to operate within the Australian Standard. ACORN uses: • manufacturers’ specifications; • calculated radiation field strengths; • field measurements with calibrated equipment. All ACORN stations comply. ACORN/IMOS had to deal with one complaint/allegation that radiation is causing sickness to a neighbour. GEO HF radar meeting, Bergen, Norway, June 2013

10. Environmental Impacts Environmental impact assessments are obtained where necessary for site approval. The main impacts are: • Trampling of vegetation during installation • Clearing of vegetation for station dongas (containers). These impacts are remedied by paying vegetation offsets where required. Ultimate removal of stations will not be unduly expensive because: • Cables are shallow buried or laid on the surface in conduit. • Dongas do not have foundations but are staked down to the ground. GEO HF radar meeting, Bergen, Norway, June 2013

11. Power and communications • Lady Elliot Island (Qld) station runs on island resort power, which fluctuates and has many short drop-outs. • Cape Wiles (SA) runs on solar plus diesel, and is the most expensive. • Tannum Sands (Qld) uses copper wire communications. • All other stations use mains power and broadband phone (3G) communications. • Communication bandwidth is expensive and is limited at most sites so operational wave measurement is not yet possible. GEO HF radar meeting, Bergen, Norway, June 2013

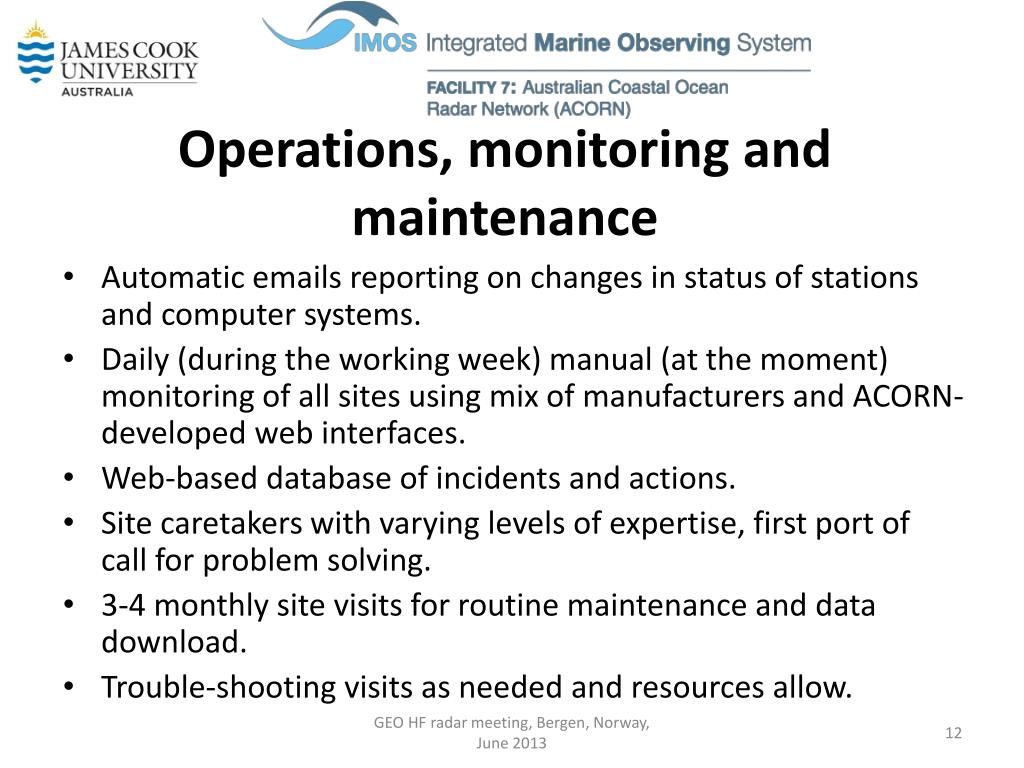

12. Operations, monitoring and maintenance • Automatic emails reporting on changes in status of stations and computer systems. • Daily (during the working week) manual (at the moment) monitoring of all sites using mix of manufacturers and ACORN-developed web interfaces. • Web-based database of incidents and actions. • Site caretakers with varying levels of expertise, first port of call for problem solving. • 3-4 monthly site visits for routine maintenance and data download. • Trouble-shooting visits as needed and resources allow. GEO HF radar meeting, Bergen, Norway, June 2013

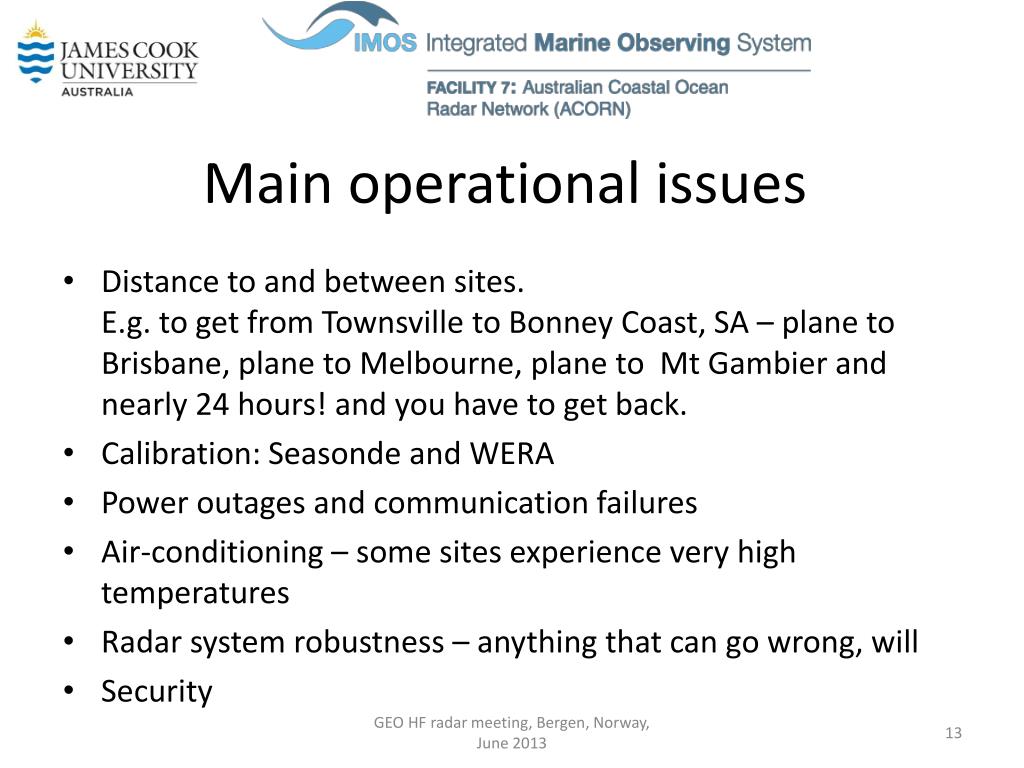

13. Main operational issues • Distance to and between sites. E.g. to get from Townsville to Bonney Coast, SA – plane to Brisbane, plane to Melbourne,plane to Mt Gambier and nearly 24 hours! and you have to get back. • Calibration: Seasonde and WERA • Power outages and communication failures • Air-conditioning – some sites experience very high temperatures • Radar system robustness – anything that can go wrong, will • Security GEO HF radar meeting, Bergen, Norway, June 2013
