security in the post-Internet era

1. security in the post-Internet era Terry Gray C&C all-hands meeting 09 March 2004

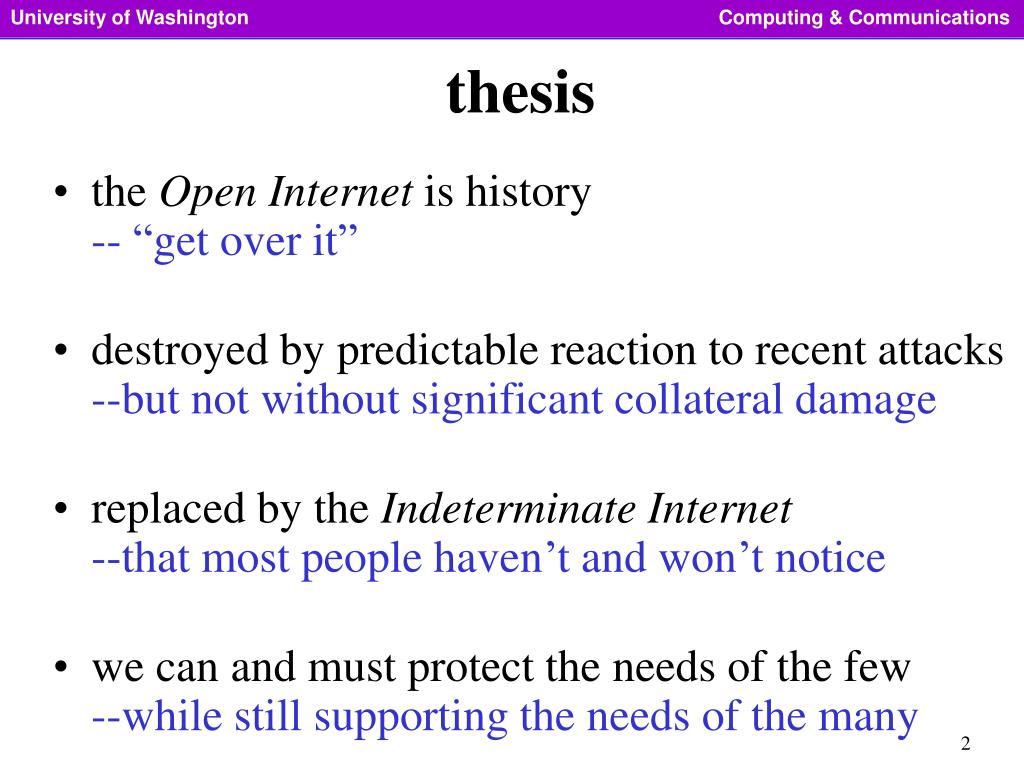

2. thesis • the Open Internet is history-- “get over it” • destroyed by predictable reaction to recent attacks--but not without significant collateral damage • replaced by the Indeterminate Internet--that most people haven’t and won’t notice • we can and must protect the needs of the few--while still supporting the needs of the many

3. Internet metamorphosis • 1969: “one network” • 1983: “network of networks” • 199-: “balkanization” begins • 2003: “heat death” begins • 2004: paradigm lost?

4. personal metamorphosis • 1988: “five anti-interoperable networks” !! • 2000: “network security credo” -manage those hosts! • 2000: “my first NAT” -hardly hurt a bit • 2002: S@LS planning -keeping the faith • 2003: “slammer” -intervention • 2003: “blaster” -wake • 2004: “mydoom” -groundhog day • 2005: “five anti-interoperable networks” ??

5. grief counseling • coping with post-Internet intellectual trauma: • denial • anger • bargaining • depression • acceptance • I had not understood that all of these emotions can occursimultaneously!

6. 1988: Five anti-interoperable networks 1994: Nebula shows network utility model viable 1998: Defined OSFA border blocking policy 2000: Published Network Security Credo 2000: Added source address spoof filters 2000: Proposed med ctr network zone 2000: Proposed server sanctuaries 2001: Ban clear-text passwords on C&C systems 2001: Proposed pervasive host firewalls 2001: Developed logical firewall solution 2002: Developed Project-172 solution 2003: Slammer, Blaster… death of the Internet 2003: Begin work on flex-net architecture UW network security chronology

7. security-related trends • more life-critical applications • more wireless use • more VoIP (and soon, VoWLAN) • faster networks • class action lawsuits • RIAA subpoenas • SEC filings to include security info? • more sophisticated attacks • more spyware, encrypted backdoors • less sophisticated attackers • profit motive for attacks

8. end of an era • gone: the open Internet (connection transparency) • going: autonomous unmanaged PCs • at risk: full digital convergence? • thenetwork utility model is dead • once hosts were all equally accessible • once network jacks were all the same (‘cept speed) • once all application ports were open • welcome to the indeterminate Internet • “Heisenberg/Einstein” networking... • uncertain and relativistic connectivity • you can make no assumptions about what should work

9. how we lost it: inevitable trainwreck? • fundamental contradiction • networking is about connectivity • security is about isolation • conflicting roles and goals • vendors • networkers • security people • sys admins • oh yeah… and the users • insecurity = liability • liability trumps innovation • liability trumps operator concerns • liability trumps user concerns

10. how we lost it: disconnects • failure of “computer security” • vendors gave customers what they wanted, not what they needed • responsibility/authority/accountability disconnects guaranteed failure • the network brought the trouble; the network should fix it • failure of networkers to understand what users wanted • not a completely open Internet! • importance of “unlisted numbers”

11. observations • feedback loop: • closed nets encourage constrained apps • constrained apps encourage closed nets • thus: the Indeterminate Internet may become the Single-Port Internet • tunneling, encryption trends undermine perimeter defense effectiveness • isolation strategies are limited by how many devices you want on your desk. • blaster: triggered more perimeter defense, but showed futility of conventional perimeter defense

12. consequences • more closed nets & VPNs (bug or feature?) • more tunneling -“firewall friendly” apps • more encryption (thanks to RIAA) • more collateral harm -attack + remedy • worse MTTR (complexity, broken tools) • constrained innovation (e.g. p2p, voip) • cost shifted from “guilty” to “innocent” • pressure to fix problem at border • pressure for private nets • pressure to make network topology match organization boundaries

13. roads not taken • what if windows XP had shipped with its integral firewall turned on? • what if UW had mandated and funded positive desktop control? • too late… so what can we do now to “protect and serve” our constituency in the post-Internet era?

14. bonus slides!

15. networks = connectivity; security = isolation fault zone size vs. economy/simplicity reliability vs. complexity prevention vs. (fast) remediation security vs. supportability vs. functionality(conflicting admin, ops, user perspectives) differences in NetSec approaches relate to: Balancing priorities (security vs. ops vs. function) Local technical and institutional feasibility design tradeoffs

16. design tradeoff examples • defense-in-depth conjecture(for N layers) • Security: MTTE (exploit)  N**2 • Functionality: MTTI (innovation)  N**2 • Supportability: MTTR (repair)  N**2 • Perimeter Protection Paradox(for D devices) • Firewall efficiency/value  D • Firewall effectiveness  1 / D • border blocking criteria (OSFA policy) • Threat can’t reasonably be addressed at edge • Won’t harm network (performance, stateless block) • Widespread consensus to do it • security by IP address

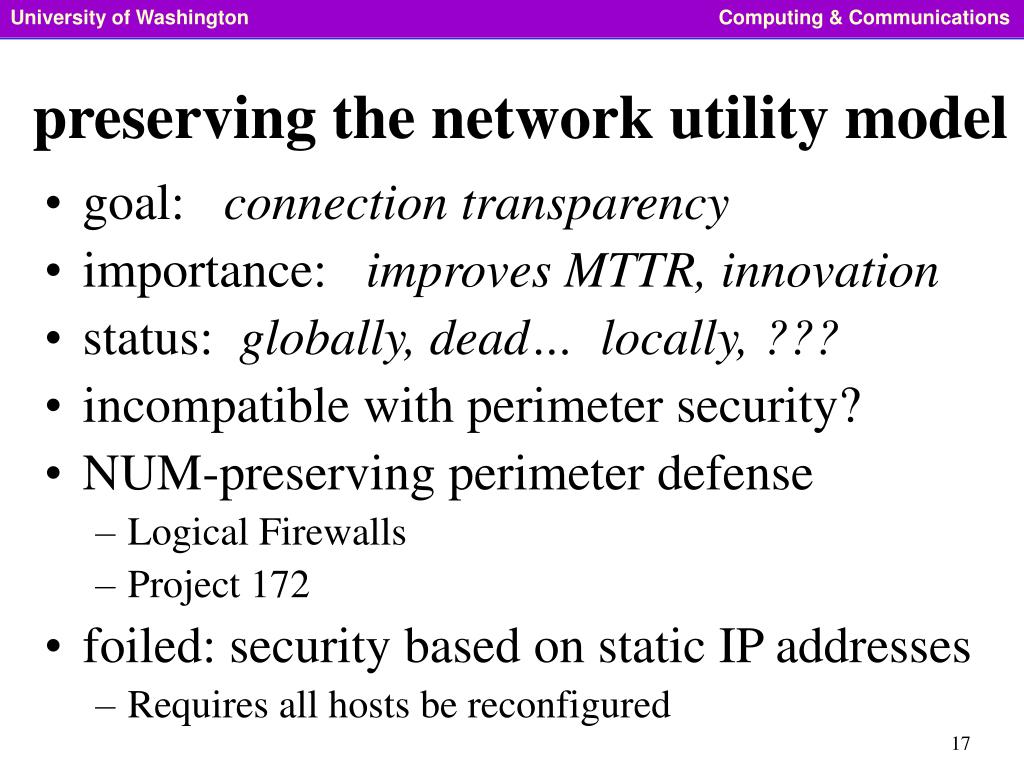

17. goal: connection transparency importance: improves MTTR, innovation status: globally, dead… locally, ??? incompatible with perimeter security? NUM-preserving perimeter defense Logical Firewalls Project 172 foiled: security based on static IP addresses Requires all hosts be reconfigured preserving the network utility model

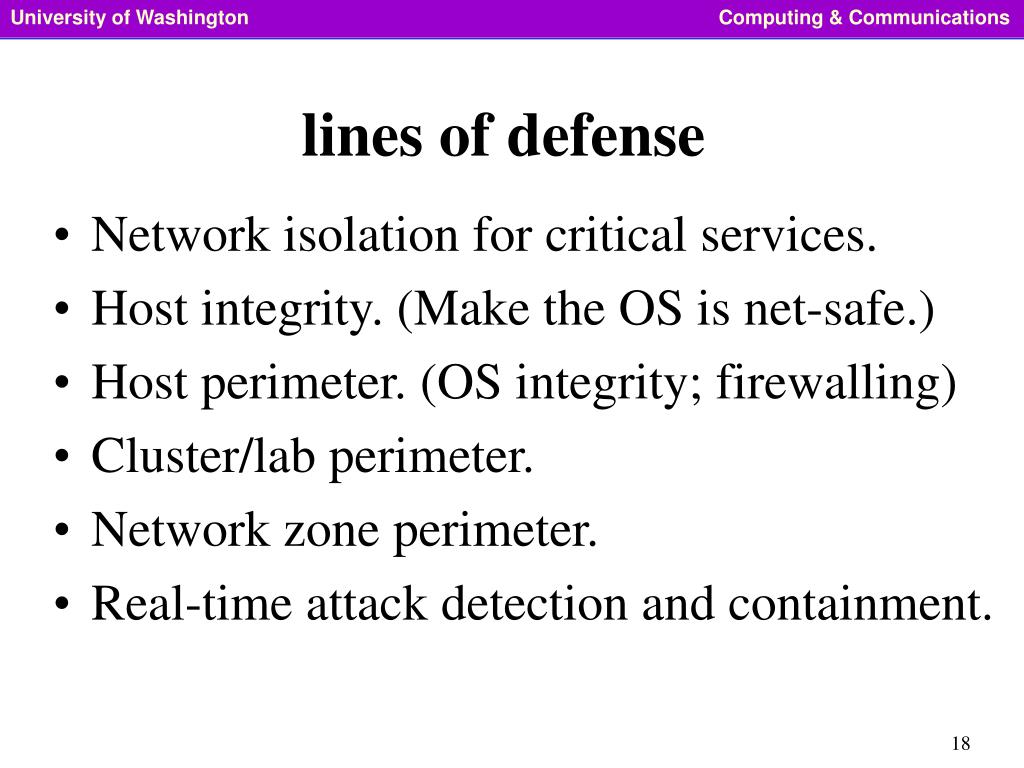

18. Network isolation for critical services. Host integrity. (Make the OS is net-safe.) Host perimeter. (OS integrity; firewalling) Cluster/lab perimeter. Network zone perimeter. Real-time attack detection and containment. lines of defense

19. parallel networks; more redundancy supportable (geographic) topology med ctr subnets = separate backbone zone perimeter, sanctuary, and end-point defense higher performance high-availability strategies Workstations spread across independent nets Redundant routers Dual-homed servers next-gen network architecture

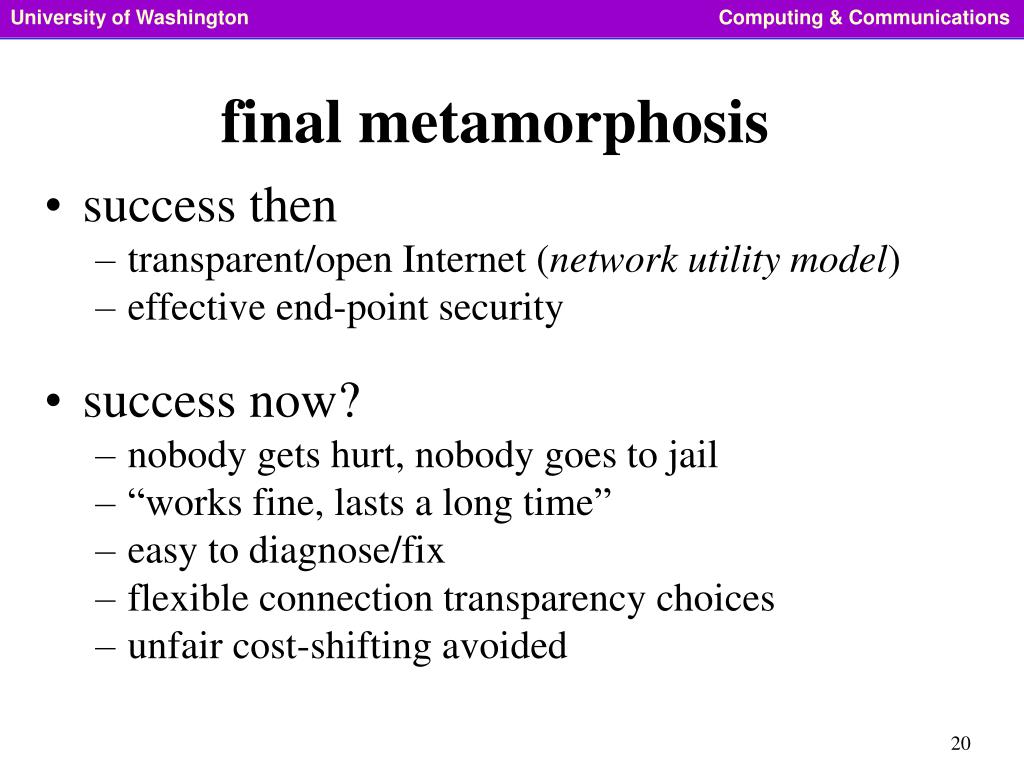

20. final metamorphosis • success then • transparent/open Internet (network utility model) • effective end-point security • success now? • nobody gets hurt, nobody goes to jail • “works fine, lasts a long time” • easy to diagnose/fix • flexible connection transparency choices • unfair cost-shifting avoided

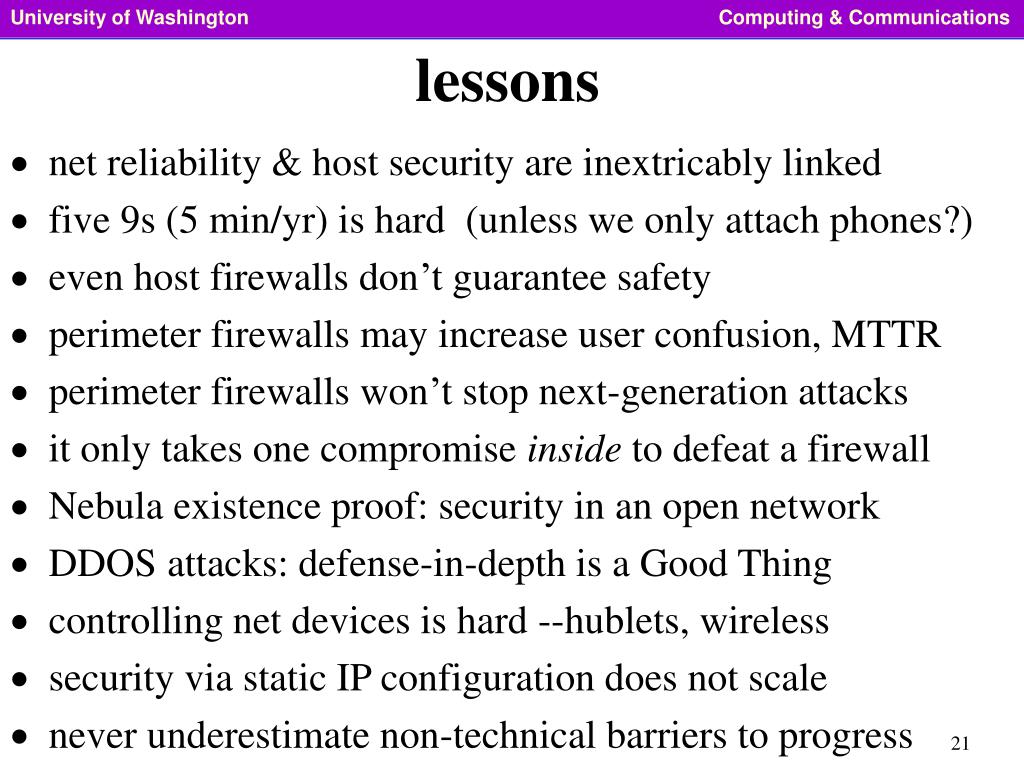

21. net reliability & host security are inextricably linked five 9s (5 min/yr) is hard (unless we only attach phones?) even host firewalls don’t guarantee safety perimeter firewalls may increase user confusion, MTTR perimeter firewalls won’t stop next-generation attacks it only takes one compromise inside to defeat a firewall Nebula existence proof: security in an open network DDOS attacks: defense-in-depth is a Good Thing controlling net devices is hard --hublets, wireless security via static IP configuration does not scale never underestimate non-technical barriers to progress lessons

22. questions? comments?
