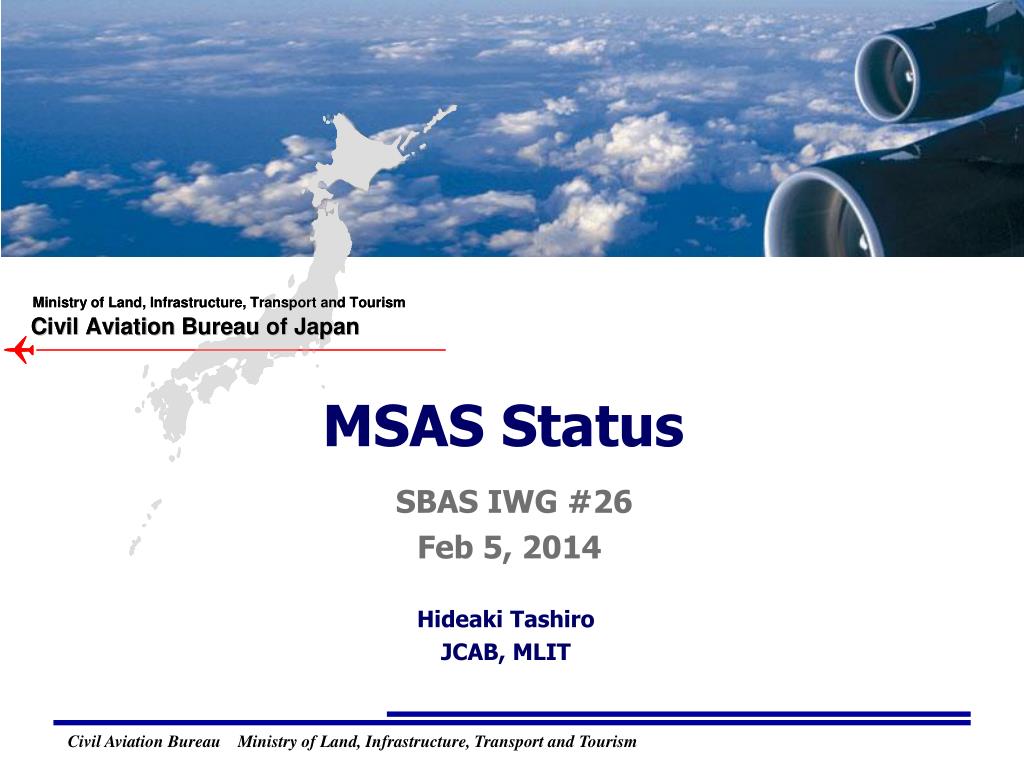

  1. MSAS Status Hideaki Tashiro JCAB, MLIT SBAS IWG #26 Feb 5, 2014

  2. Contents • Current status • MSAS user segment & PBN • Current SBAS R&D in JCAB

  3. Current Status • MSAS operational since • Sep. 27, 2007 • Service for air navigation • GPS Augmentation Information for RNAV, from En-route through NPA (RNP 0.3) • Within Fukuoka FIR • horizontal guidance only • NOTAM for Operational Information • Service Interruption • Service Prediction

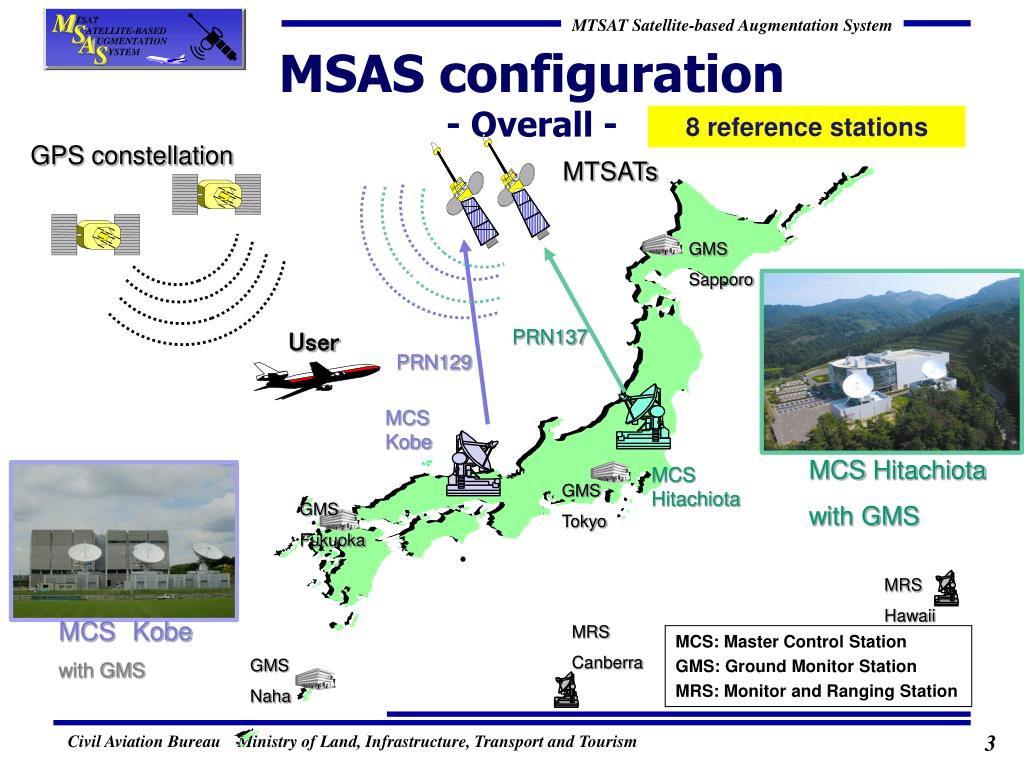

  4. MSAS configuration- Overall - 8 reference stations GPS constellation MTSATs GMS Sapporo User PRN137 PRN129 MCS Kobe MCS Hitachiota with GMS MCS Hitachiota GMS Tokyo GMS Fukuoka MRS Hawaii MCSKobe with GMS MRS Canberra MCS: Master Control Station GMS: Ground Monitor Station MRS: Monitor and Ranging Station GMS Naha

  5. MTSAT System update Coverage & Service Area (Fukuoka FIR) FIR: Flight Information Region

  6. MTSAT System update Near-term outlook on MTSAT system Current plan Decision Making Year Future Satellite Systems MTSAT-1R Operation Single satellite operation term MTSAT-2 Operation 4-year life extension

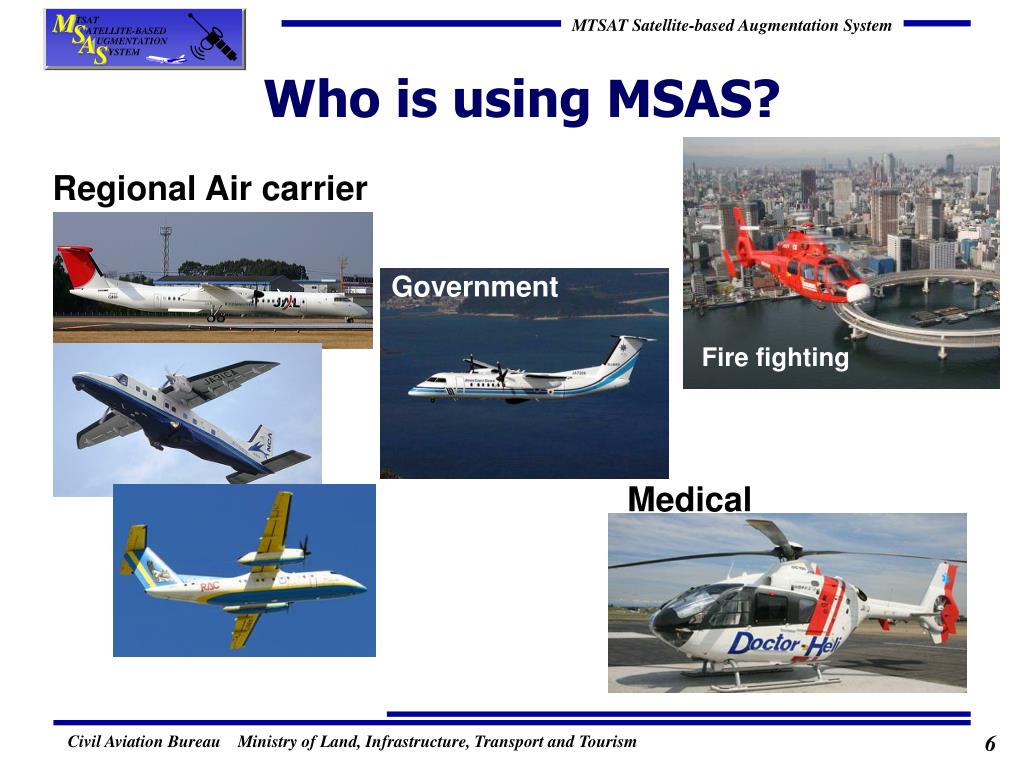

  7. Who is using MSAS? Regional Air carrier Government Fire fighting Medical

  8. GNSS & PBN TOKUNOSHIMA ● AMAMI OKIERABU ● ● ● ● ● ● YORON ● ● ● ● ● AKITA TARAMA ● ● TOYAMA SHONAI ● ● ● OKI ● IZUMO ● ● TOTTORI ● ● ● ● YAMAGUCHI-UBE FUKUI ● ● ● ● ● ● CHOFU ● ● ● ● ● ● As of Jan 8th,2014 ● ● ● NIIJIMA ● KUMAMOTO ● ●RNAV Approach serving 17airports KOZUSHIMA ● ● MIYAZAKI ●RNP AR Approach serving 12airports TANEGASHIMA ● YAKUSHIMA RNP Approach serving 14 airports ● ● Basic RNP 1 serving 10airports

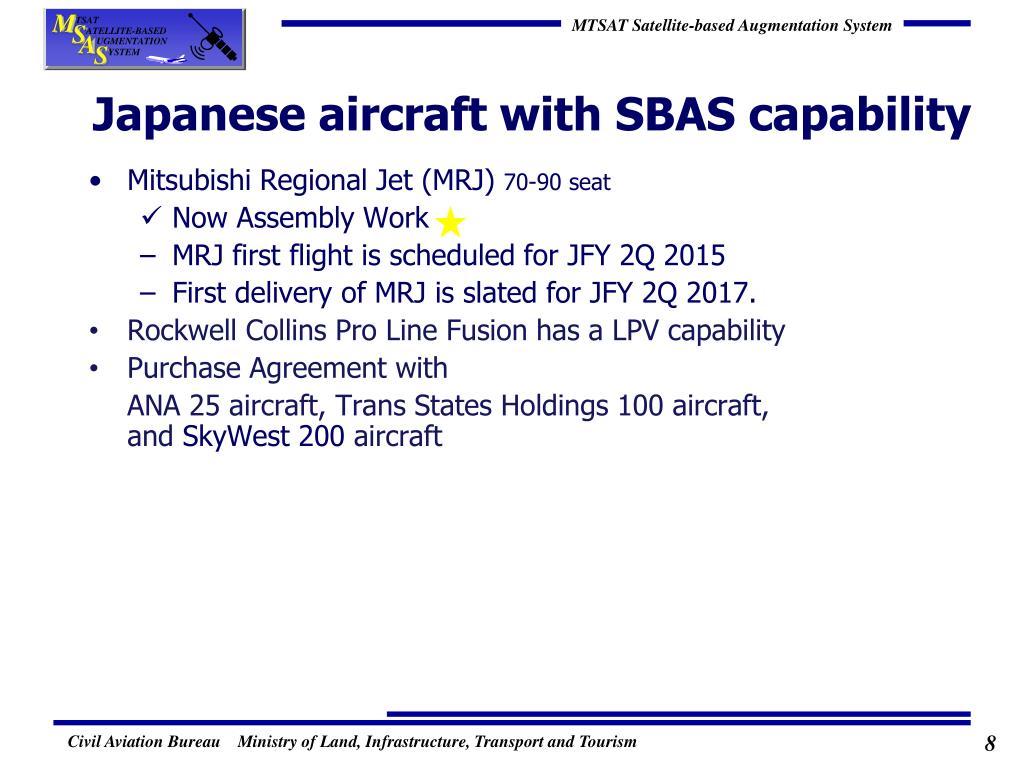

  9. Japanese aircraft with SBAS capability • Mitsubishi Regional Jet (MRJ) 70-90 seat • Now Assembly Work • MRJ first flight is scheduled for JFY 2Q 2015 • First delivery of MRJ is slated for JFY 2Q 2017. • Rockwell Collins Pro Line Fusion has a LPV capability • Purchase Agreement with ANA 25 aircraft, Trans States Holdings 100 aircraft, and SkyWest 200 aircraft Courtesy of MHI

  10. Current SBAS R&D in JCAB • Studying MF/MC • Studying Support LPVand LPV200 • Addition GMSs • Software improvement

  11. Thank you for your attention.
