WSS 3.0 vs MOSS 2007

WSS 3.0 vs MOSS 2007. Functional comparison between Windows SharePoint Services 3.0 and Microsoft Office SharePoint Server 2007. By Andre Galitsky. October 14 th , 2009, Lexington Microsoft Users Group. About Me. 10 years in IT, 4 years with SharePoint

yori
Download Presentation

WSS 3.0 vs MOSS 2007

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. WSS 3.0 vs MOSS 2007 Functional comparison between Windows SharePoint Services 3.0 and Microsoft Office SharePoint Server 2007 By Andre Galitsky October 14th, 2009, Lexington Microsoft Users Group

  2. About Me • 10 years in IT, 4 years with SharePoint • Currently working at L-3 Communications in BGS • B.S. in IT from Univ. of Phoenix (2005) • MBA from Univ. of Minnesota (2009) • MCTS in Configuring & administering MOSS 2007 • Enjoy running, travelling, blogging, and gardening • Married with 5 kids (soon to be 6) • Blog: http://www.sharepointnomad.com • Email: andregalitsky@yahoo.com

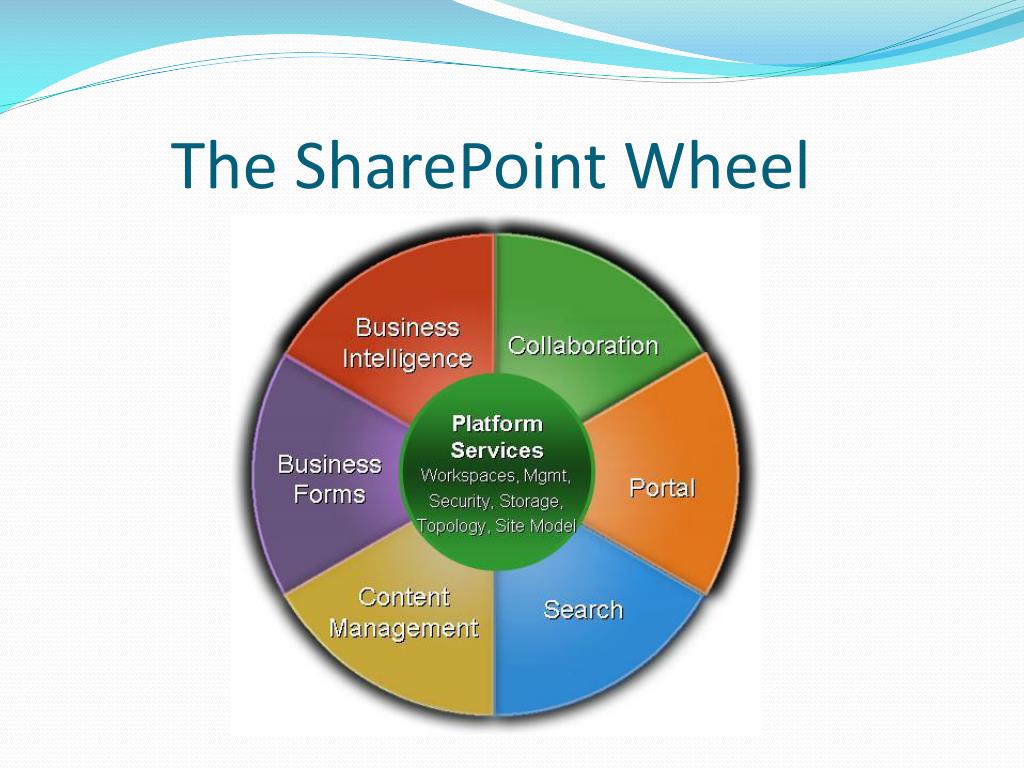

  3. The SharePoint Wheel

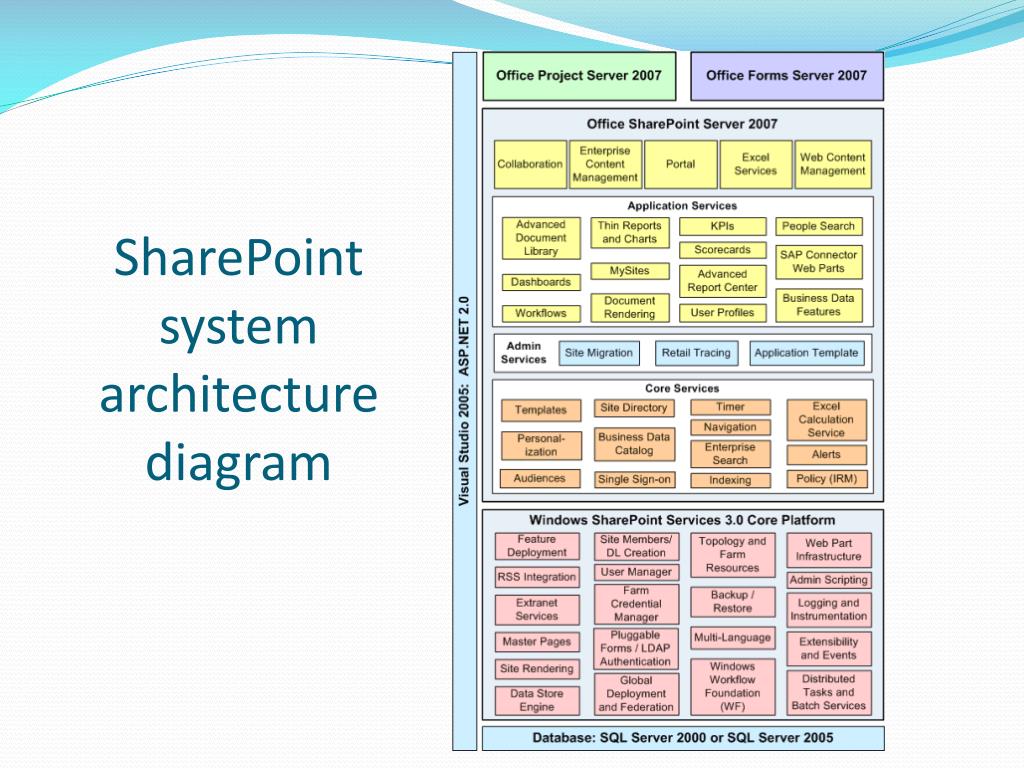

  4. SharePoint system architecture diagram

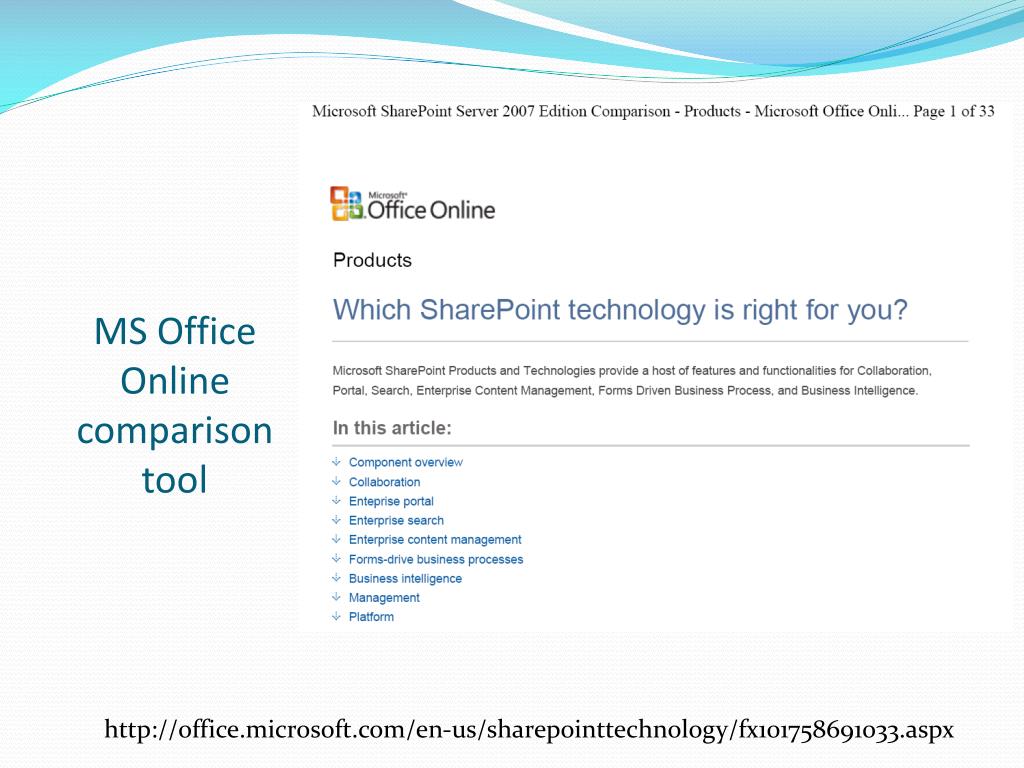

  5. MS Office Online comparison tool http://office.microsoft.com/en-us/sharepointtechnology/fx101758691033.aspx

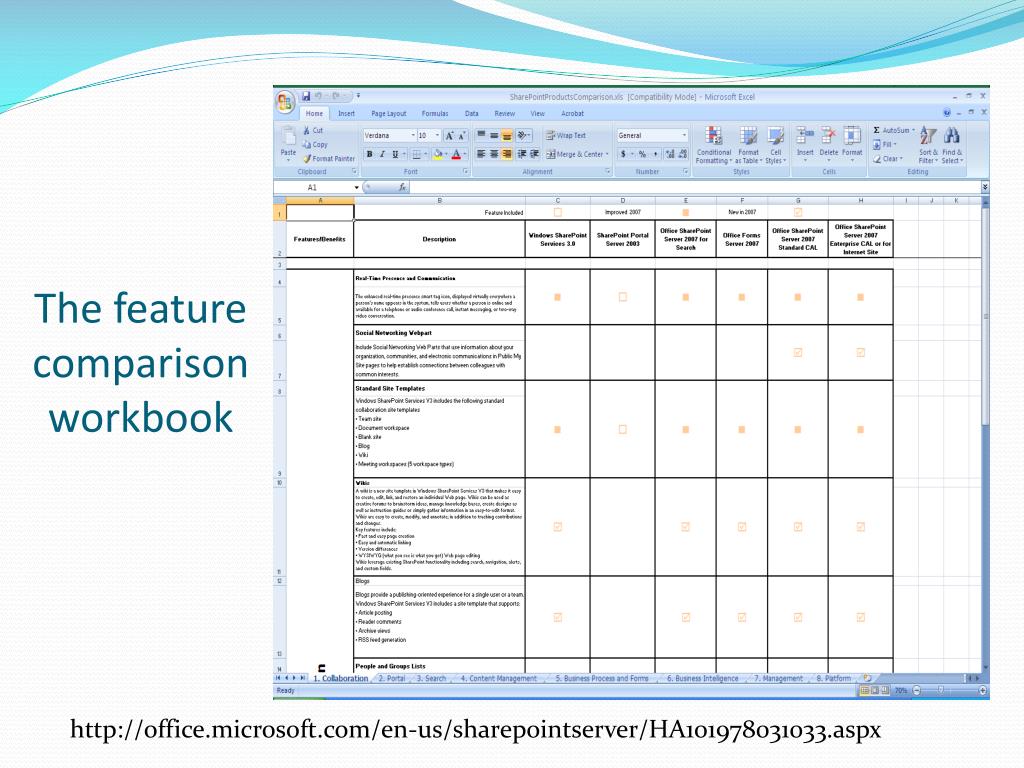

  6. The feature comparison workbook http://office.microsoft.com/en-us/sharepointserver/HA101978031033.aspx

  7. Windows SharePoint Services (WSS 3.0) Main Features • What do you get out of the box (OOB)? • Rapid provisioning of team web sites • Active Directory integration for authentication and security • Functionality to create document libraries, task lists, team calendars, custom lists, contact lists, and surveys • Tight integration with MS Office, including Excel, Outlook, and InfoPath • Support for wikis and blogs • Document check-in/check-out and versioning • Information recovery (two-level recycle bin) • 1 workflow (three-state) • Search capability (see next slide) Source: WSS 3.0 Features guide http://technet.microsoft.com/en-us/windowsserver/sharepoint/bb400753.aspx

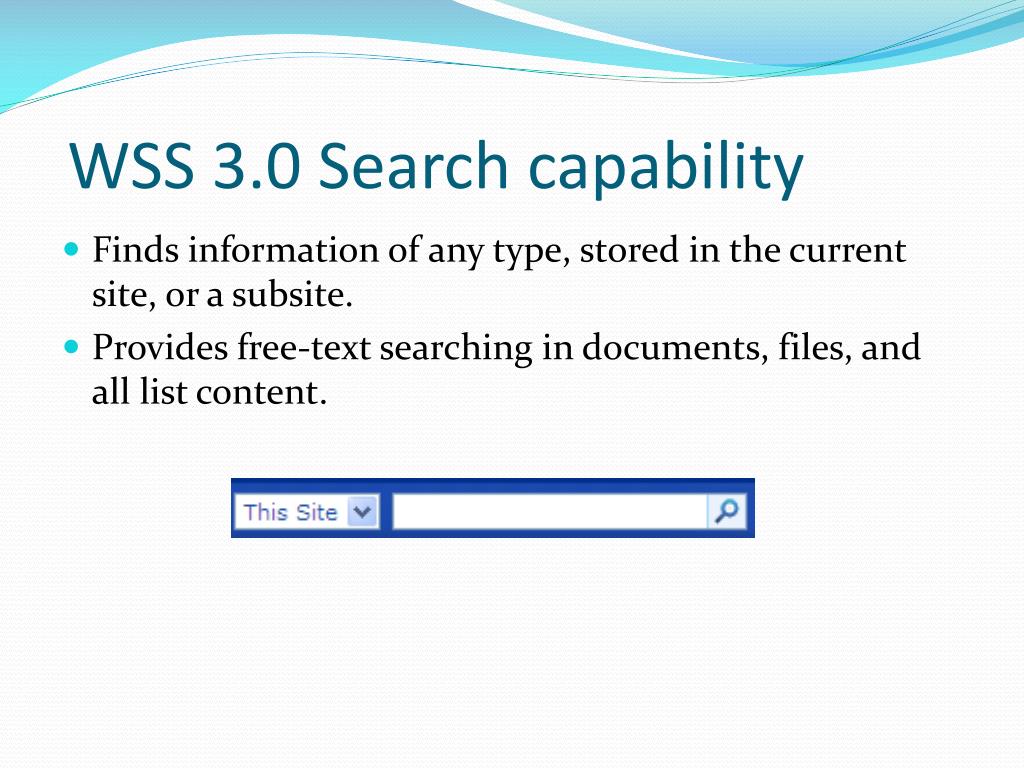

  8. WSS 3.0 Search capability • Finds information of any type, stored in the current site, or a subsite. • Provides free-text searching in documents, files, and all list content.

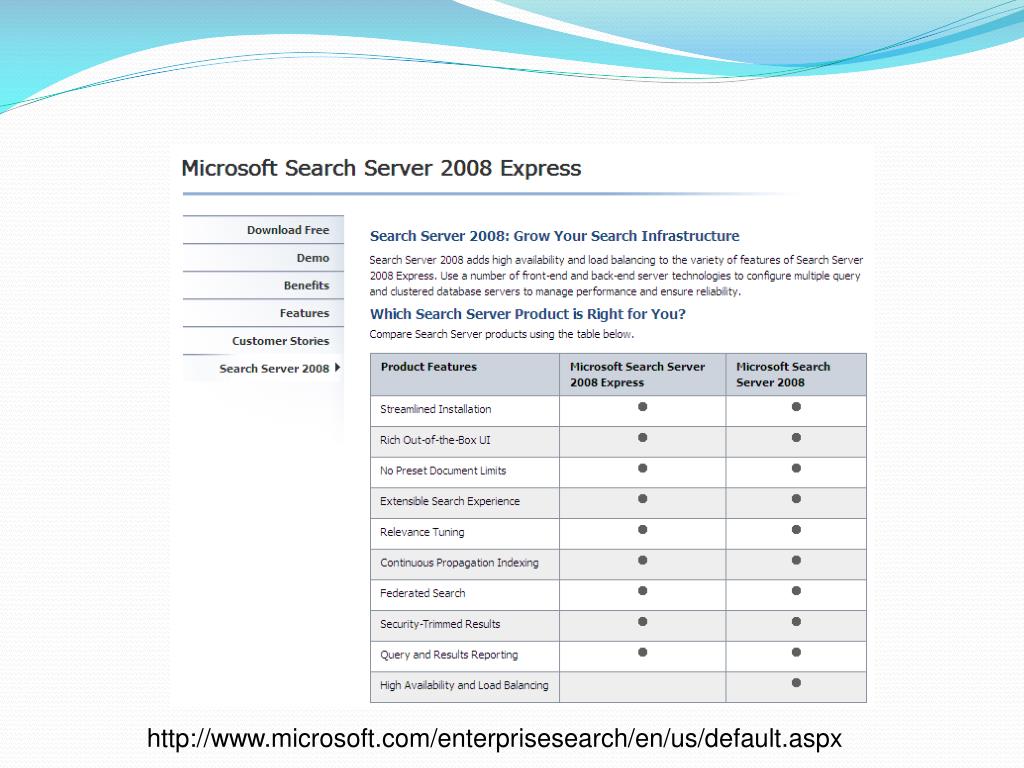

  9. Search Server 2008 Express

  10. http://www.microsoft.com/enterprisesearch/en/us/default.aspx

  11. Installing WSS 3.0 • Install WSS 3.0 binaries • Run Configuration wizard • The wizard will provision the Central Administration site and create configuration database • When finished, configure your SP environment using Central Administration site

  12. Basic Install screen

  13. Don’t do Basic install http://www.sharepointjoel.com/Lists/Posts/Post.aspx?ID=260

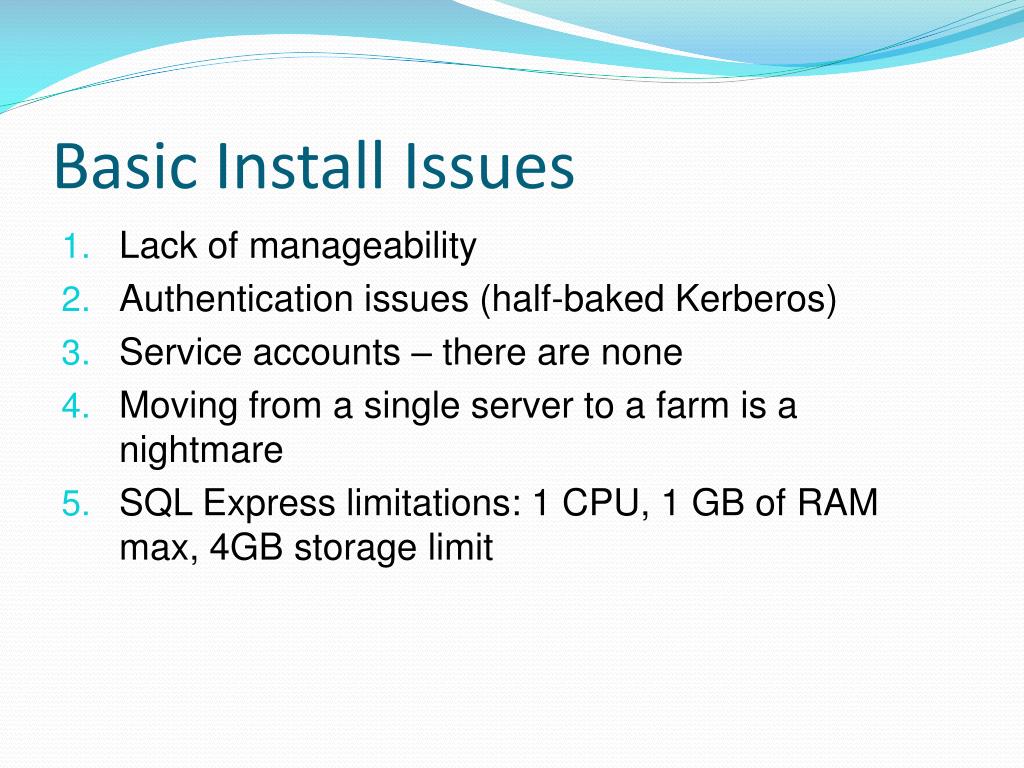

  14. Basic Install Issues • Lack of manageability • Authentication issues (half-baked Kerberos) • Service accounts – there are none • Moving from a single server to a farm is a nightmare • SQL Express limitations: 1 CPU, 1 GB of RAM max, 4GB storage limit

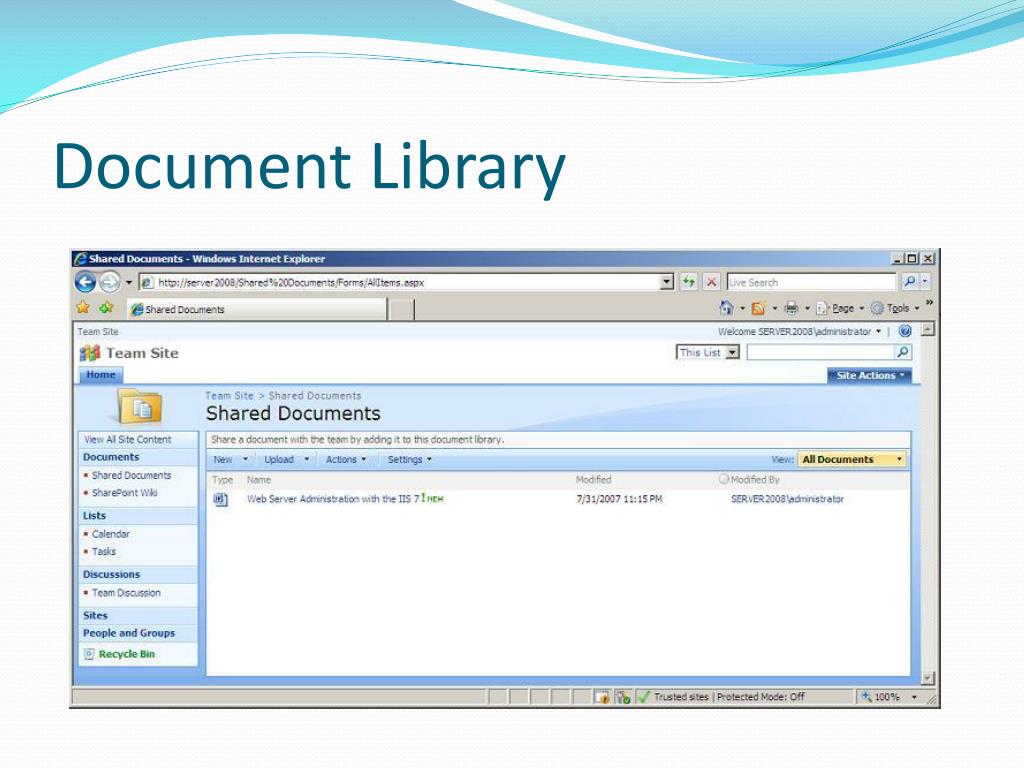

  15. Document Library

  16. Task list

  17. Calendar

  18. Other Lists • Announcements • Surveys • Link lists • Contacts • Custom list – create your own fields!

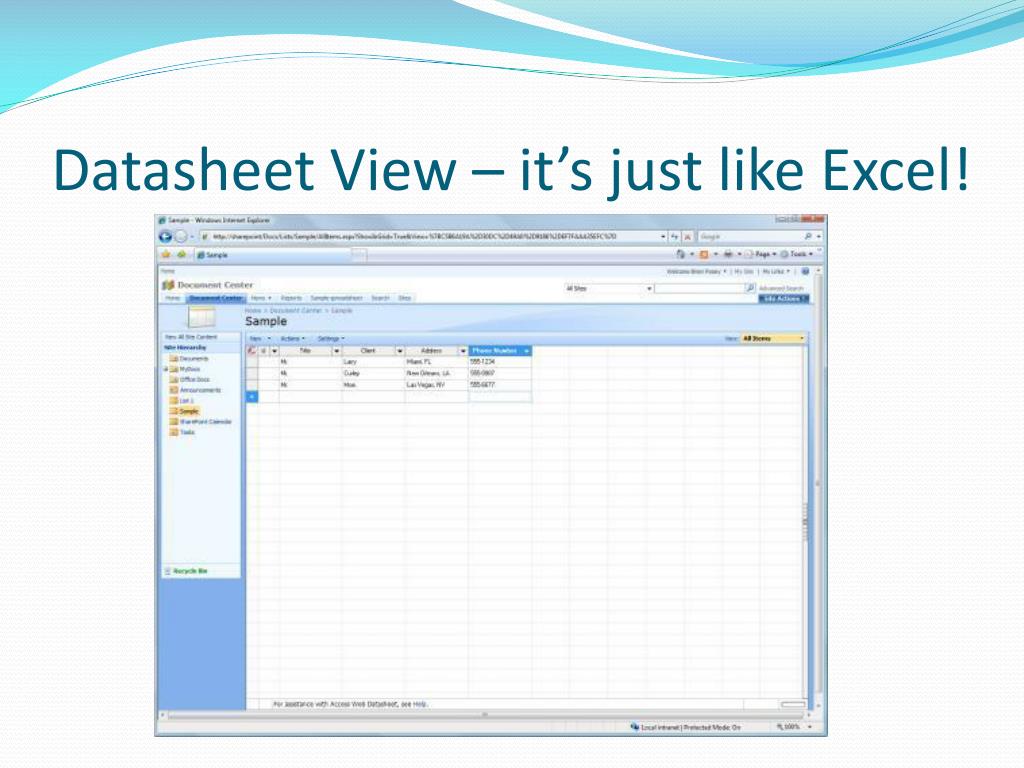

  19. Datasheet View – it’s just like Excel!

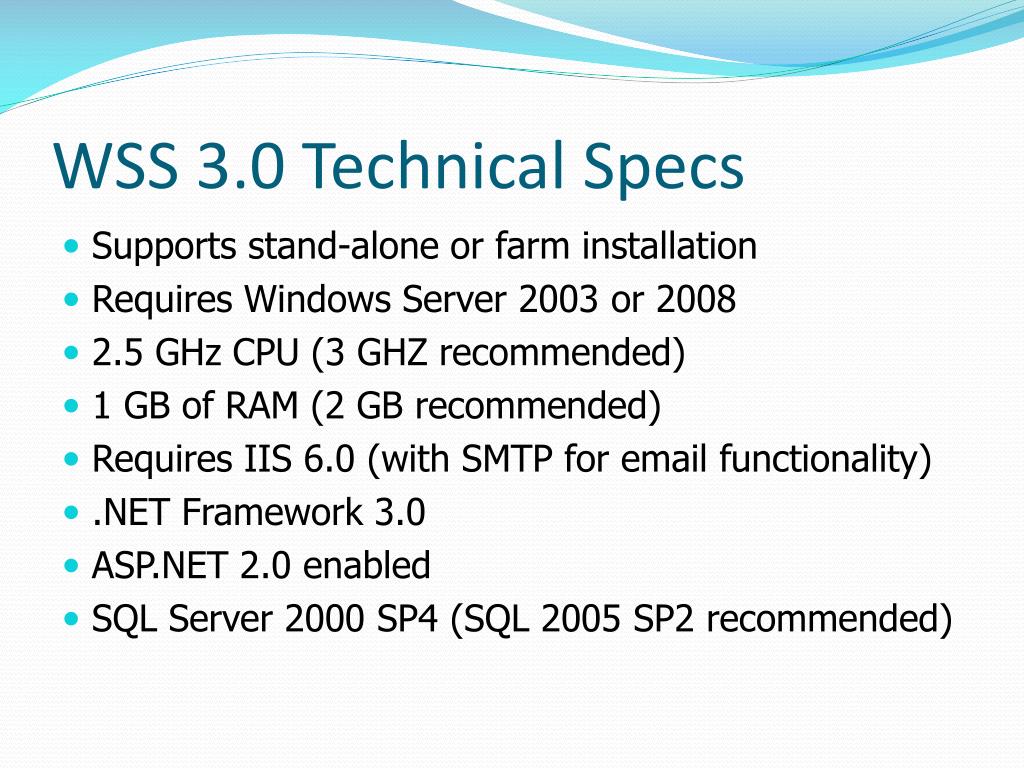

  20. WSS 3.0 Technical Specs • Supports stand-alone or farm installation • Requires Windows Server 2003 or 2008 • 2.5 GHz CPU (3 GHZ recommended) • 1 GB of RAM (2 GB recommended) • Requires IIS 6.0 (with SMTP for email functionality) • .NET Framework 3.0 • ASP.NET 2.0 enabled • SQL Server 2000 SP4 (SQL 2005 SP2 recommended)

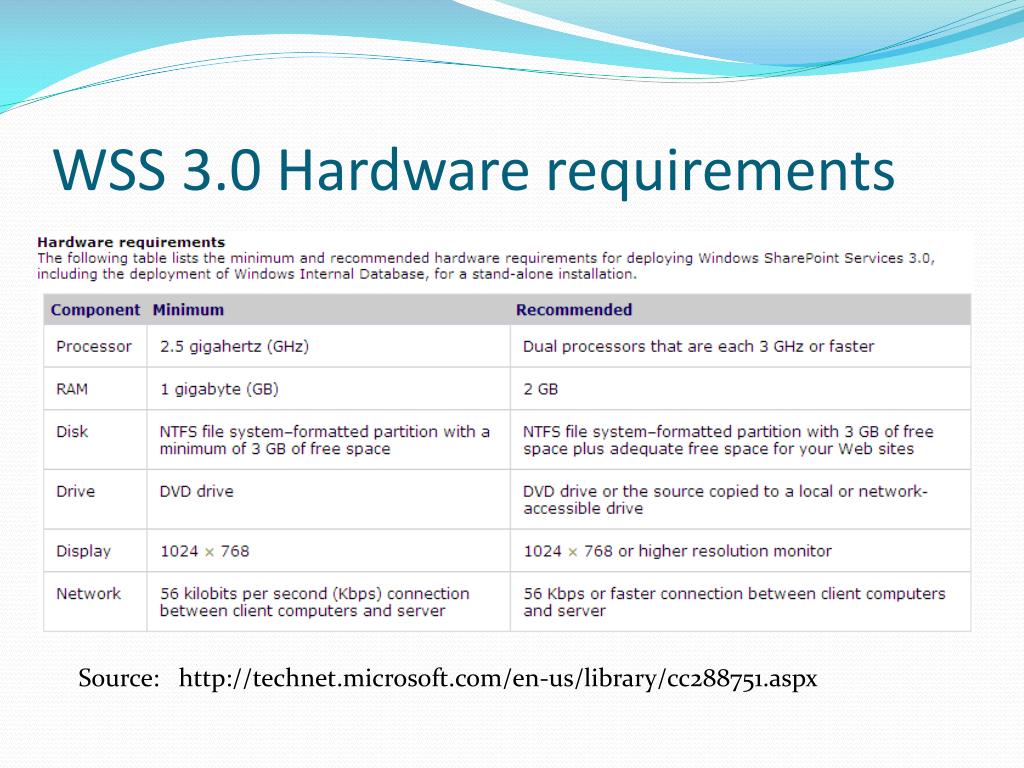

  21. WSS 3.0 Hardware requirements Source: http://technet.microsoft.com/en-us/library/cc288751.aspx

  22. Microsoft Office SharePoint Server (MOSS 2007) Main Features • All WSS 3.0 features • Similar basic hardware and software requirements • Business data catalog (BDC) • User Profiles (Personalization services) • My Sites • Templates • 7 workflows (Approval, Signature, Collect Feedback, etc.) • InfoPath services (web-based Infopath forms) • RSS feeds, enterprise search

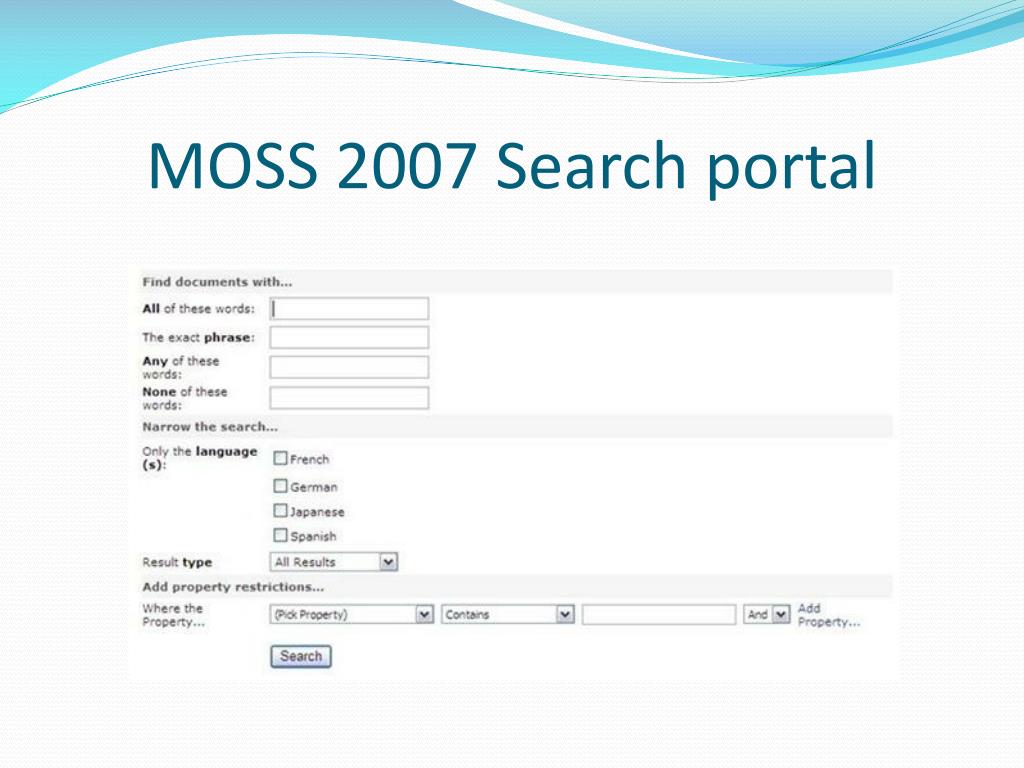

  23. MOSS 2007 Search portal

  24. MOSS 2007 vs. WSS 3.0 http://www.milesconsultingcorp.com/SharePoint-Portal-2007-Version-Comparison-between-MOSS2007-and-WSS3.aspx

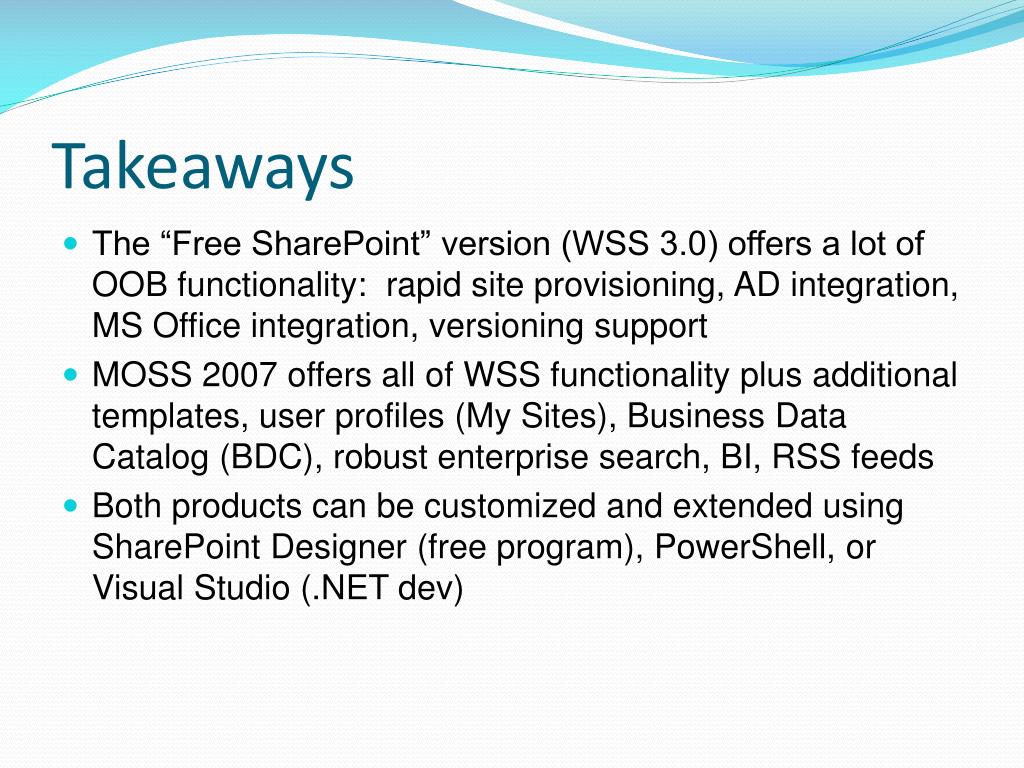

  25. Takeaways • The “Free SharePoint” version (WSS 3.0) offers a lot of OOB functionality: rapid site provisioning, AD integration, MS Office integration, versioning support • MOSS 2007 offers all of WSS functionality plus additional templates, user profiles (My Sites), Business Data Catalog (BDC), robust enterprise search, BI, RSS feeds • Both products can be customized and extended using SharePoint Designer (free program), PowerShell, or Visual Studio (.NET dev)

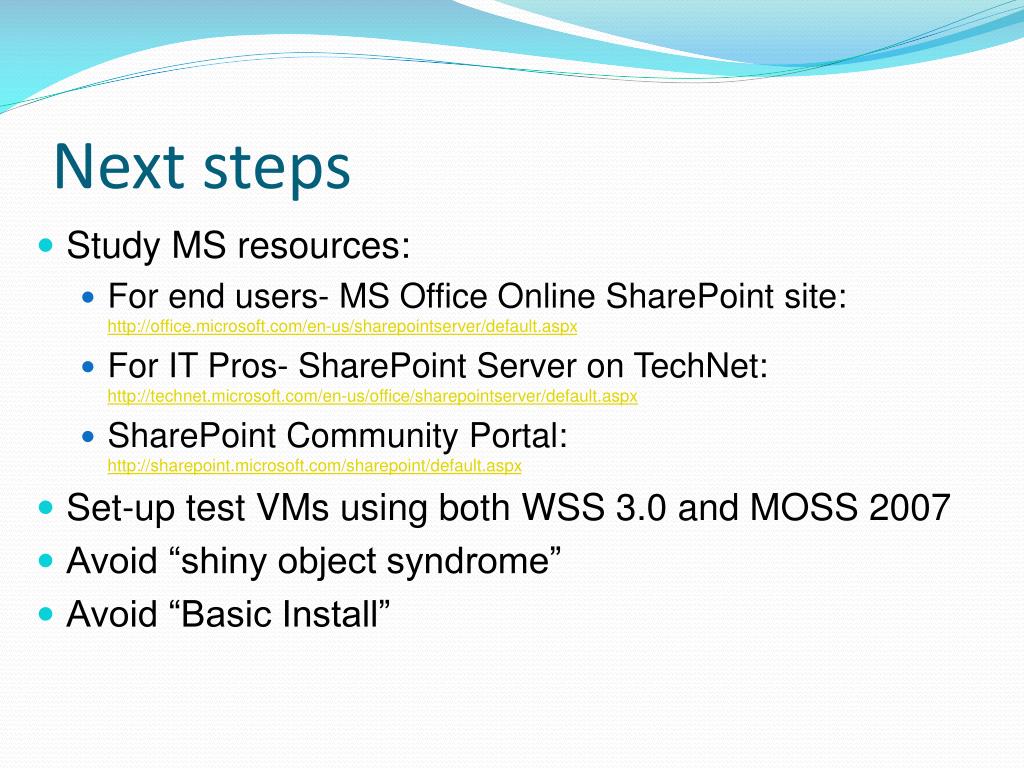

  26. Next steps • Study MS resources: • For end users- MS Office Online SharePoint site: http://office.microsoft.com/en-us/sharepointserver/default.aspx • For IT Pros- SharePoint Server on TechNet: http://technet.microsoft.com/en-us/office/sharepointserver/default.aspx • SharePoint Community Portal: http://sharepoint.microsoft.com/sharepoint/default.aspx • Set-up test VMs using both WSS 3.0 and MOSS 2007 • Avoid “shiny object syndrome” • Avoid “Basic Install”

  27. Questions?
