Irreversibilities : Turbine to Condenser-II

P M V Subbarao

Professor

Mechanical Engineering Department

I I T Delhi

Loss in Capacity of Turbine & Increase in Capacity of Condenser….


Irreversible adiabatic flow through turbine sssf

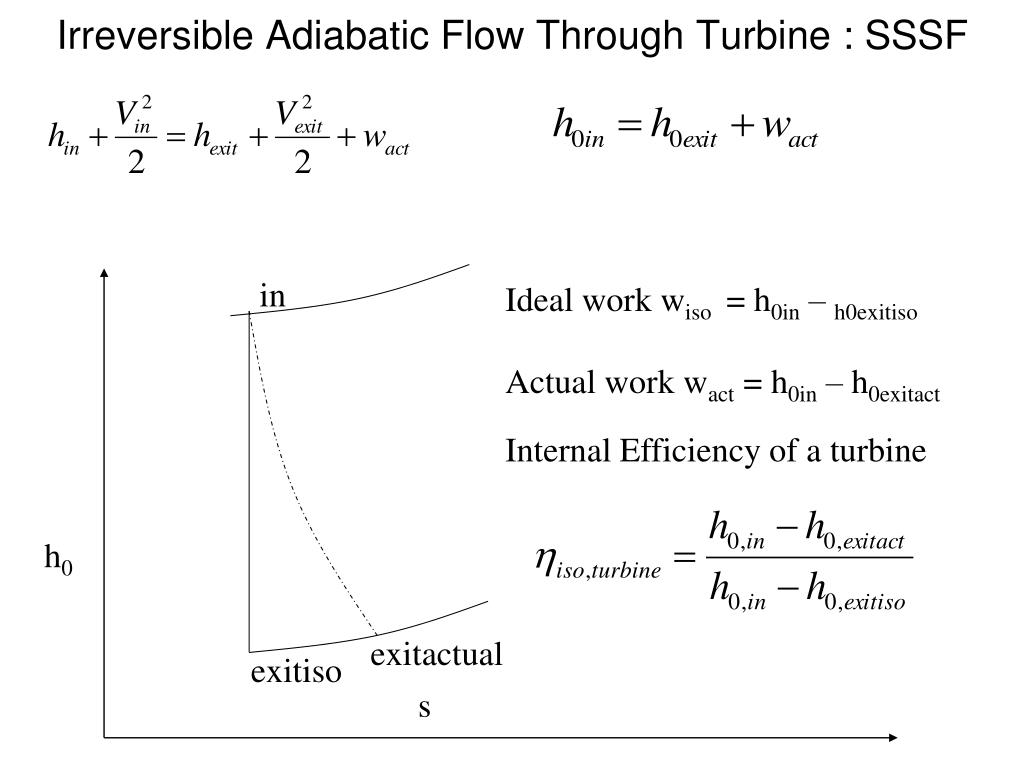

Irreversible Adiabatic Flow Through Turbine : SSSF

in

h0

exitactual

exitiso

s

Ideal work wiso = h0in – h0exitiso

Actual work wact = h0in – h0exitact

Internal Efficiency of a turbine


Losses in turbine stage

Losses in Turbine Stage

  • Losses in Regulating valves : The magnitude of loss of pressure due to throttling with the regulating valves fully open is:

  • Dpv = 3 to 5% of pmax.

  • Loss in nozzle blades.

  • pressure loss in moving blades.

  • Loss due to exit velocity.

  • Loss due to friction of the disc and blade banding

  • Loss associated with partial admission.

  • Loss due to steam leakages through clearances.

  • Loss due to flow of wet steam.

  • Loss due to exhaust piping.

  • Loss due to steam leakage in seals.


Losses in nozzles

Losses in Nozzles

  • Losses of kinetic energy of steam while flowing through nozzles or guide blade passages are caused because of

    • Energy losses of steam before entering the nozzles,

    • Frictional resistance of the nozzles walls,

    • Viscous friction between steam molecules,

    • Deflection of the flow,

    • Growth of boundary layer,

    • Turbulence in the Wake and

    • Losses at the roof and floor of the nozzles.

  • These losses are accounted by the velocity coefficient, f.


Irreversibilities turbine to condenser ii

500 MW


Irreversibilities turbine to condenser ii

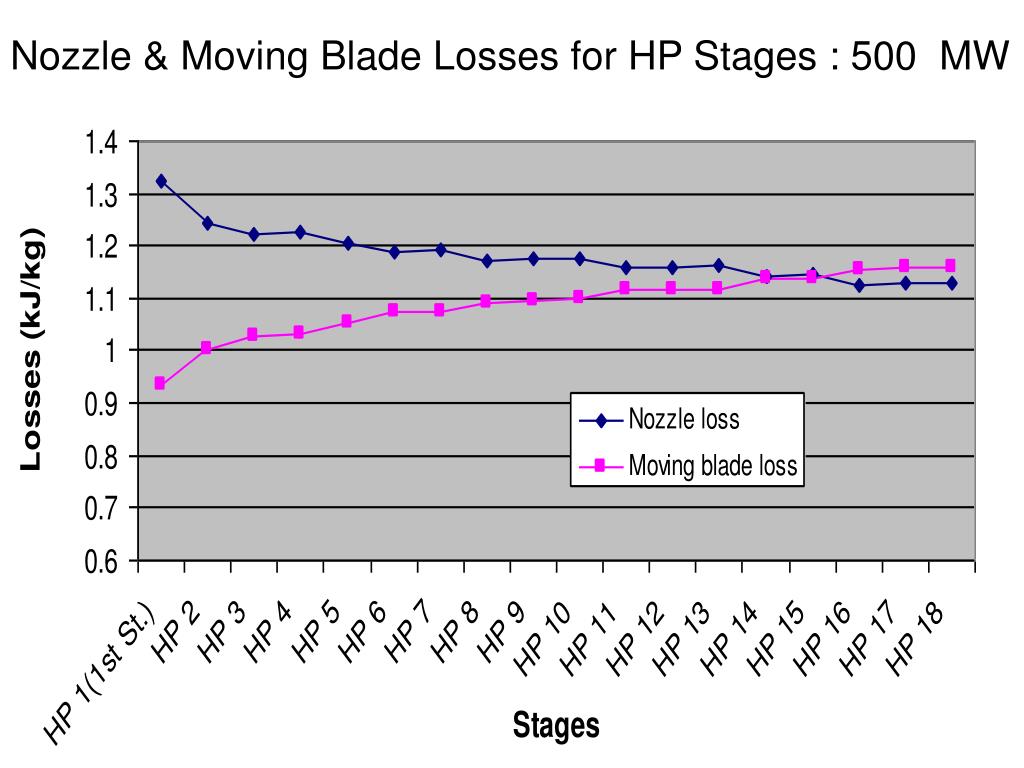

Nozzle & Moving Blade Losses for HP Stages : 500 MW


Irreversibilities turbine to condenser ii

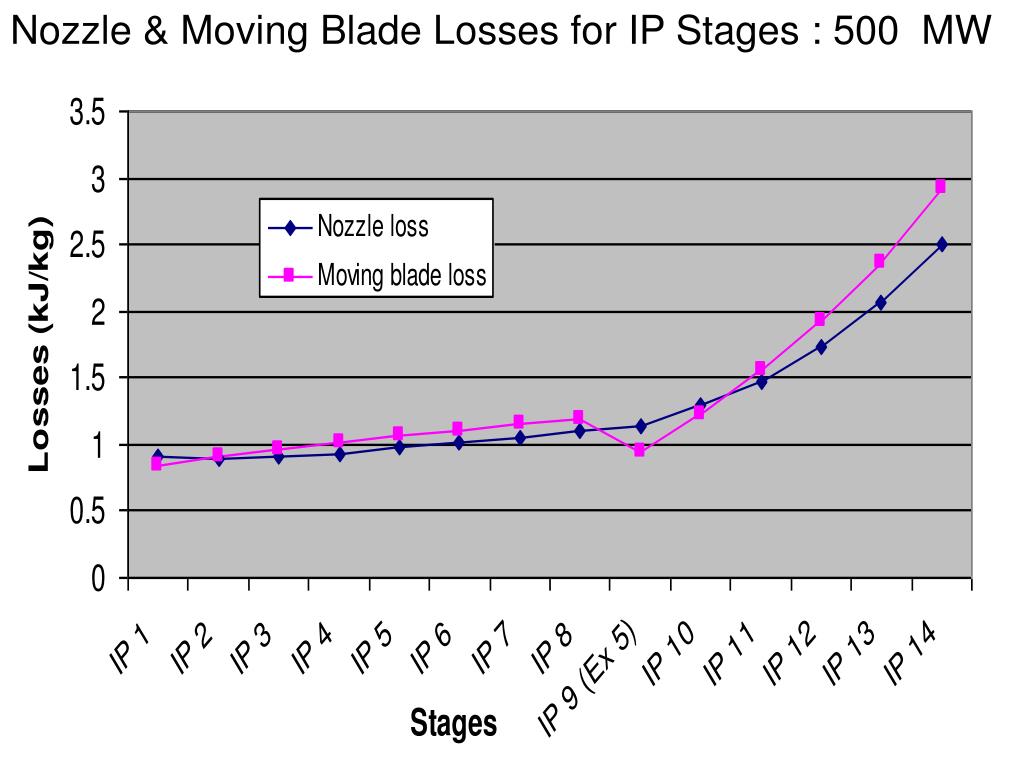

Nozzle & Moving Blade Losses for IP Stages : 500 MW


Irreversibilities turbine to condenser ii

Nozzle & Moving Blade Losses for LP Stages : 500 MW


H s diagram of turbine exhaust steam

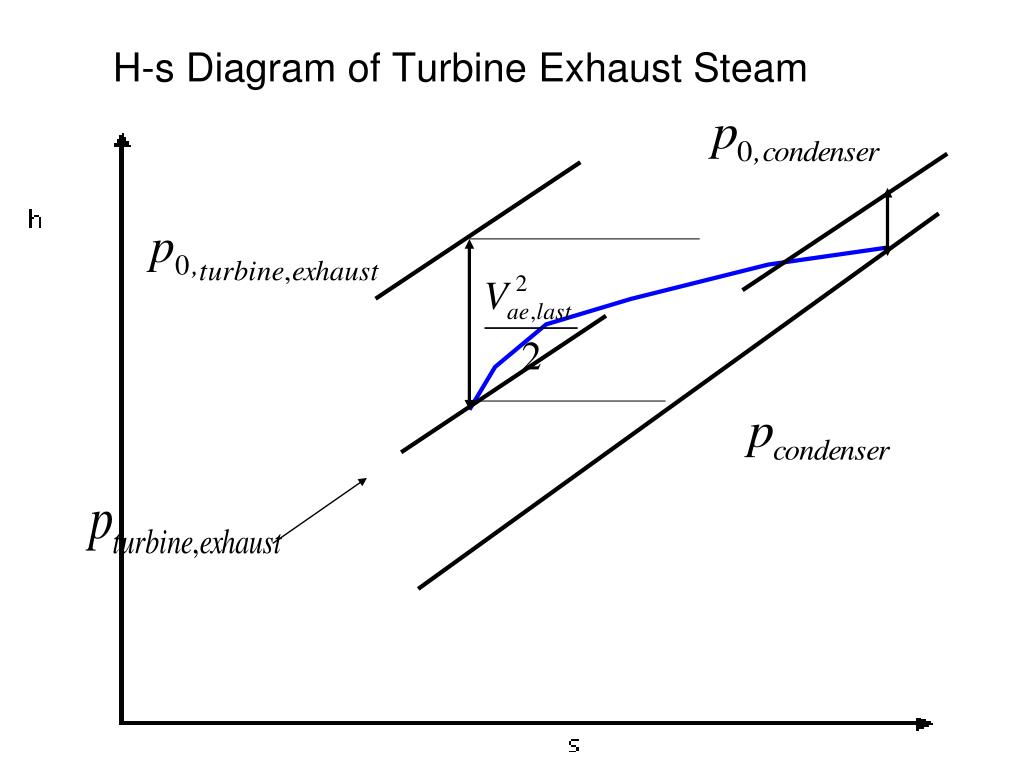

H-s Diagram of Turbine Exhaust Steam


Irreversible flow turbine exit to condenser

Irreversible Flow Turbine Exit to Condenser

P M V Subbarao

Professor

Mechanical Engineering Department

I I T Delhi

Irreversibilities due to Closed Cycle Policy …..


The last stage of lp turbine

The Last Stage of LP Turbine


Lp turbine exhaust system

LP Turbine Exhaust System

  • In a condensing steam turbine, the low-pressure exhaust hood, consisting of a diffuser and a collector or volute!, connects the last stage turbine and the condenser.

  • The function of the hood is to transfer the turbine leaving kinetic energy to potential energy while guiding the flow from the turbine exit plane to the condenser.

  • Most of exhaust hoods discharge towards the downward condenser.

  • Flow inside the hood therefore must turn about 90 deg from the axial direction to the radial direction before exhausting into the condenser.

  • The 90-deg turning results in vortical flow in the upper half part of the collector and also high losses.

  • The exhaust hood is one of the few steam turbine components that has the considerable aerodynamic losses.

  • It is a challenge for engineers to operate a hood with high pressure recovery and low total pressure loss in a compact axial length.


H s diagram of turbine exhaust steam1

H-s Diagram of Turbine Exhaust Steam


Exhaust hood

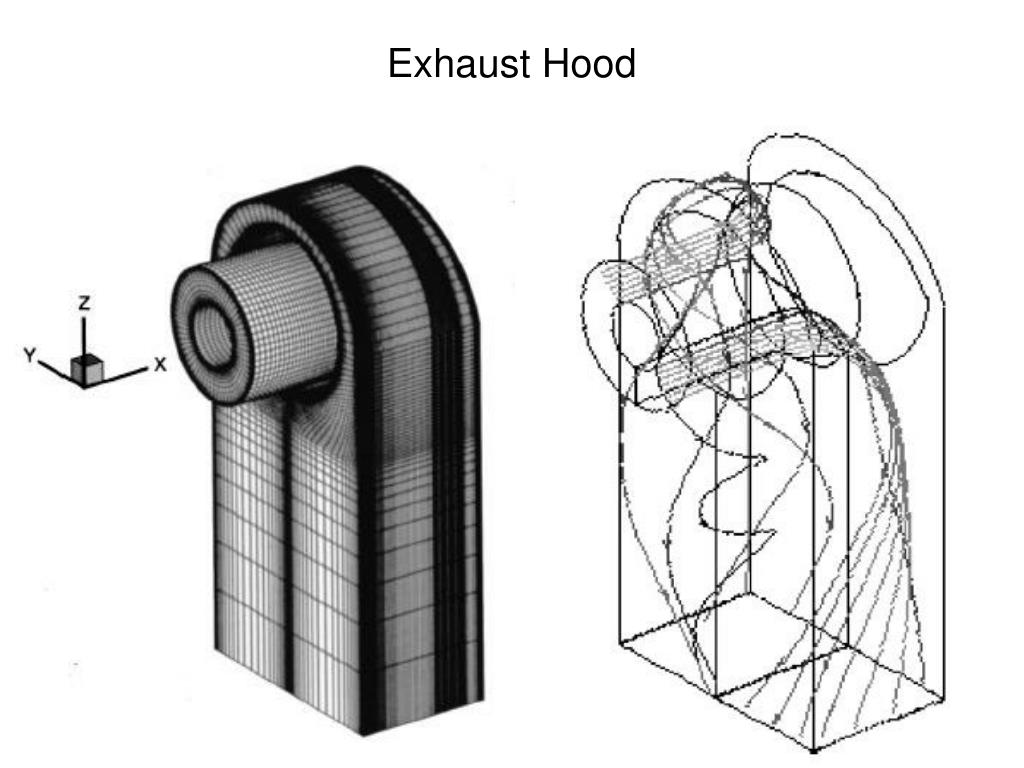

Exhaust Hood


Exhaust diffuser for l p turbine

Exhaust Diffuser For L P Turbine


Steam turbine exhaust size selection

Steam Turbine Exhaust Size Selection

  • The steam leaving the last stage of a condensing steam turbine can carry considerably useful power to the condenser as kinetic energy.

  • The turbine performance analysis needs to identify an exhaust area for a particular load that provides a balance between exhaust loss and capital investment in turbine equipment.


Path lines in exhaust hood

Path Lines in Exhaust Hood


Irreversibilities turbine to condenser ii

Residual velocity loss

Steam leaving the last stage of the turbine has certain velocity, which represent the amount of kinetic energy that cannot be imparted to the turbine shaft and thus it is wasted

Exhaust end loss

Exhaust end loss occur between the last stage of low pressure turbine and condenser inlet.

2. Exhaust loss depends on the absolute steam velocity.

Turbine Exhaust end loss

= Expansion-line -end point - Used energy at end point.


Irreversibilities turbine to condenser ii

Typical exhaust loss curve showing distribution of component loss

Annulus restriction loss

Total Exhaust Loss

SP.Volume

Annulus velocity (m/s)

Turn-up loss

Condenser flow rate

Gross hood loss

Annulus area

Actual leaving loss

Percentage of Moisture at the Expansion line end point

50

40

Exhaust Loss, kJ/kg of dry flow

30

20

10

0

120

240

180

240

300

360

Annulus Velocity (m/s)


Optimal design of exhaust hood

Optimal Design of Exhaust Hood


H s diagram of turbine exhaust steam2

H-s Diagram of Turbine Exhaust Steam
