A compact trigger architecture for slhc

A Compact Trigger Architecture for SLHC

Many thanks to all that I have questioned over the last few months, particularly Jad, Magnus, John and Costas

A Trigger Platform for SLHC


Trigger requirements

Task

Build physics objects

cluster electrons, taus, jets

calculate quantities such as total/missing-et, miss-ht

Sort in order of rank

Identify physics topologies

Must not miss interesting events

Can be crude: just a trigger!

Challenge

How best to map task onto physical geometry?

Part 1: What type of baseline hardware topology/architecture

Part 2: What type of processing card

Part 3: What services / infrastructure required?

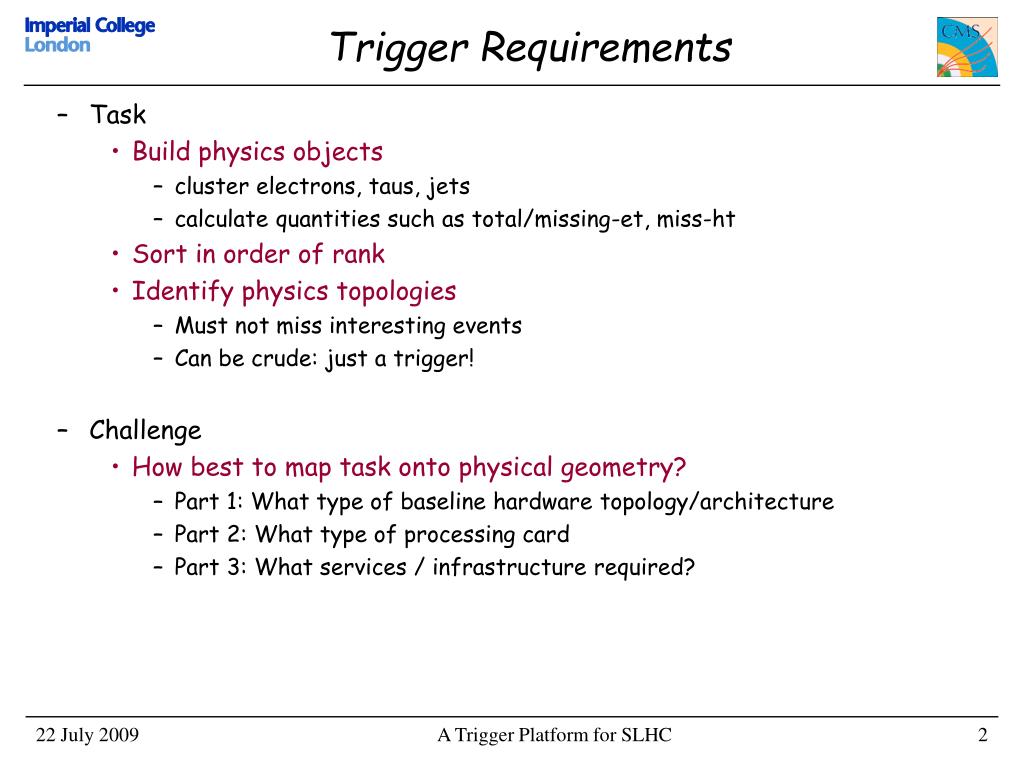

Trigger Requirements

A Trigger Platform for SLHC


Geometry of rct

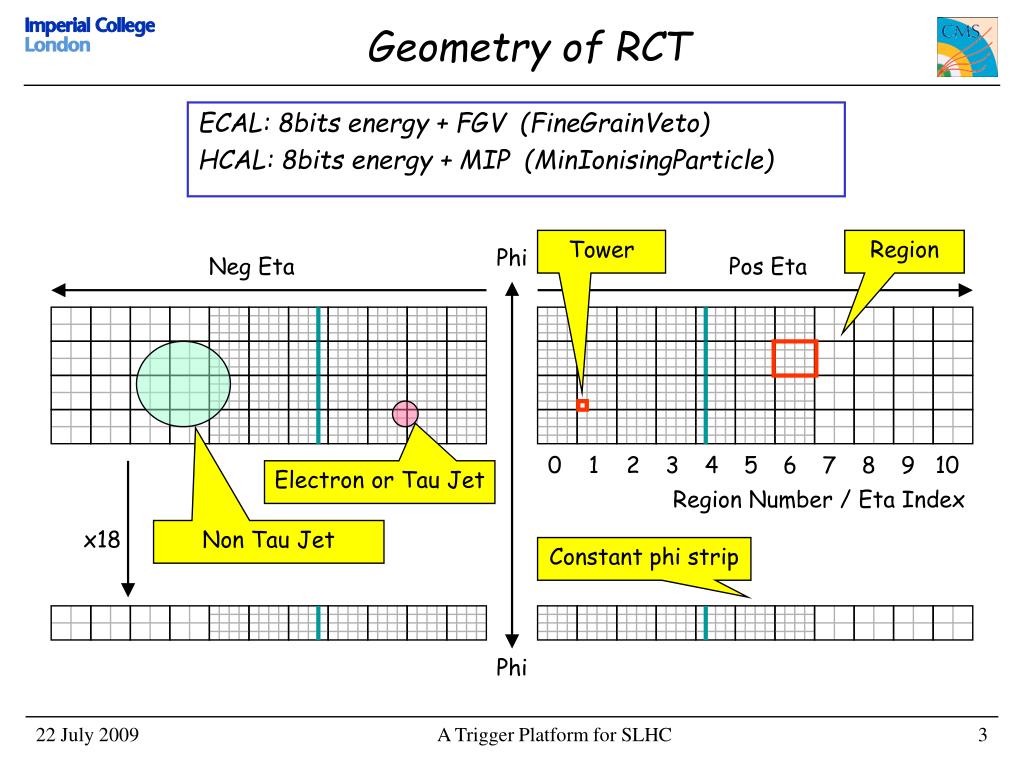

Geometry of RCT

ECAL: 8bits energy + FGV (FineGrainVeto)

HCAL: 8bits energy + MIP (MinIonisingParticle)

Tower

Region

Phi

Neg Eta

Pos Eta

0

1

2

3

4

5

6

7

8

9

10

Electron or Tau Jet

Region Number / Eta Index

x18

Non Tau Jet

Constant phi strip

Phi

A Trigger Platform for SLHC


Geometry link capacity

Number of Regions: 22 (eta) x 18 (phi)

1 Region = 4x4 Towers

1 Link at 4.8Gb/s (8B/10B)

12bytes per bx

Hence 1 region = 2 links (12bits)

1 Link at 6.4Gb/s (8B/10B)

16bytes per bx

Hence 1 region = 2 links (16bits)

Geometry & link capacity

HF

B

B

B

B

B

E

E

E

HF

F

F

F

F

HF

HF

Region

Tower

A Trigger Platform for SLHC


Original idea i e duplicate the data to provide boundary conditions

Original idea(i.e. duplicate the data to provide boundary conditions)

Apply jet + electron processing on 1x1 region.

Requires 1 boundary region to contain jets.

Data is duplicated x9 times

Expensive...

Consequence: Very large, expensive system of between 300 to 500 cards

A Trigger Platform for SLHC


An alternative approach

Concentrate on electron and tau jet processing initially

Small area – typically < 2x2 towers

Might be able to use for subsequent jet clustering

Allow capability to explore different algorithms

See “Calorimeter Trigger for Phase I”, M.Bachtis et al., Wisconsin

Pre cluster method used in GCT

An alternative approach...

Constant phi strip

0

1

2

3

4

5

6

7

8

9

10

Regions 0 to 2

Regions 3 to 6

Region Number / Eta Index

A Trigger Platform for SLHC


Elec gamma tau

Elec, Gamma & Tau

Barrel: Regions 0 to 2

Encap (mostly) : Regions 3 to 6

22 e/h input links + 2 track trigger

20 e/h input links + 2 track trigger

Eta0

Eta0

Eta0

Eta0

4xSERDES or 32x LVDS

(e.g. 16 x 24bit objects)

4xSERDES or 32x LVDS

(e.g. 16 x 24bit objects)

Built in capacity for Track Trigger

2+2

2+2

Sum 2x2 towers for and transmit on 2+2 fibres (i.e. 2 copies)

A Trigger Platform for SLHC


Electron tau processing

Electron / Tau Processing

Regions: -2 to -0

Regions: -6 to -3

Regions: +0 to +2

Regions: +3 to +6

A Trigger Platform for SLHC

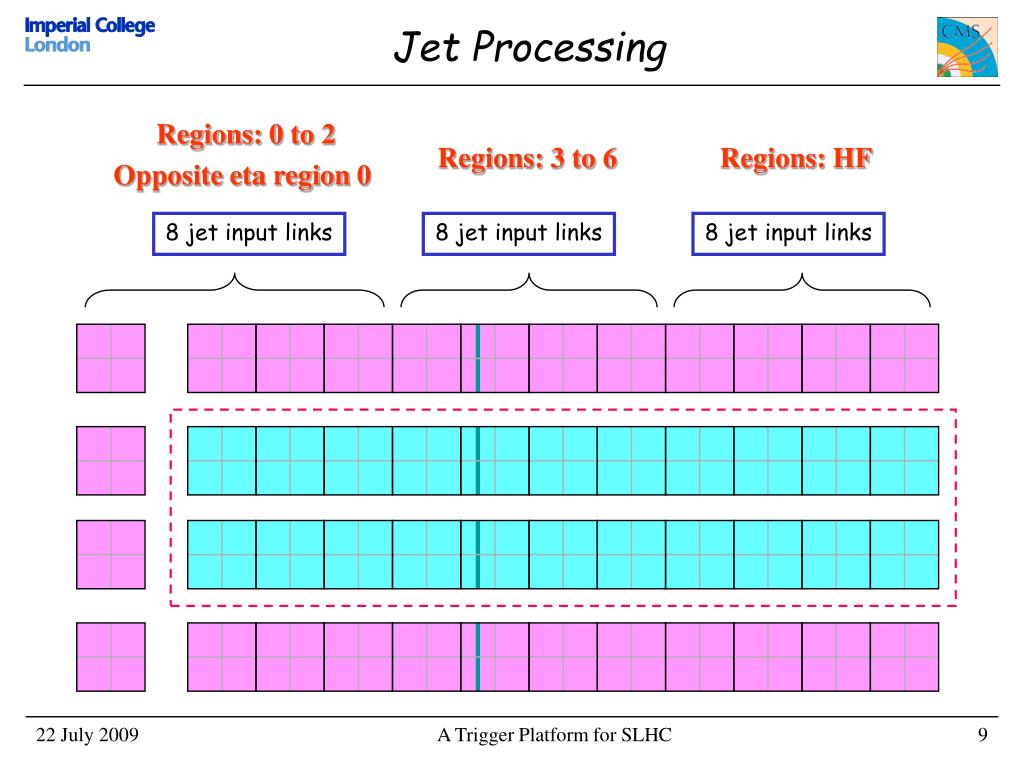

Jet processing

Jet Processing

Regions: 0 to 2

Opposite eta region 0

Regions: 3 to 6

Regions: HF

8 jet input links

8 jet input links

8 jet input links

A Trigger Platform for SLHC


System view utca crates

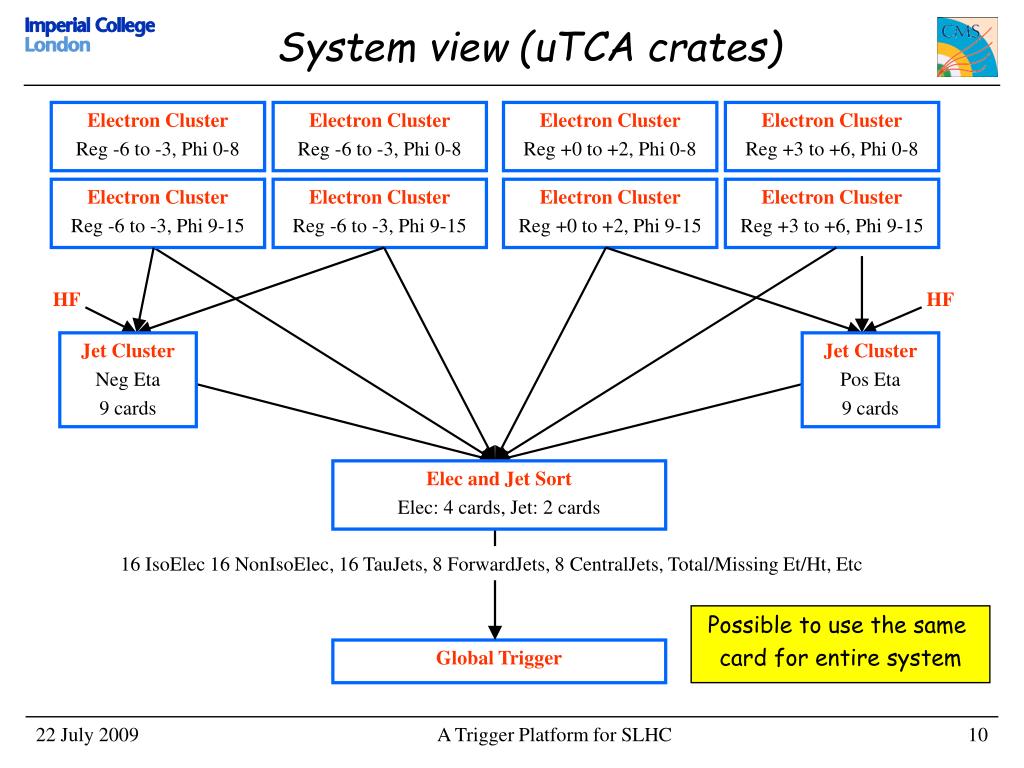

System view (uTCA crates)

Electron Cluster

Reg -6 to -3, Phi 0-8

Electron Cluster

Reg -6 to -3, Phi 0-8

Electron Cluster

Reg +0 to +2, Phi 0-8

Electron Cluster

Reg +3 to +6, Phi 0-8

Electron Cluster

Reg -6 to -3, Phi 9-15

Electron Cluster

Reg -6 to -3, Phi 9-15

Electron Cluster

Reg +0 to +2, Phi 9-15

Electron Cluster

Reg +3 to +6, Phi 9-15

HF

HF

Jet Cluster

Neg Eta

9 cards

Jet Cluster

Pos Eta

9 cards

Elec and Jet Sort

Elec: 4 cards, Jet: 2 cards

16 IsoElec 16 NonIsoElec, 16 TauJets, 8 ForwardJets, 8 CentralJets, Total/Missing Et/Ht, Etc

Possible to use the same

card for entire system

Global Trigger

A Trigger Platform for SLHC


Latency

According to TDR

RCT latency = 20bx

Does this include Vitesse link sync?

RCT-GCT cable delay = 4bx

GCT to GT including GT link = 15bx

Hence total = 39bx

Elec PreCluster

Jet 2x2 TowerSum

Elec Cluster

Latency

~5bx

HF

4x18=72

~10bx

2x9=18

Jet Cluster

~10bx

4

2

Elec Sort

Jet Sort

~10bx

Optional 16->4 Sort in OGTI or New GT

A Trigger Platform for SLHC


Part 2 processing card

Part 2: Processing Card

Overview ot main features

A Trigger Platform for SLHC

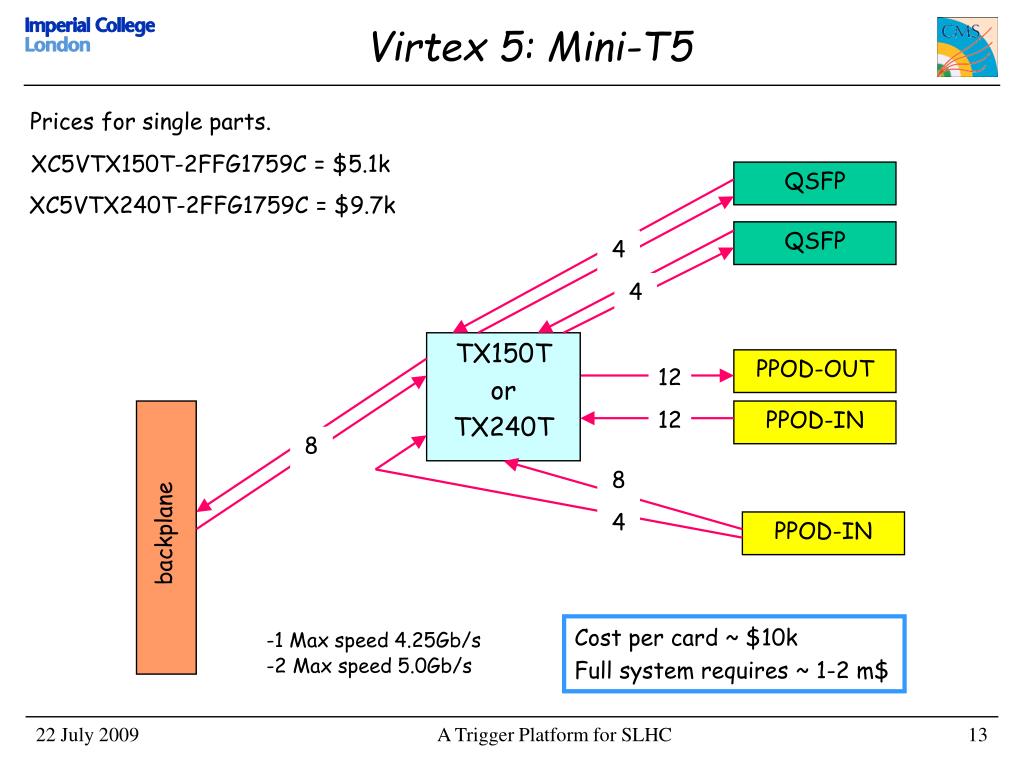

Virtex 5 mini t5

Virtex 5: Mini-T5

Prices for single parts.

XC5VTX150T-2FFG1759C = $5.1k

QSFP

XC5VTX240T-2FFG1759C = $9.7k

QSFP

4

4

TX150T

or

TX240T

PPOD-OUT

12

12

PPOD-IN

8

8

4

backplane

PPOD-IN

Cost per card ~ $10k

Full system requires ~ 1-2 m$

-1 Max speed 4.25Gb/s

-2 Max speed 5.0Gb/s

A Trigger Platform for SLHC


I o capabilities

Primay input (2 x PPODs)

AvagoTech AFBR-786 (12x6.25 Gb/s)

AvagoTech AFBR-820 (12x10.3 Gb/s)

Primay output (1 x PPOD)

AFBR-776 (12x6.25 Gb/s)

AFBR-810 (12x10.3 Gb/s)

Primary sharing (2 x QSFP)

AFBR-79Q4Z (BiDir, 4x10 Gb/s)

AFBR-79Q5Z (BiDir, 4x5 Gb/s)

Avoids crate to crate interconnect issues

Auxillary I/O

Samtec 2x40 LVDS interface (~Gb/s)

(QTH/QSH series)

Low latency inteconnect

Connector on each side

Flex cable available from Samtec

Could also be used for daughter card

Backplane

8 (Virtex5) or 4 (Virtex6)

At least 1 used for Ethernet, Perhaps 1 for DAQ

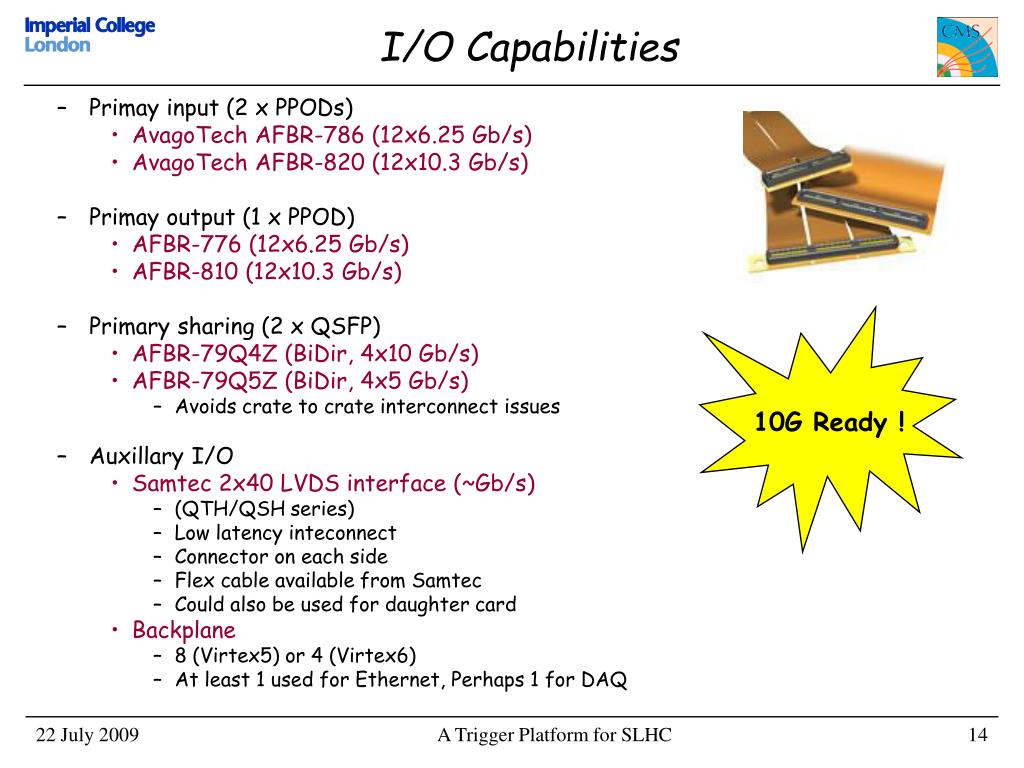

I/O Capabilities

10G Ready !

A Trigger Platform for SLHC


Clock distribution

Clock Distribution

uTCA Clk3

SMA

uTCA Clk1

V5

Osc1

Osc2

CrossPoint

2

Use Dynamic Reconfiguration Port

within V5 to reroute clks.

Already done this OGTI card.

Max 3 jumps between GTPs / GTXs

2x CrossPoint

8

A Trigger Platform for SLHC


Mini t5 current status

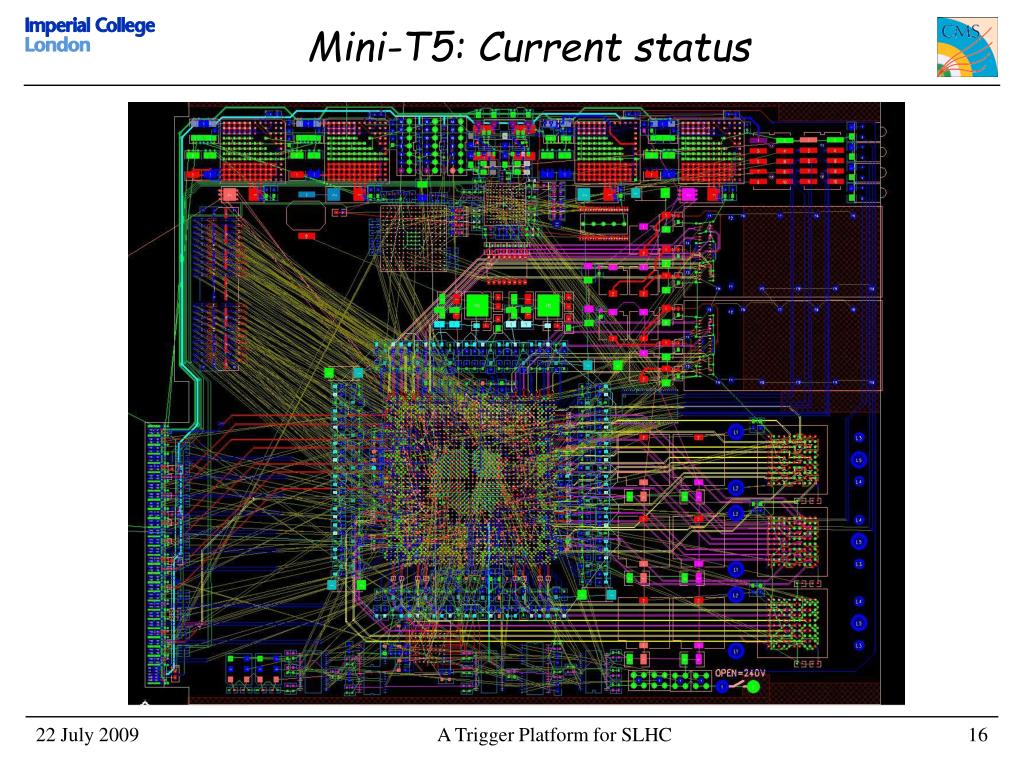

Mini-T5: Current status

A Trigger Platform for SLHC

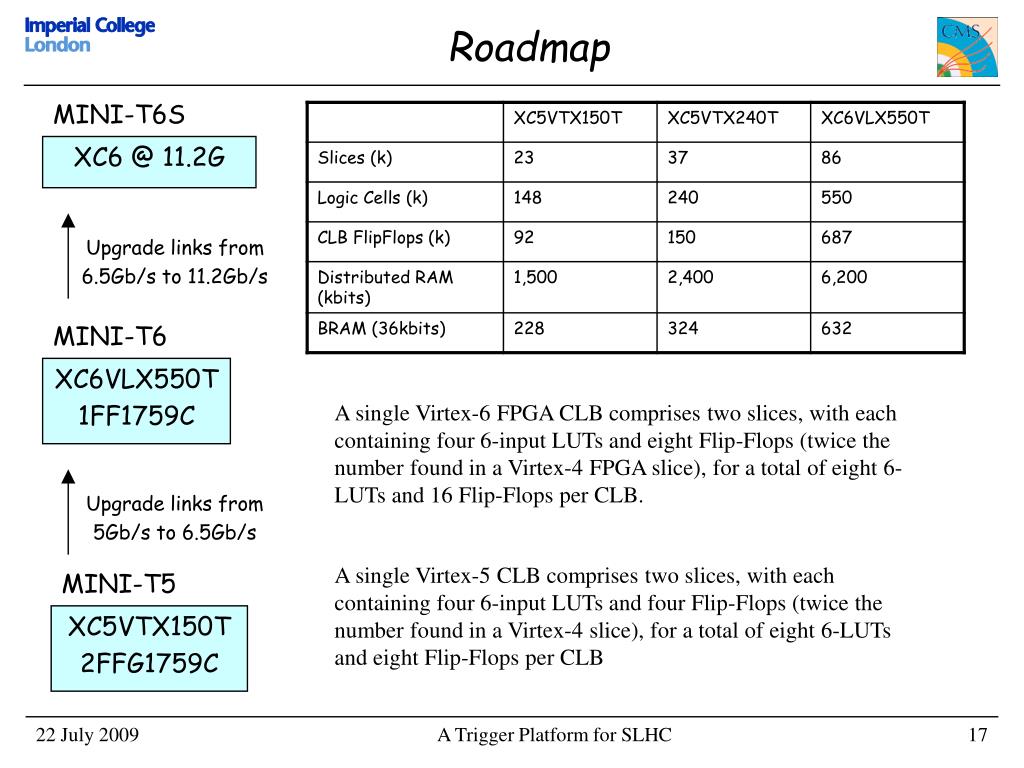

Roadmap

Roadmap

MINI-T6S

XC6 @ 11.2G

Upgrade links from

6.5Gb/s to 11.2Gb/s

MINI-T6

XC6VLX550T

1FF1759C

A single Virtex-6 FPGA CLB comprises two slices, with each containing four 6-input LUTs and eight Flip-Flops (twice the number found in a Virtex-4 FPGA slice), for a total of eight 6-LUTs and 16 Flip-Flops per CLB.

Upgrade links from

5Gb/s to 6.5Gb/s

A single Virtex-5 CLB comprises two slices, with each containing four 6-input LUTs and four Flip-Flops (twice the number found in a Virtex-4 slice), for a total of eight 6-LUTs and eight Flip-Flops per CLB

MINI-T5

XC5VTX150T

2FFG1759C

A Trigger Platform for SLHC


Part 3 services

Part 3: Services

Still thinking about this

Just some ideas...

A Trigger Platform for SLHC


Services required

Services Required

  • Communication:

    • GbE (SerDes) is the standard on uTCA

  • DAQ data concentration

    • Mainly on trigger systems

  • CLK40, TTC (Chans A & B) & TTS

    • Downstream systems may not need this.

  • Switching

    • GbE, PCIe or SRIO

    • Protocol Agnostic

A Trigger Platform for SLHC

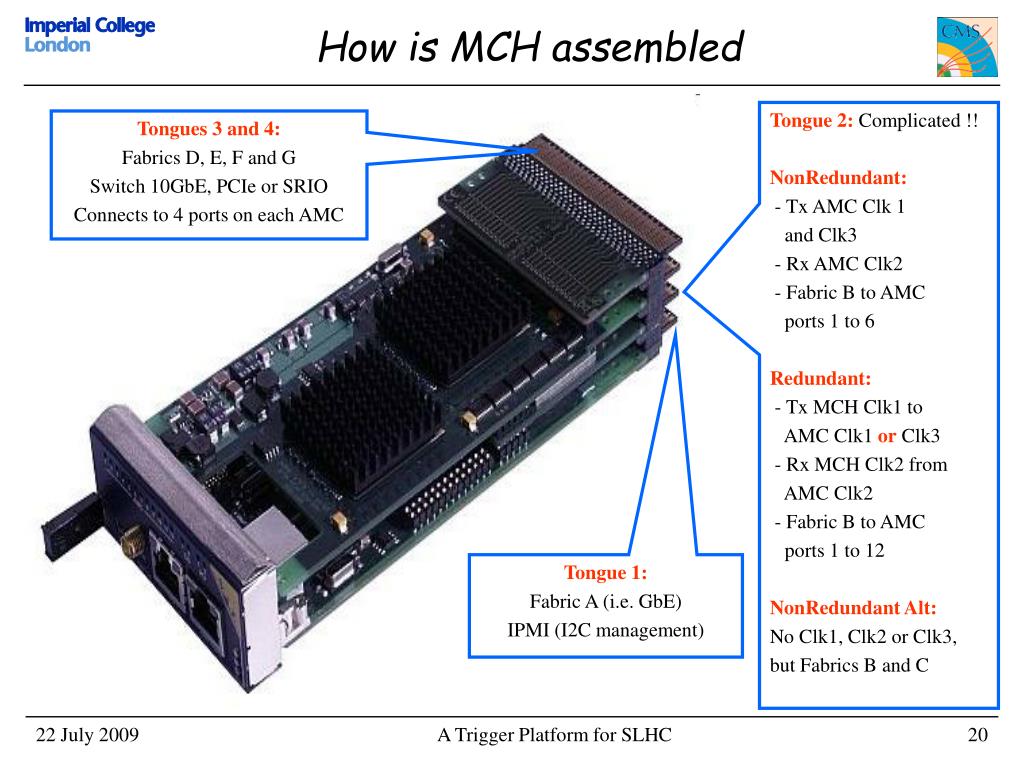

How is mch assembled

How is MCH assembled

Tongue 2: Complicated !!

NonRedundant:

- Tx AMC Clk 1

and Clk3

- Rx AMC Clk2

- Fabric B to AMC

ports 1 to 6

Redundant:

- Tx MCH Clk1 to

AMC Clk1 or Clk3

- Rx MCH Clk2 from

AMC Clk2

- Fabric B to AMC

ports 1 to 12

NonRedundant Alt:

No Clk1, Clk2 or Clk3,

but Fabrics B and C

Tongues 3 and 4:

Fabrics D, E, F and G

Switch 10GbE, PCIe or SRIO

Connects to 4 ports on each AMC

Tongue 1:

Fabric A (i.e. GbE)

IPMI (I2C management)

A Trigger Platform for SLHC


Backplane allocation

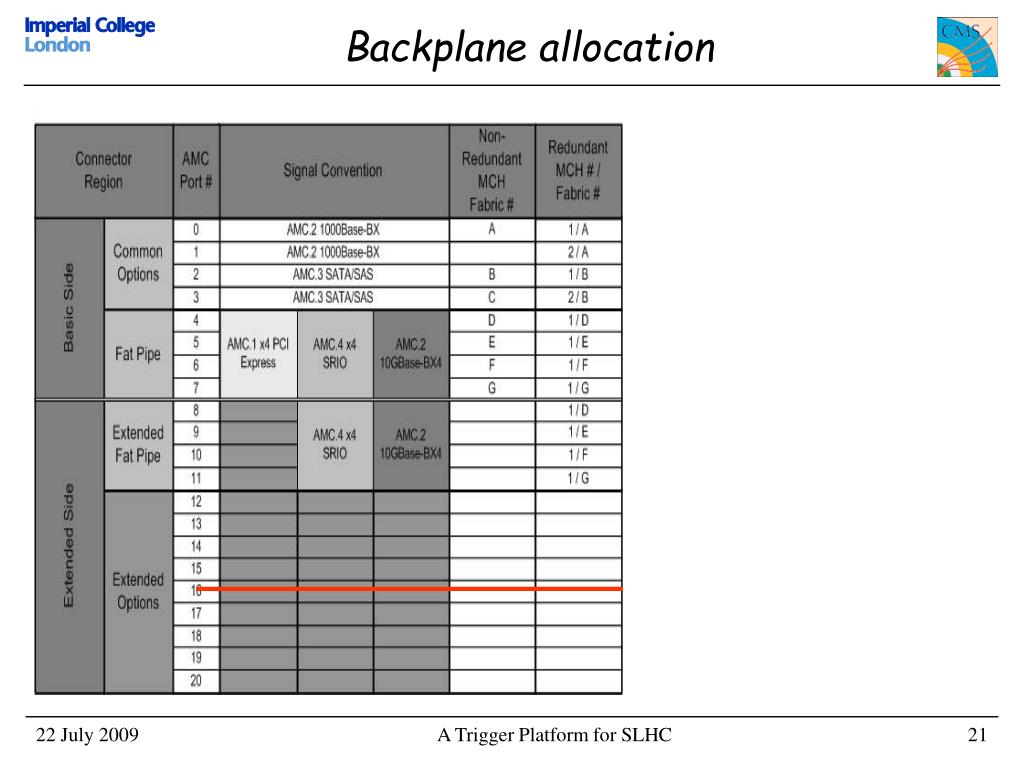

Backplane allocation

A Trigger Platform for SLHC


A compact trigger architecture for slhc

MCH1 providing GbE and

standard functionality

MCH2 providing CMS functionality

A Trigger Platform for SLHC


Backplane design

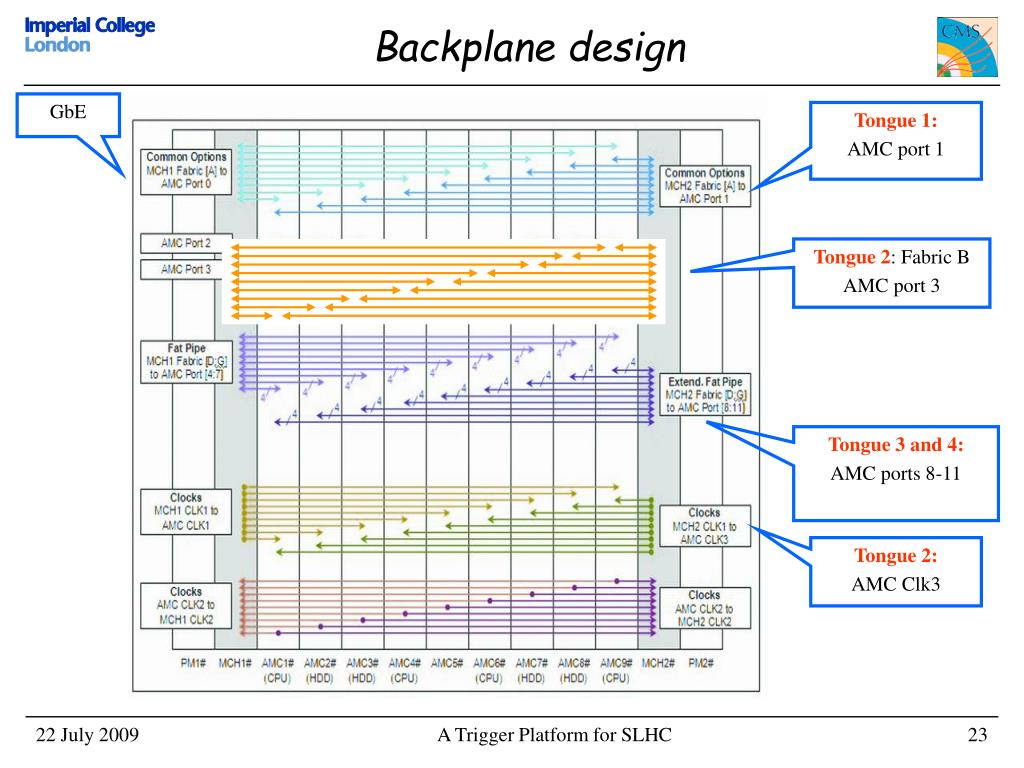

Backplane design

GbE

Tongue 1:

AMC port 1

Tongue 2: Fabric B

AMC port 3

Tongue 3 and 4:

AMC ports 8-11

Tongue 2:

AMC Clk3

A Trigger Platform for SLHC


Option 1

MCH1 T1

GbE

MCH1 T3/T4

Protocol agnostic switch

4x (12x12) or 72x72

Connects to FatPipe

MCH2 T1

Must have this tongue

Hence place basic services here.

TTC/TTS on Fabric A (AMC Port1)

MCH2 T2

LHC Clk on MCH Clk1 (AMC Clk3)

MCH2 T3/T4:

DAQ on port 8

Ports 9-11 unused

But...

Seems to waste MCH2 T3 & T4

Could be used for X-point switch (or other app)

If Fabric B available then..

Protocol agnostic switch custom to particular vendors MCH.

No power/communication to T3/T4.

Option 1

A Trigger Platform for SLHC


Option 2

MCH2 T1

DAQ on Fabric A (AMC Port 1)

Perhaps here rather than because this is the main PCB

May need large FPGA + optics if eventual aim is 10GbE for DAQ

MCH2 T2

LHC CLK on MCH Clk1 (AMC Clk 3)

TTC/TTS on Fabric B (AMC Port3)

MCH2 T3/T4

Spare

Protocol agnostic switch?

Option 2

A Trigger Platform for SLHC


Mch for trigger system

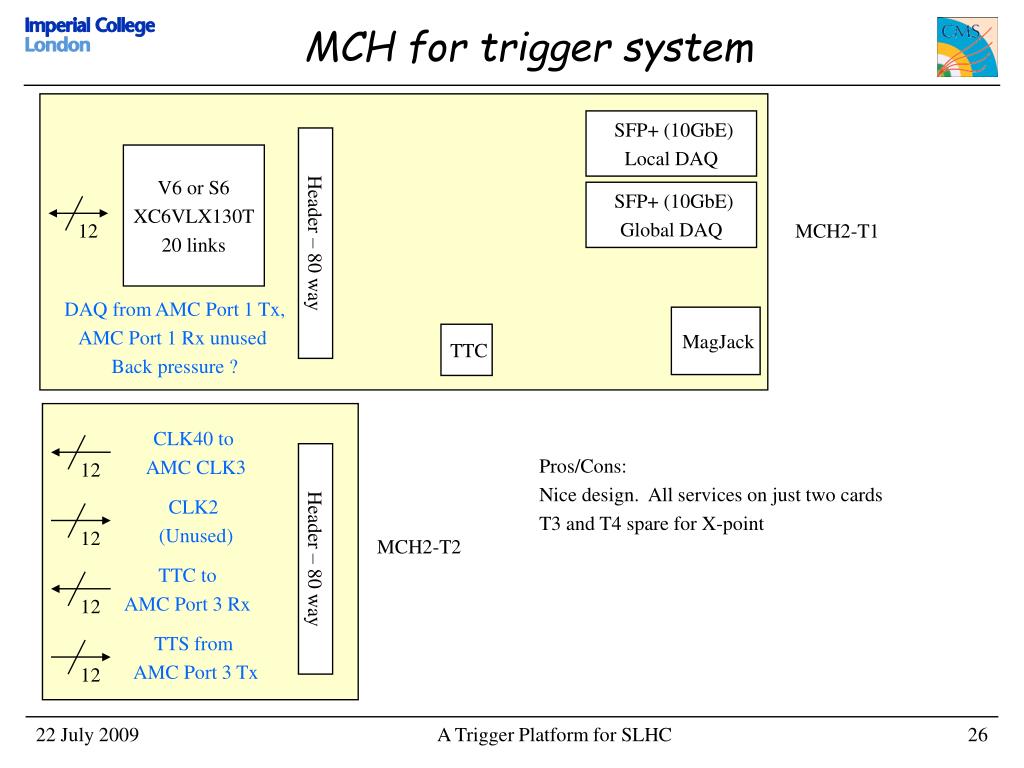

MCH for trigger system

SFP+ (10GbE)

Local DAQ

V6 or S6

XC6VLX130T

20 links

SFP+ (10GbE)

Global DAQ

12

MCH2-T1

Header – 80 way

DAQ from AMC Port 1 Tx,

AMC Port 1 Rx unused

Back pressure ?

MagJack

TTC

CLK40 to

AMC CLK3

Pros/Cons:

Nice design. All services on just two cards

T3 and T4 spare for X-point

12

CLK2

(Unused)

12

MCH2-T2

Header – 80 way

TTC to

AMC Port 3 Rx

12

TTS from

AMC Port 3 Tx

12

A Trigger Platform for SLHC


Conclusions

Conclusions

  • First attempt to match physical geometry onto hardware platform

    • Some spare capacity for contingency

    • Leaves basic design flexible

  • Processing card

    • Flexible

    • Should support multiple algorithms

    • Easily upgraded to Virtex 6 without destroying mapping onto hardware

    • Manufacture in August

      • Card should be back in September or October

  • Services / Crates / MCHs

    • Still considering options.
