  1. Reverse-EngineeringInstruction Encodings Wilson Hsieh, University of Utah Dawson Engler, Stanford University Godmar Back, University of Utah

  2. What’s the Problem? • Dynamic code generation, JIT compilation • Emit instructions quickly • Therefore, avoid assembler • Need to know how to produce binary instructions • Want to express instructions in assembly “Generate add %l1, %l2, %l1 for SPARC”

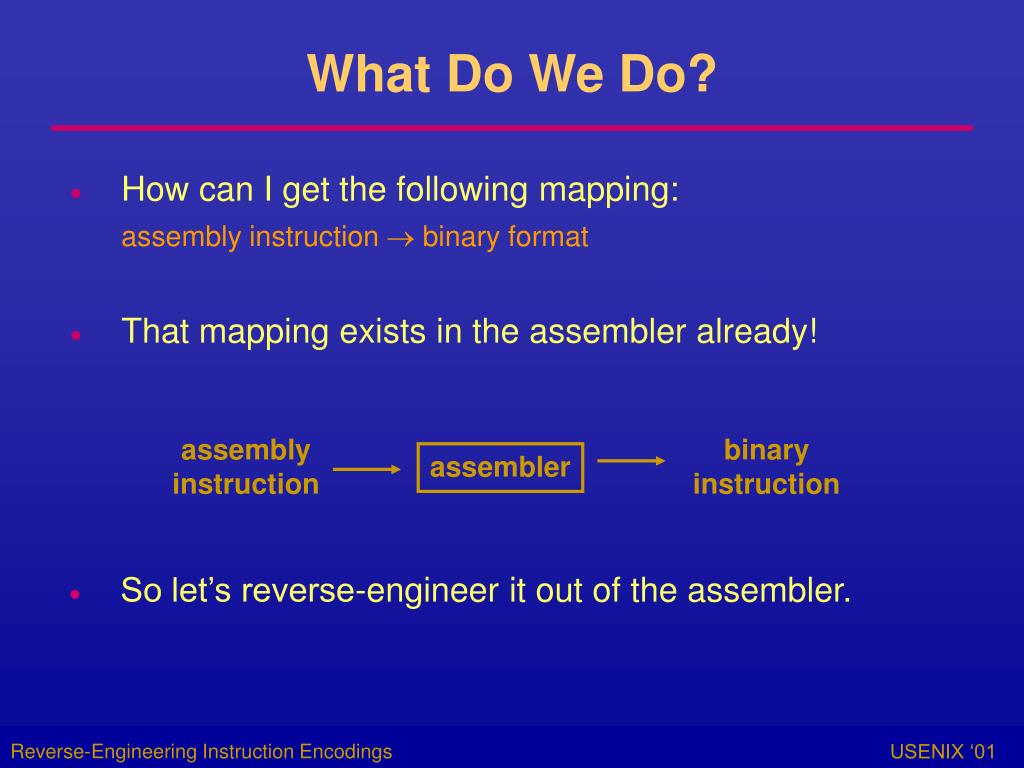

  3. assembly instruction binary instruction assembler What Do We Do? • How can I get the following mapping: assembly instruction  binary format • That mapping exists in the assembler already! • So let’s reverse-engineer it out of the assembler.

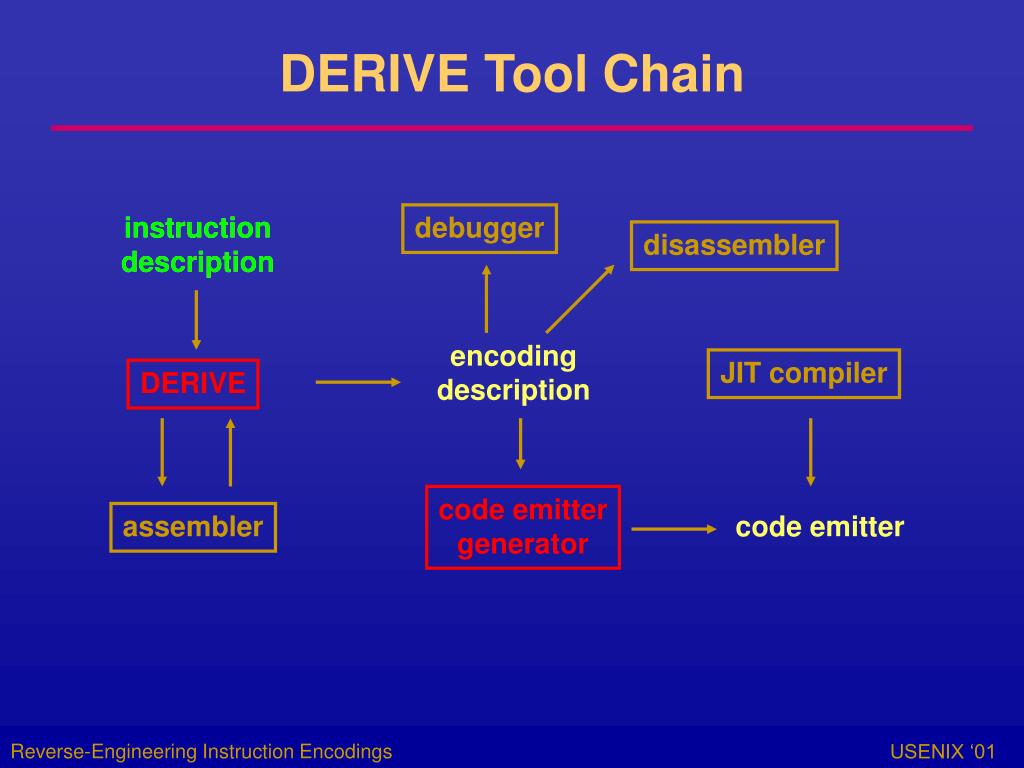

  4. debugger disassembler encoding description JIT compiler code emitter generator code emitter DERIVE Tool Chain instruction description instruction description DERIVE assembler

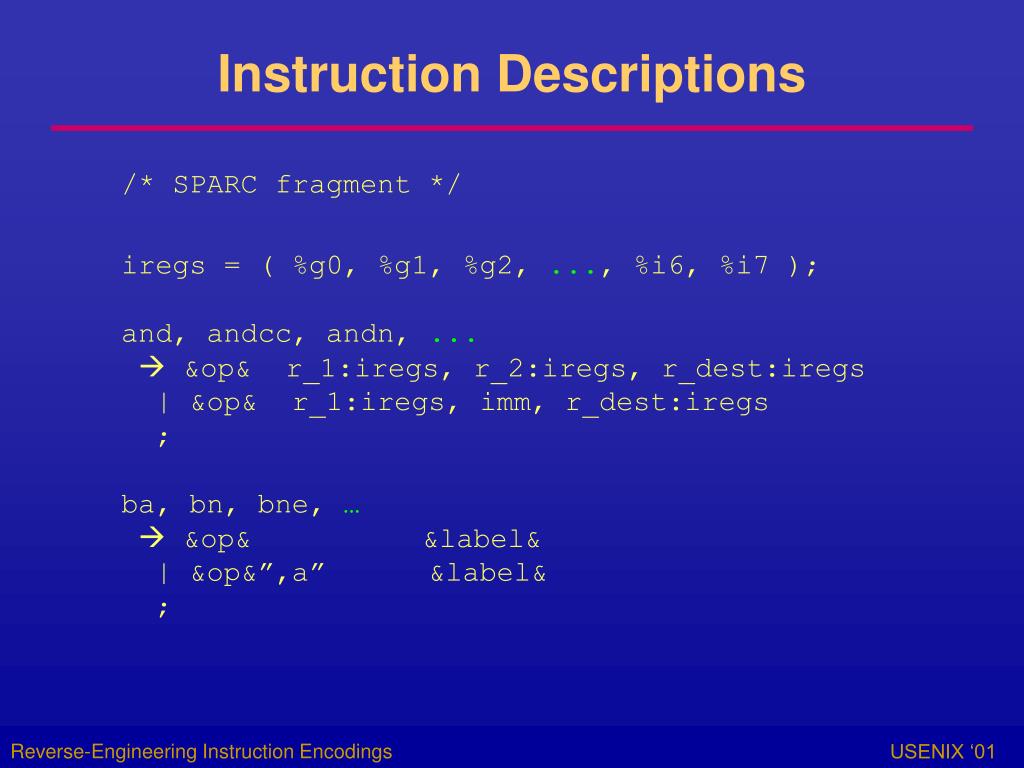

  5. Instruction Descriptions /* SPARC fragment */ iregs = ( %g0, %g1, %g2, ..., %i6, %i7 ); and, andcc, andn, ...  &op& r_1:iregs, r_2:iregs, r_dest:iregs | &op& r_1:iregs, imm, r_dest:iregs ; ba, bn, bne, …  &op& &label& | &op&”,a” &label& ;

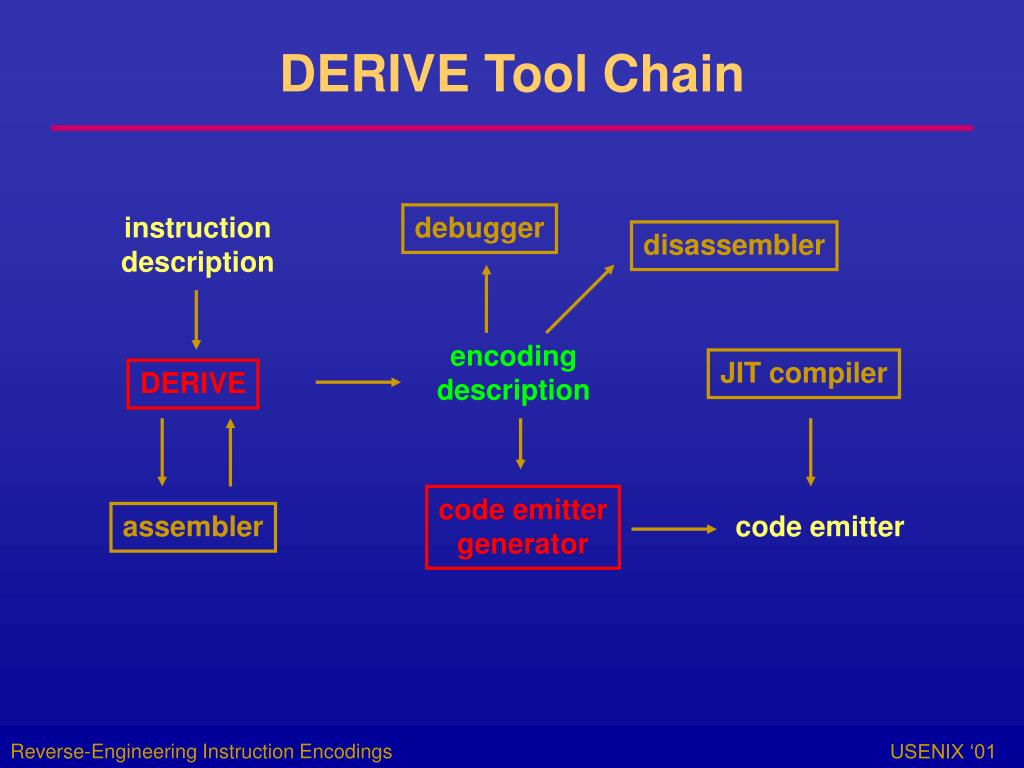

  6. debugger disassembler encoding description JIT compiler code emitter generator code emitter DERIVE Tool Chain instruction description DERIVE assembler

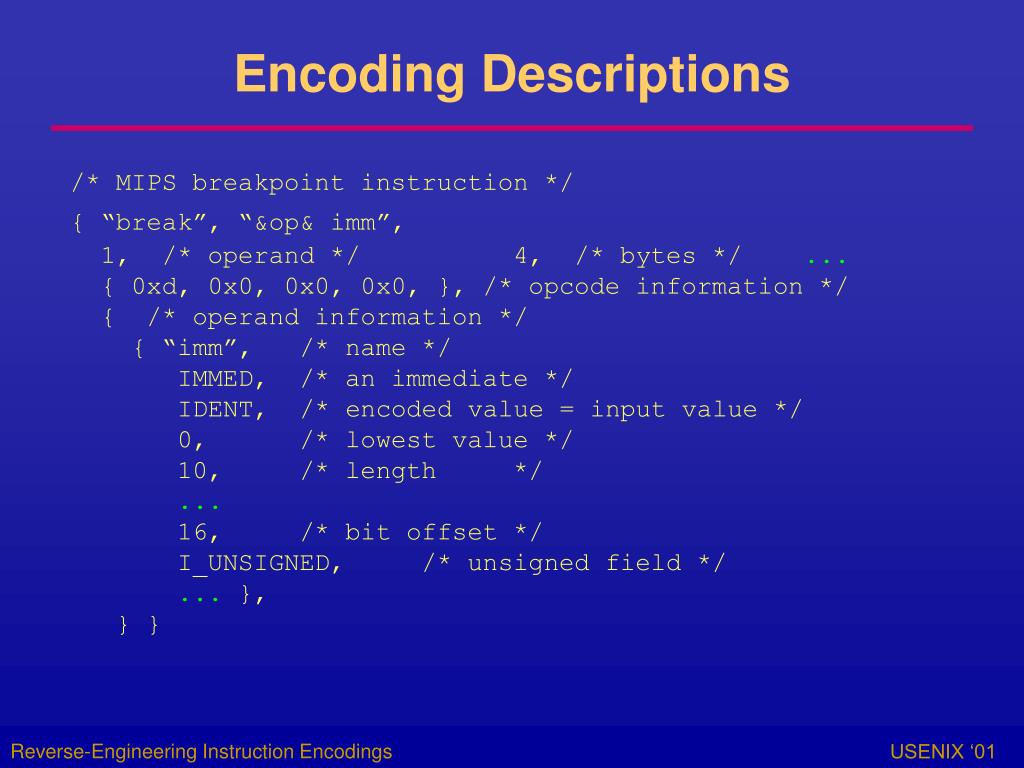

  7. Encoding Descriptions /* MIPS breakpoint instruction */ { “break”, “&op& imm”, 1, /* operand */ 4, /* bytes */ ... { 0xd, 0x0, 0x0, 0x0, }, /* opcode information */ { /* operand information */ { “imm”, /* name */ IMMED, /* an immediate */ IDENT, /* encoded value = input value */ 0, /* lowest value */ 10, /* length */ ... 16, /* bit offset */ I_UNSIGNED, /* unsigned field */ ...}, } }

  8. debugger disassembler encoding description JIT compiler code emitter generator code emitter DERIVE Tool Chain instruction description DERIVE assembler

  9. Code Emitters /* x86 addl instruction */ #define E_addl_rr_1(_code, rf, rt) do {\ register unsigned short _0 = (0xc001\ | ((((rf)) << 11))\ | (((rt)) << 8)));\ *(unsigned short*)((char*) _code) = _0;\ _code = (void *)((char *) _code + 2);\ } while (0) /* emit “addl %ecx, %ebx” in code_buffer */ E_addl_rr_1(code_buffer, REGecx, REGebx);

  10. Instruction Model • Opcode • Registers (names) • Register sets • Cache prefetch hints on MIPS • Address scale on x86 • Immediates (integers) • Not registers • Labels (jump targets) • Absolute jumps • Relative jumps 31 0 O P C ODE ARG 1 ARG 2 ARG 3

  11. Overall Strategy • Solve for one field at a time • Hold other fields fixed and vary the desired field • Use randomization when necessary to find legal values • Anything that is not in a field is the opcode

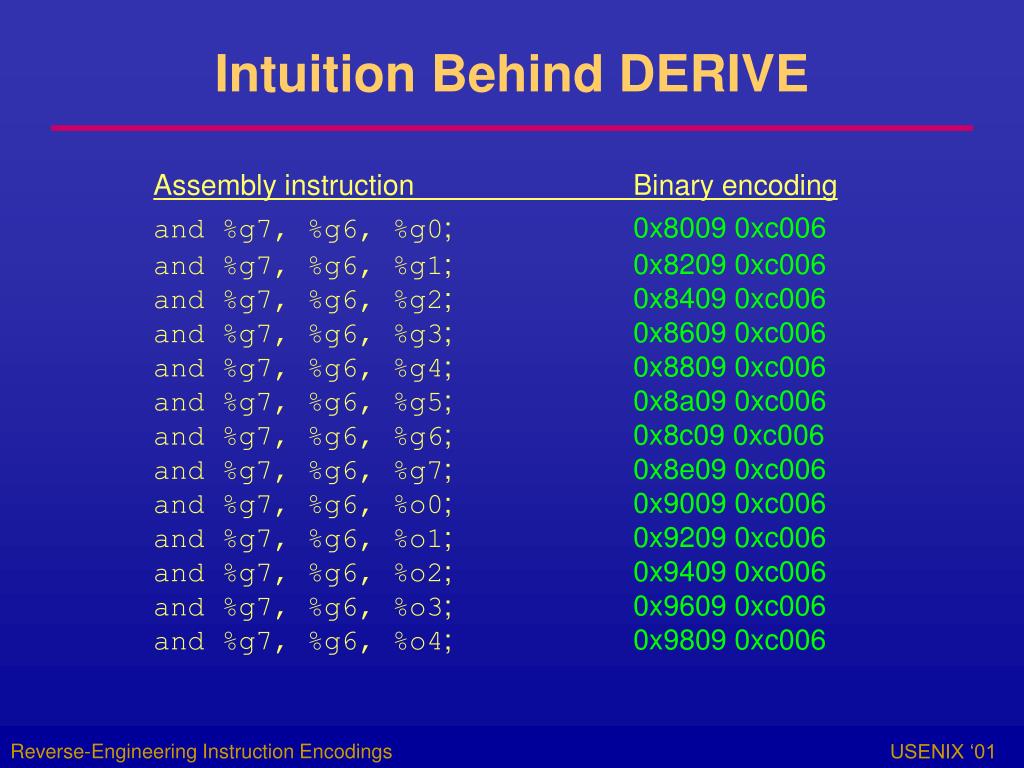

  12. Intuition Behind DERIVE Assembly instruction Binary encoding and %g7, %g6, %g0; 0x8009 0xc006 and %g7, %g6, %g1; 0x8209 0xc006 and %g7, %g6, %g2; 0x8409 0xc006 and %g7, %g6, %g3; 0x8609 0xc006 and %g7, %g6, %g4; 0x8809 0xc006 and %g7, %g6, %g5; 0x8a09 0xc006 and %g7, %g6, %g6; 0x8c09 0xc006 and %g7, %g6, %g7; 0x8e09 0xc006 and %g7, %g6, %o0; 0x9009 0xc006 and %g7, %g6, %o1; 0x9209 0xc006 and %g7, %g6, %o2; 0x9409 0xc006 and %g7, %g6, %o3; 0x9609 0xc006 and %g7, %g6, %o4; 0x9809 0xc006

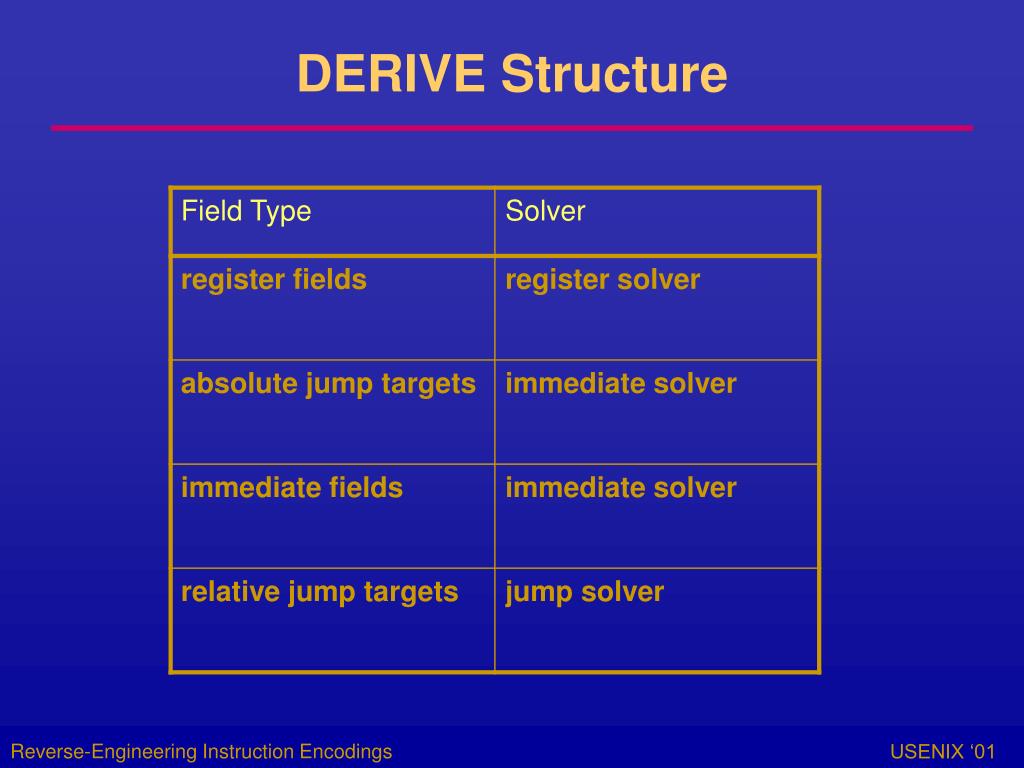

  13. DERIVE Structure

  14. Register Solver • Primary assumptions (for purposes of the talk): • Register fields are independent • All register values are legal • Enumerate registers for one field at a time • Hold other fields constant • Solve each field separately • Example: 3 register fields, 5 bits per field • 2^5 * 3 = 32 * 3 = 96 combinations

  15. Intuition Behind DERIVE Assembly instruction Binary encoding and %g7, %g6, %g0; 0x8009 0xc006 and %g7, %g6, %g1; 0x8209 0xc006 and %g7, %g6, %g2; 0x8409 0xc006 and %g7, %g6, %g3; 0x8609 0xc006 and %g7, %g6, %g4; 0x8809 0xc006 and %g7, %g6, %g5; 0x8a09 0xc006 and %g7, %g6, %g6; 0x8c09 0xc006 and %g7, %g6, %g7; 0x8e09 0xc006 and %g7, %g6, %o0; 0x9009 0xc006 and %g7, %g6, %o1; 0x9209 0xc006 and %g7, %g6, %o2; 0x9409 0xc006 and %g7, %g6, %o3; 0x9609 0xc006 and %g7, %g6, %o4; 0x9809 0xc006

  16. Immediate Solver • Primary assumptions: • Immediate field is a single range of bits in instruction • Explore each bit size to find encoding of one field • Values of 1, 2, 4, 8, 16, ... • Again, hold other fields constant • Example: 10-bit immediate field • 10 combinations

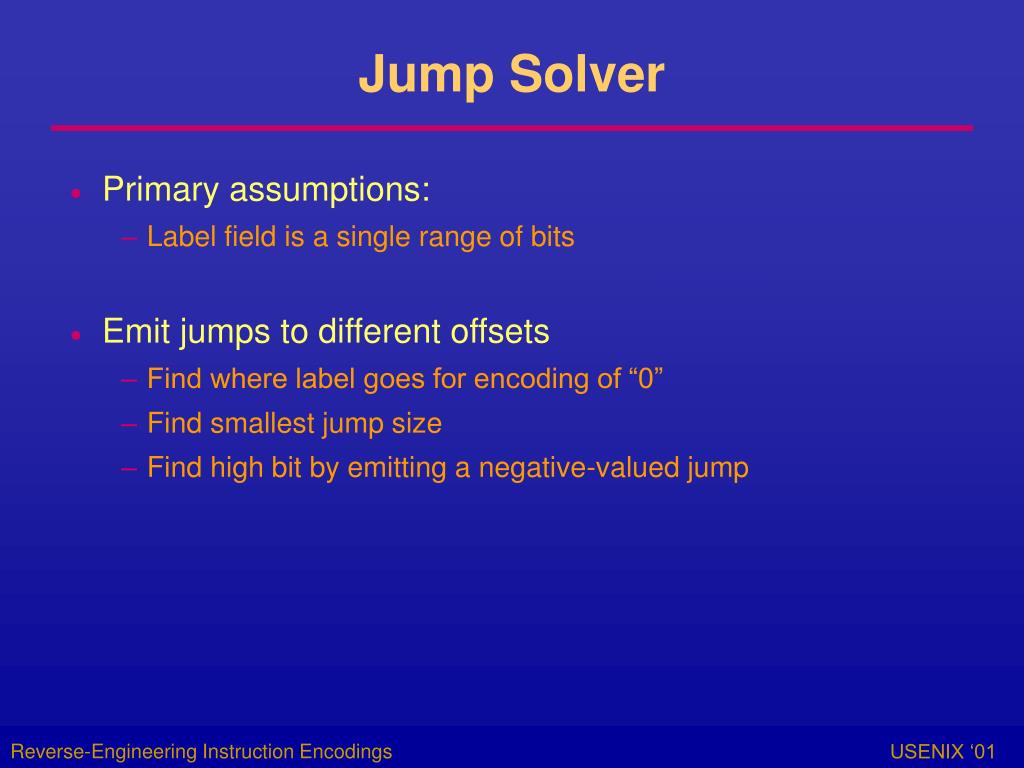

  17. Jump Solver • Primary assumptions: • Label field is a single range of bits • Emit jumps to different offsets • Find where label goes for encoding of “0” • Find smallest jump size • Find high bit by emitting a negative-valued jump

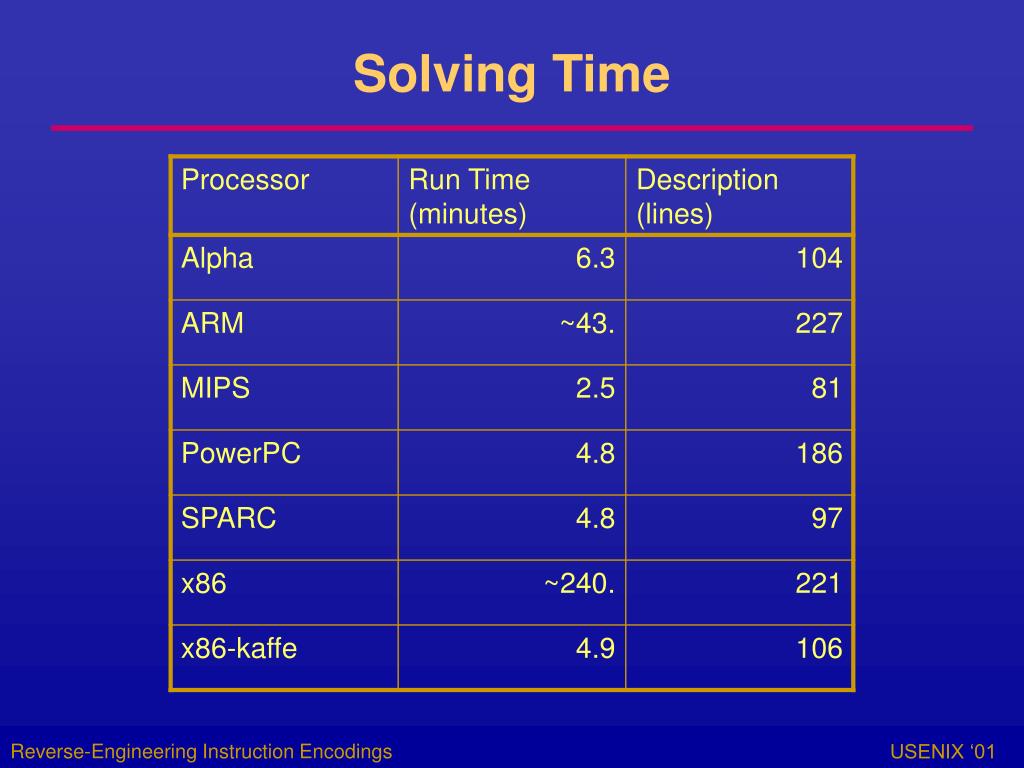

  18. Solving Time

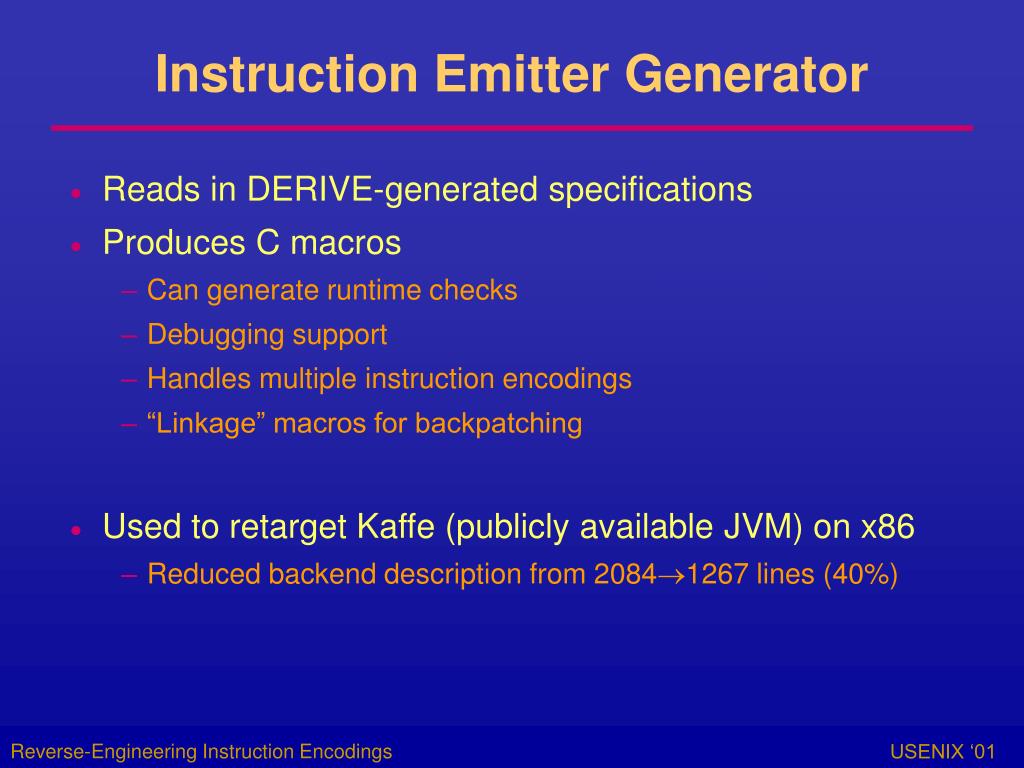

  19. Instruction Emitter Generator • Reads in DERIVE-generated specifications • Produces C macros • Can generate runtime checks • Debugging support • Handles multiple instruction encodings • “Linkage” macros for backpatching • Used to retarget Kaffe (publicly available JVM) on x86 • Reduced backend description from 20841267 lines (40%)

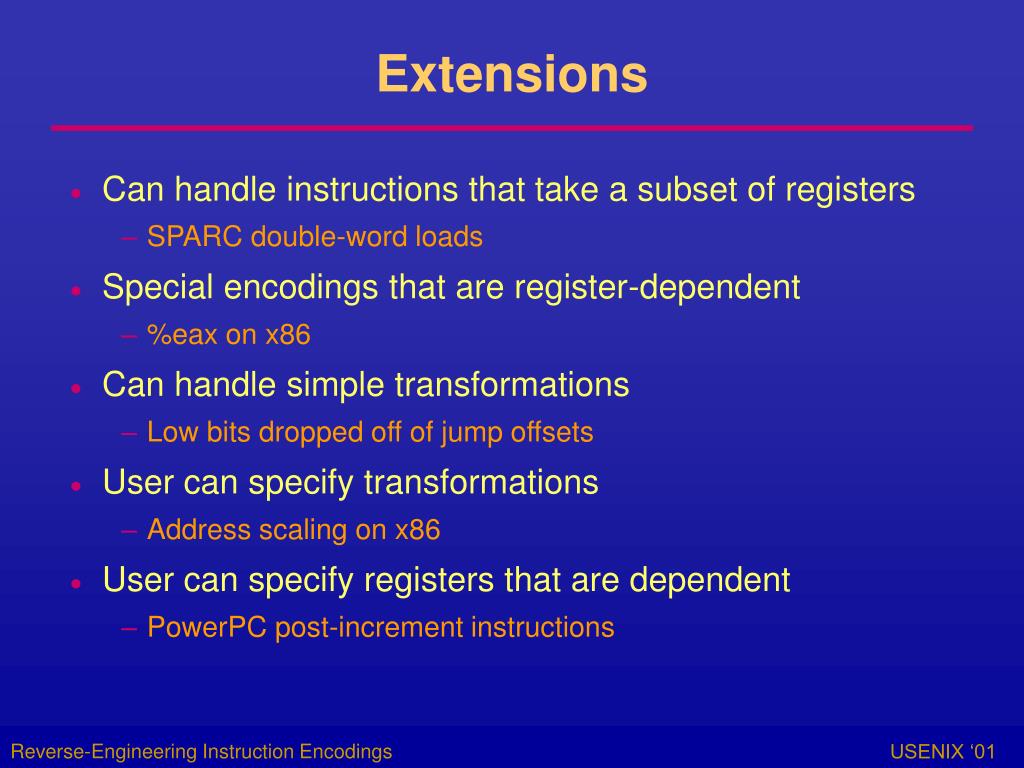

  20. Extensions • Can handle instructions that take a subset of registers • SPARC double-word loads • Special encodings that are register-dependent • %eax on x86 • Can handle simple transformations • Low bits dropped off of jump offsets • User can specify transformations • Address scaling on x86 • User can specify registers that are dependent • PowerPC post-increment instructions

  21. Future Work • Extending DERIVE • Fields that are broken up into multiple bit ranges • Memoization of computations • ATOM-like tools • Reverse-engineering linkers

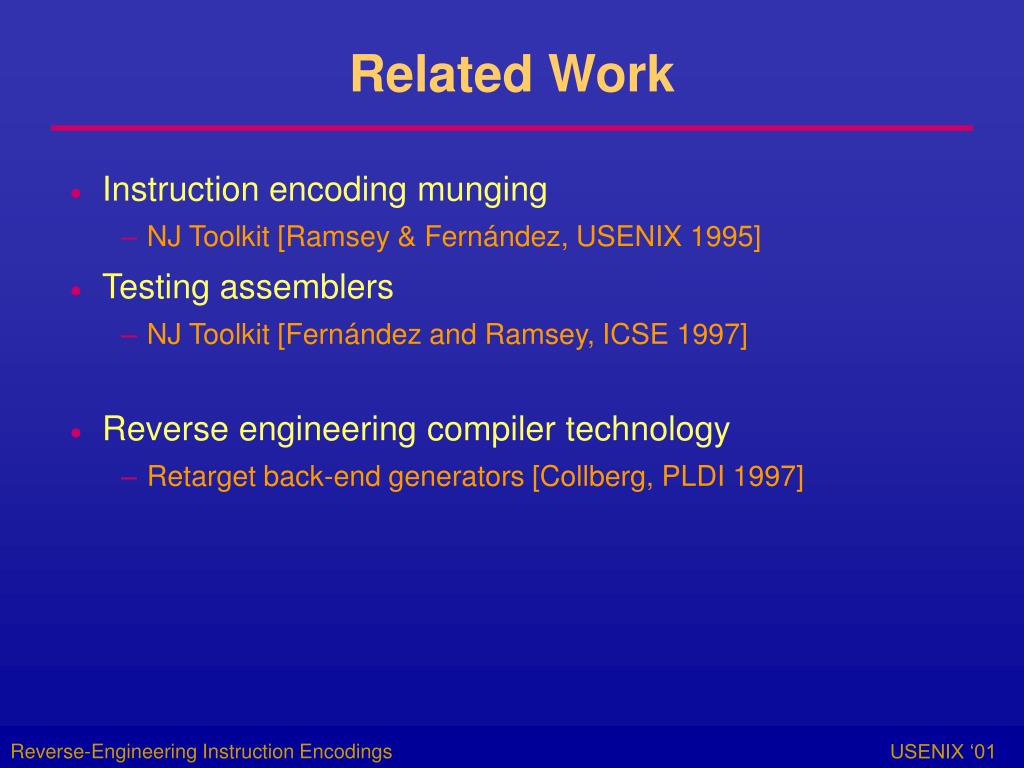

  22. Related Work • Instruction encoding munging • NJ Toolkit [Ramsey & Fernández, USENIX 1995] • Testing assemblers • NJ Toolkit [Fernández and Ramsey, ICSE 1997] • Reverse engineering compiler technology • Retarget back-end generators [Collberg, PLDI 1997]

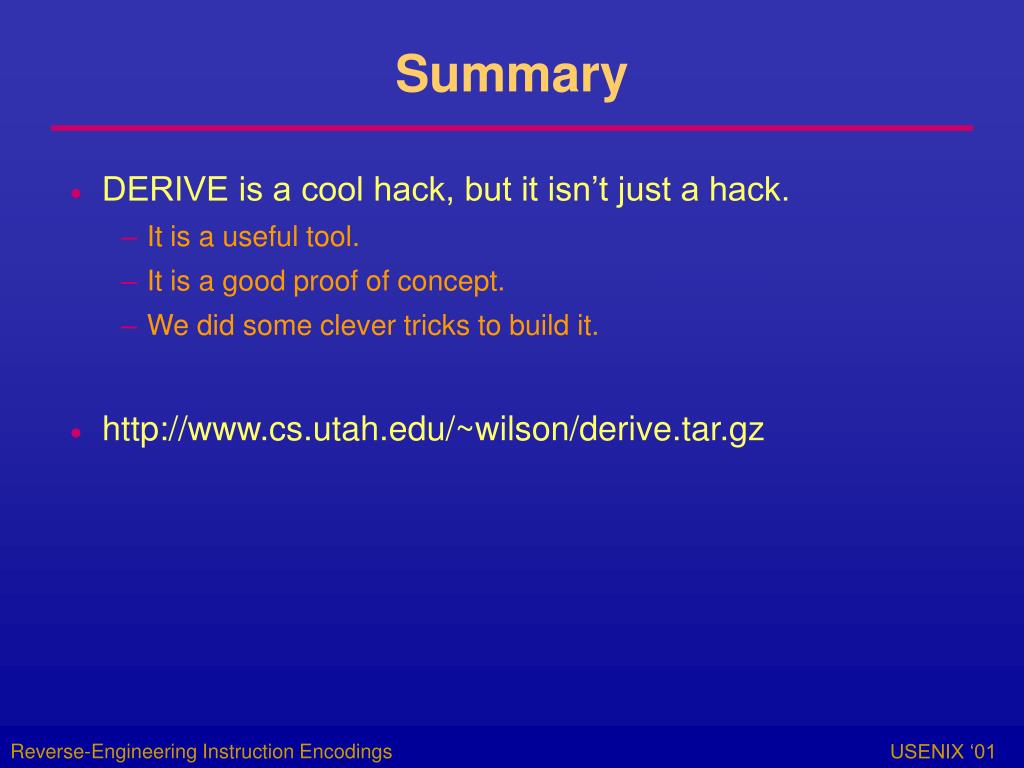

  23. Summary • DERIVE is a cool hack, but it isn’t just a hack. • It is a useful tool. • It is a good proof of concept. • We did some clever tricks to build it. • http://www.cs.utah.edu/~wilson/derive.tar.gz
