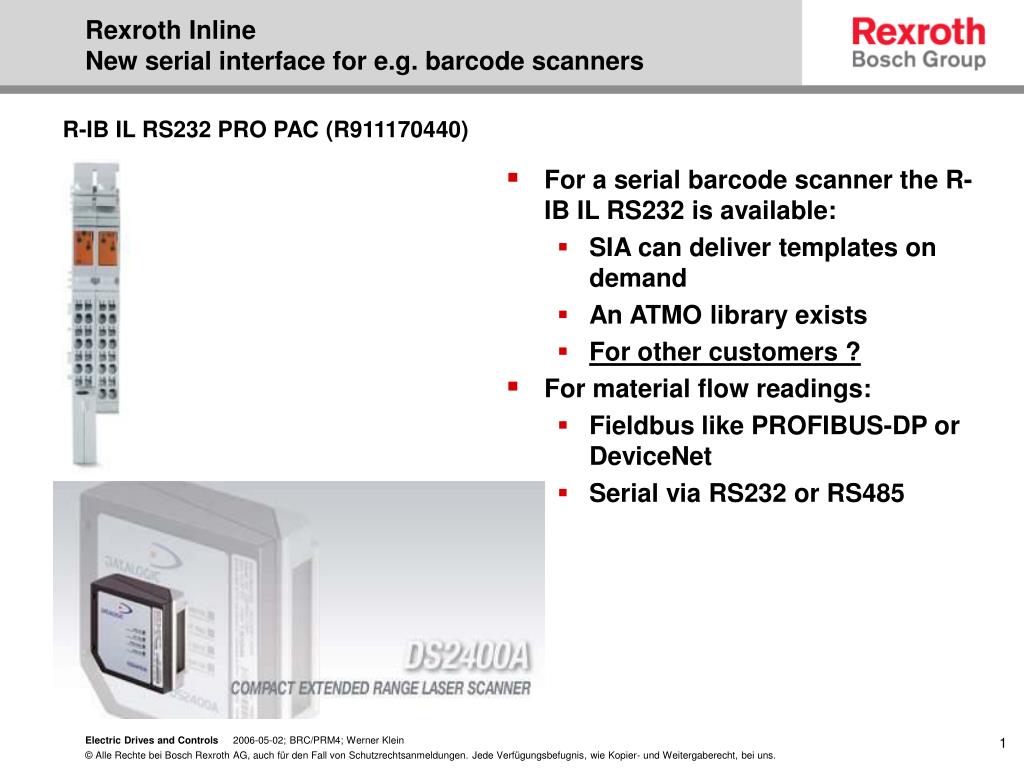

Rexroth InlineNew serial interface for e.g. barcode scanners
  • For a serial barcode scanner the R-IB IL RS232 is available:
    • SIA can deliver templates on demand
    • An ATMO library exists
    • For other customers ?
  • For material flow readings:
    • Fieldbus like PROFIBUS-DP or DeviceNet
    • Serial via RS232 or RS485

R-IB IL RS232 PRO PAC (R911170440)

Electric Drives and Controls 2006-05-02; BRC/PRM4; Werner Klein

rs 232 pro
RS 232-PRO
  • IB IL RS 232-PRO

R-IB IL RS232 PRO PAC (R911170440)

  • Features
    • A serial I/O channel as RS-232 version
    • DTR/CTS handshake supported
    • Various protocols supported
    • Transmission speed adjustable up to 38400 baud
    • Number of data bits, stop bits, and parity can be set
    • 4-kbyte receive buffer and 1-kbyte transmit buffer
    • Parameterization and data exchange via the bus using process data
    • Diagnostic and status indicators

Electric Drives and Controls 2006-05-02; BRC/PRM4; Werner Klein

accessories
Accessories
  • Connector:
    • use the grey connector set:
  • R-IB IL AO/CNT-PLSET
  • (R911289339)
  • Labeling:
    • for individual labeling use the labelfield:
  • R-IB IL FIELD 2
  • (R911289341)
  • (Quantity per unit: 10)

Electric Drives and Controls 2006-05-02; BRC/PRM4; Werner Klein

overview of the supported protocols

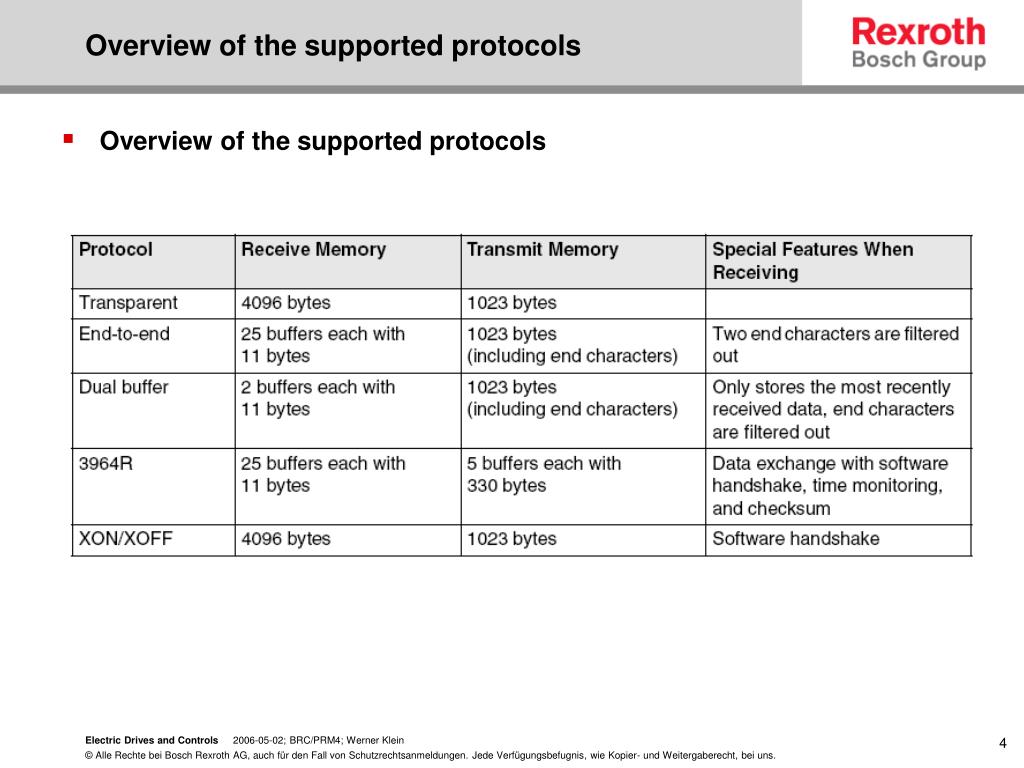

Overview of the supported protocols
  • Overview of the supported protocols

Electric Drives and Controls 2006-05-02; BRC/PRM4; Werner Klein

gsd file
GSD - File
  • Use the following GSD file for:

GSD File

Also available on our Product & Sales Packages

Electric Drives and Controls 2006-05-02; BRC/PRM4; Werner Klein

prices
Prices *)
  • R-IB IL RS232 PRO PAC $479
  • R-IB IL AO/CNT-PLSET $17
  • R-IB IL FIELD 2 $7

*) SOS List prices

Electric Drives and Controls 2006-05-02; BRC/PRM4; Werner Klein
