  1. Chemical Bonding Masterton 2011

  2. Introduction • Knowledge of IE and EN form the basis of our understanding of bonding. • bonding refers to the _________________ _____________- between pairs of atoms/ions • There are four types of bonds ________, _________, _________ ___________ and __________

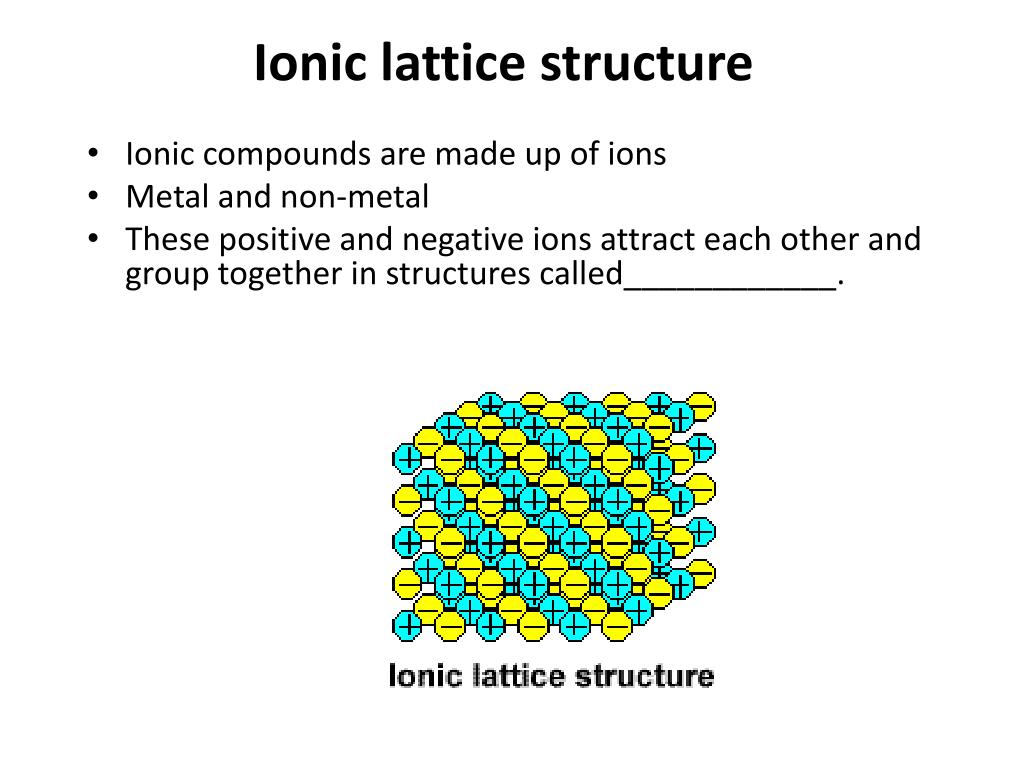

  3. Ionic lattice structure • Ionic compounds are made up of ions • Metal and non-metal • These positive and negative ions attract each other and group together in structures called____________.

  4. Ionic lattice structure cont. • extremely difficult structures to _____________. • Thus all ionic substances are ___________with _____________________________. • +500 °C • There is one method of breaking up the lattice - dissolve the ionic compound in ____________ • Water separates the ions and allow them to move freely as a solution.

  5. Illustrating Ionic bonding – Lewis Dot Diagrams Method 1) core is represented by the symbol for the element, valence e-are represented by dots 2) 4 sides and the valence e-are distributed around the sides 3) When distributing valence e-, first place one dot on each of the sides before pairing up e- on any one side.

  6. Formation of Ionic Compounds 1. Draw Lewis dot diagram of every atom in the molecule Tips: Draw atom in with fewest e- in the middle Ex: MgCl2 2. Draw a circle around the single e-that will be moved to the other atom 3. Draw an arrow from the donating atom’s e-to the receiving atom 4. Draw square brackets and charge around the resulting ions and e-

  7. Cl Cl Mg -1 +2 -1 Cl Cl Mg Formation of Ionic Compounds This is what should be shown when asked for the formation of an ionic compound Ex: MgCl2

  8. Covalent compounds • no ions. • atoms join up by sharing e-with their neighbours. • groups or clusters of atoms called ________________. • non-metal to non-metal • Pure covalent – atoms of _________________

  9. covalent compounds have _______ ______________________. • exist either as ________(like methane), ____________(like water) or as easily melted __________(like paraffin wax).

  10. Covalent Molecules Shared Electrons = bonds Single bond: 1 pair of shared e- Double bond: 2 pairs of shared e- Triple bond: 3 pairs of shared e- Examples Note: Non-bonding e- are “Lone Pairs”

  11. Covalent molecules cont. • covalent bonds inside the molecules are very strong. • Intramolecular forces (joining atoms together) • the molecules don't break apart easily. • the forces attracting neighbouring molecules to each other are very weak, thus very easy to separate molecules from one another: e.g. ammonia • Intermolecular forces (attraction between molecules)

  12. When a covalent compound melts or boils, it is the forces between the molecules which are broken. • Very little energy is needed to make this happen, so covalent substances have ________________ _________________________points.

  13. Covalent network structures • exceptions • Diamond, graphite, the element silicon and silicon dioxide are examples of covalent substances with very high melting points. • These substances don't exist as __________. Instead they have giant network structures - something like the ionic lattices, except that the bonds are all covalent. • need a large amount of E to break strong covalent bonds, so very high melting points. • _______________ in water - they are not broken apart by trying to dissolve them.

  14. Formation of Covalent Molecules 1. Draw Lewis dot diagram of every atom Ex: H2O 2. Draw a circle around 2 e-, one e- belonging to one atom and another e- belonging to the other atom 3. Draw a line to replace circled pairs of electrons

  15. H O H H O H Formation of Covalent Molecules This is what should be shown when asked for the formation of a covalent molecule Ex: H2O

  16. Polar Covalent Bonds • e- pairs not always shared _____________ between atoms. • Unequal sharing accounts for many aspects of chemical behaviour. • HCl H – ______ Cl – _______ ∆EN = • H has a lower EN than Cl therefore the electrons will be closer to the Cl. • (Remember- EN is the ability to attract electrons in a chemical bond) • Thus, the charge is distributed slightly unevenly throughout the molecule. This is a _______________________________

  17. Ionic, Covalent or Polar Covalent Electronegativity can determine whether a molecule is ionic or covalent or polar covalent DEN = [EN value of one atom] - [EN value of another atom]

  18. Metallic Bonds • Metals in the solid state consist of an array of the metal cations sharing all the valence e- from all the cations • The electrons are said to be “___________________” (not being associated with any particular cation) and are free to _________________________. • Known as

  19. Metallic bonding cont. • Sulphur is easily ground • Tin can be flattened but not broken • Magnesium is not easily broken up

  20. Summary
