Statics: Force Equilibrium

Statics: Force Equilibrium. The condition of equilibrium How to solve Example Whiteboards (Demo: Force scales, masses). F 2. F 3. F 1. Statics – acceleration = 0 Force Equilibrium - <The sum of all forces > = 0. Adding the three forces tip to tail:. They add to zero. How to solve:

yin
Download Presentation

Statics: Force Equilibrium

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Statics: Force Equilibrium The condition of equilibrium How to solve Example Whiteboards (Demo: Force scales, masses)

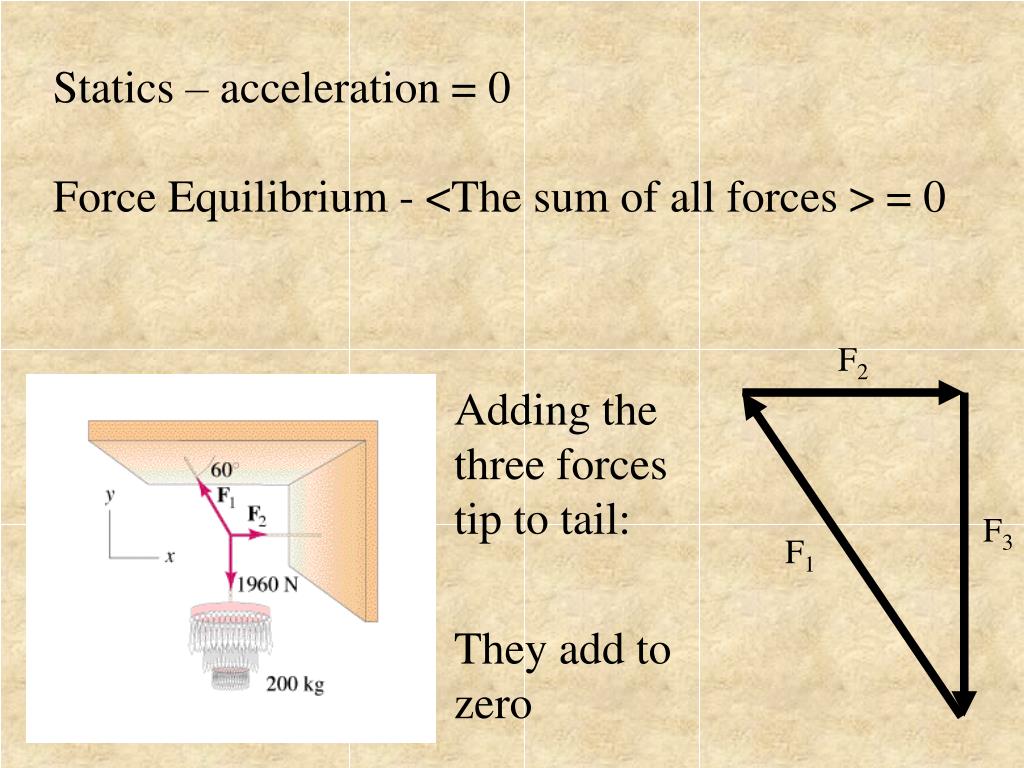

  2. F2 F3 F1 Statics – acceleration = 0 Force Equilibrium - <The sum of all forces > = 0 Adding the three forces tip to tail: They add to zero

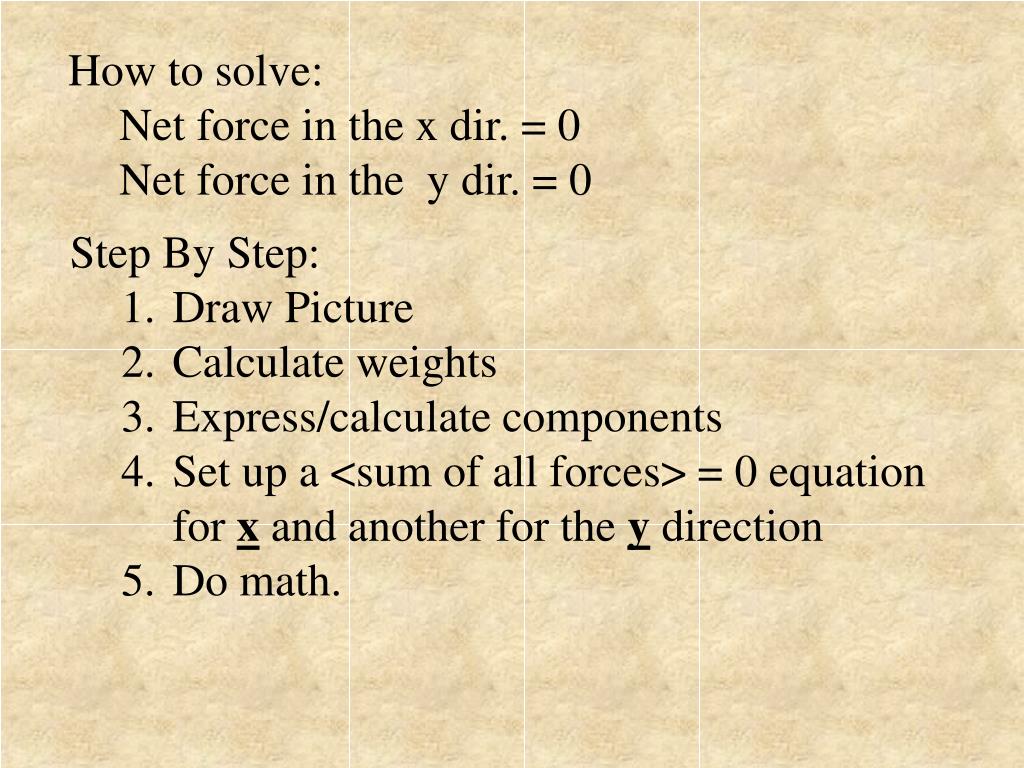

  3. How to solve: • Net force in the x dir. = 0 • Net force in the y dir. = 0 • Step By Step: • Draw Picture • Calculate weights • Express/calculate components • Set up a <sum of all forces> = 0 equation for x and another for the y direction • Do math.

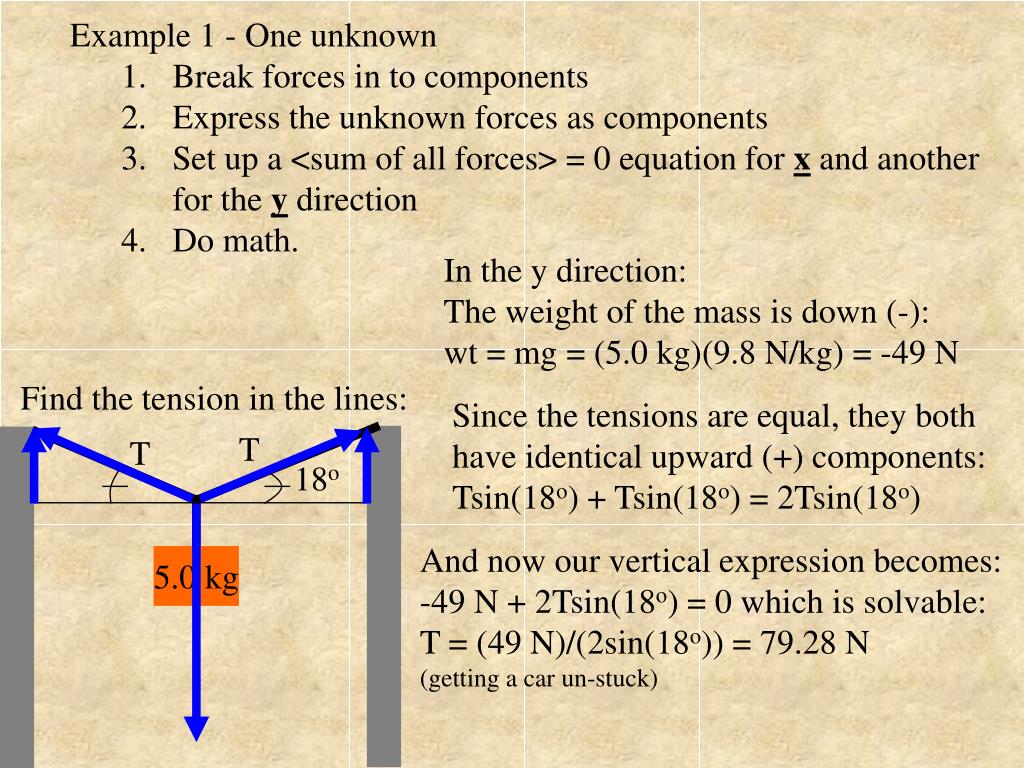

  4. In the y direction: The weight of the mass is down (-): wt = mg = (5.0 kg)(9.8 N/kg) = -49 N Find the tension in the lines: Since the tensions are equal, they both have identical upward (+) components: Tsin(18o) + Tsin(18o) = 2Tsin(18o) T T 18o 5.0 kg • Example 1 - One unknown • Break forces in to components • Express the unknown forces as components • Set up a <sum of all forces> = 0 equation for x and another for the y direction • Do math. And now our vertical expression becomes: -49 N + 2Tsin(18o) = 0 which is solvable: T = (49 N)/(2sin(18o)) = 79.28 N (getting a car un-stuck)

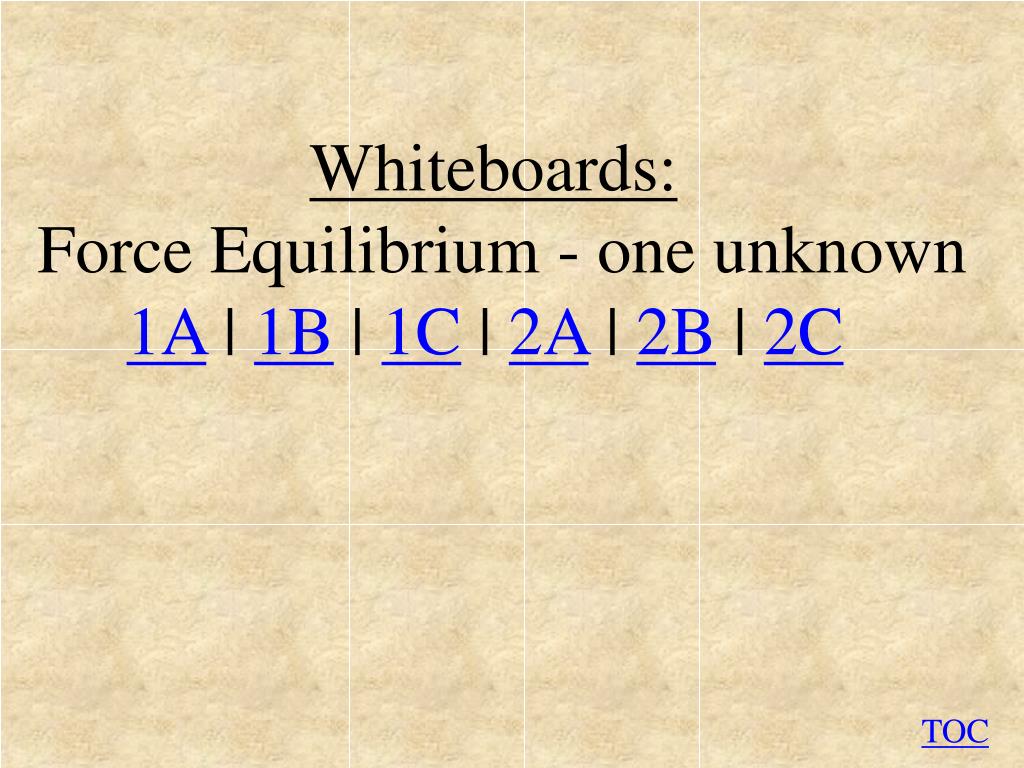

  5. Whiteboards: Force Equilibrium - one unknown 1A | 1B | 1C | 2A | 2B | 2C TOC

  6. y Fx Step 1 - Set up your horizontal equation. Call the horizontal component of the unknown force Fx, Solve for Fx B = 14 N A = 23 N 56o 29o x  Find F, and  F Ax = (23 N)cos(29o) = 20.12 N x, Bx = -(14 N)cos(56o) = -7.83 N X direction: 20.12 N - 7.83 N + Fx = 0, Fx = -12.29 N W 20.12 N - 7.83 N + Fx = 0, Fx = -12.29 N

  7. y Step 2 - Set up your vertical equation. Call the vertical component of the unknown force Fy , Solve for Fy B = 14 N A = 23 N 56o 29o x  Find F, and  F Ay = (23 N)sin(29o) = 11.15 N , By = (14 N)sin(56o) = 11.61 N Y direction: 11.15 N + 11.61 N + Fy = 0, Fy = -22.76 N W 11.15 N + 11.61 N + Fy = 0, Fy = -22.76 N

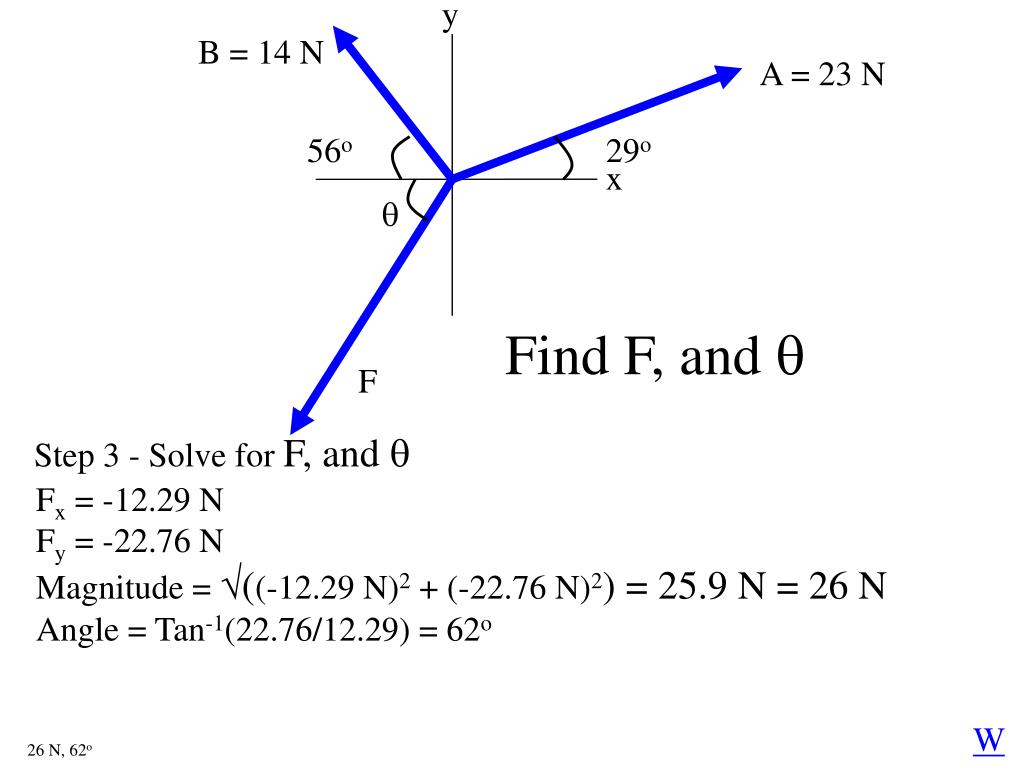

  8. y B = 14 N A = 23 N 56o 29o x  Find F, and  F Step 3 - Solve for F, and  Fx = -12.29 N Fy = -22.76 N Magnitude = ((-12.29 N)2 + (-22.76 N)2) = 25.9 N = 26 N Angle = Tan-1(22.76/12.29) = 62o W 26 N, 62o

  9. Step 1 - Set up the horizontal equation, using T as the tension in the cables: T T 25.0o 25.0o Find the horizontal force acting on the walls 15.0 kg The two cables have identical horizontal components Tcos(25o) that cancel out, one to the right, and one to the left: Tcos(25o) - Tcos(25o) = 0 W Tcos(25o) - Tcos(25o) = 0

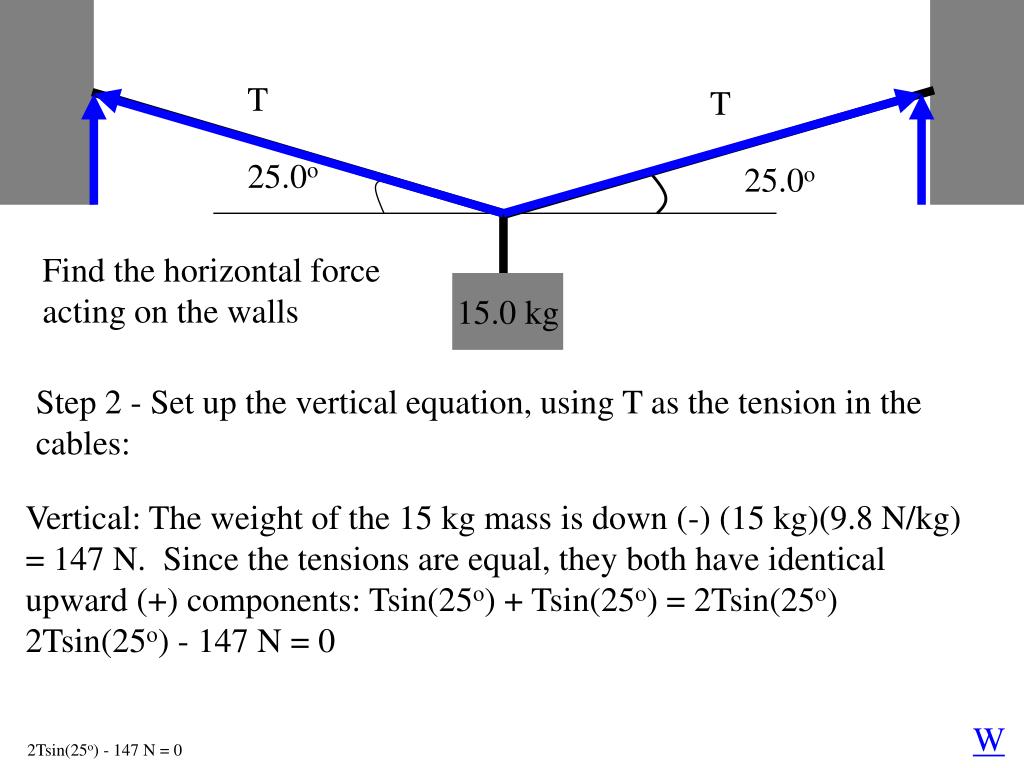

  10. Step 2 - Set up the vertical equation, using T as the tension in the cables: T T 25.0o 25.0o Find the horizontal force acting on the walls 15.0 kg Vertical: The weight of the 15 kg mass is down (-) (15 kg)(9.8 N/kg) = 147 N. Since the tensions are equal, they both have identical upward (+) components: Tsin(25o) + Tsin(25o) = 2Tsin(25o) 2Tsin(25o) - 147 N = 0 W 2Tsin(25o) - 147 N = 0

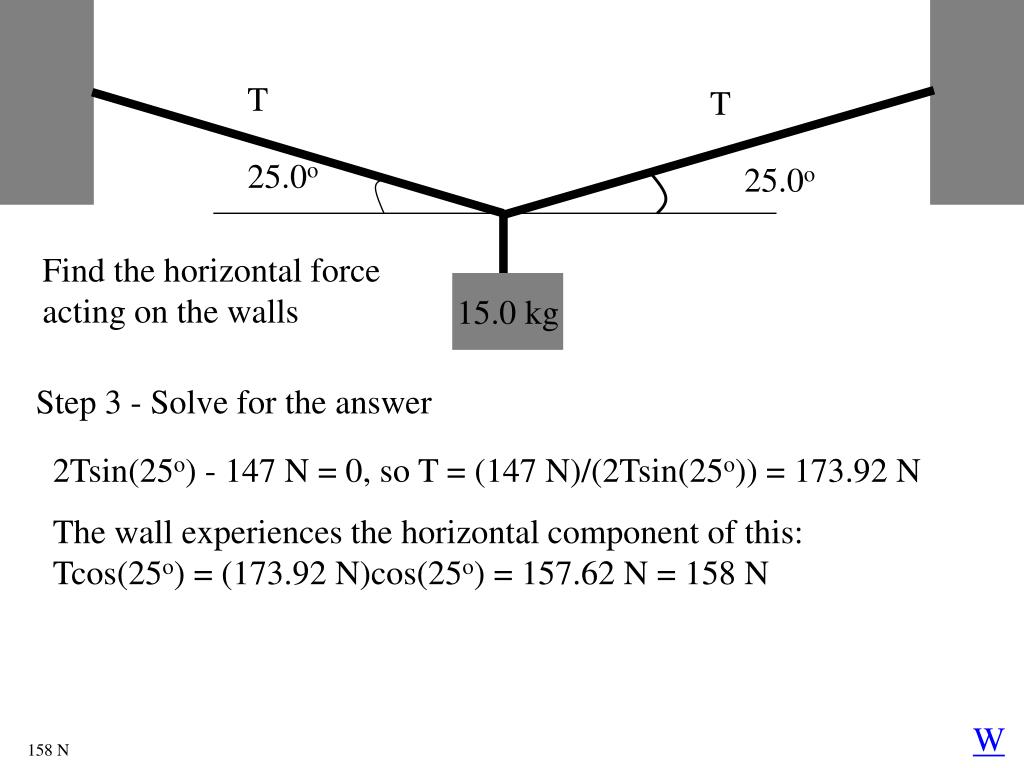

  11. T T 25.0o 25.0o Find the horizontal force acting on the walls 15.0 kg Step 3 - Solve for the answer 2Tsin(25o) - 147 N = 0, so T = (147 N)/(2Tsin(25o)) = 173.92 N The wall experiences the horizontal component of this:Tcos(25o) = (173.92 N)cos(25o) = 157.62 N = 158 N W 158 N

  12. In the y direction: T1 = (12.5 kg)(9.8 N/kg) = 122.5 N (down) Find the tensions T1, T2, and T3 T2 has an upward component: T2 sin(40o) T2 T3 T3 also has an upward component: T3 sin(20o) 40o 20o T1 12.5 kg • Step By Step: - Two unknowns • Break all forces into components • Express the unknown forces as components • Set up a <sum of all forces> = 0 equation for x and another for the y direction • Do math. So our expression becomes: T2 sin(40o) + T3 sin(20o) - 122.5 N = 0 (Making up positive)

  13. In the x direction: T2 has an leftward (-) component: T2 cos(40o) Find the tensions T1, T2, and T3 T3 has an rightward (+) component: T3 cos(20o) T2 T3 40o 20o T1 12.5 kg • Step By Step: • Take all the given forces and break them into components • Express the unknown forces as components • Set up a <sum of all forces> = 0 equation for x and another for the y direction • Do math. So our expression becomes: T3 cos(20o) - T2 cos(40o) = 0 (Making right positive)

  14. Now it’s MATH time!!!!! • Two equations, two unknowns: • T3 cos(20o) - T2 cos(40o) = 0 • T2 sin(40o) + T3 sin(20o) - 122.5 N = 0 • Re-Write them like this: • -cos(40o) T2 + cos(20o) T3 = 0 • sin(40o) T2 + sin(20o) T3 = 122.5 N • Matrices: • A B • [-cos(40o) , cos(20o)] [T2] = [0 ] • [ sin(40o) ,sin(20o)] [T3] = [122.5 N] • The answer is [A]-1[B]

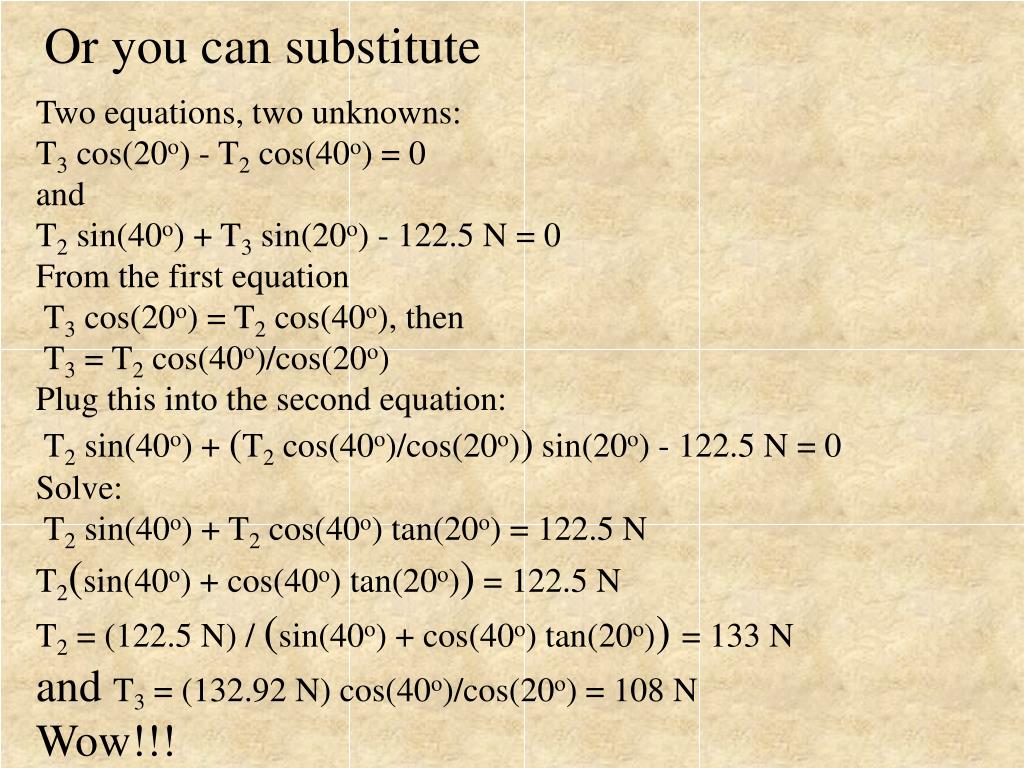

  15. Or you can substitute Two equations, two unknowns: T3 cos(20o) - T2 cos(40o) = 0 and T2 sin(40o) + T3 sin(20o) - 122.5 N = 0 From the first equation T3 cos(20o) = T2 cos(40o), then T3 = T2 cos(40o)/cos(20o) Plug this into the second equation: T2 sin(40o) + (T2 cos(40o)/cos(20o)) sin(20o) - 122.5 N = 0 Solve: T2 sin(40o) + T2 cos(40o) tan(20o) = 122.5 N T2(sin(40o) + cos(40o) tan(20o)) = 122.5 N T2 = (122.5 N) / (sin(40o) + cos(40o) tan(20o)) = 133 N and T3 = (132.92 N) cos(40o)/cos(20o) = 108 N Wow!!!

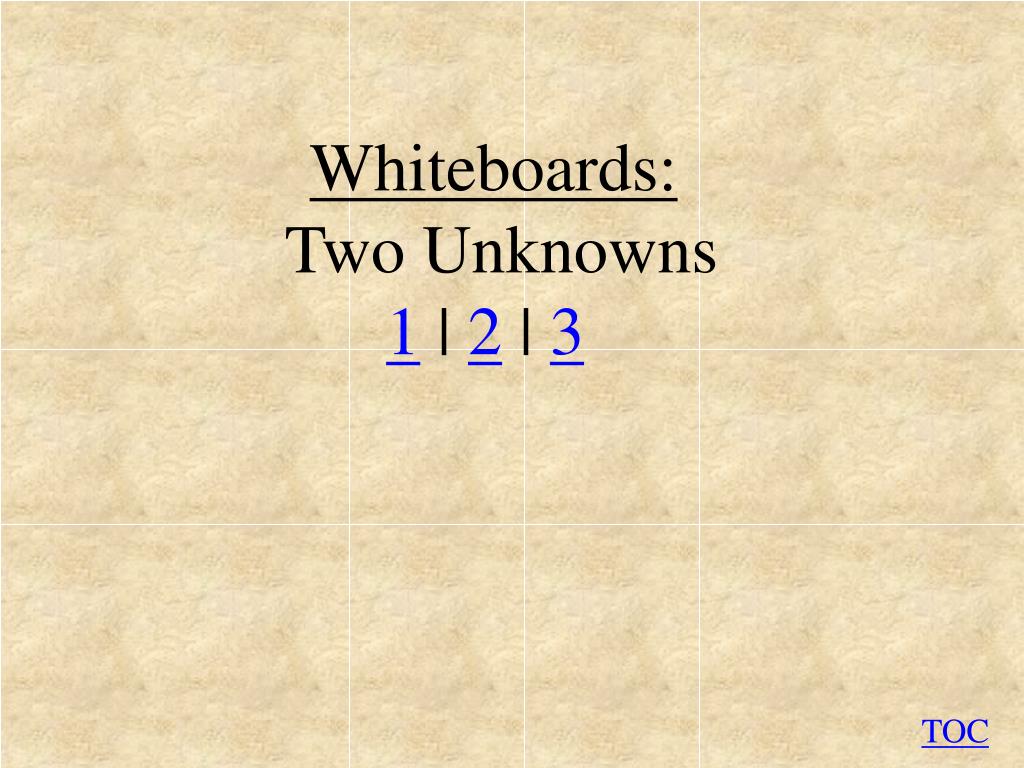

  16. Whiteboards: Two Unknowns 1 | 2 | 3 TOC

  17. y B = ? A ? 61o 31o x 81o Find A and B 34.0 N Step 1 - Set up the horizontal equation -(34.0 N)cos(81o) = -5.319 N, +Acos(31o), -Bcos(61o): -5.319 N + Acos(31o) - Bcos(61o) = 0 W -5.319 N + Acos(31o) - Bcos(61o) = 0

  18. y B = ? A ? 61o 31o x 81o Find A and B 34.0 N Step 2 - Set up the vertical equation -(34.0 N)sin(81o) = -33.581 N, +Asin(31o), +Bsin(61o): -33.581 N + Asin(31o) + Bsin(61o) = 0 W -33.581 N + Asin(31o) + Bsin(61o) = 0

  19. Step 3 - Do Math: -33.581 N + Asin(31o) + Bsin(61o) = 0 -5.319 N + Acos(31o) - Bcos(61o) = 0 Substitution: -33.581 N + Asin(31o) + Bsin(61o) = 0, A = (33.581 N-Bsin(61o))/sin(31o) -5.319 N + Acos(31o) - Bcos(61o) = 0, substituting: -5.319 N + {(33.581 N-Bsin(61o))/sin(31o)}cos(31o) - Bcos(61o) = 0 -5.319 N + (33.581 N)/tan(31o) - Bsin(61o)/tan(31o) - Bcos(61o) = 0 B = 26.061 = 26 N, A = 21 N • Matrices: • Asin(31o) + Bsin(61o) = 33.581 N • Acos(31o) - Bcos(61o) = 5.319 N • J K • [sin(31o) , sin(61o)] [A] = [33.581 N] • [cos(31o) ,cos(61o)] [B] = [5.319 N ] • Answer matrix will be [J]-1[K] W B = 26 N, A = 21 N
